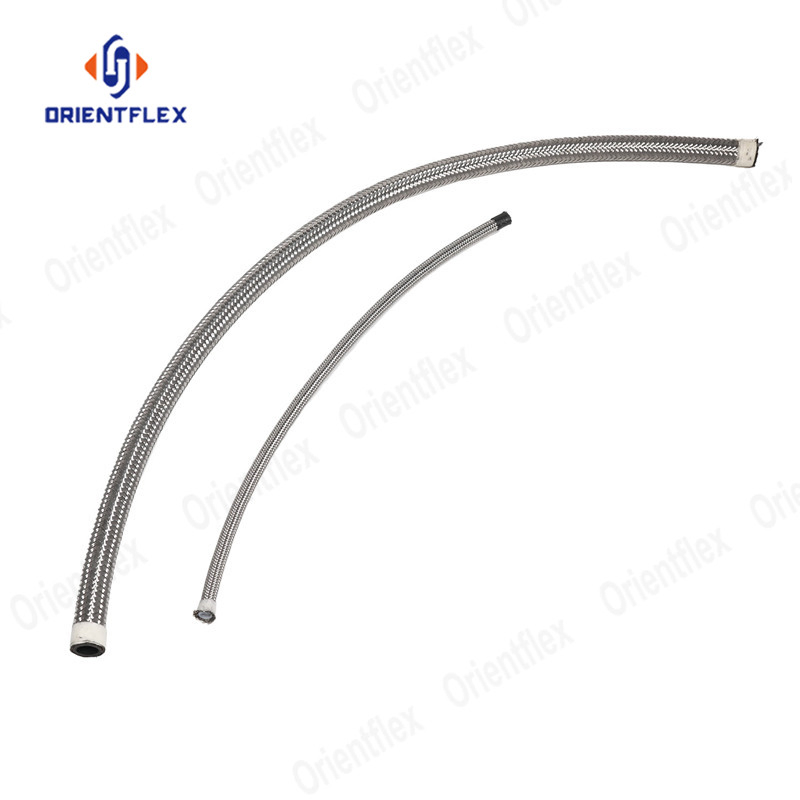

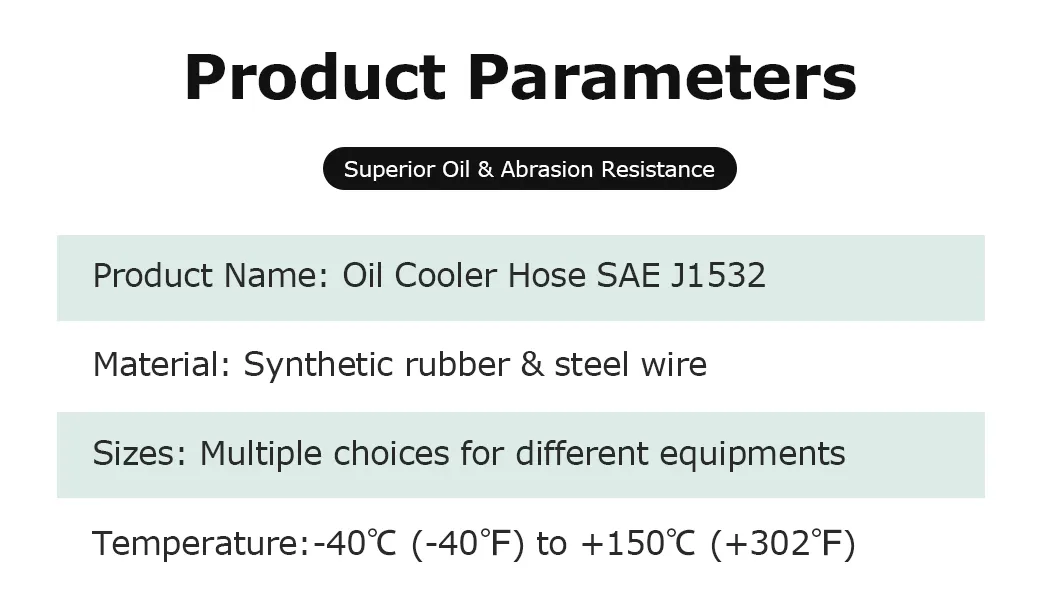

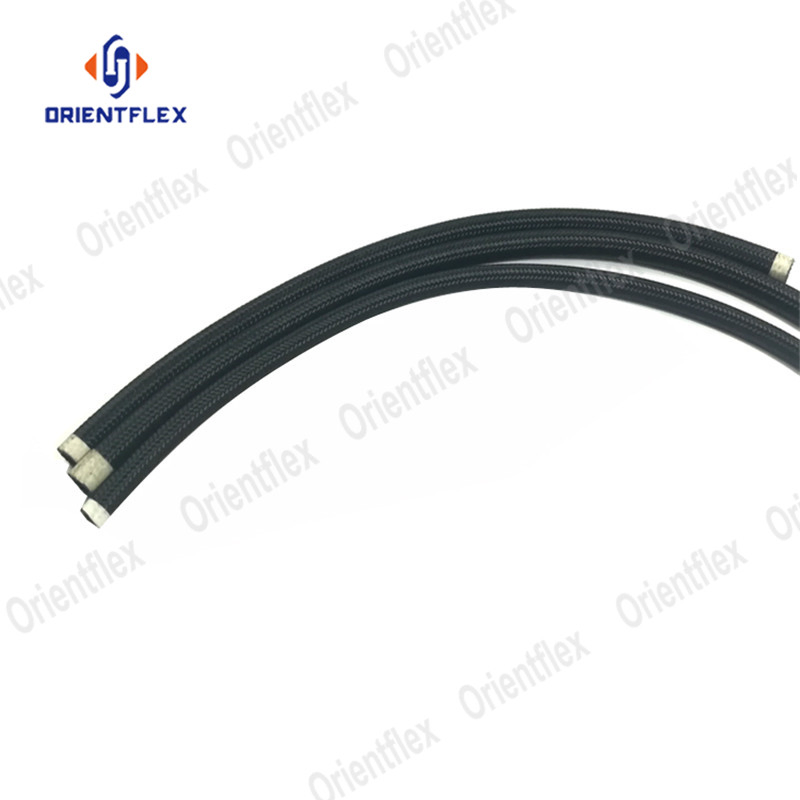

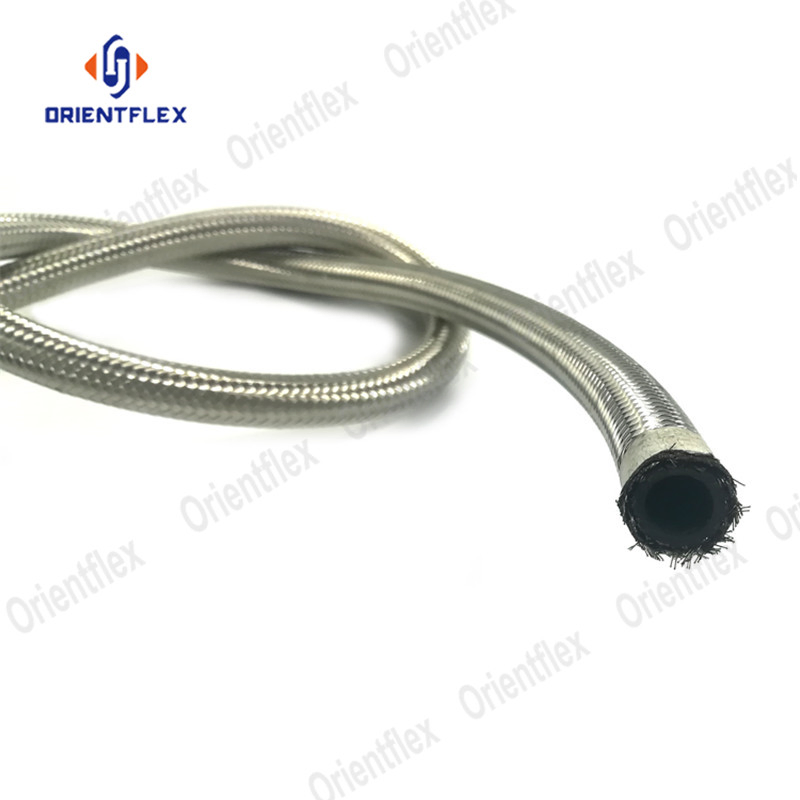

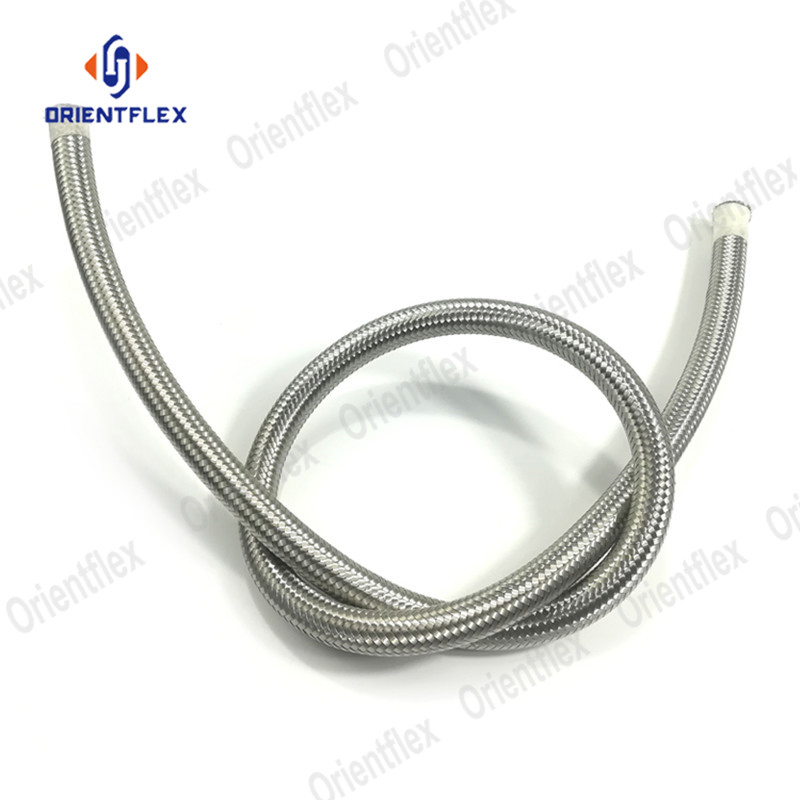

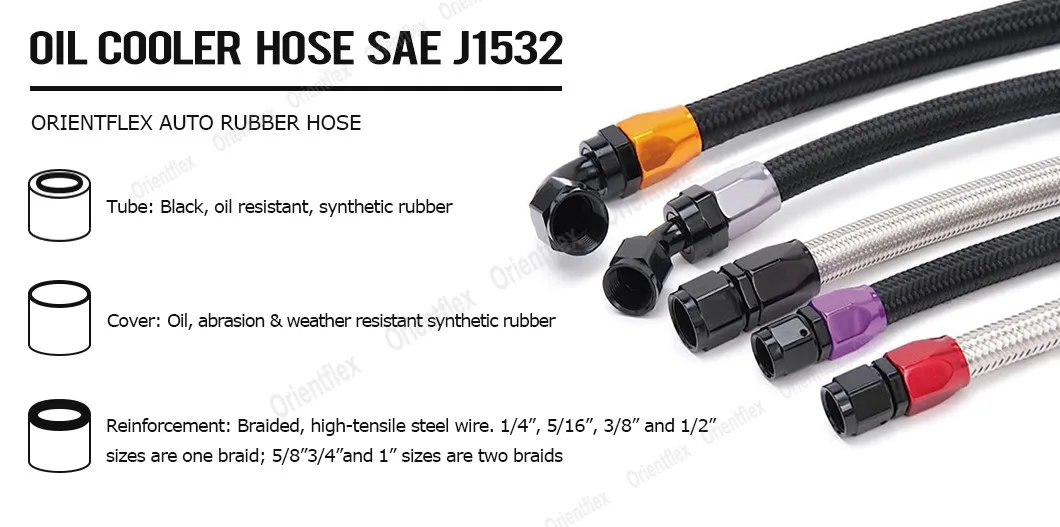

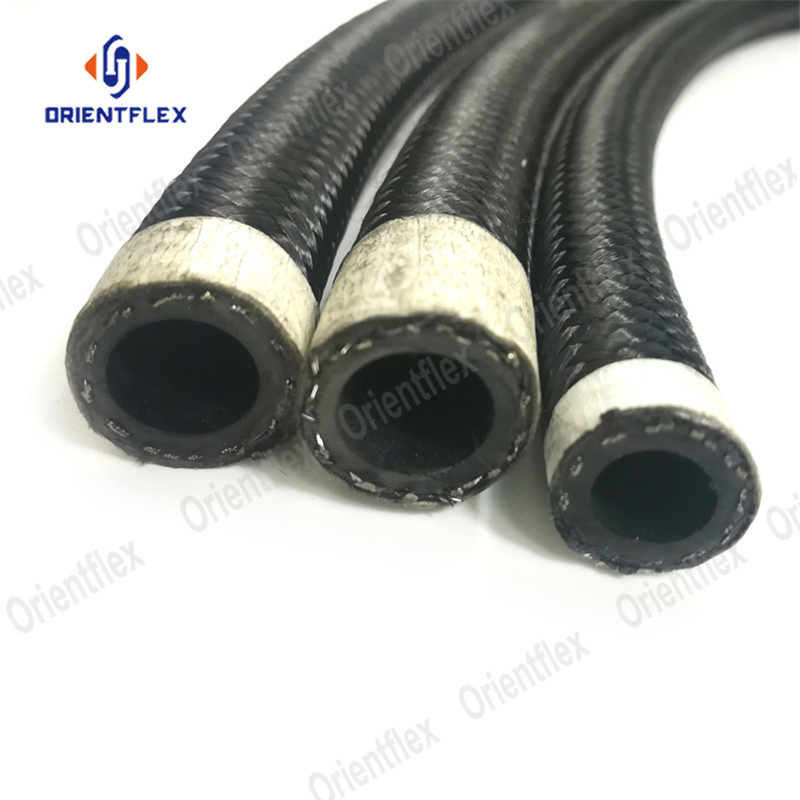

The oil cooler hose circulates oil between the oil cooler and engine. Such auto hose helps keep the engine from overheating. If the hose fails, you may experience oil leaking from the hose or a low oil warning light. The oil cooler hose consists of a synthetic rubber inner tube with a partial stainless steel reinforcement inner braid. There is a stainless steel braid on the outside, making it exceptionally lightweight, flexible, and durable.

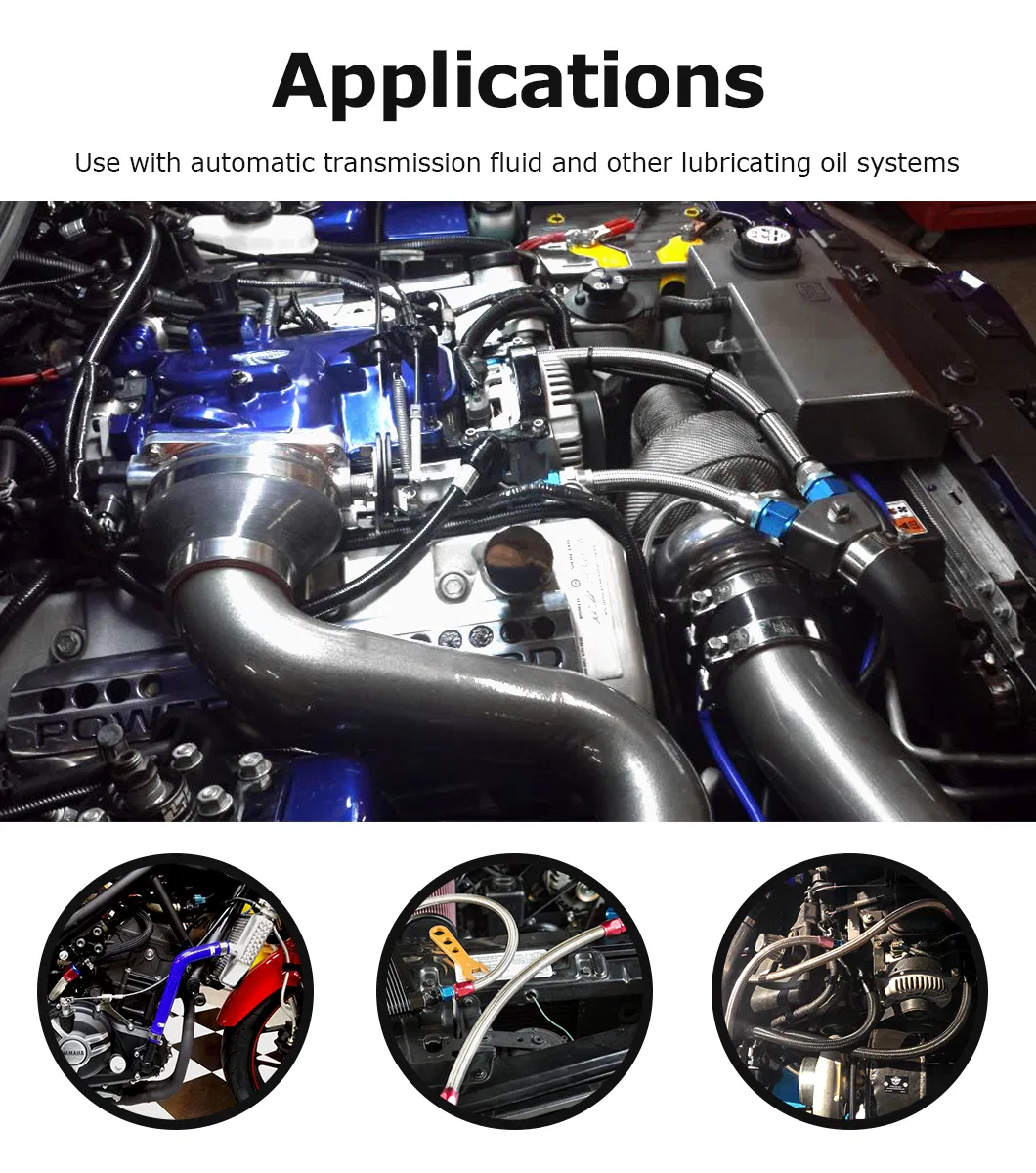

Designed for use with automatic transmission fluid and other lubricating oil systems.
| Item Code | I.D (mm) | O.D (mm) | W.P (Mpa) | B.P (Mpa) |
|---|---|---|---|---|
| An04 | 5.56 | 11.13 | 7 | 42 |
| An06 | 8.73 | 13.89 | 7 | 42 |
| An08 | 11.12 | 16.28 | 7 | 35 |
| An10 | 14.27 | 20.24 | 7 | 35 |
| An12 | 17.47 | 23.82 | 7 | 26.3 |
| An16 | 22.22 | 29.96 | 5.2 | 17.5 |
| An20 | 28.5 | 35.81 | 5.2 | 17.5 |
