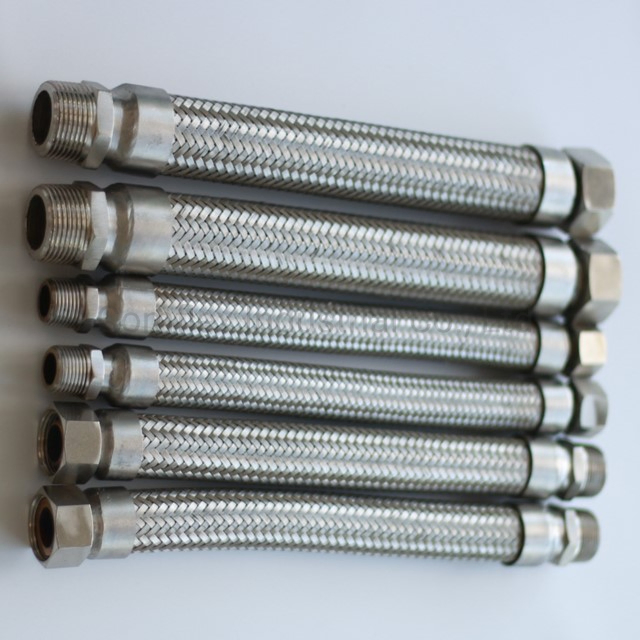

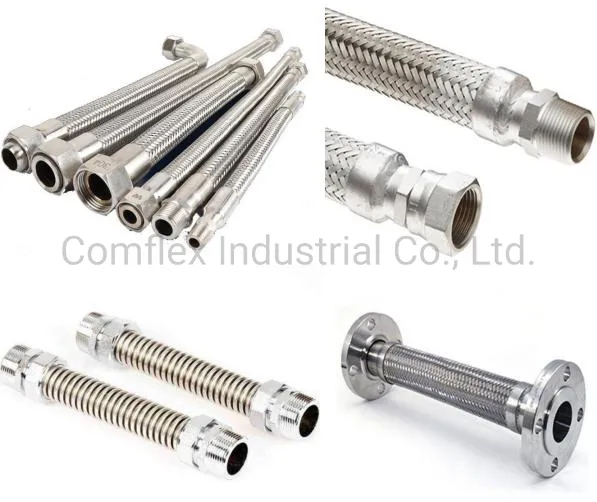

Corrugated Metal Hoses with Braided Stainless Steel Protection
Flexible metal hoses are essential for systems handling water, steam, hot oil, and gas. Designed for high-pressure resistance and structural flexibility, these hoses are ideal for conducting liquids, compensating for installation misalignments, and absorbing vibrations or thermal expansions.
Material Specifications:
| DN (mm) | ID (mm) | OD (mm) | Pitch (mm) | Wall Thickness | Weight (KG/M) |
|---|---|---|---|---|---|
| 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 32 | 31.4 | 40 | 5.5 | 0.3 | 0.6 |
| 40 | 39.4 | 50 | 6 | 0.3 | 0.75 |
| 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 80 | 79.2 | 98 | 10.5 | 0.4 | 2 |
| 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 150 | 149 | 180 | 17.5 | 0.5 | 4.3 |
| 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |
| 300 | 298 | 355 | 33.5 | 1 | 17.5 |
| 400 | 397.6 | 460 | 40 | 1.2 | 25 |

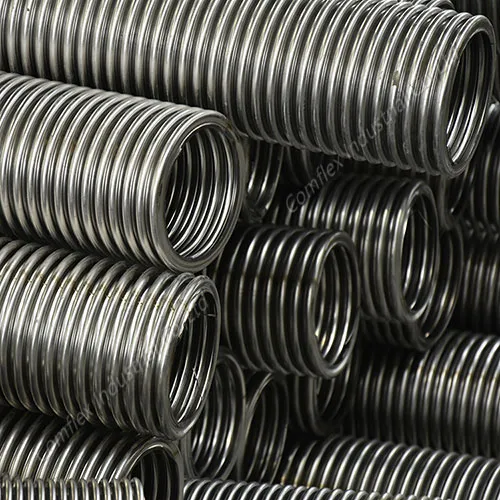

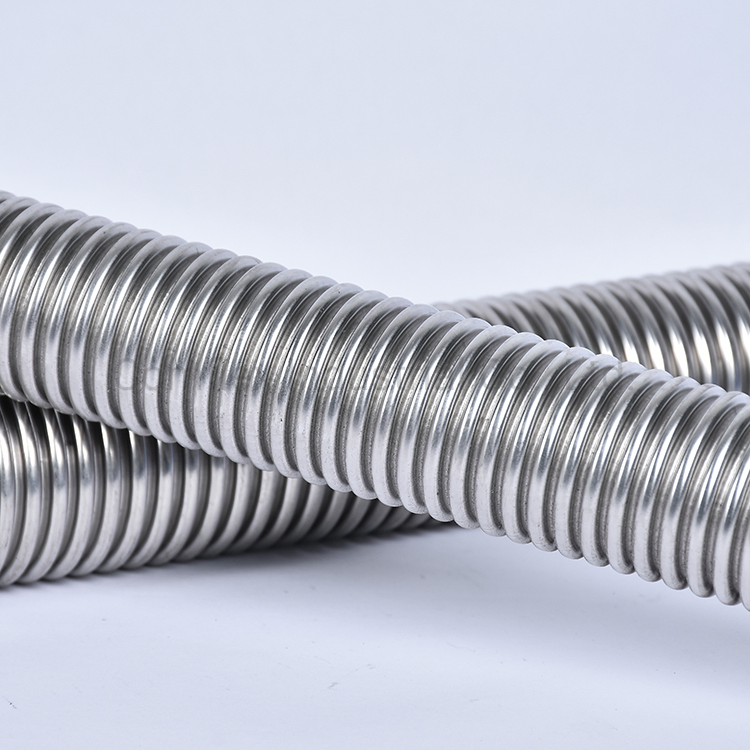

Inner Core: Corrugated Stainless Steel (304, 321, 316L). Tubes are formed into parallel corrugations for maximum flexibility.

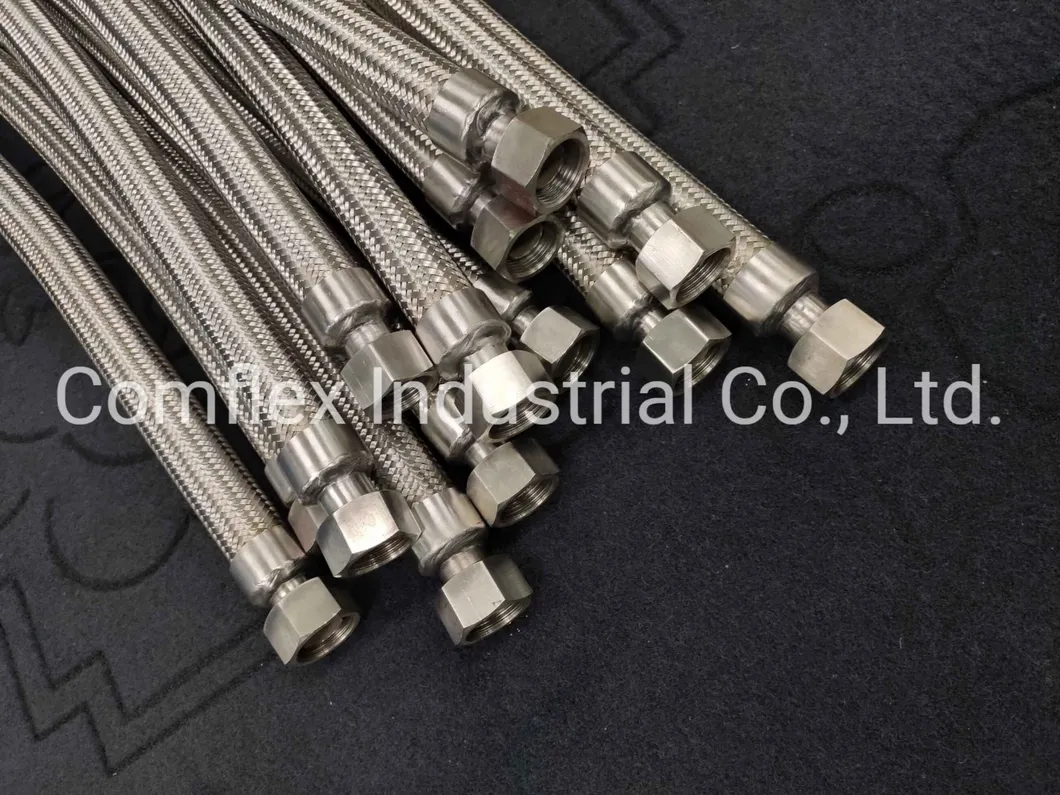

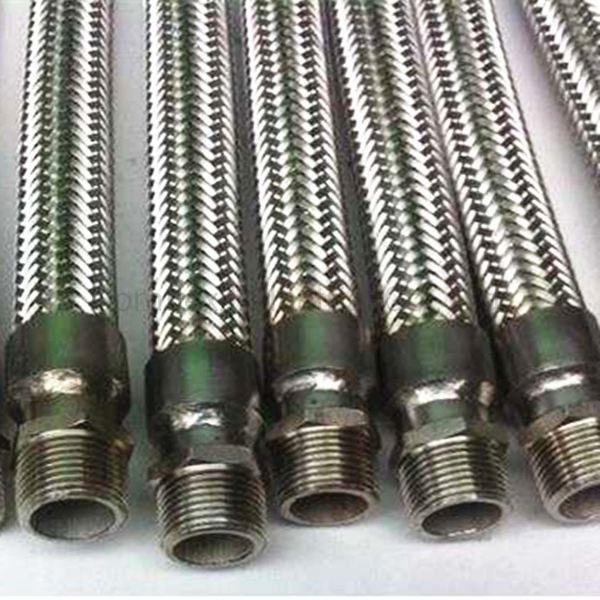

Outer Core: Braided Stainless Steel Layers (304). Available with no layers, single, or double braiding to handle various pressure conditions.

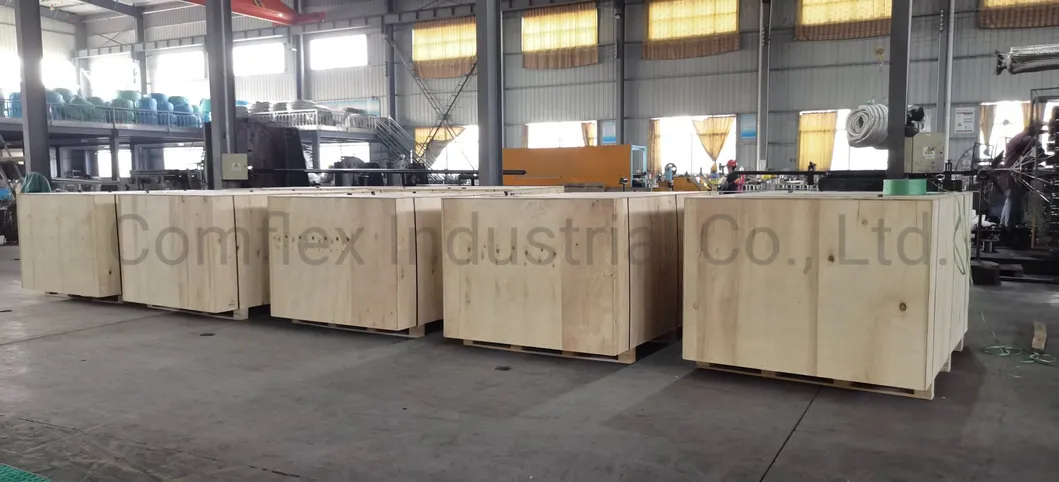

We provide strong steel frames and firm plywood boxes suitable for sea or air transportation.
