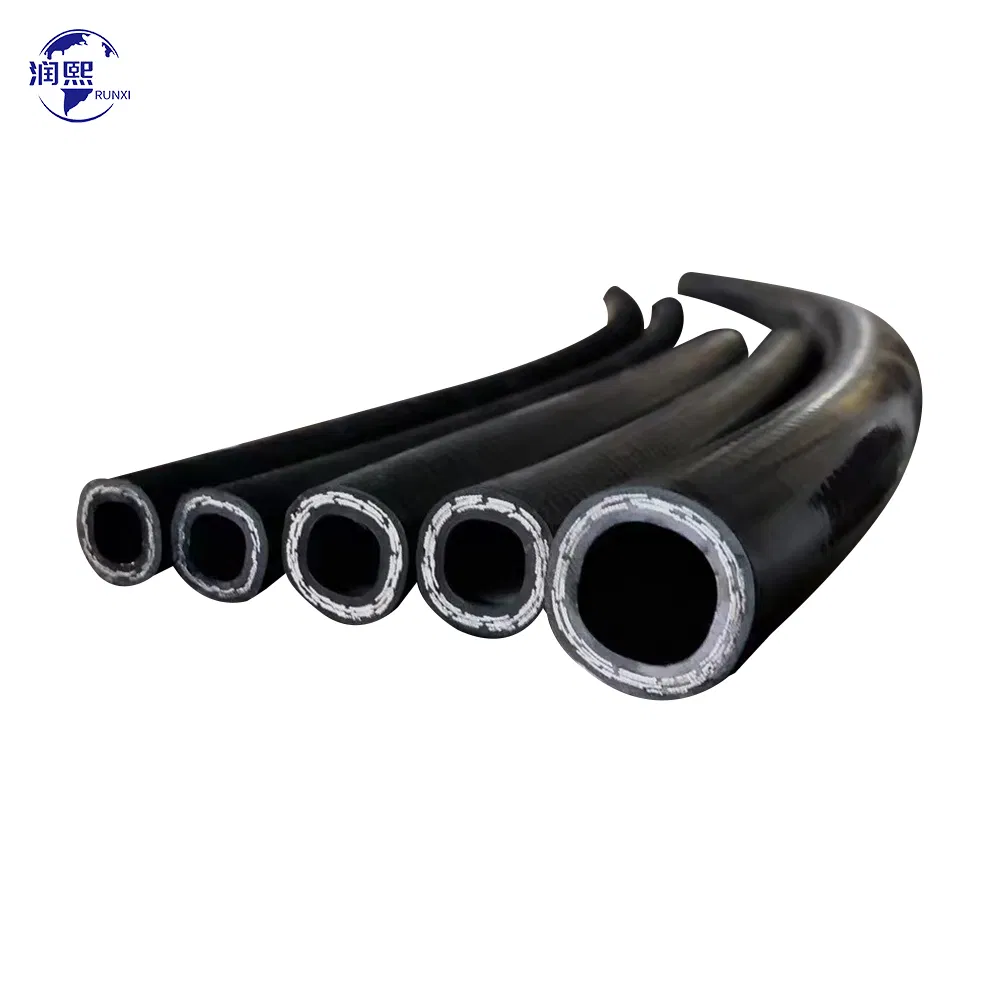

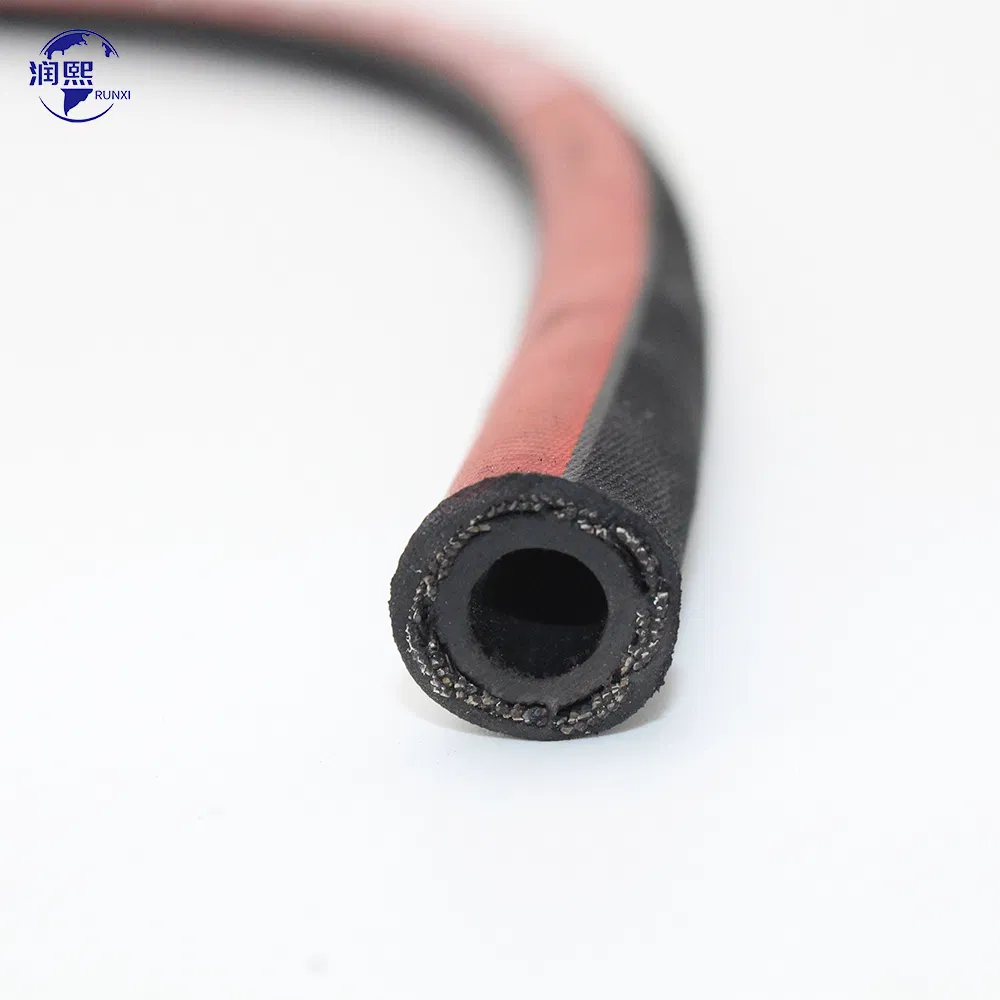

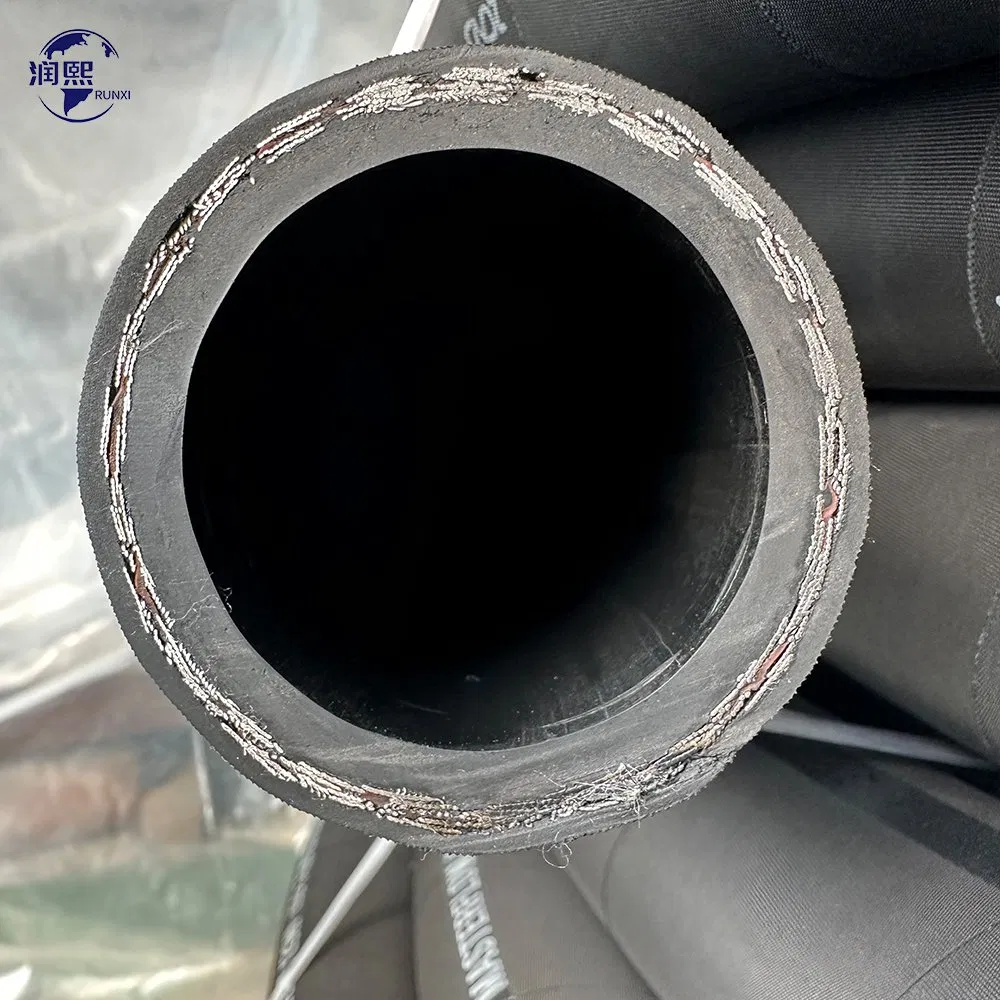

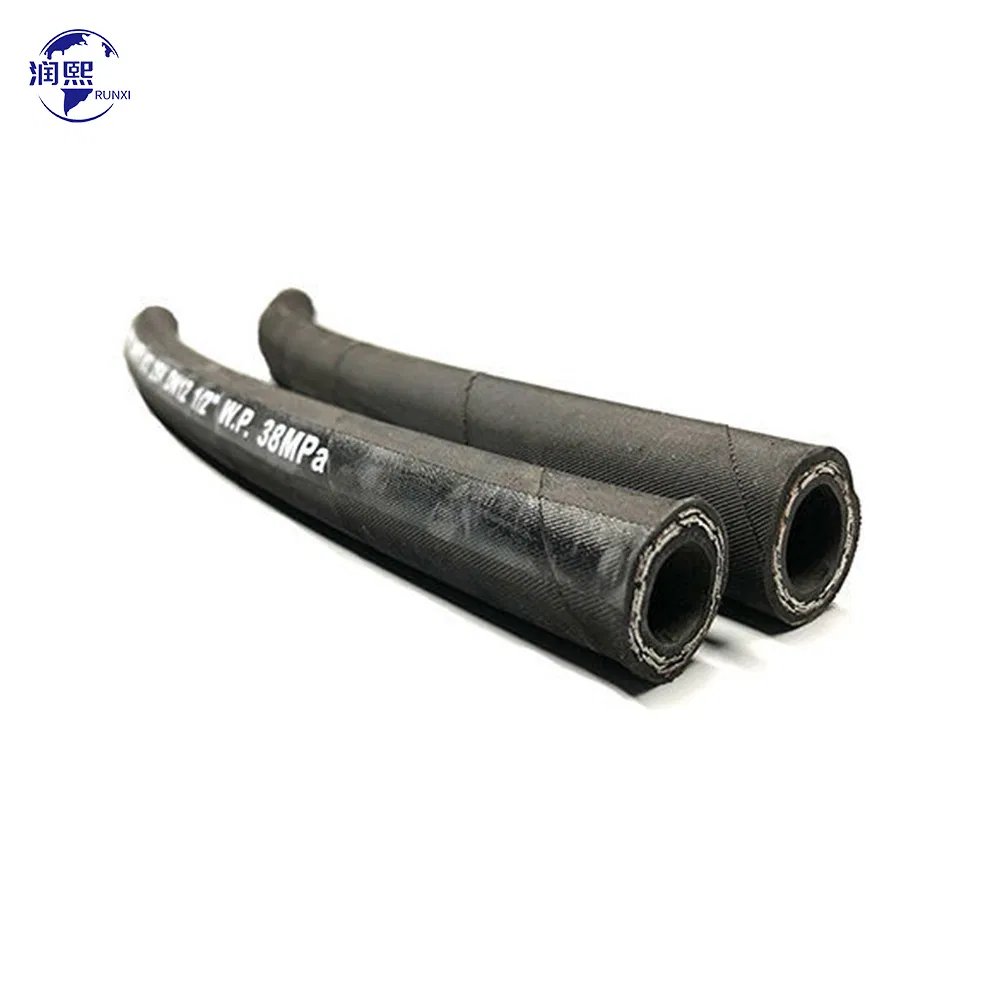

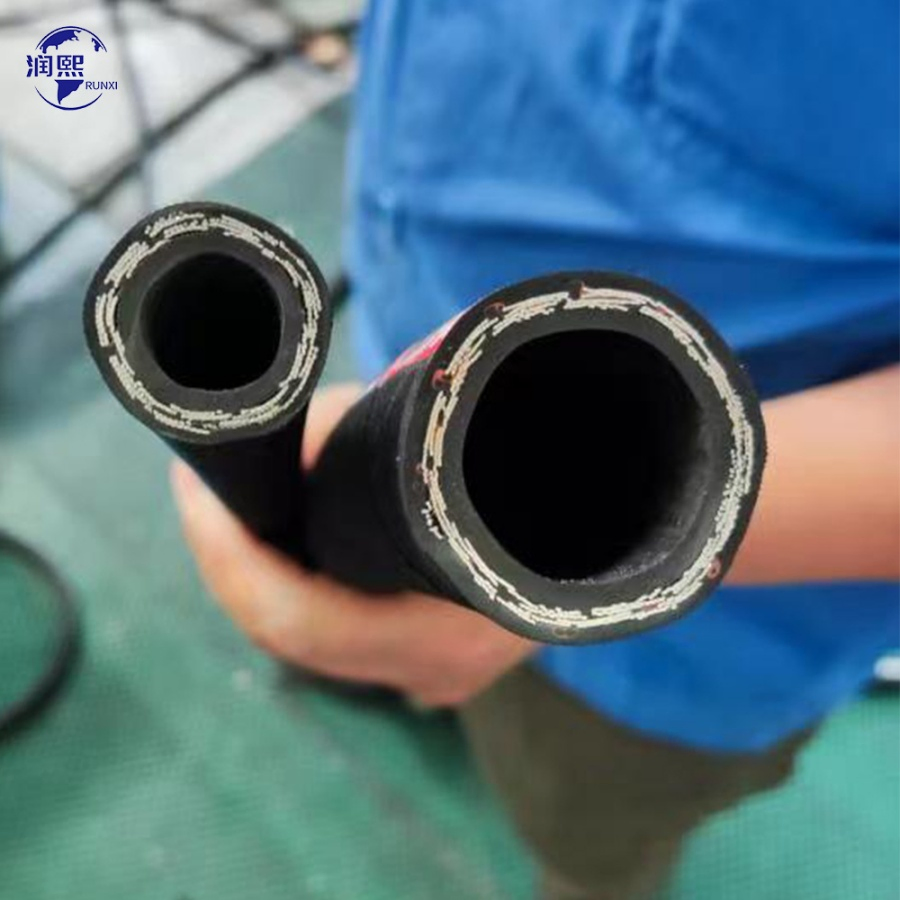

This high-pressure hose is engineered with a multi-layer construction consisting of an internal rubber core, middle rubber reinforcement, 2, 4, or 6 layers of high-tensile wire-wood, and a durable external rubber cover.
Hydraulic Hose Size Chart (SAE 100R2AT / EN853 2SN):
| Part No. | Size (inch) | I.D (mm) | O.D (mm) | W.P (bar) | B.P (bar) | Weight (g/m) |
|---|---|---|---|---|---|---|
| P04-2SN | 1/4″ | 6.4 | 14.5 | 400 | 1600 | 380 |
| P05-2SN | 5/16″ | 8 | 16.7 | 350 | 1400 | 435 |
| P06-2SN | 3/8″ | 9.5 | 19.2 | 330 | 1320 | 550 |
| P08-2SN | 1/2″ | 12.7 | 21.8 | 275 | 1100 | 640 |
| P10-2SN | 5/8″ | 16 | 25.4 | 250 | 1000 | 750 |
| P12-2SN | 3/4″ | 19 | 29.9 | 215 | 850 | 925 |
| P16-2SN | 1″ | 25.4 | 37.8 | 165 | 650 | 1290 |
| P20-2SN | 1 1/4″ | 31.8 | 46.4 | 125 | 500 | 1895 |
| P24-2SN | 1 1/2″ | 38.1 | 52.7 | 90 | 360 | 2120 |
| P32-2SN | 2″ | 50.8 | 65.4 | 80 | 320 | 2765 |
Hydraulic hoses are essential components used across a wide range of industries including construction, agriculture, mining, oil and gas, and transportation. Their high flexibility and pressure resistance make them indispensable for modern machinery.
Our products are exported to more than 30 countries worldwide, including Russia, USA, UK, Korea, Vietnam, UAE, and various regions across Africa and Asia. We are recognized globally for delivering excellent quality and competitive pricing. We emphasize professional development and continuous training to ensure our staff provides the best technical support.
Delivery time typically ranges from 3-5 days per container depending on order volume. We utilize high-quality neutral wearable woven bags and plastic film for standard packaging. Custom packaging solutions are available upon specific request to ensure products arrive in perfect condition.
A: Generally, we pack our goods in neutral white wearable woven bags. Branded box packaging is available with proper authorization for registered patents.
A: T/T 30% as deposit, and 70% before delivery. We provide photos of the products and packages before final payment.
A: We offer flexible delivery terms including EXW, FOB, CFR, CIF, and DDU to meet your logistics needs.
A: It usually takes 20 to 60 days after receiving your advance payment. The specific timeframe depends on the items and the order quantity.
A: Yes, our hydraulic hoses are designed to operate safely in temperatures ranging from -40 ºC to +100 ºC, suitable for most hydraulic fluids.
A: Absolutely. The outer rubber layer is made of specialized synthetic rubber that provides excellent weather and abrasion resistance for harsh environments.
