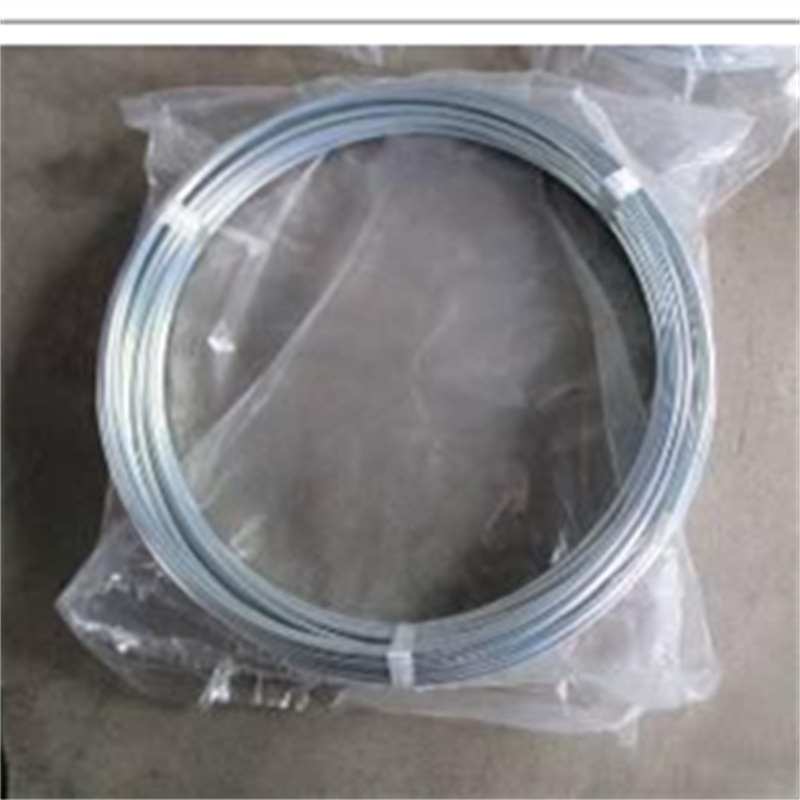

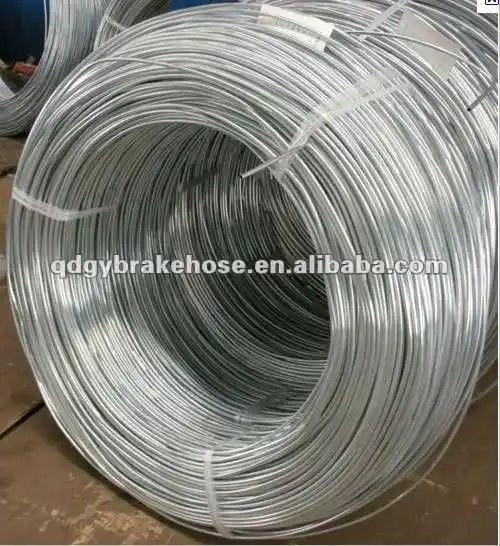

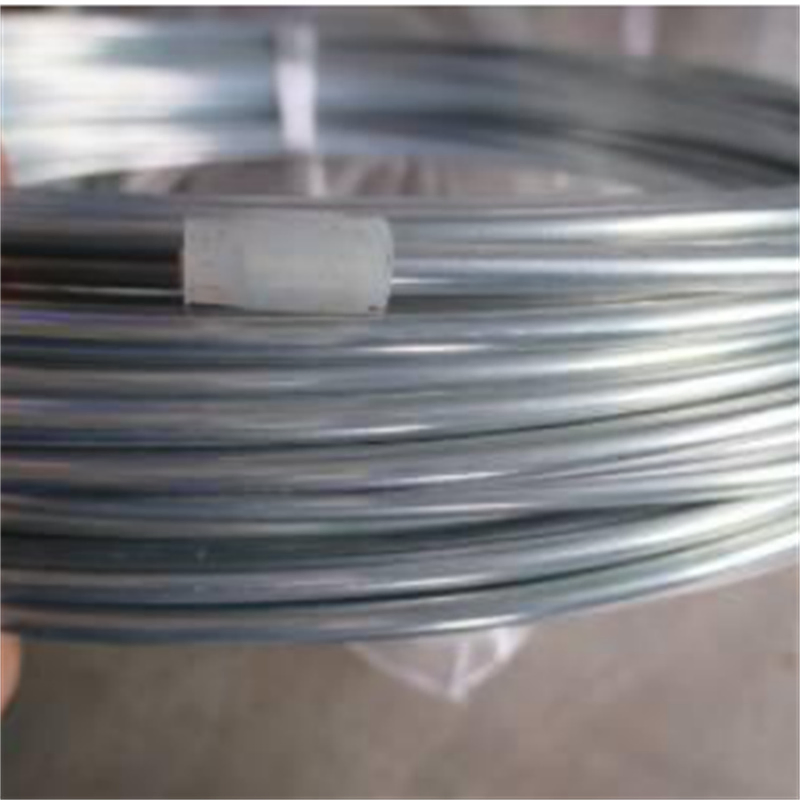

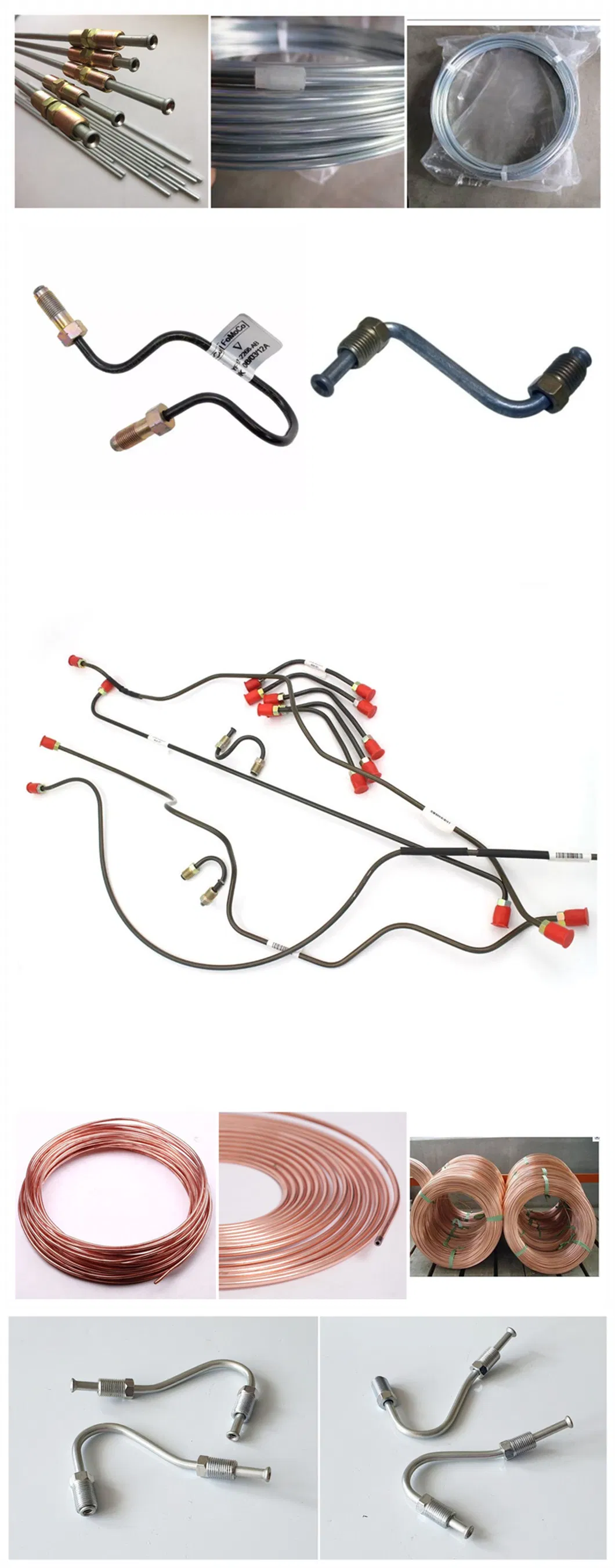

30 Meters Per Roll Double-wall Welded Steel Bundy Tube Flexible Brake Pipe

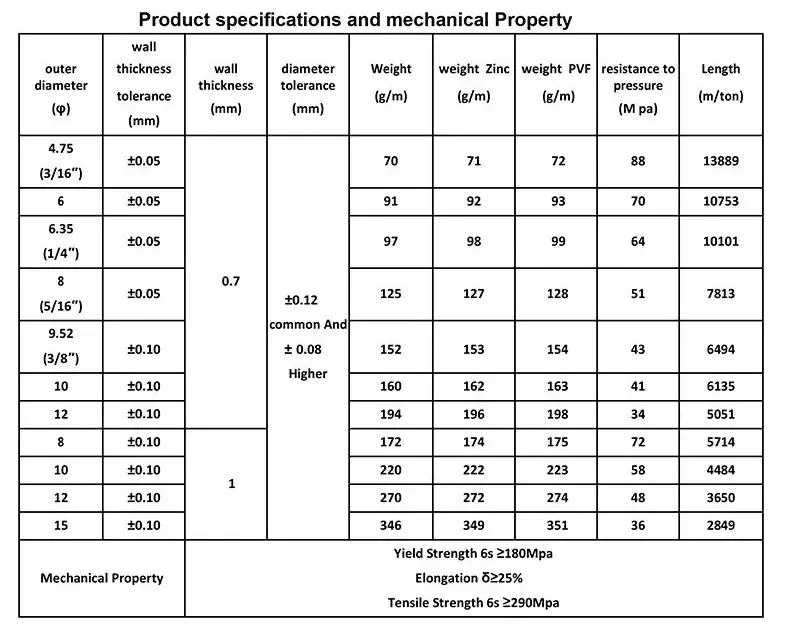

| Feature | Specifications |
|---|---|
| Product Name | Double wall Flexible Automotive Carbon Steel Brake Hose Oil Line Bundy Pipe |
| Out Diameter | 4.2 / 4.76 / 6.0 / 6.35 / 8 / 10 / 12.7mm |
| Material | Low Carbon Steel / BHG2 |

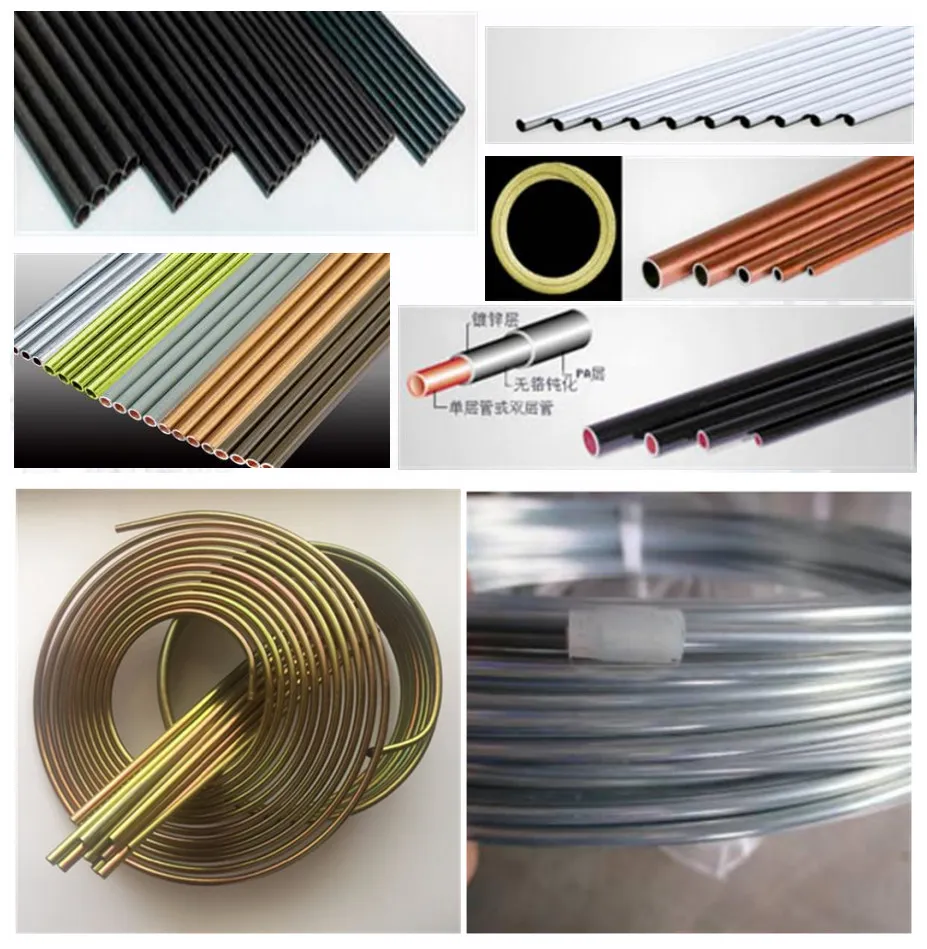

| Surface Treatment | White zinc, Olive-drab zinc, Colored zinc, PVF coated |
| Features | High Pressure resistance, High formability, High internal cleanliness |

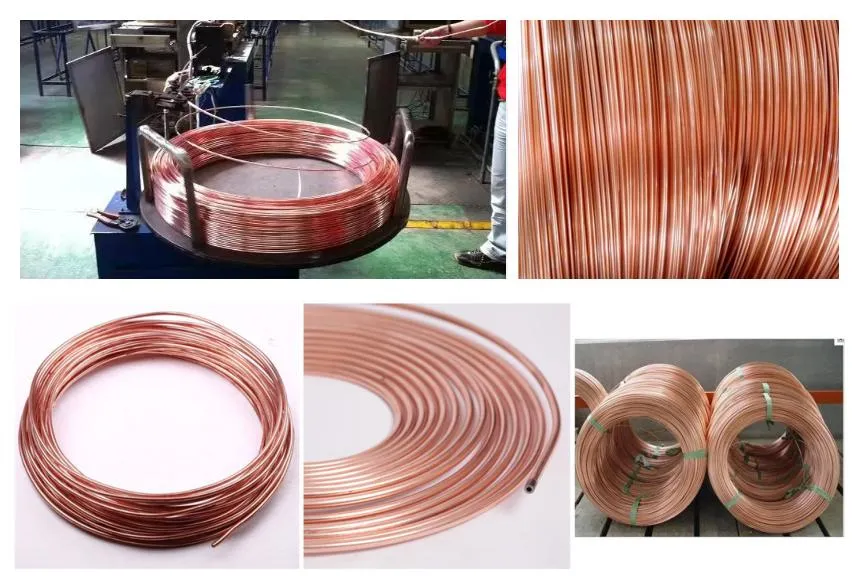

1. Double Wall Brazed Steel Tube: Coated copper on both sides, brazed after coiled at 720ºC. Features high strength, nice elongation, and anti-high pressure explosion properties.
2. Single Wall Welded Steel Tube: Coiled at 180ºC after high-frequency welding. Excellent mechanical properties for auto fuel and transmission tubes.
3. Specialized Coatings:
PVF Tube Trivalent chrome passivated. Salt spray test > 1000 hours.
PA12 Coating Highly corrosive resistance and anti-impact force.

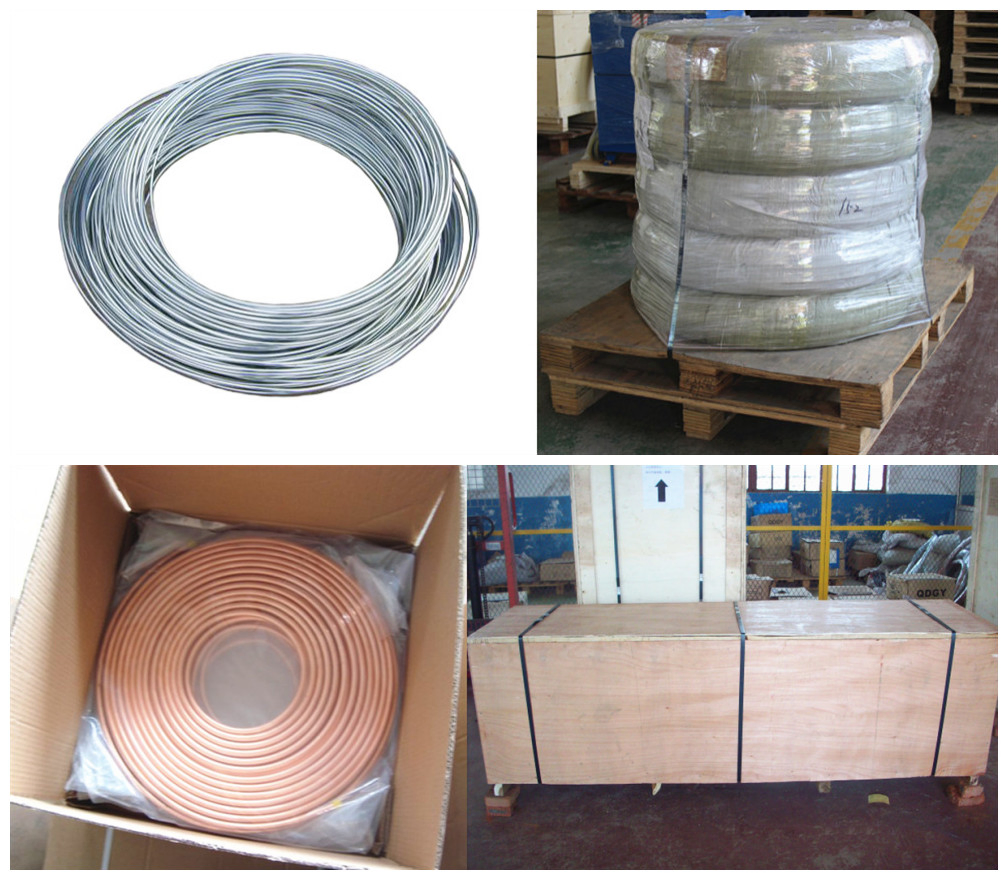

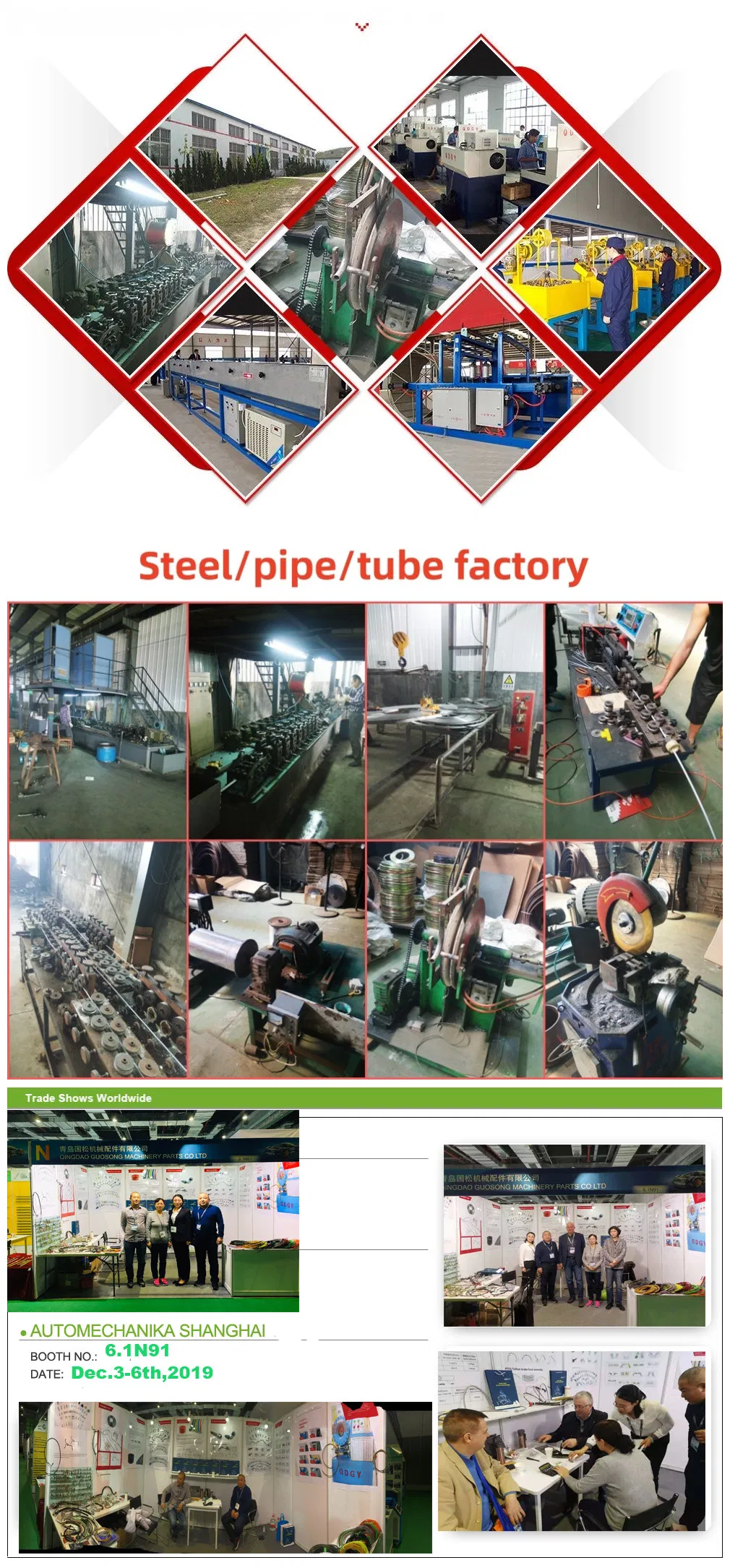

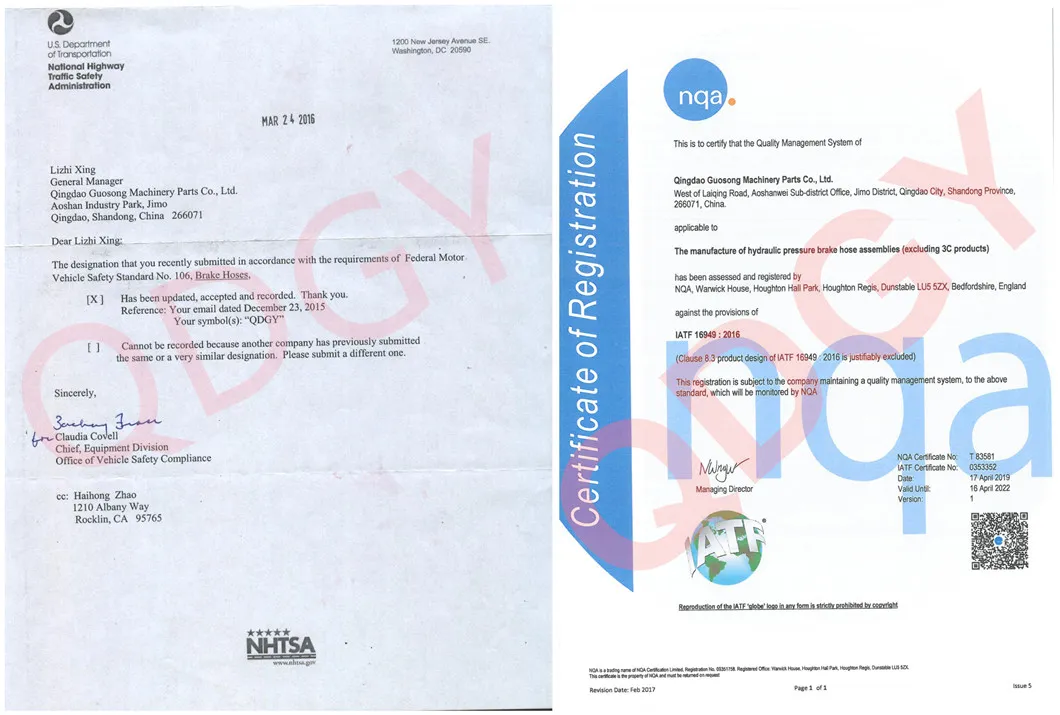

Products are manufactured under strict quality control systems including ISO9001:2015 and DOT SAE J1401 standards. Safety packaging is used to ensure products arrive in perfect condition.

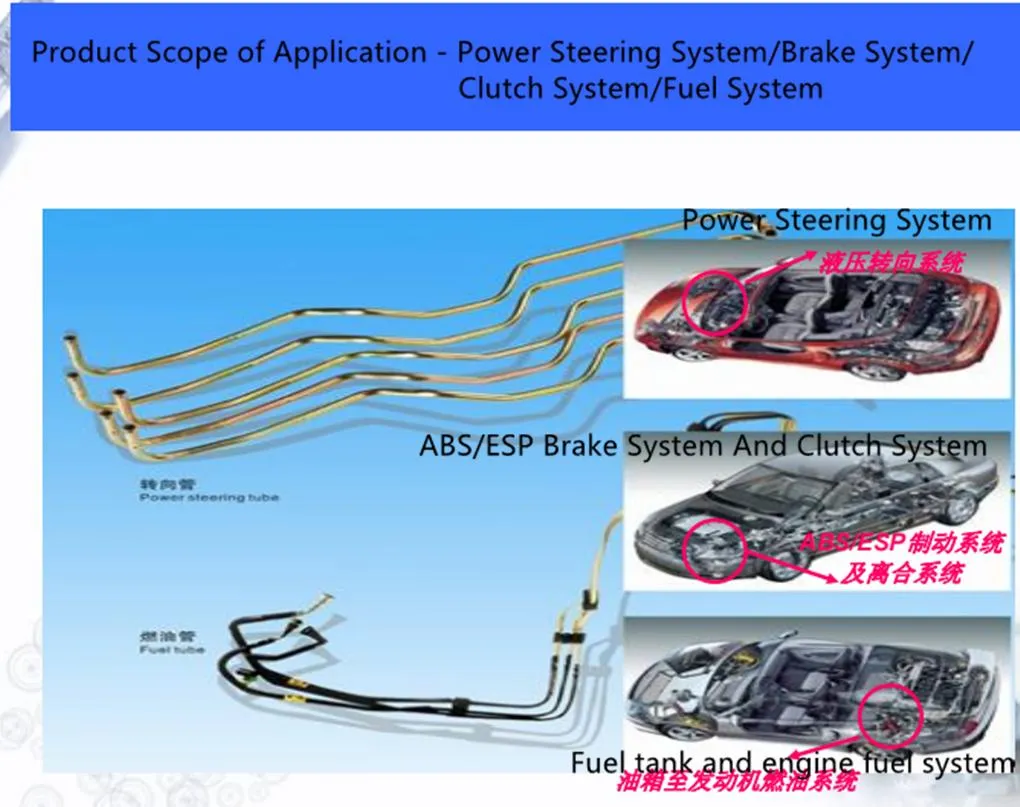

Our steel pipes are widely used in: Power Steering Systems, Brake Systems, Clutch Systems, and Fuel Systems for various global car brands.
