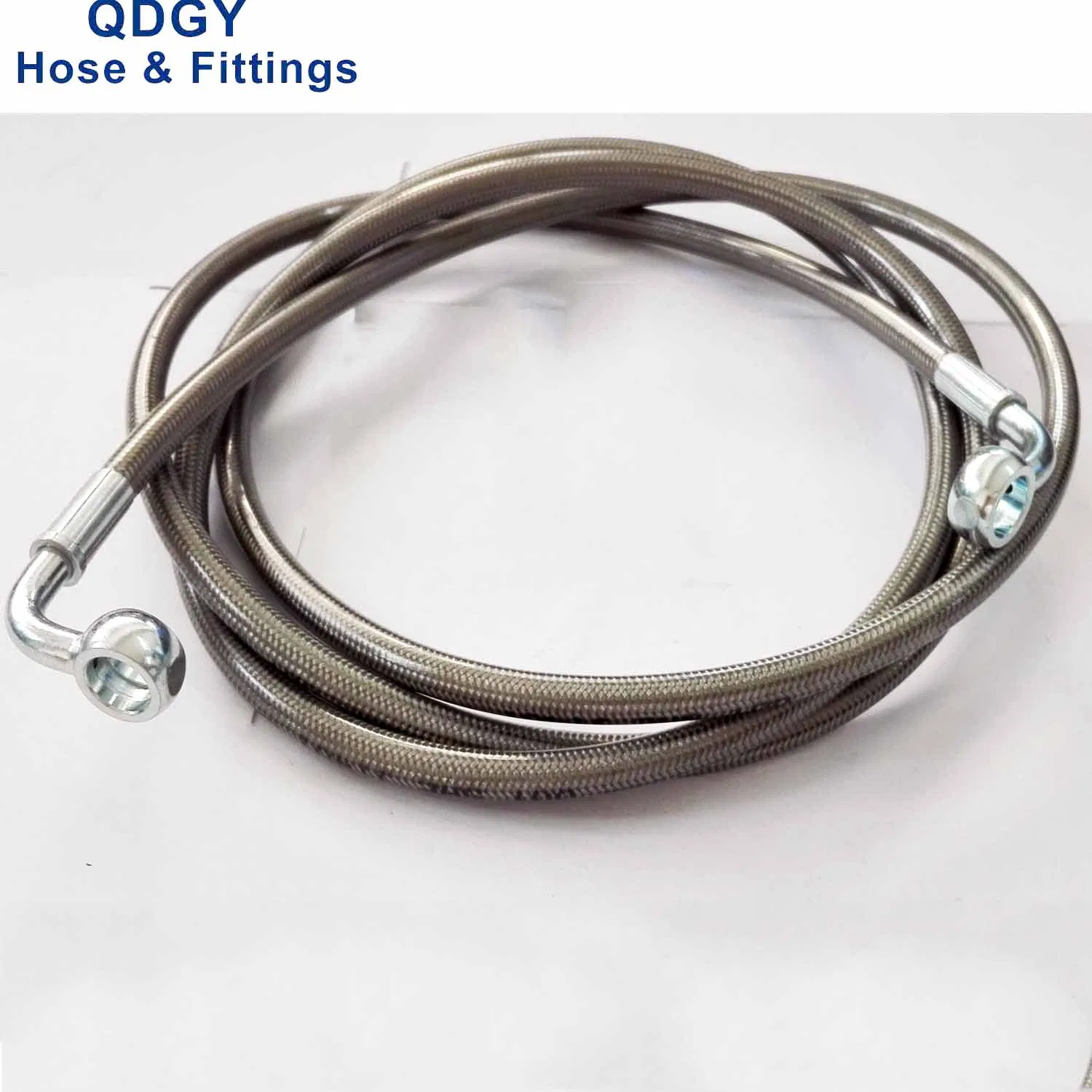

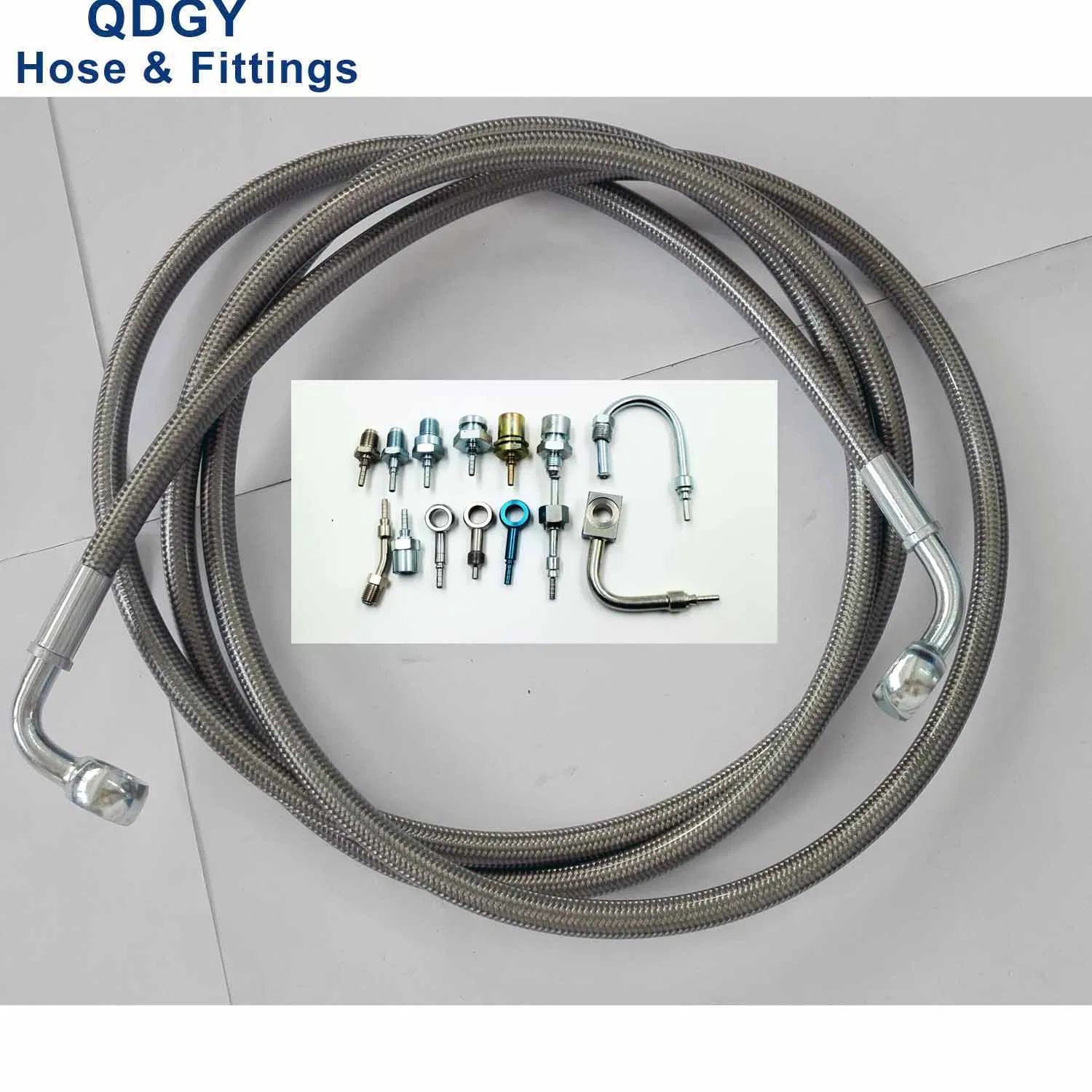

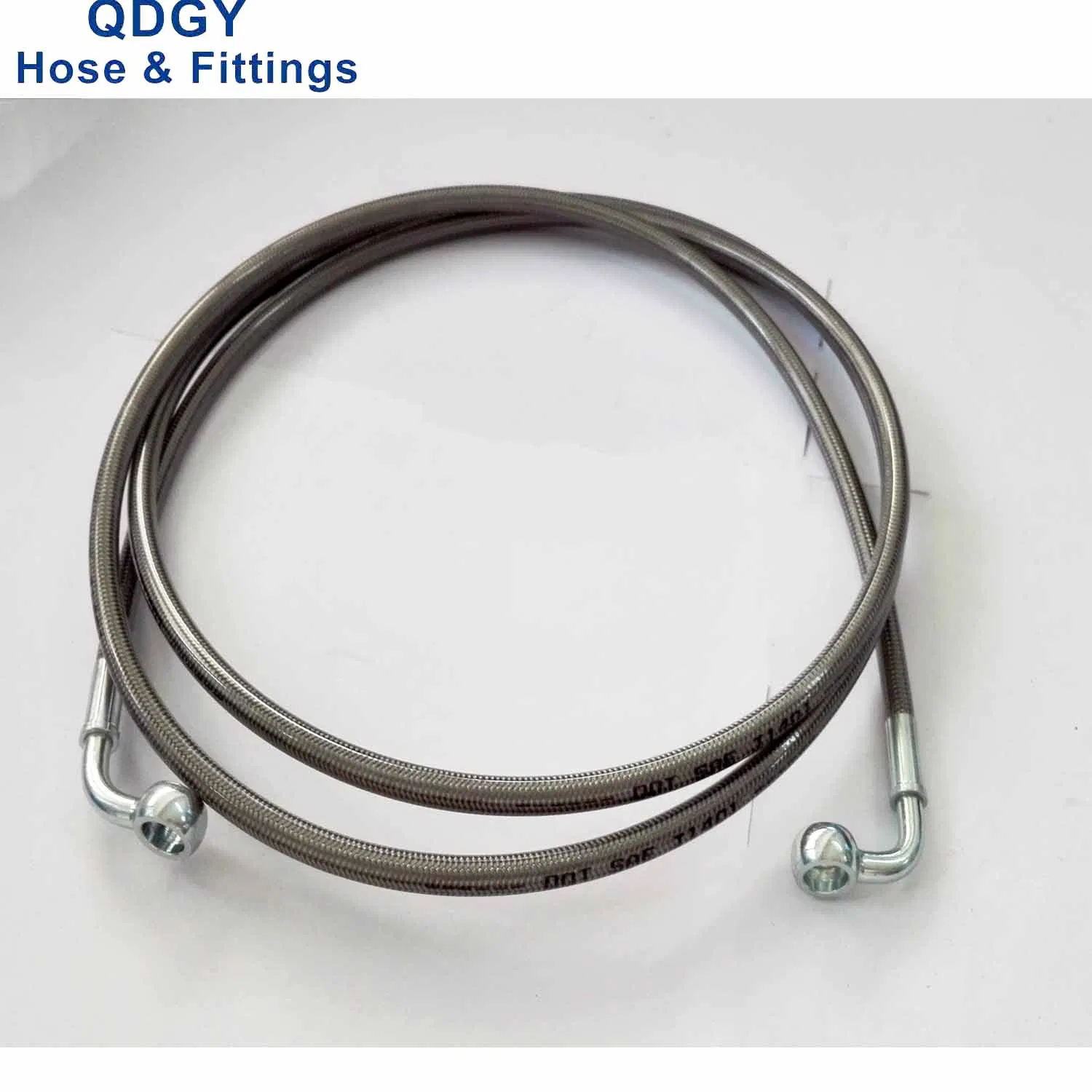

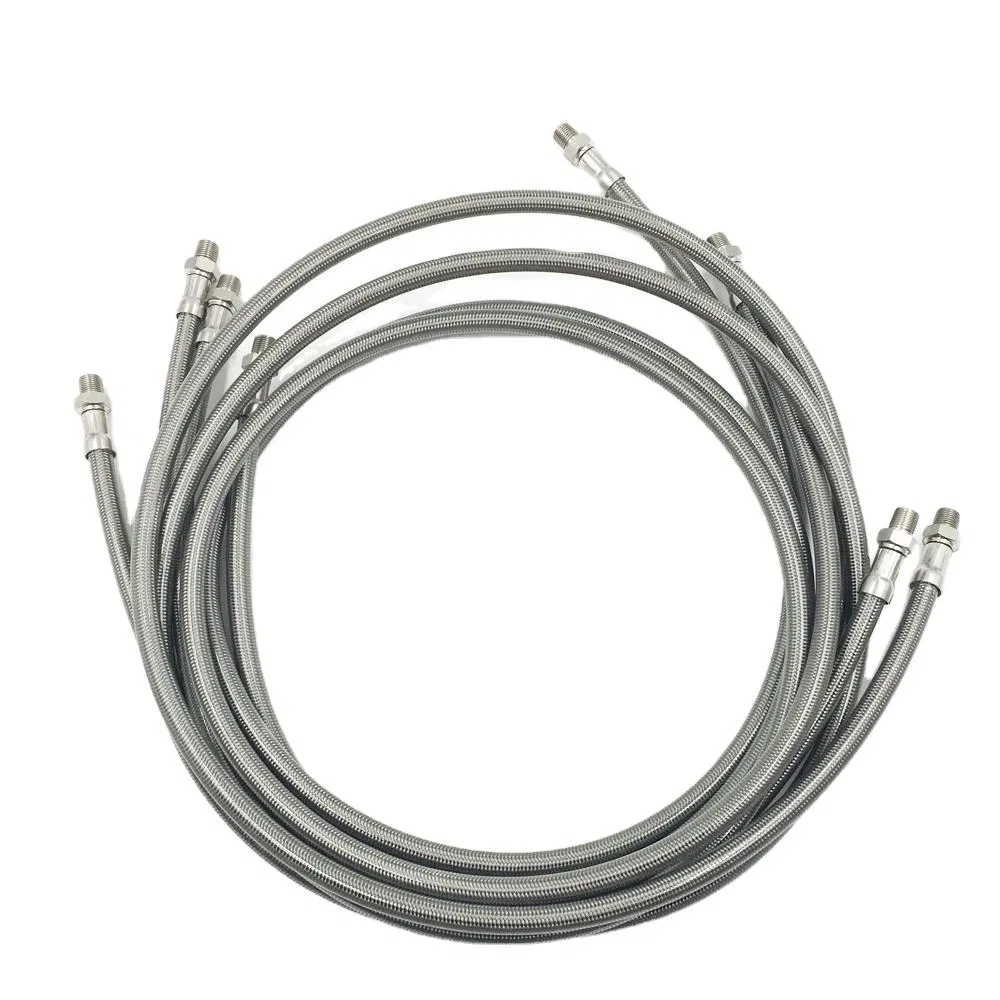

High-Performance Hydraulic Stainless Steel Braided Brake Line
Our stainless steel braided brake lines are designed for extreme durability and performance. Compatible with all brake fluids and D.O.T. approved for street applications, each assembly is tested to 3,000 PSI to ensure maximum safety. Whether for cars, motorcycles, or specialized racing vehicles, these hoses provide a superior alternative to standard rubber lines.
| Hose Component | Material & Description |
|---|---|
| Inner Layer | PTFE (Teflon) - High chemical and heat resistance |
| Reinforcement | 304/316 Stainless Steel Wire Braid |
| Outer Cover | PVC or PU (Available in Black, Red, Blue, Clear, etc.) |
| Temperature Range | -65ºC to +260ºC |
| Pressure Performance | 3000 PSI Test Pressure; Min 7250 PSI Burst Pressure |
| Size (AN) | Inch | I.D (mm) | O.D (mm) | Burst Pressure (PSI) |
|---|---|---|---|---|
| AN3 | 1/8 | 3.30 ± 0.20 | 6.50 - 7.50 | 12,000 |
| AN4 | 3/16 | 4.80 ± 0.20 | 8.00 - 9.00 | 12,000 |
| AN6 | 21/64 | 8.13 ± 0.20 | 11.00 ± 0.3 | 10,000 |

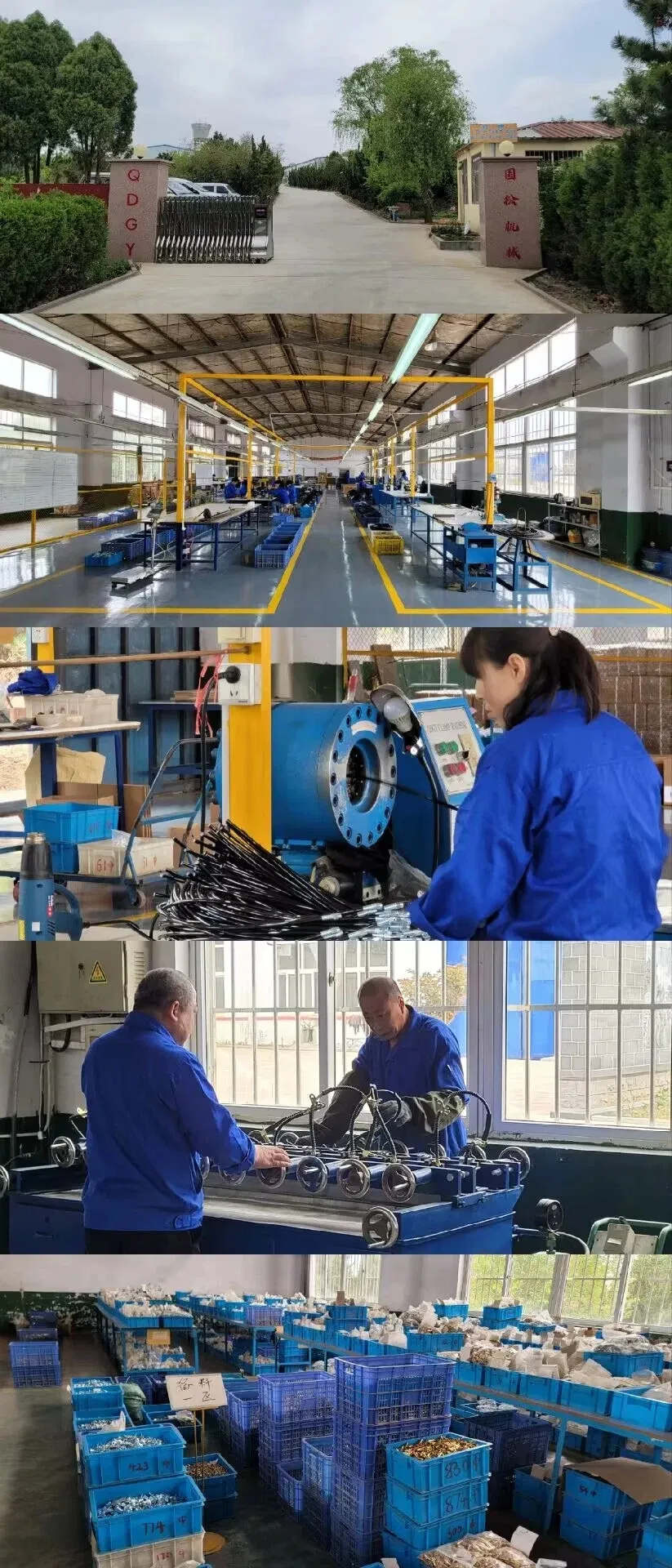

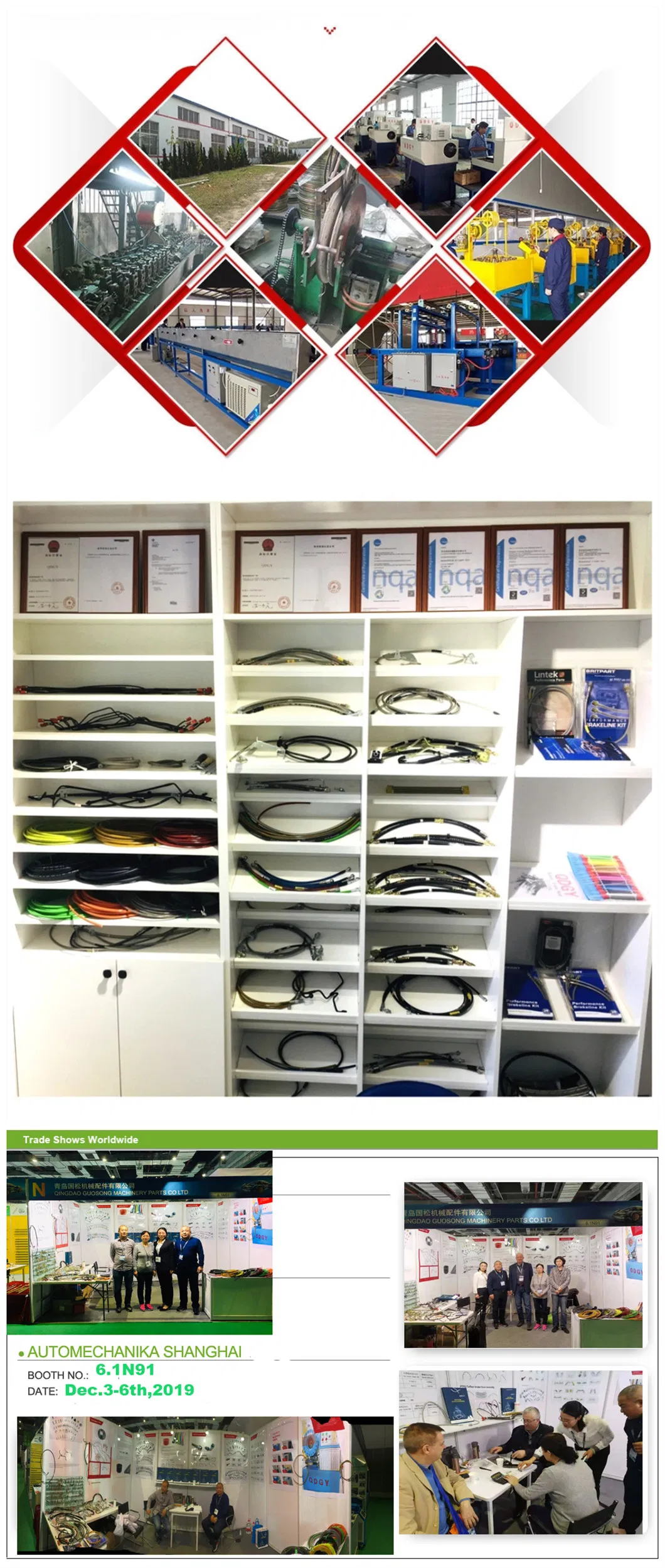

Utilizing advanced manufacturing facilities, our production process involves strict quality control. Every brake hose assembly undergoes high-pressure testing to ensure safety in demanding environments. We cater to automotive, bicycle, and heavy vehicle markets globally.
