Product Overview
Certification
ISO/TS16949, ISO13485, ISO14001, IATF-16949, ISO9001, DOT
Classification
Disc / Brake Drum
Size Range
4.76mm - 12.7mm

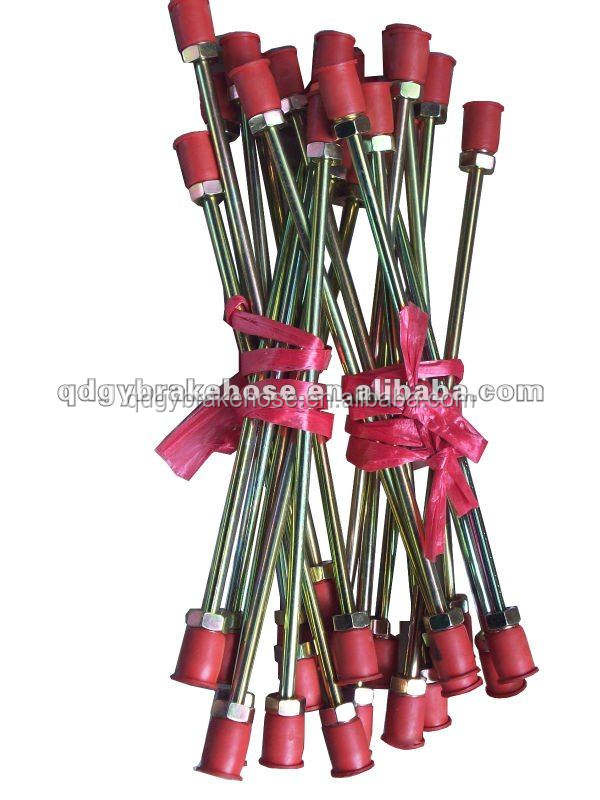

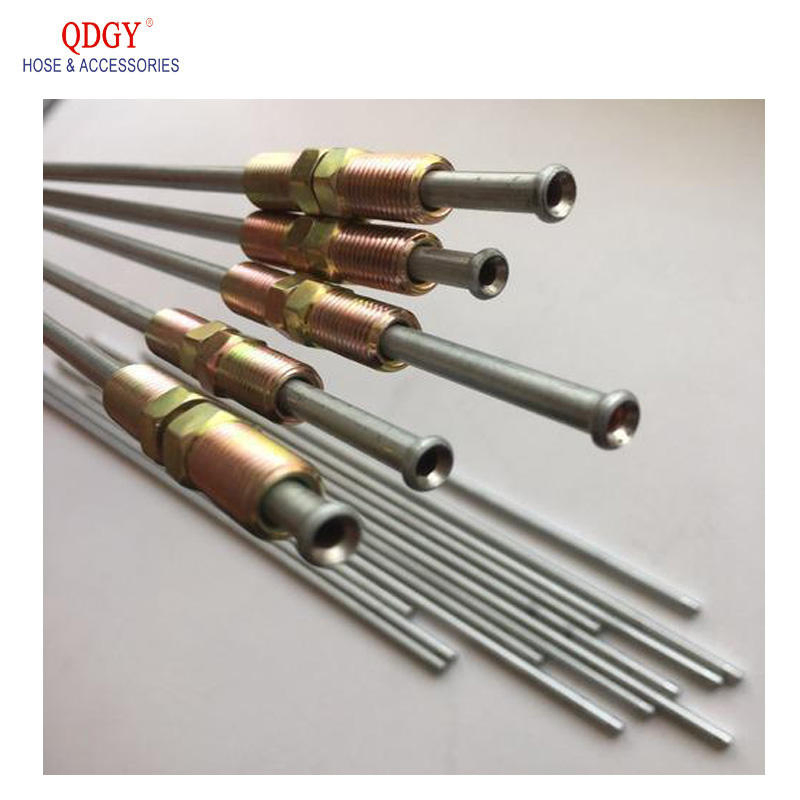

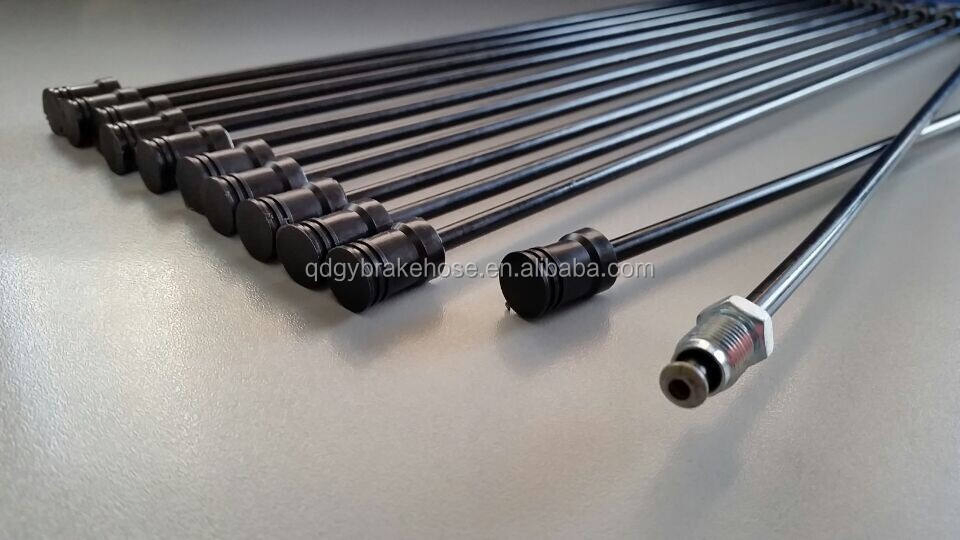

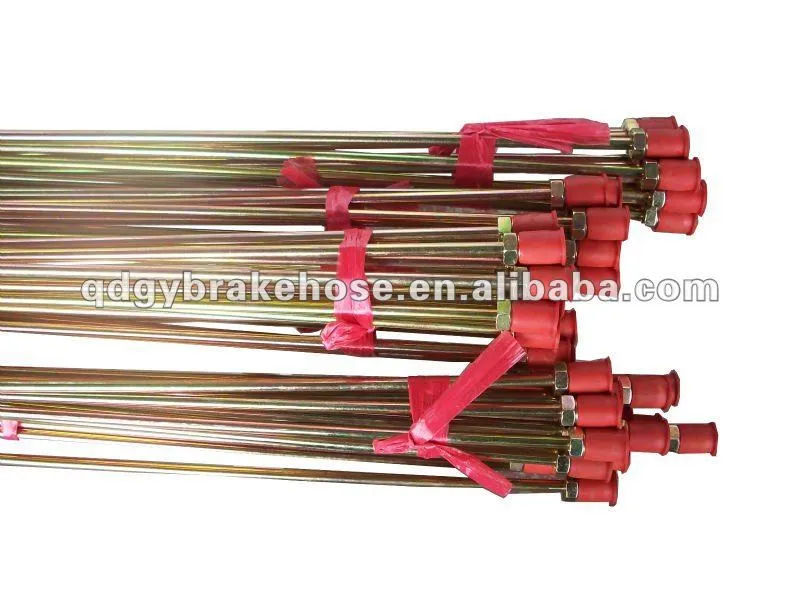

Fluid Transfer Carbon Steel Brake Pipe
Low Carbon Steel Brake Tube (Bundy Pipe)
- Compliant with ASTM A-254-91, A-512-91A, ASTM A214, and A513 standards.

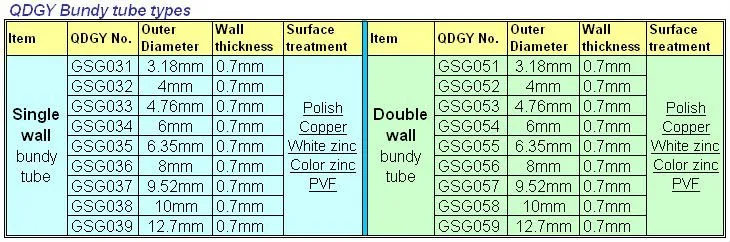

- Common Sizes: 3/16", 1/4", 3/8", 5/16" (4.76mm, 6.35mm, 8mm etc.)

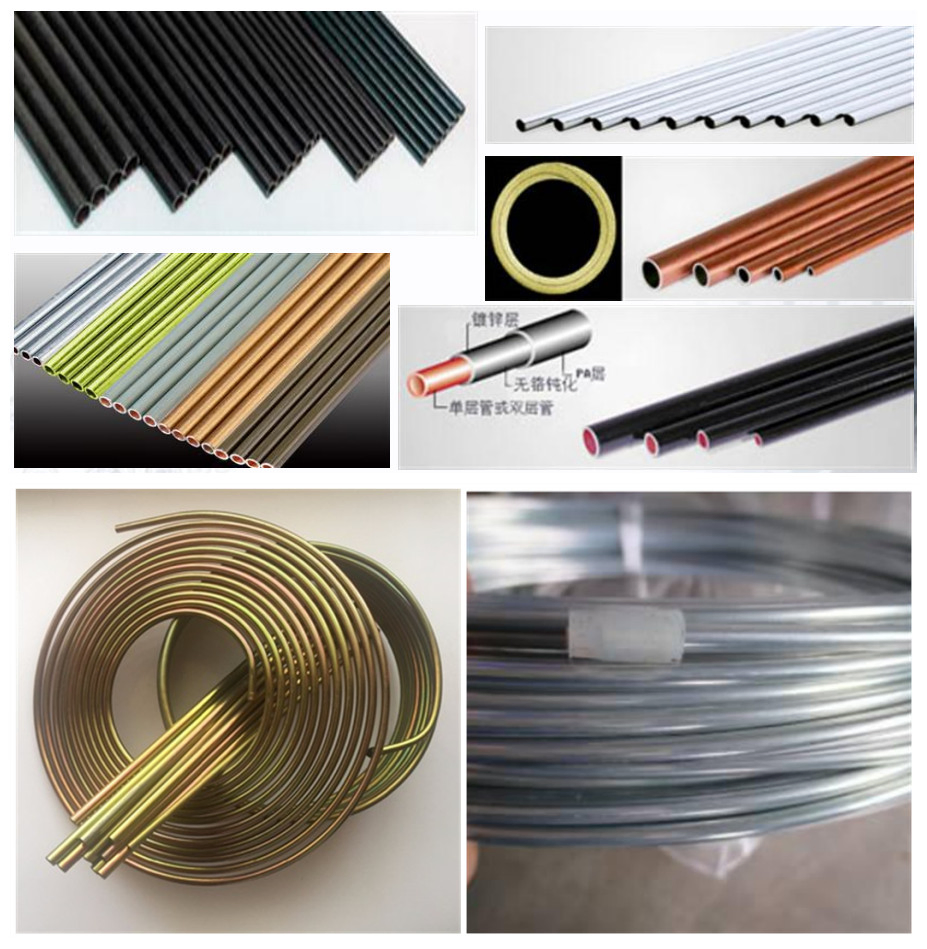

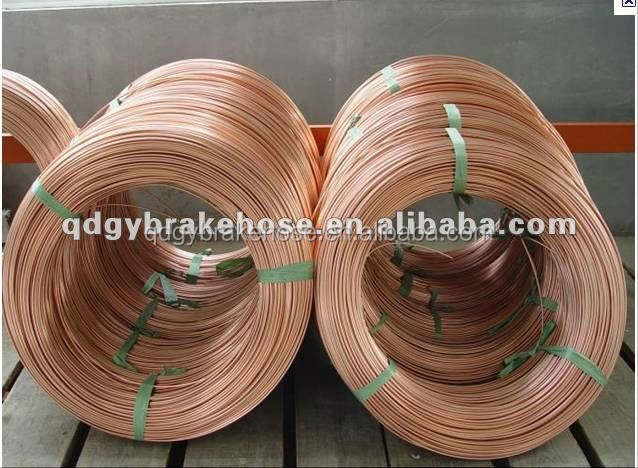

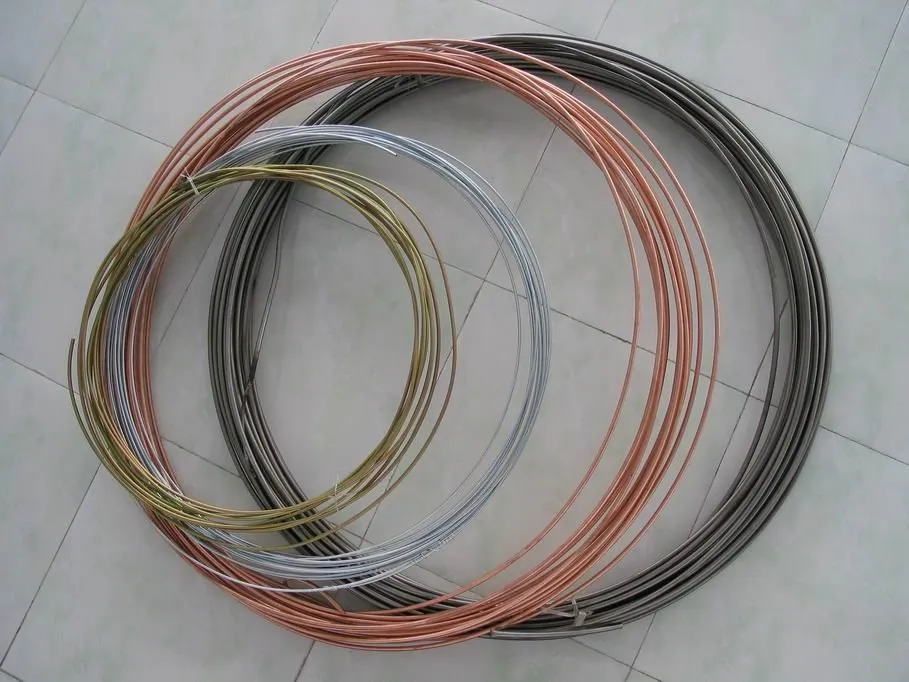

- Plating Options: Yellow Zinc, White Zinc, Copper, Olive Green, and PVF.
- Applications: Hydraulic brake lines, fuel lines, oil cooler lines, air conditioning, and power steering.

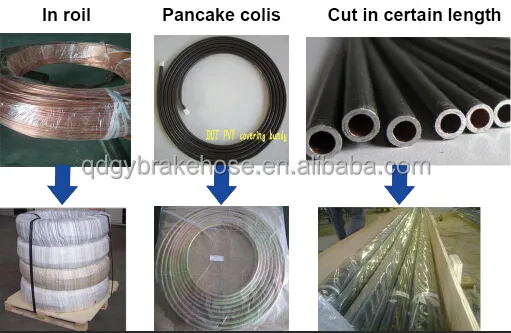

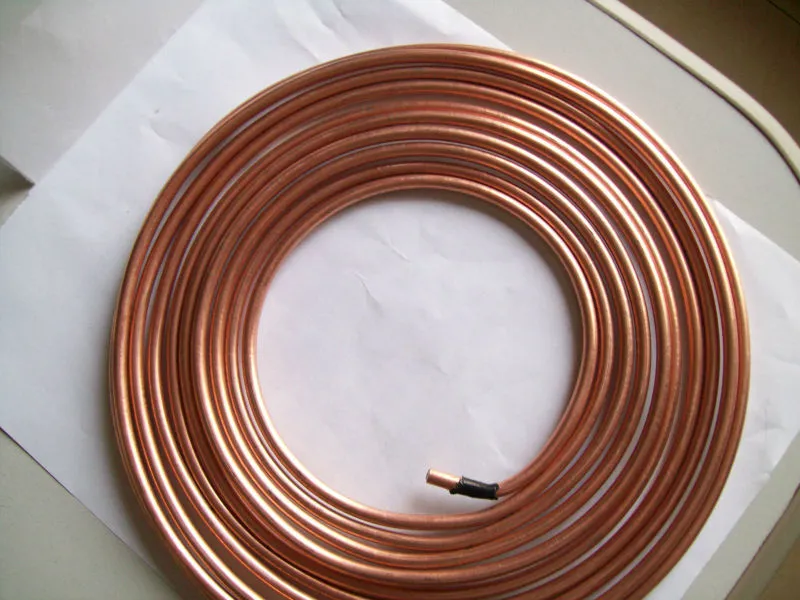

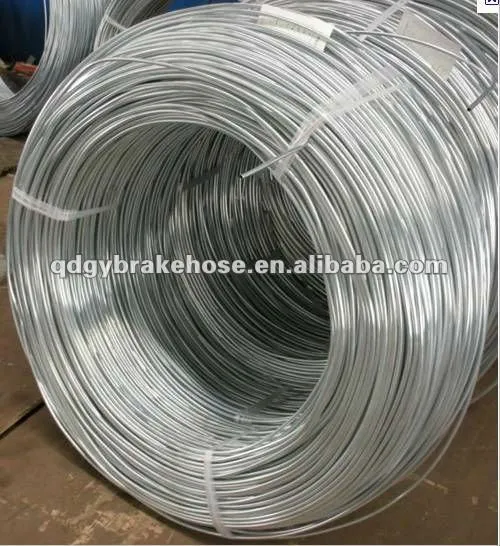

- Available Formats: In coils, pancake coils, or cut to specific lengths.
Technical Specifications
| Test Item |
Technical Standard |
Test Result |
| Outer Dia | 4.76±0.1mm + PVF | 4.79mm |
| Tensile Strength | ≥ 290Mpa | 296Mpa |
| Yield Strength | ≥ 180Mpa | 190Mpa |
| Wall Thickness | 0.70±0.1mm | 0.71mm |
| Pressure Test | No Leakage (34.3Mpa Nitrogen / 1min) | Pass |
| Salt Spray Test | > 2500 hours | 3000 hours |
Our Services & Quality Control
- Competitive pricing with superior product performance.
- Prompt delivery cycles and established industry reputation.

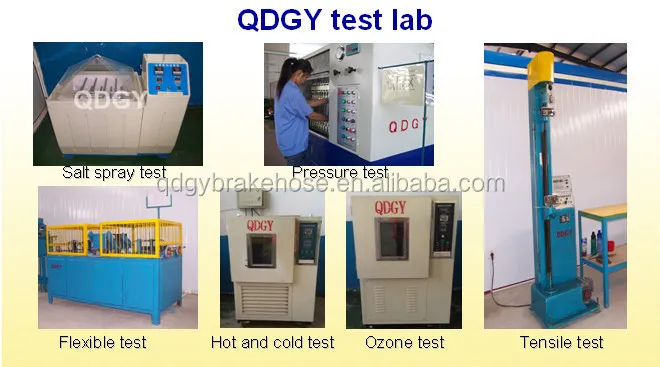

- Full set of advanced testing equipment for 100% Quality Assurance.
- Custom design and engineering of hose assemblies based on requirements.
- 100% testing against SAE J1401 standards before shipment.
Packaging & Logistics

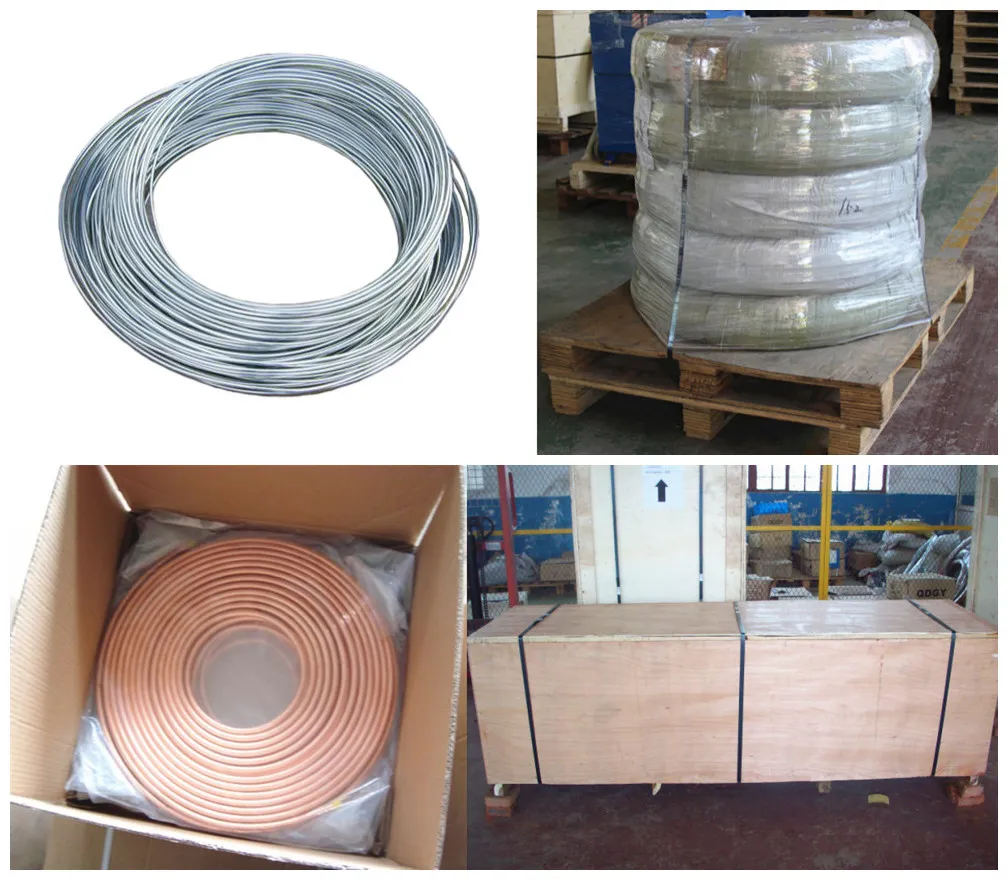

Standard Packaging: PVC bags inside sturdy carton boxes. Special custom packaging requests are welcome.
Lead Times:
• Fittings: 30-40 days
• Brake Hoses: 20 days
• Assemblies: 40 days
Shipping: Conveniently located near major ports and airports for efficient air and ocean freight.
Frequently Asked Questions
What types of brake hoses do you provide?
We offer a wide range including Rubber brake hoses, EPDM, Hydraulic hoses, SAE J1401 standards, DOT approved 1/8" hoses, and performance competition lines.
What are the standard sizes for your brake hoses?
Common sizes include 3.2x10.5mm (1/8") and 4.8x12.5mm (3/16"). We can also manufacture special sizes upon request.
Can you customize the printing or marking on the hoses?
Yes, we provide both embossed and color printing markings according to your specific branding or technical requirements.
What materials are available for the fittings?
We produce all kinds of fittings (female, male, banjo, bolts, and nuts) in steel with zinc, chrome, or nickel plating, as well as stainless steel and brass.
What is the typical delivery timeframe for an order?
Delivery usually takes between 5 to 40 days, depending on the order quantity and current stock levels. We aim to reply to all inquiries within 24 hours.
Do your products meet international safety standards?
Yes, our products are manufactured to meet or exceed standards such as SAE J1401 and DOT, and are tested 100% before shipment to ensure safety.
