| Item Name | Details / Specifications |
|---|---|
| Color | Milky White / Translucent / Black |

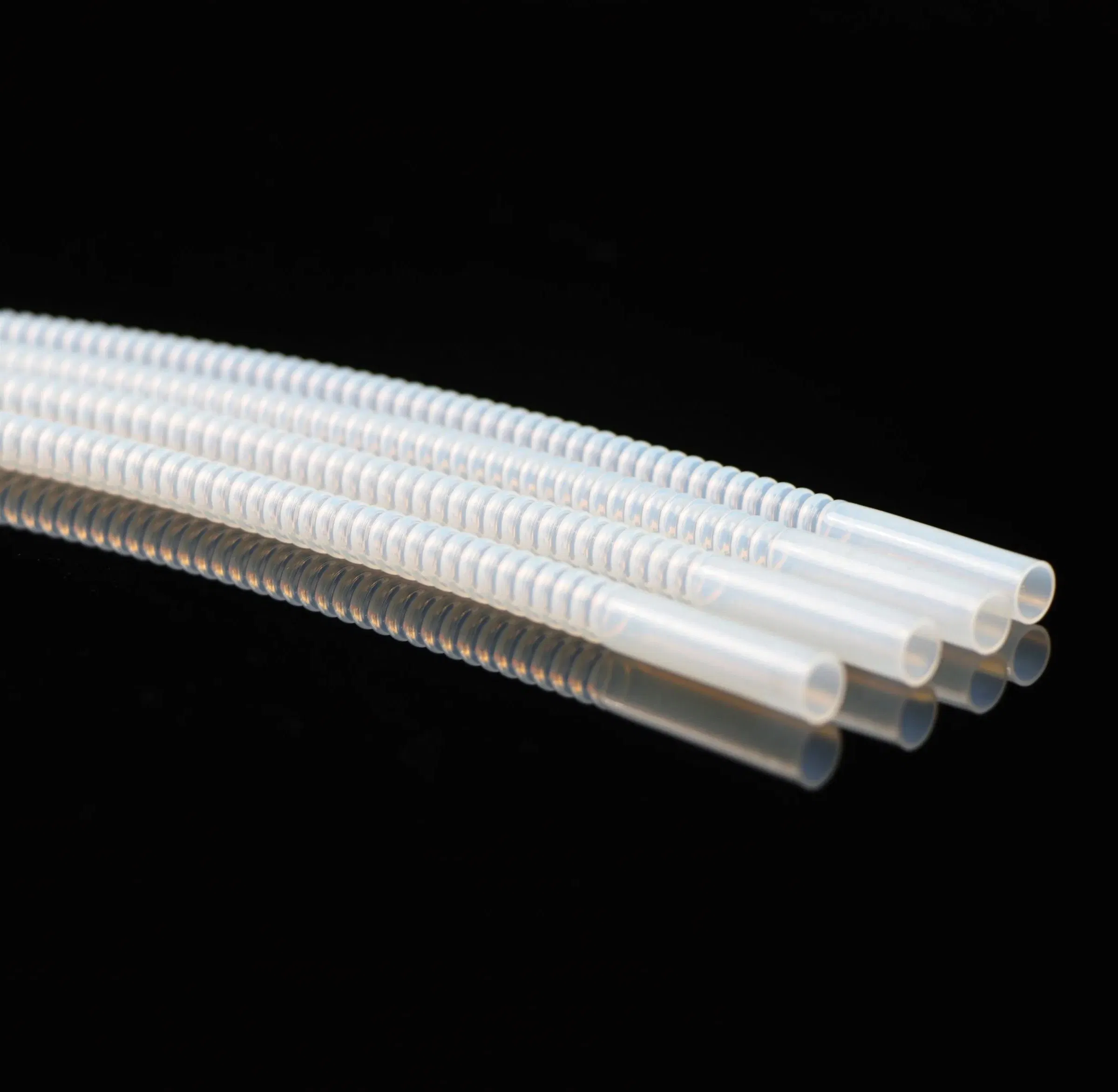

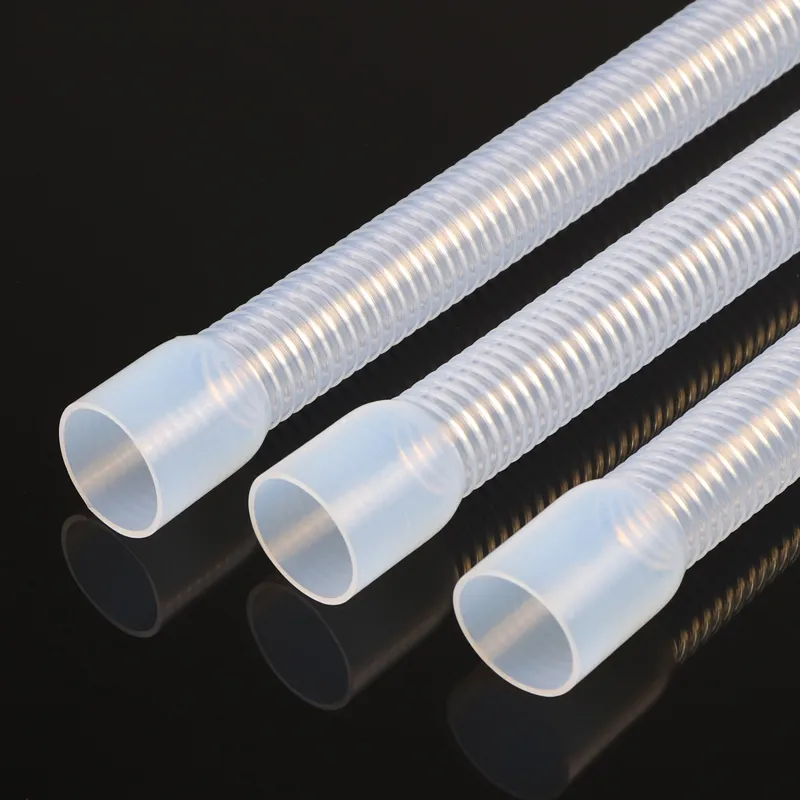

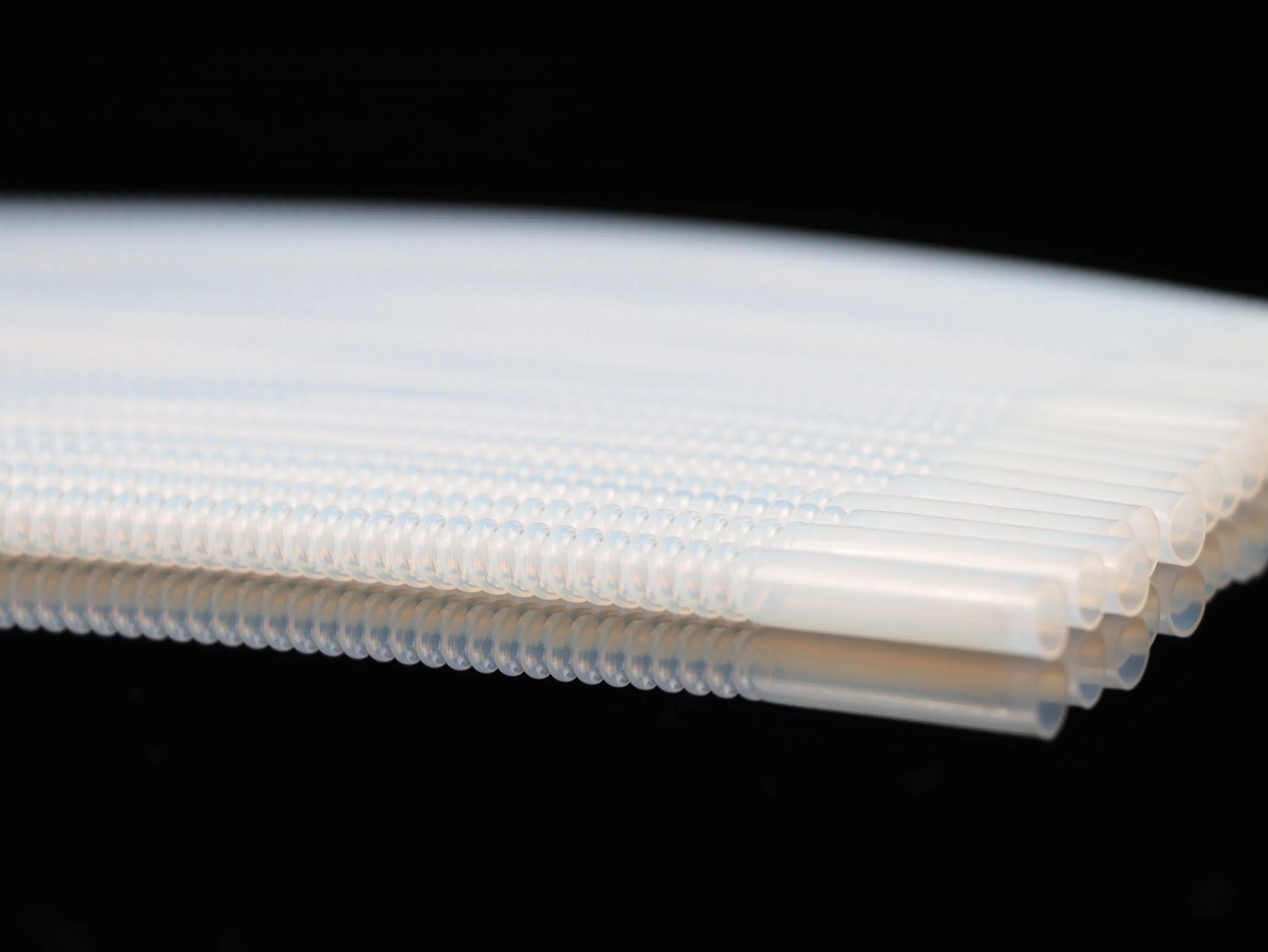

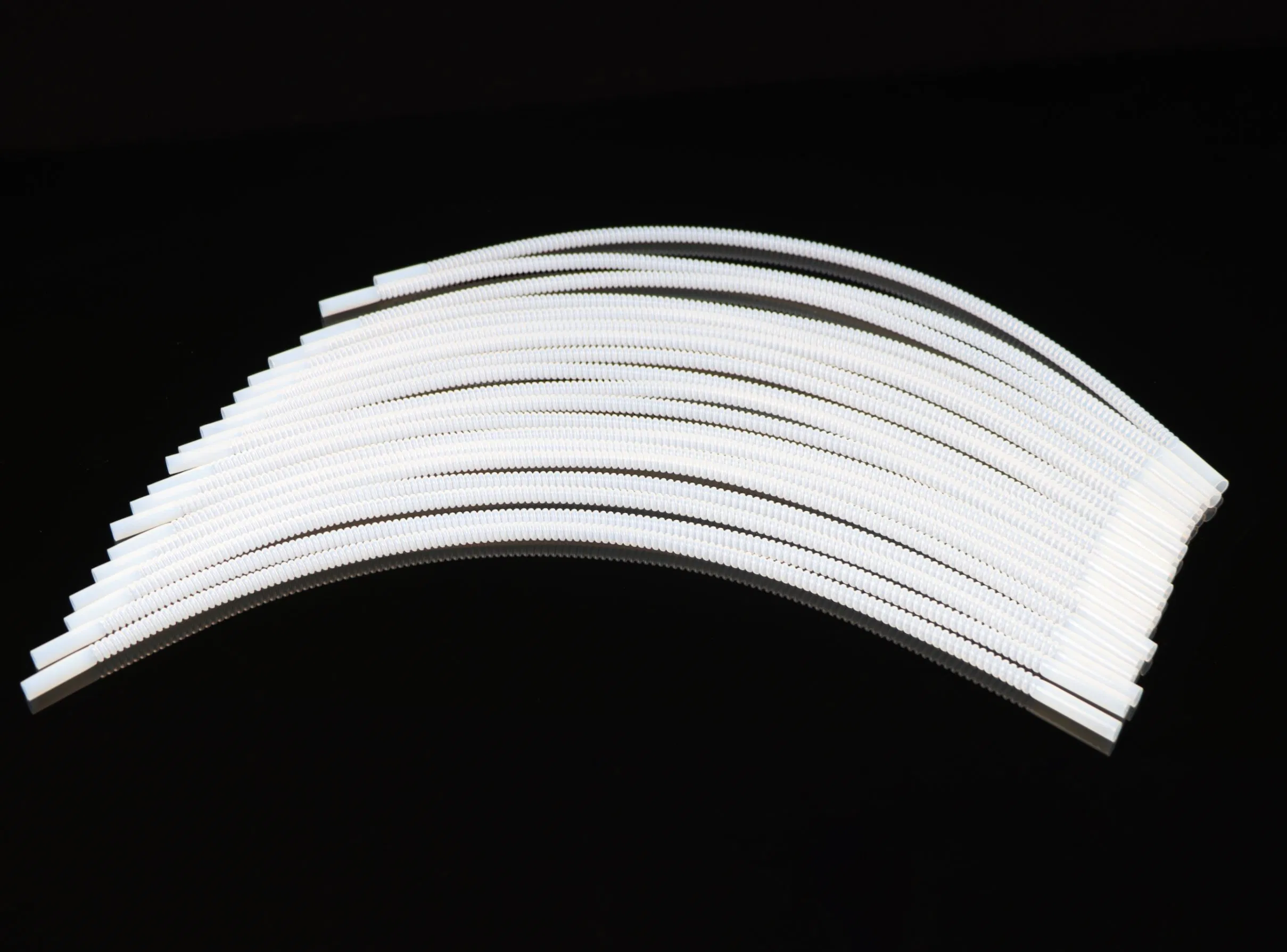

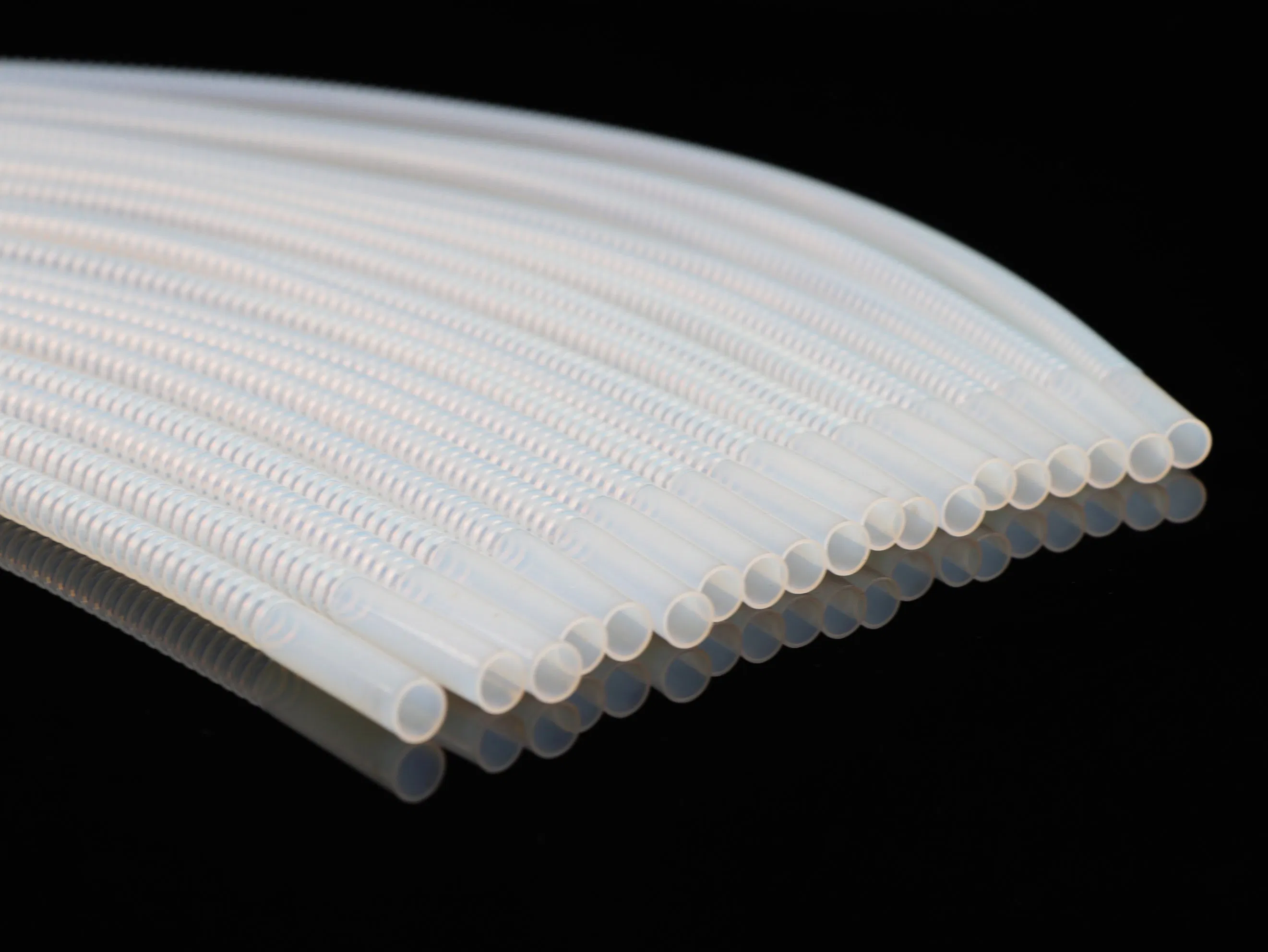

| Inner Layer | Straight tube / Spiral corrugated / Annual hose PTFE |

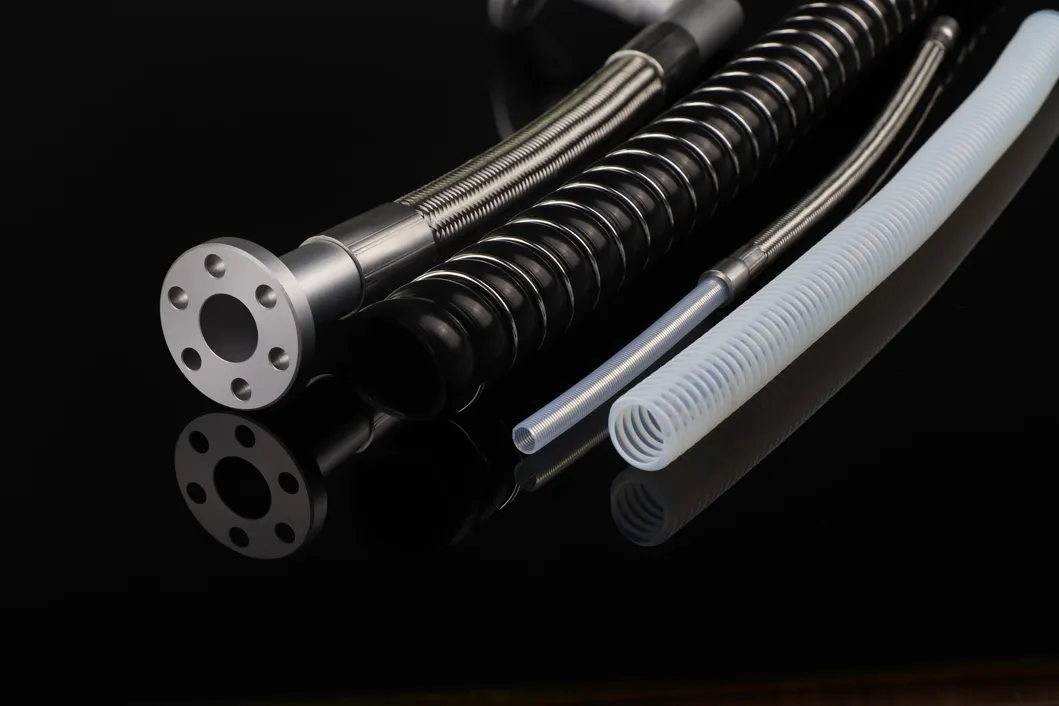

| Reinforcement | Stainless steel 304 & 316 braided / Aramid fiber |

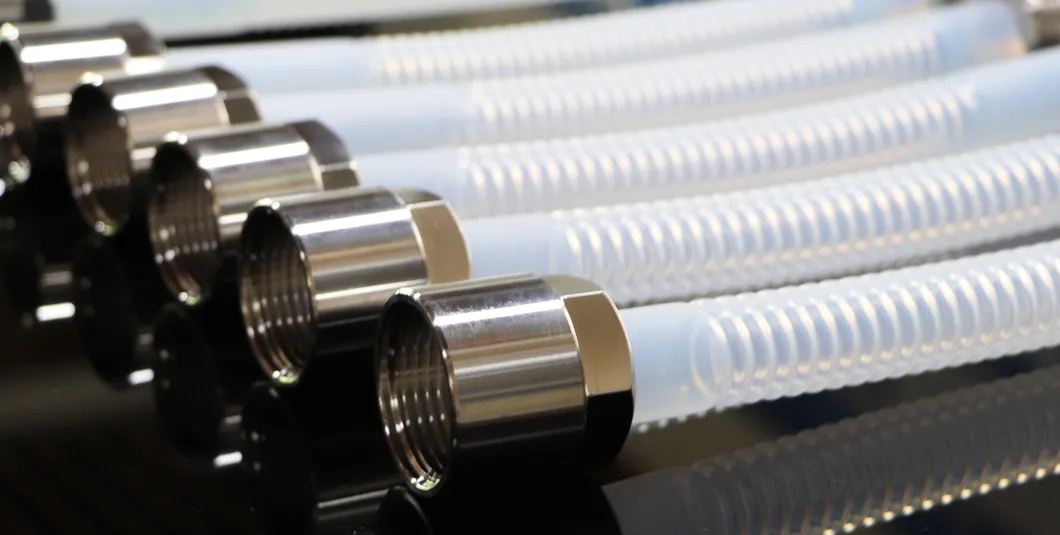

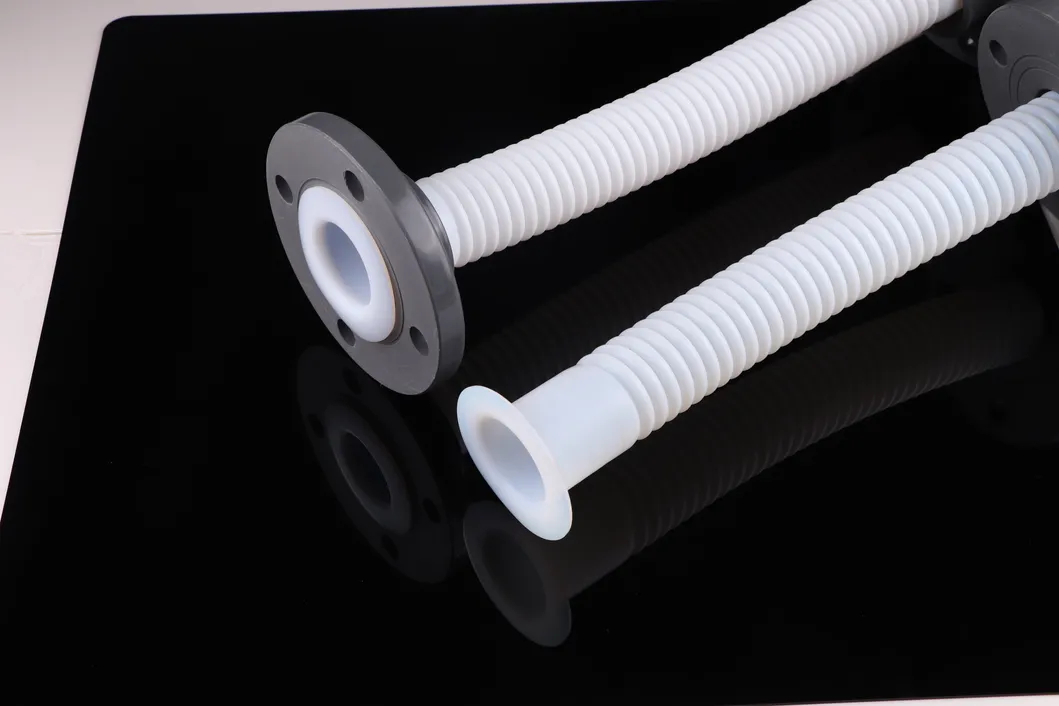

| Port Type | Straight tube / Flange / Fitting |
| Applications | Aerospace, Electronics, Chemical, Pharmaceutical, Food Processing |
| DN (mm) | NB (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Min Bend Radius (mm) | Working Pressure (bar) |
|---|---|---|---|---|---|
| 6 | 1/4 | 6.5-6.8 | 10.4 | 19 | 82 |
| 10 | 3/8 | 9.1-9.3 | 14.2 | 22 | 60 |
| 15 | 1/2 | 13.1-13.3 | 18.8 | 28 | 48 |
| 20 | 3/4 | 19.3-19.8 | 26 | 40 | 30 |
| 25 | 1 | 25.0-25.4 | 30.4 | 56 | 28 |
| 50 | 2 | 53.5-54.5 | 66.9 | 80 | 15 |

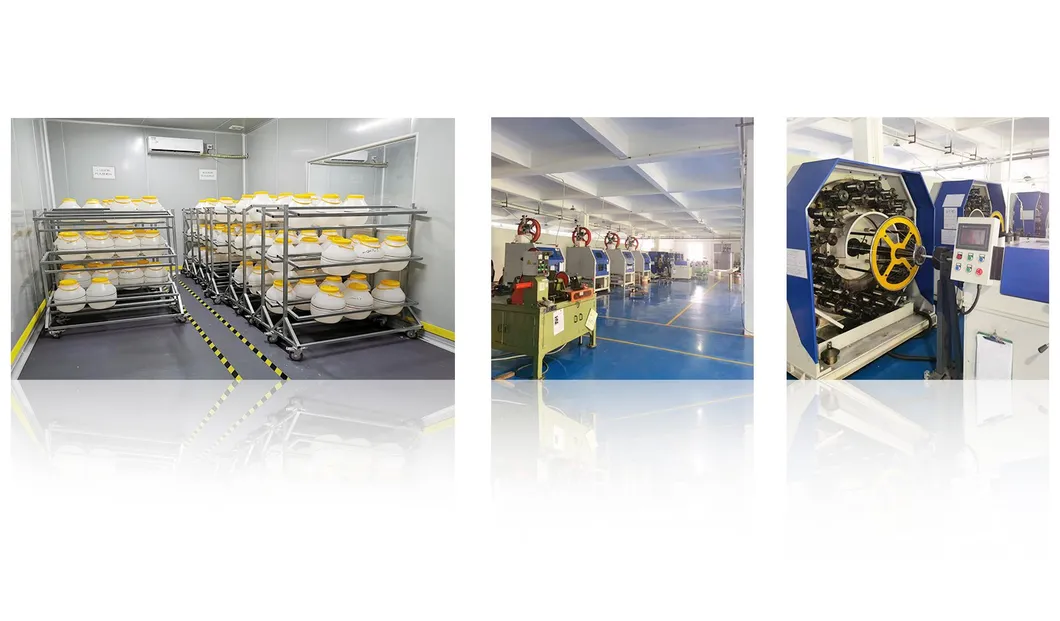

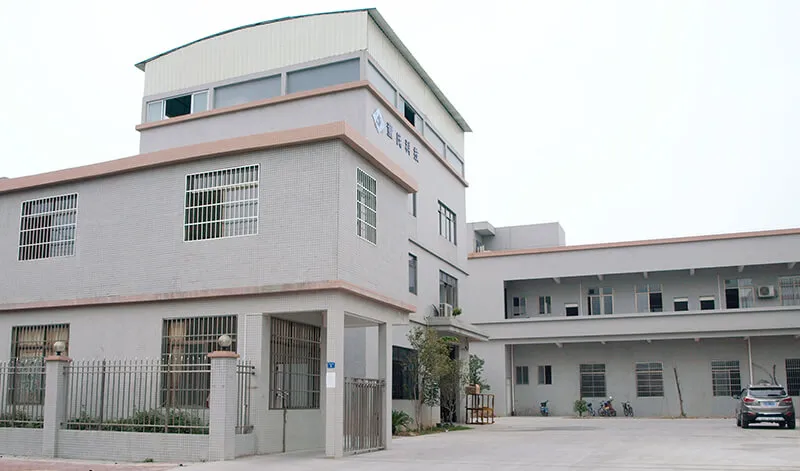

Founded in 2012, this military-civilian integration enterprise specializes in Polytetrafluoroethylene (PTFE) equipment and hose R&D, manufacturing, and sales. With two major production bases, the annual output exceeds 10 million meters of various high-quality hoses.
Products are widely utilized in petrochemical industries, medical equipment, semiconductors, rail transit, and food machinery sectors globally.
