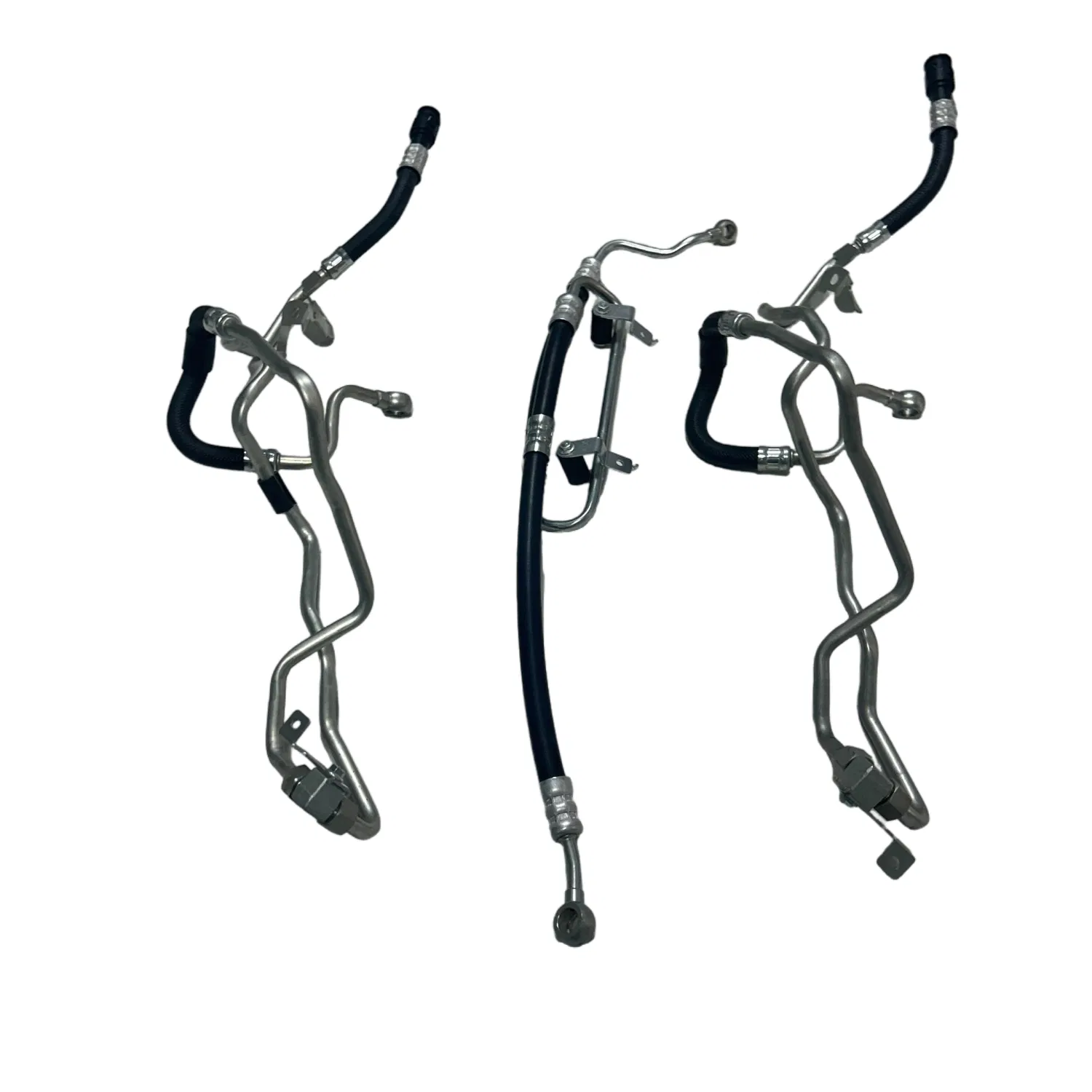

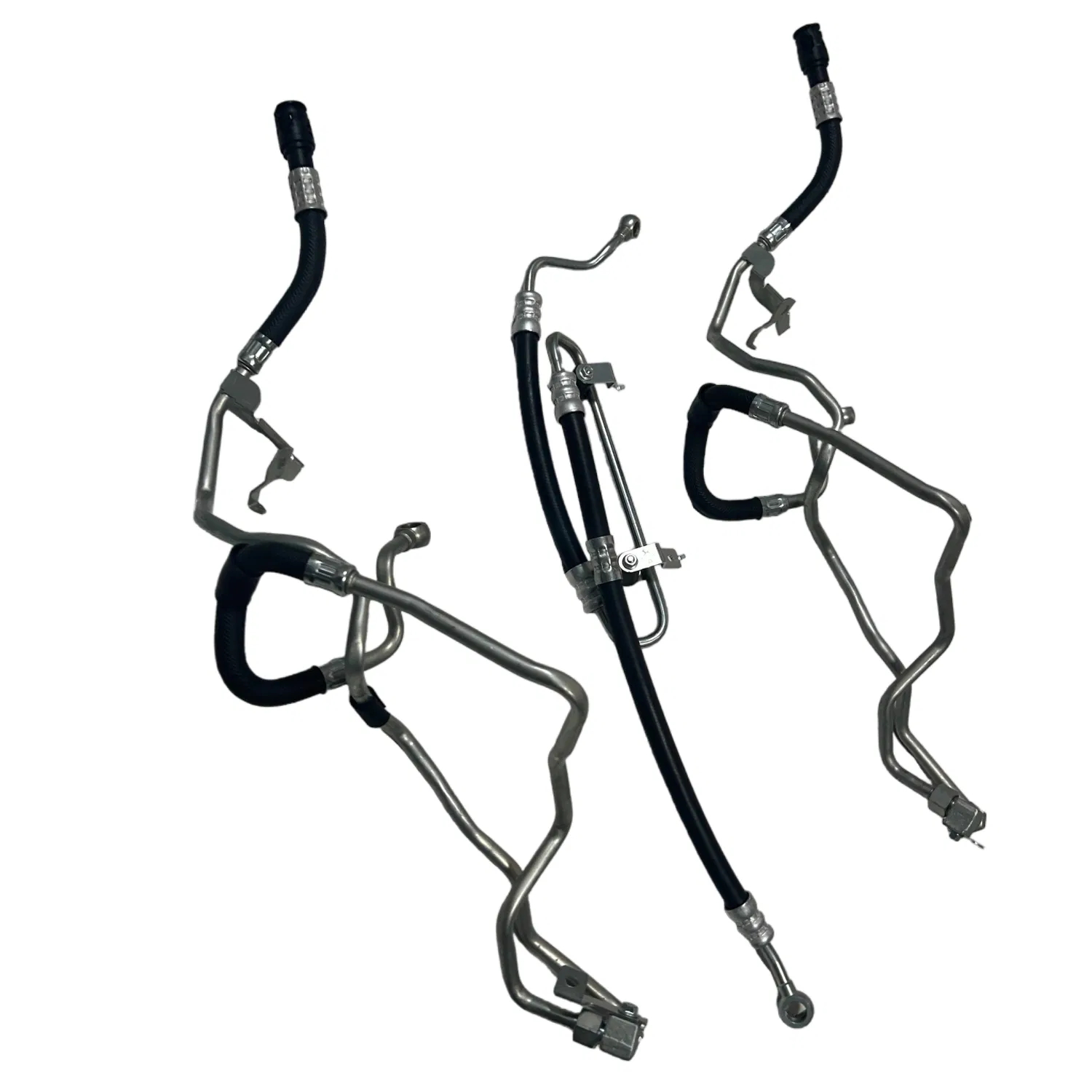

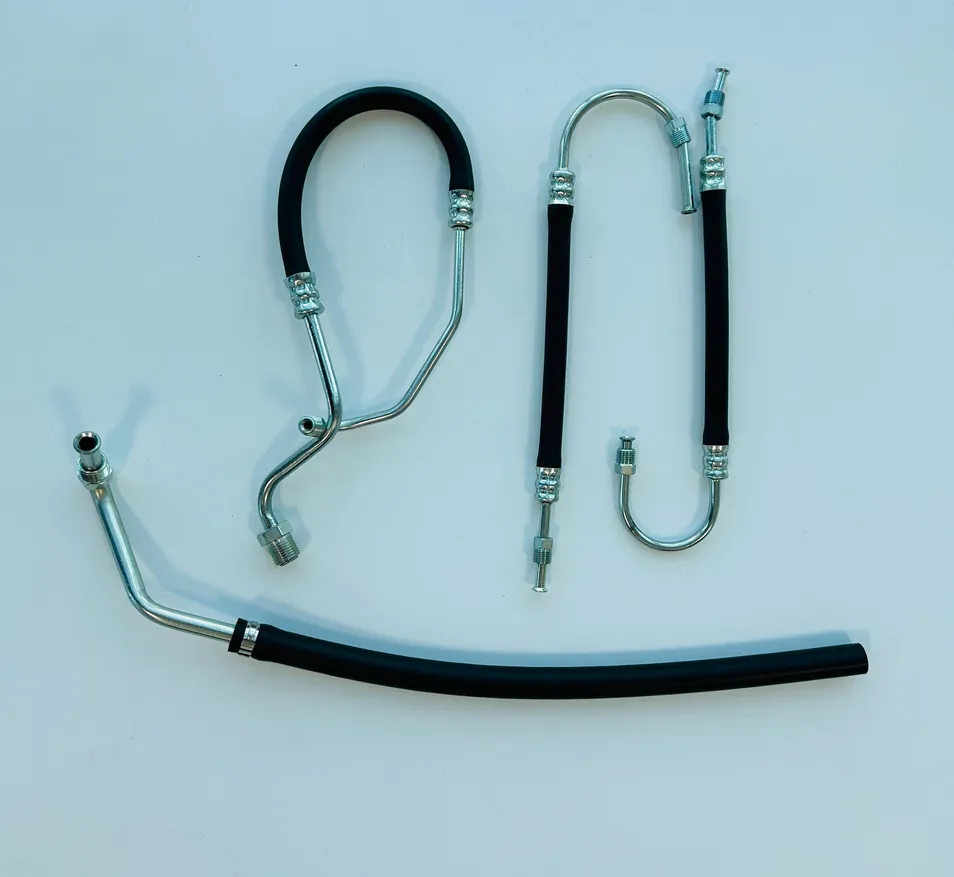

Premium Power Steering Hose Solutions

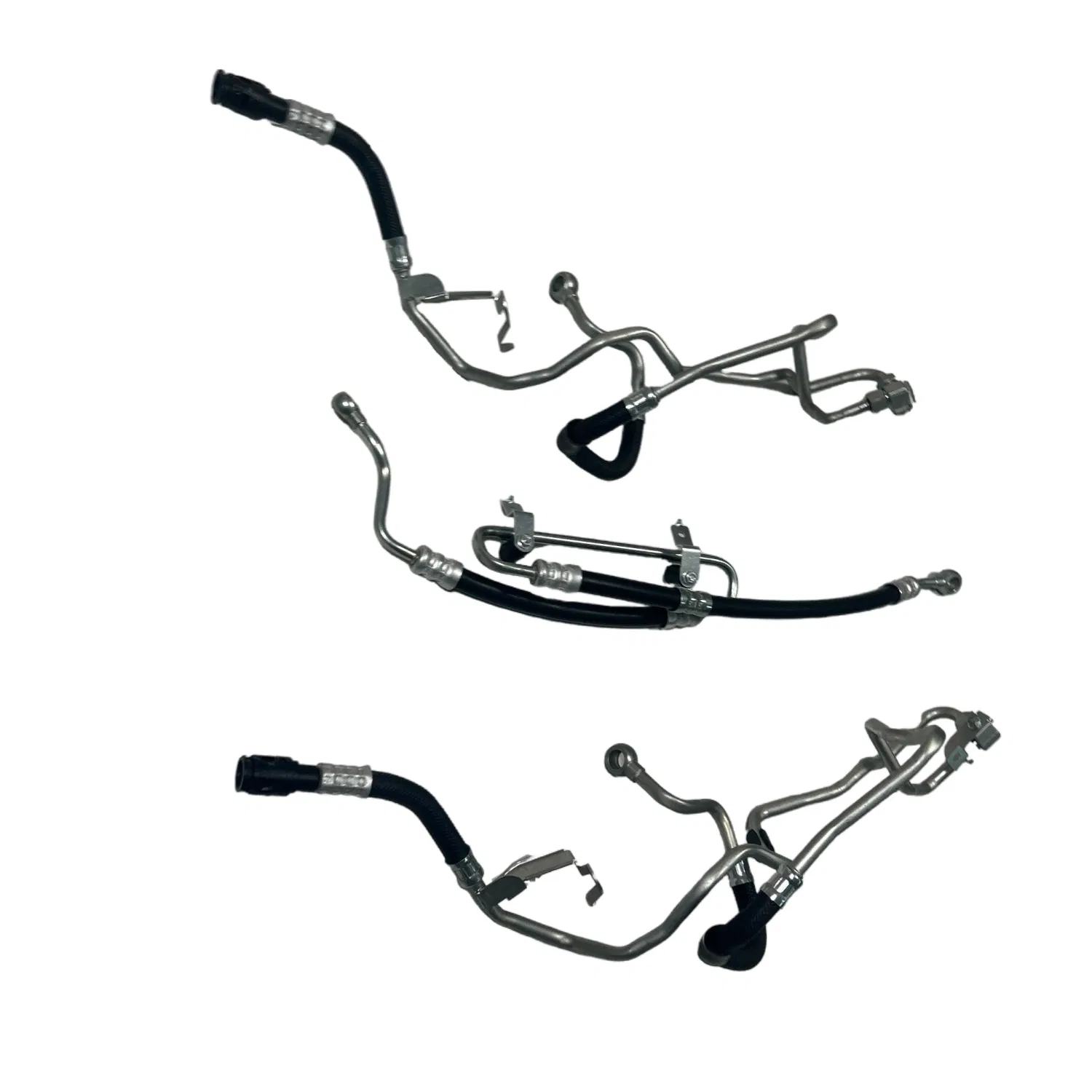

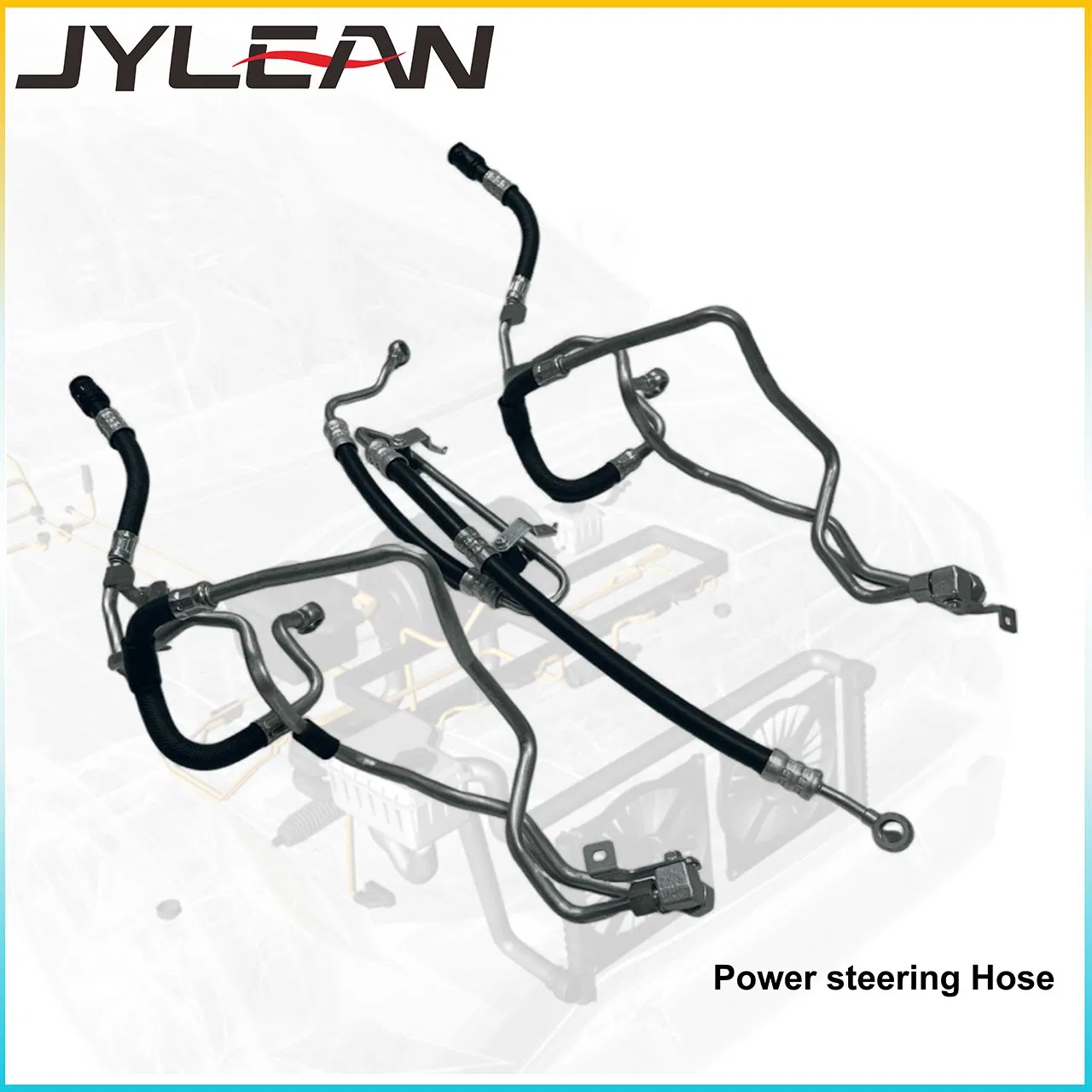

Our power steering hoses are designed to deliver reliable fluid transfer for modern hydraulic steering systems, ensuring precise control, durability, and resistance to high pressure and temperature. They connect the power steering pump, steering gear, and reservoir, playing a critical role in safe and efficient steering performance.

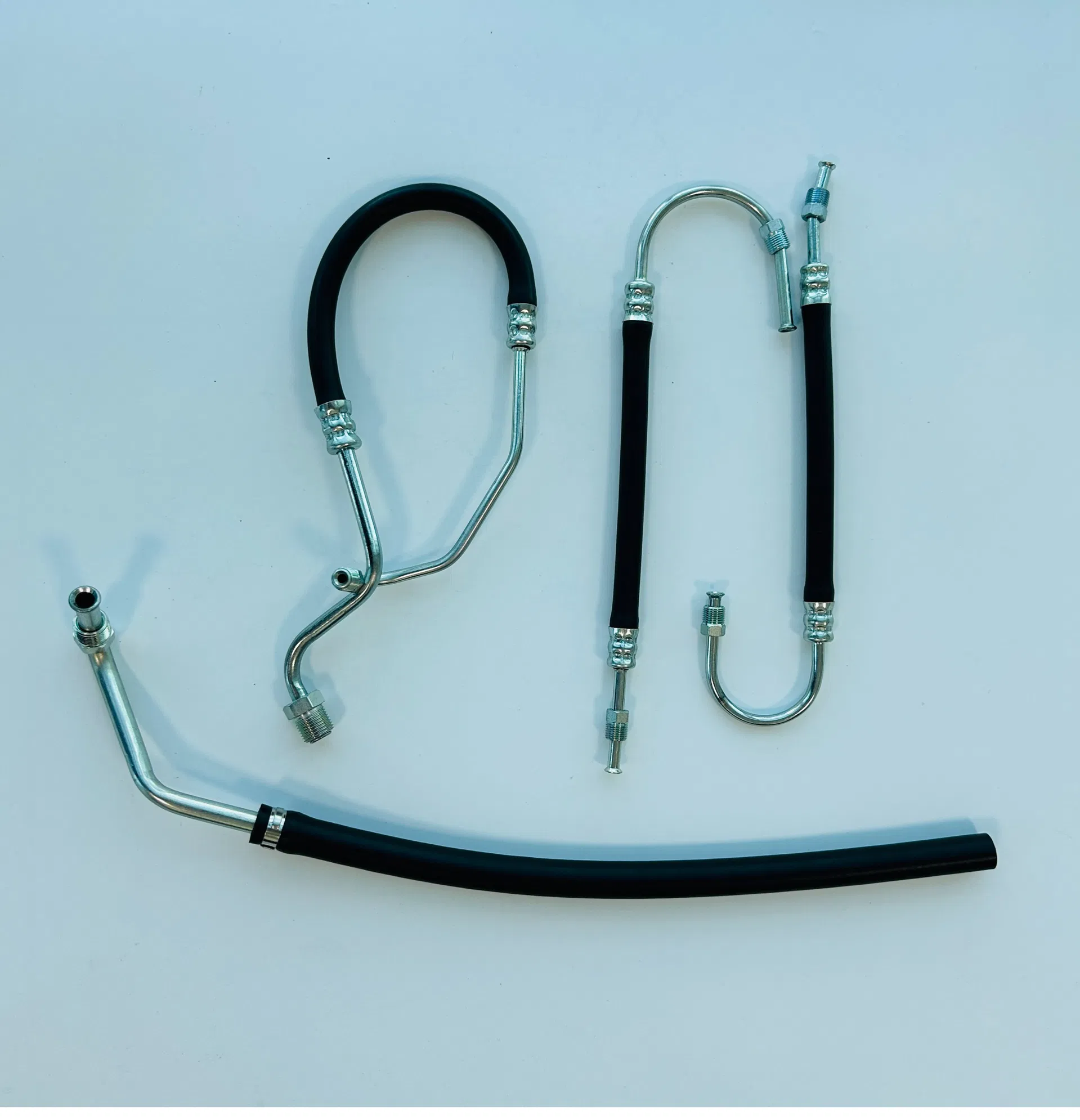

We offer two main categories: High-Pressure Power Steering Hoses and Low-Pressure Power Steering Hoses, each optimized for their respective functions.
| Type | Tube Material & Construction | End Fittings | Standard Dimensions | Min. Pressure Rating | Customization Options |
|---|---|---|---|---|---|
| High-Pressure Hose | NBR/HNBR inner tube, multi-layer steel wire reinforcement, oil & ozone resistant outer cover | Banjo, flare, compression, quick connect | DN6 – DN16 | 12–25 MPa | Custom lengths, protective sleeves, anti-vibration design |
| Low-Pressure Hose | NBR/CR/EPDM inner tube, textile or fiber braid reinforcement, optional spiral wire for suction | Push-on fittings, hose clamps, quick connect | DN10 – DN19 | 0.5 – 5 MPa | Custom bending, molded shapes, noise reduction sleeves |
Tailored to Your Needs: We offer comprehensive customization for power steering hoses based on different vehicle models and operating conditions. Our services include:

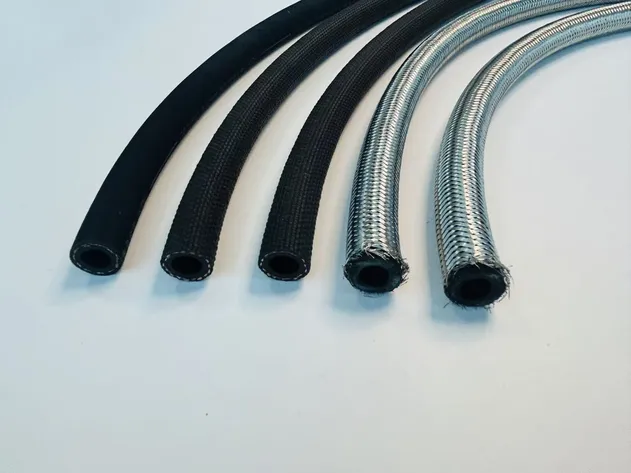

Hose

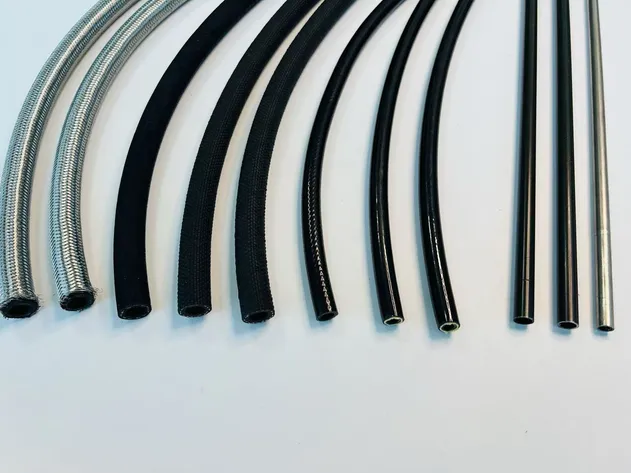

Metal Pipe

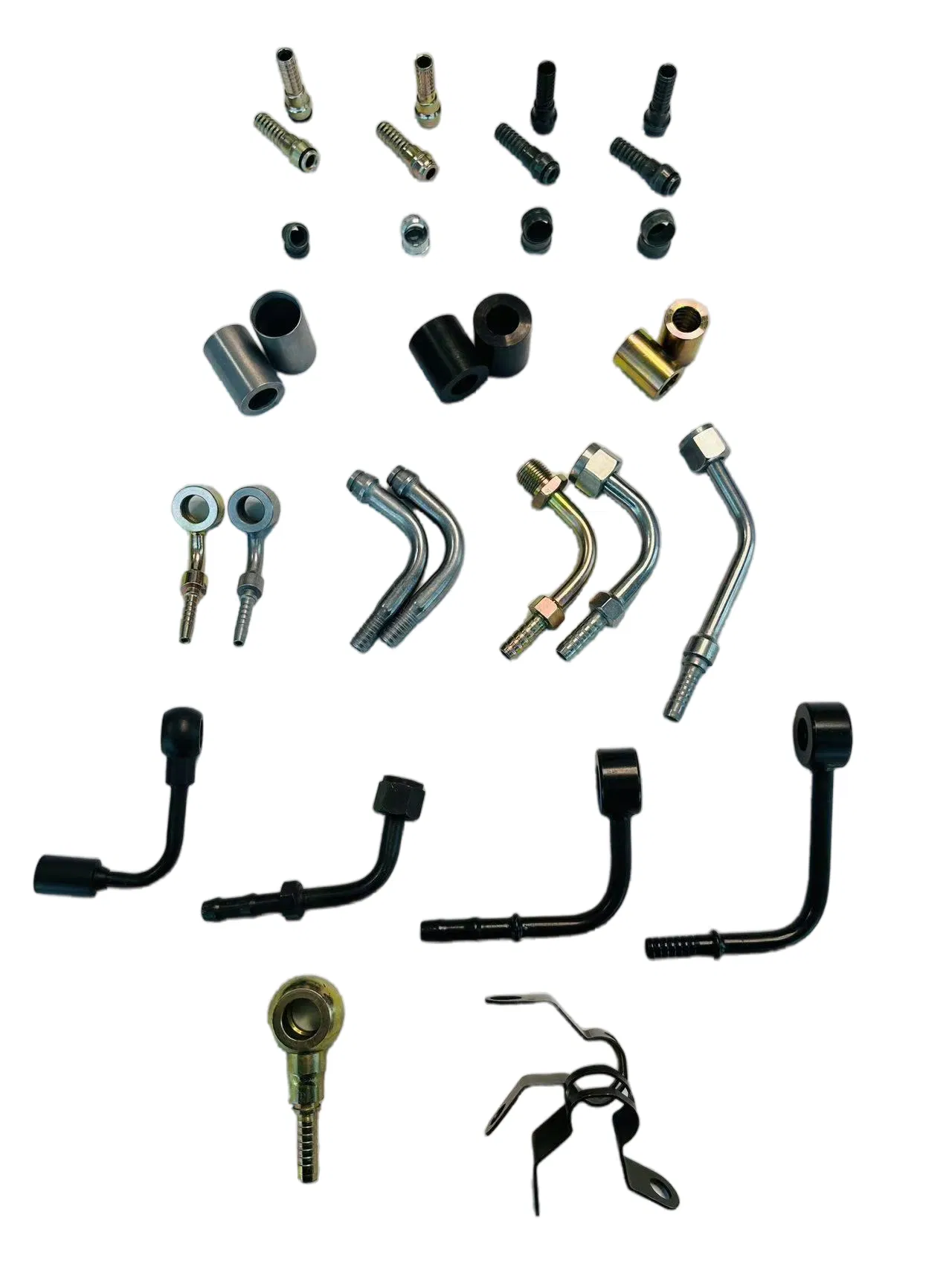

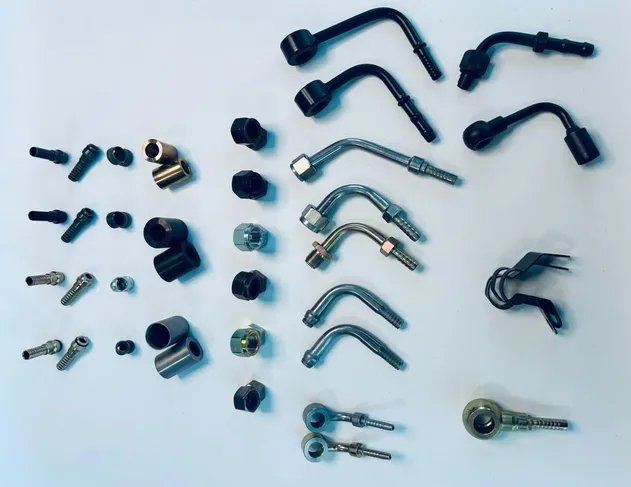

Metal Components

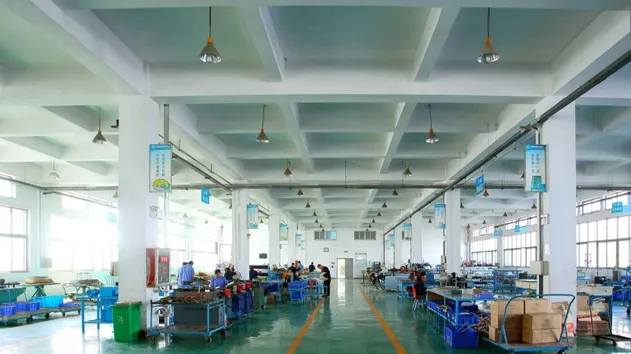

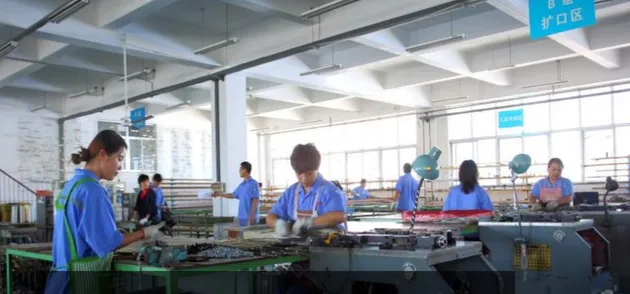

Our facility ensures product excellence through advanced in-house testing and a quality system certified to IATF 16949:2016. We utilize state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements.

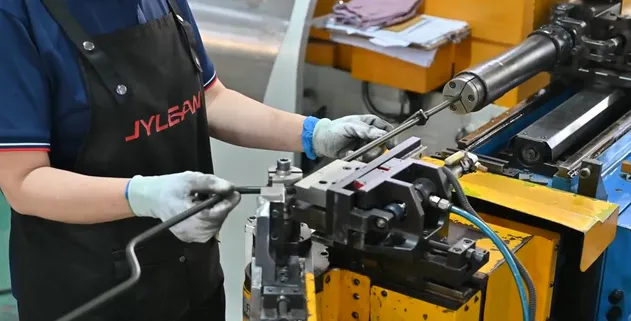

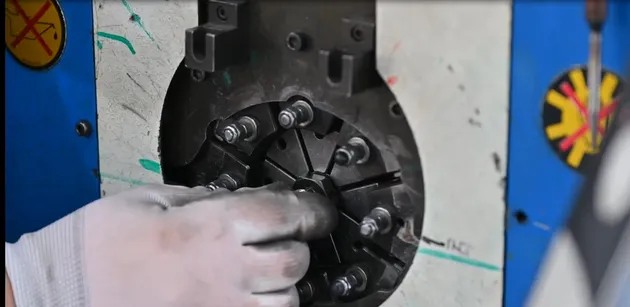

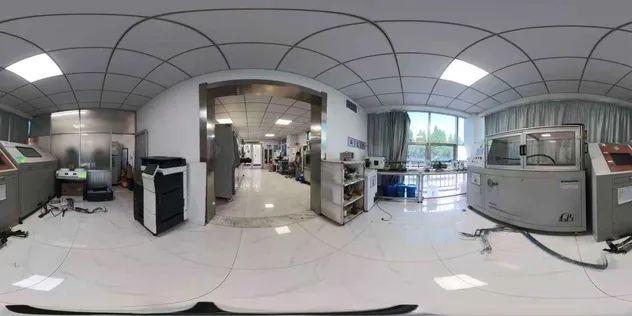

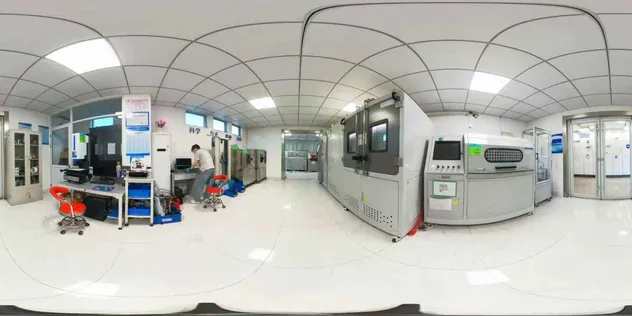

Testing Equipment: Our Quality Assurance Center is equipped with pulse test rigs, environmental chambers, and burst pressure testers to guarantee performance under the most demanding conditions.
Support for 2D/3D CAD drawings, technical specifications, and material standards (SAE / ISO / ECE R90).
Distributors and retailers support via OE part numbers or physical samples for precision replication.
Custom solutions for high-performance needs including specific pressure, temperature, and space constraints.
