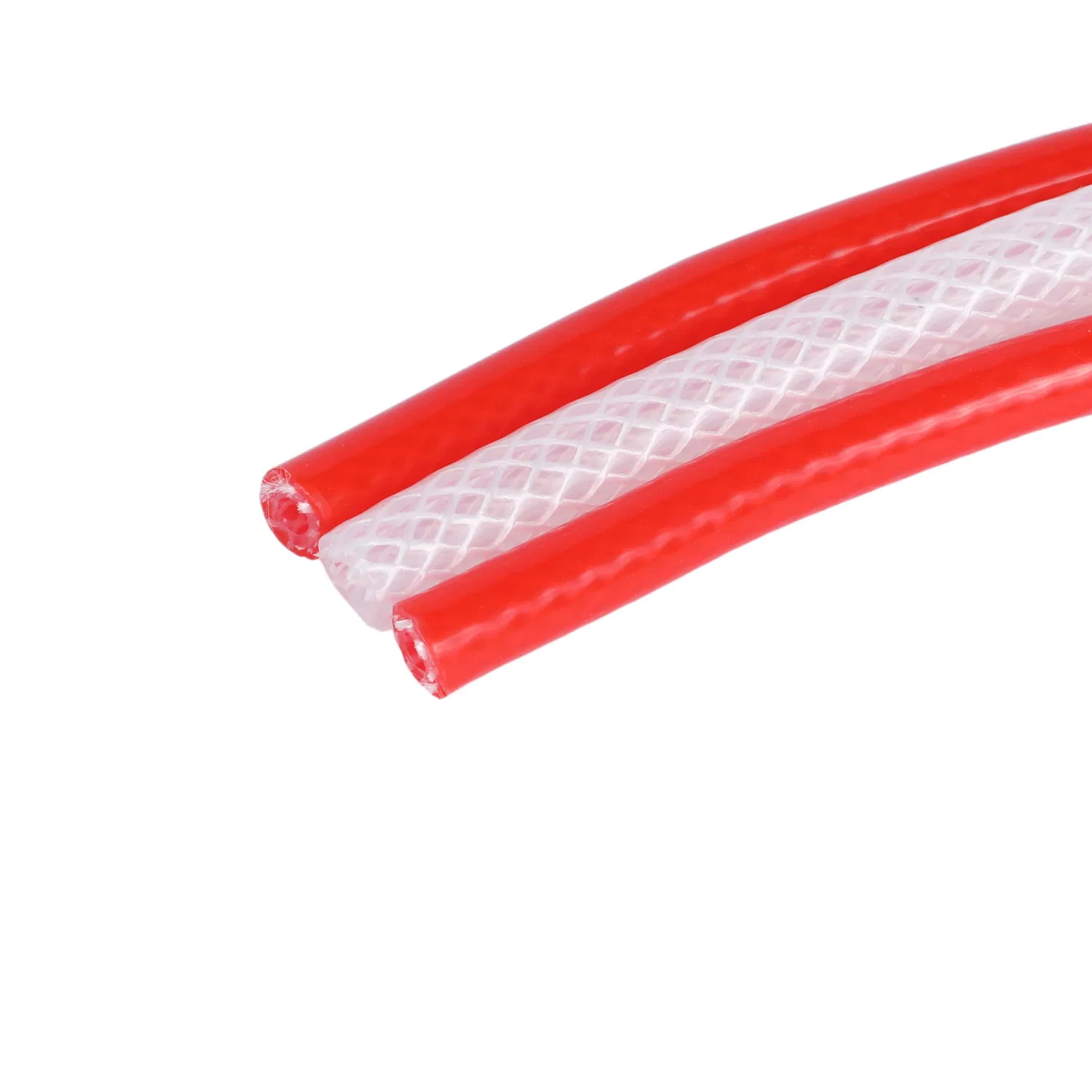

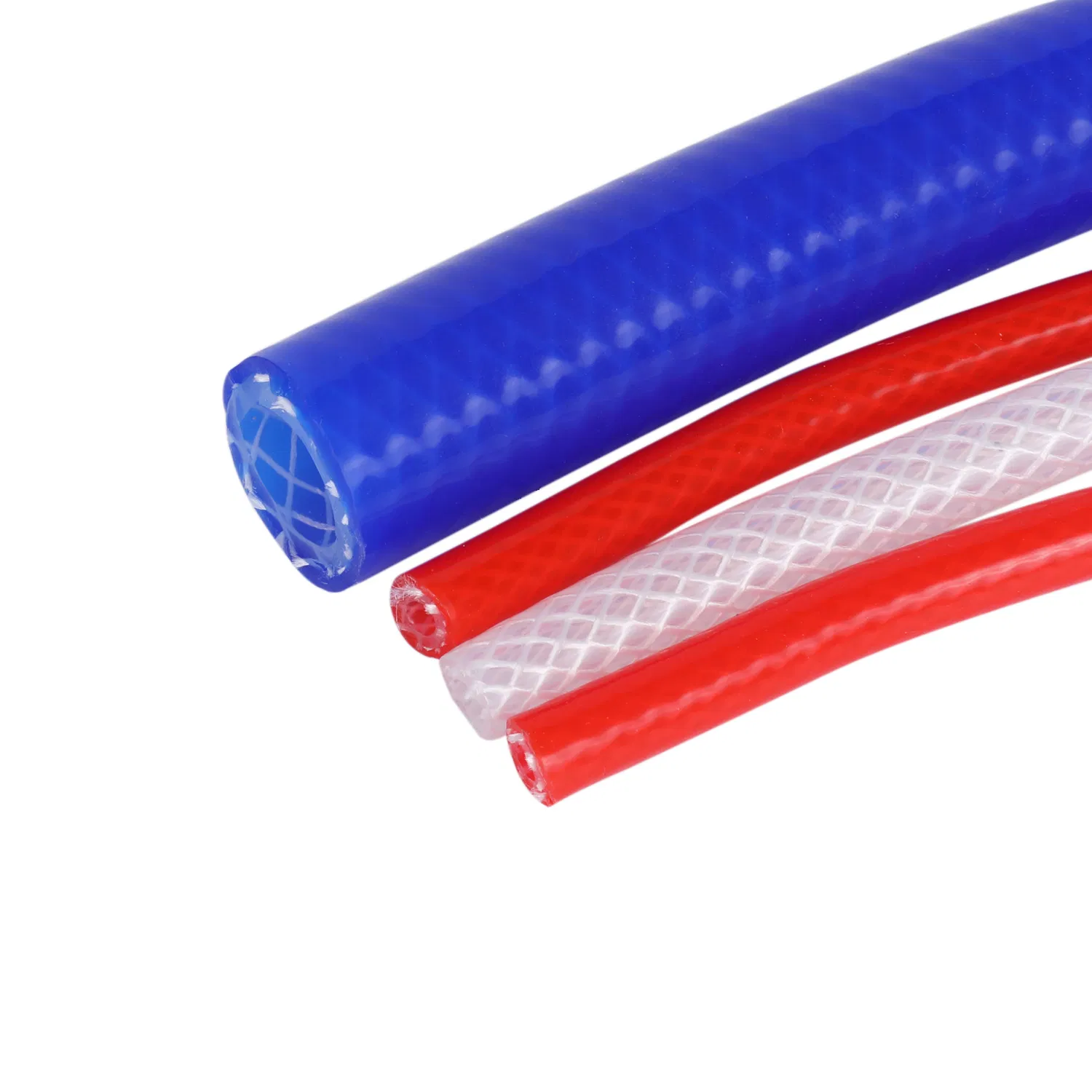

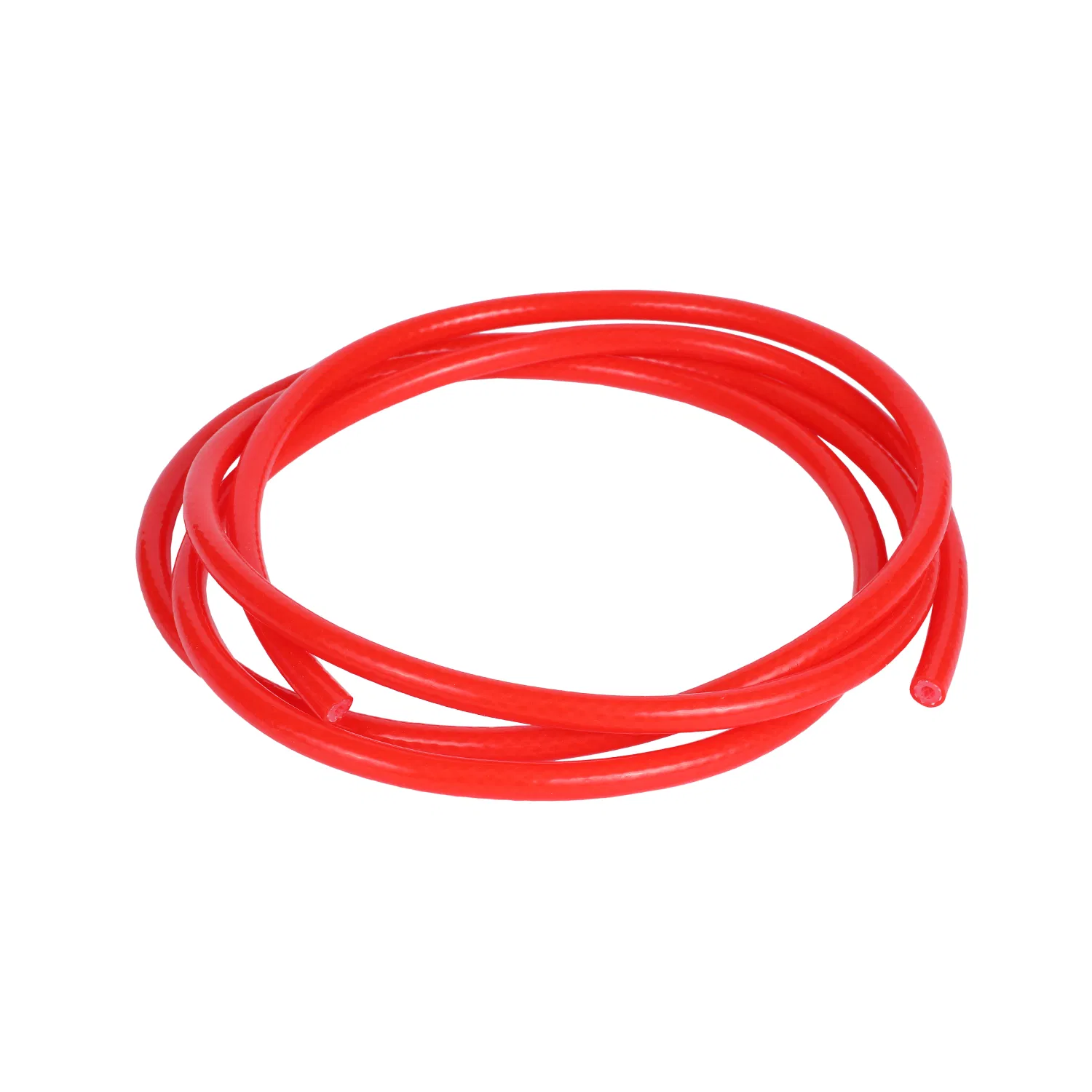

Colorful Transparent Silicone Reinforced Hoses Wire Reinforced Silicone Hose

ℹ️

Basic Info

Model NO.

SBS-SRRT

Material

Rubber

Maximum Voltage

<10KV

Thermal Rating

400-500

Size

1.0mm ~ 25.0mm

Working Temperature

-60-200

Certification No

E360625

Fire Resistance

VW-1

Properties

Insulation, Flexible, Cold and Heat Resistance

Certifications

UL, RoHS, Reach

Pressure Resistance

25r

Product Name

Extruded Silicone Rubber Reinforced Flexible Tube

Voltage

600V

Type

Insulation Sleeve & Tube

HS Code

3917390000

Production Capacity

700000m/Month

📄

Product Description

Colorful Transparent Silicone Reinforced Hoses / Wire Reinforced Silicone Hose

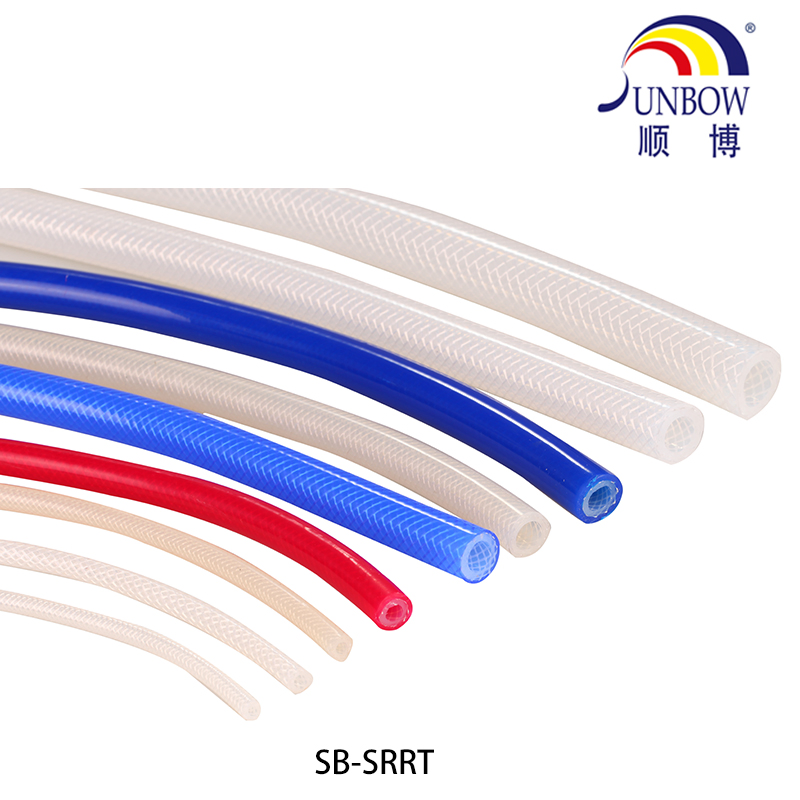

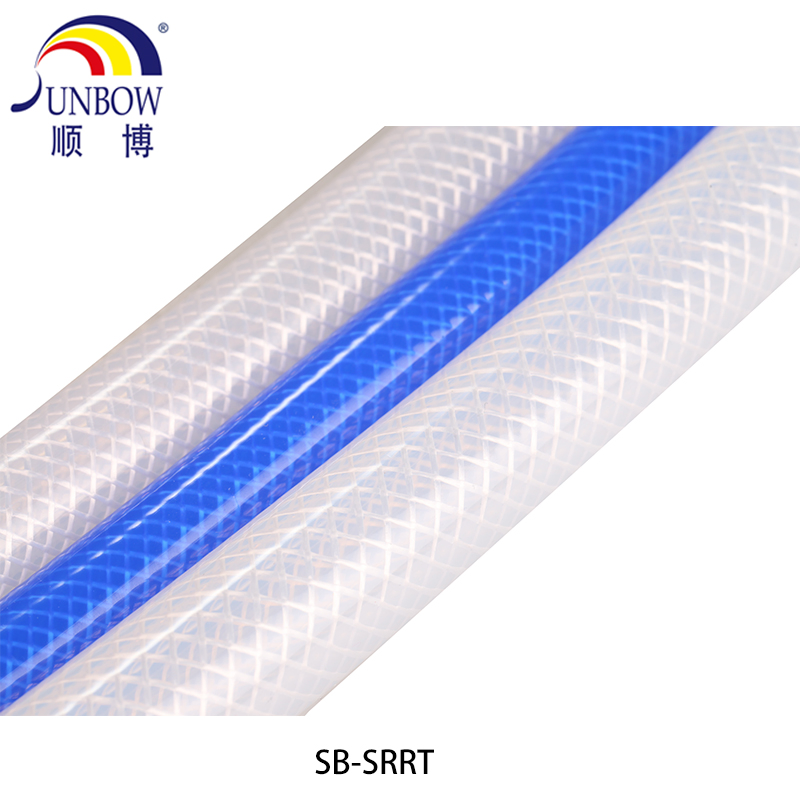

1. Model: SB-SRRT

2. Working Temperature: -60°C to 200°C

3. Structure: Made of extruded silicone rubber and fiberglass treated in high temperature.

4. Usage: Widely used in household appliances like coffee makers.

5. Specification

ITEM	PERFORMANCE	NOTE
DIELECTRIC BREAKDOWN VOLTAGE (KV AC)	≥7.0 / ≥6.0 / ≥5.0	In air / water / 2% salt water
THERMAL ENDURANCE	NO INDICATION OF CRACK	200°C * 1 hours
WORKING PRESSURE	2.5Mpa	NO BREAKING

6. Dimension

Inside Diameter (mm)	Tolerance (mm)	Wall Thickness (mm)	Tolerance (mm)
3.0	+0.4,-0.2	1.5	+/-0.2
4.0	+0.4,-0.2	2.0	+/-0.2
5.0	+0.4,-0.2	2.0	+/-0.2

7. Characteristics

Flexibility, hot and cold resistance, insulation
Thermal endurance: 200°C * 1 hour
Pressure endurance: 2.5 Mpa

🖼️

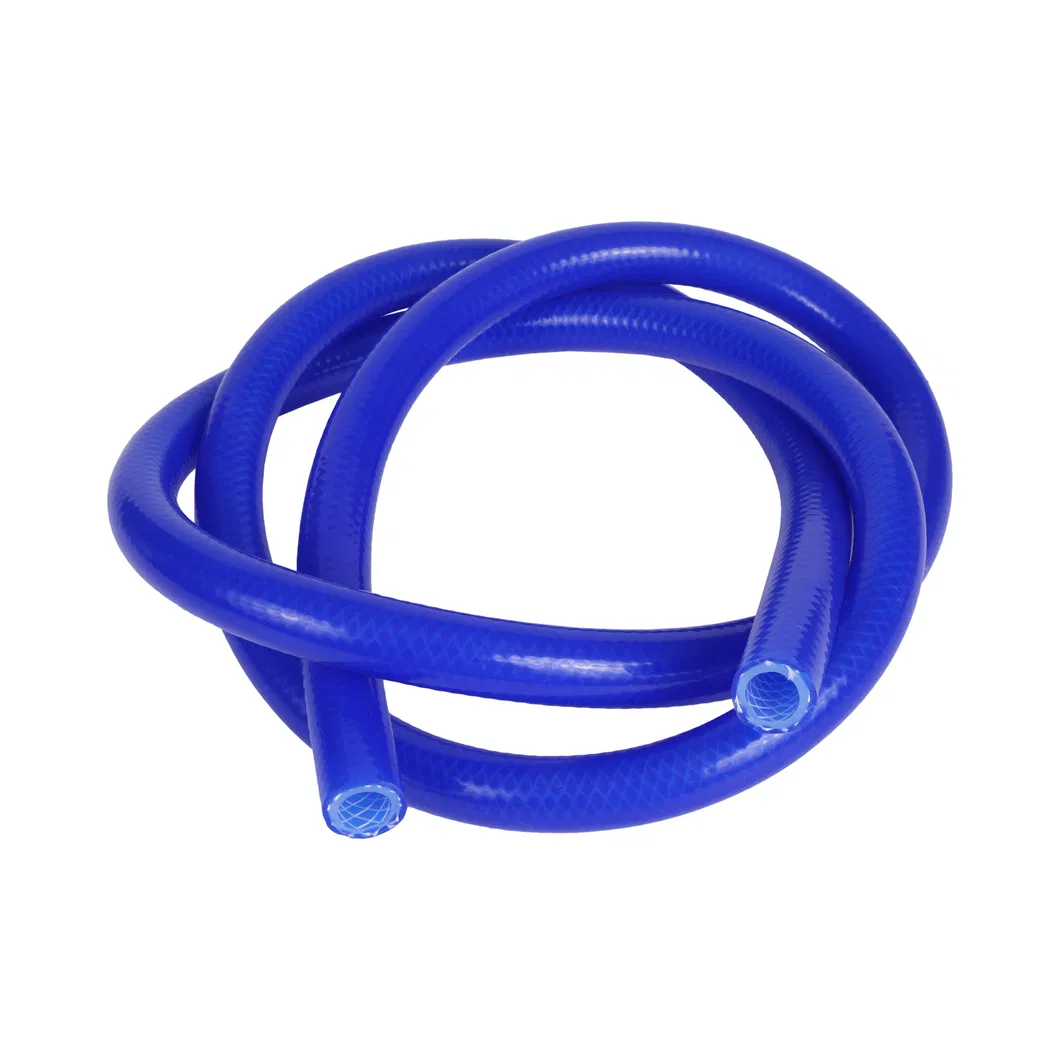

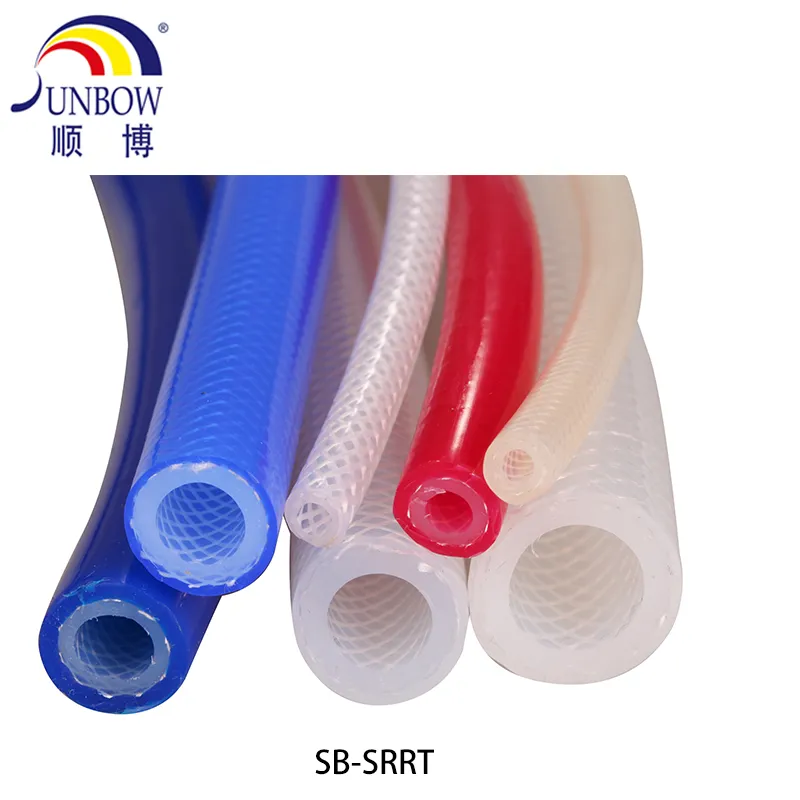

Detailed Photos

🛠️

Our Services

3~5 workdays of delivery
2 years quality guarantee
Prompt feedback
24hrs online service

📜

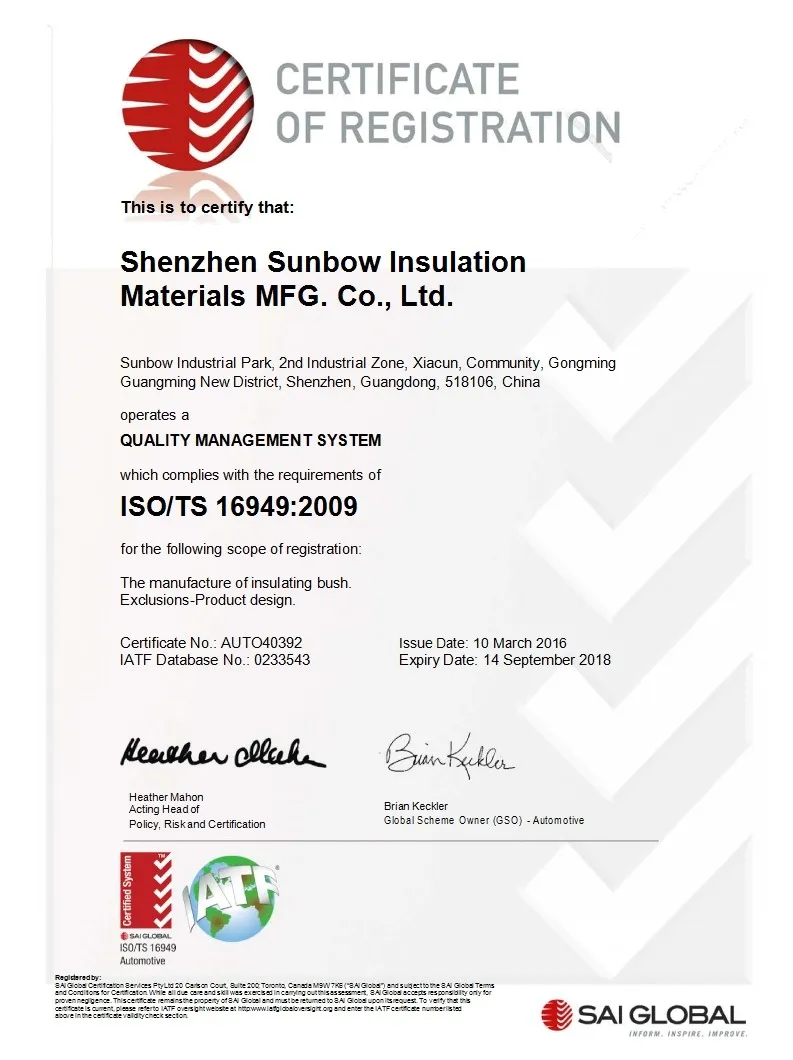

Certifications

🏢

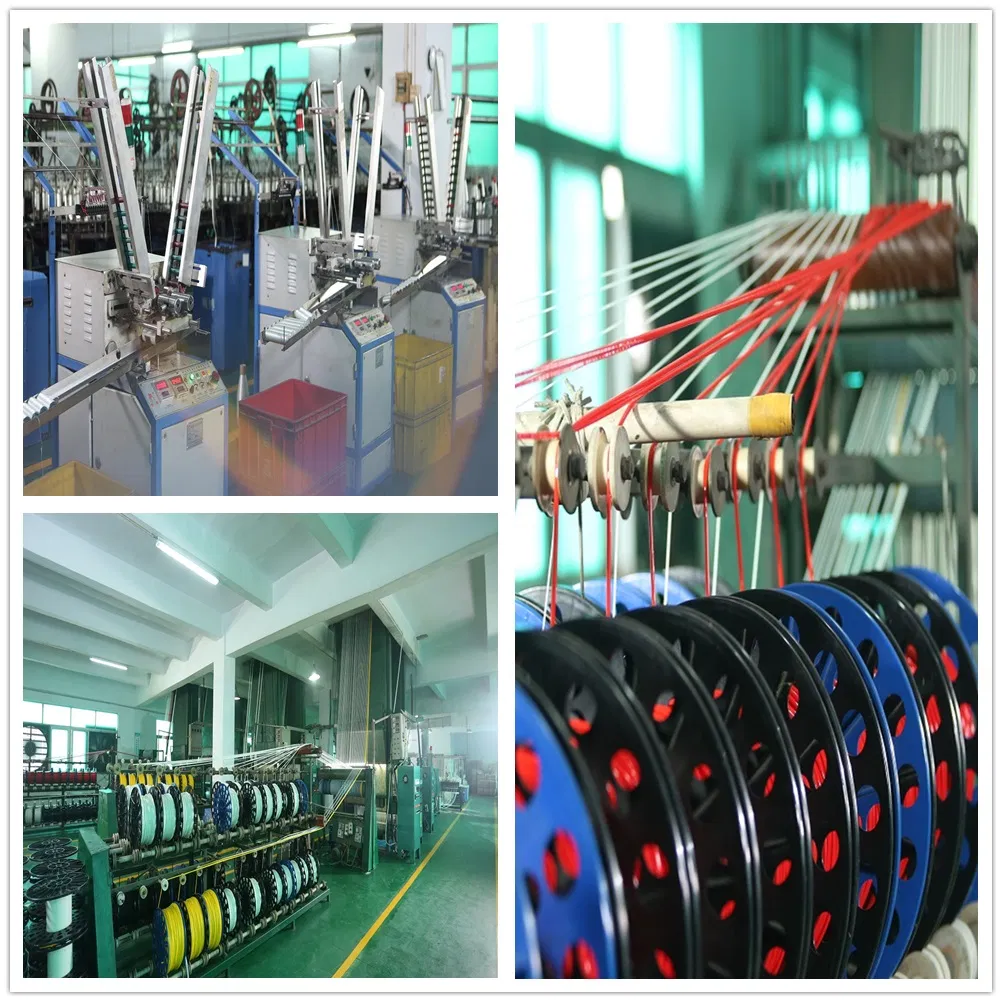

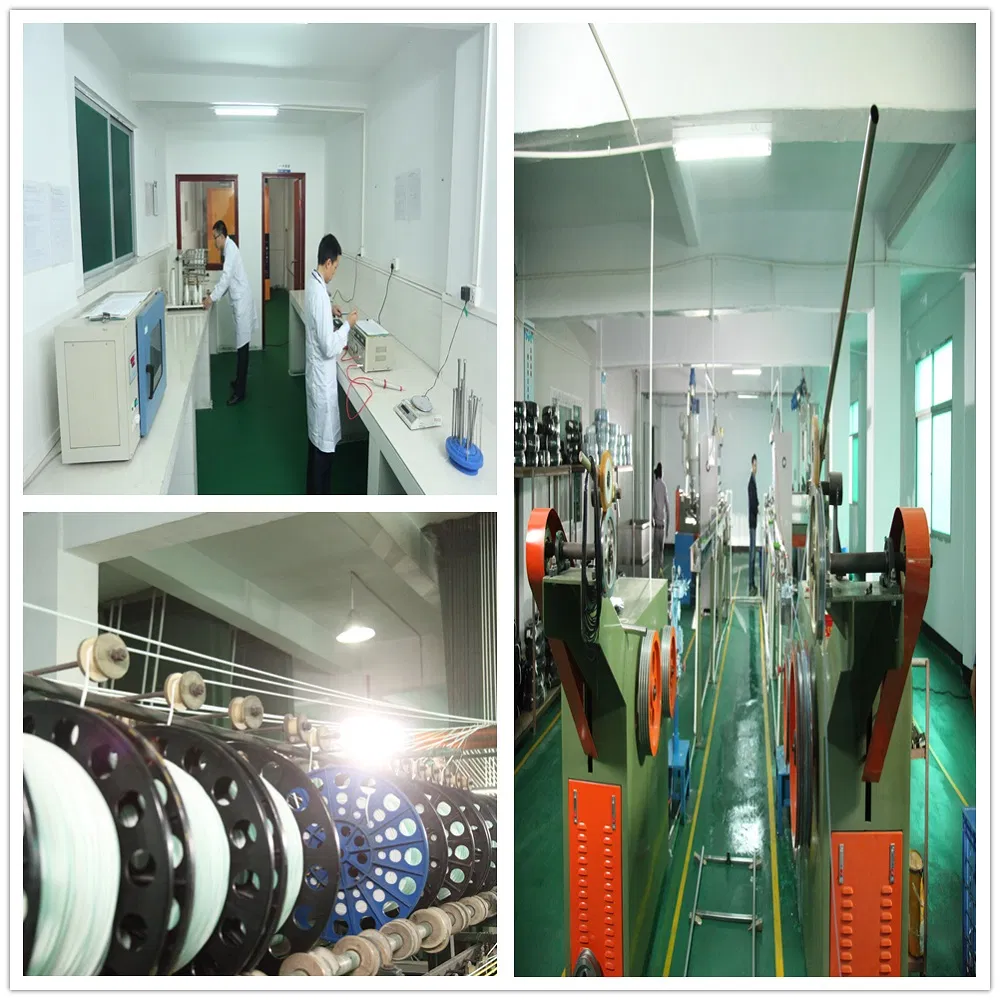

Production Capabilities

10-year exporting experience
15-year manufacturing experience
ISO9001:2008 approved
Product certifications: CUL (VW-1; 200C 600V)

Key Industry Partners: Sanyo, Panasonic, Tiger, SEB, Philips, Black & Decker, Emerson, Conair, HOT, Midea

❓

FAQ

Q1. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q2. How about your delivery time?

A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6. How do you ensure a long-term business relationship?

A: We maintain good quality and competitive pricing to ensure our customers benefit, and we respect every customer as a friend.
