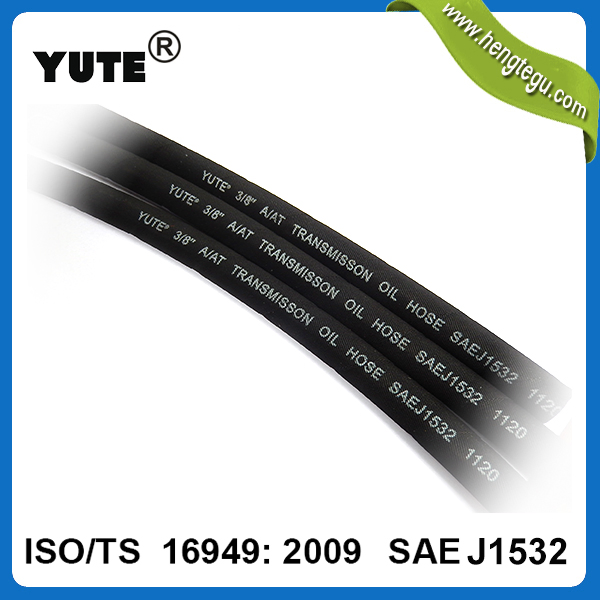

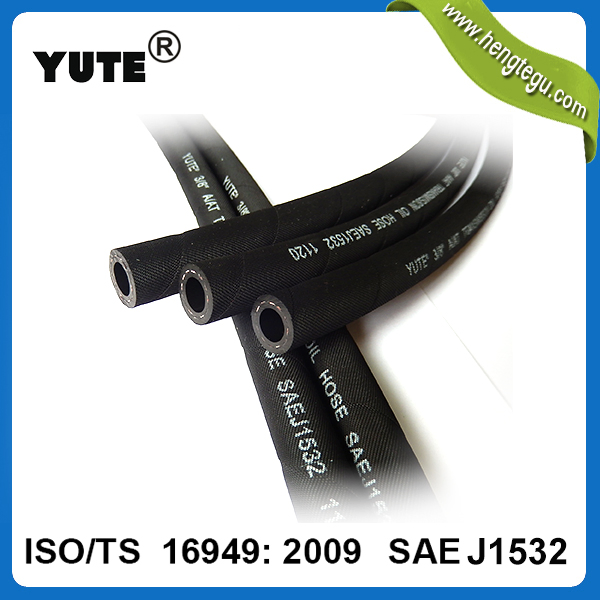

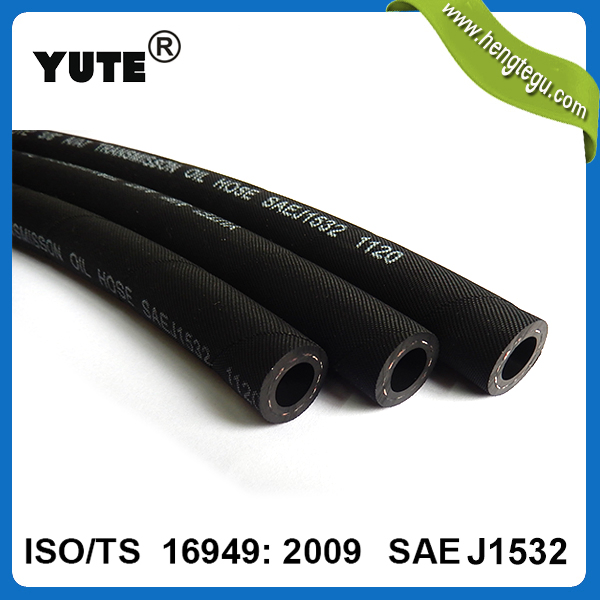

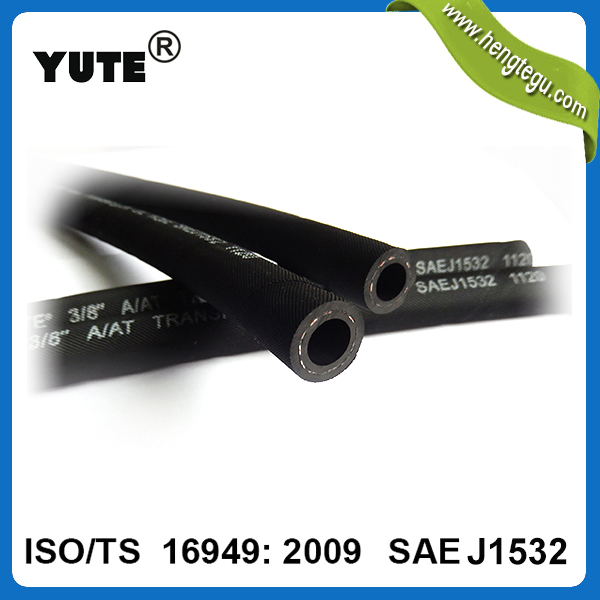

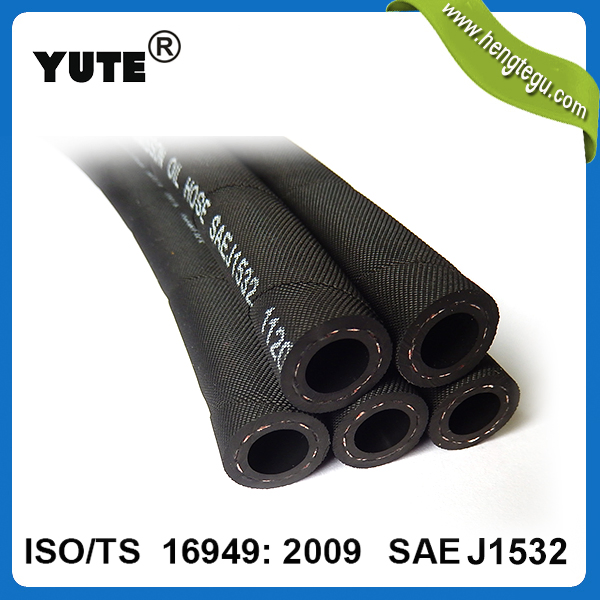

Applications for automatic transmission cooling hose system.
Tube: Rubber formulation with excellent transmission fluid resistance
Reinforcement: High tensile polyester fiber braided
Cover: Aging resistant synthetic rubber
Color: Black/Gray
Temperature range: -40 ºF~ +257 ºF / -40ºC~+125ºC
Standard: SAE J1532
| Part Number | ID (IN) | ID (mm) | OD (IN) | OD (mm) | Working Pressure (PSI) | Burst Pressure (PSI) | Bending Radius (IN) | Length (FT) | Length (m) | Weight (lbs/ft) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 661423 | 5/16 | 7.9 | 35/64 | 14 | 145 | 595 | 3 | 25 | 7.62 | 1.02 | 142 |
| 661726 | 3/8 | 9.5 | 81/128 | 16 | 145 | 595 | 4 | 25 | 7.62 | 1.26 | 176 |
| 662148 | 1/2 | 12.7 | 25/32 | 20 | 145 | 595 | 5 | 25 | 7.62 | 1.82 | 253 |
