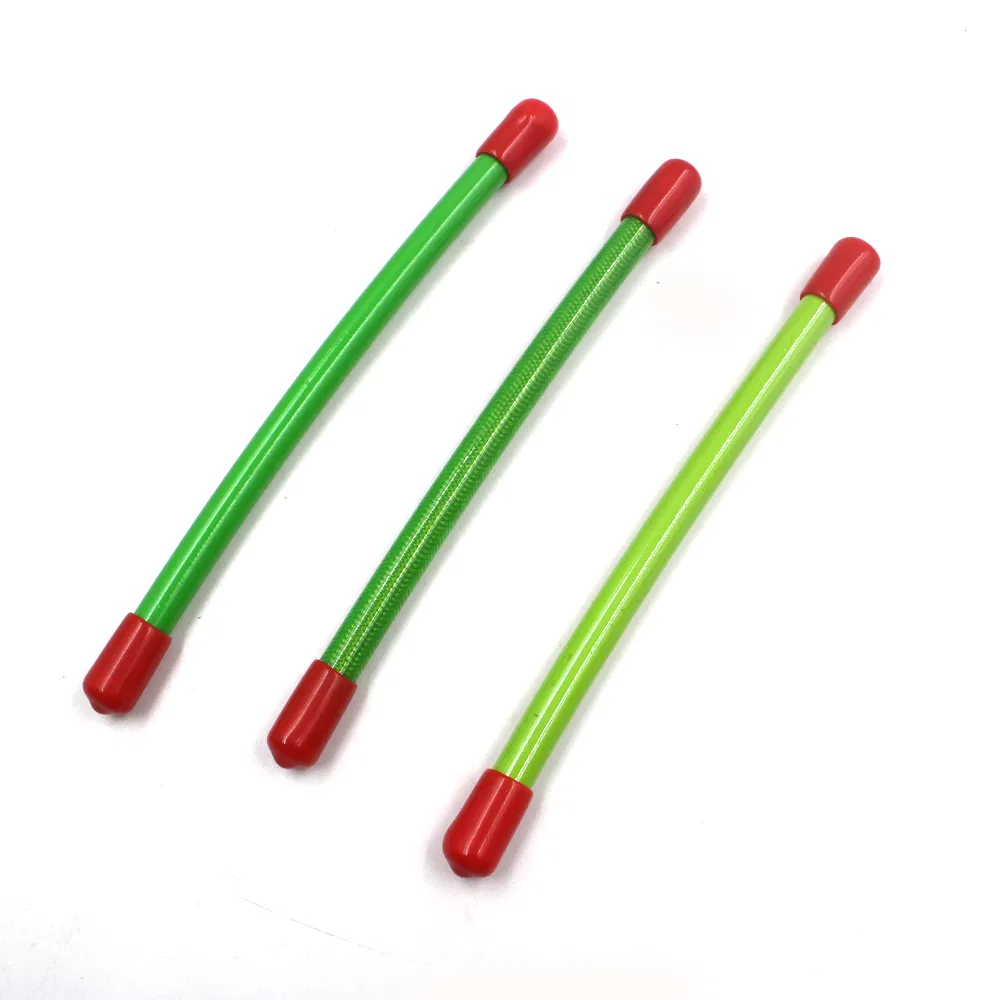

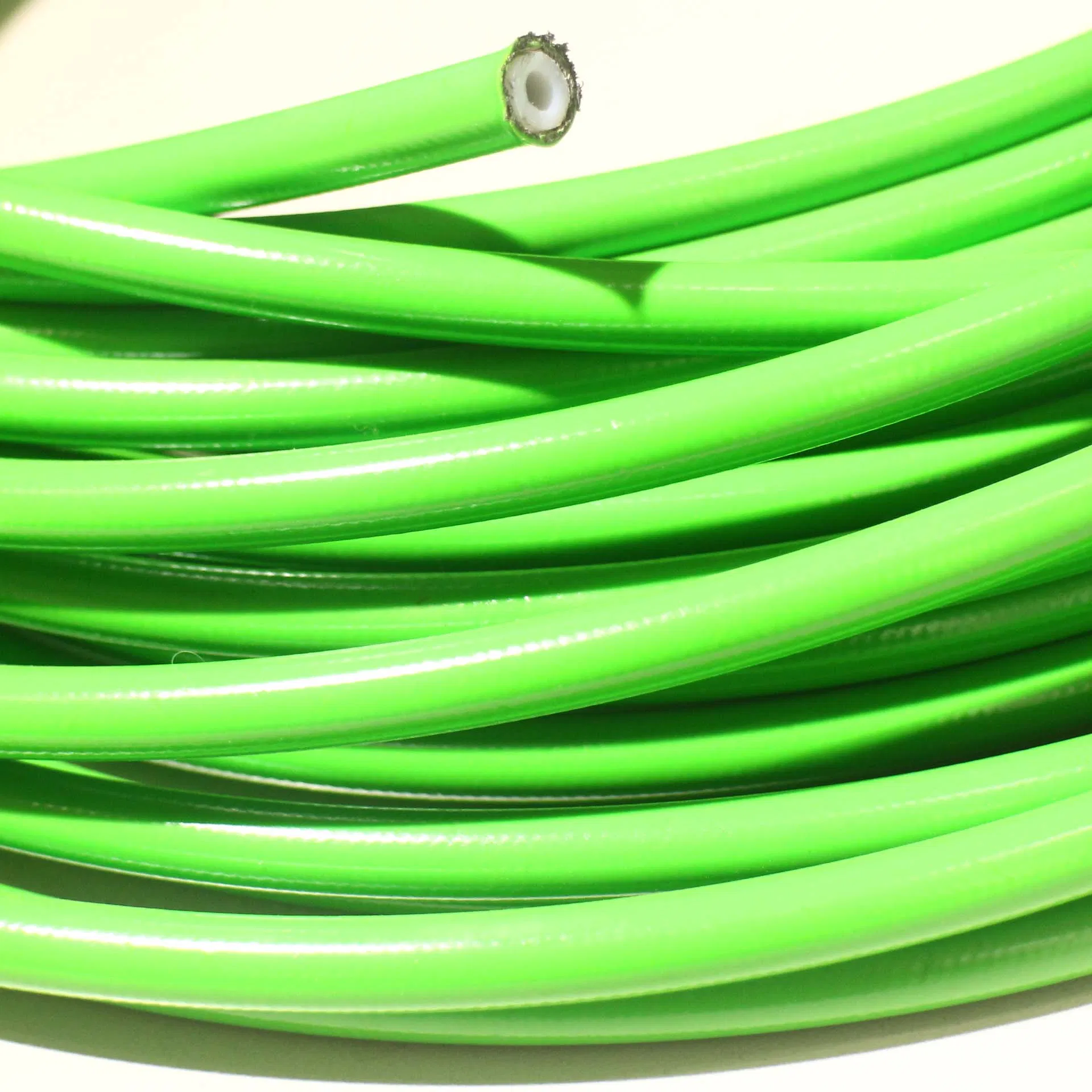

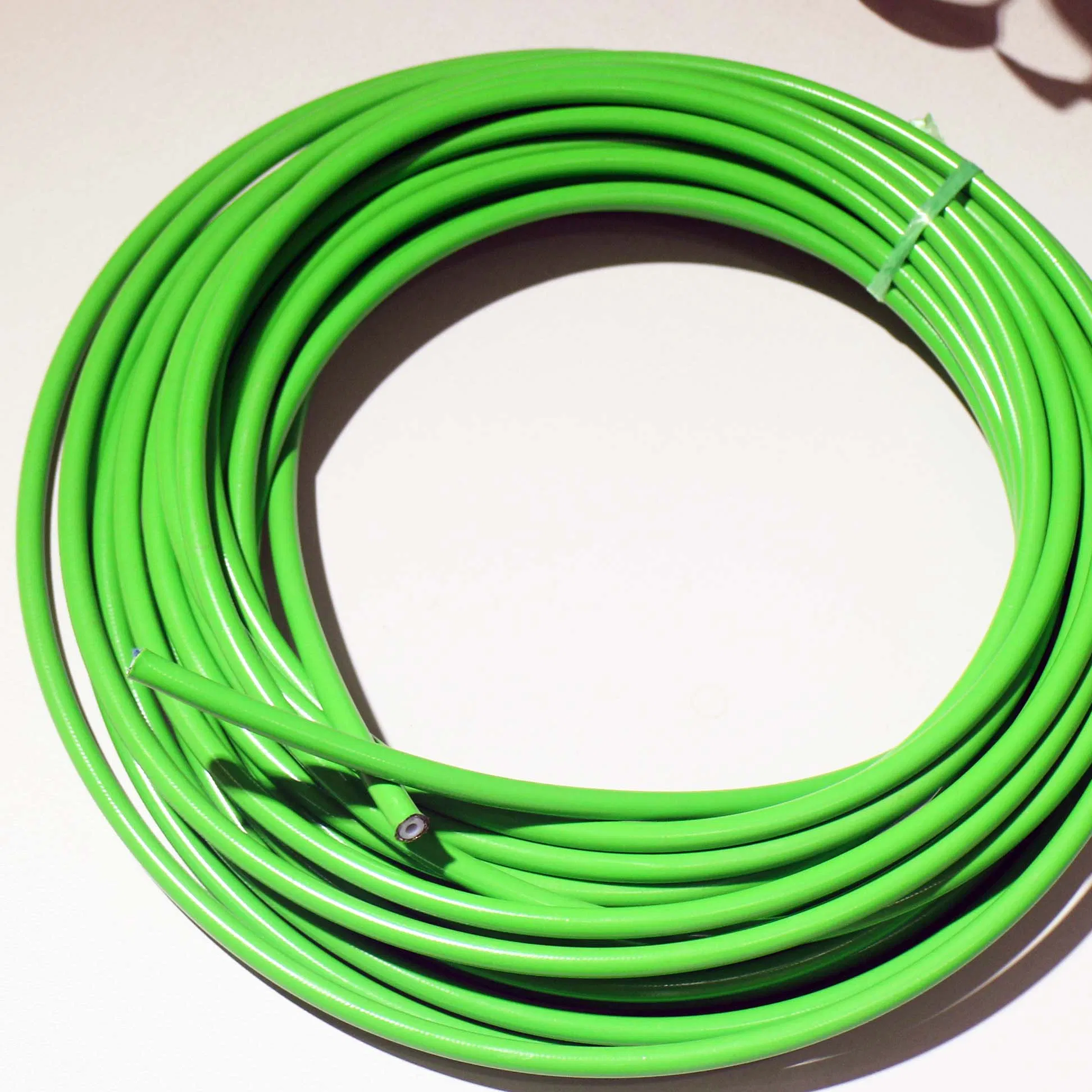

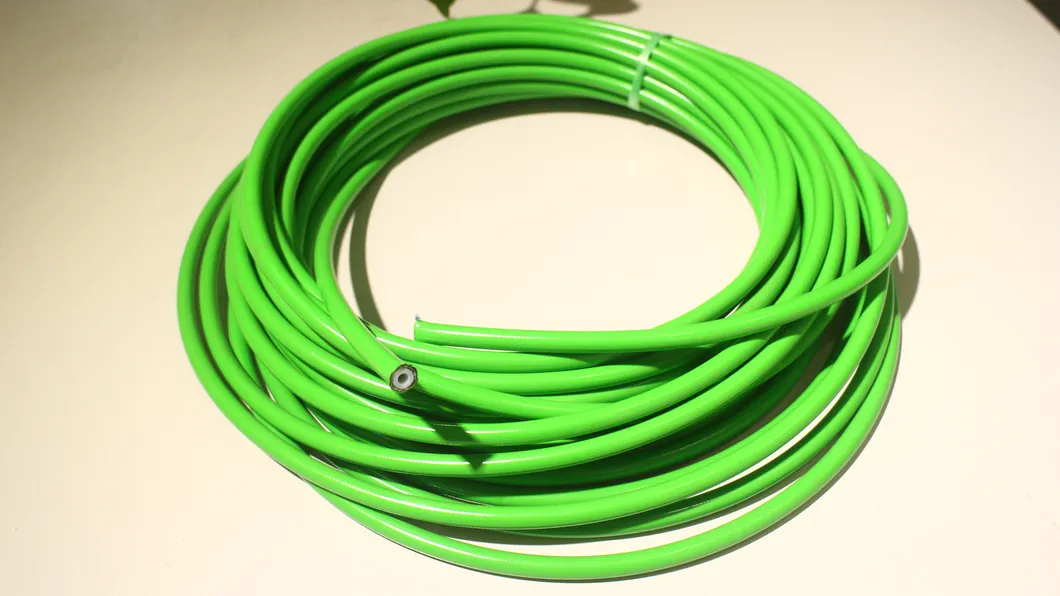

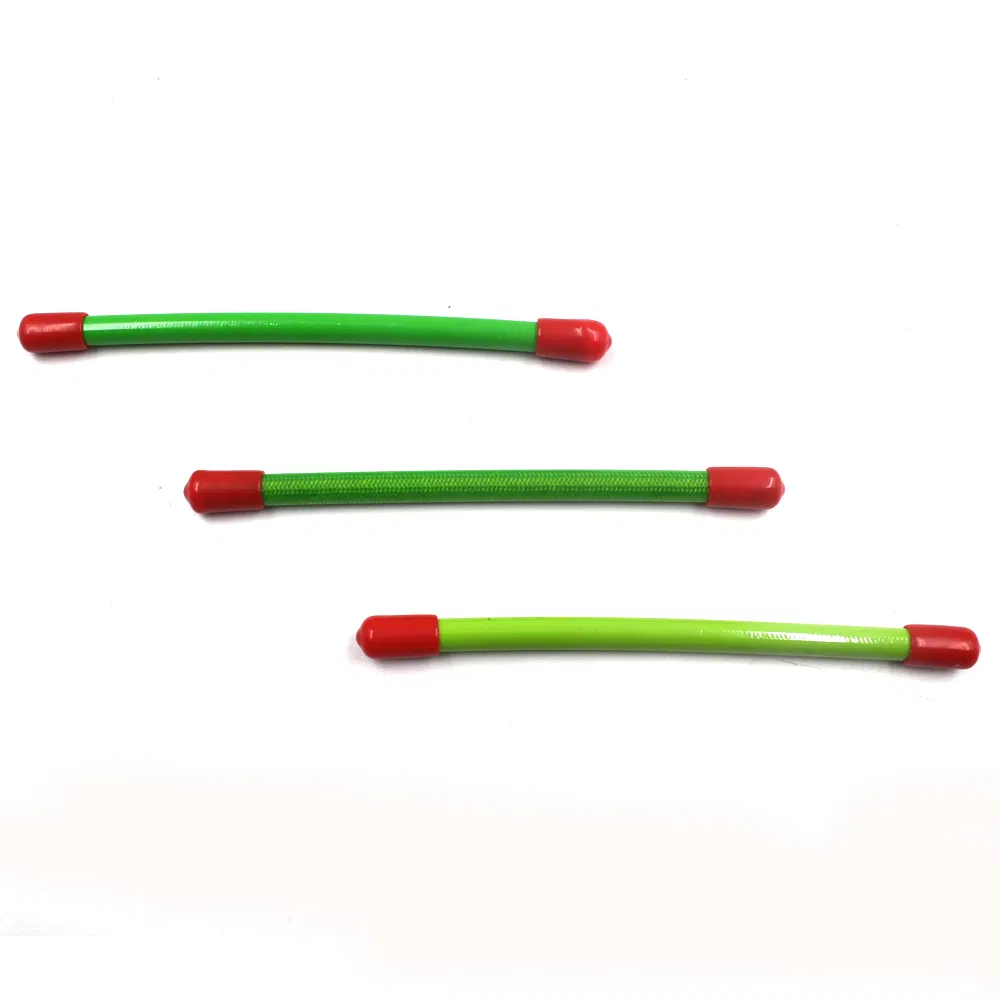

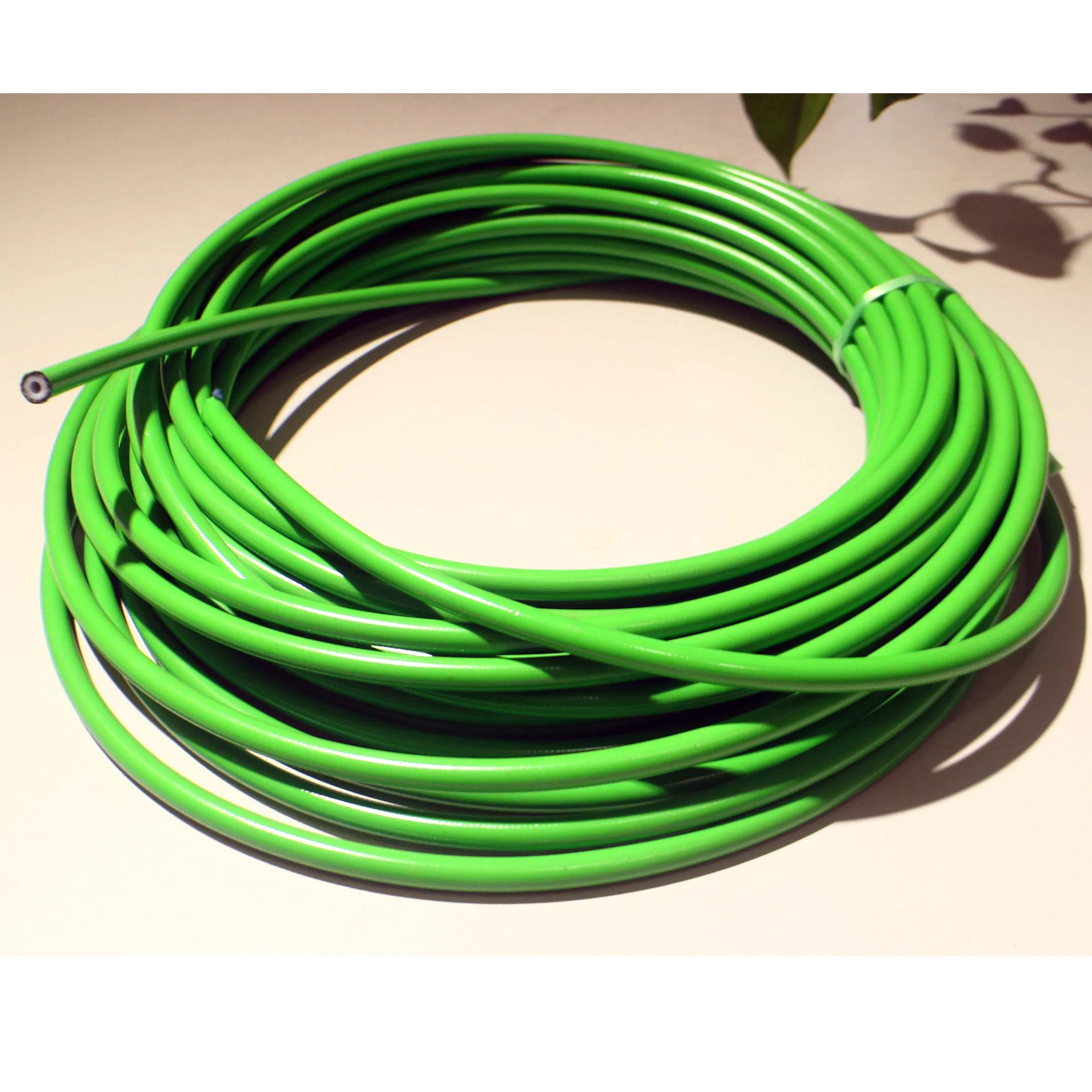

High Pressure Heat Resistant Stainless Steel Wire Braided PTFE Hose

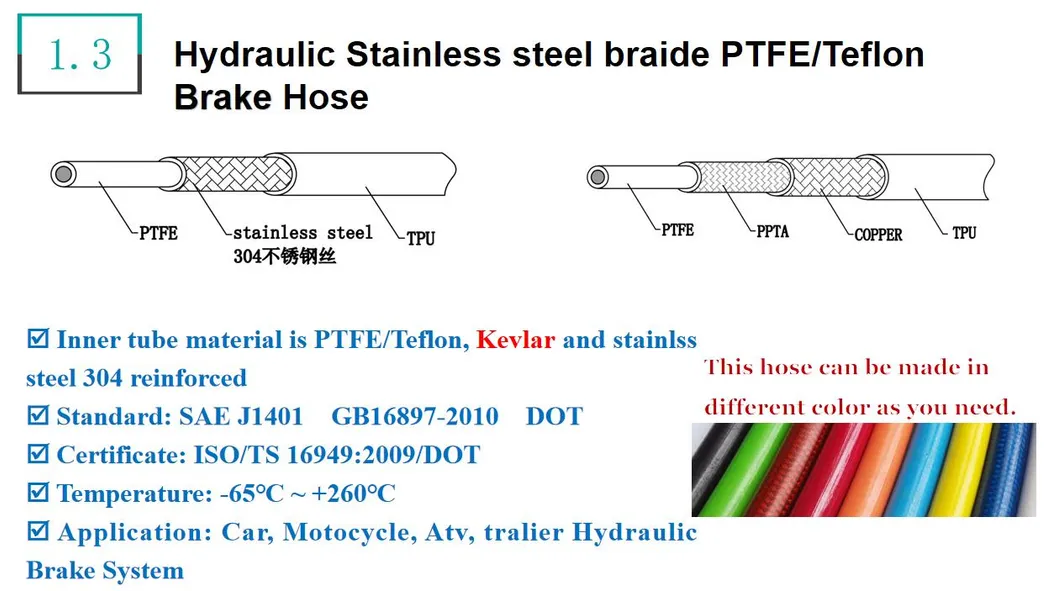

| Layer Component | Material Specification |
|---|---|
| Inner Layer | High Quality PTFE |
| Enhancement Layer | Stainless Steel Wire Braid (AISI 304 / 316) |
| Outer Layer | PVC / PU (Various colors available) |
| Temperature Range | −65ºC to +260ºC |
| Compatibility | Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil |
| Size Code | Inner Diameter | Outer Diameter | Burst Pressure | Material |
|---|---|---|---|---|
| AN3 (1/8") | 3.2 mm | 6.5 mm - 8.0 mm | 12,000 PSI | PTFE + 304 SS |
| AN4 (3/16") | 4.8 mm | 8.0 mm - 9.0 mm | 12,000 PSI | PTFE + 304 SS |
| AN6 (21/64") | 8.13 mm | 11.0 mm | 10,000 PSI | PTFE + 304 SS |
Standards & Performance:
• Meets FMVSS-106 and SAE J1401 specifications.
• Pressure tested to 3000 psi (207 bar).
• Burst pressure: minimum 7250 psi (500 bar).

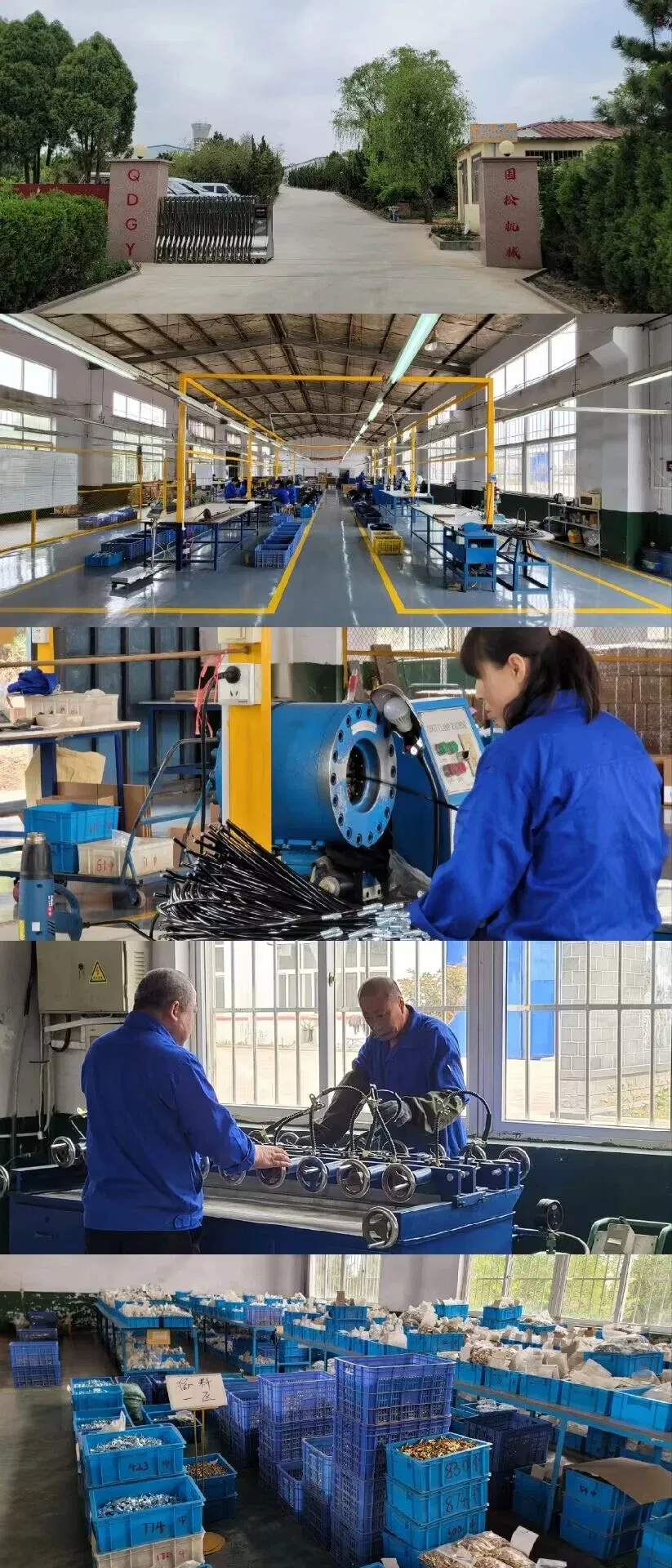

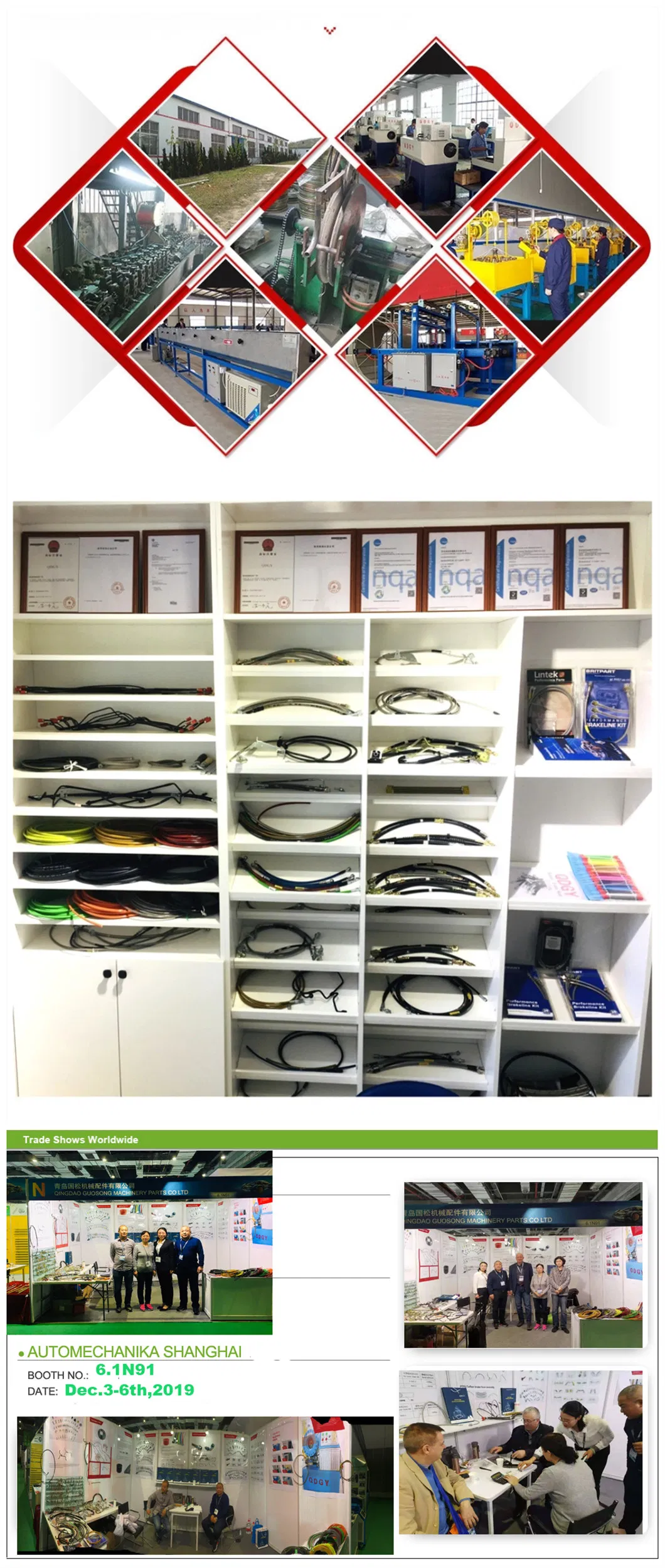

The facility has been a leading brake hose manufacturer since 1998. With extensive manufacturing space and a dedicated team, the production includes marketing, hose fabrication, and fitting assembly. Our brake hoses and assemblies utilize superior materials to meet high-performance requirements for both automotive and motorcycle industries, serving aftermarket and OEM markets globally across 56 countries.
