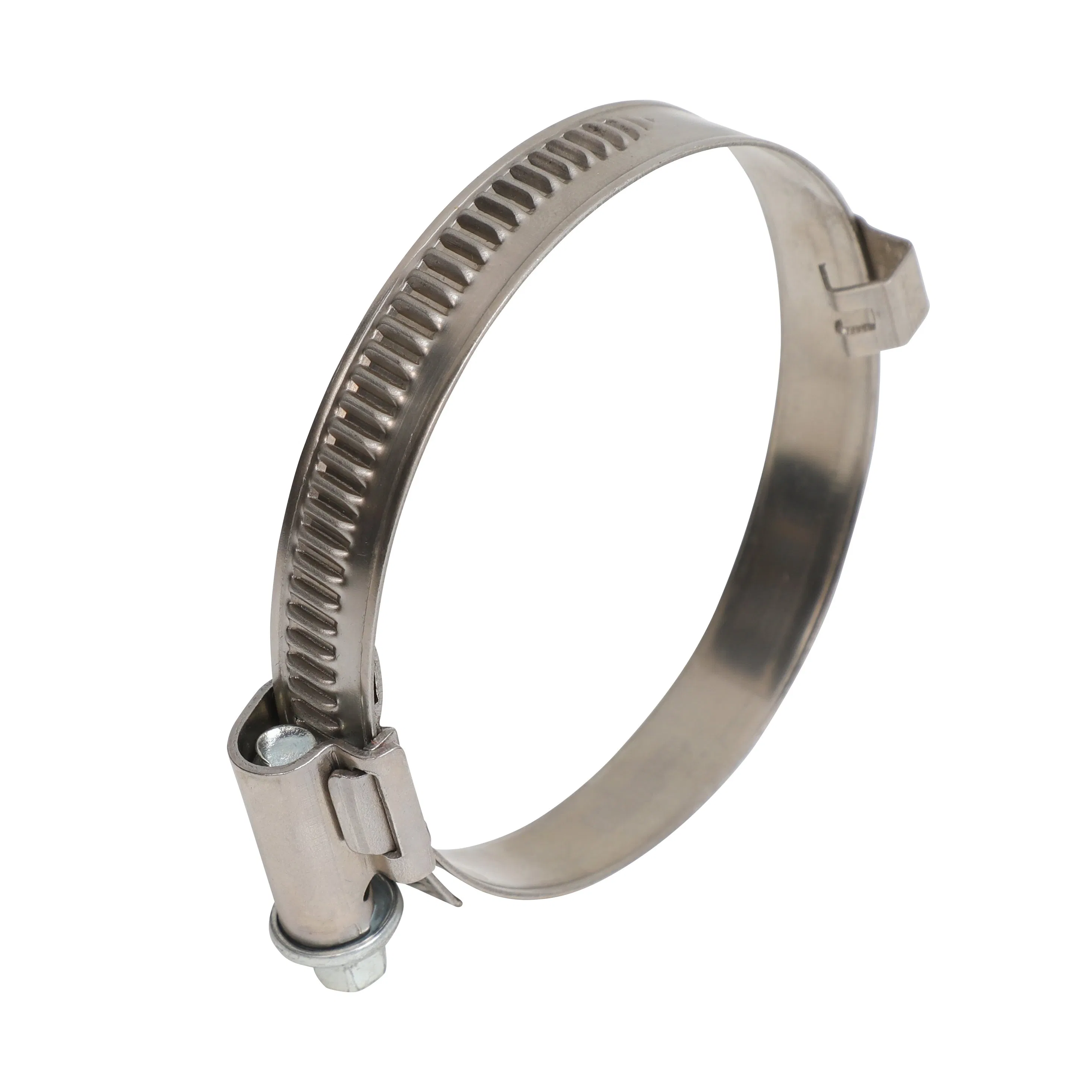

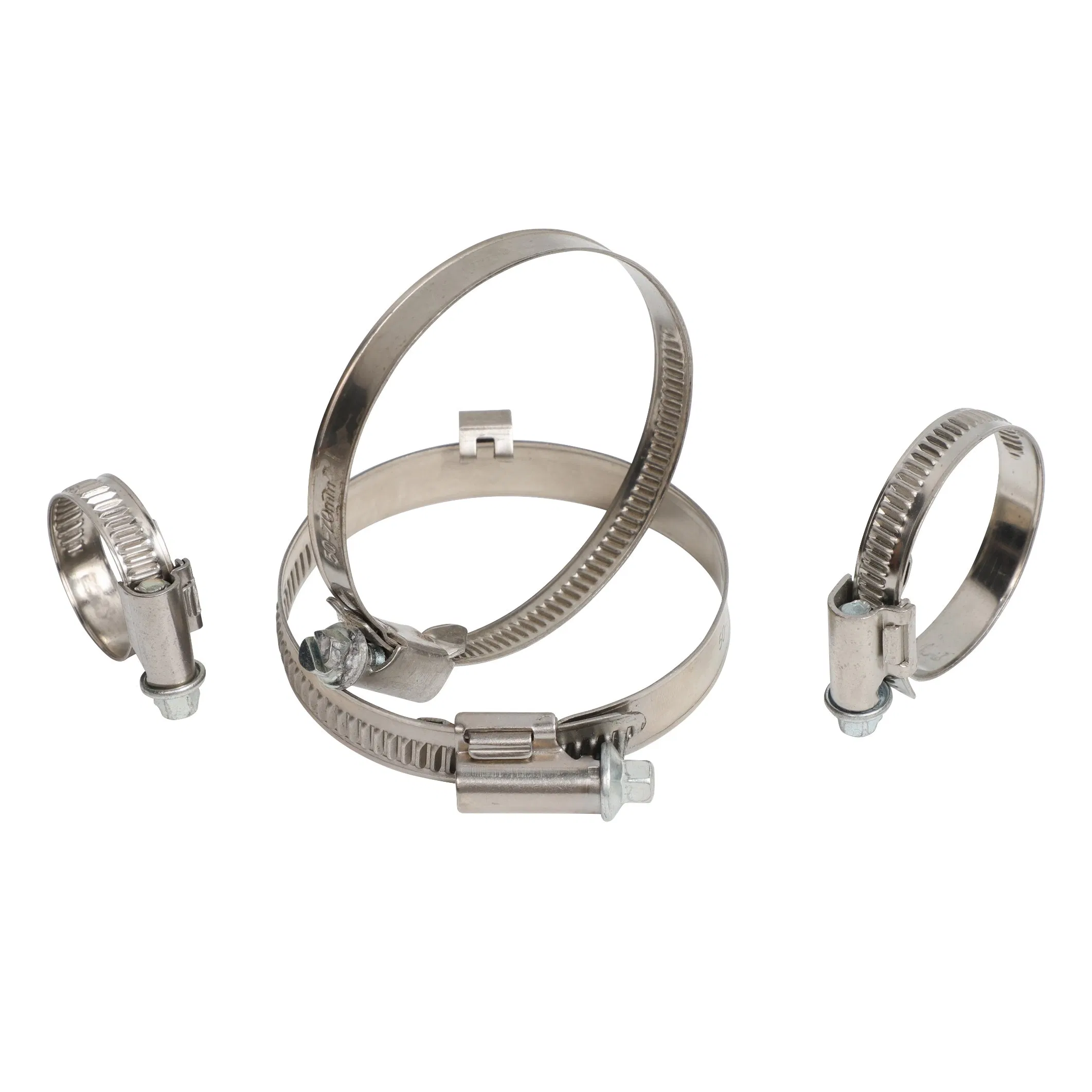

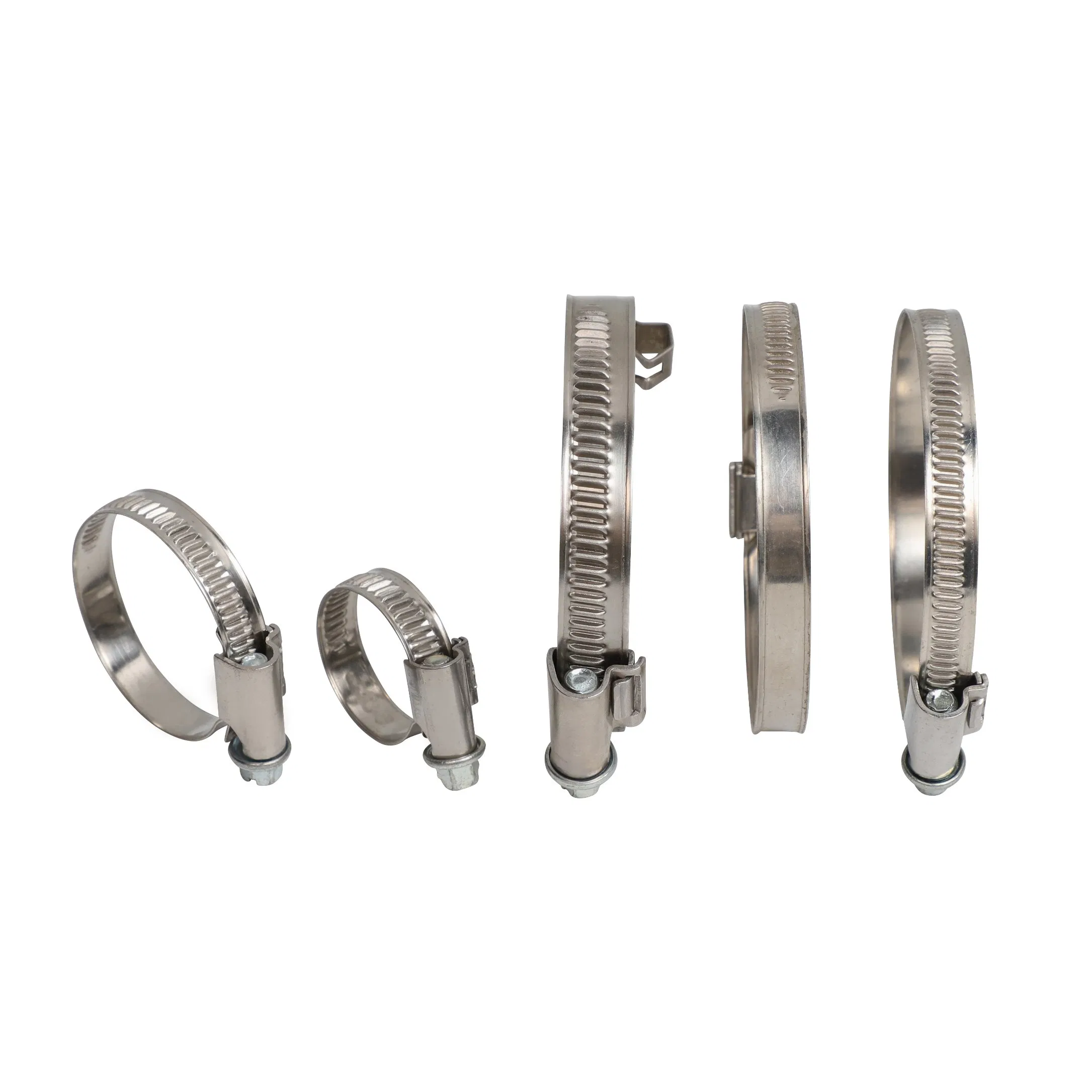

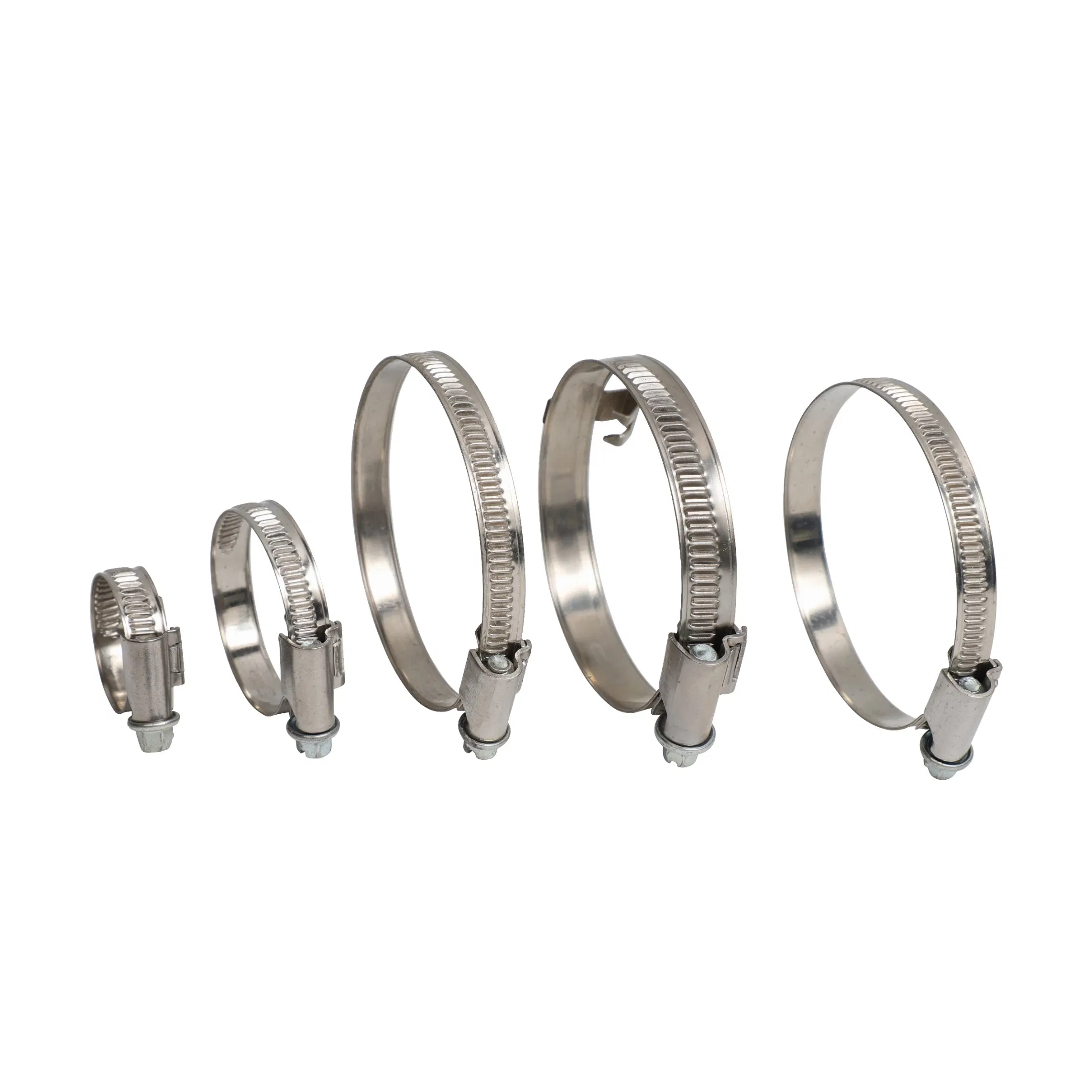

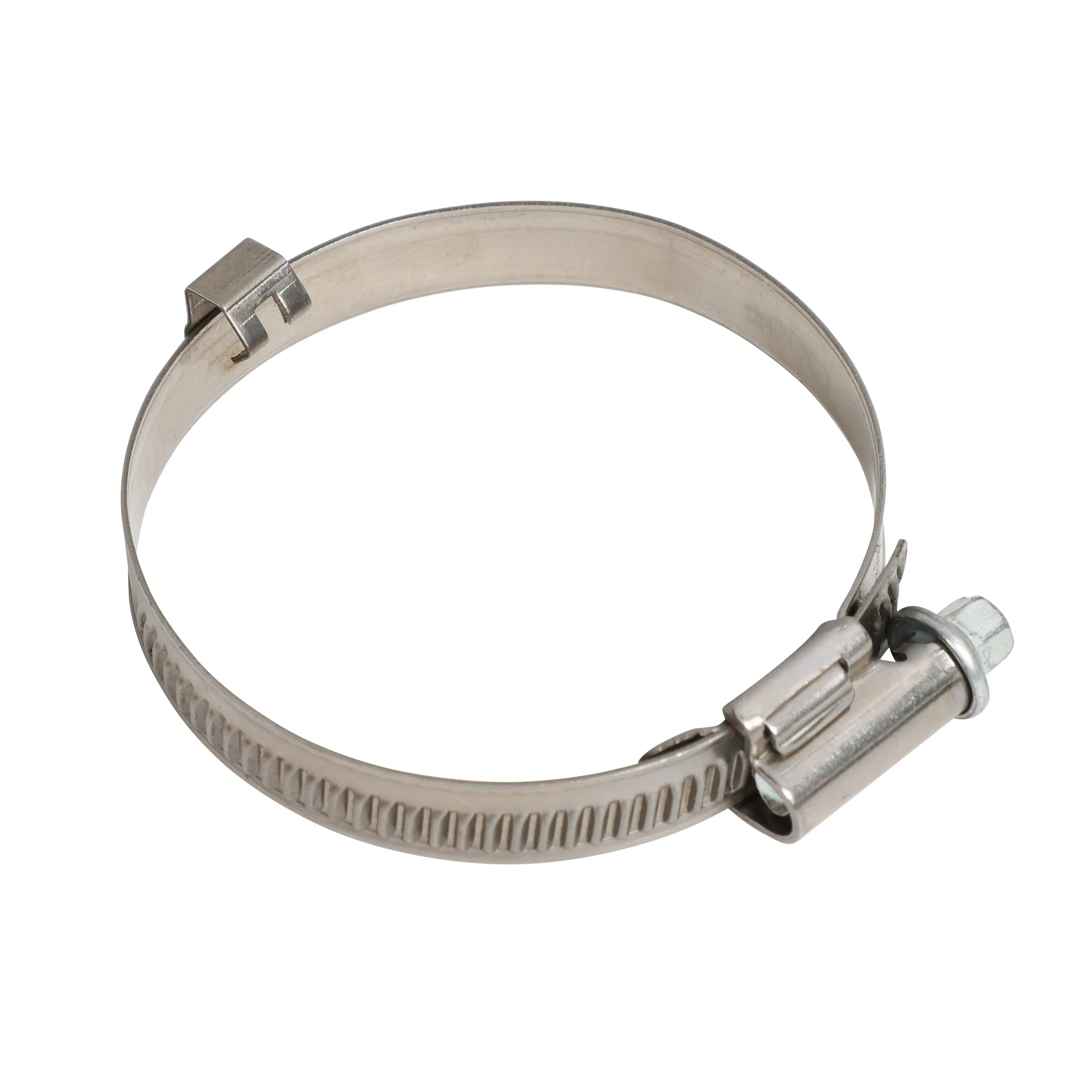

DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
1 / 5
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive

DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
WNA B12 D90-110 W5
Product Type
Non-Perforated Torro Worm Gear Hose Clamps (WNA)
Band Width
12 mm (0.47")
Clamping Range
90 mm - 110 mm (3.54"-4.33")
Band Thickness
0.6 mm (0.024")
Packaging
Plastic Bag Placed in Box, Box on Pallet
Origin
China
Product Overview

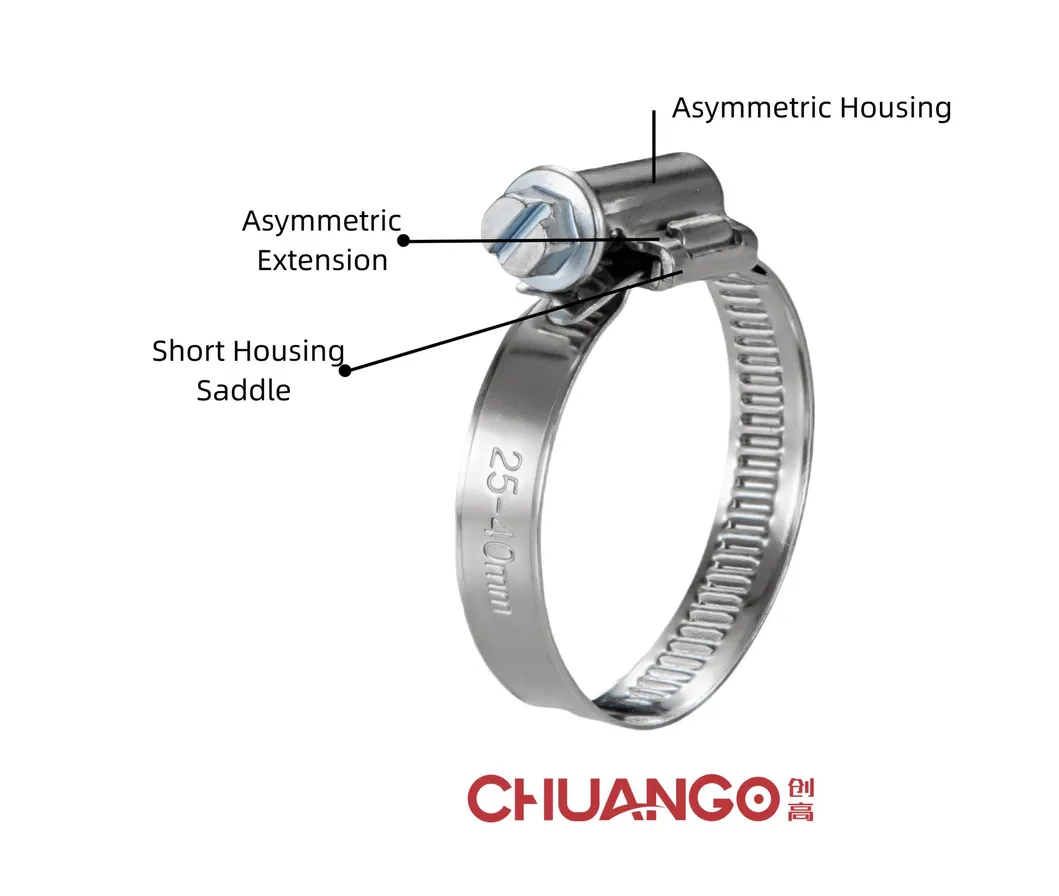

Non-perforated Torro Worm Gear Hose Clamps

Torro Worm gear hose clamps are especially suited to applications with high mechanical loads. The improved asymmetric housing ensures an even distribution of forces and safe assembly.

  • Asymmetric Extension: Prevents the housing from tilting over when the clamp is tightened.
  • Safe Guidance: Screw support facilitates ease of assembly due to the safe guidance of the emerging band end.
  • Short Housing Saddle: Provides even contact pressure for reliable sealing.
  • Hose Protection: Smooth inside of the band offers optimal protection for all hose types.

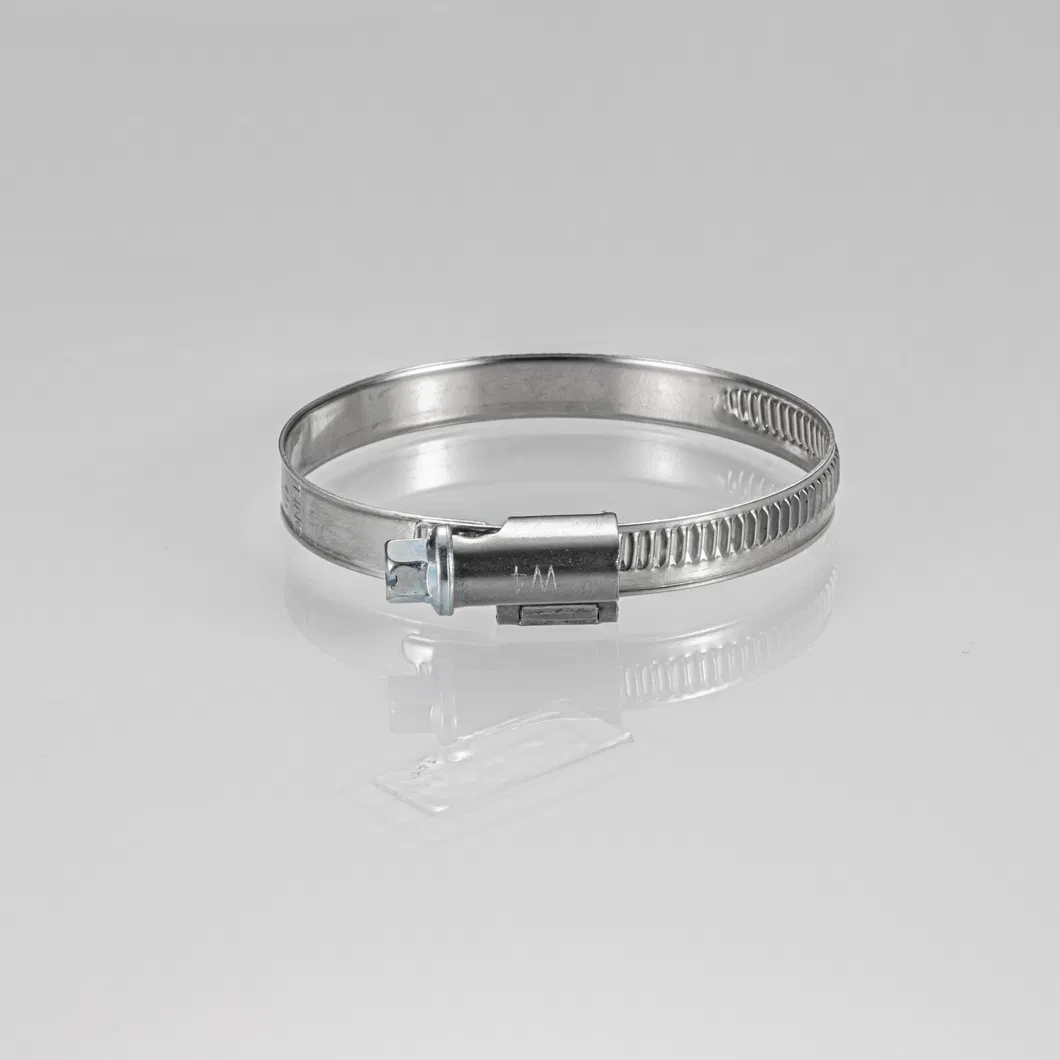

Hose Clamp Detail 1

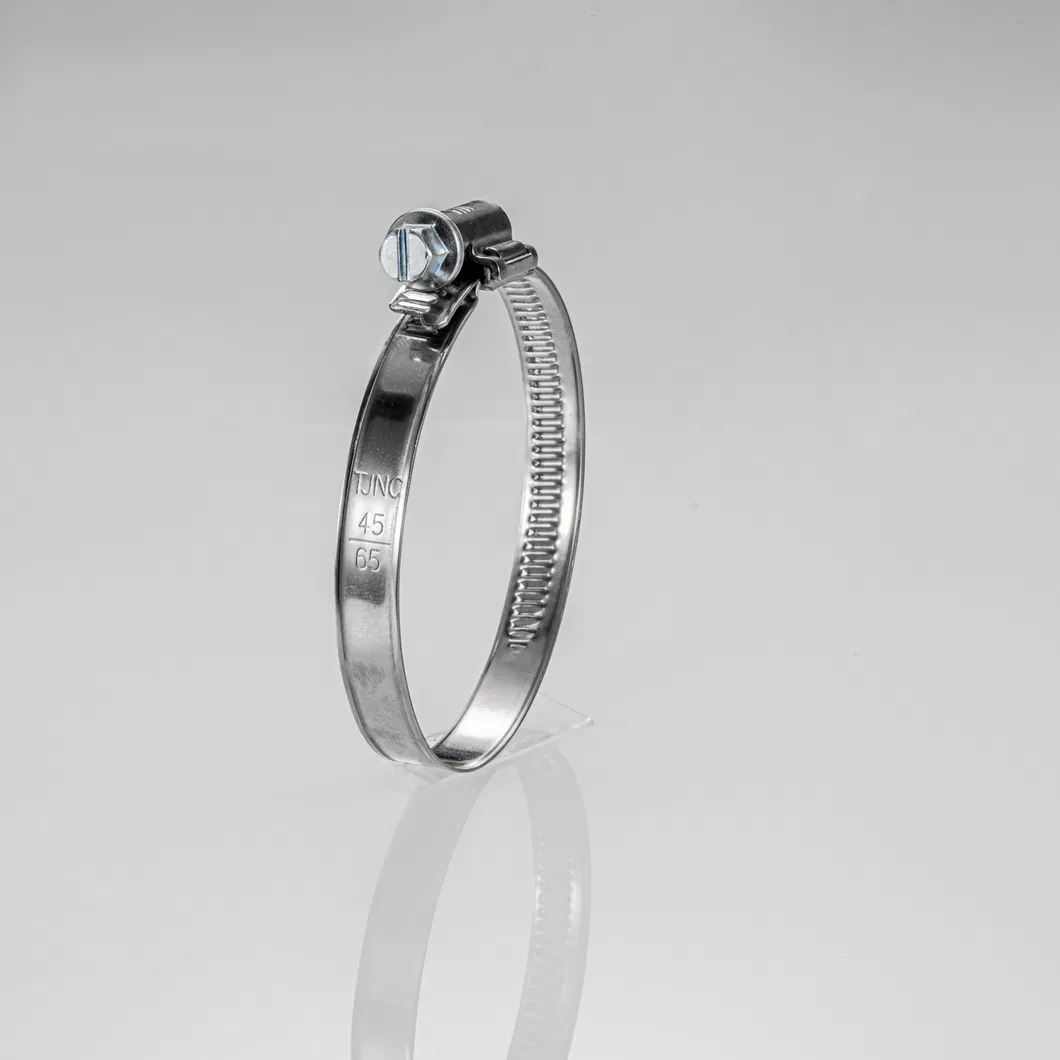

Hose Clamp Detail 2

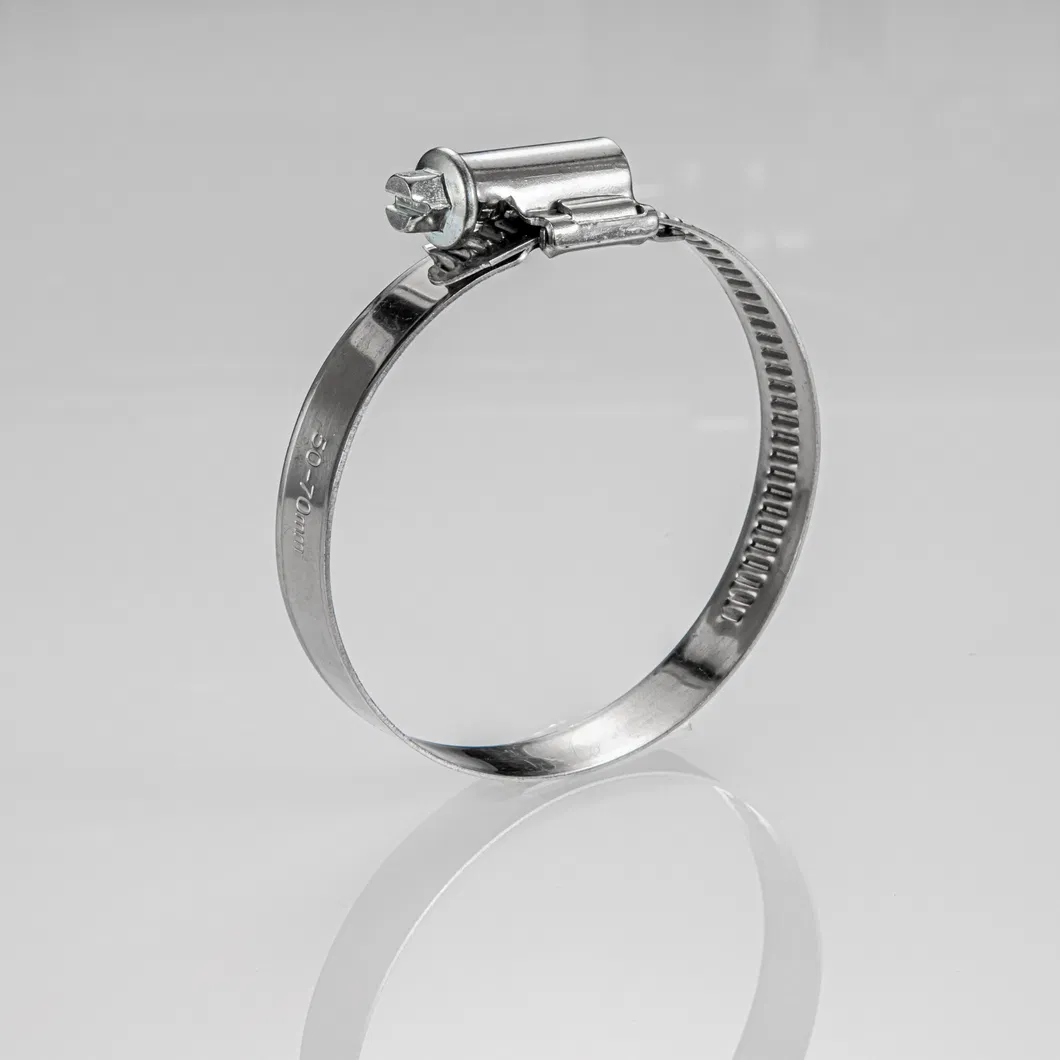

Hose Clamp Detail 3
Material Specifications
Material Code Corrosion Resistance Description
W1NormalScrew, Housing and Band are all zinc plated.
W2AverageScrew is zinc plated. Housing and Band are 201/304 stainless.
W4HighScrew, Housing and Band are all 201/304 stainless steel.
W5MaximumScrew, Housing and Band are all 316 stainless steel.
Installation Torque Data
Material Code 9 mm (0.35") Bandwidth 12 mm (0.47") Bandwidth
Free Torque Breaking Torque Free Torque Breaking Torque
W1≤ 0.6 Nm≥ 4.5 Nm≤ 0.8 Nm≥ 5.0 Nm
W2/W4/W5≤ 0.6 Nm≥ 6.0 Nm≤ 0.8 Nm≥ 7.0 Nm
Industrial Applications
  • Automotive systems: Securing coolant, fuel, and air hoses in vehicles.
  • Marine & Offshore: Ideal for salt-water environments (W4/W5 stainless steel).
  • Industrial machinery: Hydraulic, pneumatic, and process equipment.
  • Agriculture & Construction: Irrigation and hydraulic hoses in harsh conditions.
  • Home Appliances & HVAC: Washing machines, dryers, and ventilation hoses.
  • Food & Pharmaceutical: Smooth band reduces contamination risk.
Hose Clamp Application
Manufacturing Excellence
Production Line 1

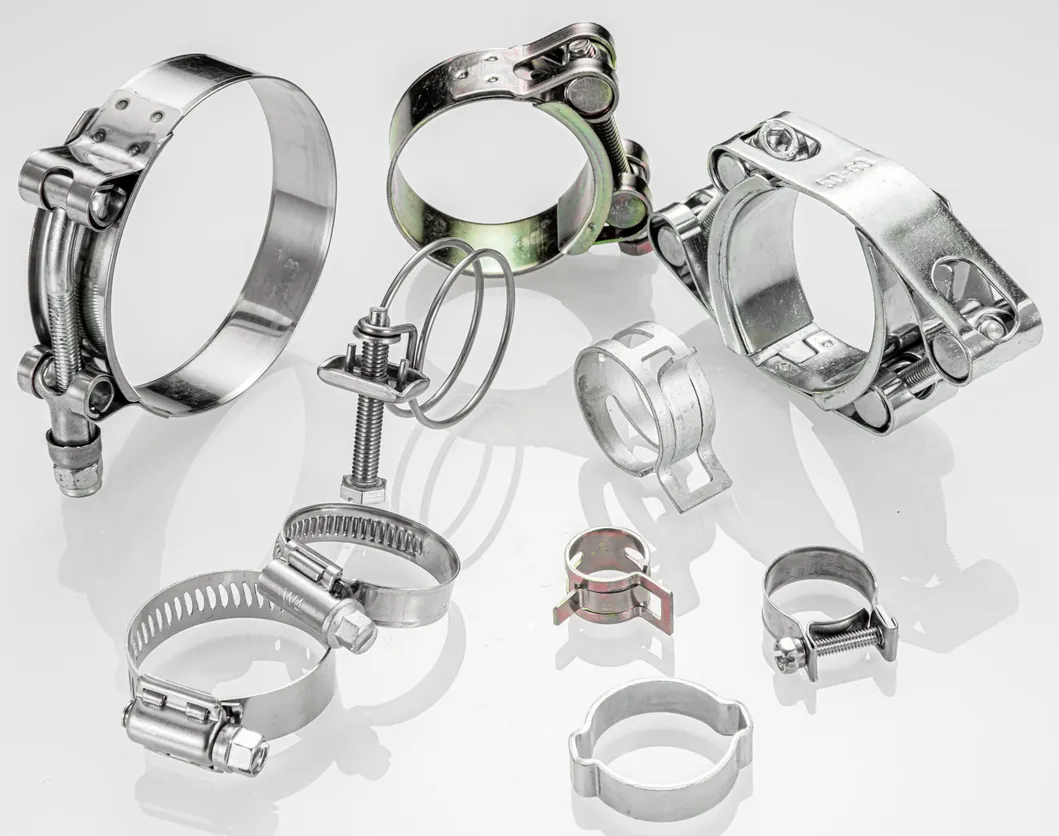

Production Line 2
Production Line 3
Quality Control 1
Quality Control 2

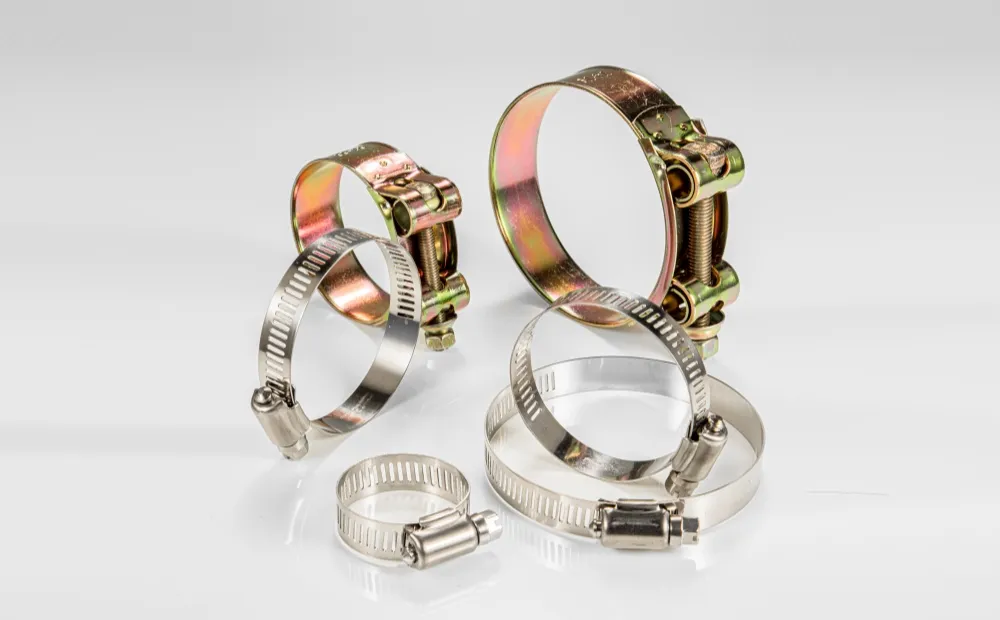

Quality Control 3
Warehouse 1

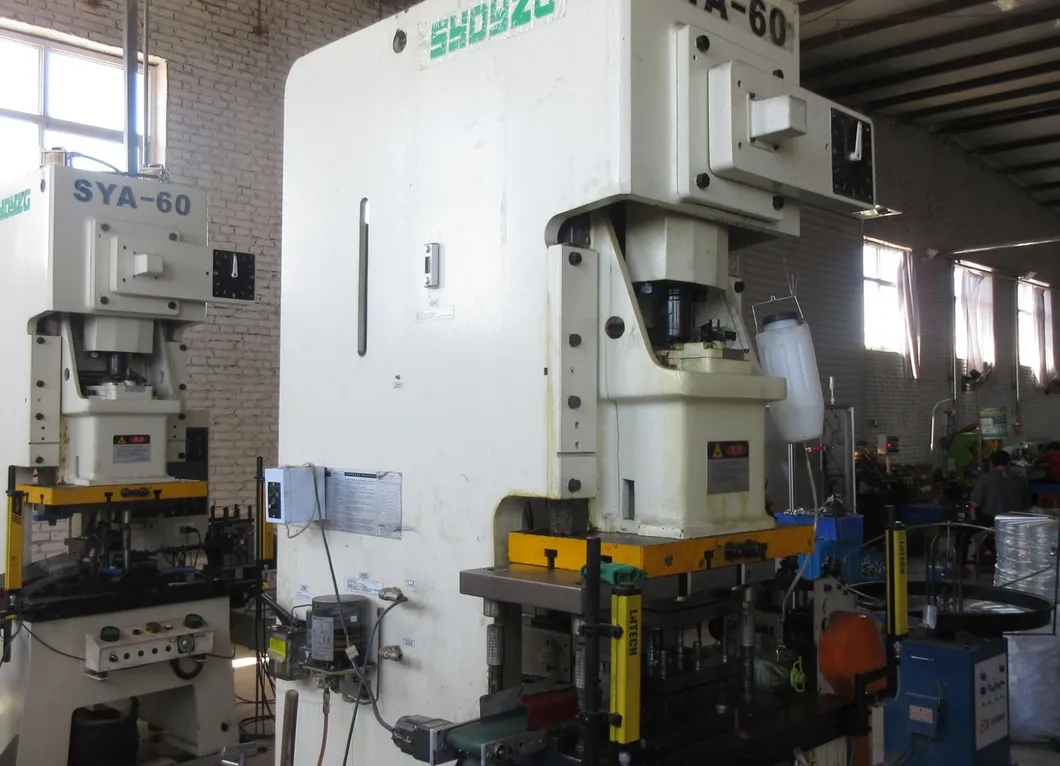

Warehouse 2

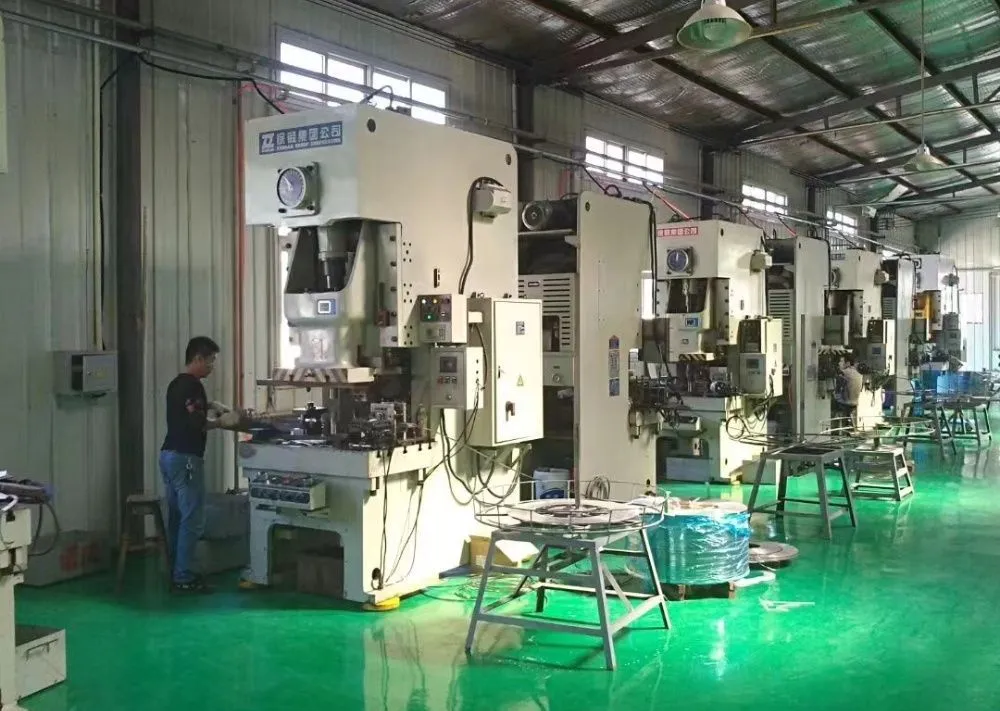

Warehouse 3
Frequently Asked Questions
What materials are available for these hose clamps?
We provide W1 (zinc plated), W2 (partial stainless), W4 (304 stainless), and W5 (316 stainless steel) to meet various corrosion resistance requirements.
How does the non-perforated band protect the hose?
The non-perforated, smooth inside of the band prevents the hose from being cut or extruded through the band during tightening, extending the hose's lifespan.
Which material is best for marine environments?
For marine and salt-water applications, we recommend the W5 (316 stainless steel) material due to its maximum corrosion resistance.
What is the advantage of the asymmetric housing design?
The asymmetric housing ensures an even distribution of forces and prevents the housing from tilting over during assembly, resulting in a more secure connection.
Can these clamps handle high vibration?
Yes, the Torro design is specifically engineered for high mechanical loads and vibration, making it ideal for automotive and heavy industrial machinery.
What is the standard packaging for bulk orders?
Standard packaging involves products placed in plastic bags, then packed in sturdy boxes, and finally secured on pallets for safe international shipping.
