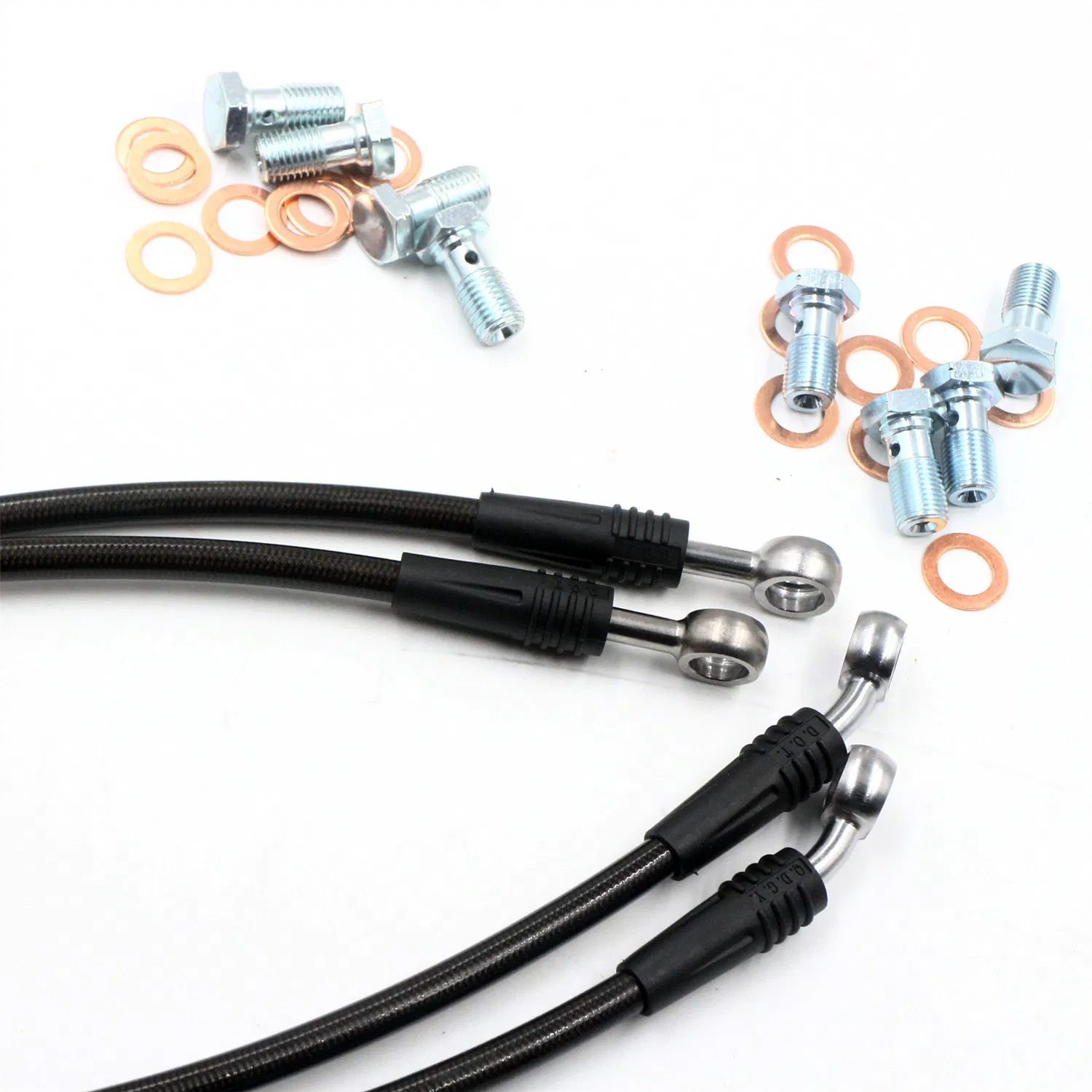

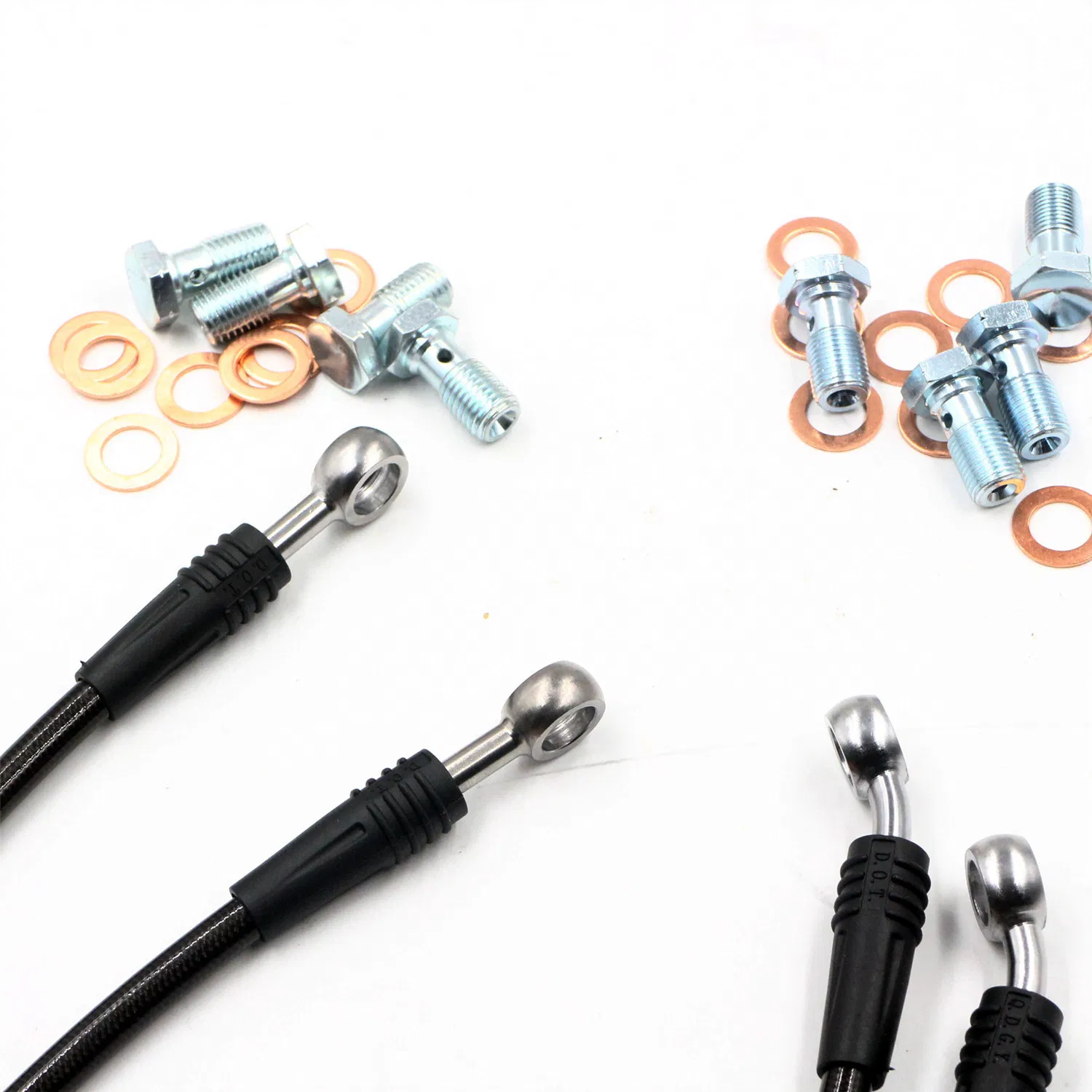

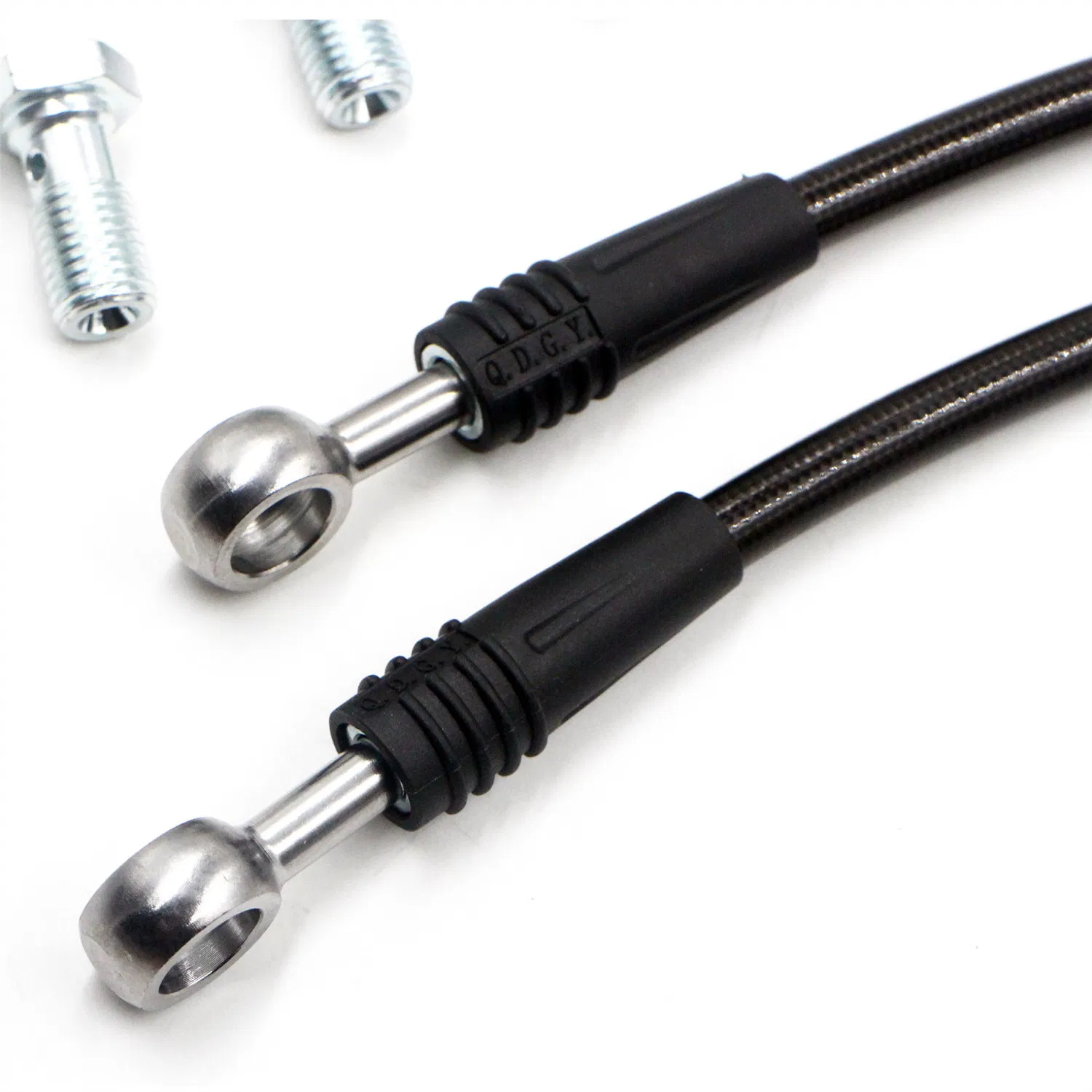

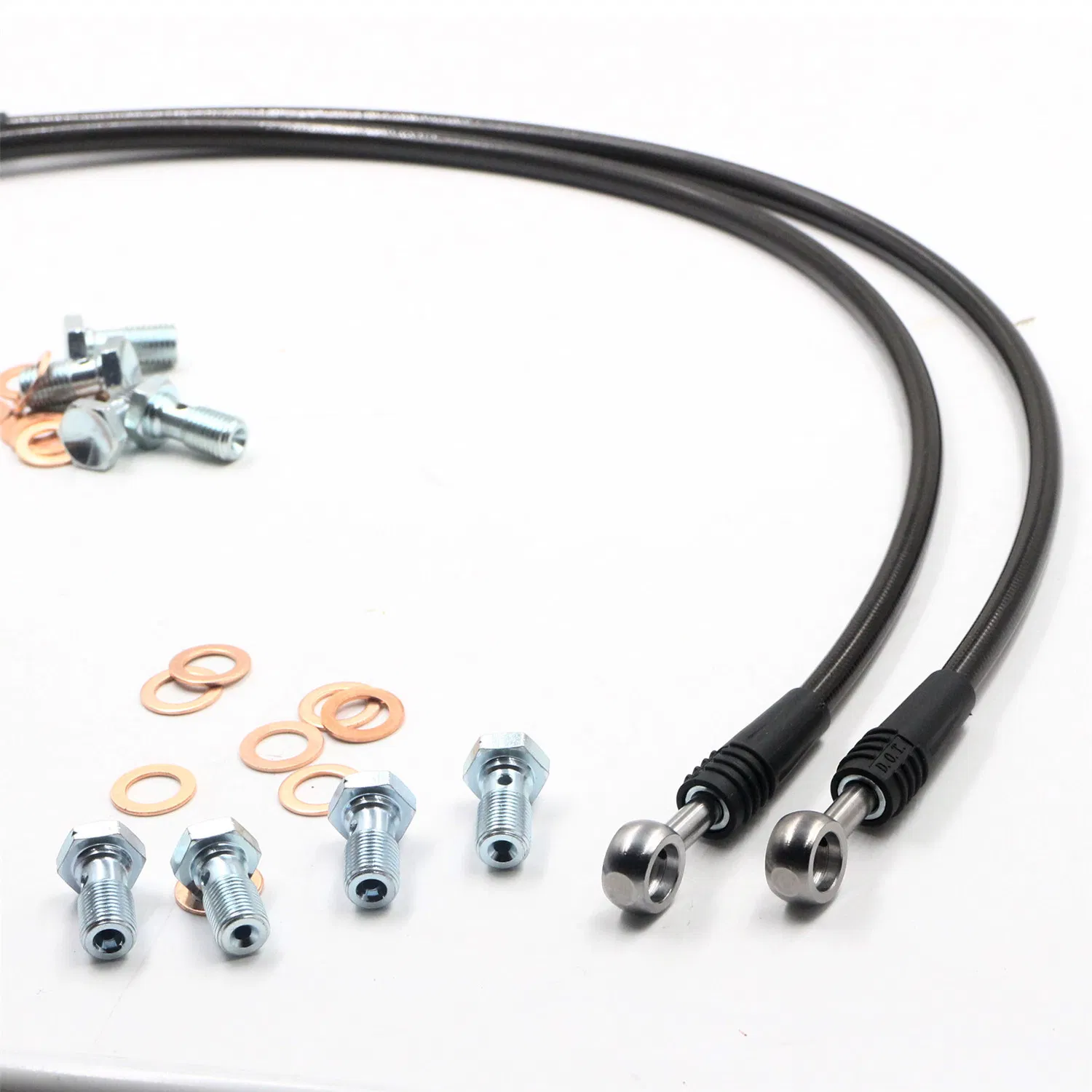

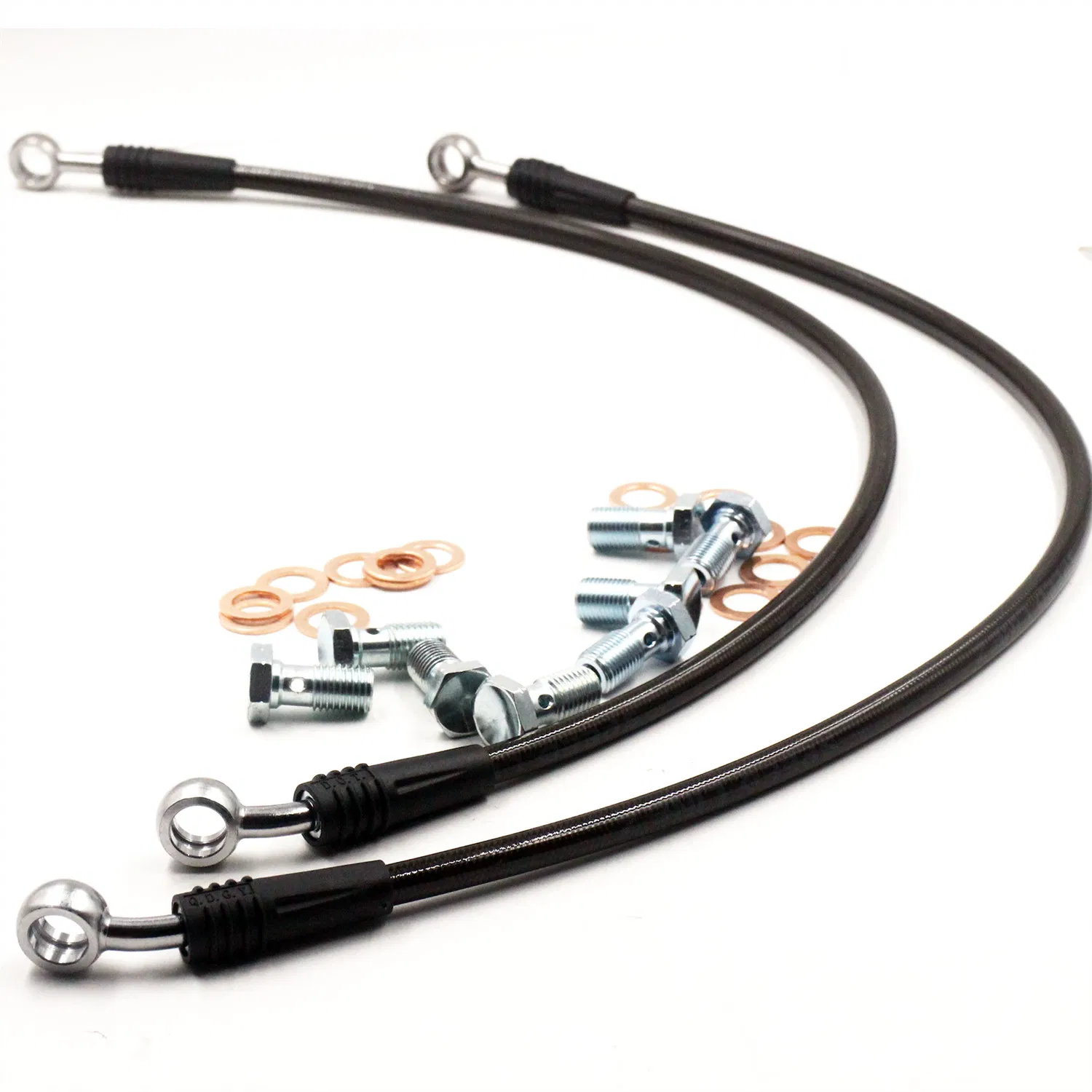

DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
1 / 5
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines
DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines

DOT SAE J1401 1/8 Best High Performance Car Racing Stainless Steel Braided PTFE Brake Fluid Hose Lines

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
GSSY-CUSTOMER-002
Type
Brake Hose
Material
PTFE
Position
Front
Certification
IATF-16949, ISO9001
Classification
Disc
Reinforcement
304 Stainless Steel Braided
Specification
3.2X7.5MM 1/8 size
Product Overview
DOT SAE J1401 1/8 High Performance Car Racing Stainless Steel Braided Brake Fluid Hose Lines
Stainless Steel Braided Brake Hose

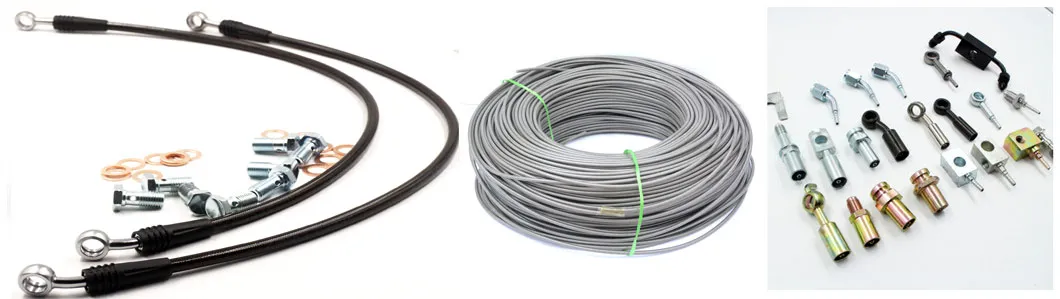

Brake Line Specifications
Technical Specifications

Stainless steel braided Teflon brake hose assembly with strict quality control.

Part NO. Inner Diameter Outer Diameter Outer Layer Braid Material Inner Layer
GSG020 1/8" (3.2mm) 0.295" (7.5mm) PVC/TPU 304 Stainless Steel Teflon/PTFE
GSG026 3/16" (4.8mm) 0.354" (9mm) PVC/TPU 304 Stainless Steel Teflon/PTFE
GSG028 1/8" (3.2mm) 0.255" (6.5mm) No covering 304 Stainless Steel Teflon/PTFE

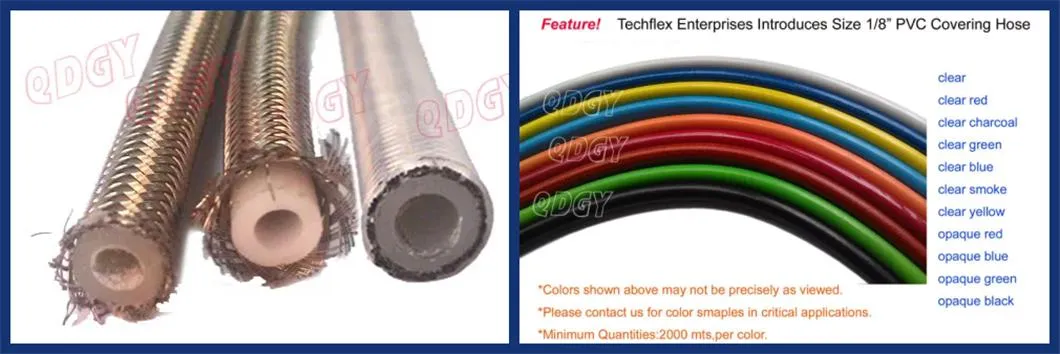

Core Features
Product Features
  • ✓304 stainless steel braid reinforced hose for superior strength.
  • ✓Meets FMVSS-106 and SAE J1401 international specifications.
  • ✓Pressure tested to 3000 psi (207 bar) to ensure safety.
  • ✓Burst pressure exceeds 7250 psi (500 bar).
  • ✓Wide temperature resistance: -73°C to 232°C.
  • ✓Full compatibility with DOT3, DOT4, and DOT4+ brake fluids.

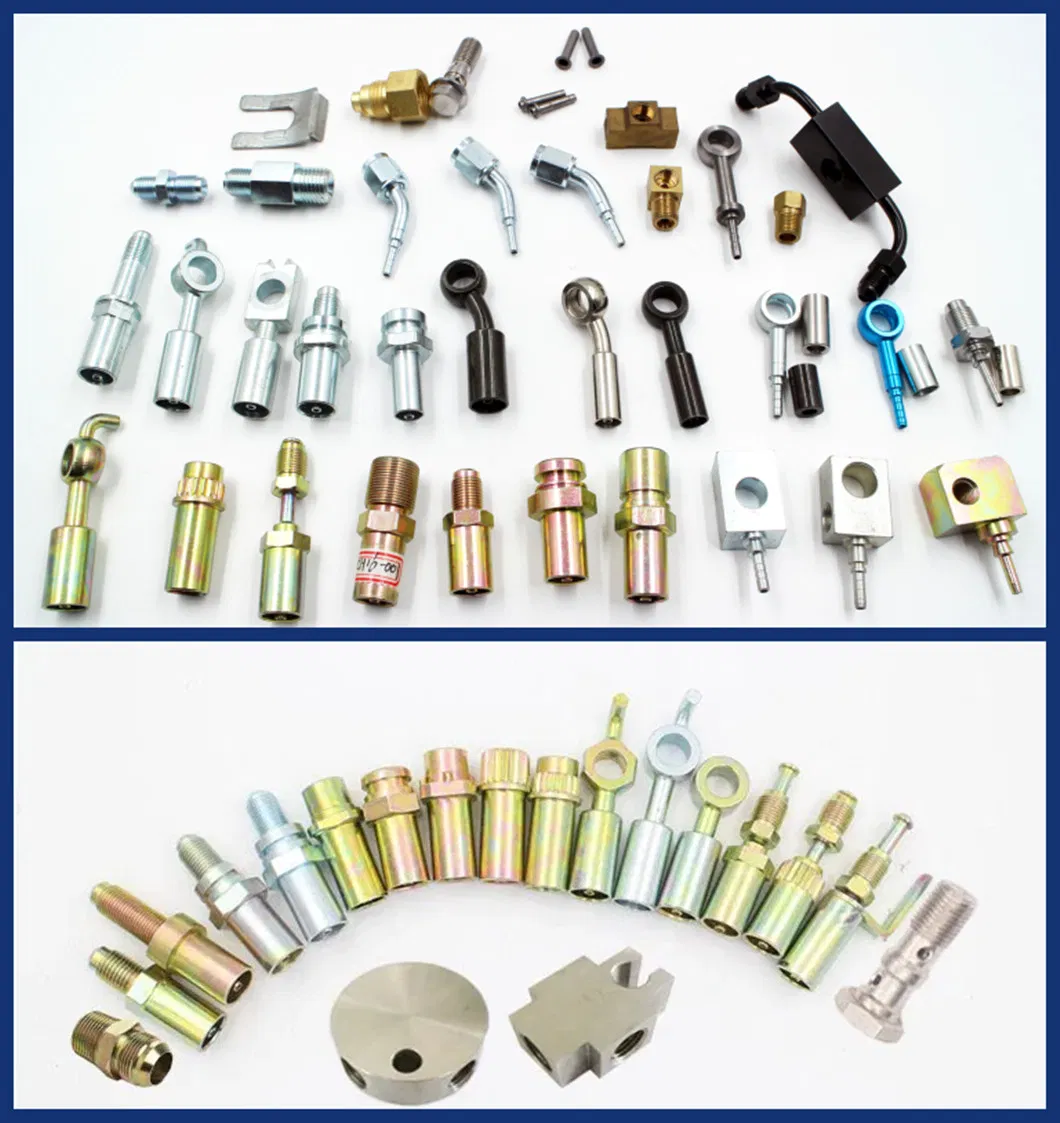

Available End Fittings
End Fittings Type
Fitting Type Female, Male, Banjo, Bolt/Nuts, Welding, Adapter fittings
Thread Measure M10x1, M12x1.25, 1/8NPT, 1/4x19 BSPP, 3/8x24, 7/16x20, etc.
Available Material Steel, Stainless Steel, Brass, Aluminum
Surface Finish Yellow/White/Green Zinc, Nickel, Chrome, Zn-Ni Alloy

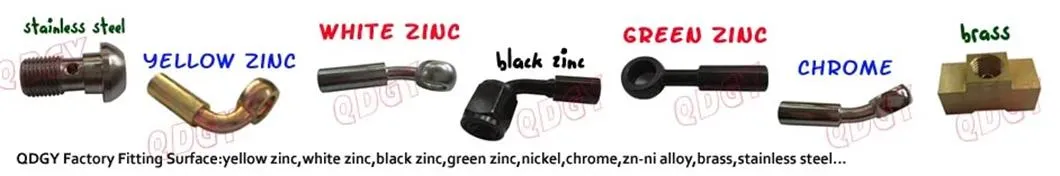

Fitting Detail
Product Gallery

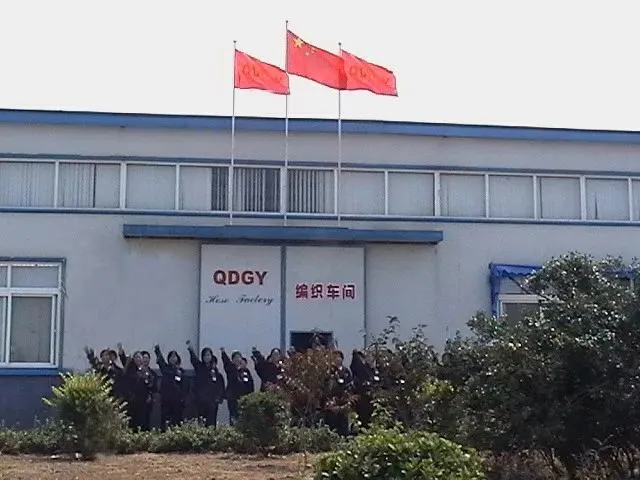

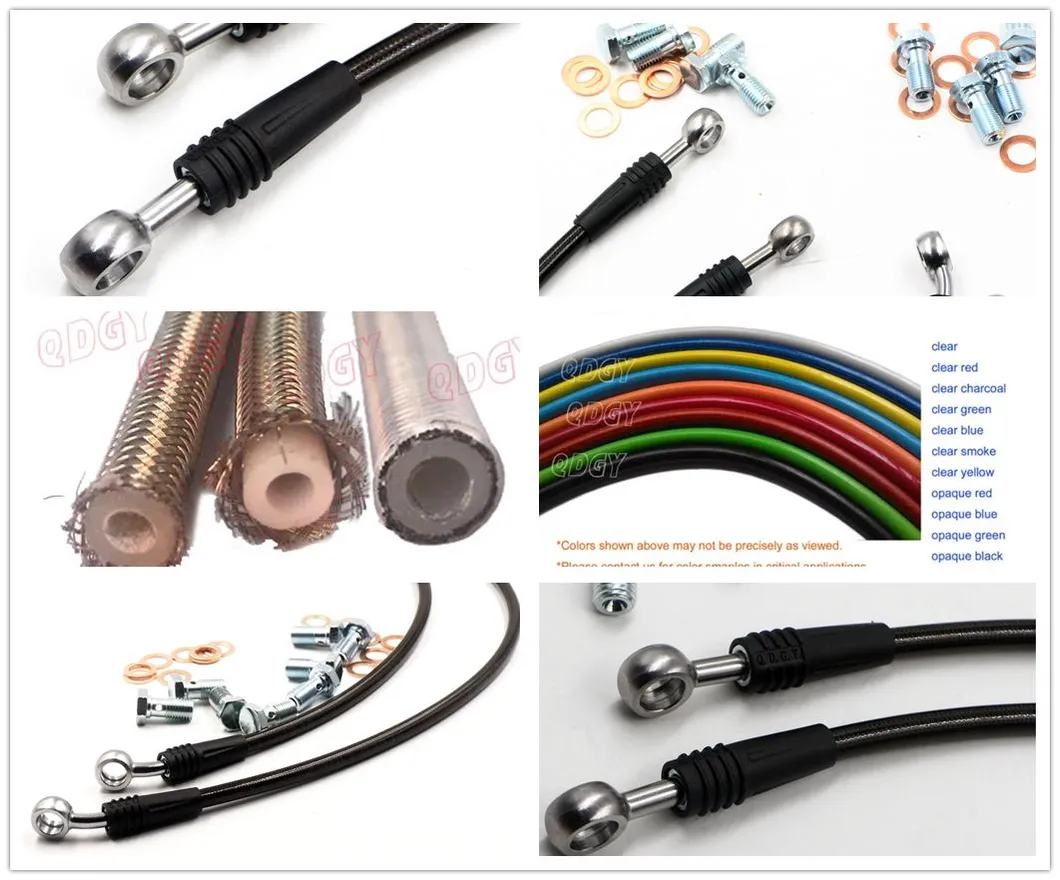

Brake Line Product 1 Brake Line Product 2
Strict Quality Testing

All assemblies undergo rigorous SAE J1401 standard testing.

Test Items Standard Requirement Test Result
Expansion (1000psi) 0.33cc/ft max 0.14~0.16cc/ft (Pass)
Burst Pressure >7000 psi >10500 psi (Pass)
Whip Test >35h >70h (Pass)
Tensile Strength >1446N 2400N (Pass)
Cold Bend (-45°C) No cracking No cracking (Pass)

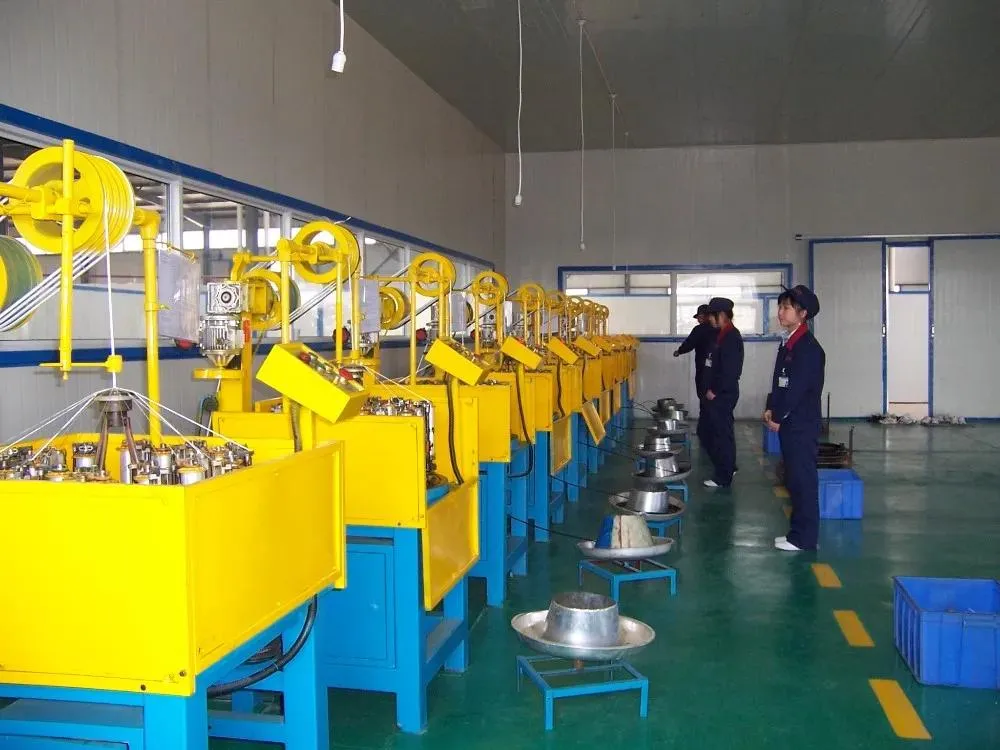

Testing Equipment

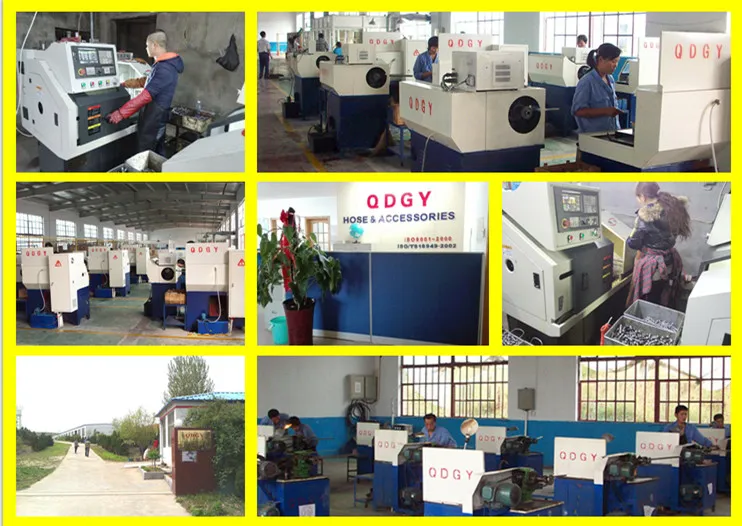

Manufacturing
Manufacturing Excellence

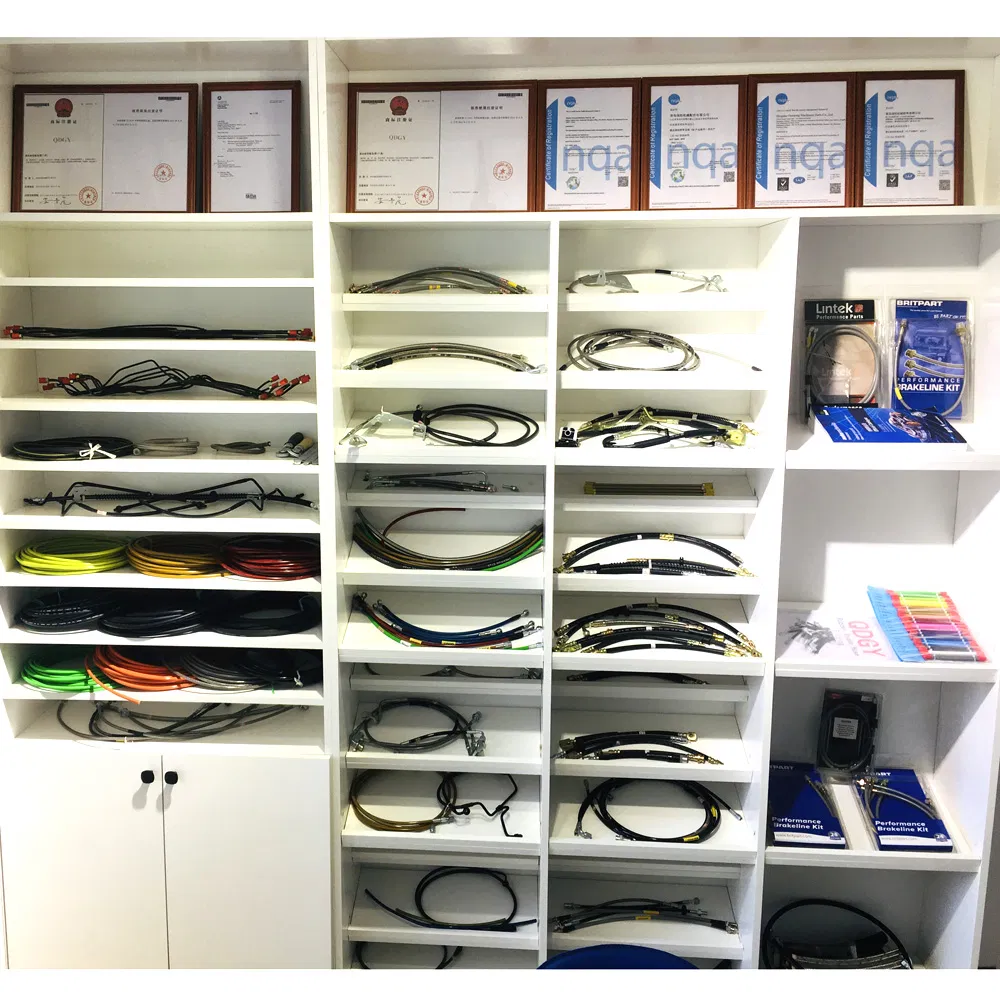

Factory Overview
Exhibition 1 Exhibition 2
Frequently Asked Questions
Q1: What standards do these brake hoses comply with? All our stainless steel braided brake hoses are manufactured to meet or exceed DOT SAE J1401 and FMVSS-106 specifications.
Q2: What are the main materials used in the construction? The inner layer is made of high-grade PTFE (Teflon), reinforced with a 304 stainless steel wire braid for maximum durability and pressure resistance.
Q3: What is the pressure rating for these hoses? Every hose is pressure tested to 3000 psi (207 bar), with a minimum burst pressure of 7250 psi (500 bar).
Q4: Are these compatible with all types of brake fluid? Yes, our PTFE brake lines are fully compatible with DOT3, DOT4, and DOT4+ hydraulic brake fluids.
Q5: Can the fittings be customized for specific vehicle models? Absolutely. Fittings are available in steel, stainless steel, aluminum, and brass, and can be customized according to drawings, samples, or OEM numbers.
Q6: What is the operating temperature range? These performance hoses are designed to withstand extreme conditions, ranging from -73°C to 232°C.
