Durable High Pressure 1.5/2/2.5/3/4inch PVC/TPU/Rubber Resistant Flexible Water Layflat Canvas Lining Fire Hydrant Cabinet Fighting Hose

1 / 5

Durable High Pressure 1.5/2/2.5/3/4inch PVC/TPU/Rubber Resistant Flexible Water Layflat Canvas Lining Fire Hydrant Cabinet Fighting Hose

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🟦 Basic Specifications

Model:

Durable Fire Hose

Coupling Type:

Hose Coupling (Plug-in)

Available Lengths:

15m, 20m, 25m, 30m

Working Pressure:

13bar, 16bar, 20bar, 25bar

Diameter Range:

25mm - 100mm

Lining:

With Lining (PVC/TPU/Rubber)

Weaving:

Twill Weaving

Color:

White

Capacity:

2000 Rolls Per Month

HS Code:

5909000000

📊 Technical Parameters

I.D. (Size)		Service Pressure (PSI/Bar)	Burst Pressure (PSI/Bar)
1½″	38mm	250/17 300/21 400/28	750/51 900/63 1200/84
1¾″	45mm
2″	50mm
2½″	65mm
2¾″	70mm
3″	75mm
4″	102mm

📝 Product Description

This Durable High-Pressure Fire Hose is engineered for demanding fire fighting and agricultural applications. Featuring a high-intensity polyester short-fiber jacket and versatile lining options including PVC, TPU, or Rubber, it ensures maximum reliability during emergency rescue operations.

Key Construction Details:

Jacket: Constructed of warp in polyester staple and weft in polyester filament for superior strength.
Lining: High-grade natural rubber or PVC/TPU provides excellent flexibility and high-pressure resistance.
Adhesion: Special solid or liquid adhesive is applied between the jacket and lining to prevent separation even after long-term use.

🌟 Main Features

Durability:

High abrasion and Ozone resistance.

Weight:

Lightweight and flexible for easy handling.

Resistance:

Anti-corrosion, aging resistance, and low-temperature tolerance.

Efficiency:

Highly polished lining reduces flow resistance.

📷 Product Gallery

❓ Frequently Asked Questions

1. What are the available lining materials for this fire hose? The fire hose can be equipped with PVC, Natural Rubber, TPU, or Copy Rubber lining depending on your specific requirements.

2. What working pressures can these hoses withstand? We offer various pressure ratings including 13bar, 16bar, 20bar, and 25bar to suit different fire fighting and industrial needs.

3. Can the length and color of the hose be customized? Yes, standard lengths are 15m to 30m, but we can customize the length and provide different lining colors like blue, black, or transparent upon request.

4. Is the hose suitable for outdoor agricultural use? Absolutely. Due to its ozone resistance, anti-corrosion properties, and aging resistance, it is excellent for both fire fighting and agricultural irrigation.

5. How is the hose protected against lining separation? We use a specialized high-strength solid or liquid adhesive between the polyester jacket and the lining to ensure a permanent bond and long service life.

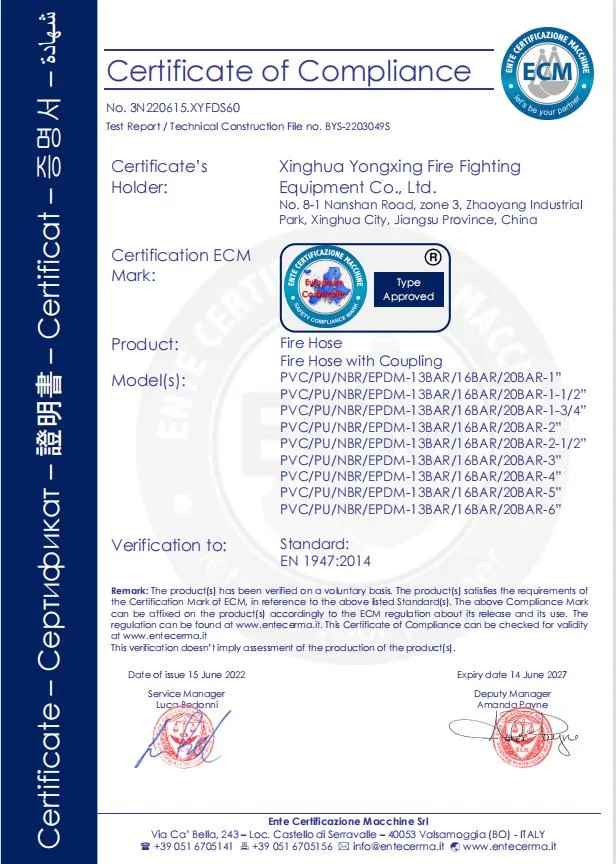

6. What certifications does the product hold? The quality management and production processes are guaranteed by ISO9001:2015 standards.
