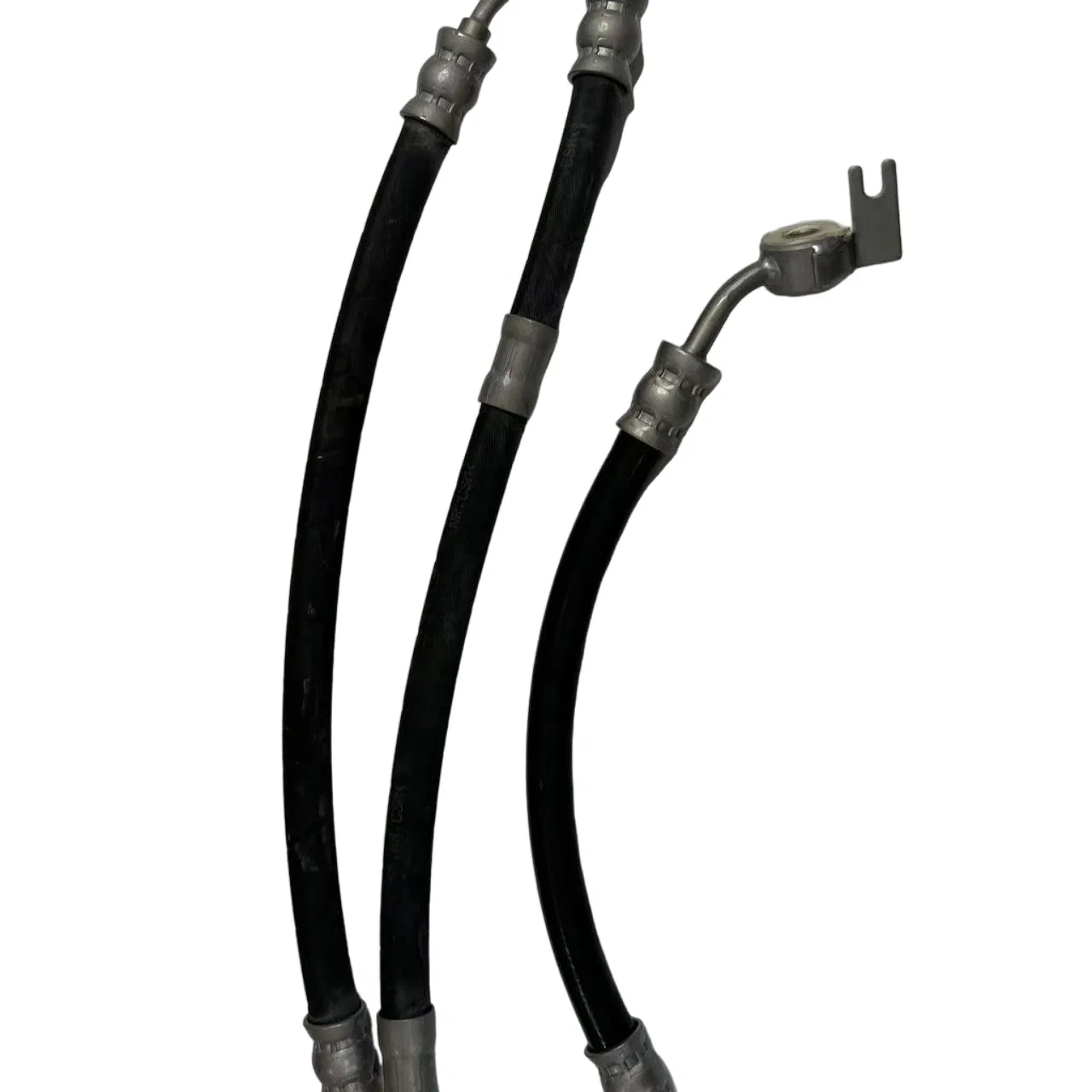

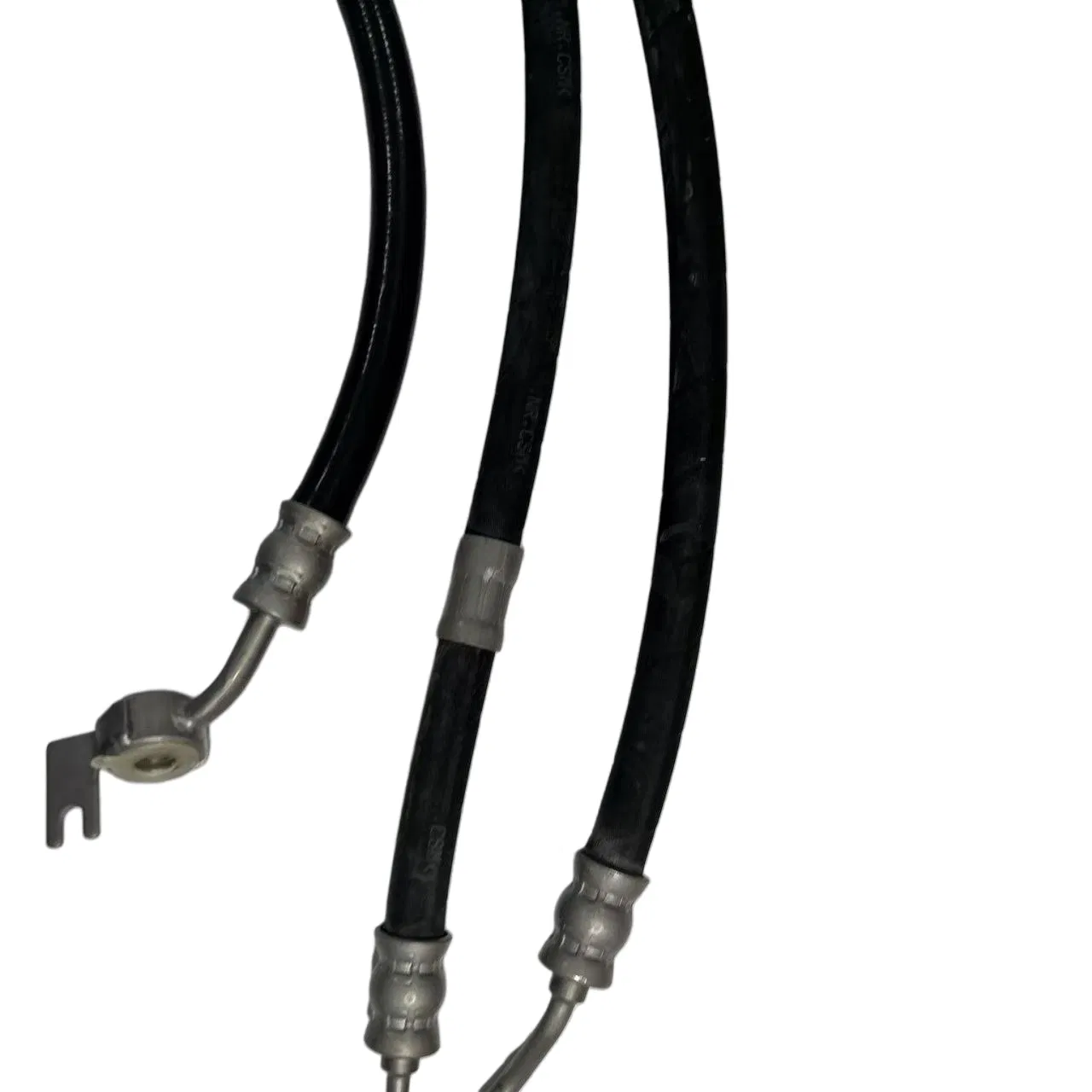

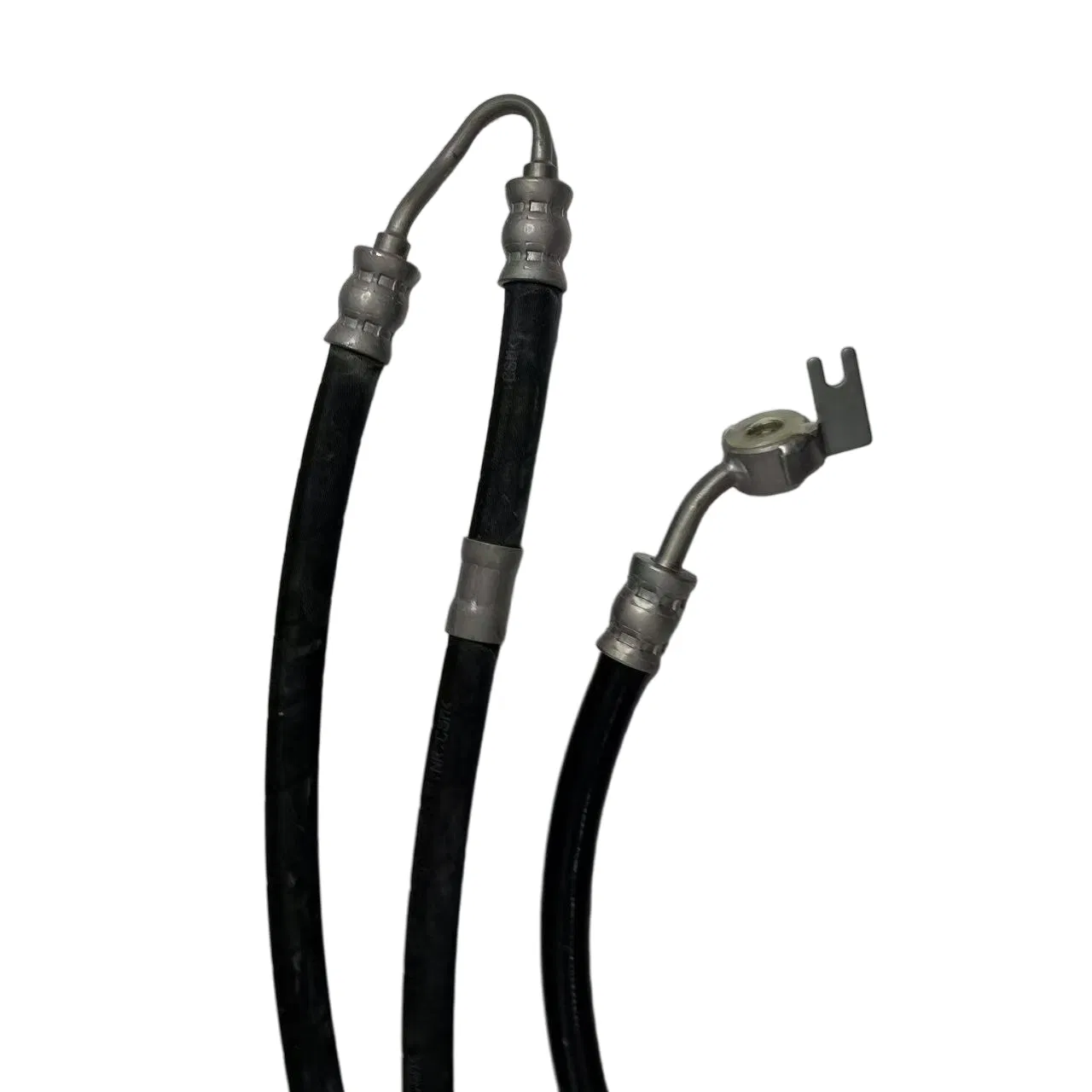

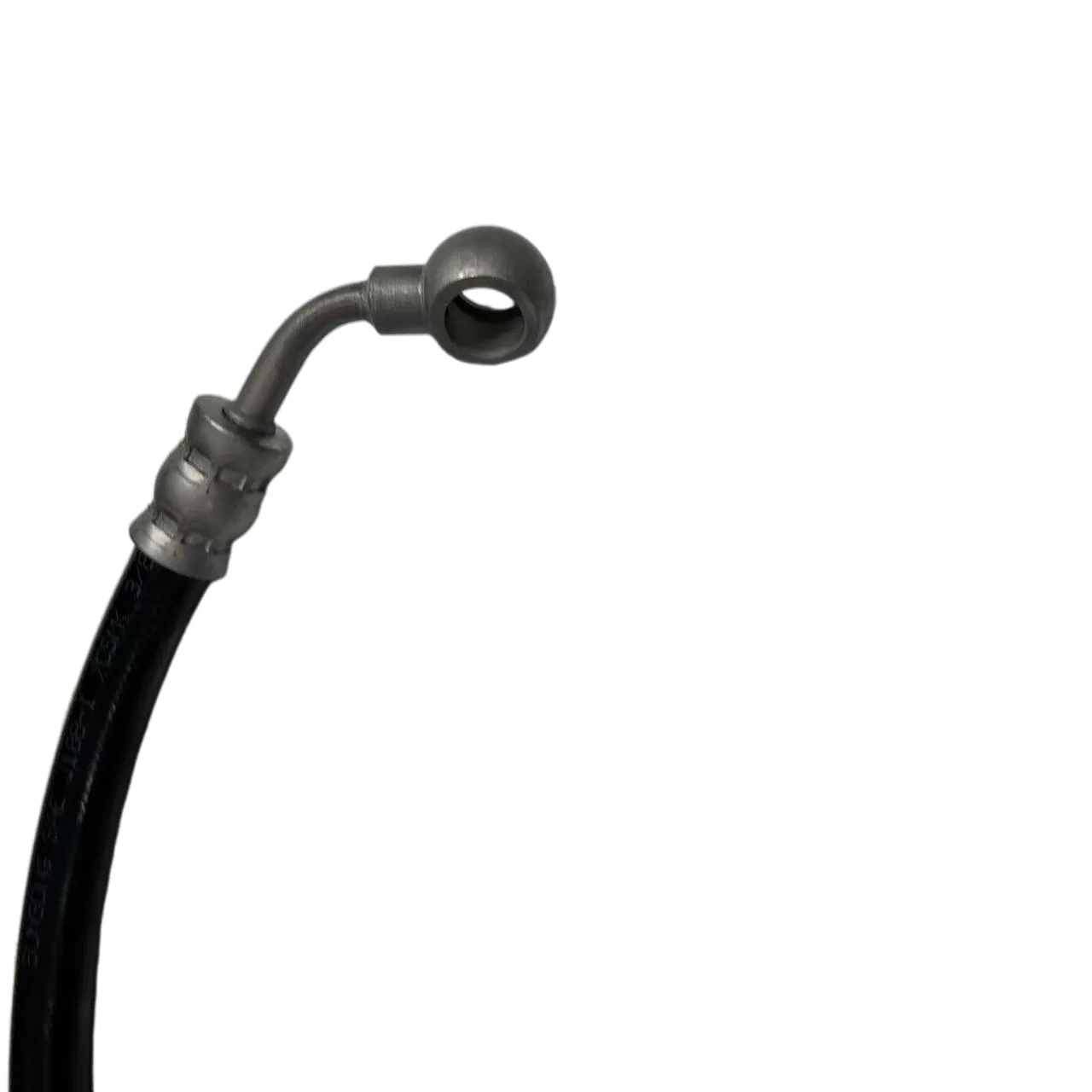

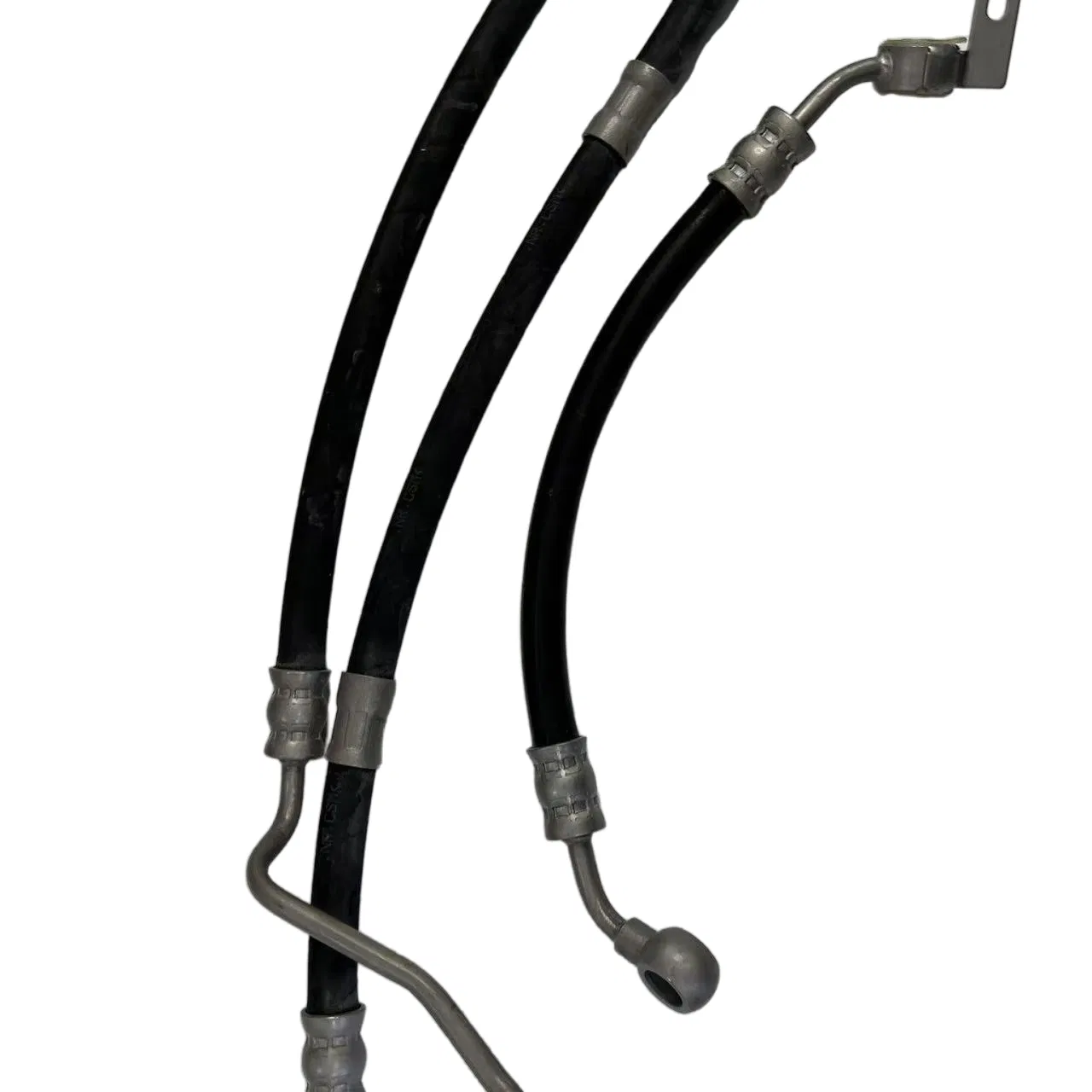

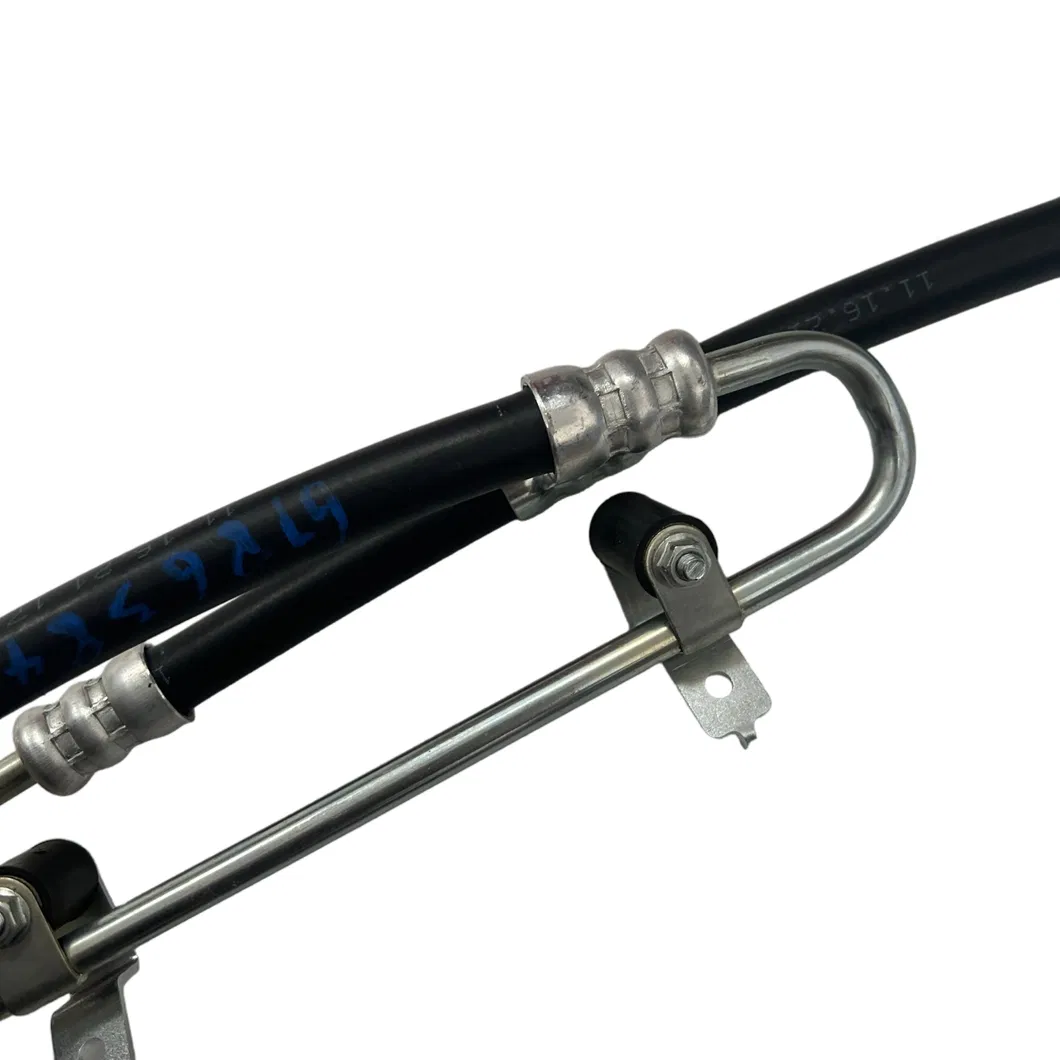

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
| Parameter Name | Description / Value | Remarks |
|---|---|---|
| Inside Diameter (ID) | 8 mm, 10 mm, 12 mm | Select based on vehicle type |
| Outside Diameter (OD) | 14 mm, 16 mm, 18 mm | Tolerance ± 0.5mm |
| Working Pressure | 10 MPa ~ 20 MPa | Peak pressure up to 30MPa |
| Joint Type | SAE 45° flaring, DIN 24° tapered, JIS metric | Adapts to various interfaces |
| Life Cycle | ≥5 million pulse tests | Simulates 10 years or 200,000 km |
| Bending Radius | 50 mm ~ 100 mm | Ensures long-term durability |
