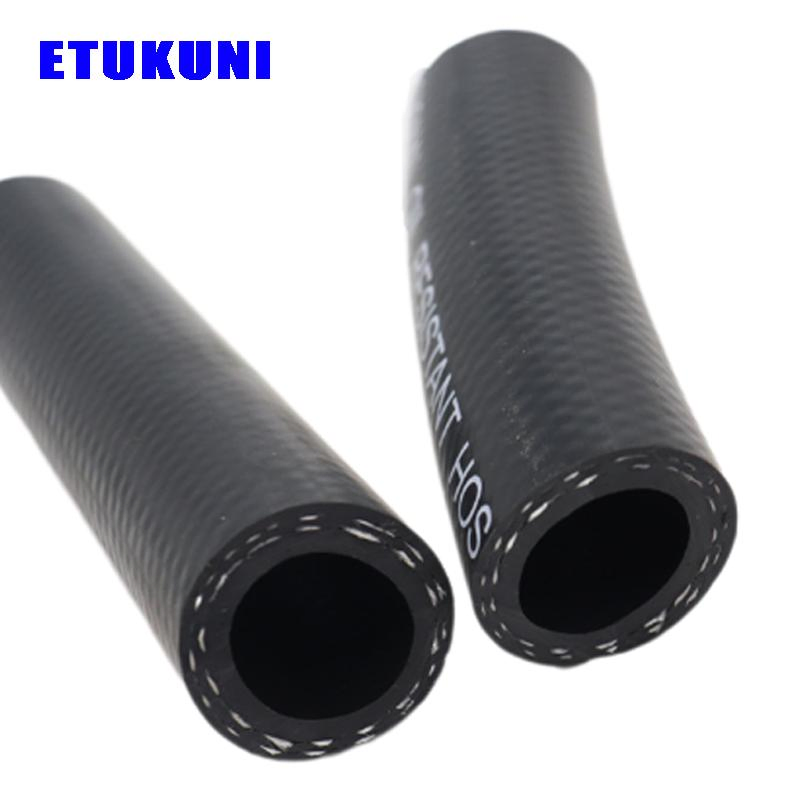

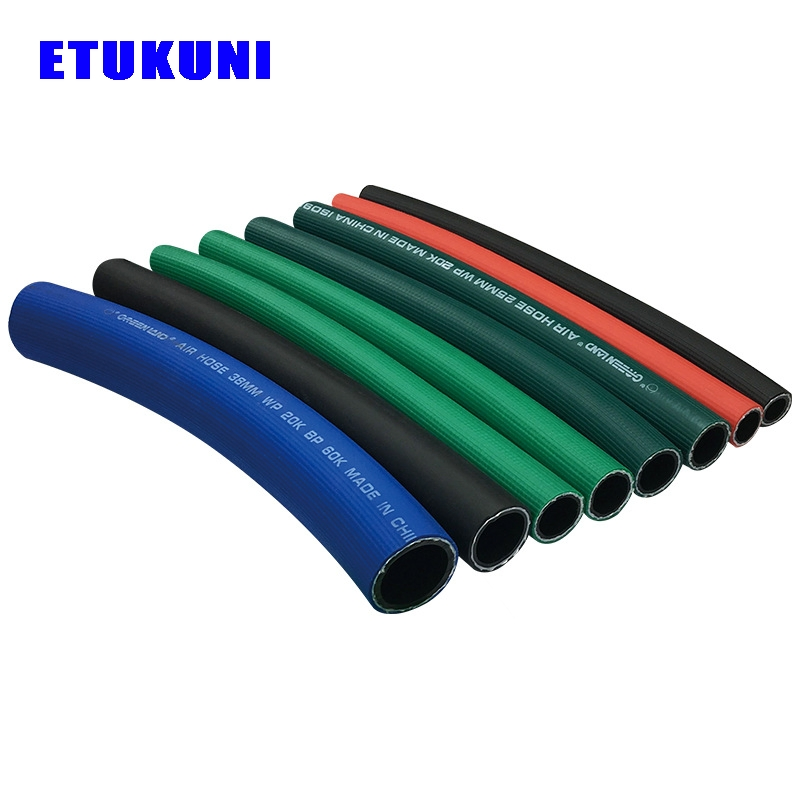

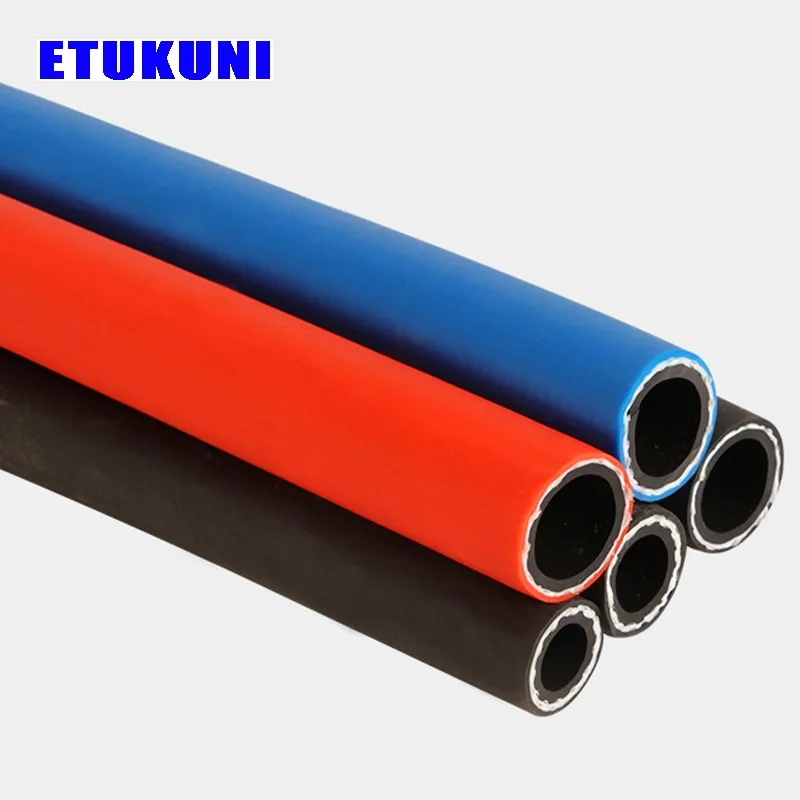

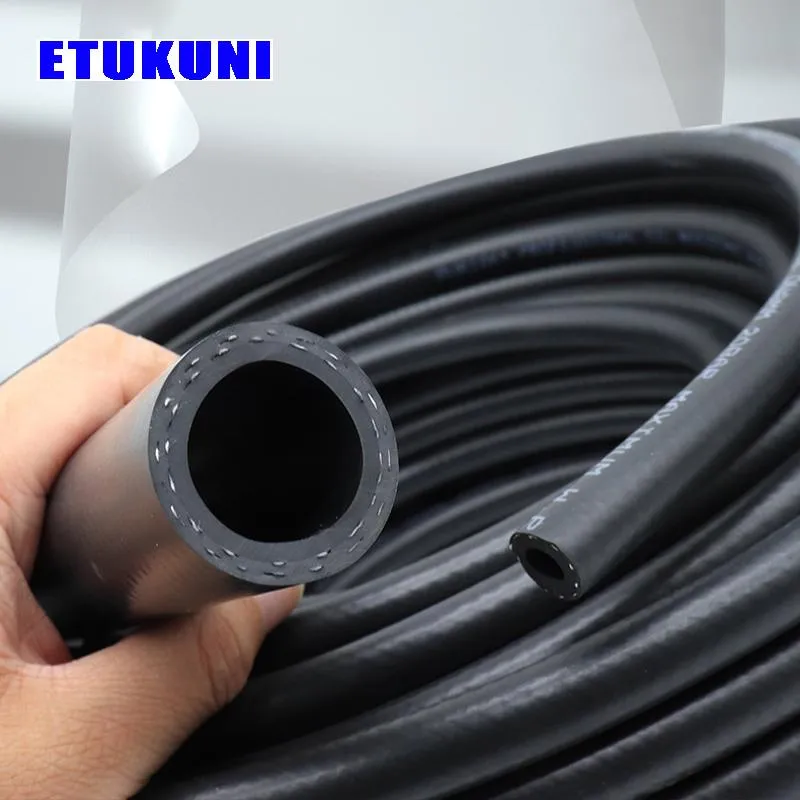

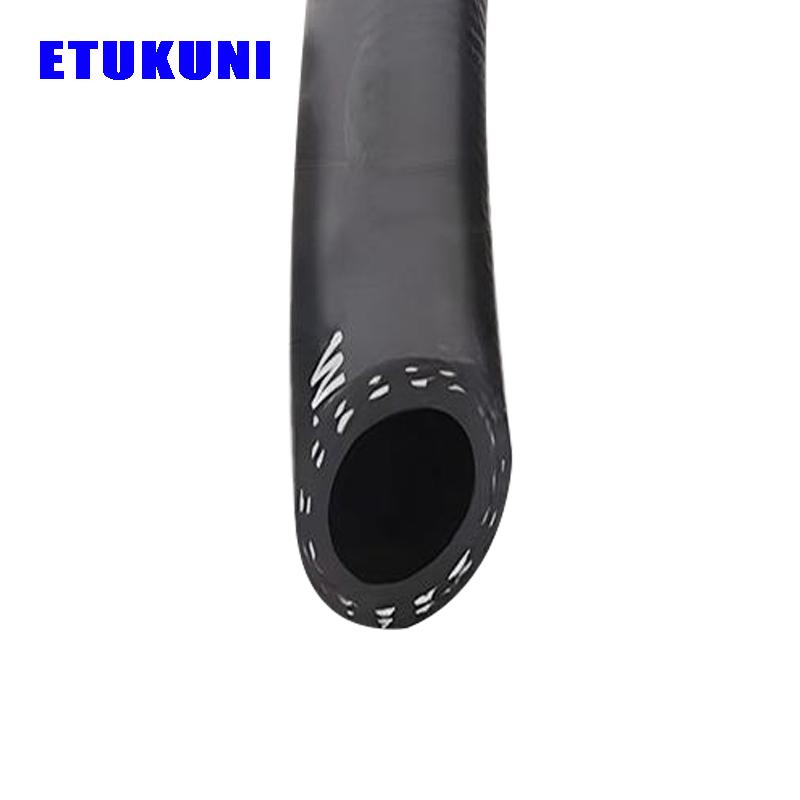

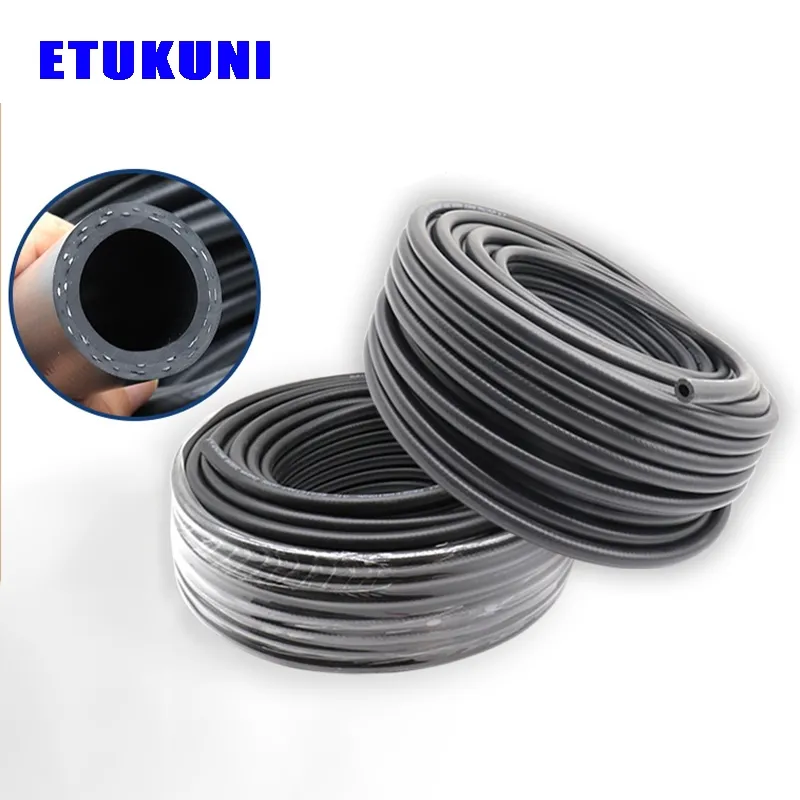

EPDM rubber air Hose:

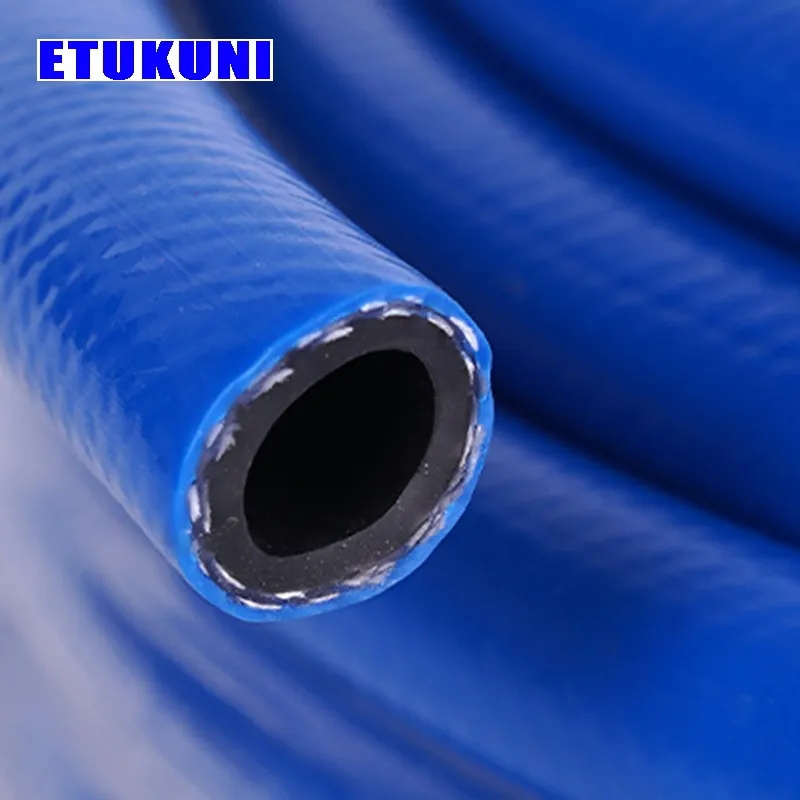

1. Good toughness PVC rubber air Hose: The inner and outer layers of the tube are made of new materials, smooth and bright. The production of new materials ensures the pipe has a longer service life and is guaranteed not to crack.

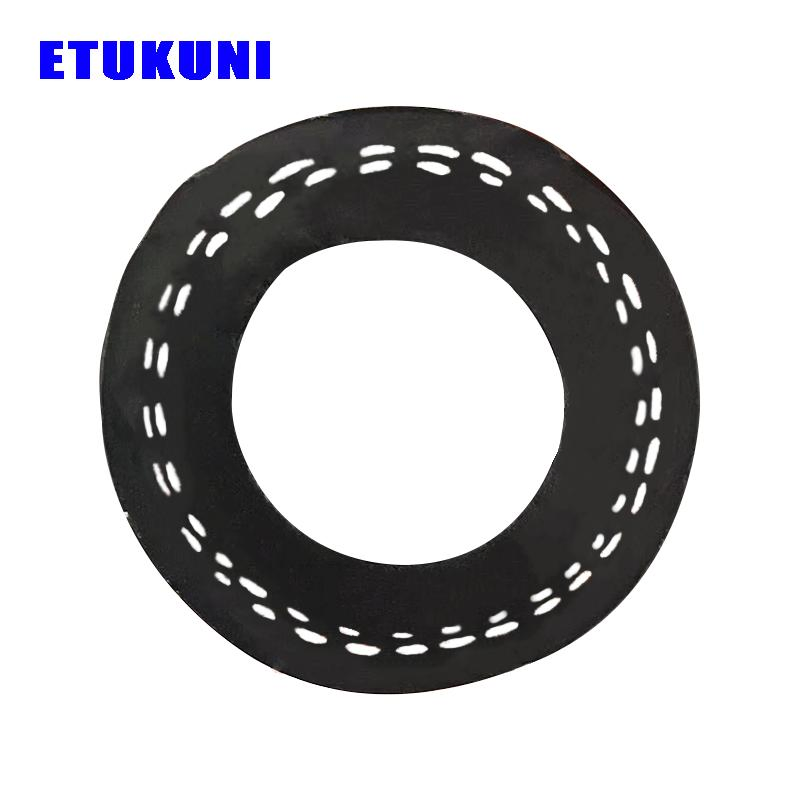

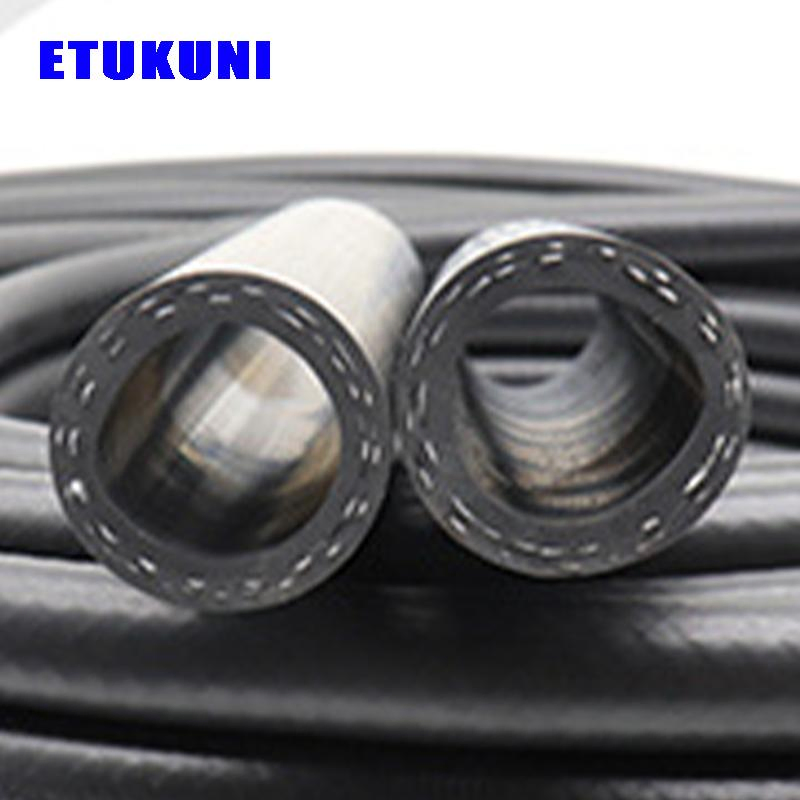

2. High-Strength Structure: The inner layer of the rubber hose is fully woven with polyester thread, which has a stronger structure, can withstand greater pressure, and has a longer service life. The four-season soft formula is added to ensure that the tube can be used normally between -15°C and 70°C.
| Inch | ID(mm) | OD(mm) | WP(kg) | BP(kg) | Length |
|---|---|---|---|---|---|
| 1/4 | 6.3 | 11 | 30 | 120 | 100 |
| 1/4 | 6.5 | 12 | 30 | 120 | 100 |
| 5/16 | 8 | 13.5 | 30 | 120 | 100 |
| 3/8 | 10 | 15.5 | 30 | 120 | 100 |
| 1/2 | 13 | 19.5 | 30 | 120 | 100 |
| 5/8 | 16 | 23 | 25 | 100 | 100 |
| 3/4 | 19 | 28 | 20 | 90 | 50 |
| 1 | 25 | 34 | 20 | 80 | 50 |
We provide solutions in the design and production of hose and PVC pipe. Our experienced team of professionals and our commitment to quality ensures that each product is rigorously inspected and tested to ensure customers receive the best quality product. Our main products include PVC rubber three-layer pneumatic hose and PVC High-Strength Polyester Fiber Reinforced Hose. We can customize items according to drawings and technical reference data. We take pride in our ISO 4427 certification and our unyielding commitment to quality.
