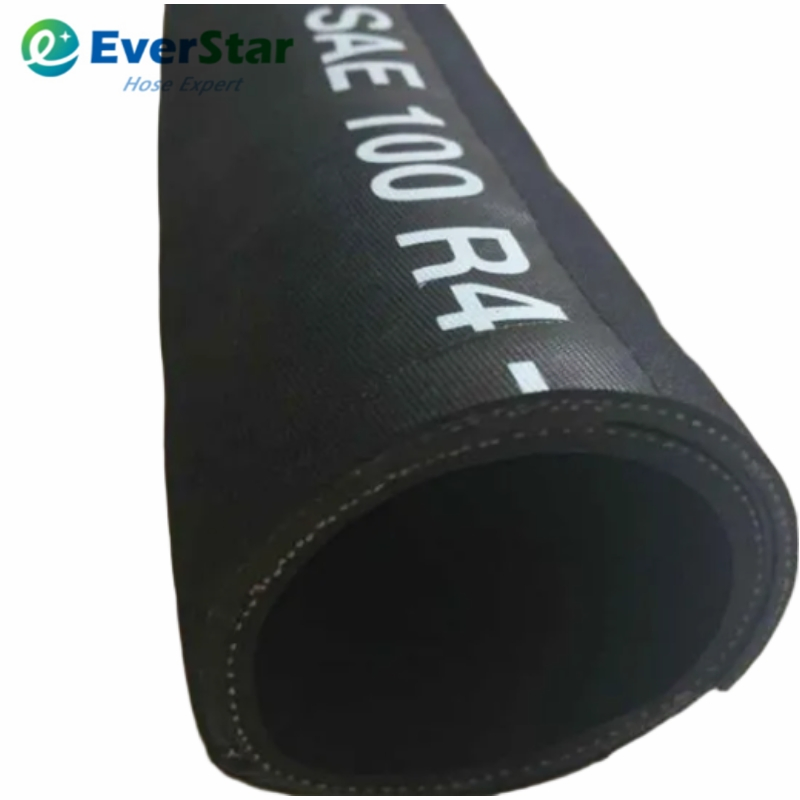

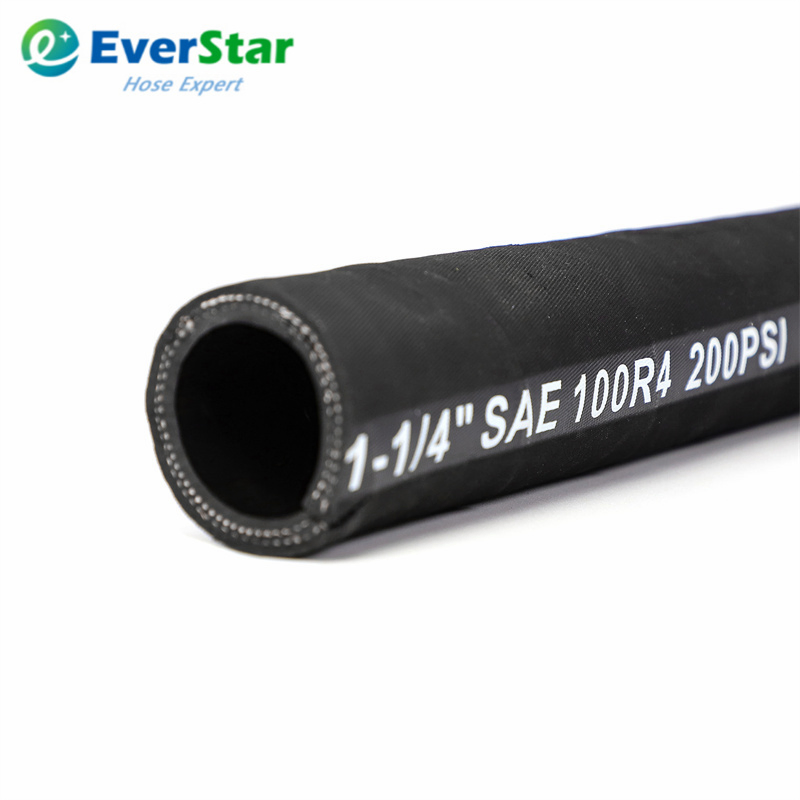

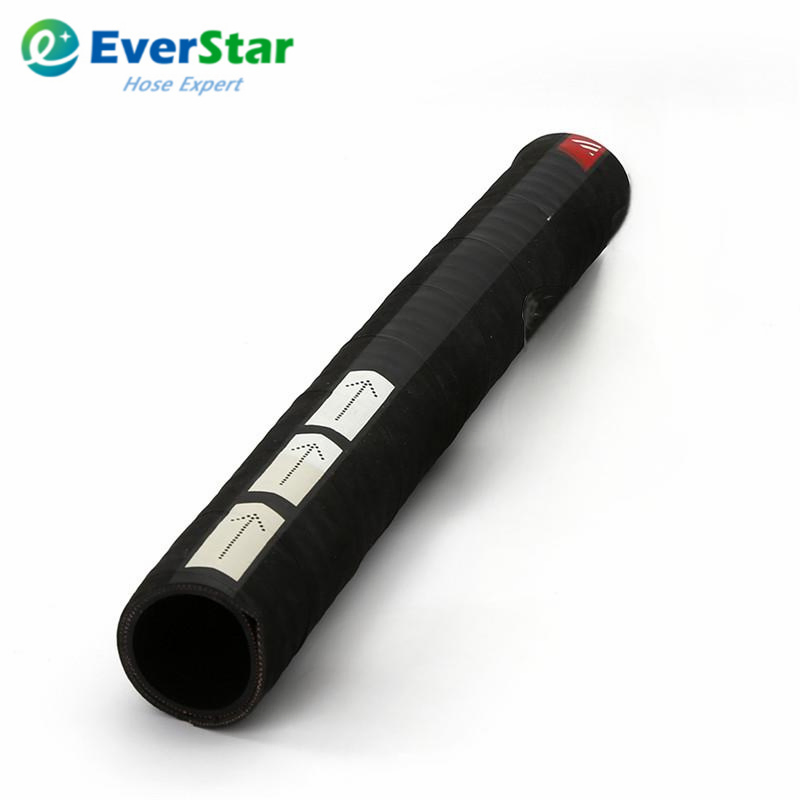

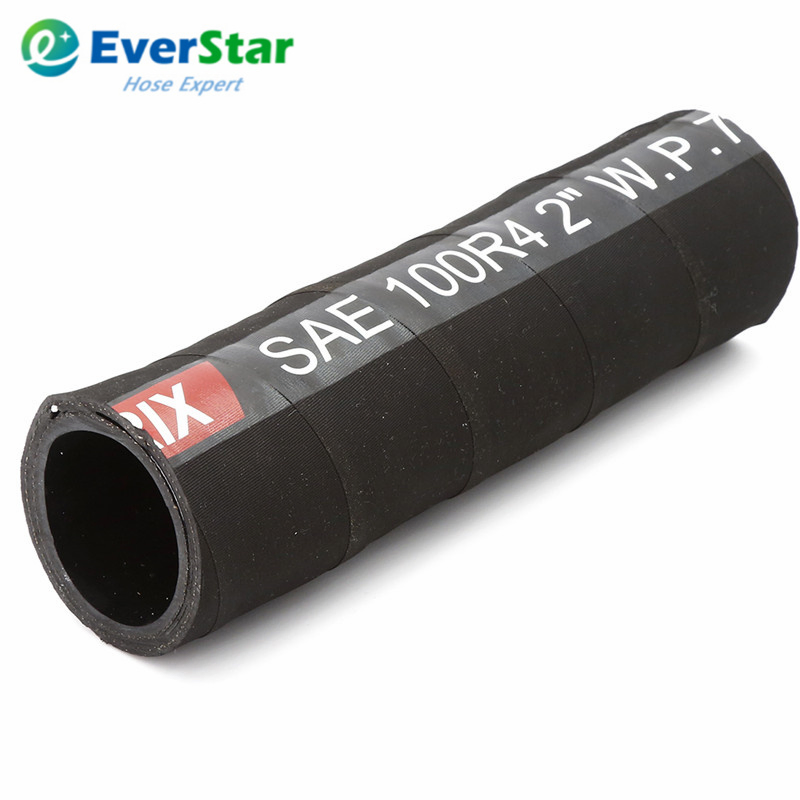

Flexible Hose Textile Braided Pipe Wire Spiral Tube Hydraulic Fuel Oil Rubber Fluid Hose Suction Oil SAE 100r4 Hose

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Product Information

Model NO.
SAE 100R4
Reinforcement
Textile Braided and Wire Spiral
Surface
Wrapped & Smooth
Temperature
-40ºC ~+100ºC
Length
40m, 60m
Fittings
Metric, Bsp, Jic, NPT, Orfs, SAE
Application
Agriculture, Forestry, Mining
Performance
Abrasion Resistant, Flexible
Warranty
12 Months
Specification
3/4"~4"
💎

Product Description

✨ Flexible Hose Textile Braided Pipe Wire Spiral Tube Hydraulic Fuel Oil Rubber Fluid Hose Suction Oil SAE 100R4 Hose
Our Advantages
Construction Details
TubeOil resistant synthetic rubber
ReinforcementHigh tensile cords and helix steel wire
CoverOil and weather resistant synthetic rubber
Temperature-40°C to +100°C
ApplicationPetroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
📊

Technical Specifications (SAE 100R4)

Size (Inch) Inside Ø (mm) Outside Ø (mm) Working Pressure (Psi) Burst Pressure (Psi) Bend Radius (mm) Weight (Kg/m)
3/41934.930512101250.92
12541.325010151501.10
1 1/43250.82008102001.30
1 1/23857.21506102551.80
25169.91004103002.23
2 1/26382.6602503553.23
37695.3602304604.25
4102120.7401456105.60
📸

Detailed Product Photos

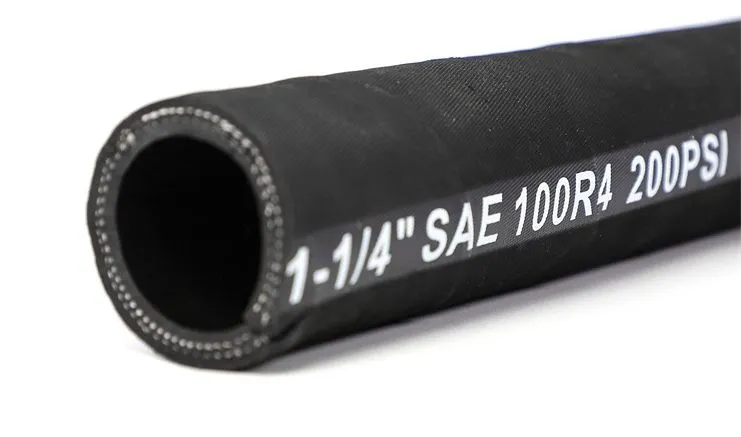

Detailed Photo 1

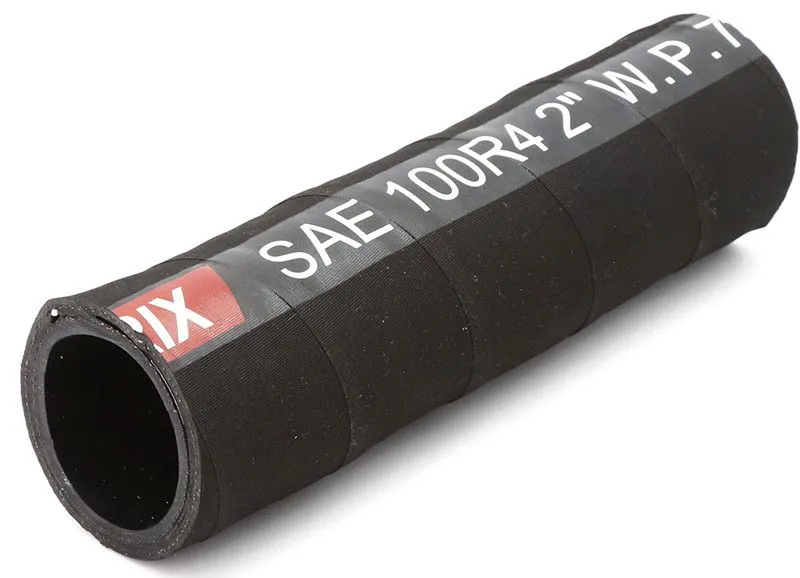

Detailed Photo 2

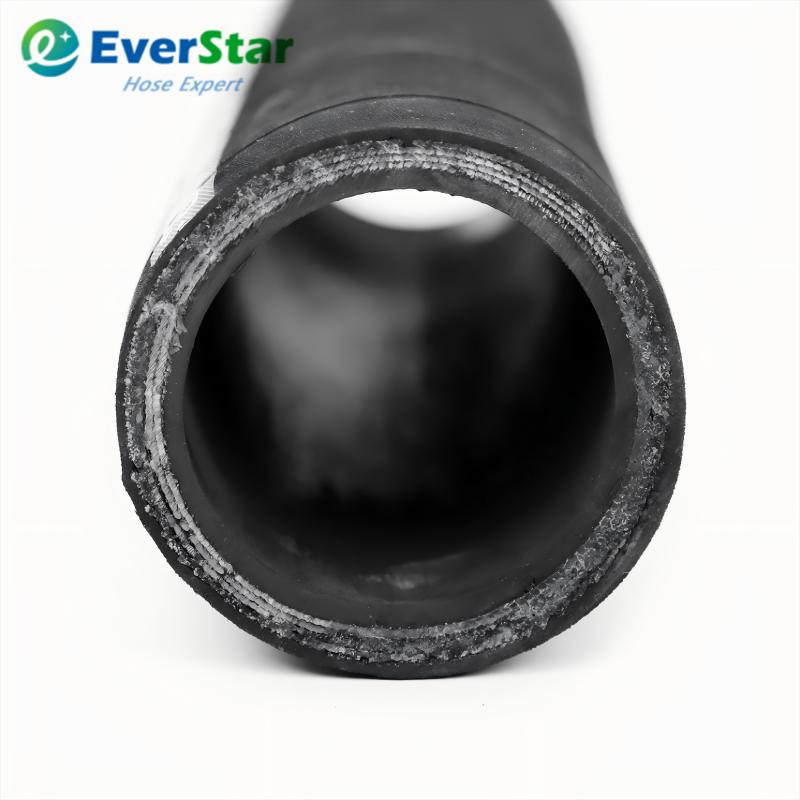

High-brightness cross section, rubber material is pure and free of impurities, layers are tightly bonded, and it is not easy to delaminate or peel off. The hose is wear-resistant and oil-resistant with good elasticity and sealing.

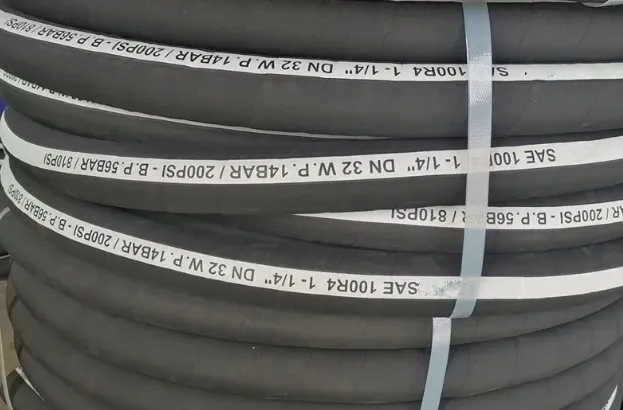

Detailed Photo 3

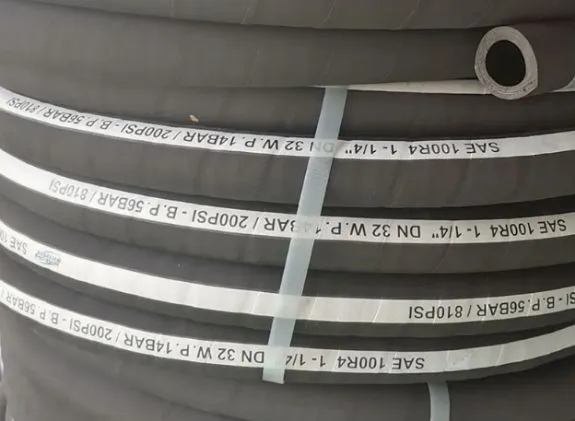

Detailed Photo 4

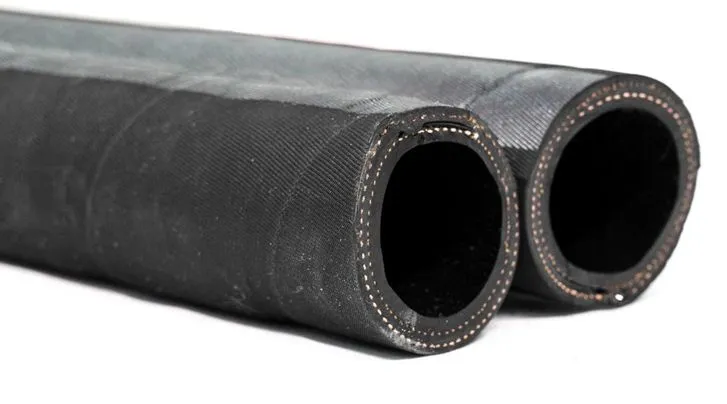

Detailed Photo 5
🏭

Production & Quality Control

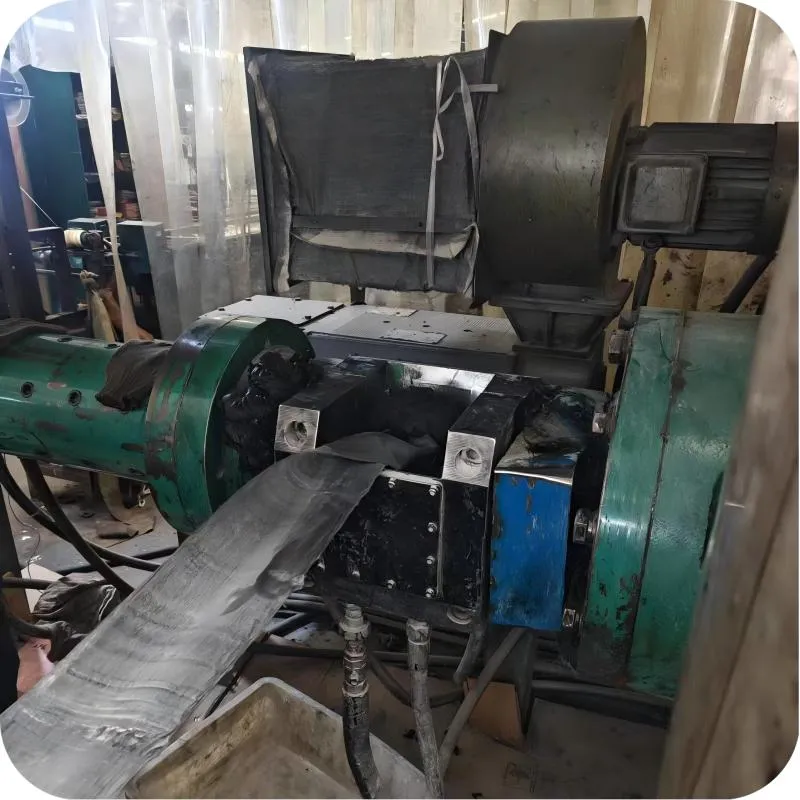

Equipment 1

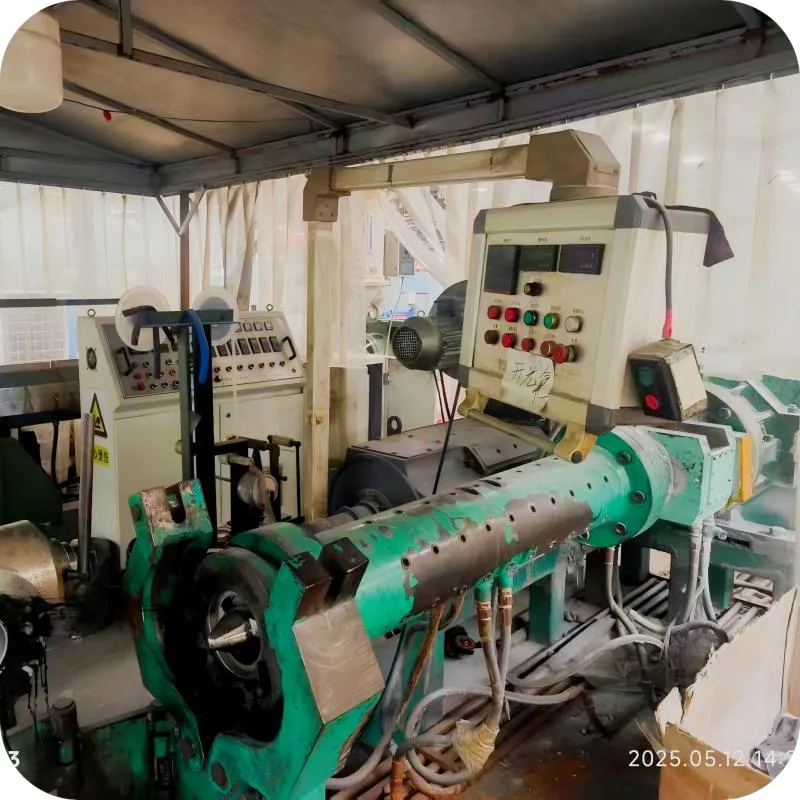

Equipment 2

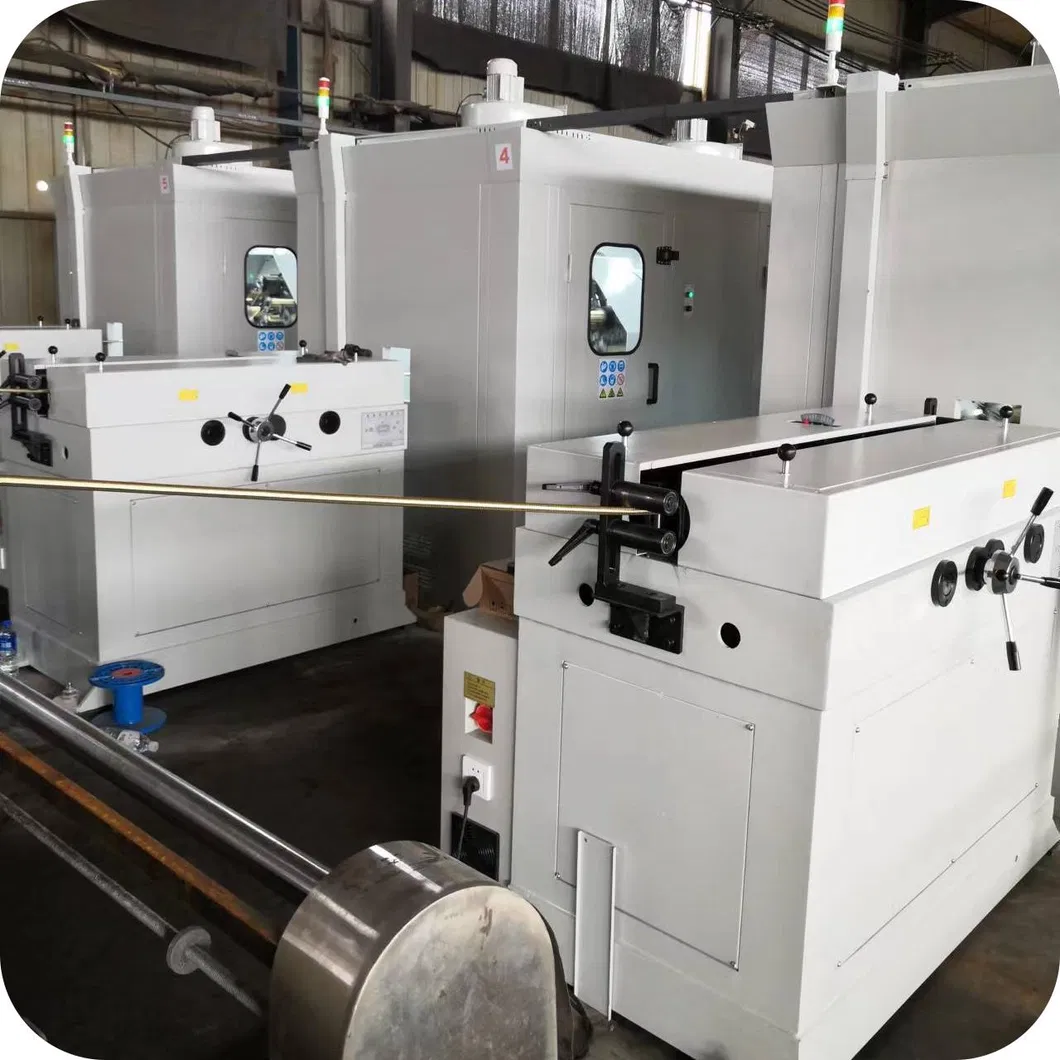

Equipment 3

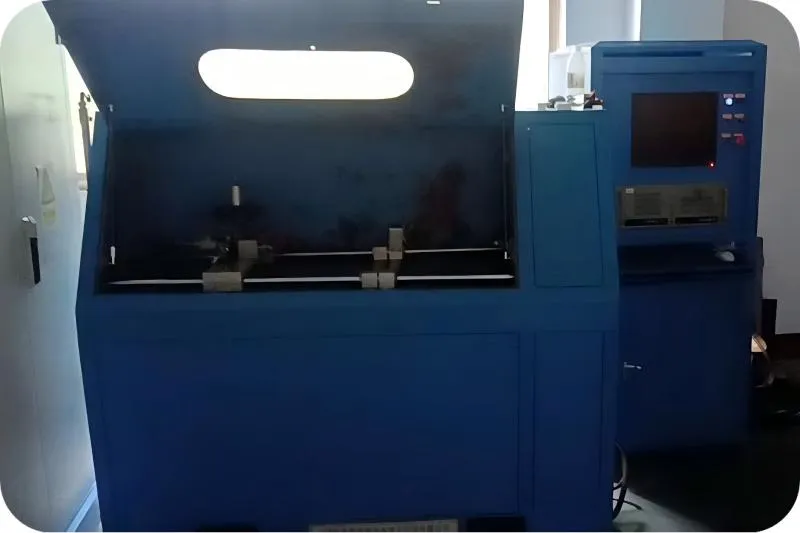

Quality Test 1

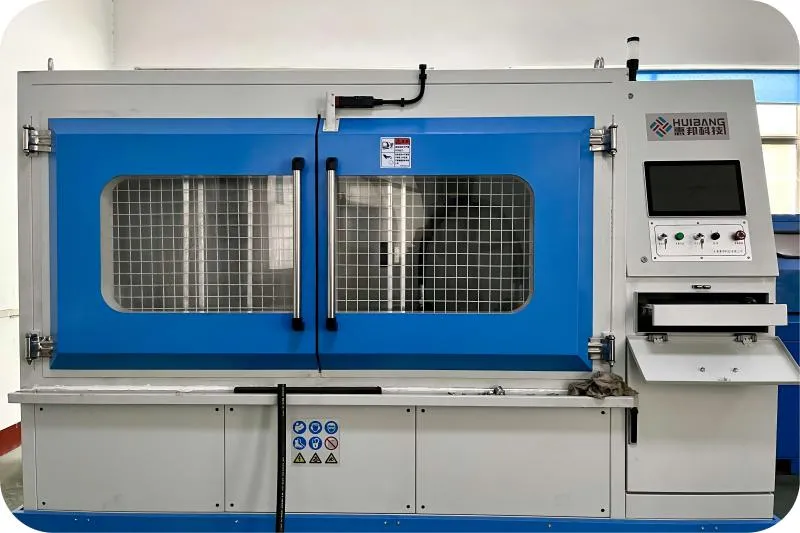

Quality Test 2
📦

Packaging & Shipping

Packaging 1
Packaging 2
Packaging 3

Frequently Asked Questions

Could I get free samples before ordering?
Yes, reasonable samples are free, and freight costs are subject to negotiation.
What is your Minimum Order Quantity (MOQ)?
Our minimum order quantity is USD 5,000. For orders below this amount, a USD 200 export fee applies.
What payment terms do you support?
Generally, we require T/T 30% in advance, with the balance due upon receipt of the copy of BL.
How do you ensure product quality?
We perform quality tests from raw materials to finished hoses and provide a one-year warranty. If quality issues arise from the production line, we can offer a two-year warranty.
Can you produce my brand on the hose?
Yes, all layline marking and branding services are provided free of charge, except for embossed printing.
Can I get a catalog or datasheet?
Certainly! Please send us a message, and we will be happy to provide our E-catalog.
