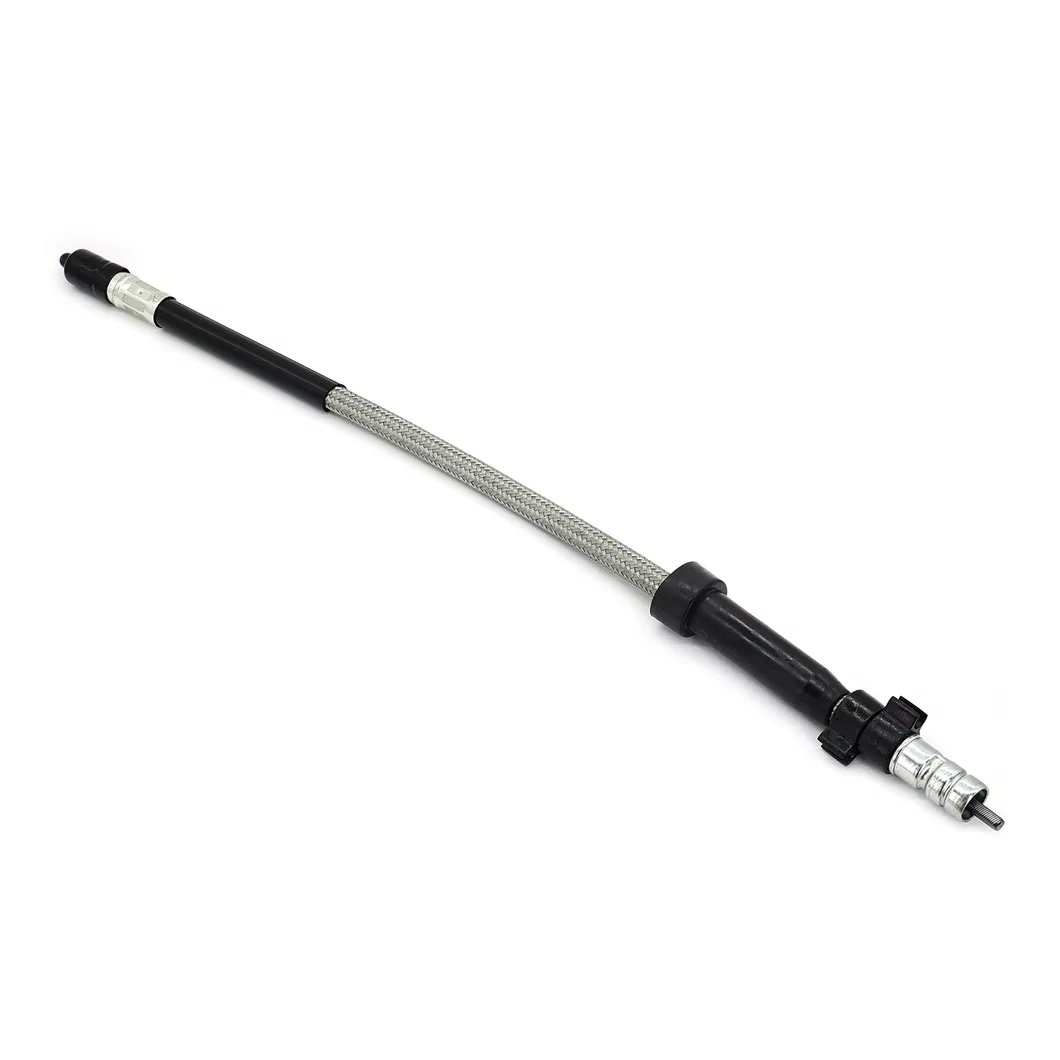

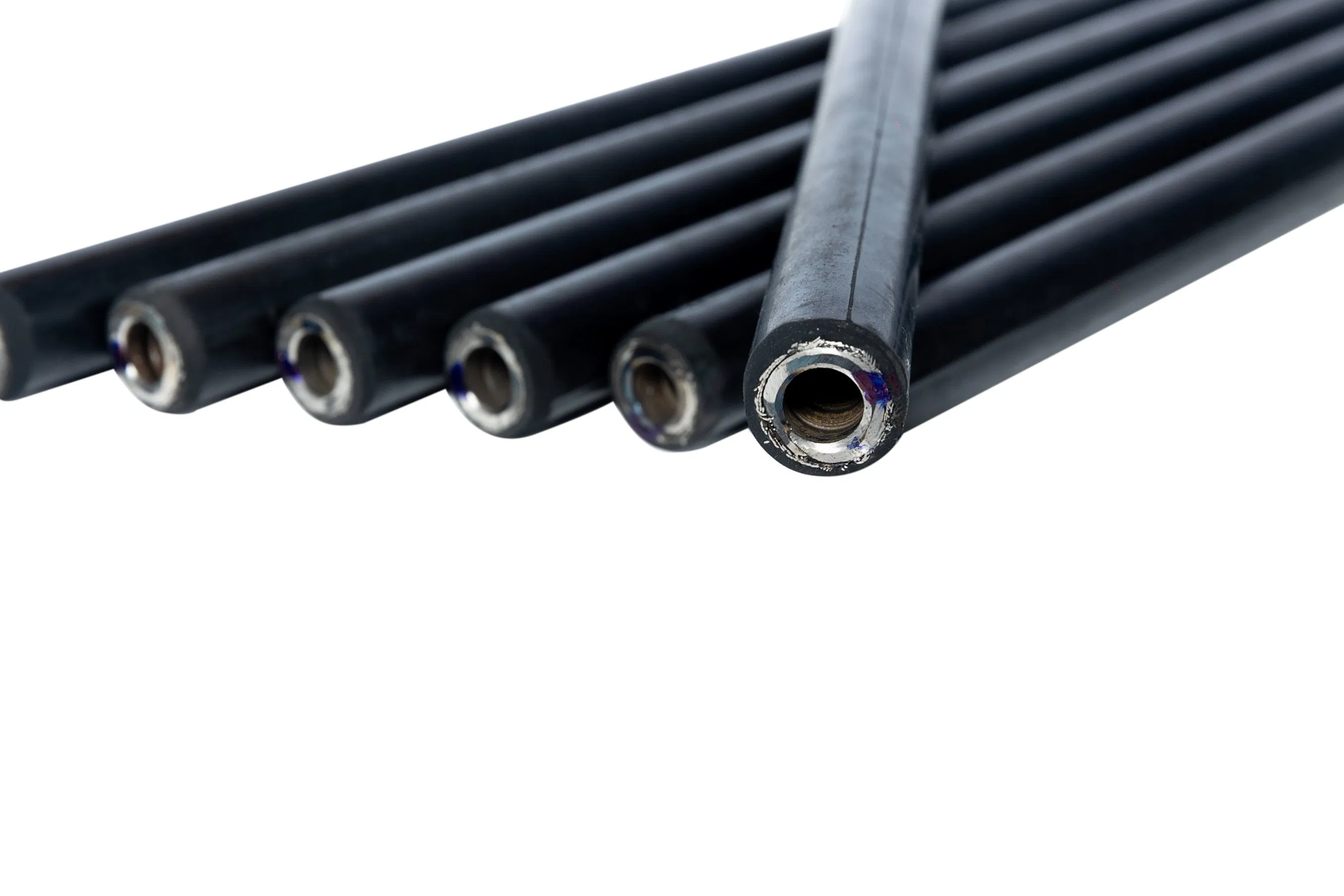

Premium Material: The flexible rubber hose used in the brush cutter assembly is primarily manufactured from high-quality nitrile rubber. It features exceptional wear resistance and anti-aging properties.
Standards Compliance: Our products are in strict accordance with ROHS, REACH, and other European and American environmental standards.

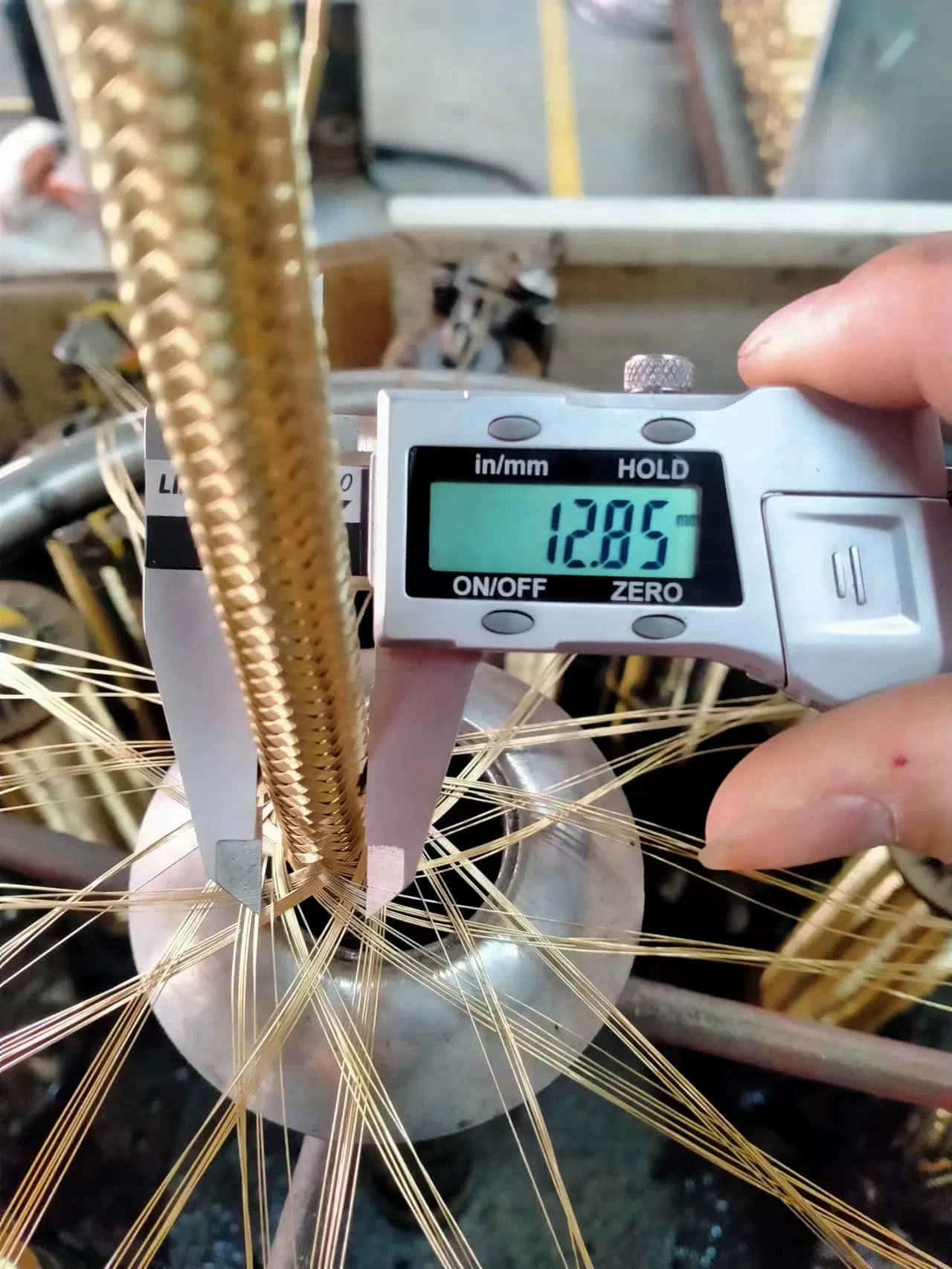

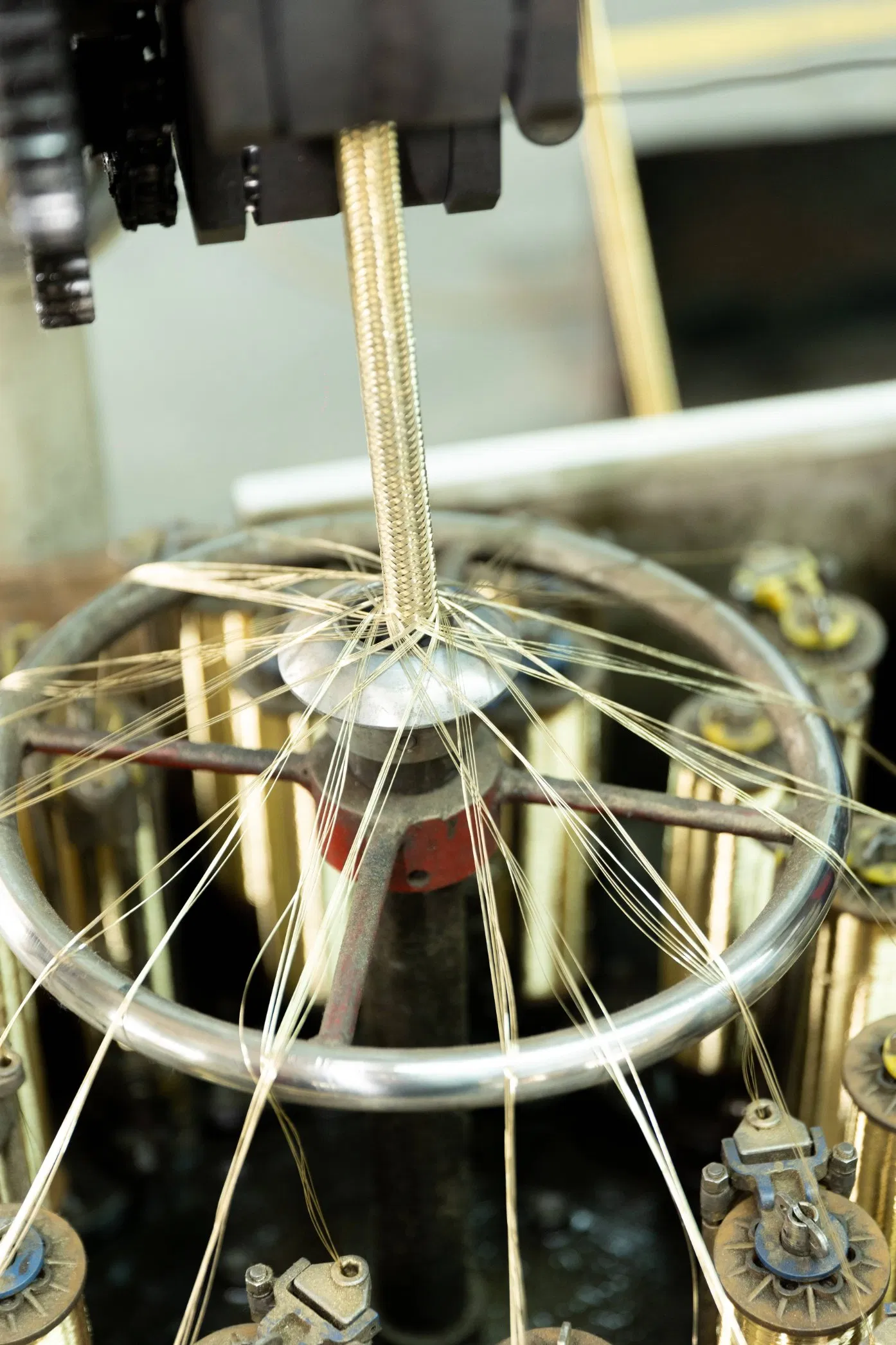

During production, there is strict control of every process. All products undergo a full inspection before being transferred or shipped to ensure the highest quality standards.

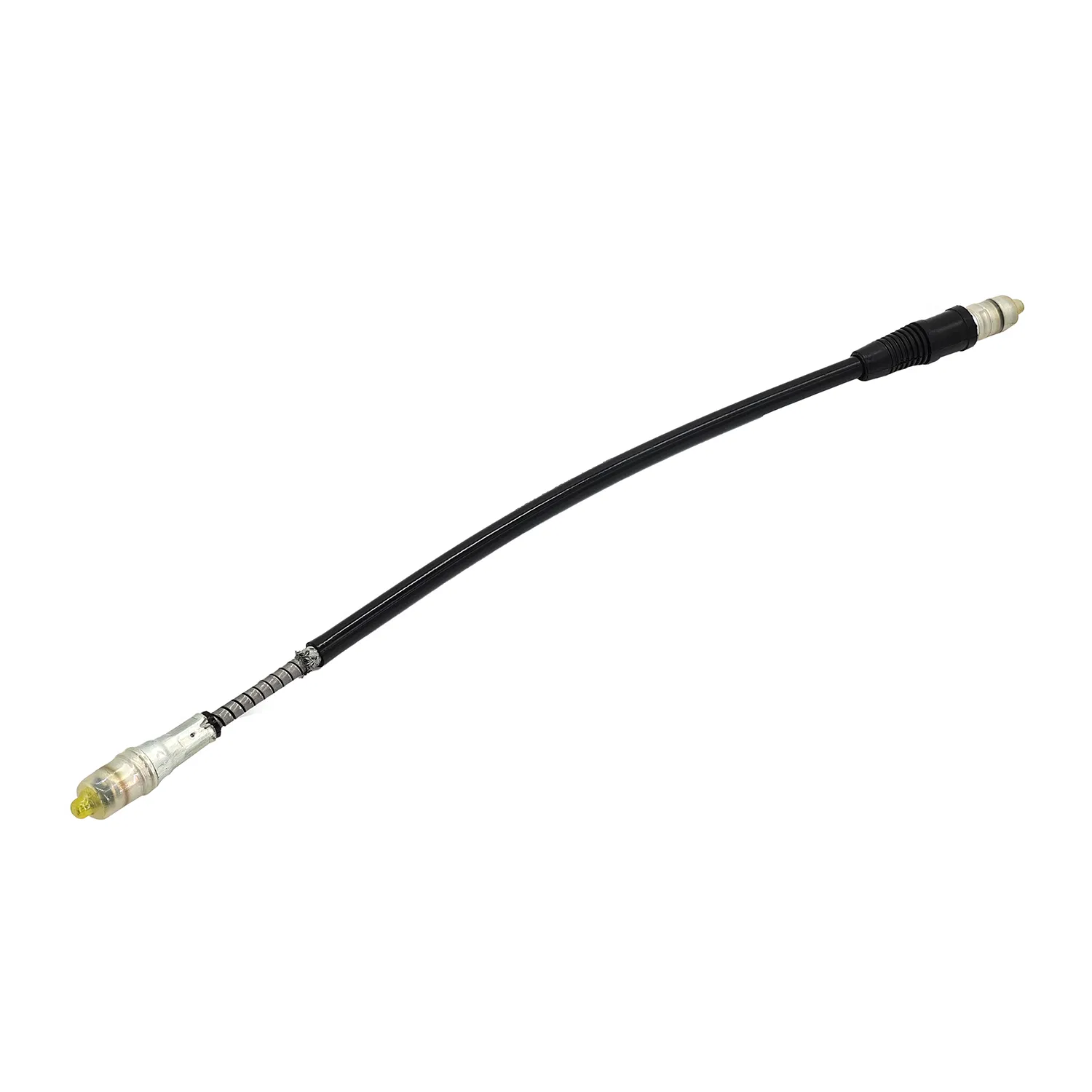

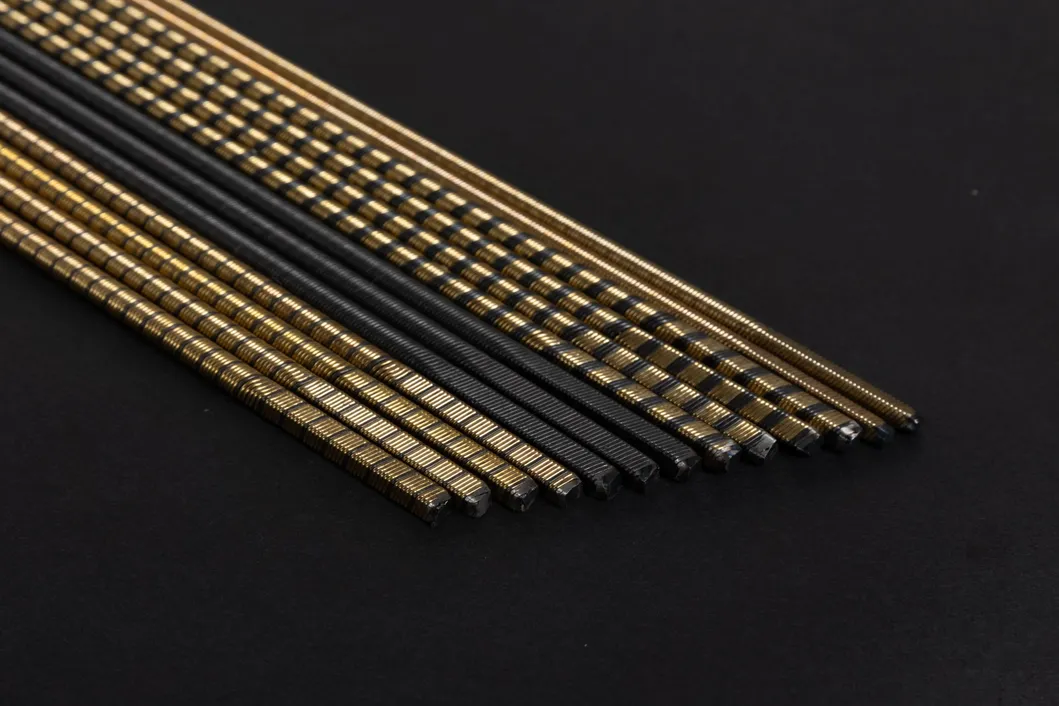

The most common sizes for brush cutters are the 8mm carbon steel flexible shaft and the 9mm high torque flexible shaft.
| Shaft Dia.(Φ) | Surface Color | Structure | Bending Diameter (mm) | Destroy Torque (N.m) |
|---|---|---|---|---|
| 8mm | Black | 5 layers 1 core | 140-160 | 33-37 |
| 8mm | 5 brass coated wires with 3 black wires | 5 layers 1 core | 140-160 | 35-39 |
| 9mm | Black | 6 layers 1 core | 160-180 | 43-47 |

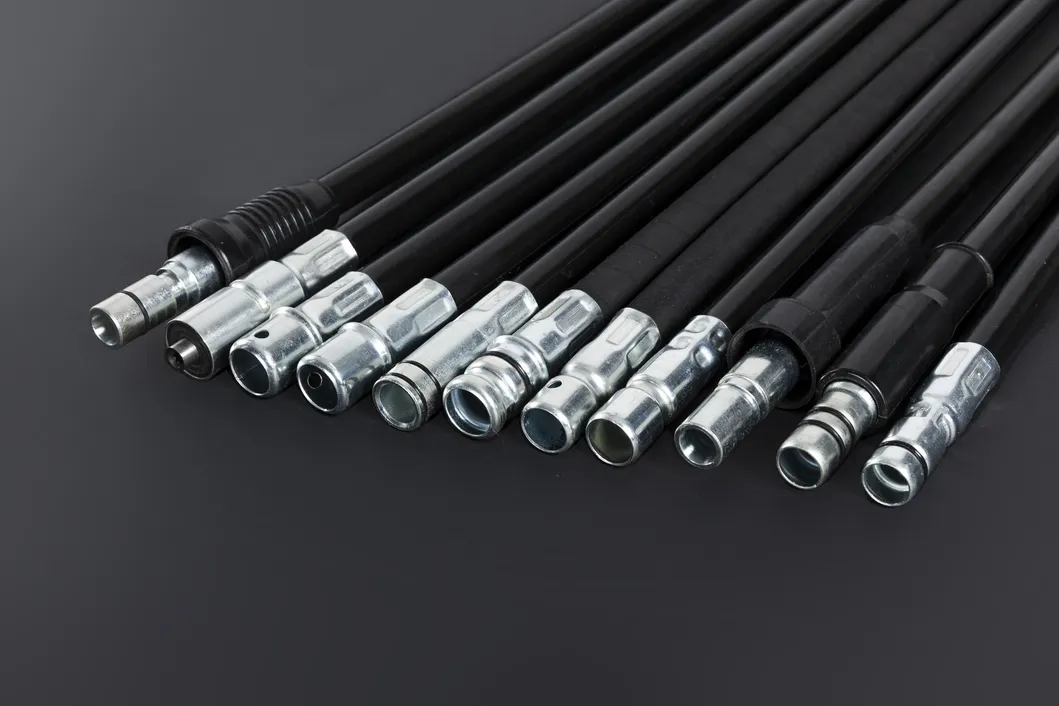

Our shaft ends are squared using special equipment imported from Europe. This technology provides several key advantages:
