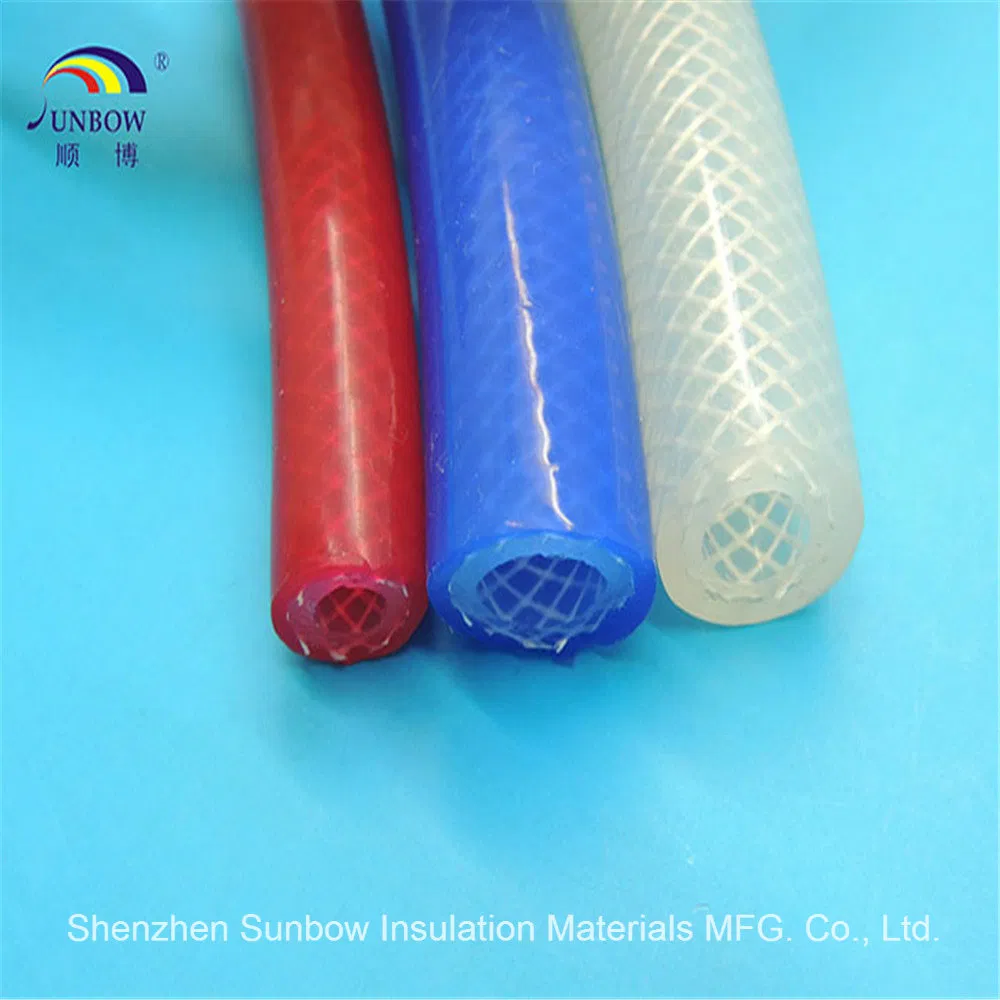

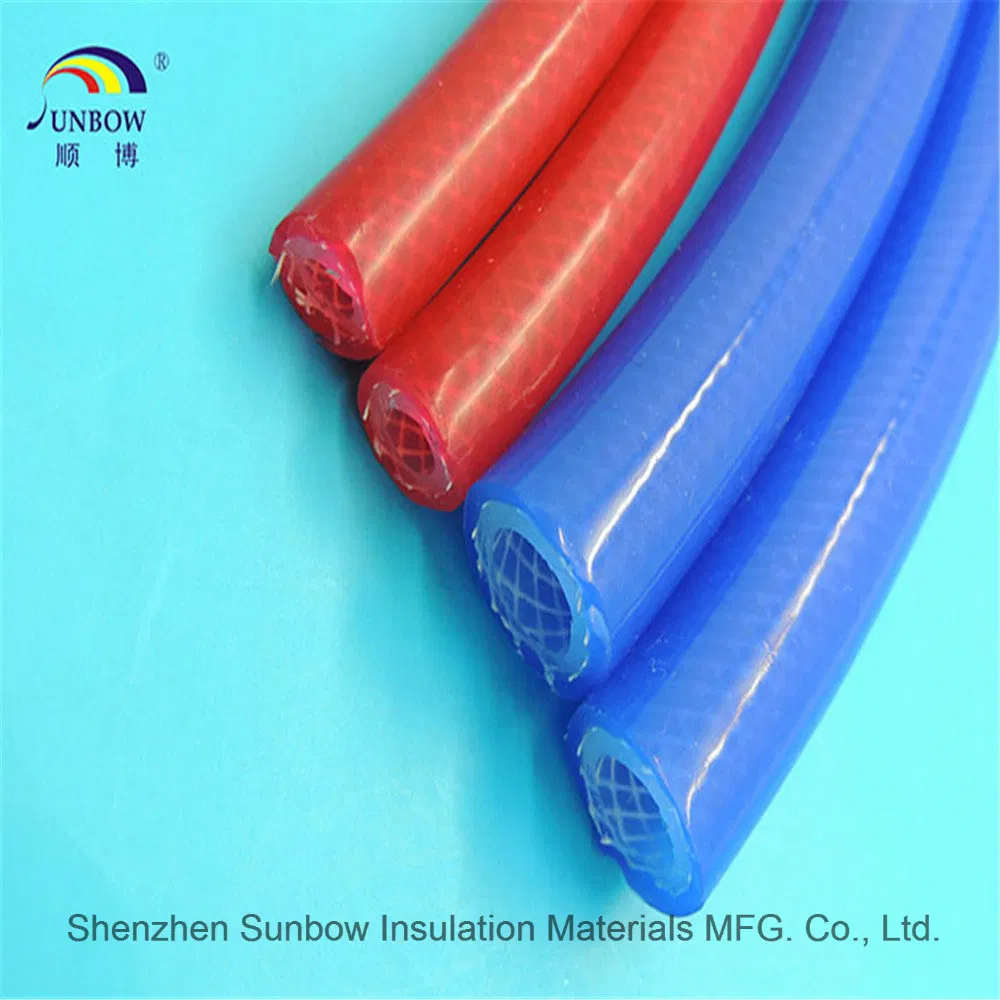

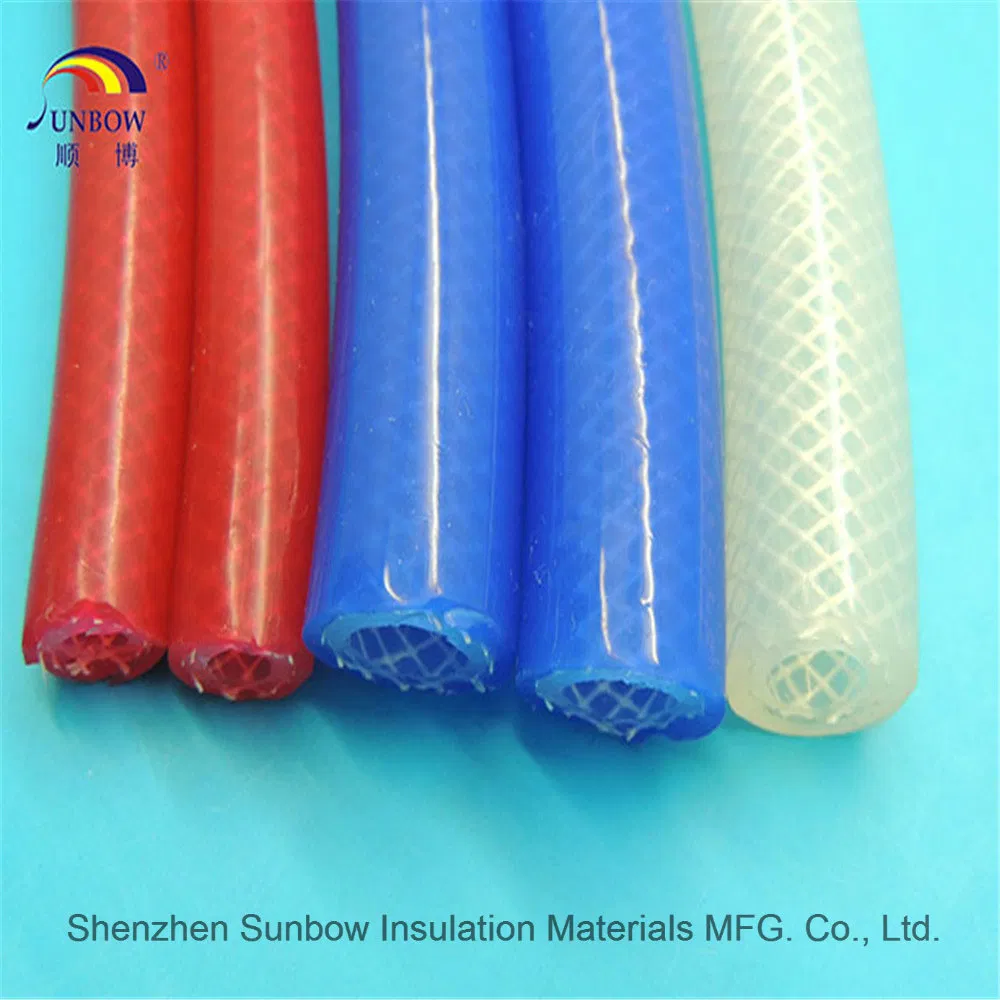

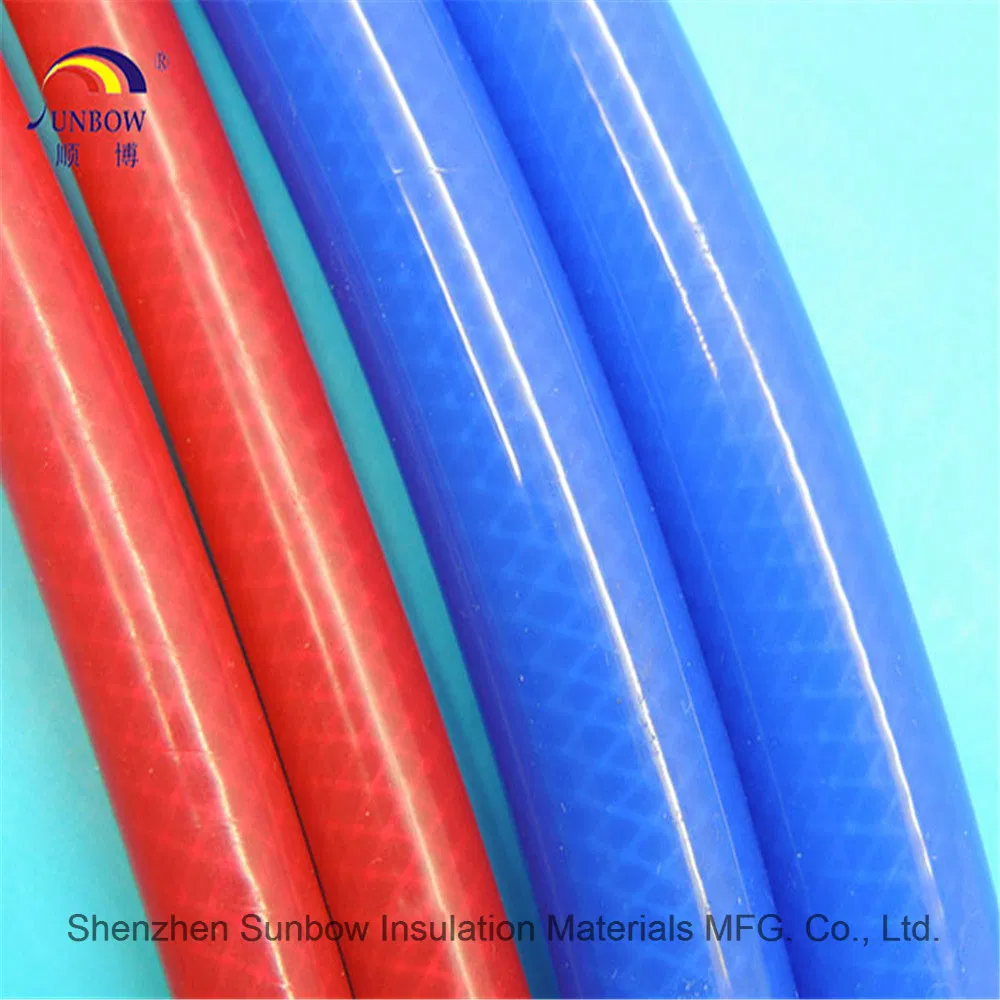

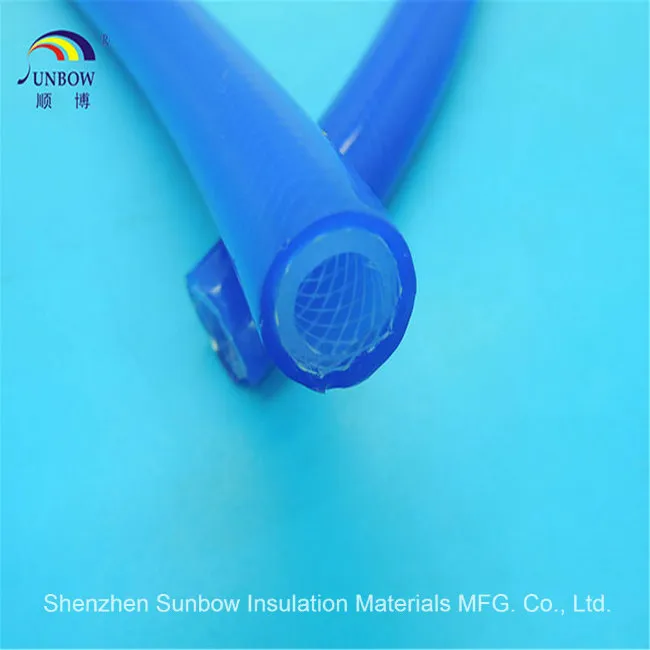

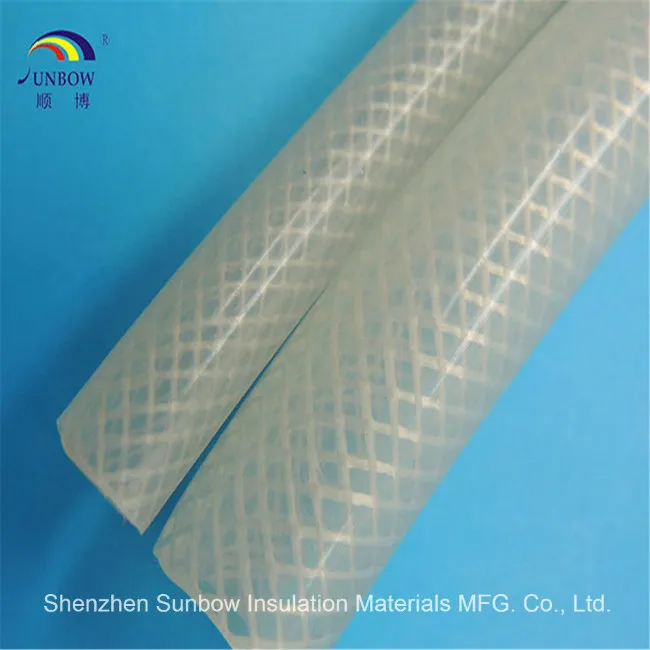

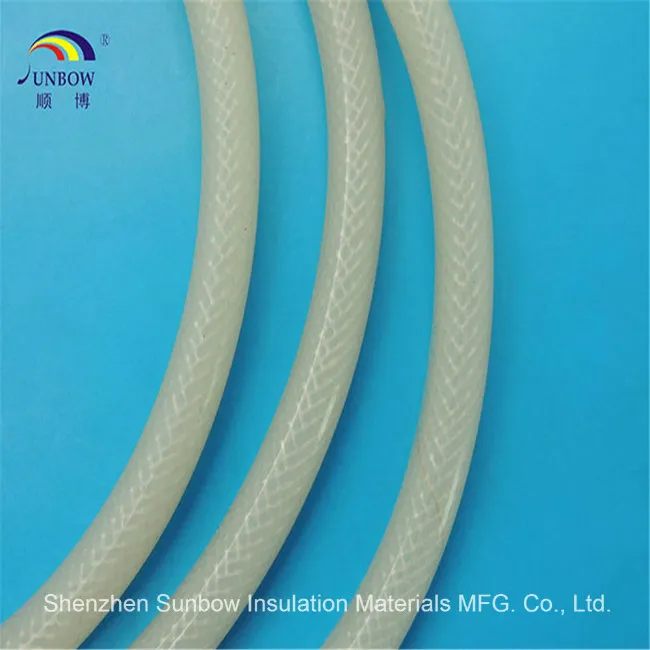

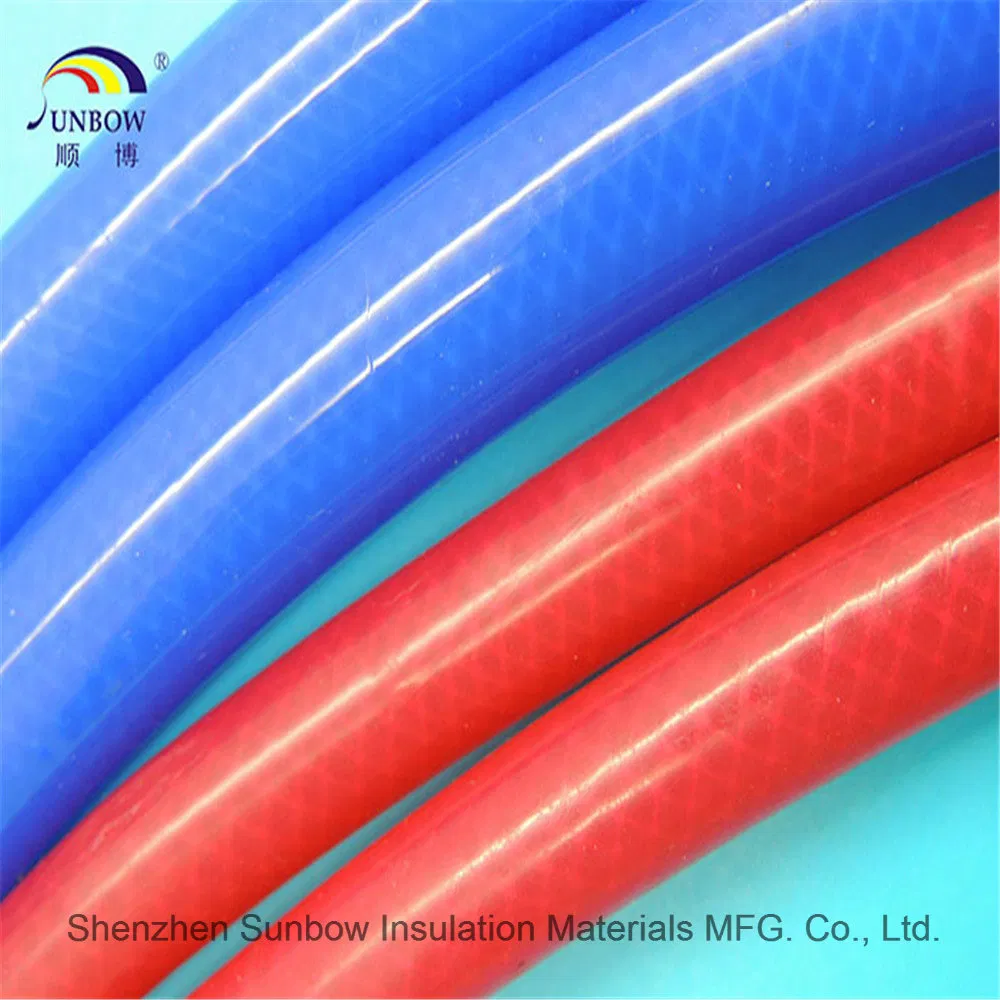

Food grade fiberglass reinforced silicone hose
Model: SB-SRRT
Working Temperature: -60ºC to 200ºC
Extruded silicone rubber tube reinforced with performance fiber braided, then extruded with silicone rubber and treated.
The tube is flexible and yet able to stand high working pressure at high Temperature. It offers excellent heat and cold resistance; therefore, makes it very suitable for a wide range of applications. In electrical appliances industry, water pipe, gas pipe, and it can be installed in coffee makers etc.
| Item | Performance | Note |
|---|---|---|
| Dielectric breakdown voltage (KV AC) | ≥7.0 | In air |
| Dielectric breakdown voltage (KV AC) | ≥6.0 | In water |
| Dielectric breakdown voltage (KV AC) | ≥5.0 | In 2% salt water |
| Thermal endurance | No indication of crack | 200ºC × 1 hours |
| Working pressure | 2.5Mpa | No breaking |
| Inner Diameter (mm) | Tolerance (mm) | Wall Thickness (mm) | Tolerance (mm) |
|---|---|---|---|
| 3.0 | +0.4, -0.2 | 1.5 | +/-0.2 |
| 4.0 | +0.4, -0.2 | 2.0 | +/-0.2 |
| 5.0 | +0.4, -0.2 | 2.0 | +/-0.2 |
| 7.0 | +0.4, -0.2 | 2.0 | +/-0.2 |
| 8.0 | +0.4, -0.2 | 2.0 | +/-0.2 |
| 8.0 | +0.4, -0.2 | 3.0 | +/-0.2 |
* Standard color is white, other colors available upon request. Other sizes can be manufactured to customer requirements.
