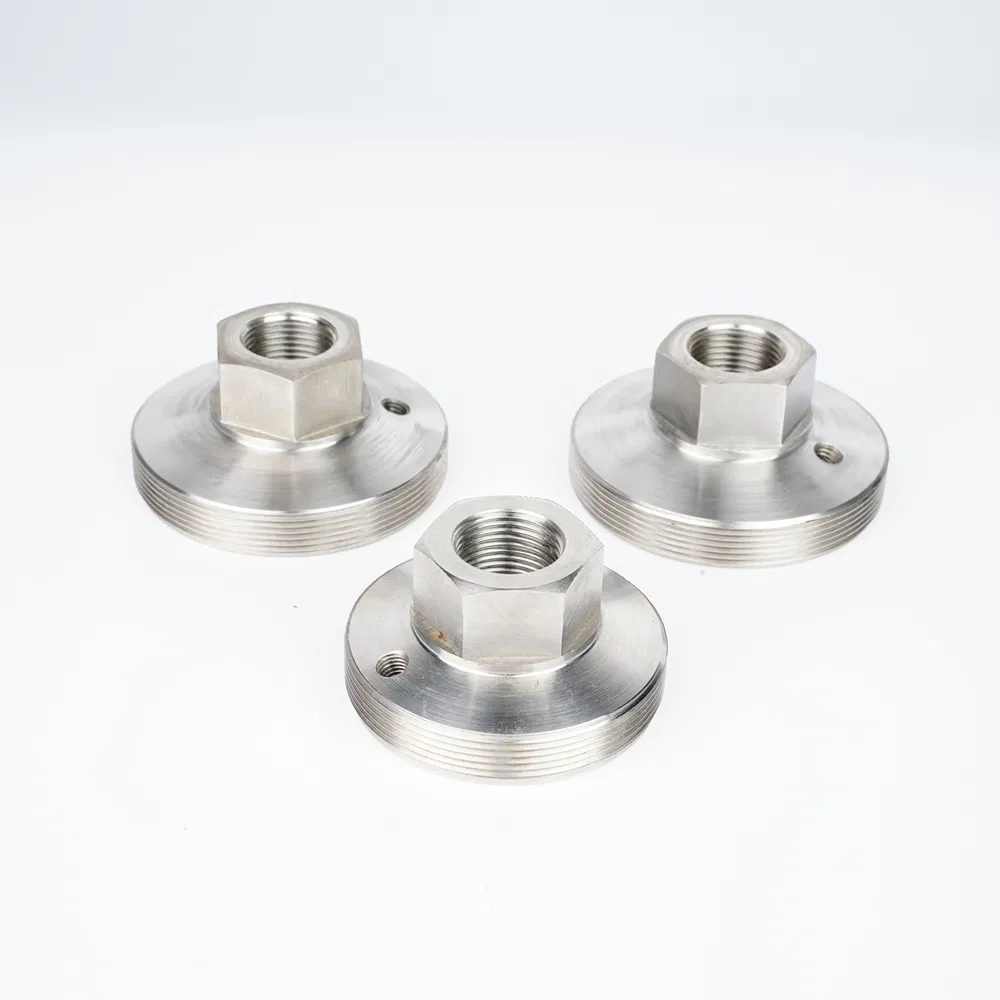

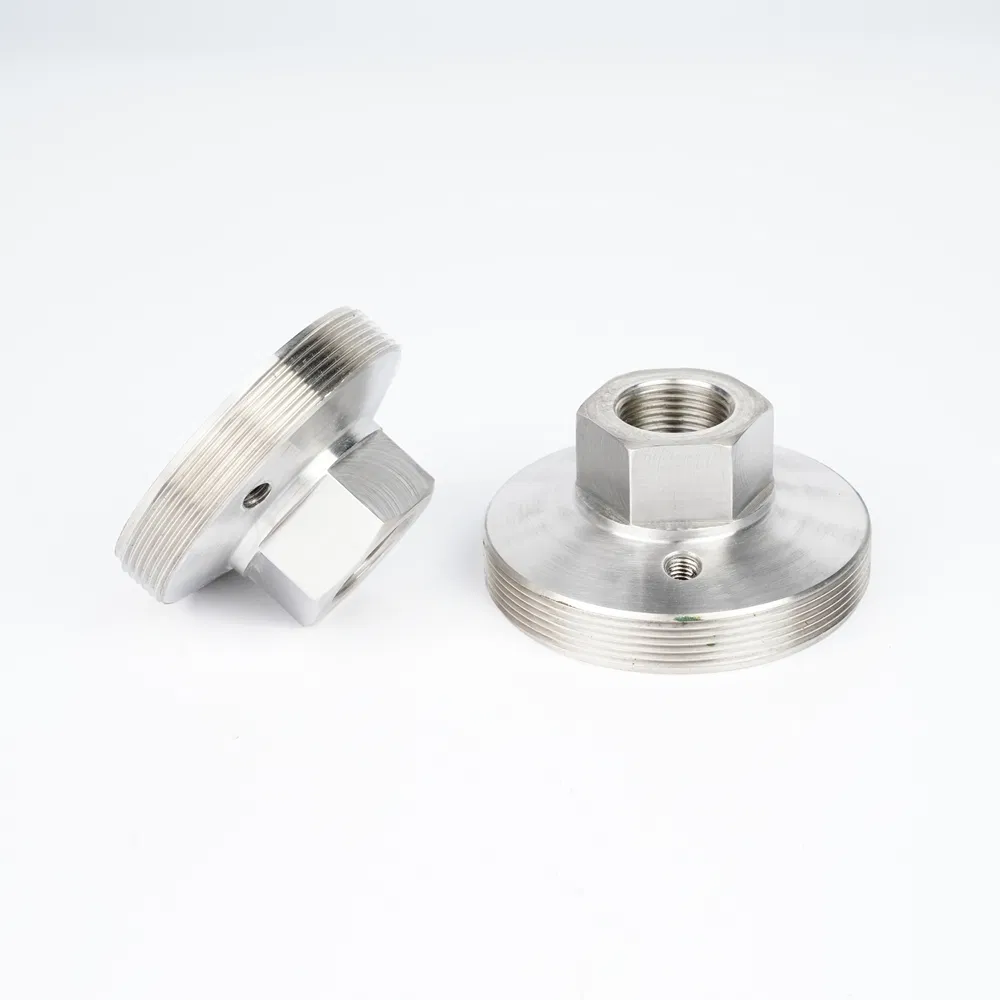

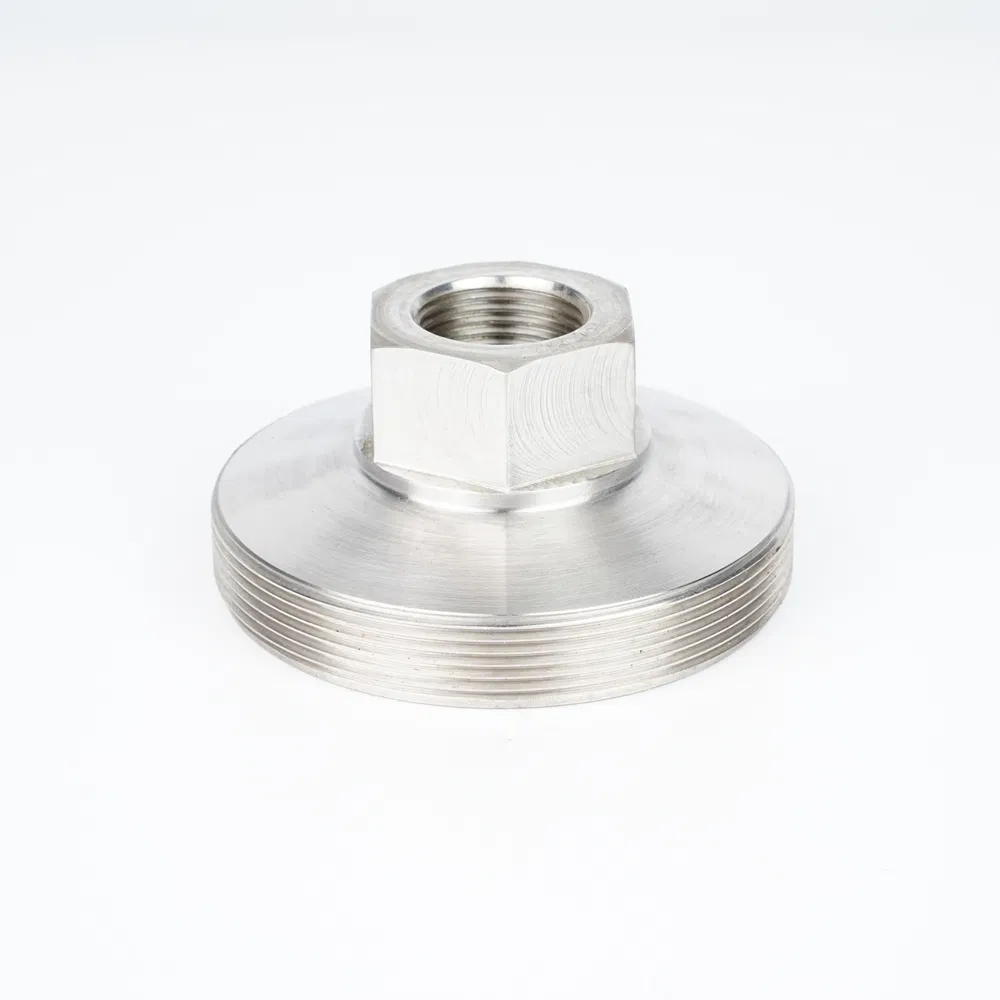

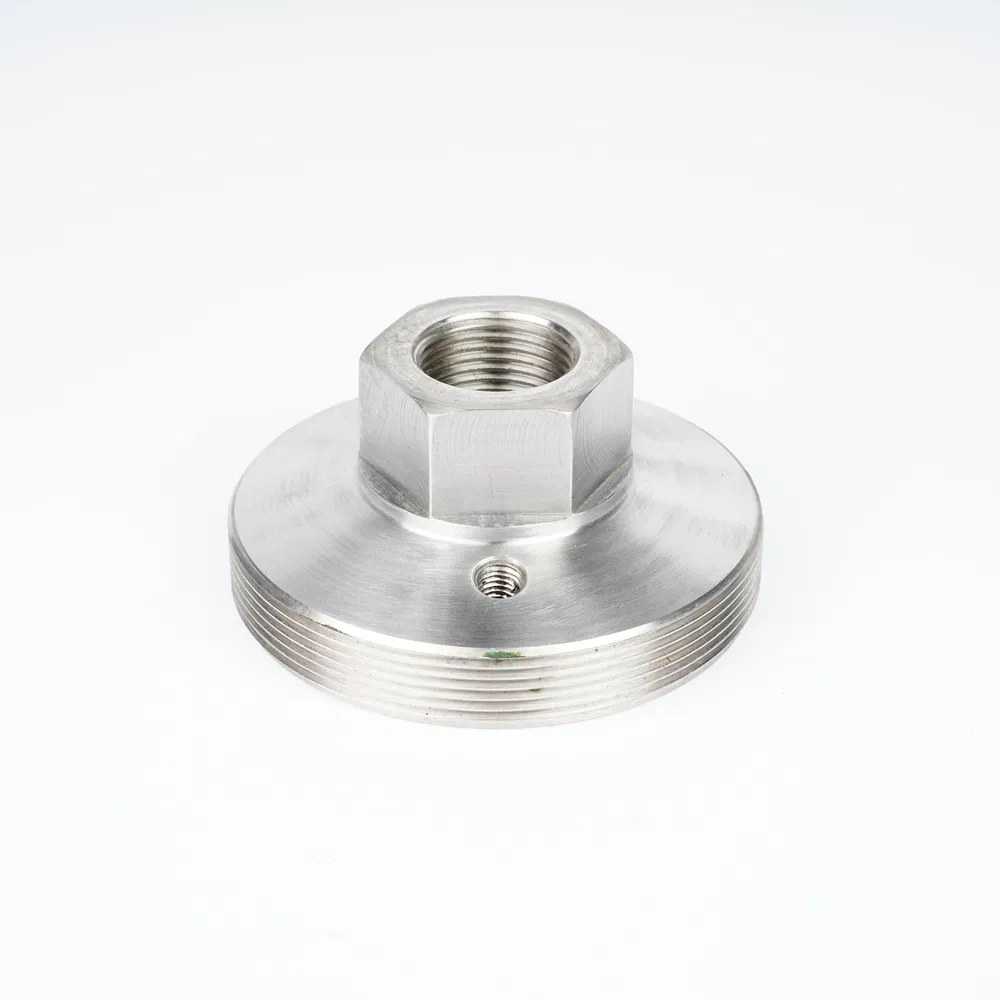

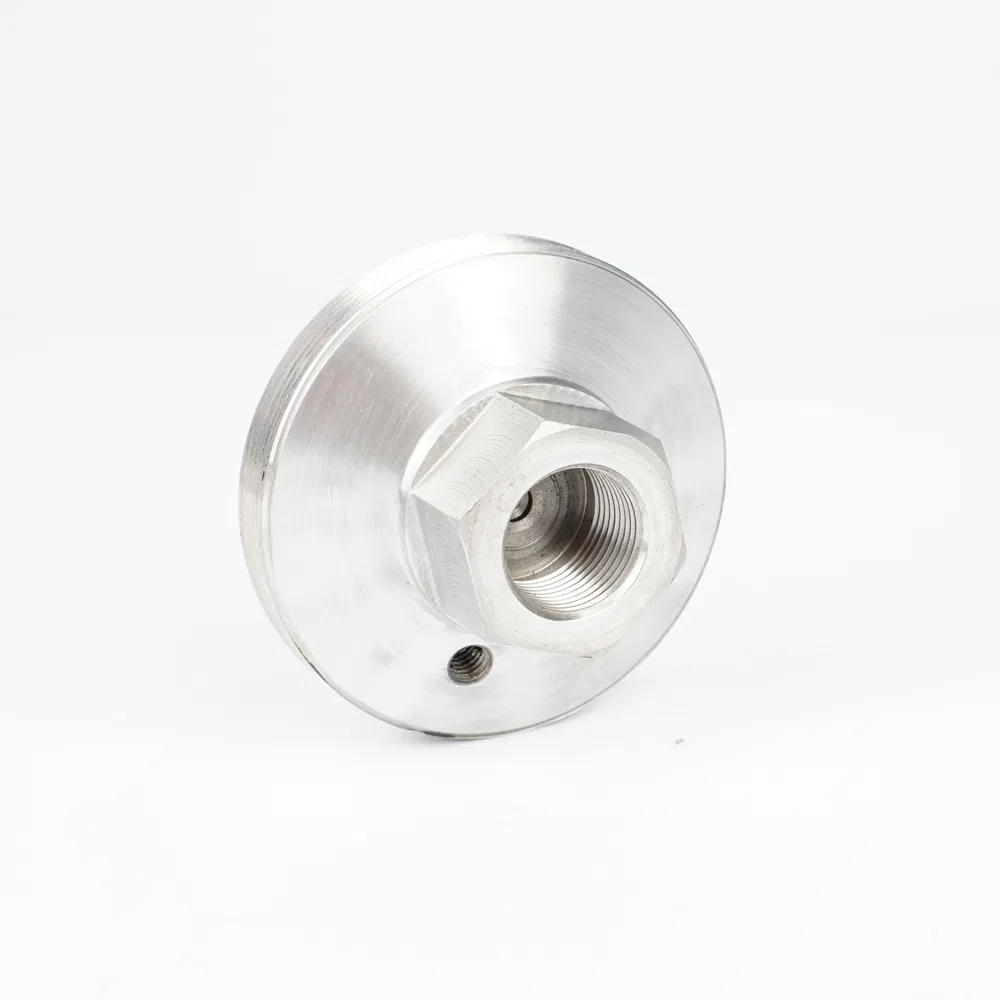

The pressure gauge diaphragm seat is a key component in the pressure gauge measurement system. As the support base of the elastic diaphragm, it is used to isolate the measured medium from the internal mechanism of the pressure gauge. It is usually made of corrosion-resistant metal materials such as stainless steel, and its structural design directly affects the accuracy and reliability of pressure measurement.
This component has excellent sealing performance and medium compatibility, which can effectively prevent the measured medium from leaking or corroding the inside of the pressure gauge. Precision surface processing ensures a close fit with the diaphragm to ensure the accuracy of pressure transmission. At the same time, it has good mechanical strength and fatigue resistance, and can withstand pressure cycle changes for a long time.
It is widely used in pressure measurement systems in chemical, petroleum, pharmaceutical and other industries, especially suitable for pressure monitoring of corrosive, viscous or high-temperature media. In food processing, water treatment, and industrial automation control, it provides reliable medium isolation and protection functions for pressure instruments.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Product Name | Pressure Gauge Diaphragm Seat |
| Material | Stainless Steel 304/316 |
| Machining Service | CNC Machining Support |
| Application | Pipe Lines Connection |
| Standard | DIN / Standard Specifications |
| Quality Level | High Precision Grade |
| Package | Wooden Box / Customized |
| Gross Weight | 10.000kg |
Precision machining technology is used to ensure perfect fit with the diaphragm to form a reliable static sealing interface. Special surface treatment technology further reduces the risk of media penetration, completely isolates corrosive or hazardous media.
High-quality stainless steel materials can withstand corrosion from various chemical media such as acids, alkalis, solvents, etc. It can adapt to special fluids with high purity, viscous or containing solid particles.
The thickened design and strengthening process give the base excellent pressure resistance. Selected materials combined with professional heat treatment technology significantly improve fatigue resistance under frequent pressure cycles.
