Product Description

Basic Information
Model NO.
GV-HC11
Material
Steel / 304SS Stainless Steel
Muffler Type
Rear Muffler
Name
O Band Clamp Exhaust Clamp
Size Range
1.5" / 2" / 2.5" / 3" / 3.5" / 4" / 5"
Function
for Exhaust Pipe / Turbocharges / Pump
Origin
Ningbo
HS Code
7318290000
Product Description
Universal High Strength Butt Joint SS Exhaust O Band Clamp Kit

High-performance O band clamps designed for automotive hose exhaust systems and turbo pipe applications. Featuring 304SS Stainless Steel construction for maximum durability.

Technical Specifications

  • Material: High-quality aluminized stainless steel for extended lifetime.
  • Installation: One-hand, one-wrench clamp design for easy assembly.
  • Seal Quality: Conforms to pipe and flex tubing to create the best seal without distorting the pipe.
  • Corrosion Resistance: Conducted over 100 hours of salt spray testing to ensure anti-corrosion performance.
  • Hardware: 15mm Metric Hex Nut; T-bolt plain steel with heat treatment to 10.9 grade zinc plated.
Component Material / Grade
Band SS304, 430, 201
Nut All metal with heat treatment to 10.9 grade
T bolt Plain steel with heat treatment to 10.9 grade zinc plated
Surface Treatment Polishing or customized

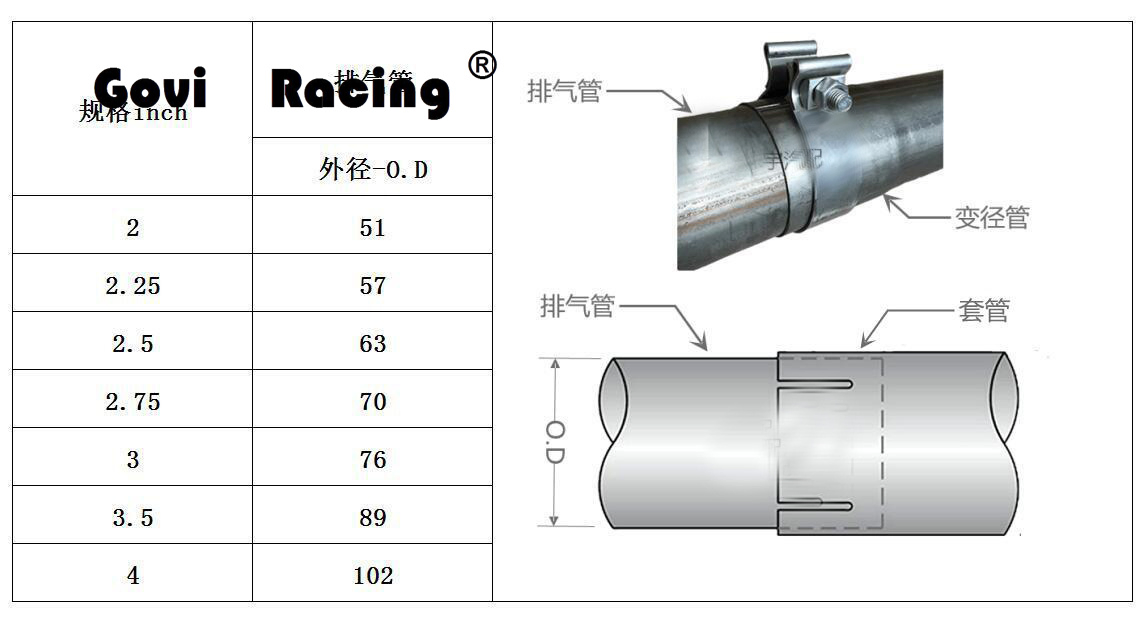

Available Sizes

Inches Outer Diameter (mm) Band Width * Thickness (mm)
2.055.531.8 * 1.8
2.562.231.8 * 1.8
3.069.031.8 * 1.8
3.575.931.8 * 1.8
4.081.931.8 * 1.8
4.594.831.8 * 1.8
5.0107.831.8 * 1.8

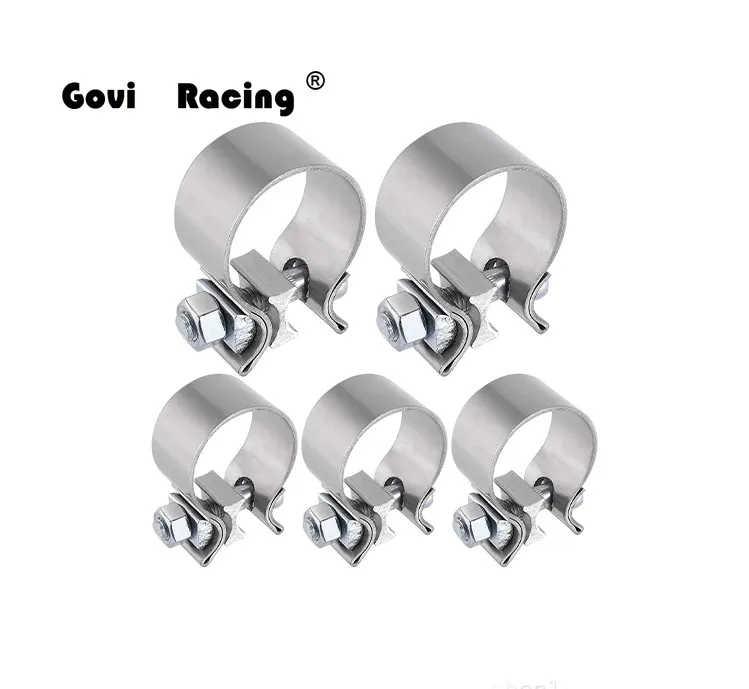

Exhaust O Band Clamp Detail
Heavy-Duty Exhaust Clamp Showcase

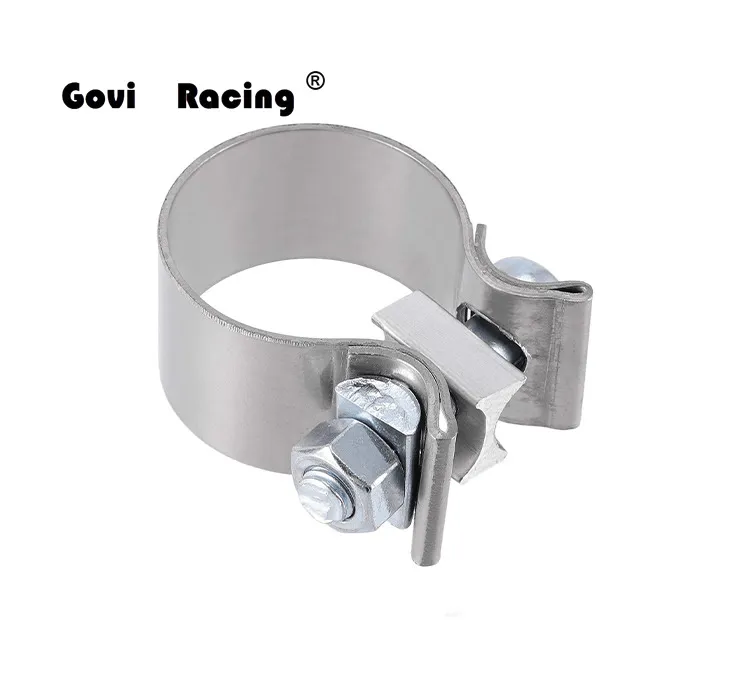

Automotive Exhaust Hose Systems Clamp
Frequently Asked Questions
What materials are these clamps made of?
The clamps are primarily made of 304SS Stainless Steel, but are also available in 430 or 201 grades depending on your requirements.
Can these clamps be used for turbocharger systems?
Yes, these high-strength O band clamps are specifically designed for exhaust pipes, turbochargers, and pump connections.
Do these clamps damage or distort the exhaust pipes?
No, the AccuSeal design is engineered to conform to the pipe and flex tubing to create a tight seal without causing pipe distortion.
Are the clamps resistant to rust and corrosion?
Absolutely. Our clamps undergo more than 100 hours of salt spray testing to ensure superior anti-corrosion performance in harsh environments.
What tools are required for installation?
These are designed as one-hand, one-wrench clamps using a 15mm metric hex nut for quick and easy installation.
What is the strength grade of the hardware?
The nuts and T-bolts are heat-treated to a 10.9 high-strength grade to ensure a secure and lasting hold.
