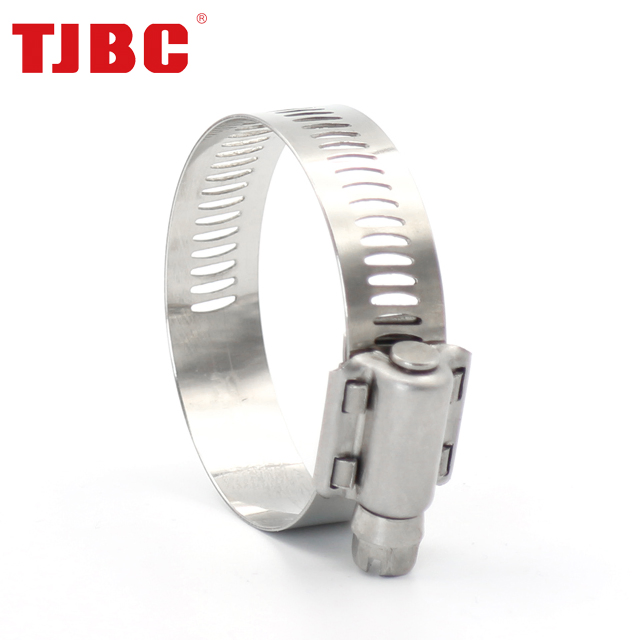

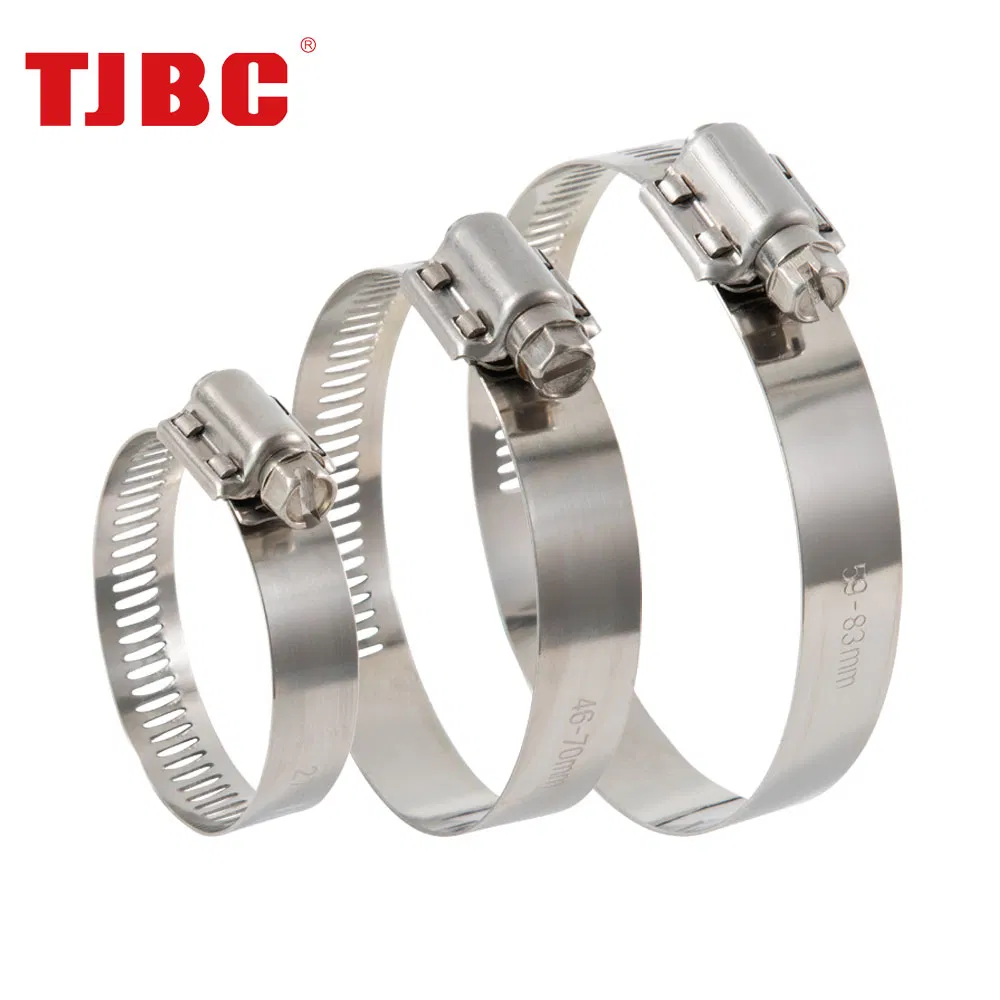

12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
1 / 5
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm
12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm

12.5mm Bandwidth Perforated Heavy Duty Stainless Steel Worm Drive Adjustable American Type Hose Clamp for Automotive, 13-23mm

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📦 Basic Information
Model NO.
MS05B8
Product Name
American Type Hose Clamp
Type
Heavy Duty Hose Clamp
Connection
Hose Clip
Surface Treatment
Galvanized Sheet
Head Type
Round
Scope
Auto Parts
Certification
ISO/TUV/BSCI/IATF
Transport Package
Plastic Bag Carton
Specification
13-23mm
HS Code
732690
Capacity
10000 PCS/Day
🛠️ Product Description
MS05 & MS06 (2-pcs Housing Perforated Hose Clamp)
SAE No. Size Range 12.5mm Bandwidth (Item No.) 14.2mm Bandwidth (Item No.)
mm inch W2 W4 W1 W4
611-200.44"-0.78"MS05B6MS05D6--
813-230.5"-0.91"MS05B8MS05D8--
1014-270.56"-1.06"MS05B10MS05D10-MS06D10
1218-320.69"-1.25"MS05B12MS05D12-MS06D12
1621-380.81"-1.5"MS05B16MS05D16MS06A16MS06D16
2021-440.81"-1.75"MS05B20MS05D20MS06A20MS06D20
2427-511.06"-2"MS05B24MS05D24MS06A24MS06D24
3240-641.56"-2.5"MS05B32MS05D32MS06A32MS06D32
4865-892.56"-3.5"MS05B48MS05D48MS06A48MS06D48
6491-1143.56"-4.5"MS05B64MS05D64MS06A64MS06D64
104157-1786.18"-7"MS05B104MS05D104MS06A104MS06D104
Material Code Band Material Housing Material Screw Material Suggested Torque
W1 Zinc plated steel Zinc plated steel Zinc plated steel MS05: 5.3Nm
MS06: 7.5Nm
MS08: 11Nm
W2 AISI 301SS AISI 301SS Zinc plated steel
W4 AISI 304SS AISI 304SS AISI 304SS
📷 Product Gallery

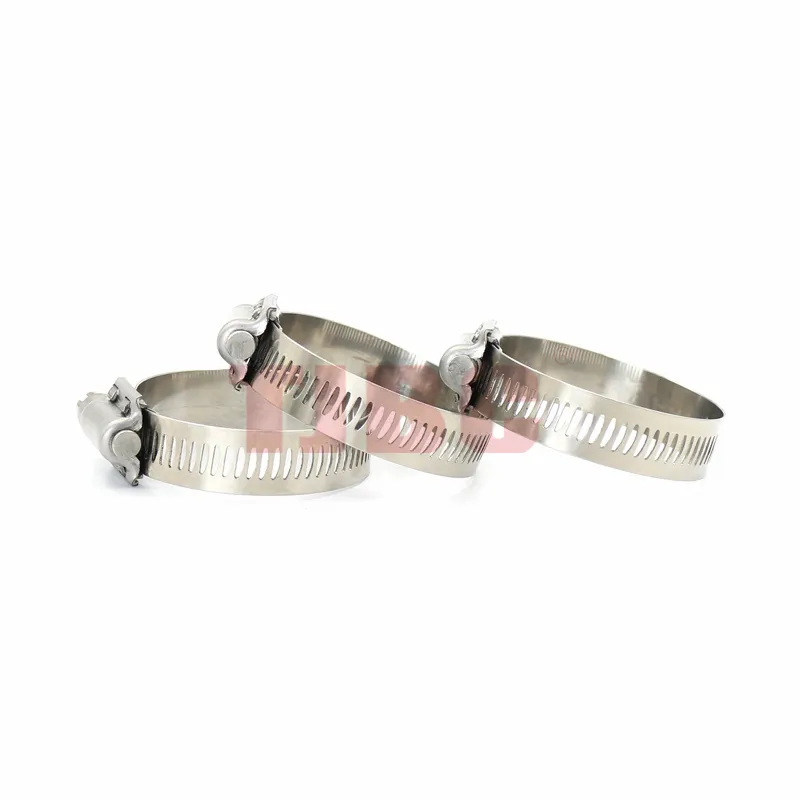

Worm Drive Hose Clamp Main View
Hose Clamp Details 1
Hose Clamp Details 2
Hose Clamp Details 3
Hose Clamp Details 4
Hose Clamp Details 5

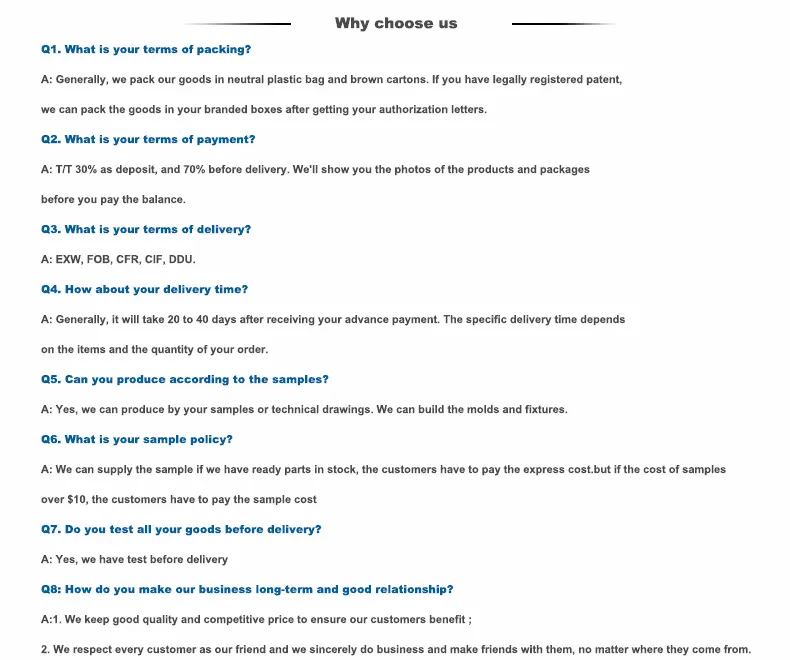

Hose Clamp Details 6
❓ Frequently Asked Questions
What is the difference between MS05 and MS06 models?
The main difference lies in the bandwidth. The MS05 series features a 12.5mm bandwidth, while the MS06 series offers a wider 14.2mm bandwidth for heavy-duty applications.
What materials are used for the W1, W2, and W4 grades?
W1 consists entirely of zinc-plated steel. W2 uses AISI 301 stainless steel for the band and housing with a zinc-plated screw. W4 is a full stainless steel construction (AISI 304SS) for maximum corrosion resistance.
What is the recommended installation torque for these clamps?
Suggested installation torque is 5.3Nm for MS05 models, 7.5Nm for MS06 models, and 11Nm for MS08 heavy-duty models.
What certifications do these hose clamps hold?
Our products are manufactured to high standards and hold ISO, TUV, BSCI, and IATF certifications, ensuring quality and safety for automotive use.
In which industries are these American type hose clamps used?
These clamps are primarily designed for the automotive industry (auto parts) but are also suitable for various heavy-duty industrial connections and hose clipping requirements.
Can these clamps handle different size ranges?
Yes, we provide a wide range of sizes from 11-20mm (SAE No. 6) up to 157-178mm (SAE No. 104) to accommodate different hose diameters.
