1. Material Characteristics and Technological Innovation
Multilayer nylon tubes are usually made of high-performance materials (such as PA66, PA12, etc.), featuring lightweight, high temperature endurance, chemical corrosion resistance, and impact resistance.
2. Application Fields

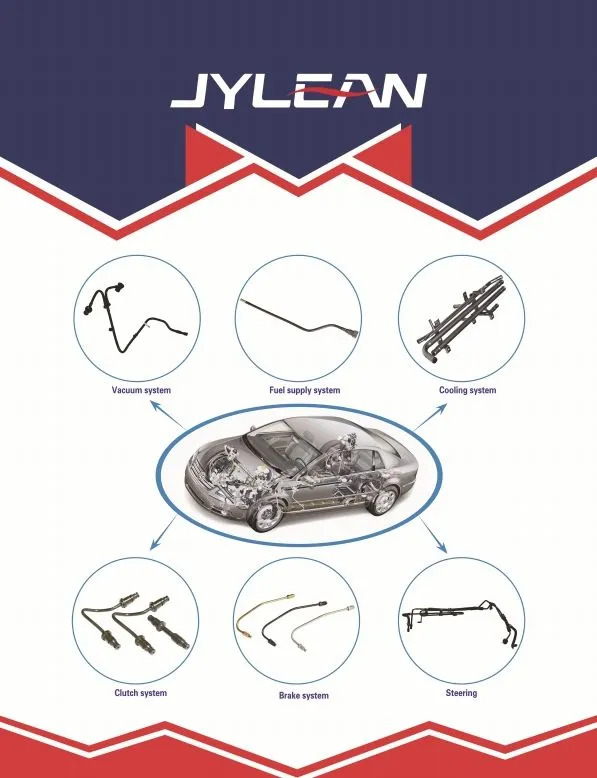

Mainly used in industrial scenarios requiring complex performance combinations: Automotive cooling, thermal management systems, battery packaging, and fluid pipelines for new energy vehicles.
3. Production Technology
Multi-layer structure design improves overall performance by combining different material layers (nylon with rubber or metal), achieving a balance between lightweight and pressure resistance.
| Parameter Name | Description/Value | Parameter Name | Description/Value |
|---|---|---|---|
| Product Name | Multilayer Reinforced Nylon Pipe | Working Pressure | 0.5Mpa-20mpa |
| Structure Design | Inner (Nylon) + Reinforcement (Fiber) + Outer (Nylon) | Blasting Pressure | ≥ 2 times working pressure |
| Application | Automotive Braking, Pneumatic Tools, Hydraulic | Pulse Pressure | ≥ 1 million cycles |
| Inner Diameter (ID) | 4mm - 10mm (Customized) | Operating Temp | -40ºC ~ +120ºC |
| Outer Diameter (OD) | 8mm - 20mm | Low Temp Resistance | Maintain flexibility at -40ºC |
| Wall Thickness | 1.5mm-3.5mm | Medium Resistance | Oil, weak acid, alkali, ethanol |
