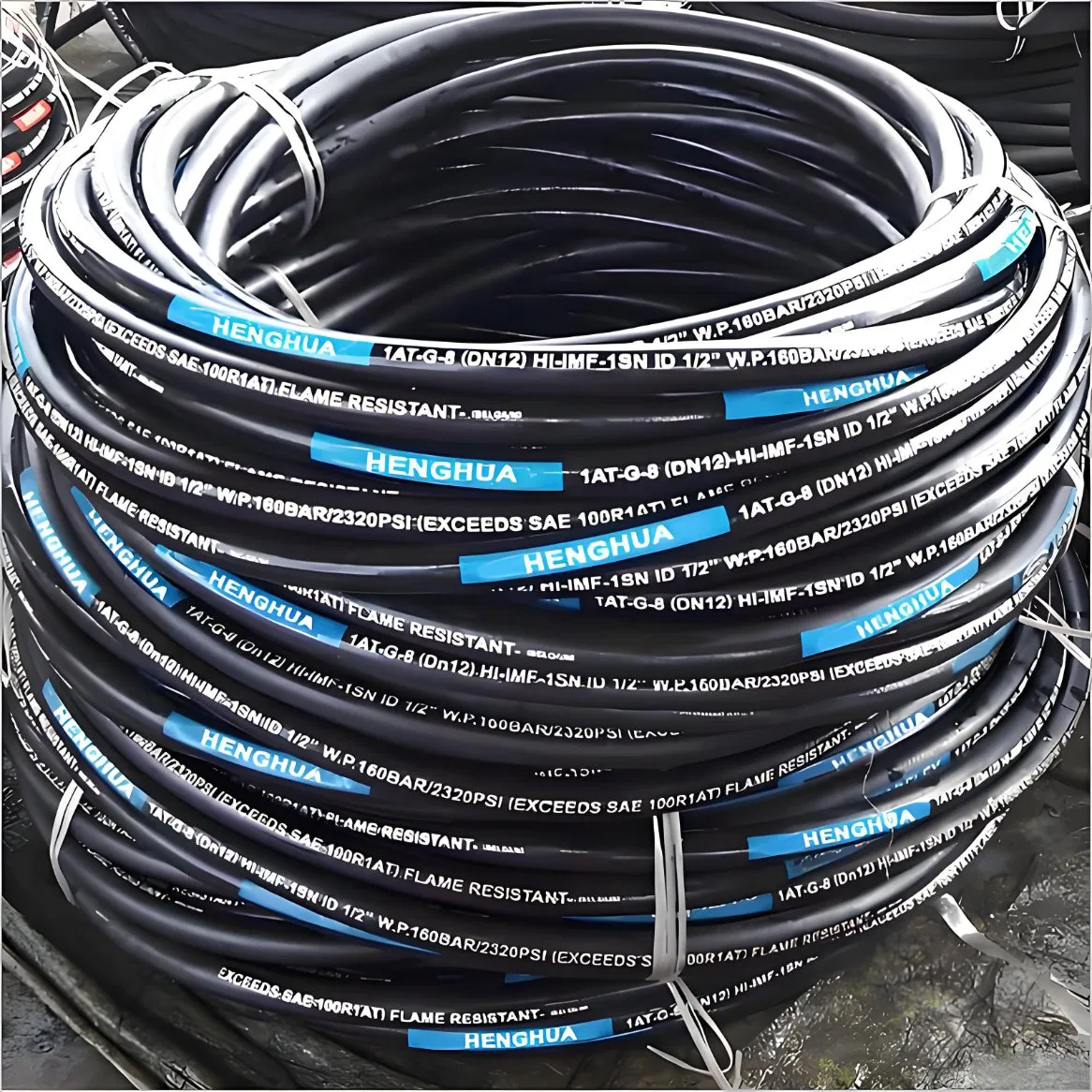

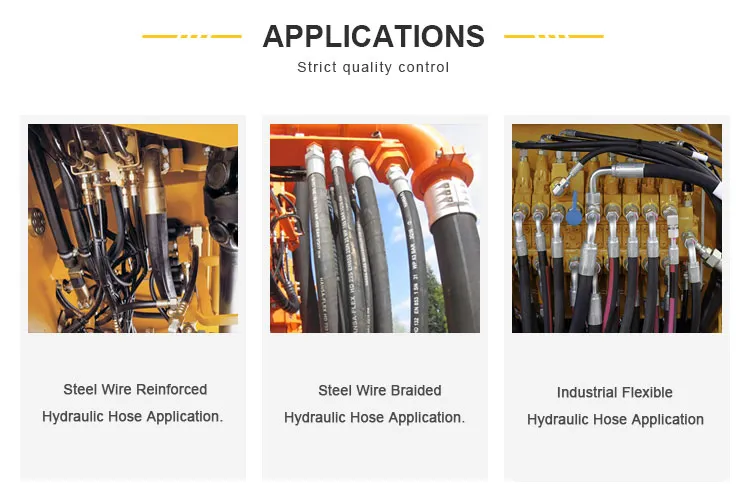

SAE 100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic oils thanks to its oil resistant tube. It can convey oils without producing excessive heat and leak. Mainly used in mobile equipment, such as farm tractors, dump trucks, and in-plant hydraulic equipment.
Structure: Composed of three parts: tube, reinforcement, and cover.
Tube: High quality synthetic rubber, resistant to abrasion, corrosion, and oils.
Reinforcement: Two layers of high tensile braided steel wires for high-pressure performance.
Cover: Weather, ozone, corrosion, and abrasion resistant synthetic rubber.
| Parameter | SAE 100 R2 | EN 853 2SN | EN 857 2SC |
|---|---|---|---|
| Size (inch) | 3/16" - 2" | 3/16" - 2" | 1/4" - 1" |
| Dash Size | -3 to -32 | -3 to -32 | -4 to -16 |
| Working Pressure | 7.8 - 35 MPa | 8 - 41.5 MPa | 16.5 - 40 MPa |
| Min Burst Pressure | 31.5 - 140 MPa | 32 - 165 MPa | 66 - 160 MPa |
| Min Bending Radius | 90 - 630 mm | 90 - 630 mm | 75 - 250 mm |
