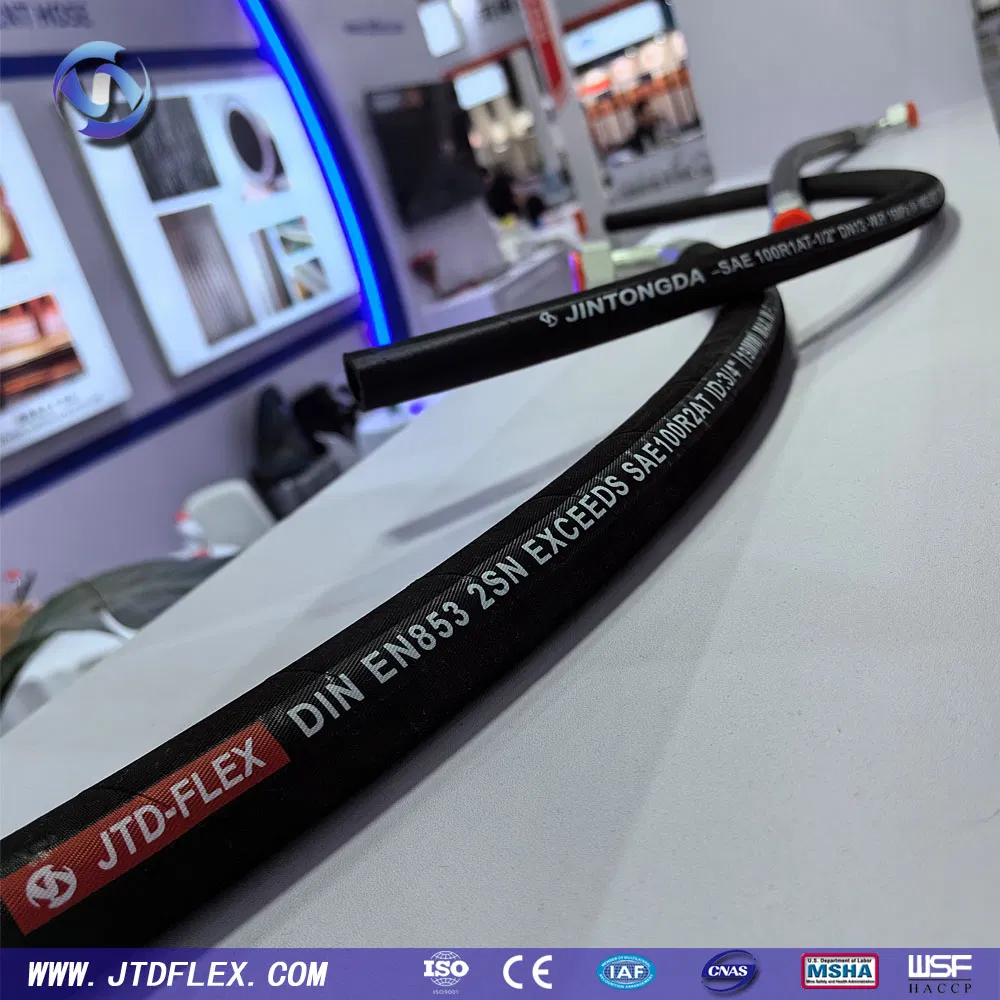

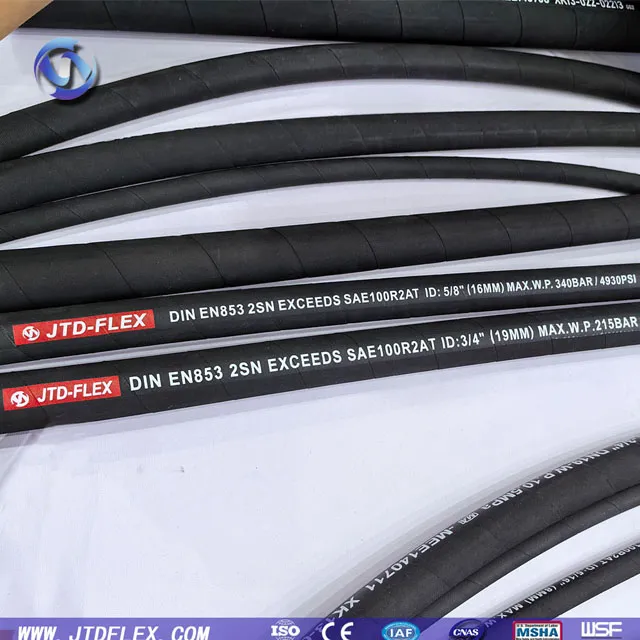

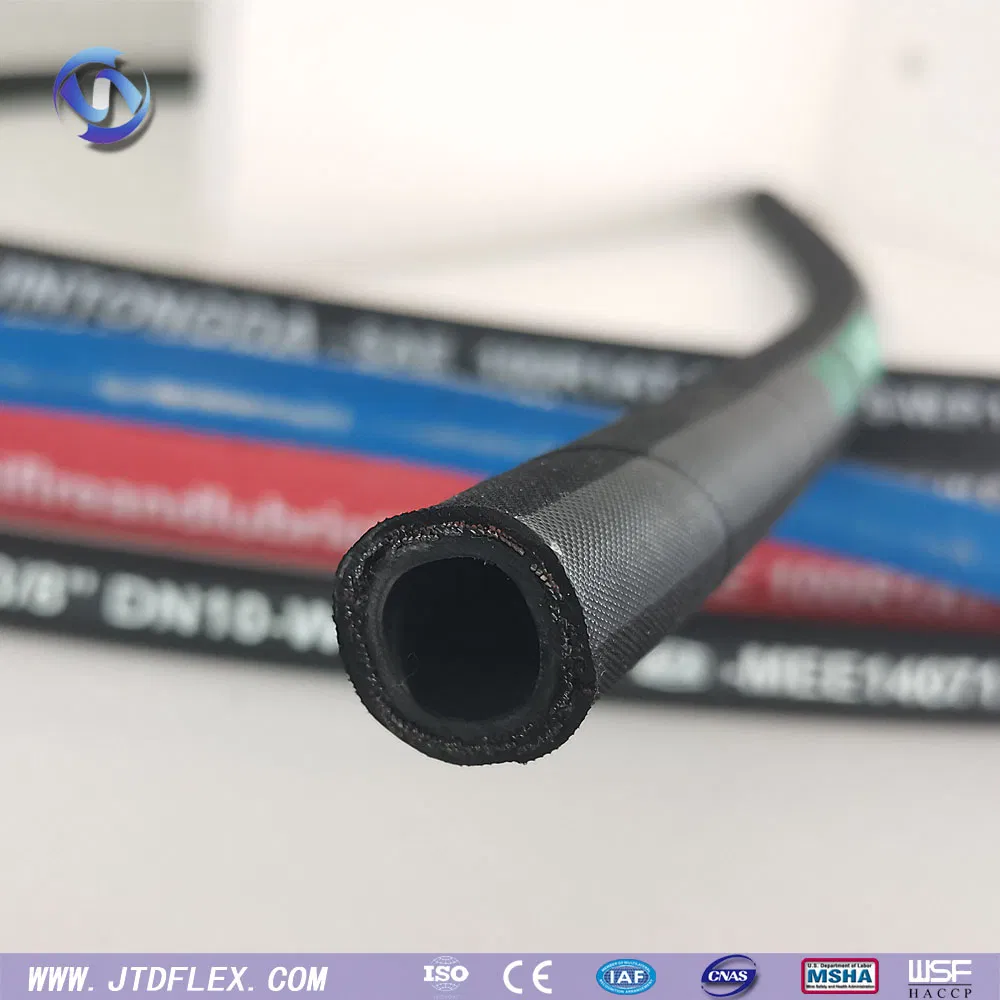

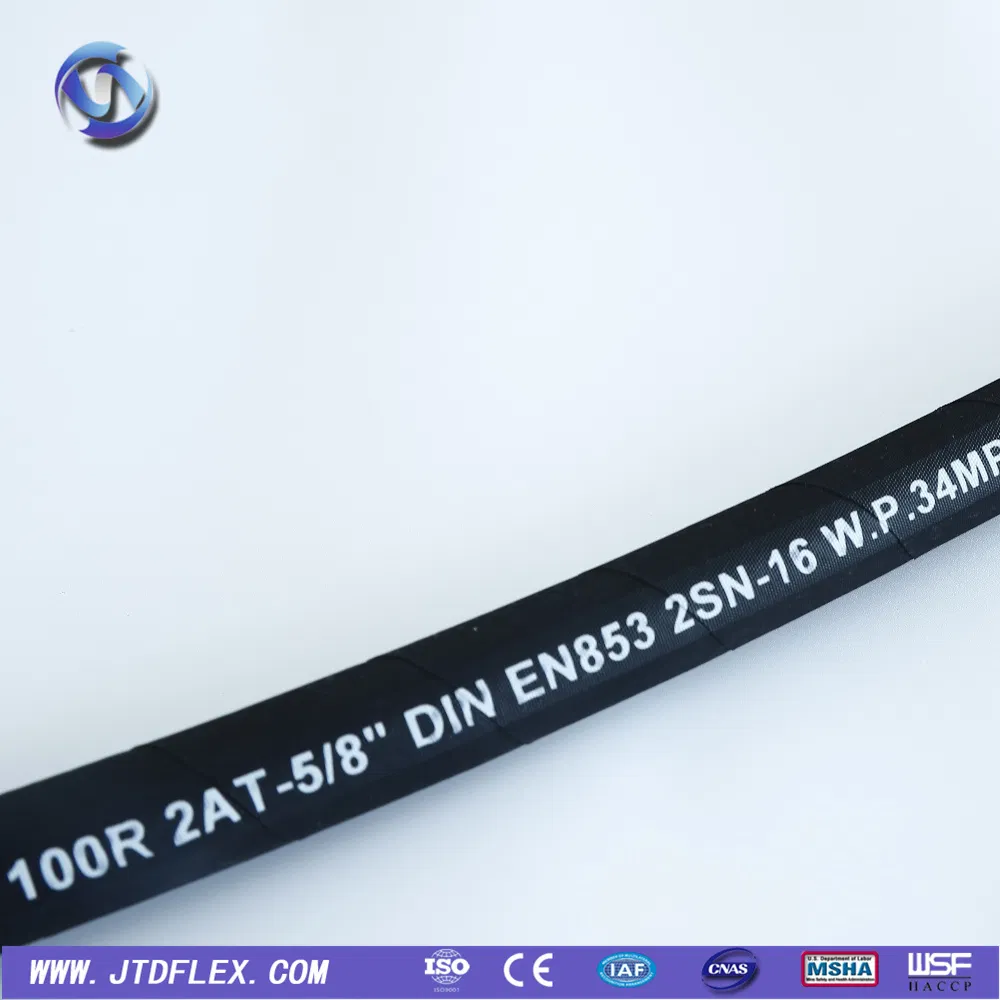

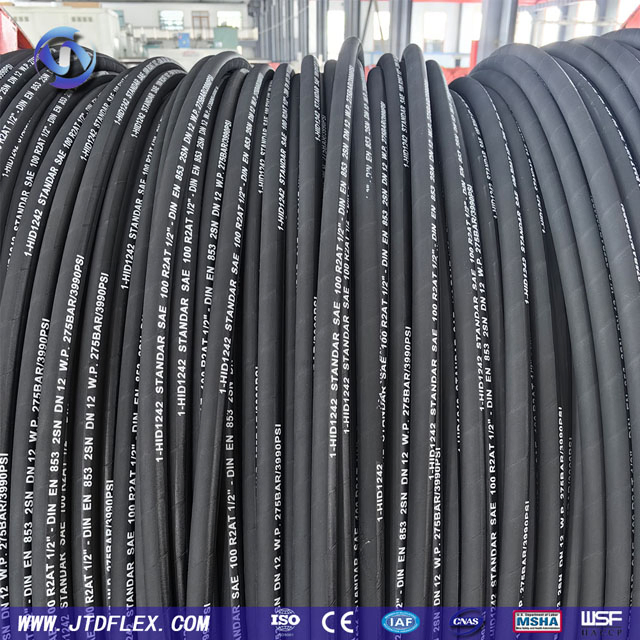

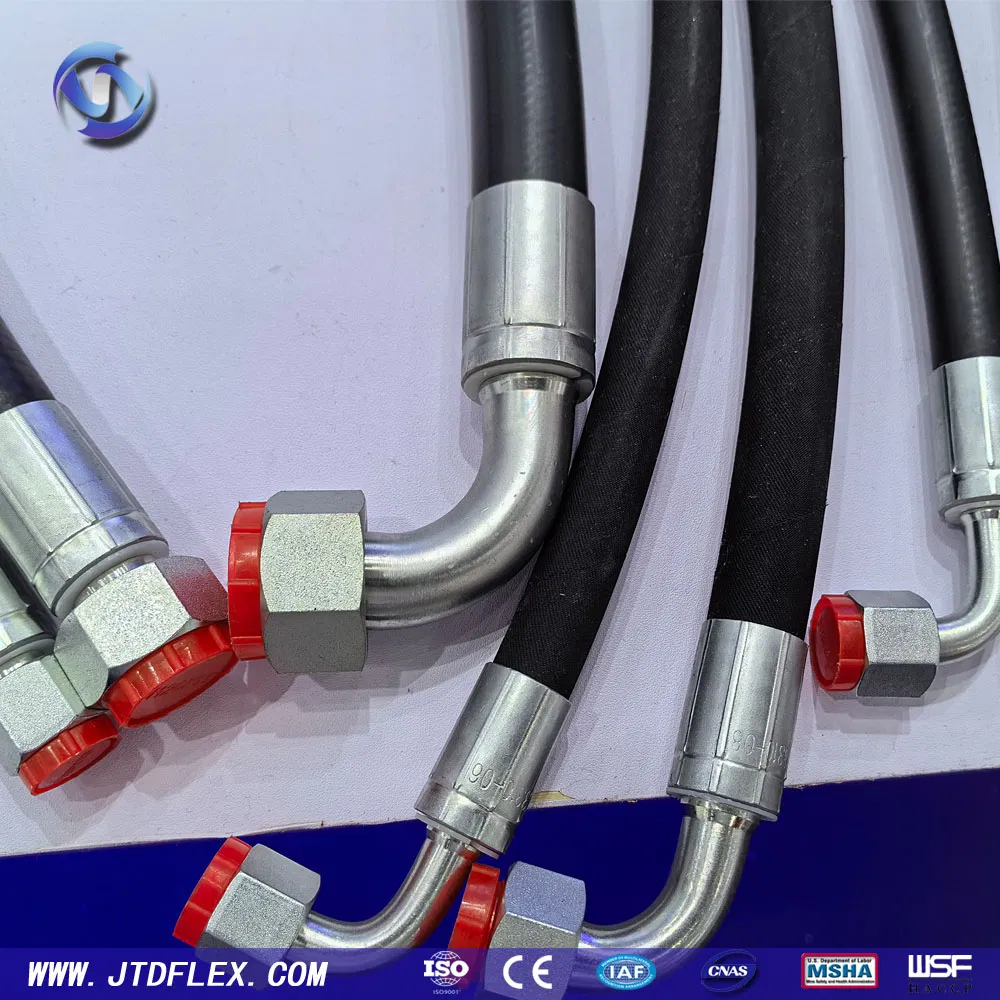

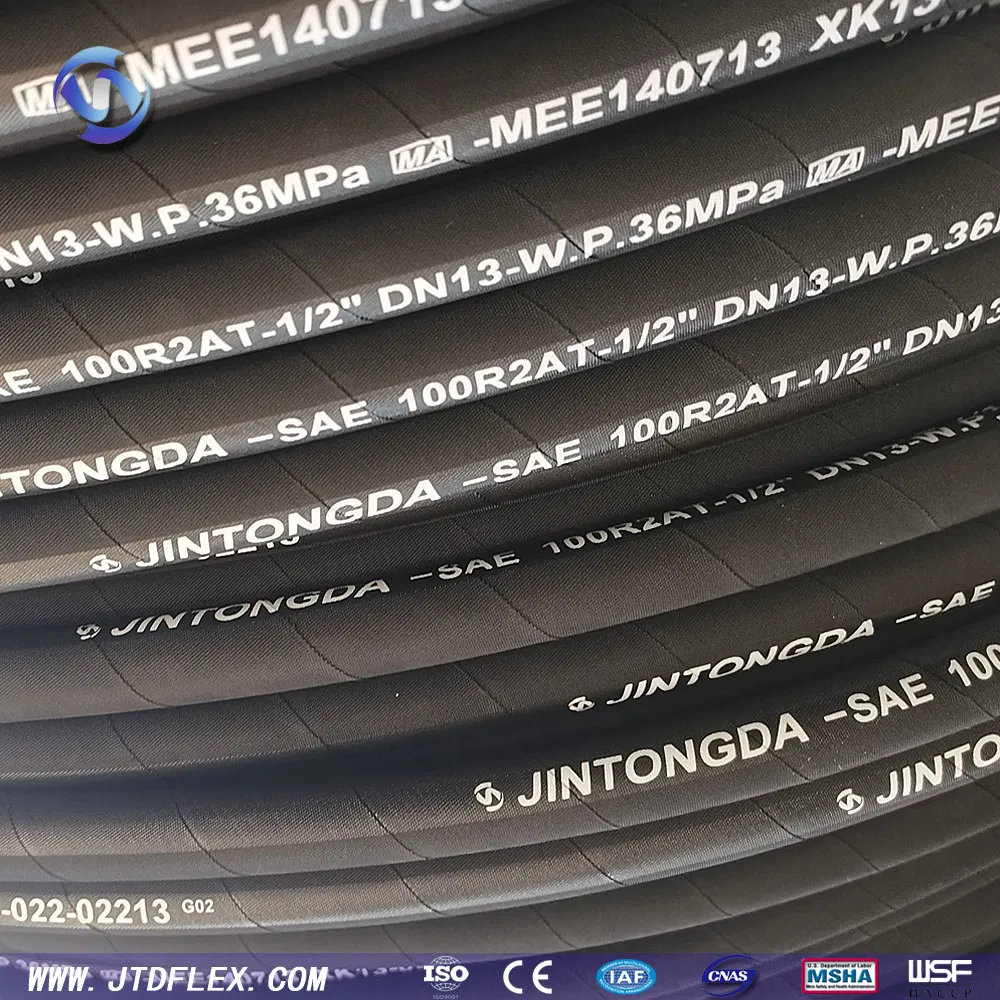

High Pressure Hydraulic Braided Hose SAE 100R2AT DIN EN 853 2SN
| Size | Inside Ø mm | Braid Ø mm | Outside Ø mm | Working Pressure | Burst Pressure | Bend Radius | Length | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Min | Max | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | |
| 3/16" | 5 | 4.6 | 5.4 | 10.6 | 11.6 | 14.1 | 415 | 6020 | 1650 | 23295 | 90 | 50/100 | |
| 1/4" | 6.3 | 6.2 | 7.0 | 12.1 | 13.3 | 15.7 | 400 | 5800 | 1600 | 23200 | 100 | 50/100 | |
| 5/16" | 8 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 360 | 5075 | 1400 | 20300 | 115 | 50/100 | |
| 3/8" | 10 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 331 | 4785 | 1320 | 19140 | 130 | 50/100 | |
| 1/2" | 12.5 | 12.3 | 13.5 | 19.0 | 20.6 | 23.0 | 276 | 3990 | 1100 | 15950 | 180 | 50/100 | |
| 5/8" | 16 | 15.5 | 16.7 | 22.2 | 23.8 | 26.2 | 250 | 3625 | 1000 | 14500 | 200 | 50/100 | |
| 3/4" | 19 | 18.6 | 19.8 | 26.2 | 27.8 | 30.1 | 215 | 3120 | 850 | 12325 | 240 | 50/100 | |
| 1" | 25 | 25.0 | 26.4 | 34.1 | 35.7 | 39.9 | 165 | 2390 | 650 | 9425 | 300 | 50/100 | |
| 1 1/4" | 31.5 | 31.4 | 33.0 | 43.3 | 45.7 | 49.5 | 125 | 1810 | 500 | 7250 | 420 | 20/40 | |
| 1 1/2" | 38 | 37.7 | 39.3 | 49.6 | 52.0 | 55.9 | 90 | 1305 | 360 | 5220 | 500 | 20/40 | |
| 2" | 51 | 50.4 | 52.0 | 62.3 | 64.7 | 68.6 | 80 | 1160 | 320 | 4640 | 630 | 20/40 | |
We are a professional manufacturer of hydraulic hose and industrial hose with various specifications since 1999. We integrate Research & Development, Production, Sales, and Export, focusing on high-quality products at all times.

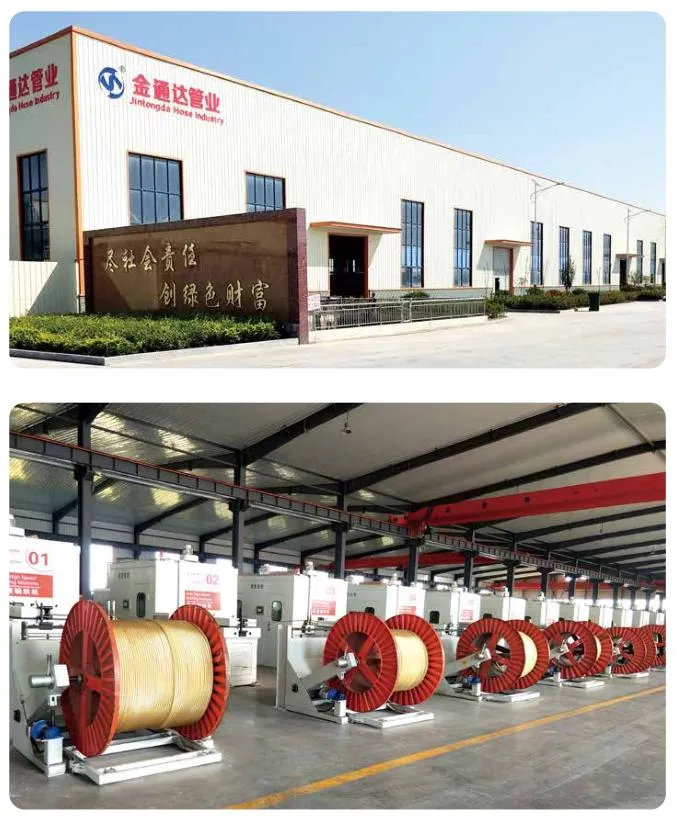

Our facility covers an area of 30,000 square meters. We specialize in the production and sales of hydraulic hose, mainly producing 1SN, 2SN, 4SP, and 4SH products in compliance with American standards (SAE J517) and European standards (DIN).

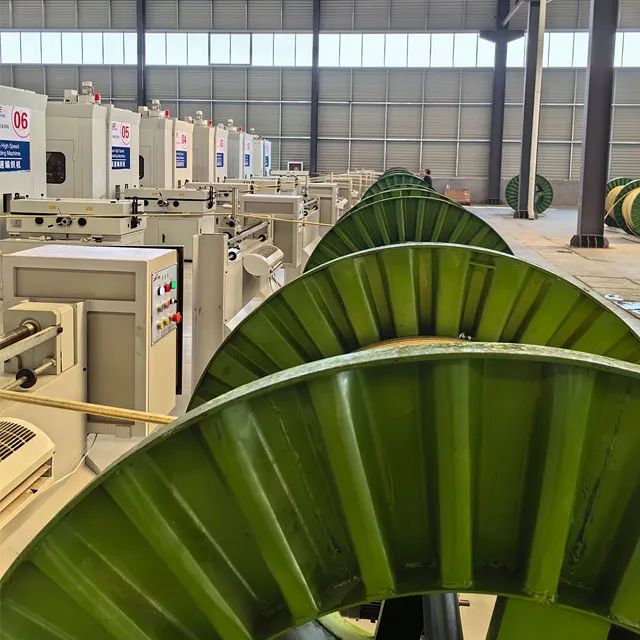

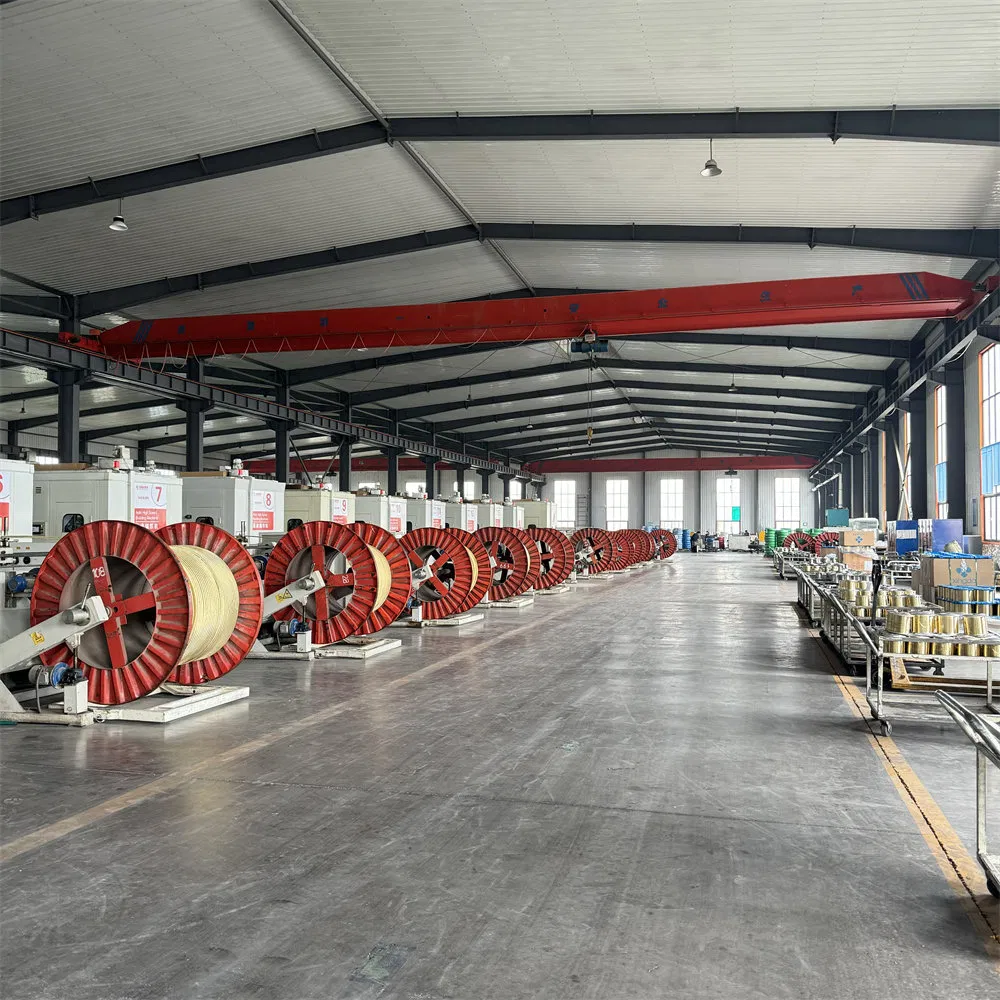

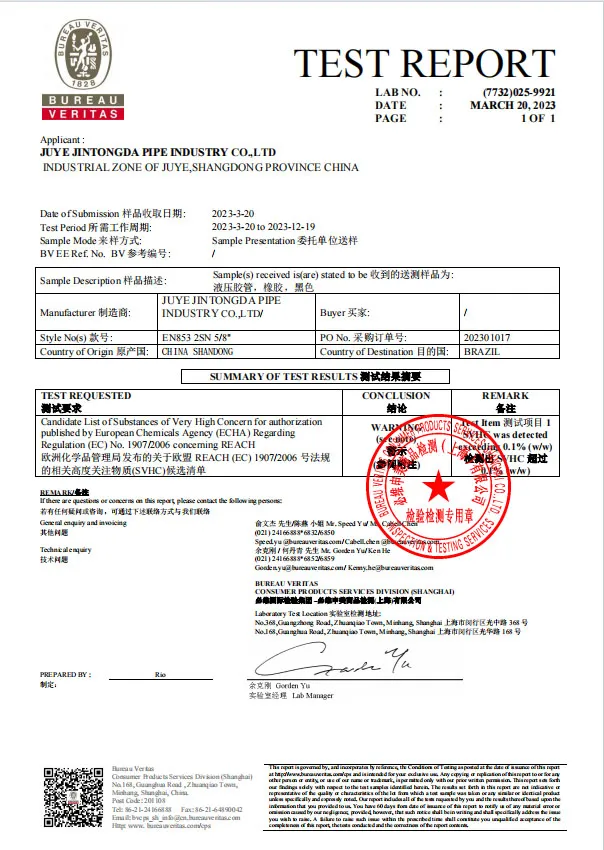

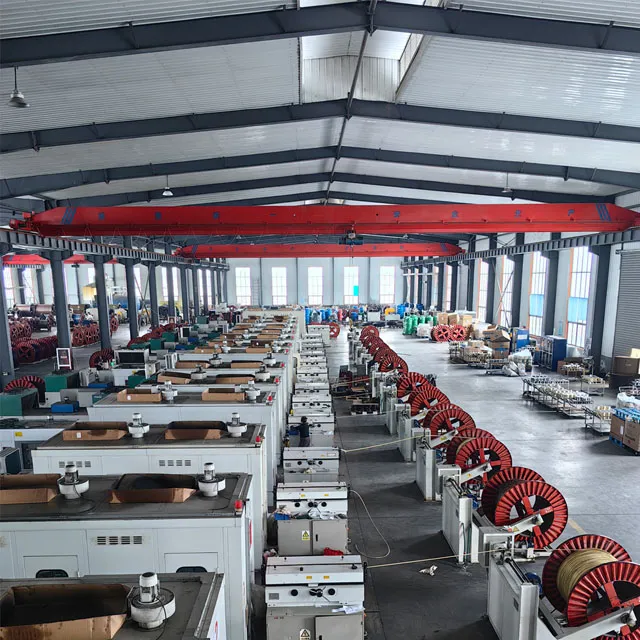

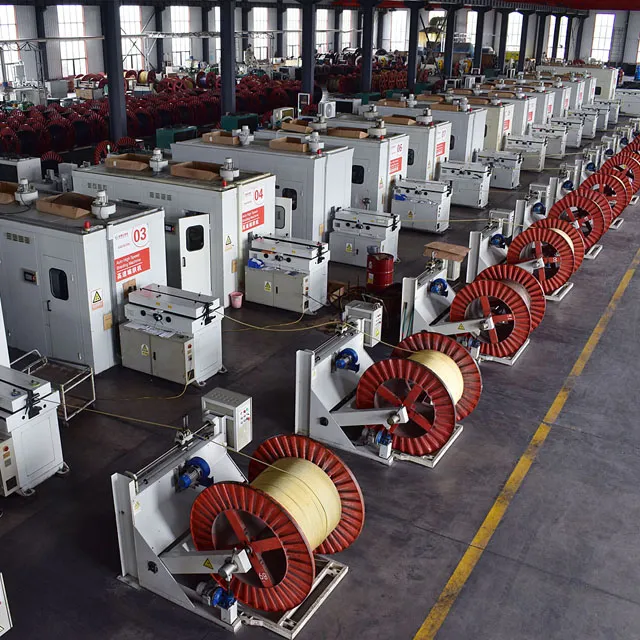

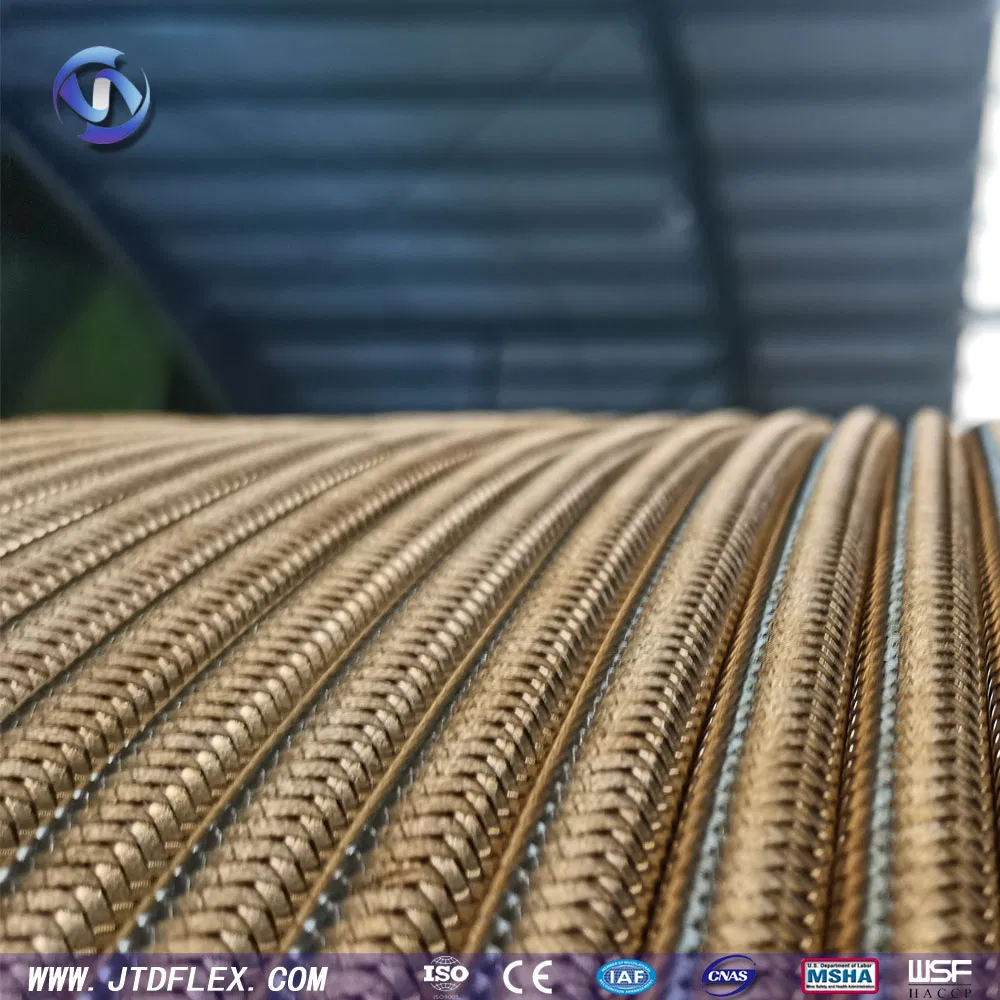

Our annual production capability is approximately 10 million meters. We utilize automatic high-speed braiding machines and advanced quality management systems to ensure reliability and stability. Every batch of goods undergoes strict burst pressure and impulse tests before leaving the factory.
