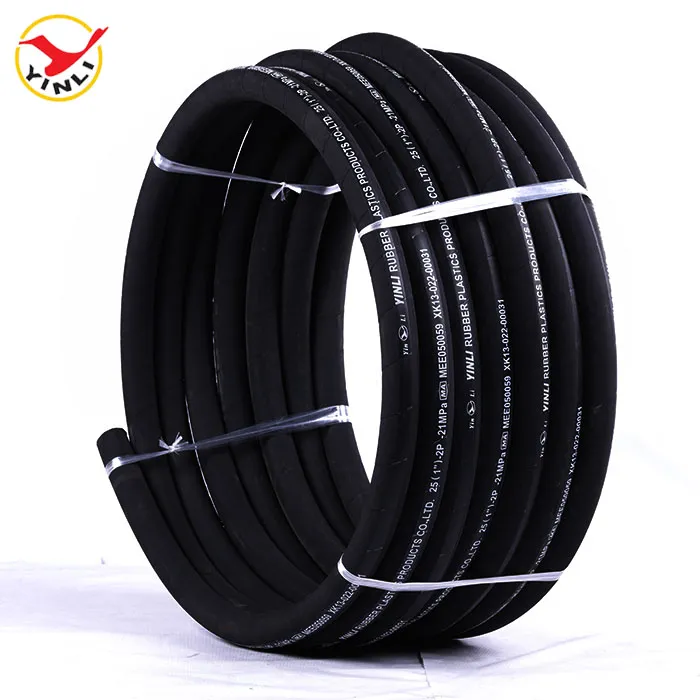

Application: Suitable for hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water.
Tube: Oil synthetic rubber
Reinforcement: Wire braided or wire spiral
Cover: CPE blend cover rubber with Oil and weather resistant synthetic rubber
Temperature: -40°C to 100°C (wire braid) | -40°C to 120°C (wire spiral)
| Part Number | Size (mm) | Size (inch) | SAE | ID Min | ID Max | Wire Dim | OD (mm) | W.P. (MPa) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| 100R1AT-04 | 6.3 | 1/4 | -4 | 6.2 | 7.0 | 11 | 13.5 | 20 | 0.25 |
| 100R1AT-08 | 12.5 | 1/2 | -8 | 12.3 | 13.5 | 18 | 20.5 | 14 | 0.45 |
| 100R1AT-16 | 25 | 1 | -16 | 25.0 | 26.4 | 31 | 32.8 | 8 | 0.8 |
| 100R1AT-32 | 51 | 2 | -32 | 50.4 | 52.0 | 57.8 | 60 | 4 | 1.8 |

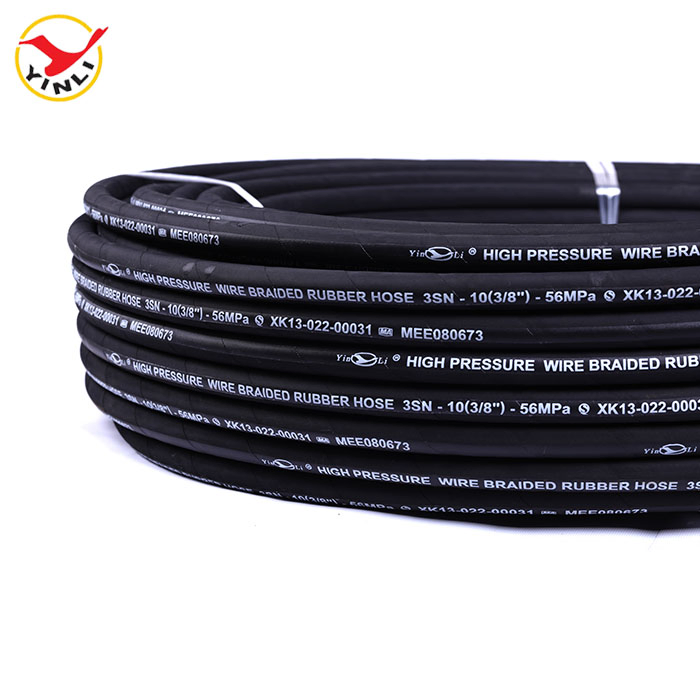

Steel Wire Braided Hose: SAE 100R1AT, 1SN, 2SN, 1SC, 2SC, R5, R16, R17.

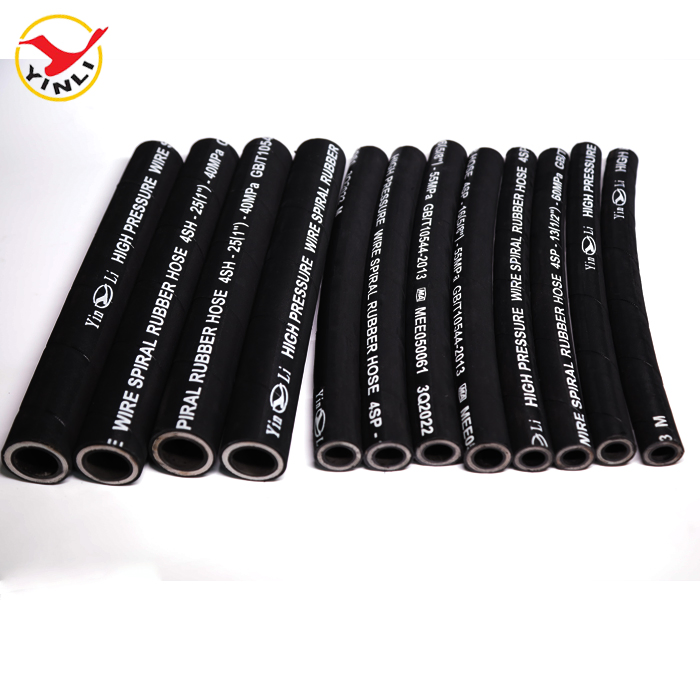

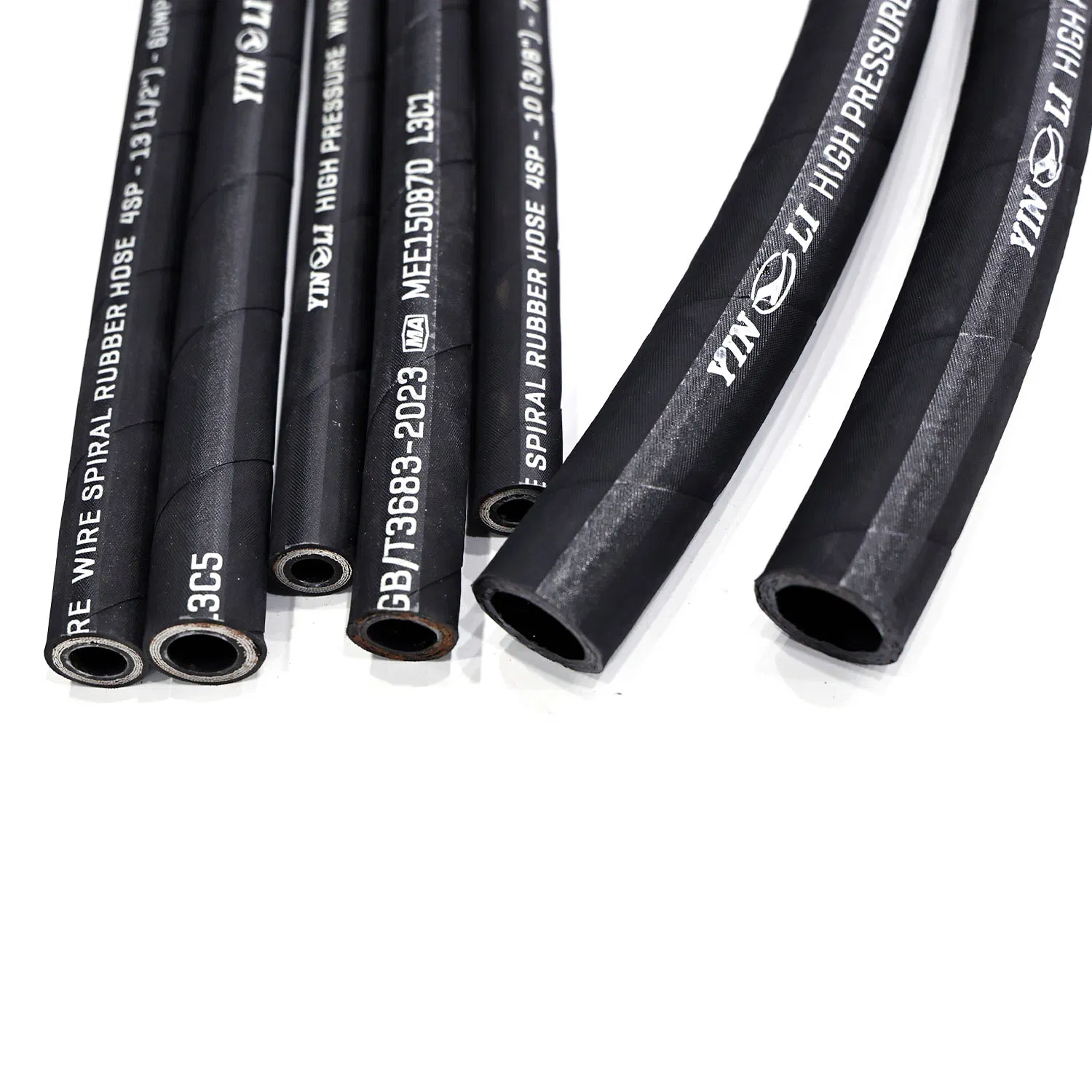

Multi Spiral Hose: 4SP, 4SH, SAE 100R9, R12, R13, R15.
Industrial Hose: Steam, Dredging, Air/Water, Fuel/Oil, Chemical, and Food hoses.
Specialty: Thermoplastic R7/R8, PTFE Hose, and Flexible Metal Hoses.
