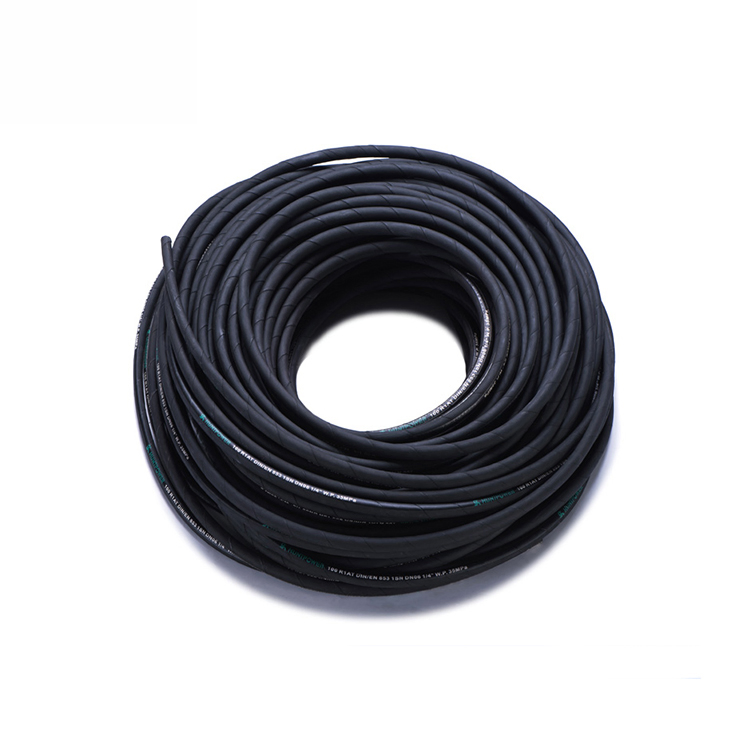

Basic Specifications

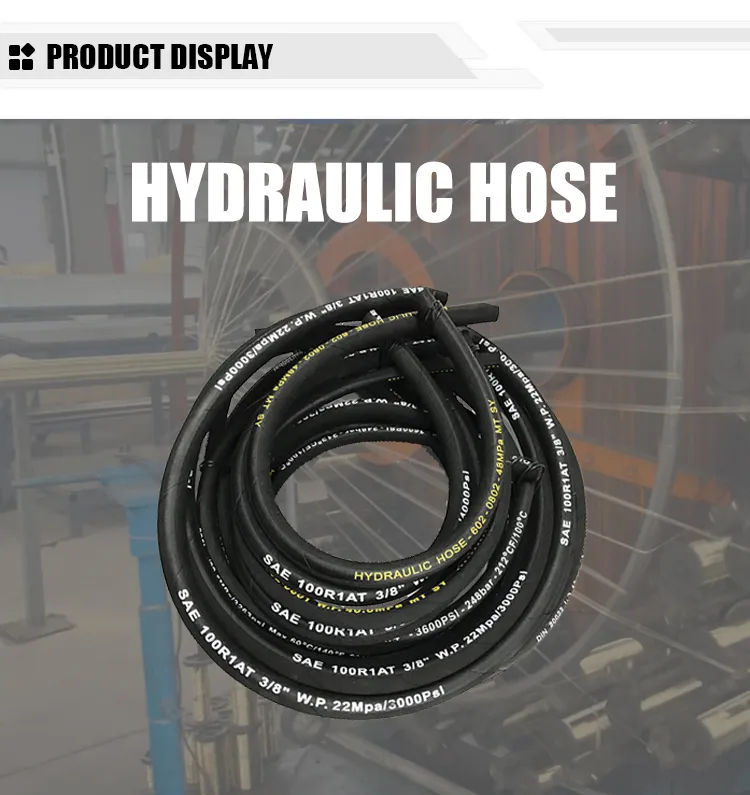

Model:Hydraulic Hose
I.D Range:3/16'' - 1 1/4''
Surface:Cloth or Smooth

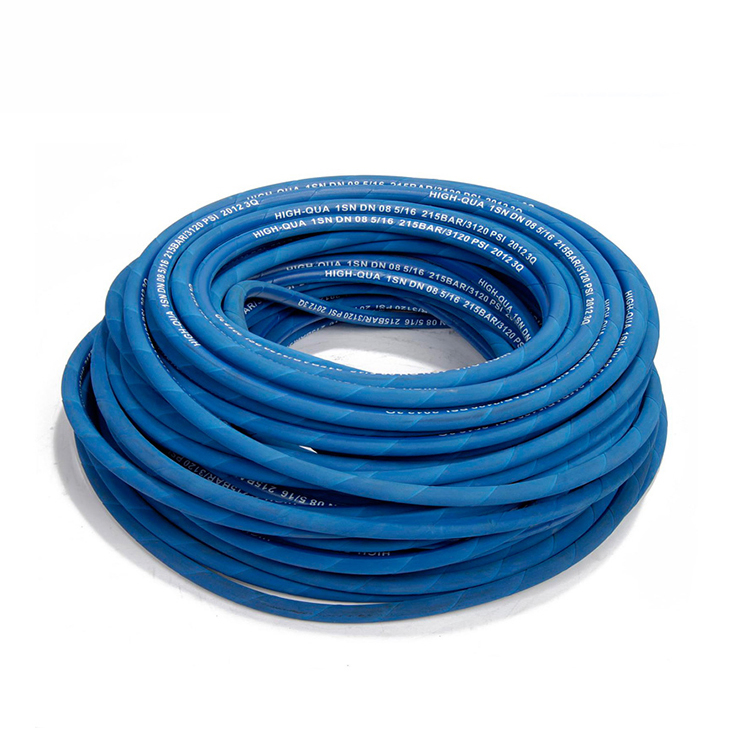

Length:50m/Roll, 100m/Roll or Request
Reinforcement:1, 2, or 4 Layers Steel Wire
Application:Oil, Water and Other Liquids
Advantage:Fire-Resistance, High Pressure
Specification:SAE, DIN, EN

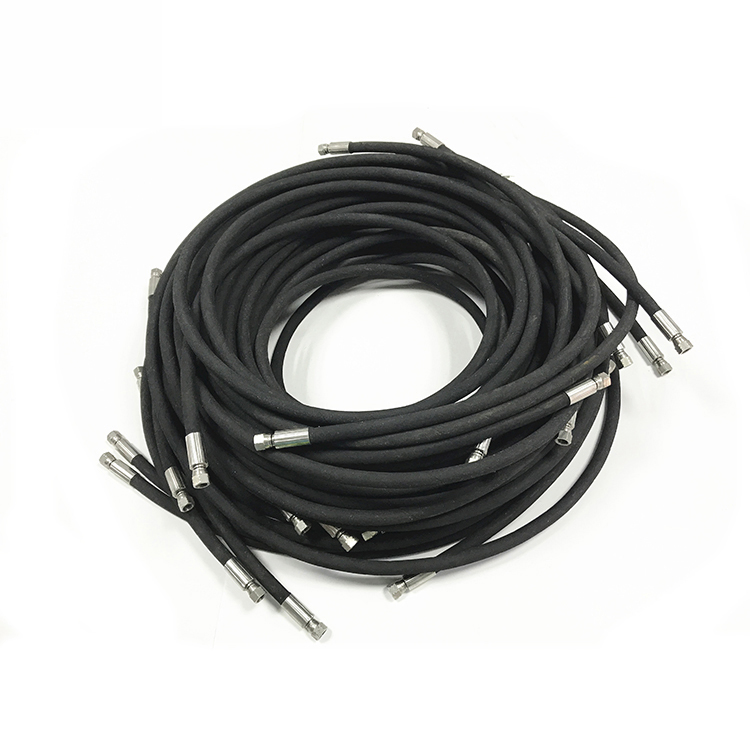

Connector:NPT, Bsp Carbon Steel Fitting
Samples:Free Available

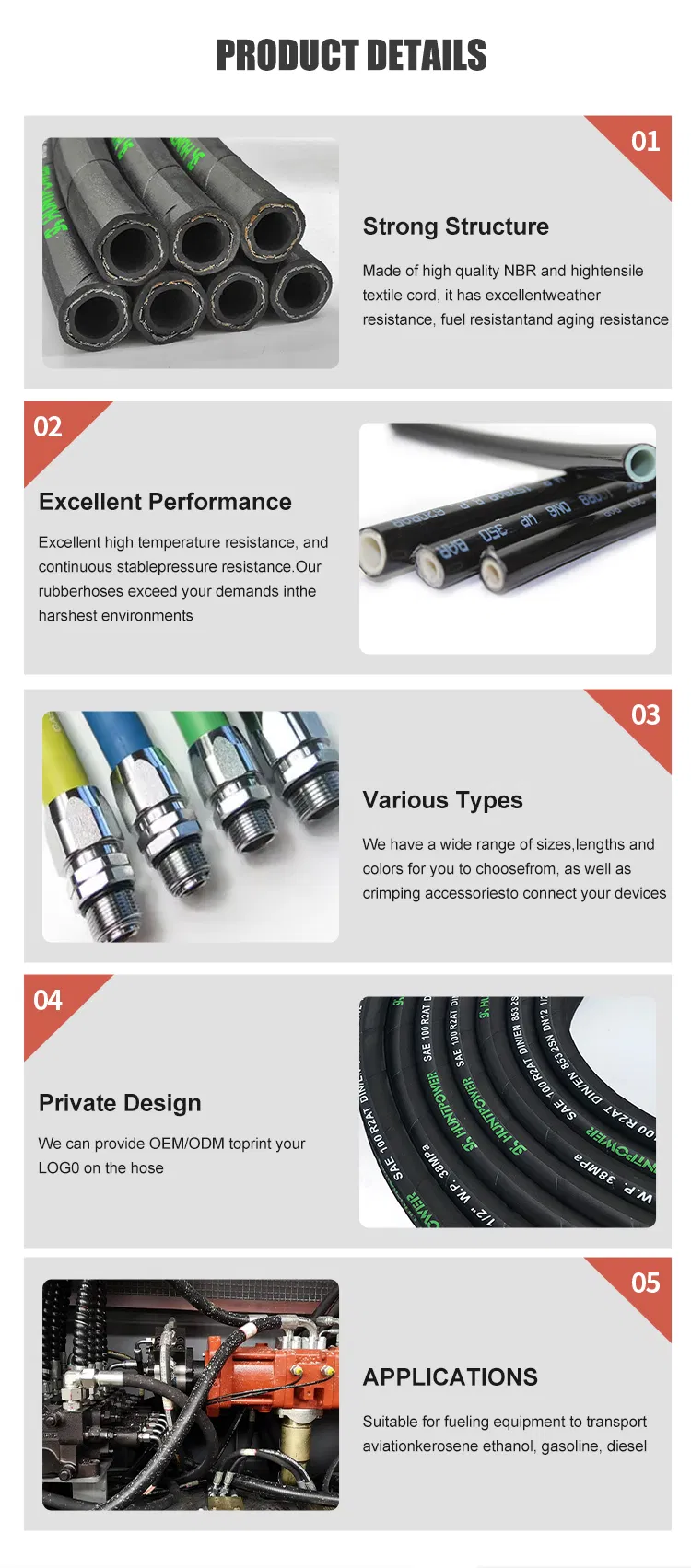

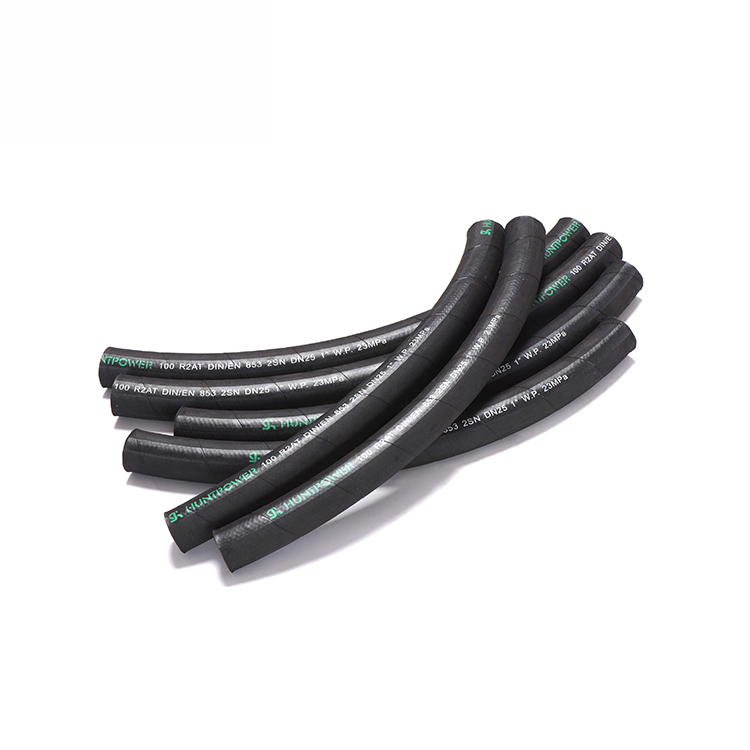

Product Features & Details
- Application: Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
- Process Feature: Advanced refrigeration technique ensuring superior hose durability.
- Inner Tube: High-grade Nitrile for optimal chemical resistance.
- Reinforcement: One or Two braids of high-tensile steel wire for maximum strength.
- Cover Compound: Durable Neoprene resistant to abrasion and weather.
- Temperature Range: -40°F to 212°F (-40ºC to 121ºC).

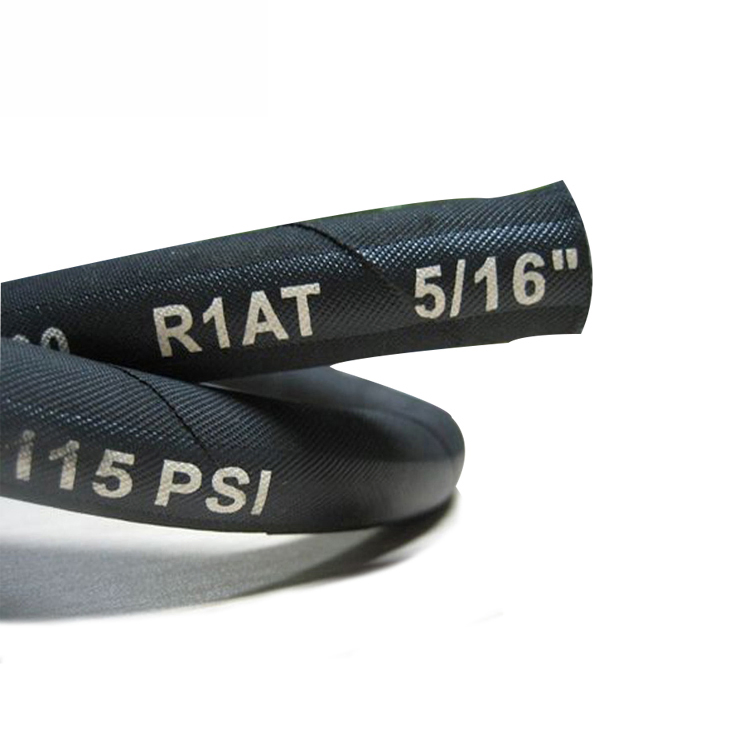

- Surface Finish: Available in both smooth and cloth wrapped finishes.
Technical Data Sheet
| Part No. |
Hose Size ID |
Hose OD |
Working Pressure |
Bend Radius |
Burst Pressure |
Weight |
| in | mm | in | mm | psi | mpa | in | mm | psi | mpa | kg/m |
| HQ-R1-03 | 3/16" | 4.8 | 0.5 | 12.7 | 3630 | 25 | 3.5 | 89 | 14520 | 100.1 | 0.19 |
| HQ-R1-04 | 1/4" | 6.4 | 0.63 | 15.9 | 3270 | 22.5 | 4 | 102 | 13080 | 90.2 | 0.21 |
| HQ-R1-05 | 5/16" | 7.9 | 0.69 | 17.5 | 3120 | 21.5 | 4.5 | 114 | 12480 | 86 | 0.24 |
| HQ-R1-06 | 3/8" | 9.5 | 0.78 | 19.8 | 2615 | 18 | 5 | 127 | 10460 | 72.1 | 0.33 |
| HQ-R1-08 | 1/2" | 12.7 | 0.91 | 23 | 2320 | 16 | 7 | 178 | 9280 | 64 | 0.41 |
| HQ-R1-10 | 5/8" | 15.9 | 1.03 | 26.2 | 1890 | 13 | 8 | 203 | 7560 | 52.1 | 0.45 |
| HQ-R1-12 | 3/4" | 19 | 1.19 | 30.2 | 1530 | 10.5 | 9.5 | 241 | 6120 | 42.2 | 0.58 |
| HQ-R1-16 | 1" | 25.4 | 1.5 | 38.1 | 1280 | 8.8 | 12 | 305 | 5120 | 35.3 | 0.611 |
| HQ-R1-20 | 1 1/4" | 31.8 | 1.81 | 46 | 920 | 6.3 | 16.5 | 419 | 3680 | 25.4 | 1.1 |
| HQ-R1-24 | 1 1/2" | 38.1 | 2.06 | 52.4 | 730 | 5 | 20 | 508 | 2920 | 20.1 | 1.51 |
| HQ-R1-32 | 2" | 50.8 | 2.63 | 66.7 | 580 | 4 | 25 | 635 | 2320 | 16 | 1 |

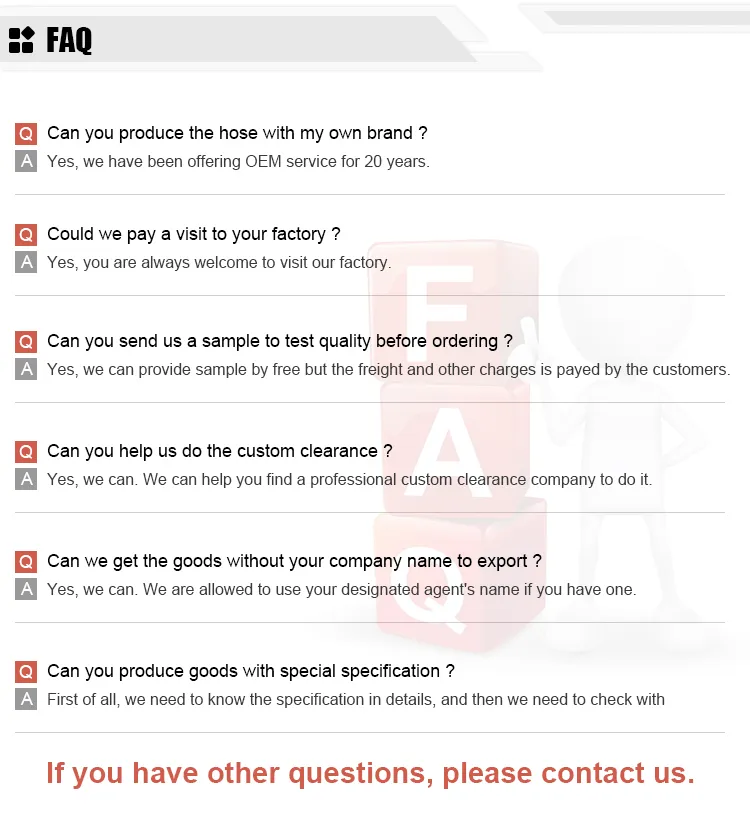

Frequently Asked Questions
Is it possible to arrange a factory visit?
Yes, visitors are always welcome to inspect our production facilities and quality control processes.
Can I request a sample to test the quality before placing an order?
Yes, we provide free samples for quality testing. Customers are responsible for the freight and associated shipping charges.
Do you assist with the custom clearance process?
Yes, we can support your logistics by recommending professional custom clearance partners to ensure a smooth delivery.
Can goods be exported without specific company branding?
Yes, we offer neutral packaging or can use your designated agent's name for export purposes upon request.
Are you able to produce hydraulic hoses with special specifications?
We can manufacture products based on unique technical requirements. Please provide detailed specifications so our technical team can verify production feasibility.
What are the main applications for these hoses?
These are ideal for medium pressure hydraulic systems, mobile machinery, machine tools, and various agricultural equipment using petroleum or water-based fluids.
