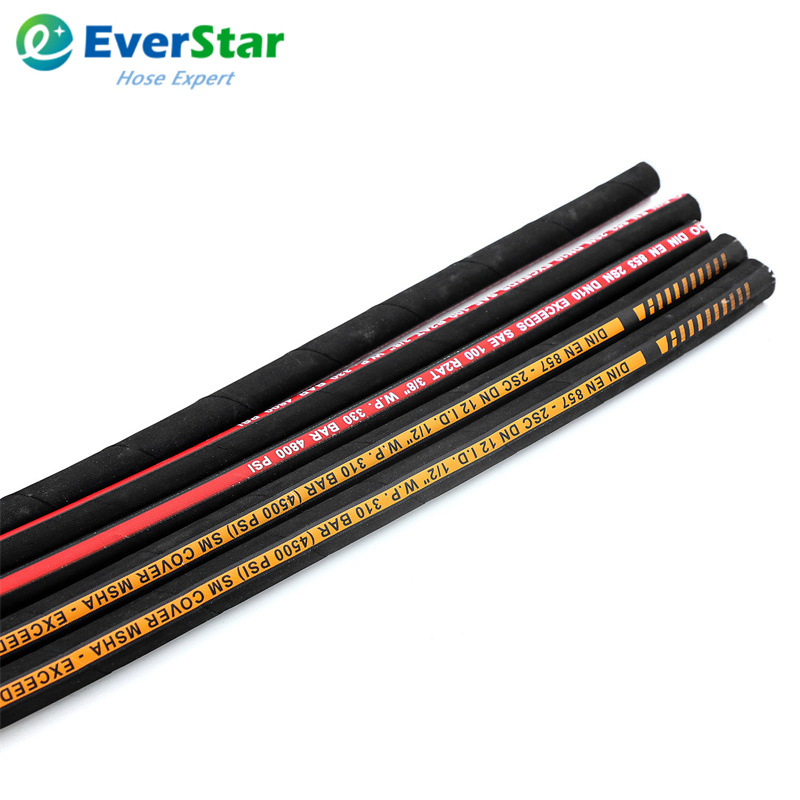

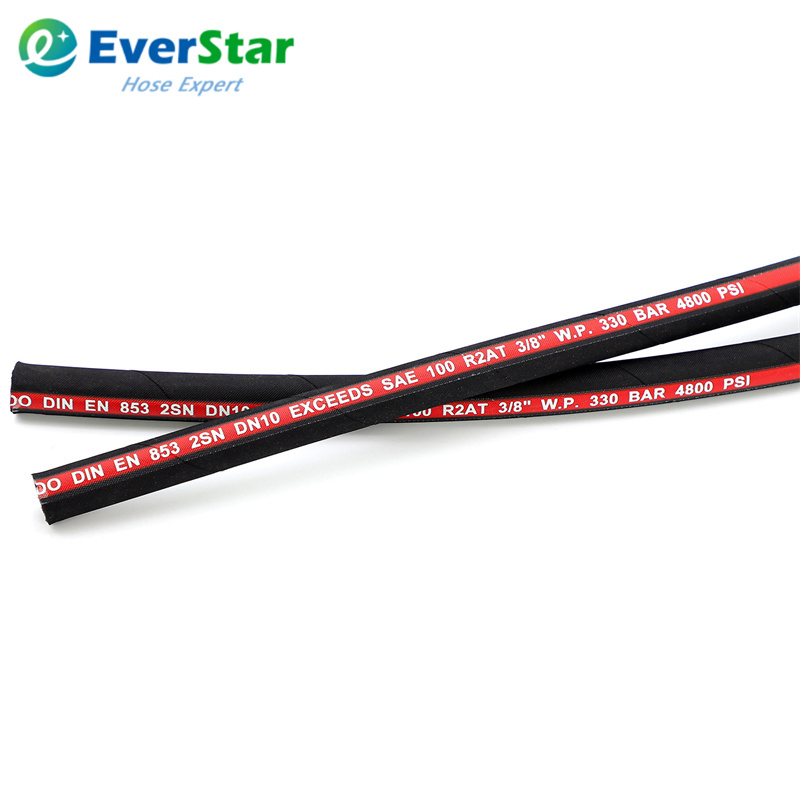

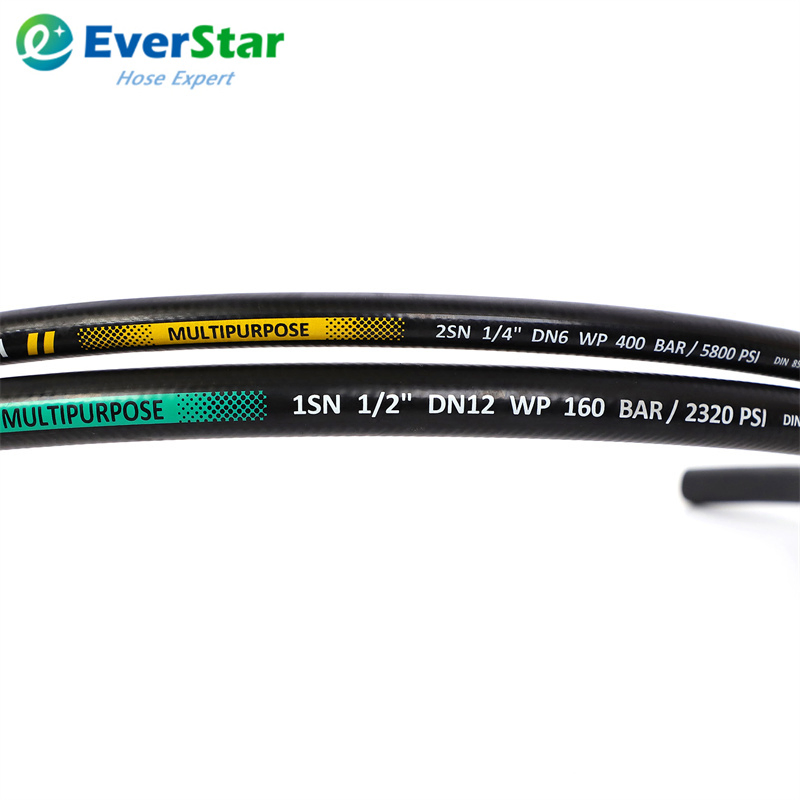

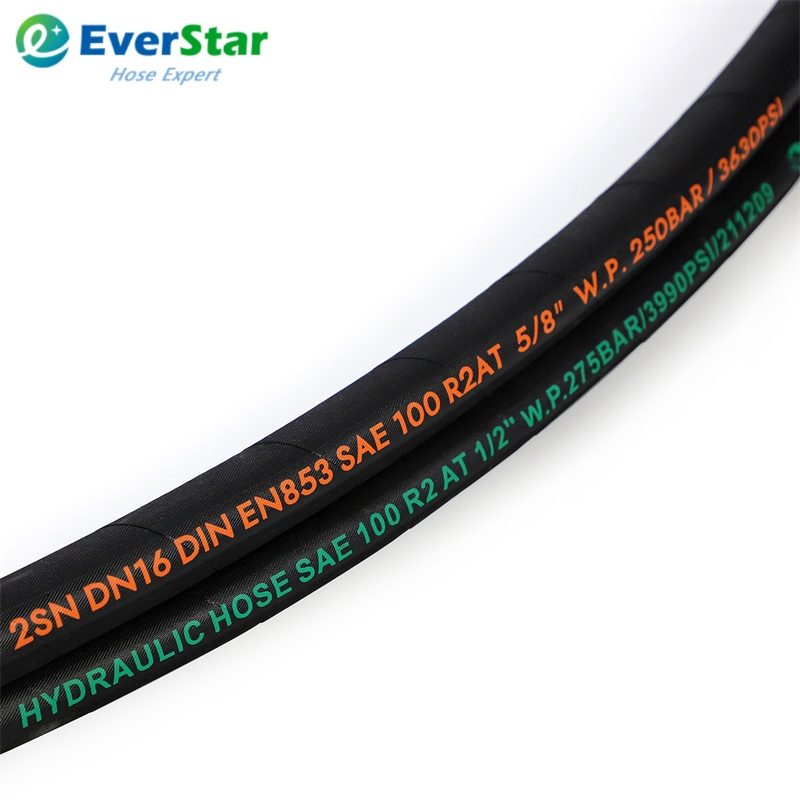

Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
1 / 5
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose

Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
DIN EN853 2SN
Reinforcement
Two Wire Braids
Surface
Wrapped & Smooth
Temperature
-40ºC ~+100ºC
Connector
Metric, Bsp, Jic, NPT, Orfs, SAE
Application
Agriculture, Forestry, Mining
Warranty
12 Months
Capacity
10,000,000 Meters/Year
Product Description
Flexible Two Steel Wire Braids High Pressure Hydraulic Rubber Hose
Standard: SAE 100r2at / DIN En853 2sn
Hydraulic Hose Banner
Construction Details
TubeOil resistant synthetic rubber
ReinforcementTwo high tensile steel wire braids
CoverOil and weather resistant synthetic rubber
ApplicationPetroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, etc.
Technical Parameters (DIN EN 853 2SN)
Size (Inch) Inside Ø (mm) Outside Ø (mm) Working Pressure (Bar) Burst Pressure (Bar) Bend Radius (mm) Weight (Kg/m)
1/4"6.315.740016001000.36
3/8"10.019.733113201300.54
1/2"12.523.027611001800.68
3/4"19.030.12158502400.94
1"25.039.91656503001.35
2"51.068.6803206303.50
Product Details

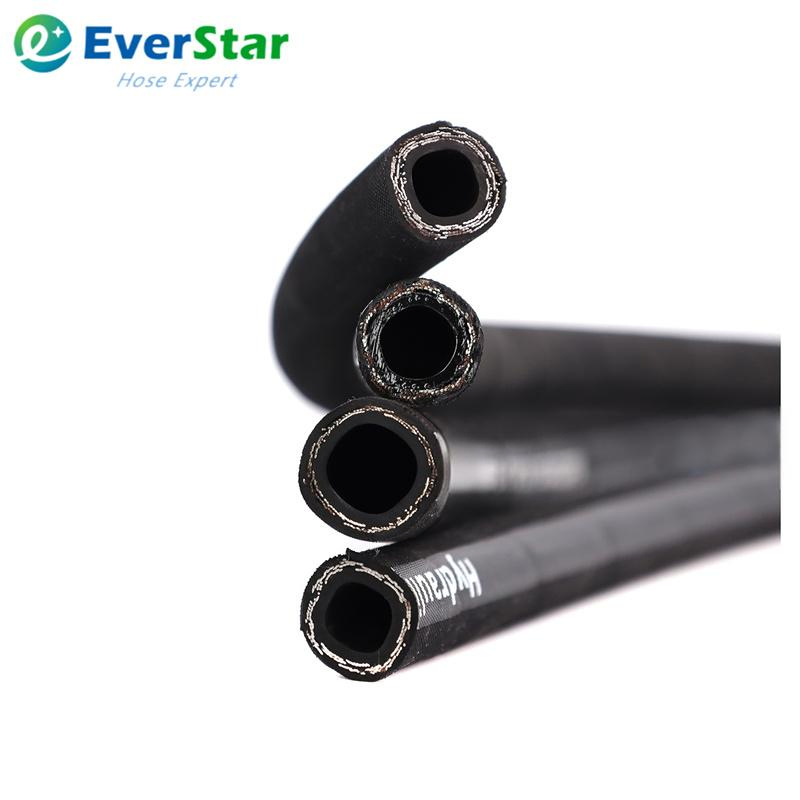

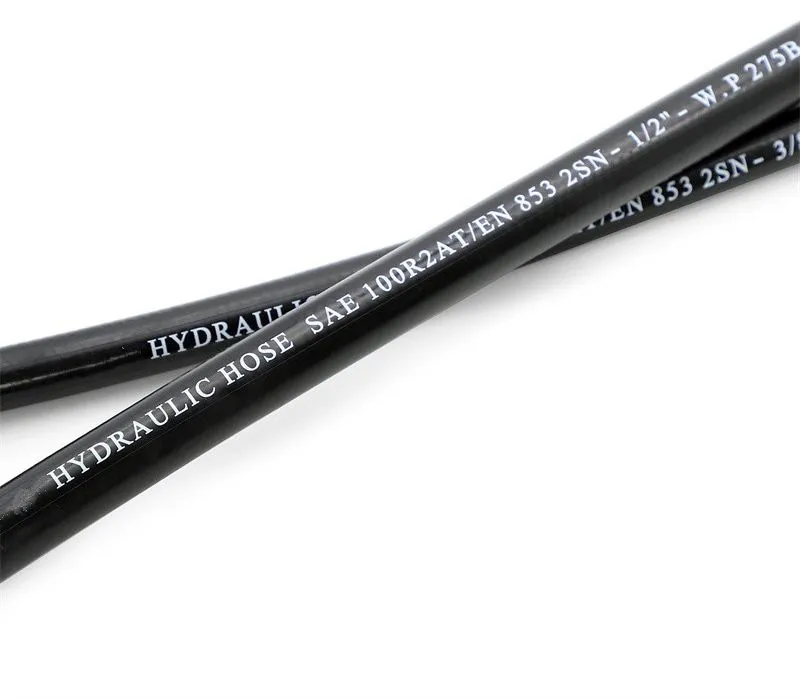

Cross Section

High-brightness cross section, pure rubber material, tightly bonded layers to prevent delamination.

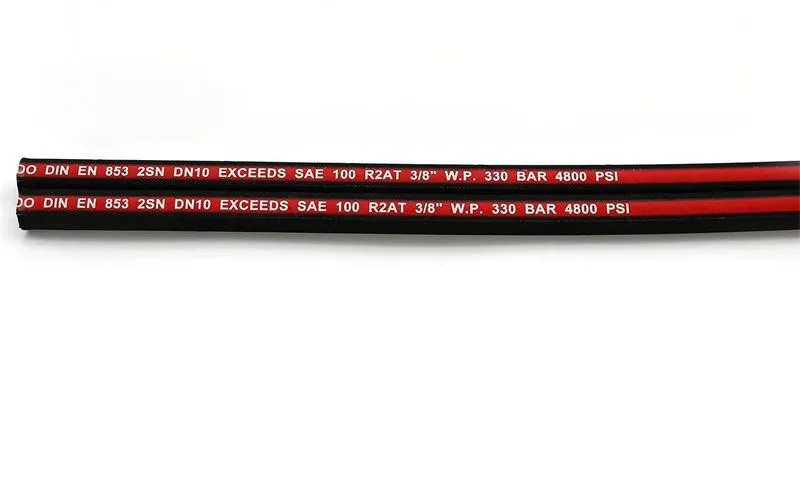

Hose Surface

Wear-resistant and oil-resistant with excellent elasticity and sealing performance.

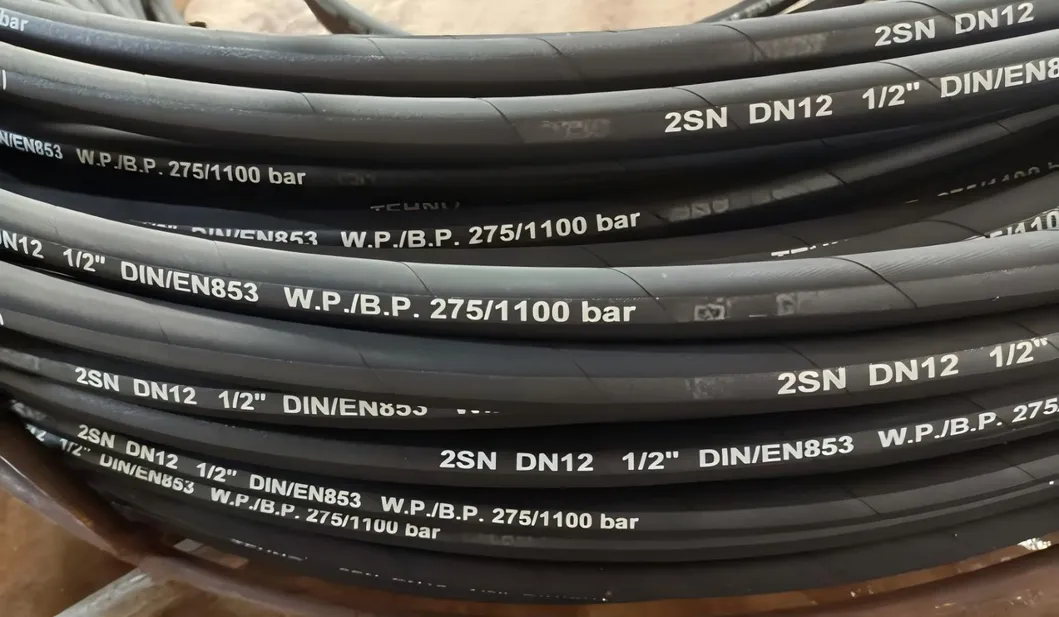

Product View 1

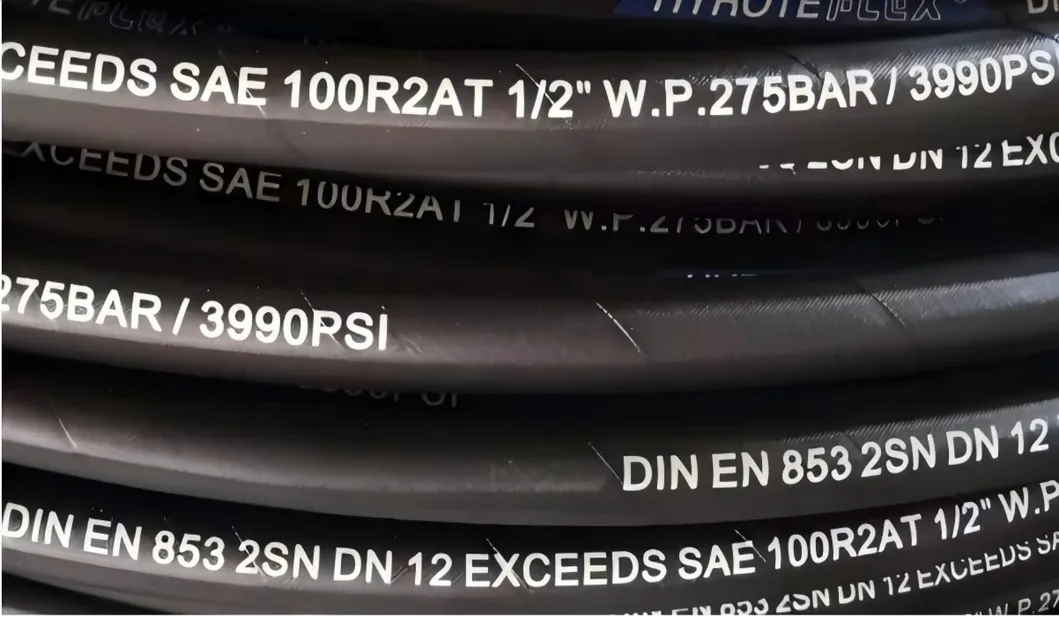

Product View 2

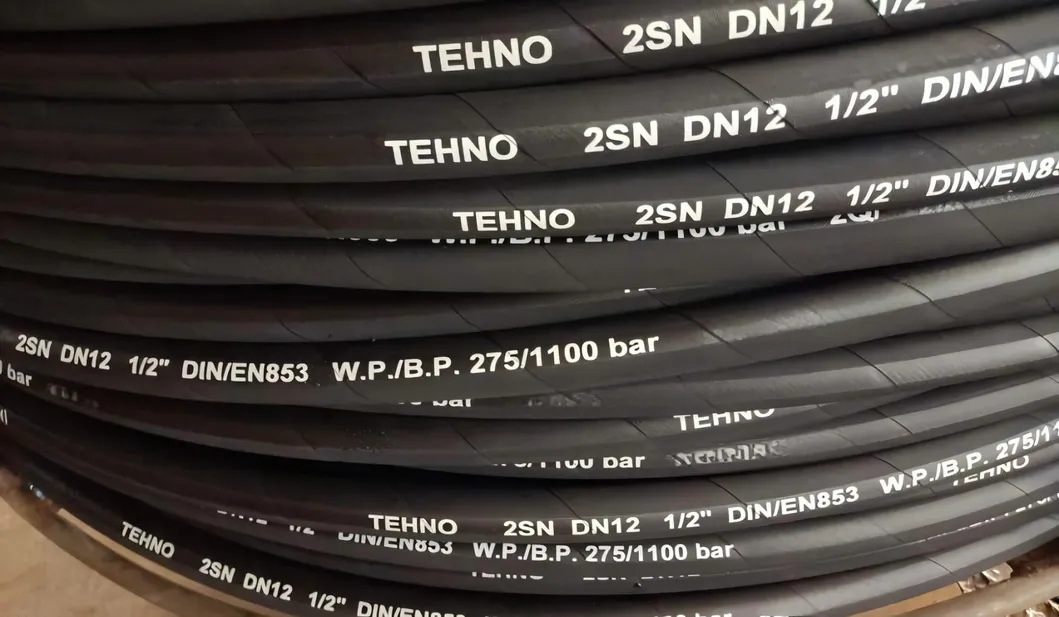

Product View 3
Production & Quality Control
Capabilities include providing high-quality fittings and couplings to satisfy complete crimping solutions. Manufacturing processes comply with ISO 9001:2015 requirements. Products are widely used in agriculture, construction, mining, machinery, and petroleum fields.

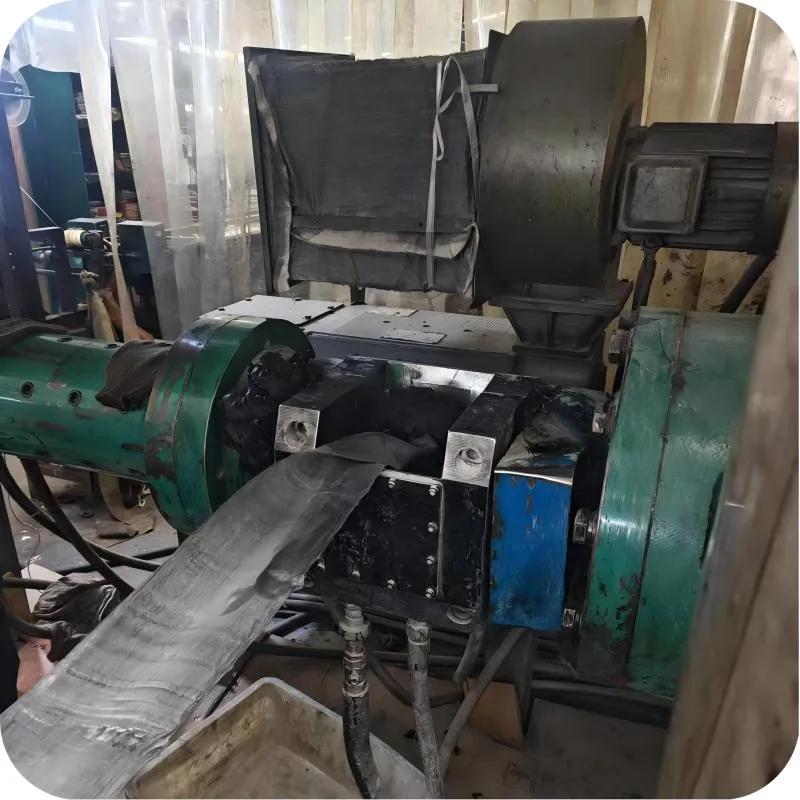

Equipment 1

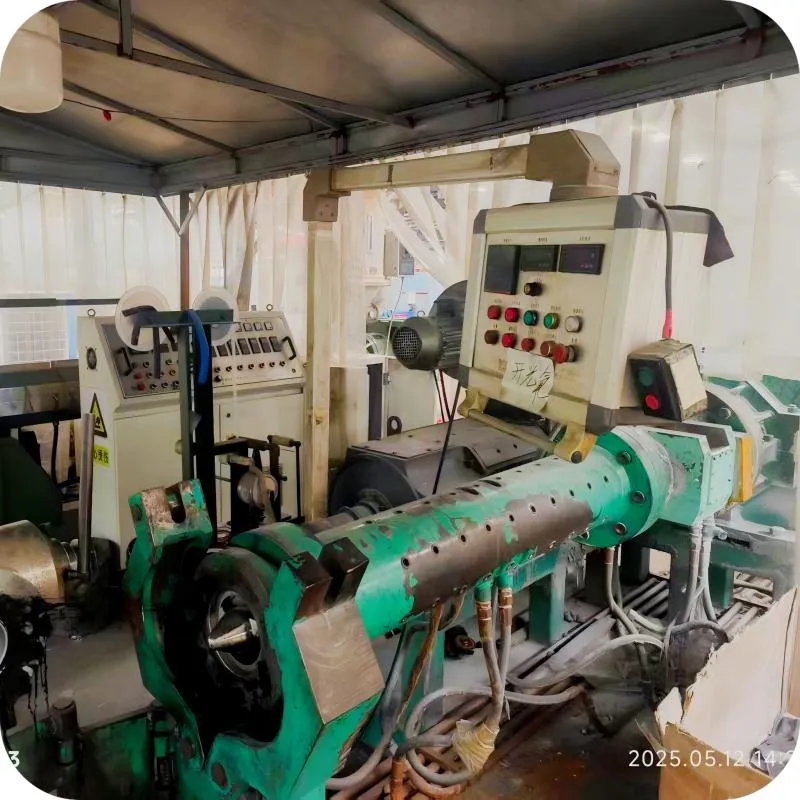

Equipment 2

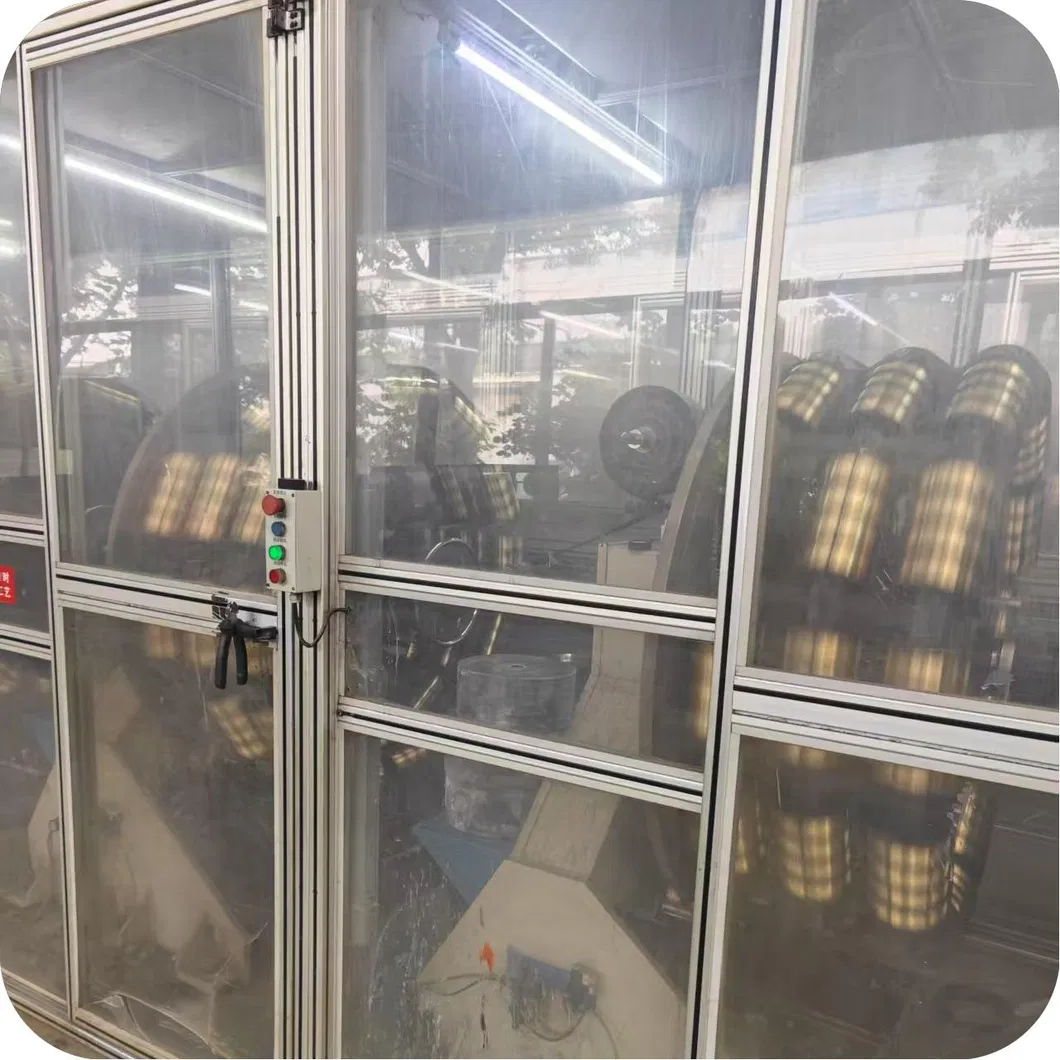

Equipment 3

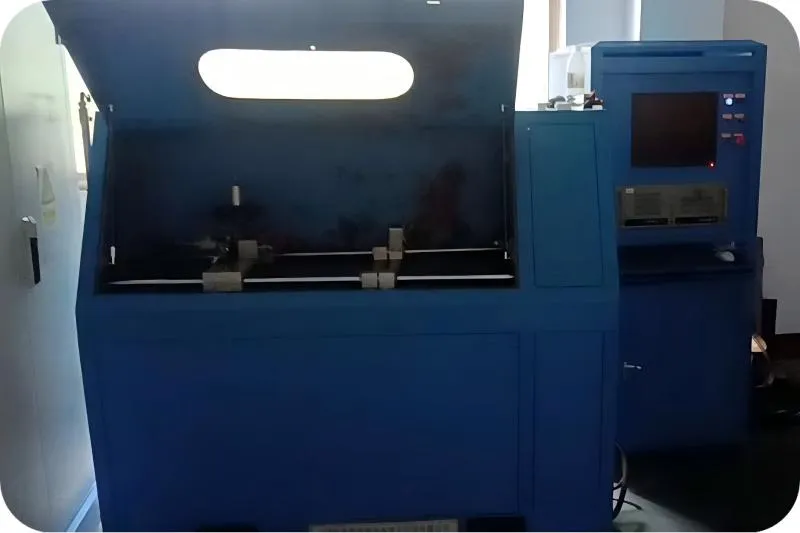

Quality Test 1

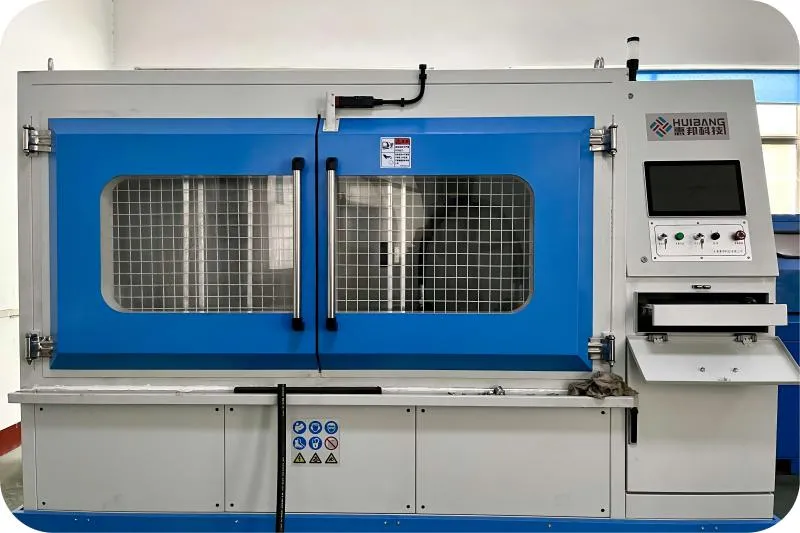

Quality Test 2
Packaging & Shipping

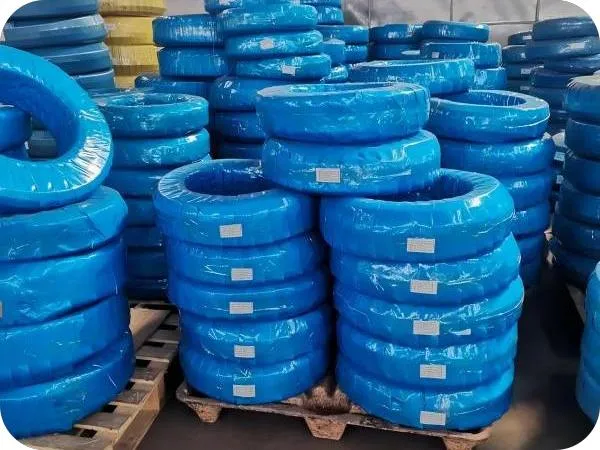

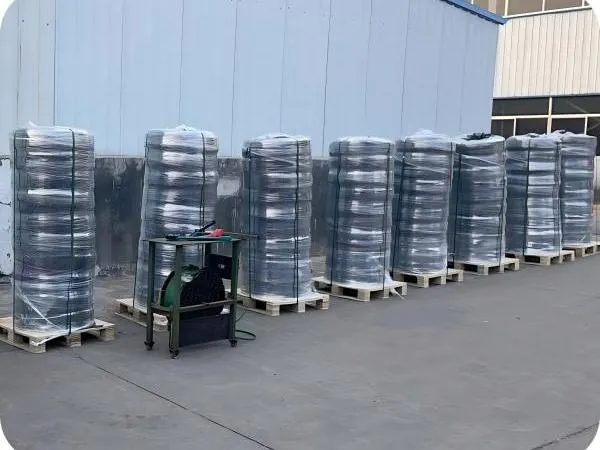

Package 1
Package 2

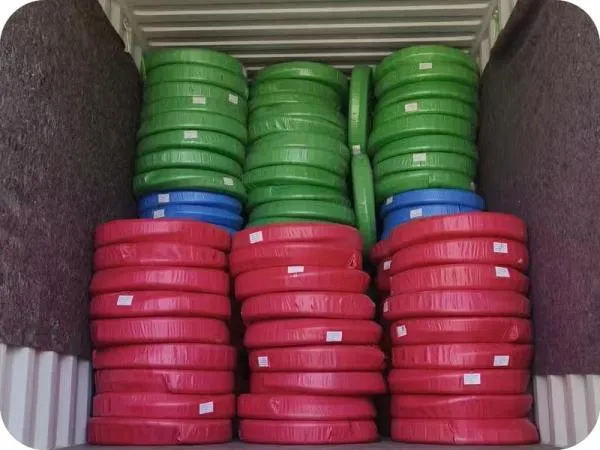

Package 3
Frequently Asked Questions
Could I get free samples before ordering?
Yes, reasonable samples are free. Freight terms can be negotiated based on requirements.
What is your Minimum Order Quantity (MOQ)?
Our minimum order value is USD 5,000. For orders below this amount, an export fee of USD 200 will apply.
What payment terms do you support?
In general, we accept T/T with a 30% advance payment, and the balance due against the copy of the Bill of Lading (BL).
How do you ensure product quality?
We conduct rigorous quality testing from raw materials to finished hoses. We offer a one-year standard warranty, which can be extended to two years for specific production line quality.
Can you produce my specific brand on the hose?
Yes, all marking, layline, and branding services are free of charge, except for embossed printing requirements.
Do you provide catalogs or datasheets?
Certainly. Please send us a message and we will provide our comprehensive E-catalog and relevant technical datasheets.
