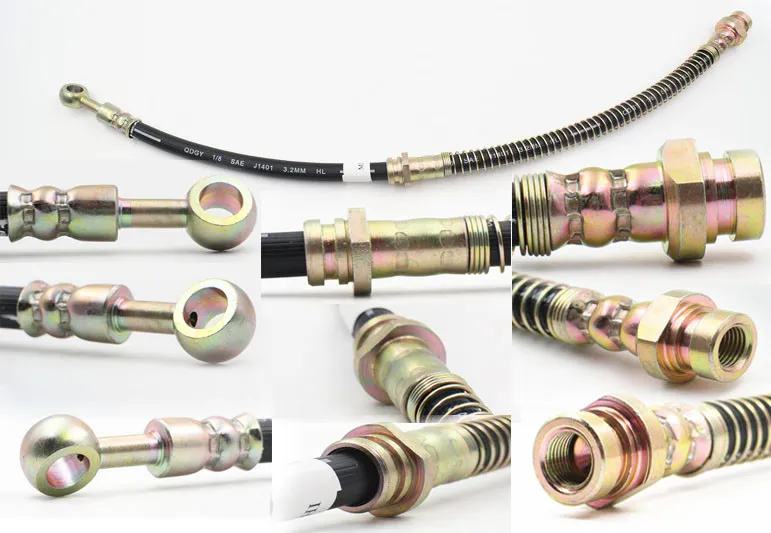

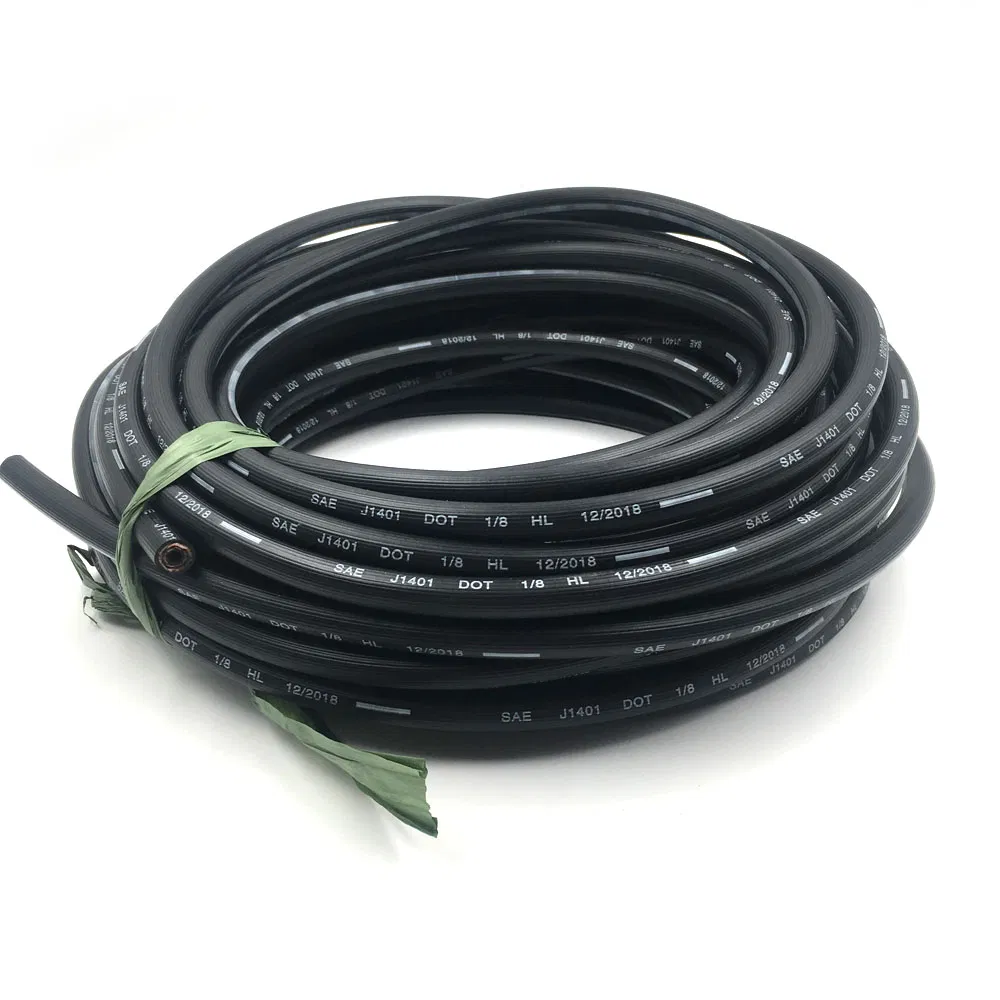

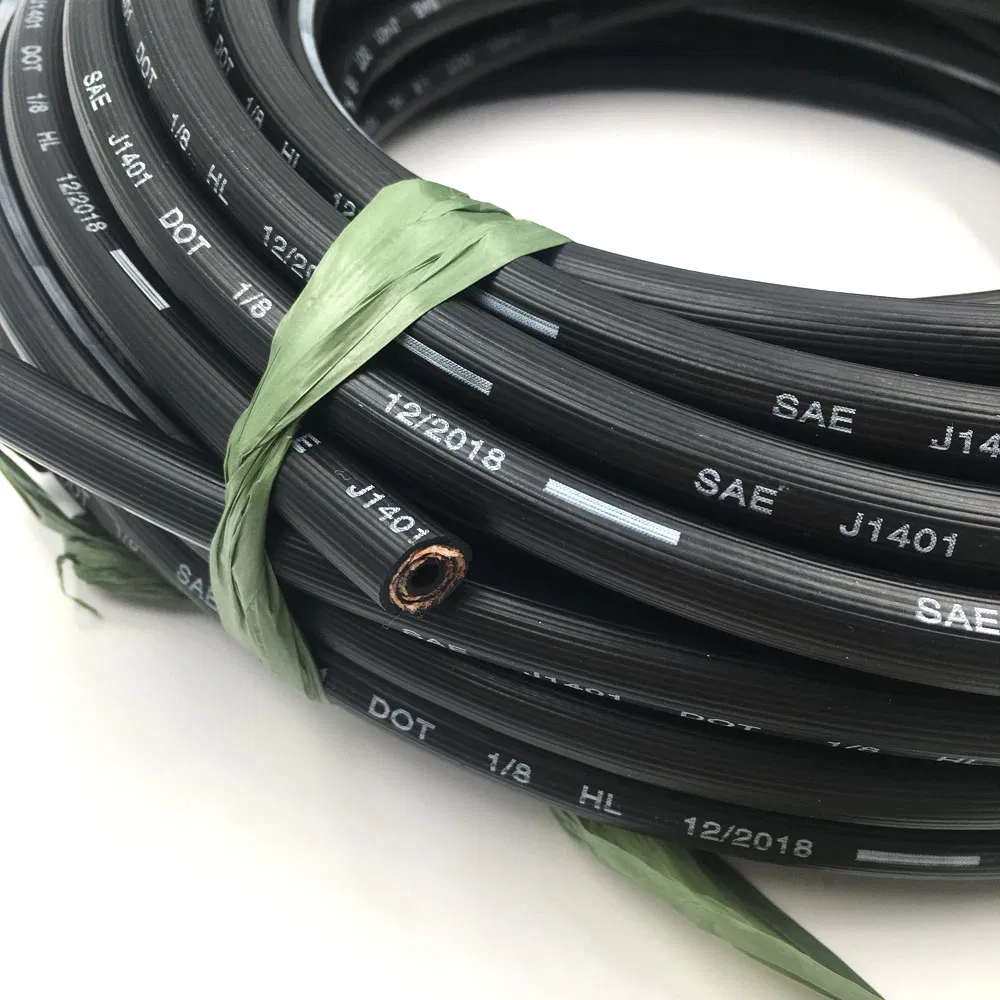

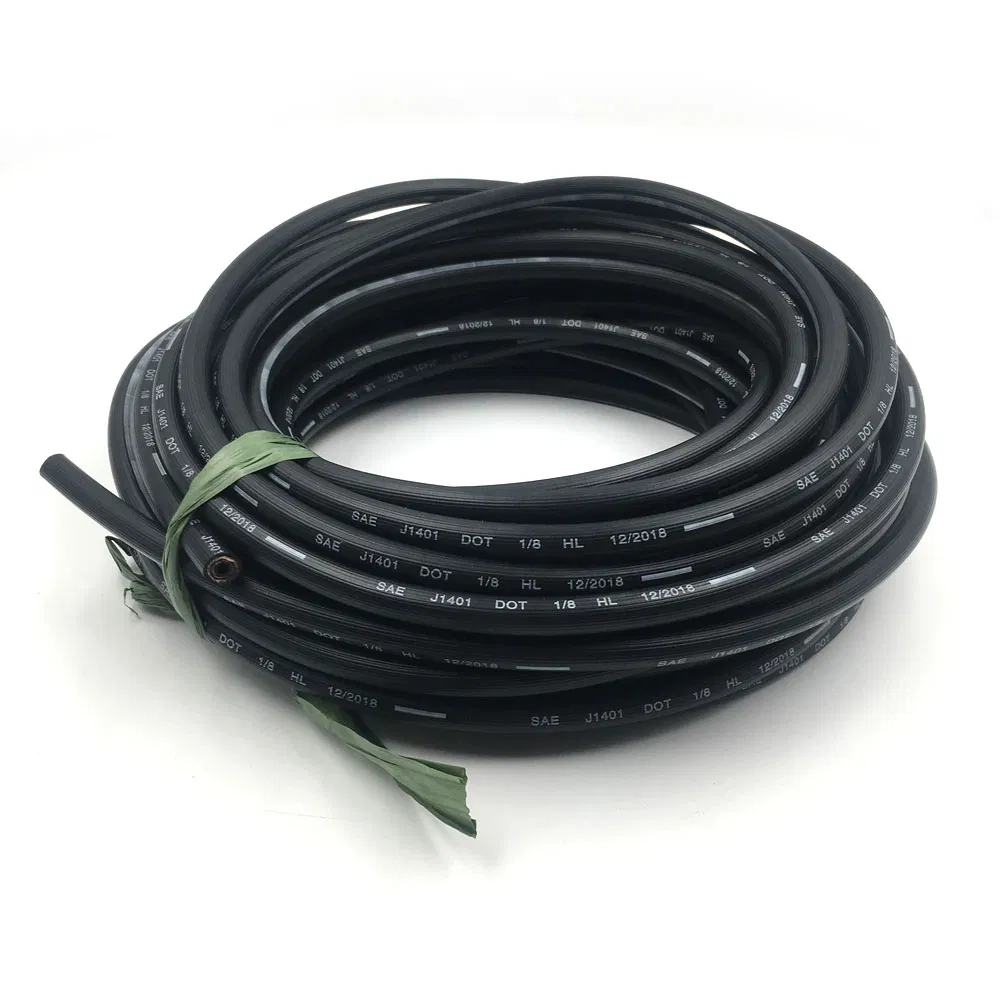

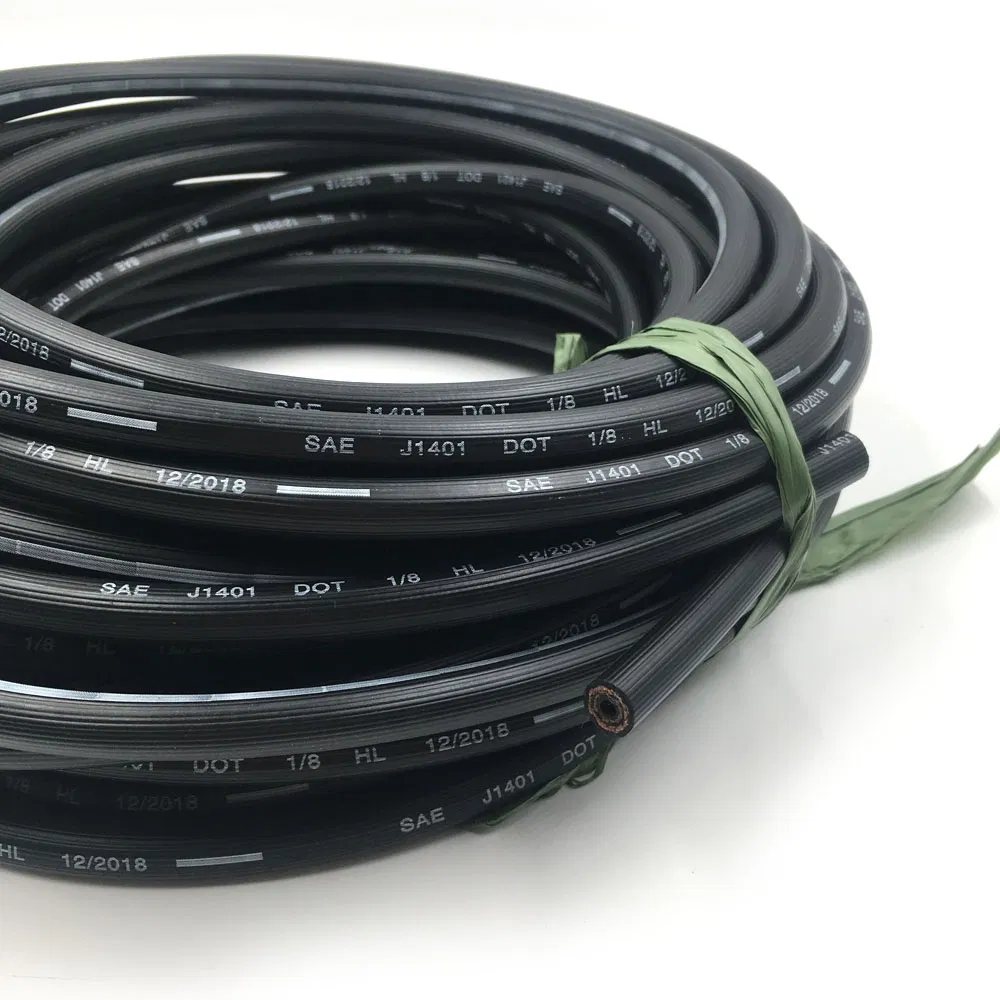

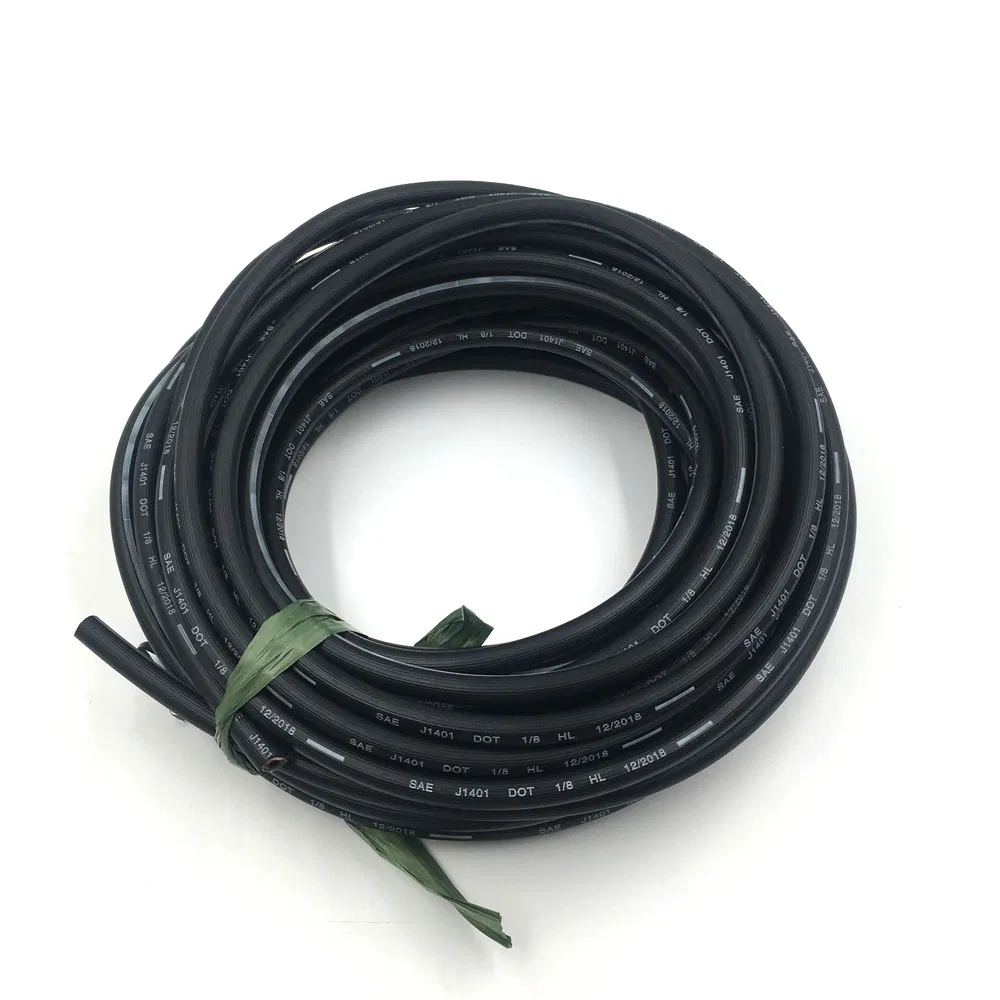

High Quality Hydraulic Rubber Brake Hose
Commonly used in automotive braking systems to ensure braking force is effectively transmitted to the brake shoe or clamp. This allows for reliable braking at any time under various road conditions.
Application & Function:

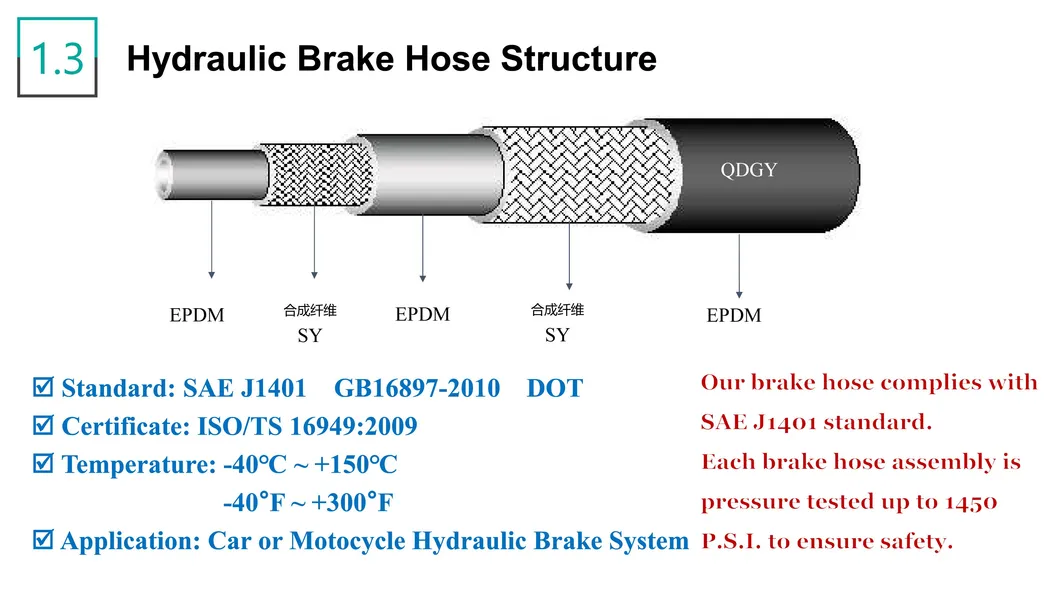

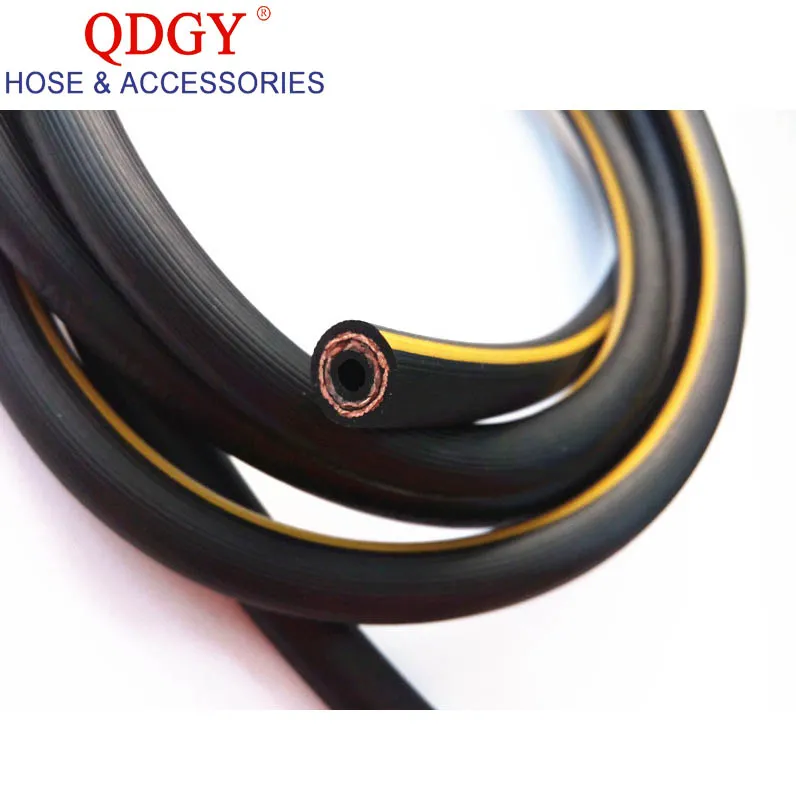

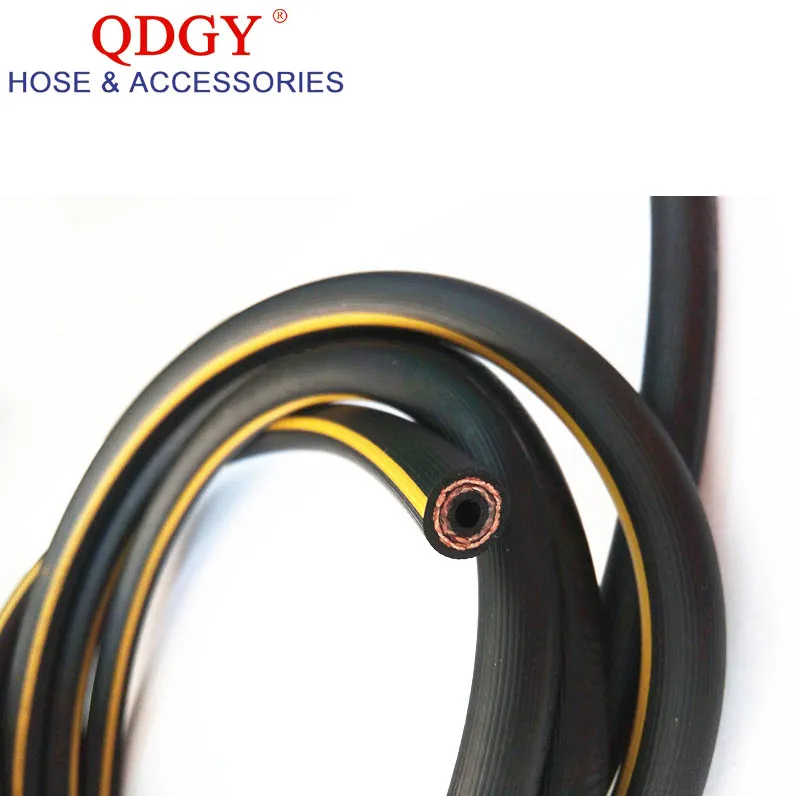

Suitable for cars, motorcycles, trucks, and other vehicles. Constructed with EPDM rubber and reinforced with PET/PVA layers for high-pressure durability.
| Inch | Spec (MM) | I.D (MM) | O.D (MM) | Thickness (MM) | Burst Pressure (Min. Mpa) |
|---|---|---|---|---|---|
| 1/8 | 3.2 × 10.2 | 3.35±0.20 | 10.20±0.30 | 3.43 | 70.0 |
| 1/8 | 3.2 × 10.5 | 3.35±0.20 | 10.50±0.30 | 3.58 | 80.0 |
| 1/8 | 3.2 × 12.5 | 3.35±0.20 | 12.5±0.30 | 4.58 | 70.0 |
| 3/16 | 4.8 × 12.5 | 4.80±0.20 | 12.5±0.30 | 3.85 | 60.0 |
| 1/4 | 6.3 × 15.0 | 6.3±0.20 | 15.0±0.30 | 7.35 | 50.0 |
| Performance | Test Condition | International Standard | Production Standard |
|---|---|---|---|
| Expansion | 1500psi | 0.42cc/ft max. | 0.20~0.22cc/ft |
| Burst | Pressure Rated | >7000psi | >10,500psi |
| Tensile | 218±3mm/min | >1446N | 2400N | Cold Bend | -45°C ~ -48°C | No cracking | No cracking |
| Ozone | 100pphm × 70h | No cracking | No cracking |
