Product Overview & Basic Info
Min. Tensile Strength:
320 N
Product Name:
1/4-12" SS304 316 Corrugated Flexible Metal Hose
Usage:
Pipeline Transport, Boiler Pipe, Hydraulic Pipe
Surface Treatment:
Galvanized or Polish
Fittings:
Bsp, NPT, BSPT Taper Male
Package Size:
100.00cm * 100.00cm * 100.00cm
Product Description
The flexible metal hose is engineered for high-performance applications including water, steam, hot oil, and gas systems. Its corrugated structure provides exceptional pressure resistance while maintaining a flexible profile for complex installations.
Key Features:
• Vibration and expansion absorption
• Reinforced double braiding for extreme conditions
• Optional spring reinforcement for extended service life
• Corrosion-resistant stainless steel core

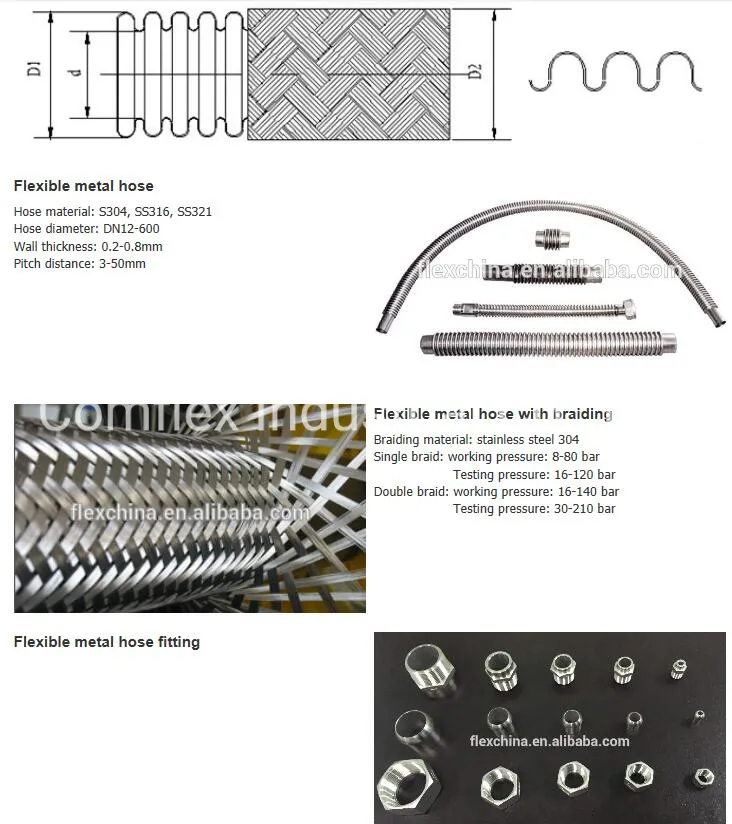

Material Specifications:
- Hose: SS304, SS316, SS321
- Braid: SS304
- Connection: Galvanized steel
Technical Parameters
| DN (mm) |
ID (mm) |
OD (mm) |
Pitch (mm) |
Wall (mm) |
Weight (KG/M) |
| 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |
| 400 | 397.6 | 460 | 40 | 1.2 | 25 |

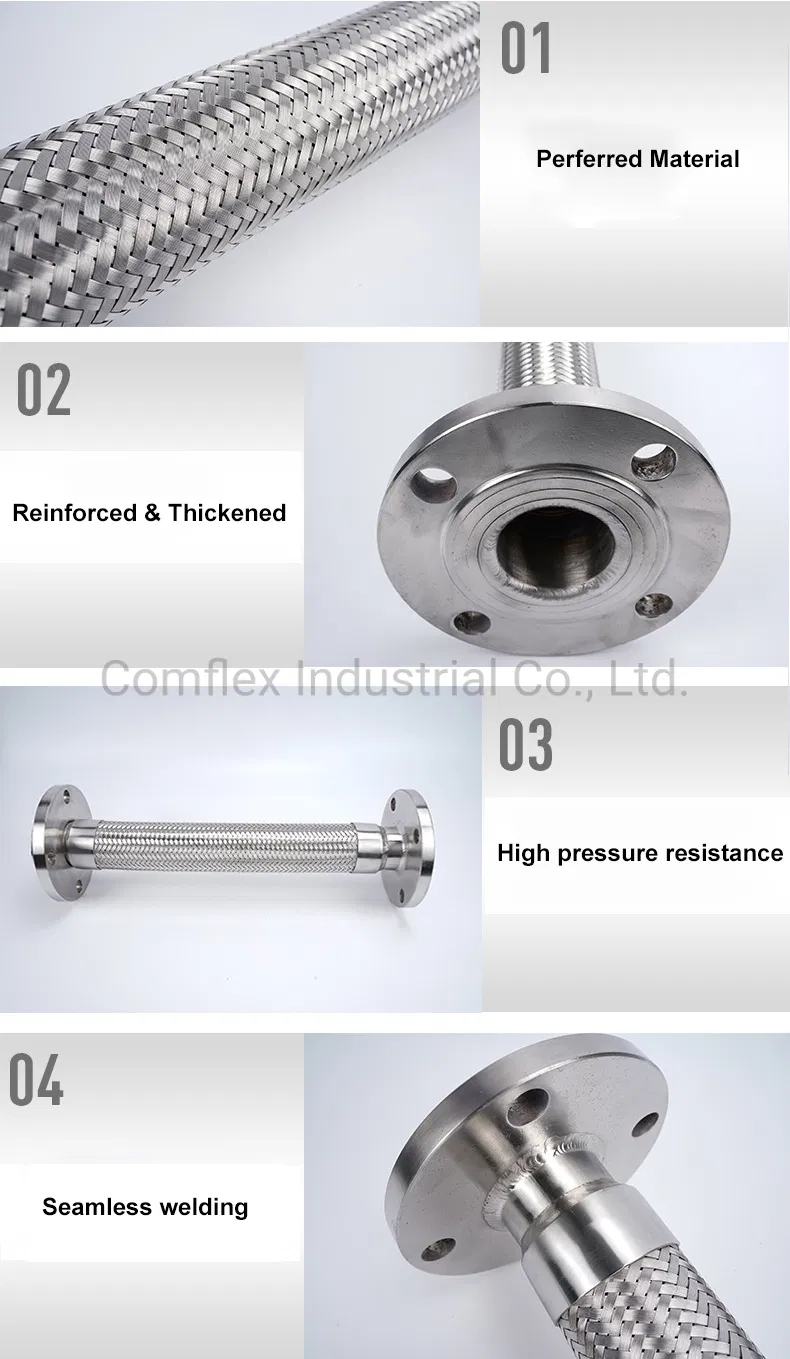

Detailed Product Display

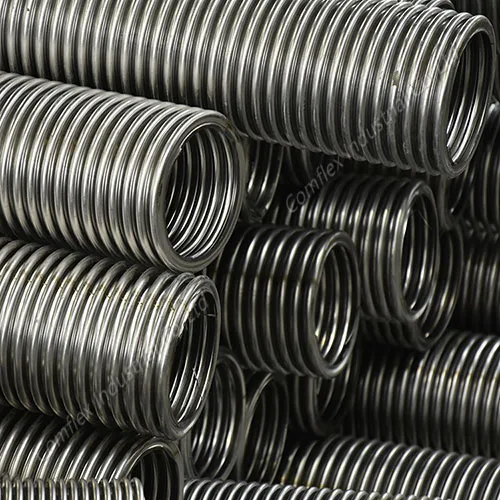

Construction Details:
Inner Core: Corrugated Stainless Steel (304, 321, 316L).

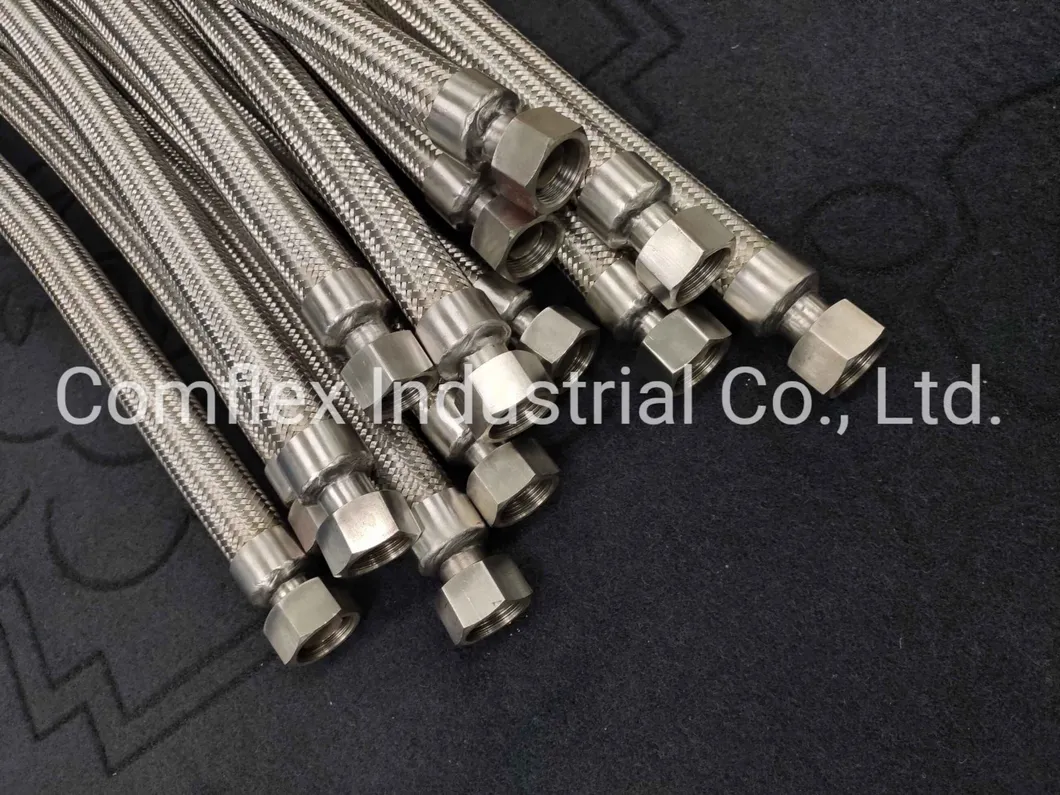

Outer Core: Braided Stainless Steel Layers (304).
Performance: Cryogenic to 1500° F; Meets ISO 10380 standards.

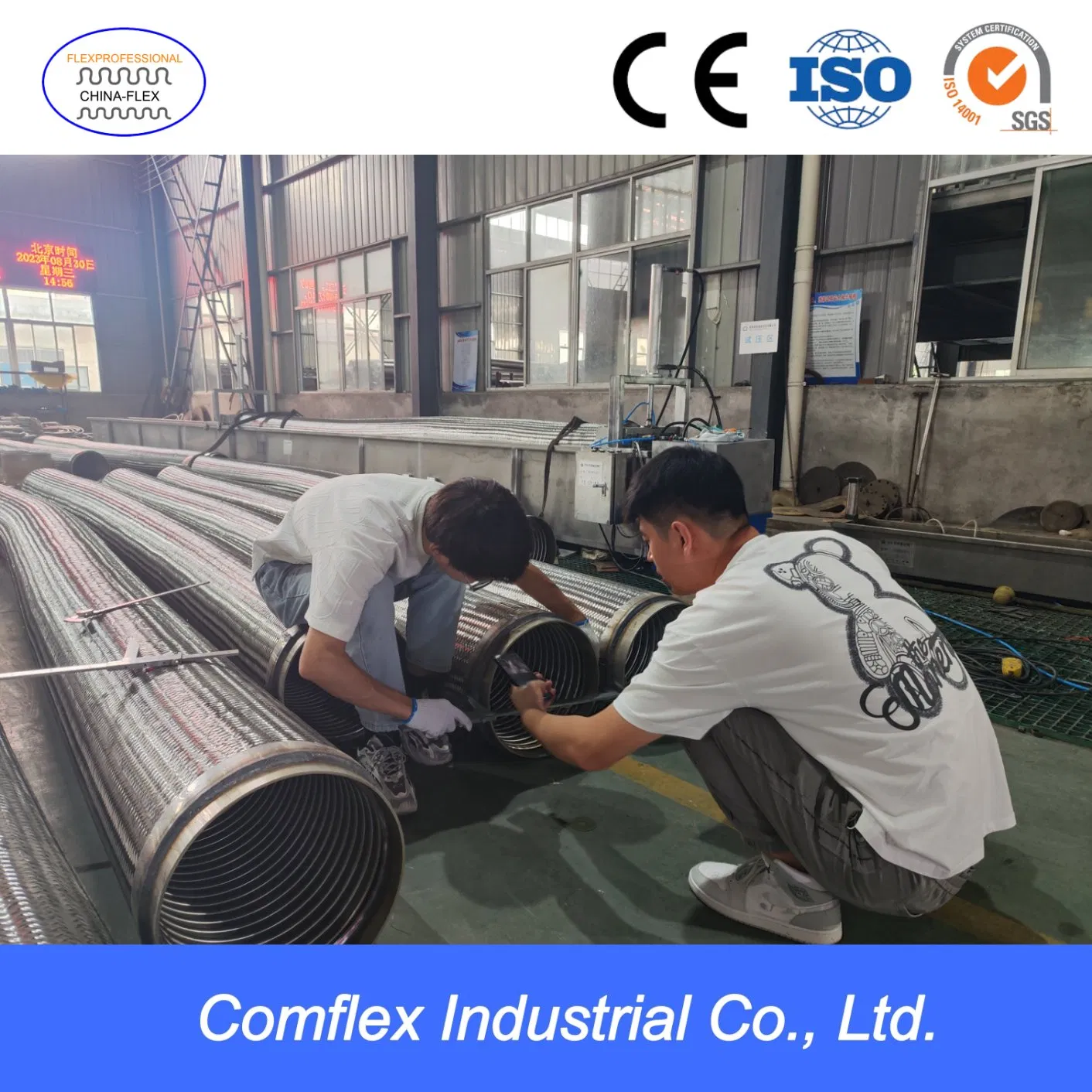

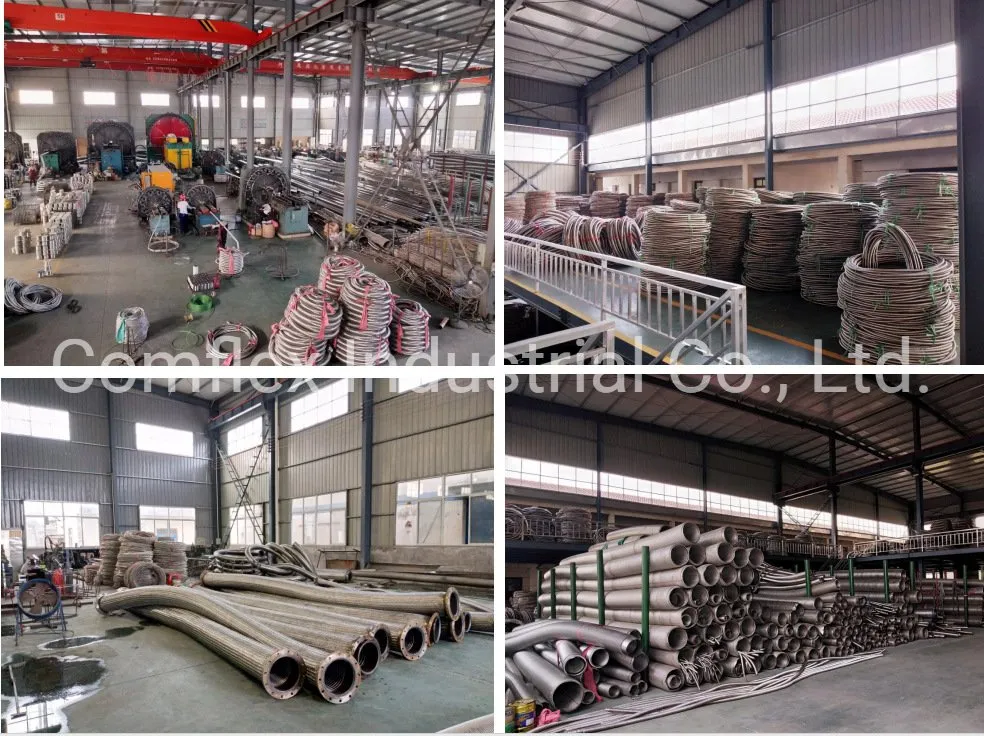

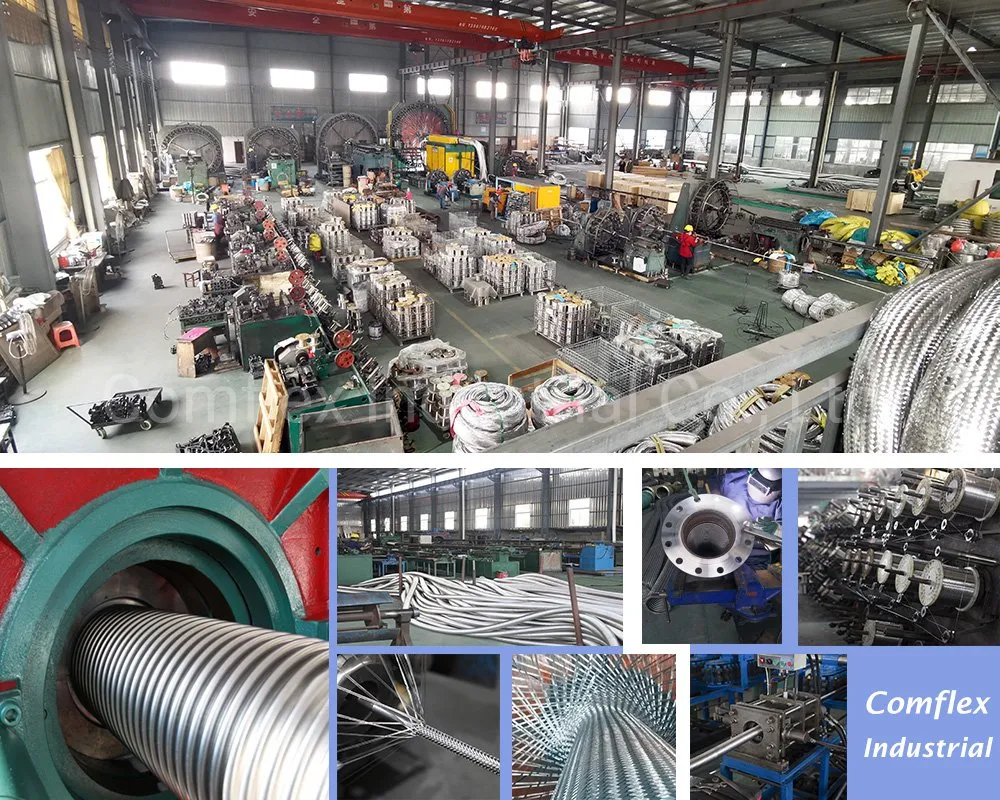

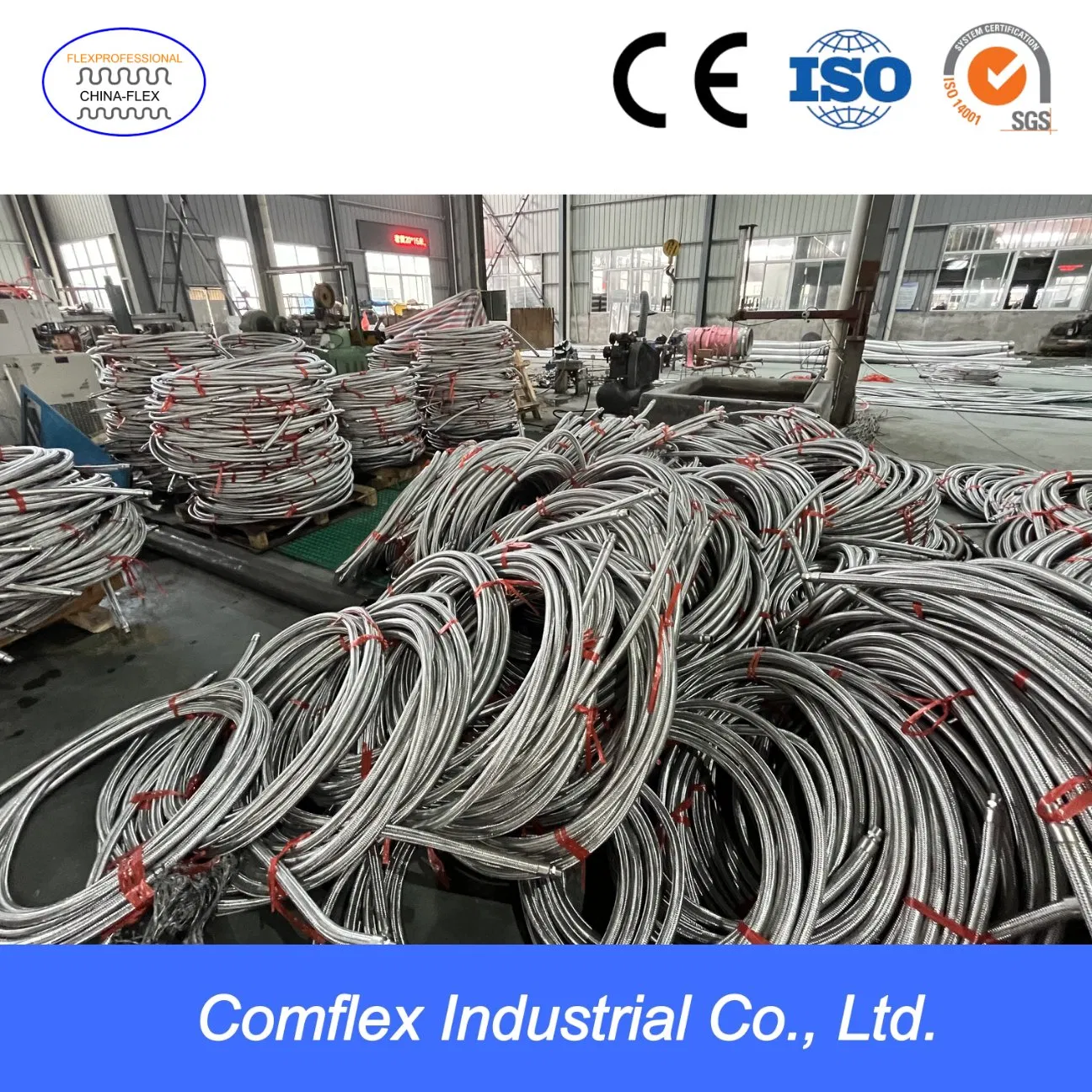

Professional Manufacturing
Specializing in all types of metal flexible hoses and machinery, including corrugated, square lock, and interlock designs. With over 25 years of industry expertise, our products are trusted in gas, water, and cable protection circuits globally.
Packaging & Logistics

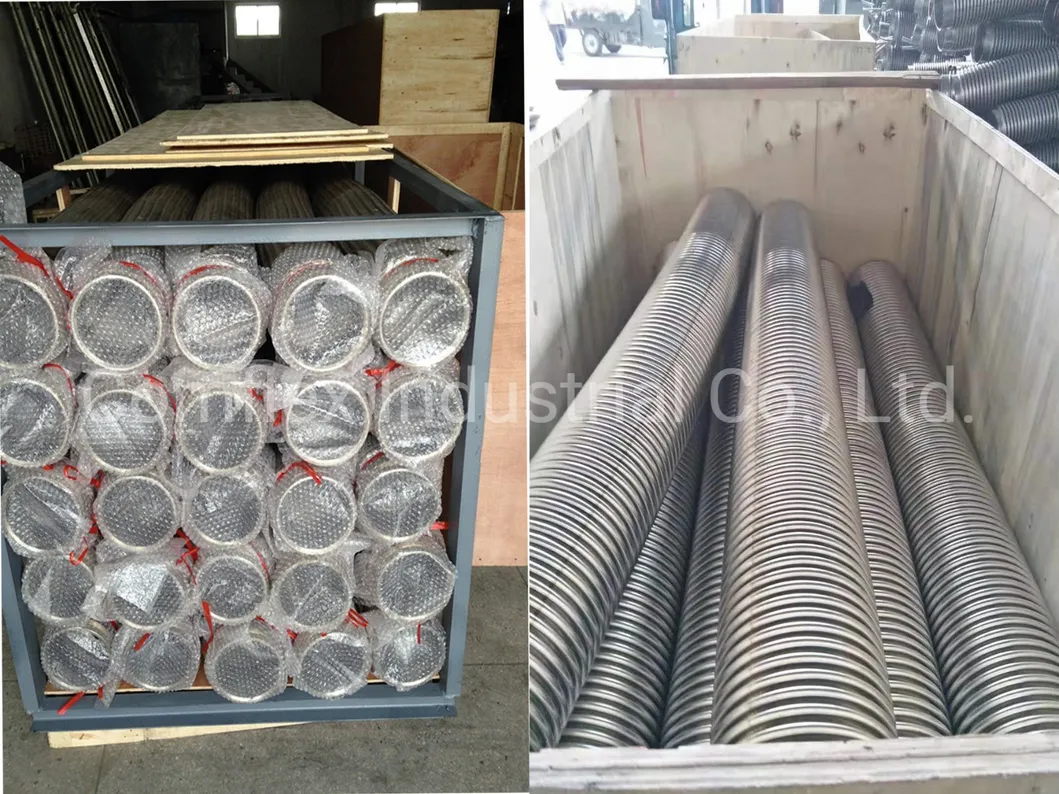

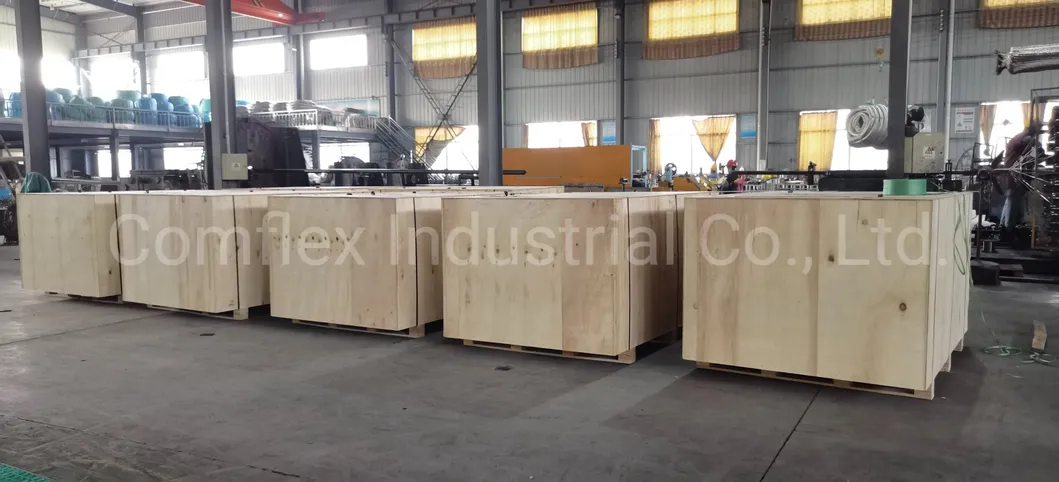

We use strong steel frames and firm plywood boxes to ensure safety during sea or air transportation.
✔ Air express (FedEx, UPS, DHL, EMS)
✔ Air & Sea transport
✔ Sea-land combined transport
Frequently Asked Questions
What materials are used for your flexible metal hoses?
We utilize high-grade stainless steel including SUS304, 321, and 316L for the core and braid to ensure maximum durability and corrosion resistance.
What range of sizes can you manufacture?
We can produce all standard and custom sizes from DN8 up to DN400, and even up to DN600 on specialized machinery.

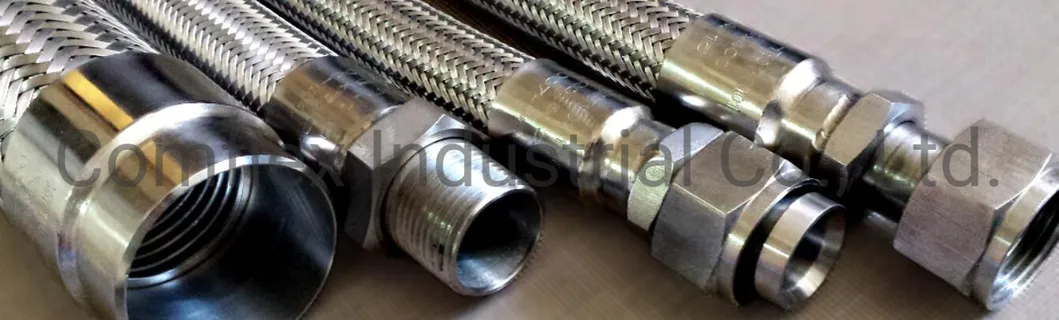

What types of fittings and connections are available?

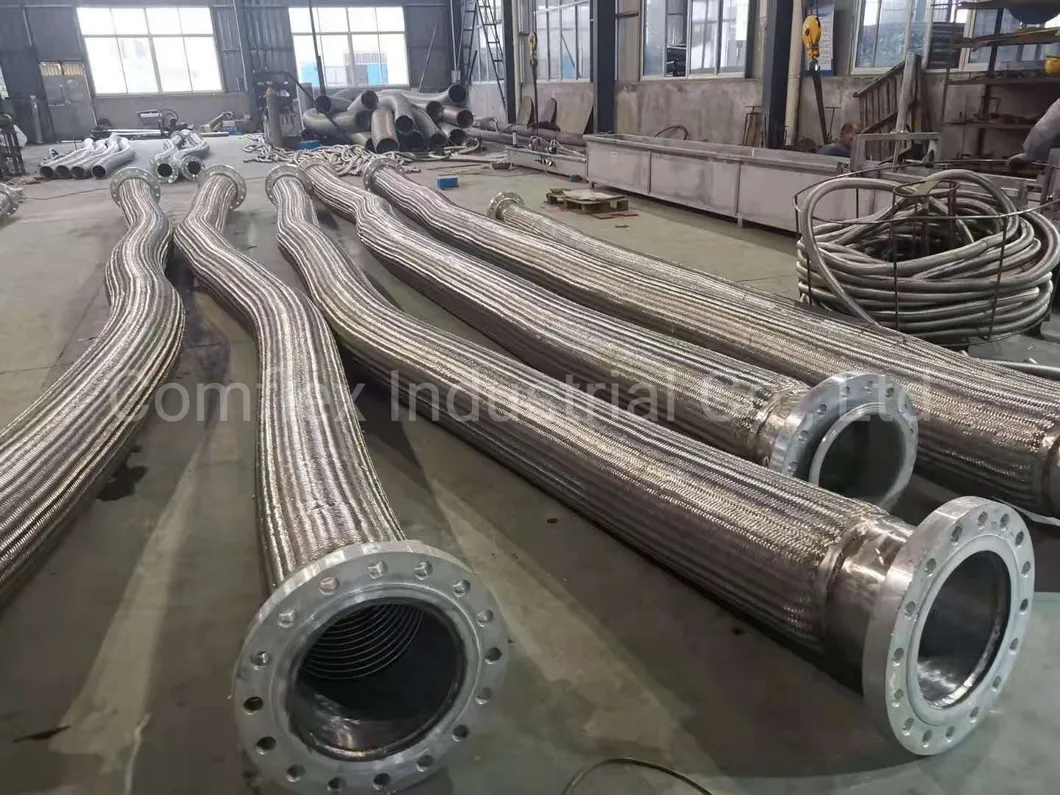

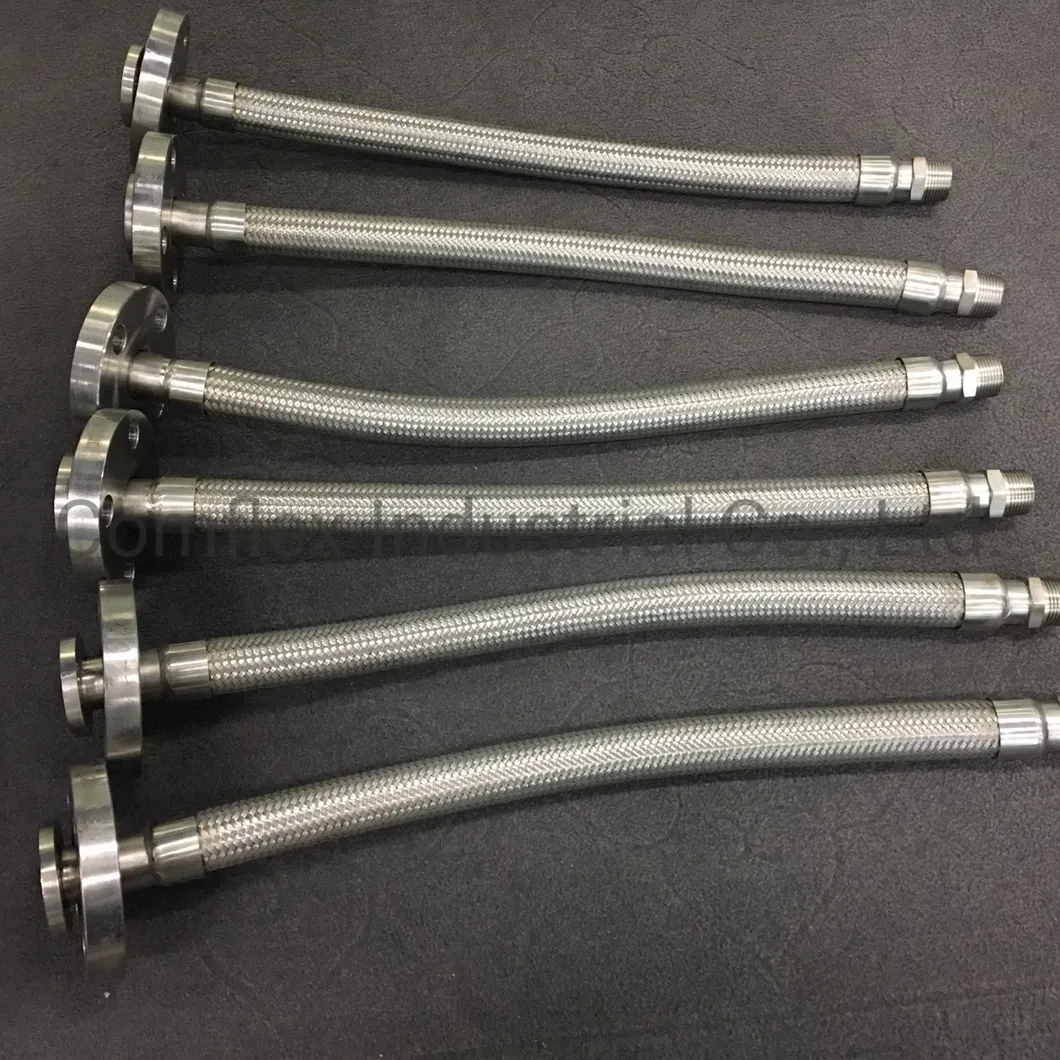

We provide a wide variety of connections including BSPT Taper Male, NPT, Camlock couplings, and various flange standards such as DIN, ANSI, and JIS.
Can the hoses withstand high-pressure environments?
Yes, our corrugated metal hoses are designed to handle working pressures up to 40MPa, depending on the diameter and braiding configuration.
What information is needed for a customized quotation?
Please provide technical drawings, preferred material (304/321/316L), fitting type, length, diameter, and the specific working pressure/temperature requirements.
Are these hoses suitable for high-temperature applications?
Absolutely. Our stainless steel hoses are rated for temperatures ranging from cryogenic levels up to 1500° F.
Welcome to inquiry!
