Flexible line for delivery of water-based, oil-based, acid-based and foam fracturing fluids under high pressure in acid, sand and hydraulic fracturing works.
Tube: UPE & Synthetic Rubber
Temp: -29°C~+100°C

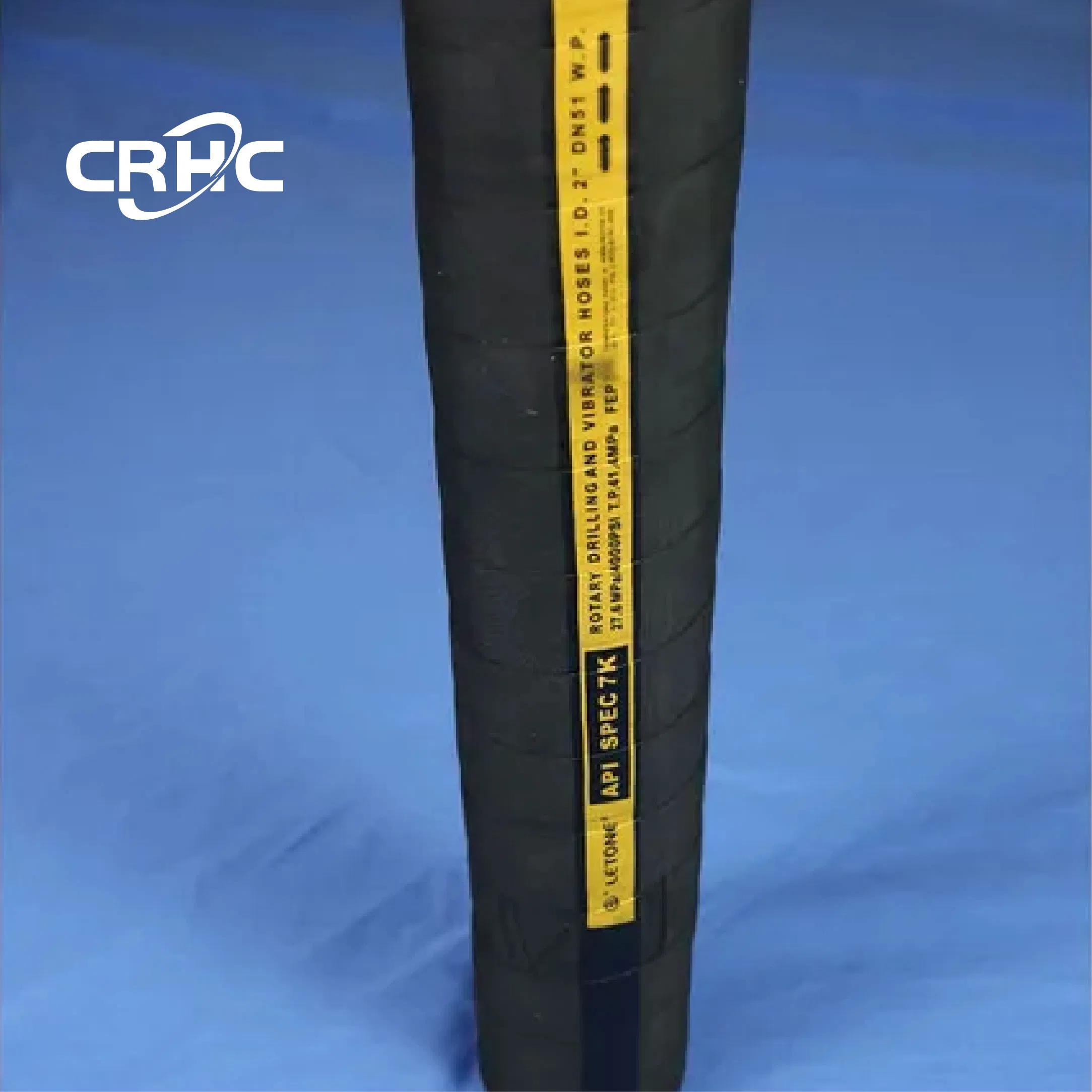

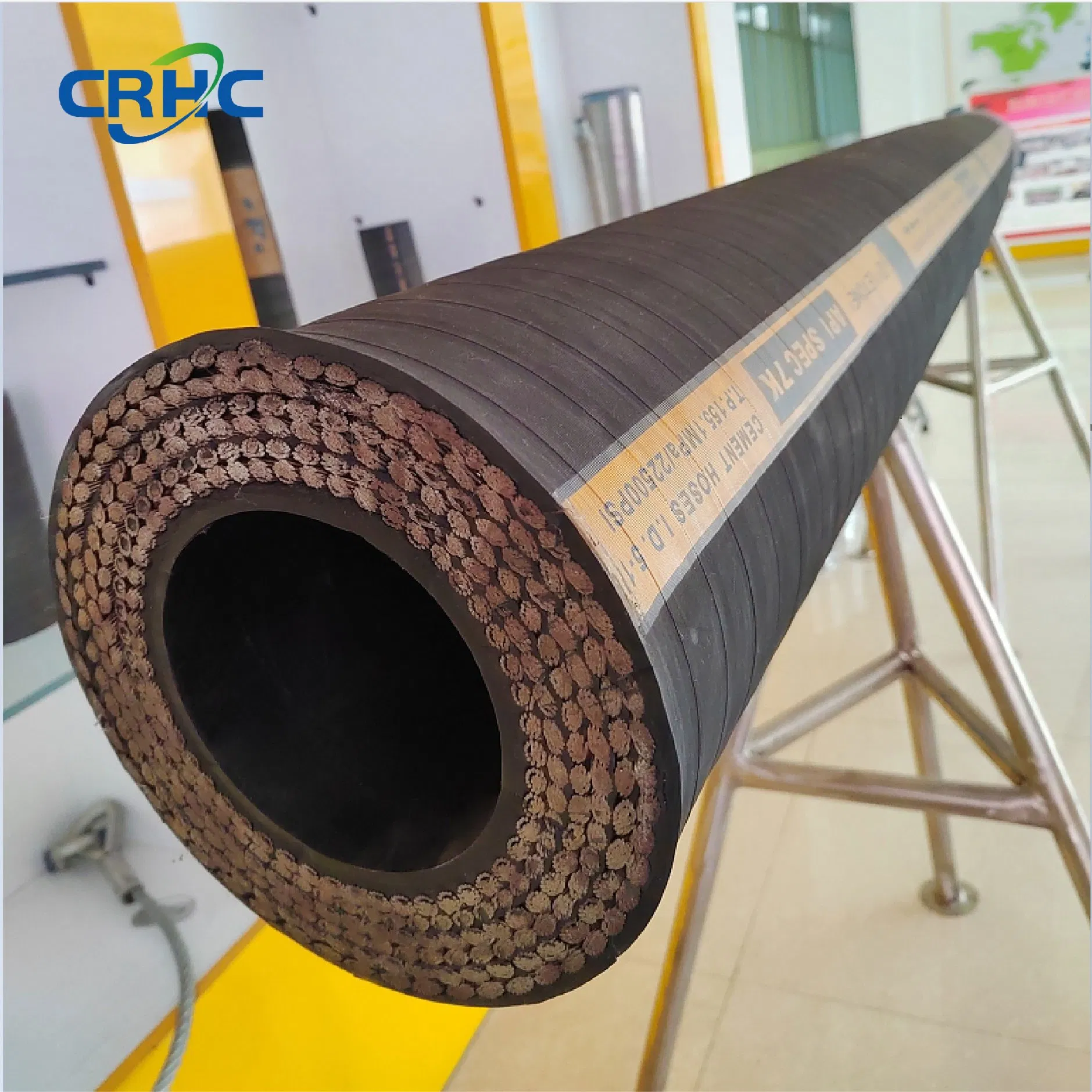

Flexible connection for pumping mud at high pressure in oil drilling, cementing, and well workover operations. Standard: API Spec. 7K FSL 1 / FSL 2.
Tube: Synthetic rubber/HNBR/UPE/PTFE
Temp: -20℃~+121℃
Hydraulic control line for remote control of the blowout preventer (BOP) at high pressure. Fire resistance meets API Spec. 16D, 704°C x 5min.
Cover: Stainless steel armor protection

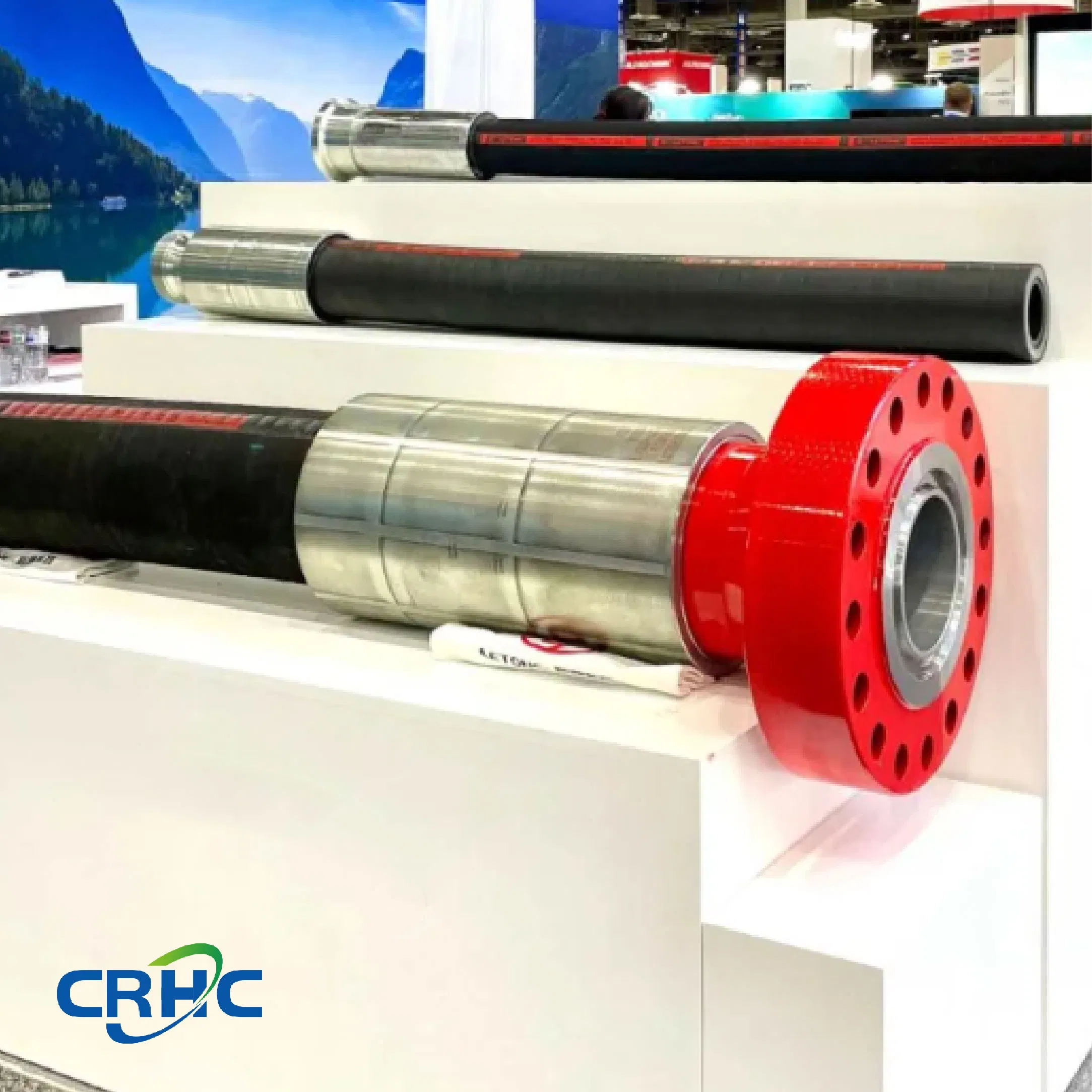

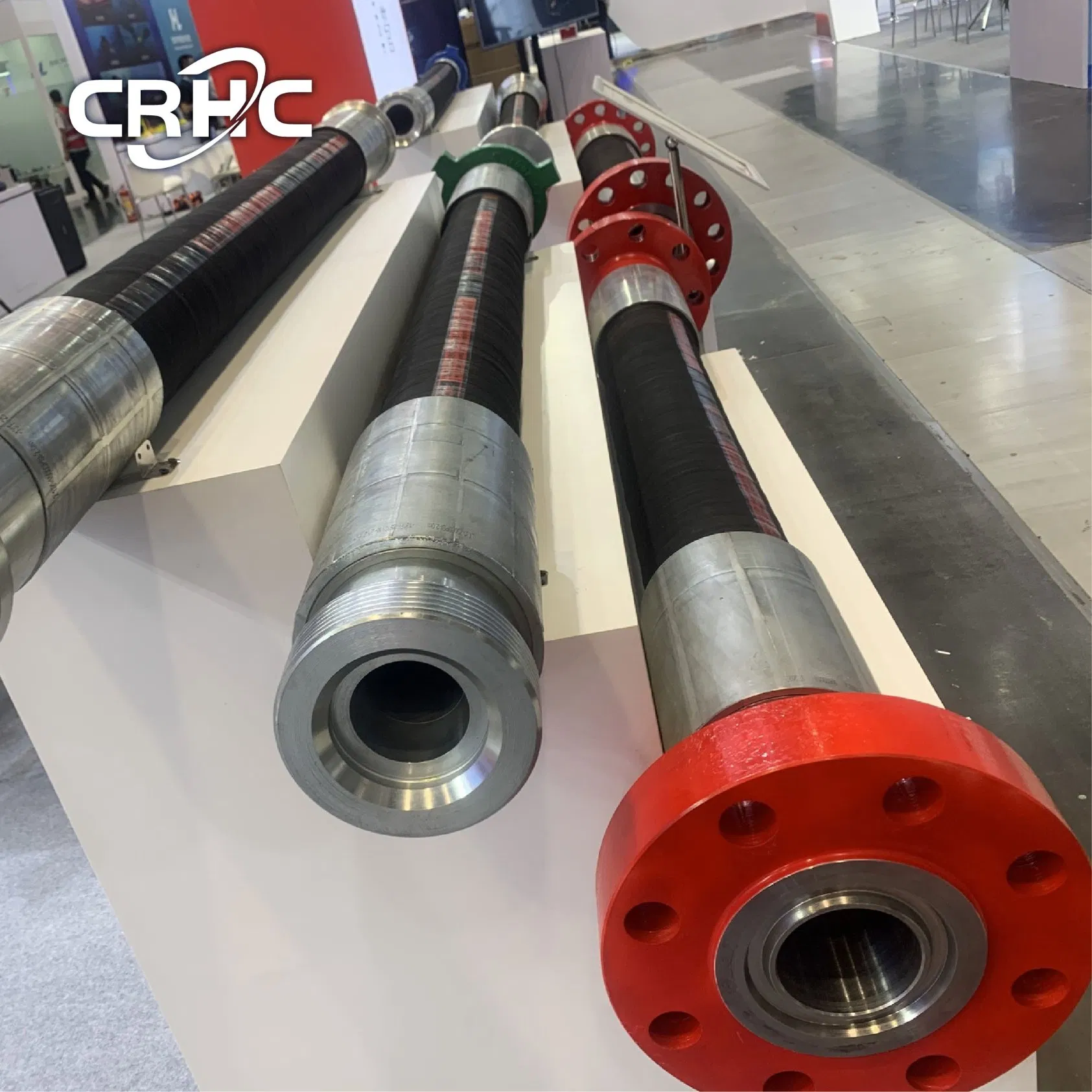

Flexible connection in manifolds for delivery of oil-gas mixtures containing hydrogen sulfide and dangerous gases under extreme pressure.
Fire Resistance: Resistant to 704°C open fire for 30 mins
| Size (inch) | I.D. (mm) | O.D. (mm) | W.P. (psi) | P.P. (psi) | Min.B.R. (m) | W.T (kg/m) |
|---|---|---|---|---|---|---|
| 2" | 51 | 107 | 15000 | 22500 | 1.4 | 20 |
| 2.5" | 64 | 126 | 15000 | 22500 | 1.5 | 27 |
| 3" | 76 | 145 | 15000 | 22500 | 1.6 | 35 |
| 4" | 102 | 179 | 15000 | 22500 | 2.0 | 60 |
| 5" | 127 | 216 | 15000 | 22500 | 2.1 | 86 |
| 2" (UHP) | 51 | 112 | 20000 | 30000 | 1.5 | 26 |
| 4" (UHP) | 102 | 202 | 20000 | 30000 | 2.1 | 94 |

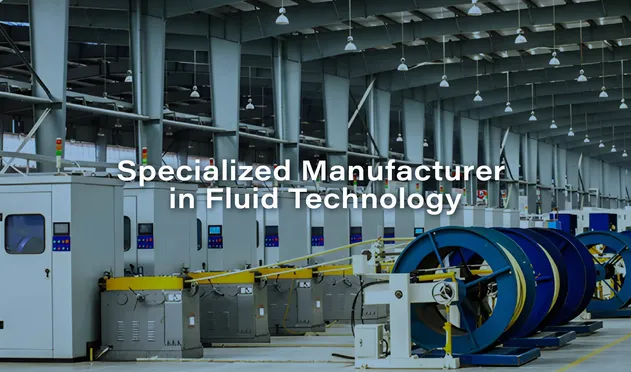

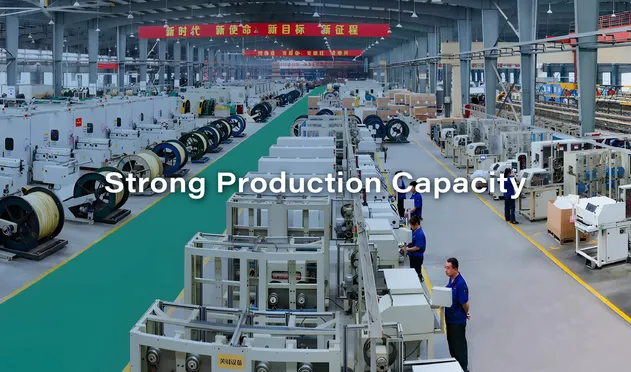

A trusted manufacturer in the rubber hose industry since 2003, specializing in high-performance fluid technology. The production base spans 130,000 square meters with an annual output of 30 million meters of hydraulic and industrial hoses.
Holding major industry certifications including API Type Approvals (16C & 7K), ABS Type Approval, MSHA safety certification, Lloyd's Fire Test certificate, and GOST compliance. Integrated management systems certified to ISO 9001, IATF 16949, and ISO 14001.
Case Study: Flex-Frac solution deployed on a major fracturing project in Houston, USA.

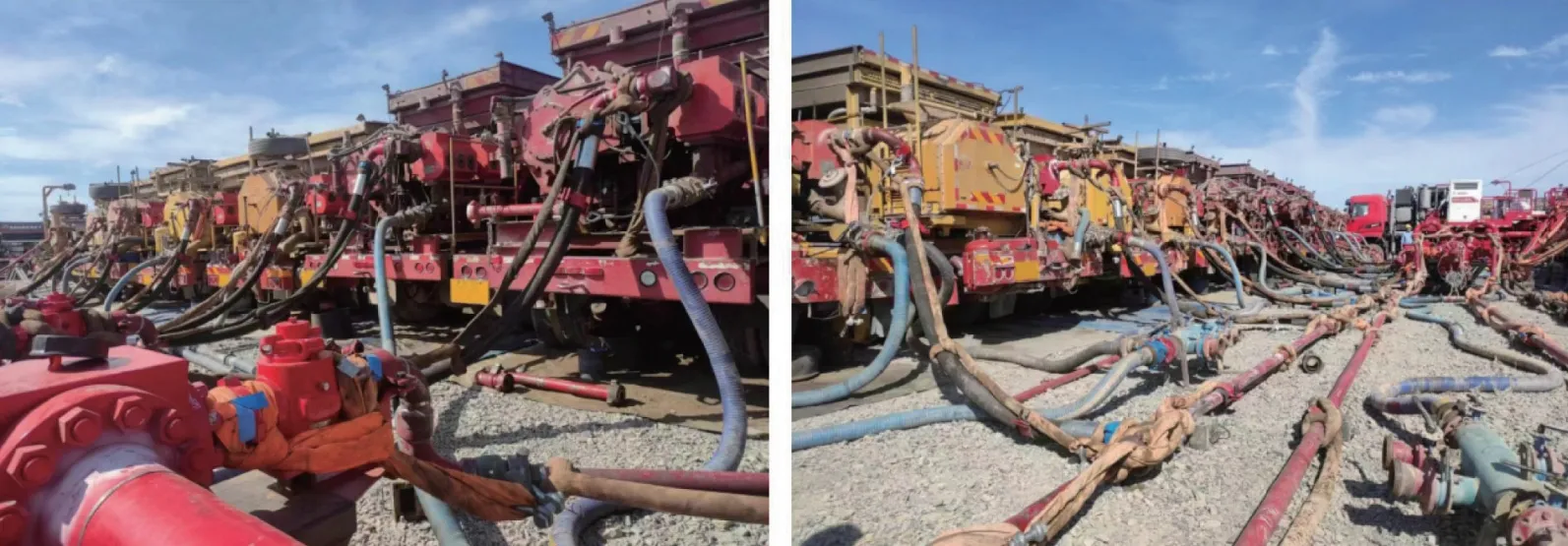

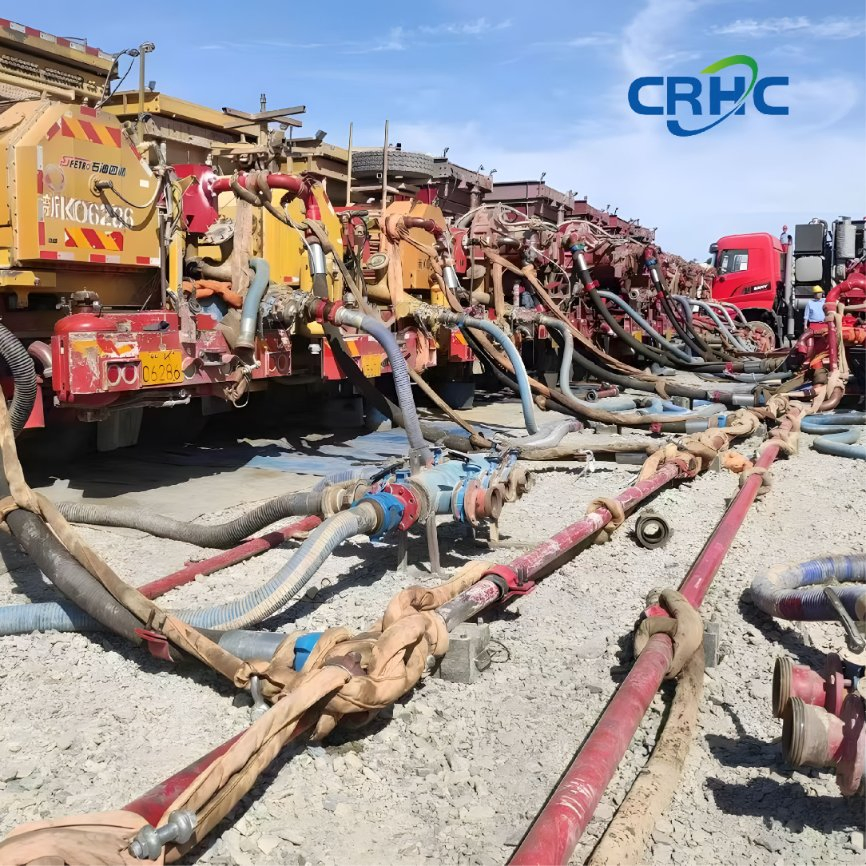

Case Study: High-pressure drilling solutions utilized in the Tuha oilfield, Xinjiang, China.
