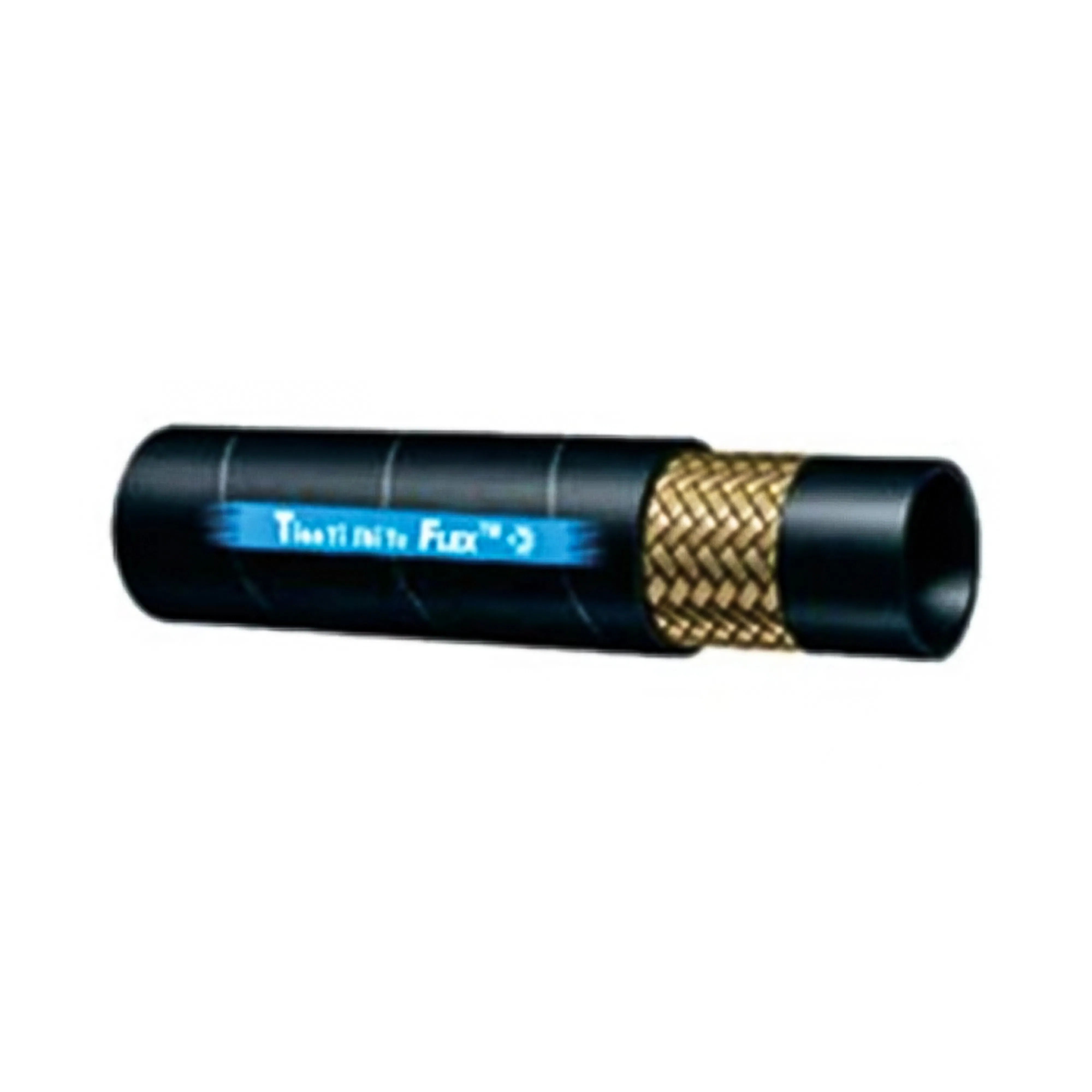

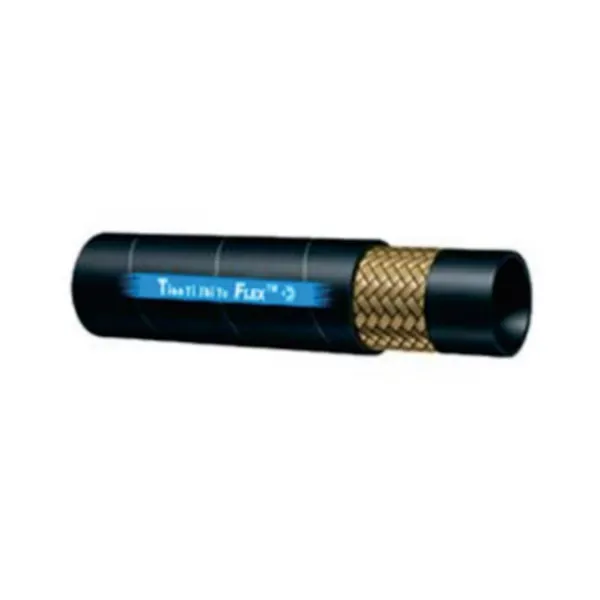

SAE100R1 AT / DIN-EN 853 1SN
| Product number | DN | inch | mm (ID) | mm (Wire) | mm (OD) | W.P (MPa) | W.P (psi) | B.P (MPa) | B.P (psi) | B.R (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G1SN-03-05 | 5 | 3/16" | 4.8 | 9.5 | 11.8 | 25 | 3630 | 100 | 14280 | 89 | 0.19 |
| G1SN-04-06 | 6 | 1/4" | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90 | 12840 | 102 | 0.21 |
| G1SN-05-08 | 8 | 5/16" | 7.9 | 12.7 | 15 | 21.5 | 3120 | 85 | 12280 | 114 | 0.24 |
| G1SN-06-10 | 10 | 3/8" | 9.5 | 15.1 | 17.4 | 18 | 2610 | 72 | 10280 | 127 | 0.33 |
| G1SN-08-13 | 13 | 1/2" | 12.7 | 18.3 | 20.6 | 16 | 2310 | 64 | 9180 | 178 | 0.41 |
| G1SN-10-16 | 16 | 5/8" | 15.9 | 21.4 | 23.7 | 13 | 1890 | 52 | 7420 | 203 | 0.45 |
| G1SN-12-19 | 19 | 3/4" | 19 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 241 | 0.58 |
| G1SN-16-25 | 25 | 1" | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35 | 5020 | 305 | 0.88 |
| G1SN-20-32 | 32 | 1 1/4" | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25 | 3600 | 419 | 1.23 |
| G1SN-24-38 | 38 | 1 1/2" | 38.1 | 46.8 | 50.6 | 5 | 730 | 20 | 2860 | 508 | 1.51 |
| G1SN-32-51 | 51 | 2" | 50.8 | 60.1 | 64.0 | 4 | 580 | 16 | 2280 | 635 | 1.97 |

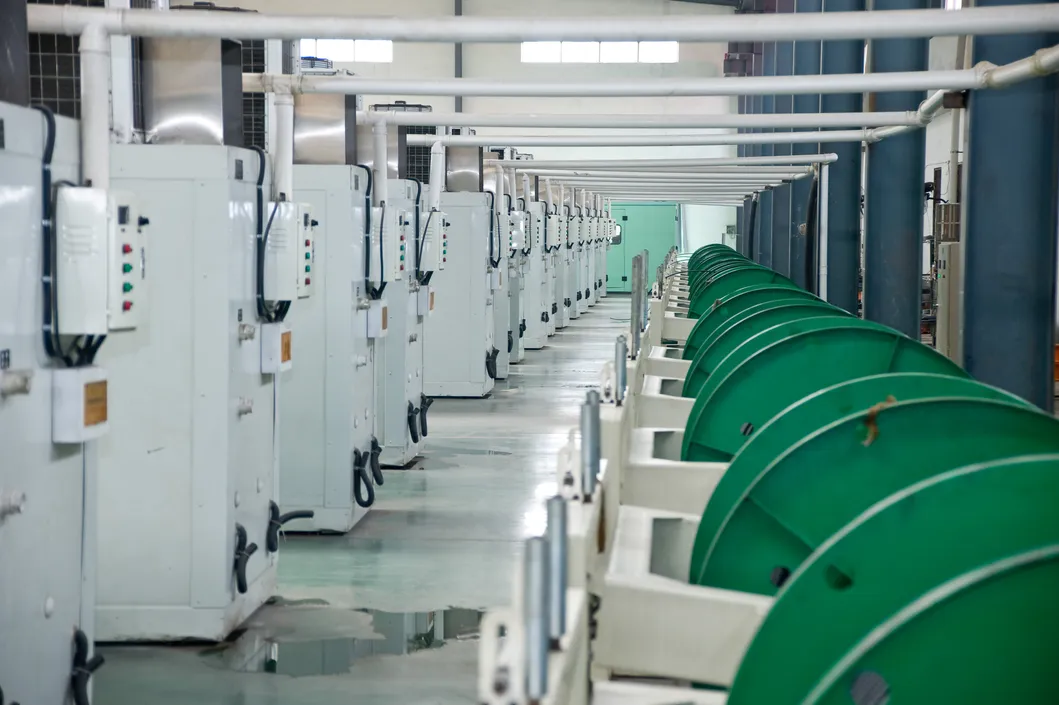

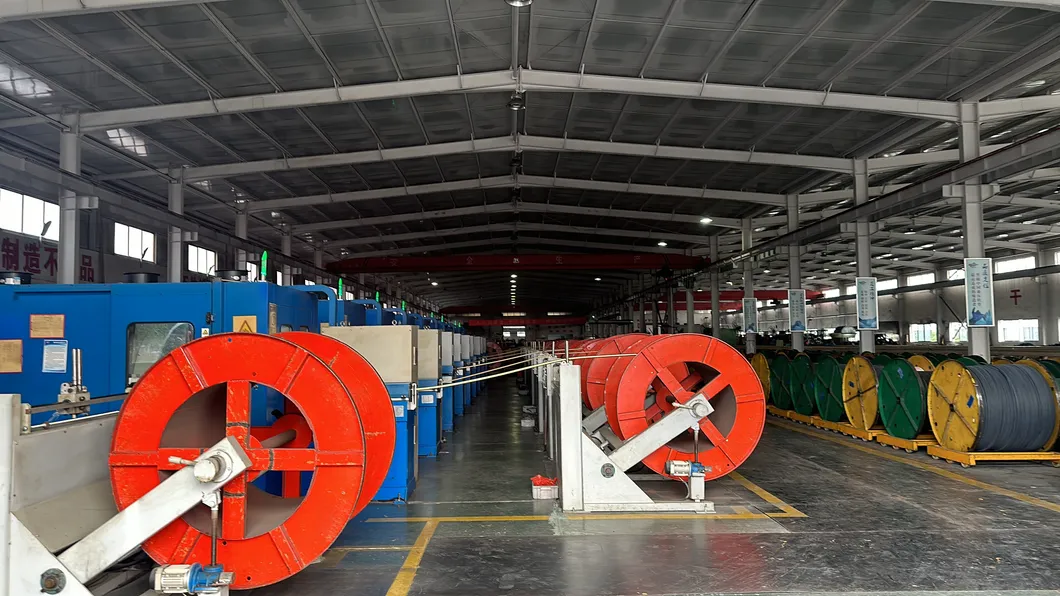

Founded in 2002, our facility is located in a specialized industrial development zone, covering an area of 30,000 square meters with a building area of 27,000 square meters. We maintain an annual output of 10 million meters of various hydraulic rubber hoses and have been recognized as a high-tech enterprise with multiple quality certifications.

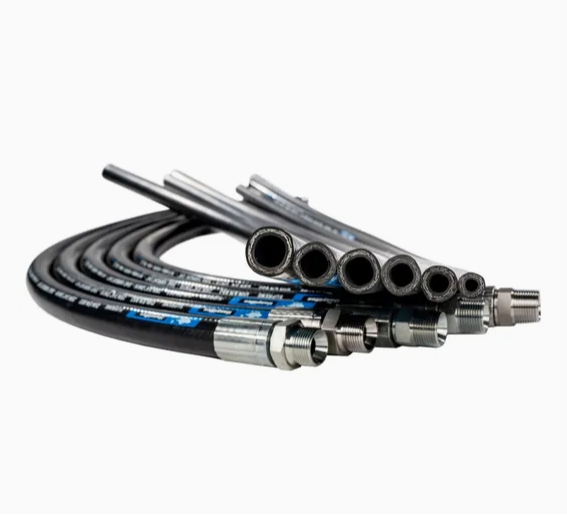

Our main product range includes all types of hydraulic rubber hoses, professional engineering machinery winding pipes, steel wire braided hoses, oil hoses, high wear-resisting grouting hoses, and automotive hoses across 16 series with over 1,400 specifications.
Our products feature excellent performance, durability, and resistance to extreme temperatures (+220°C to -55°C), high pressure, acids, and corrosion. All products have passed ISO9001 quality management system certification and meet international industry standards.
