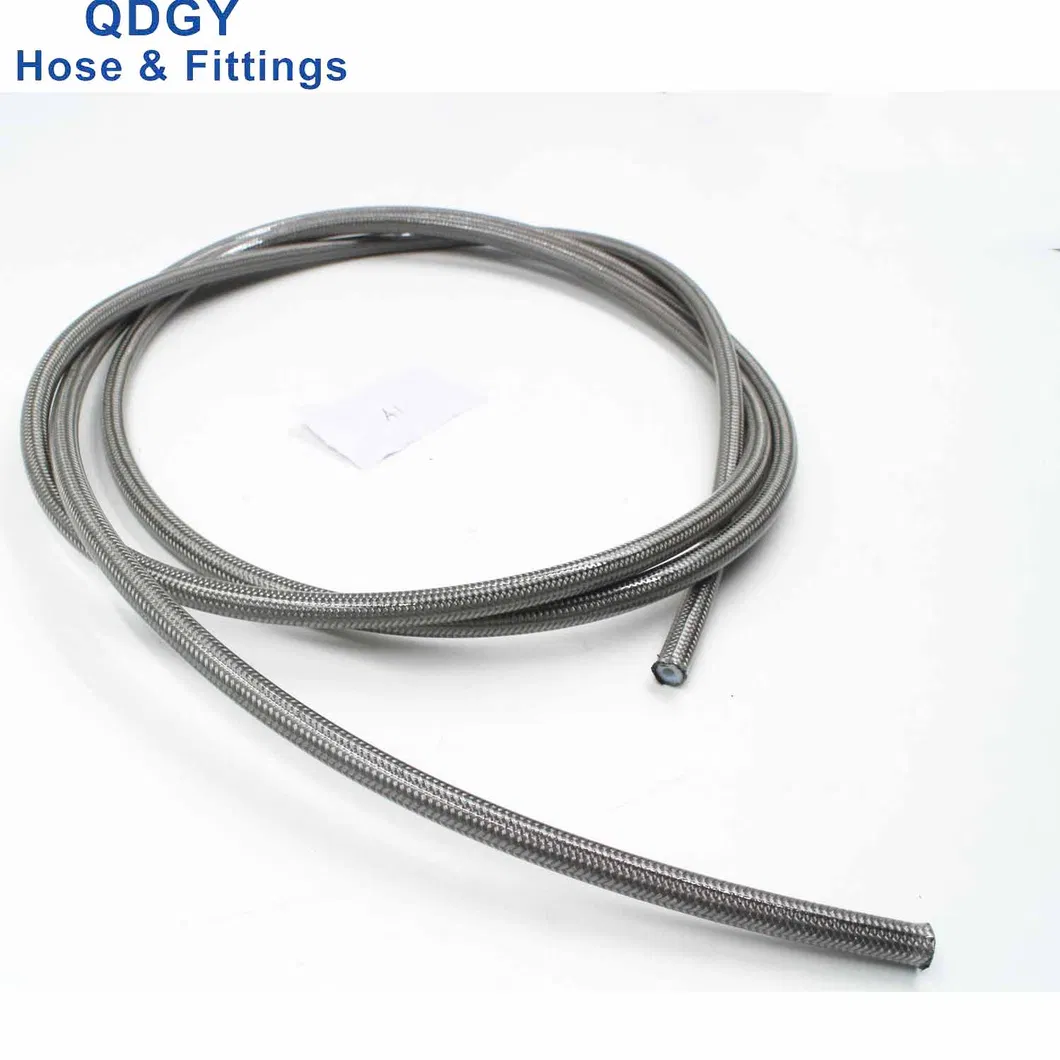

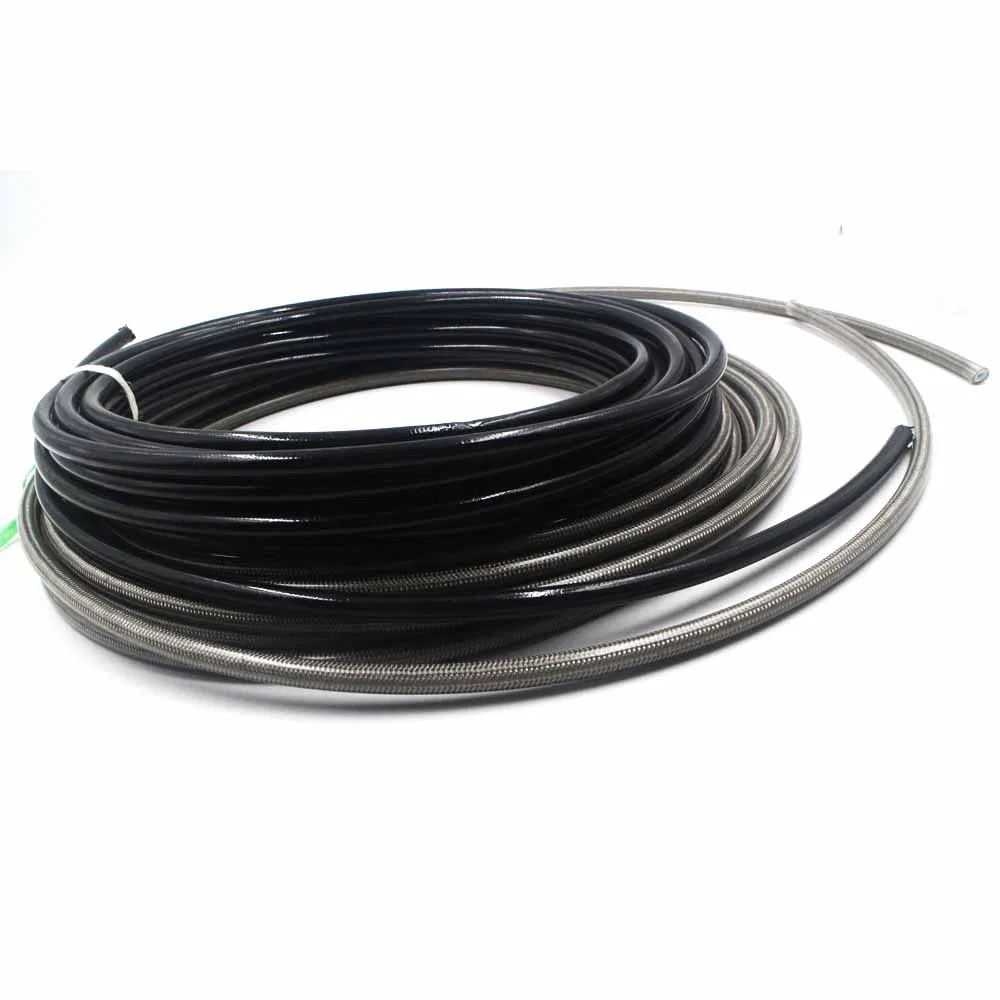

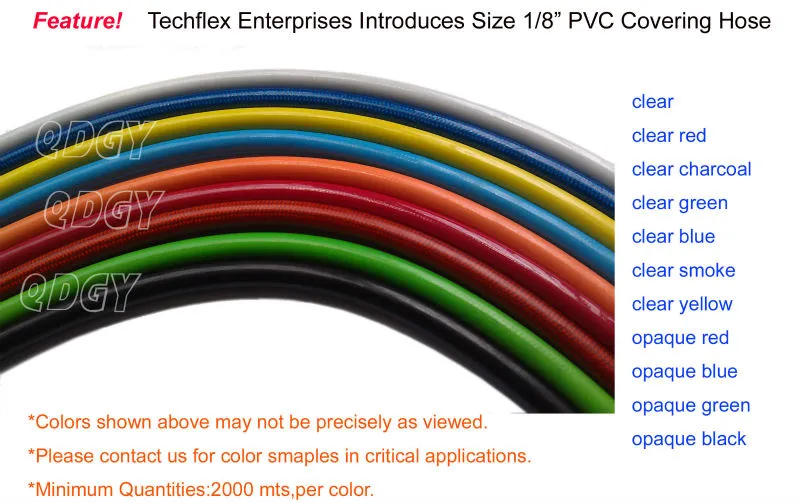

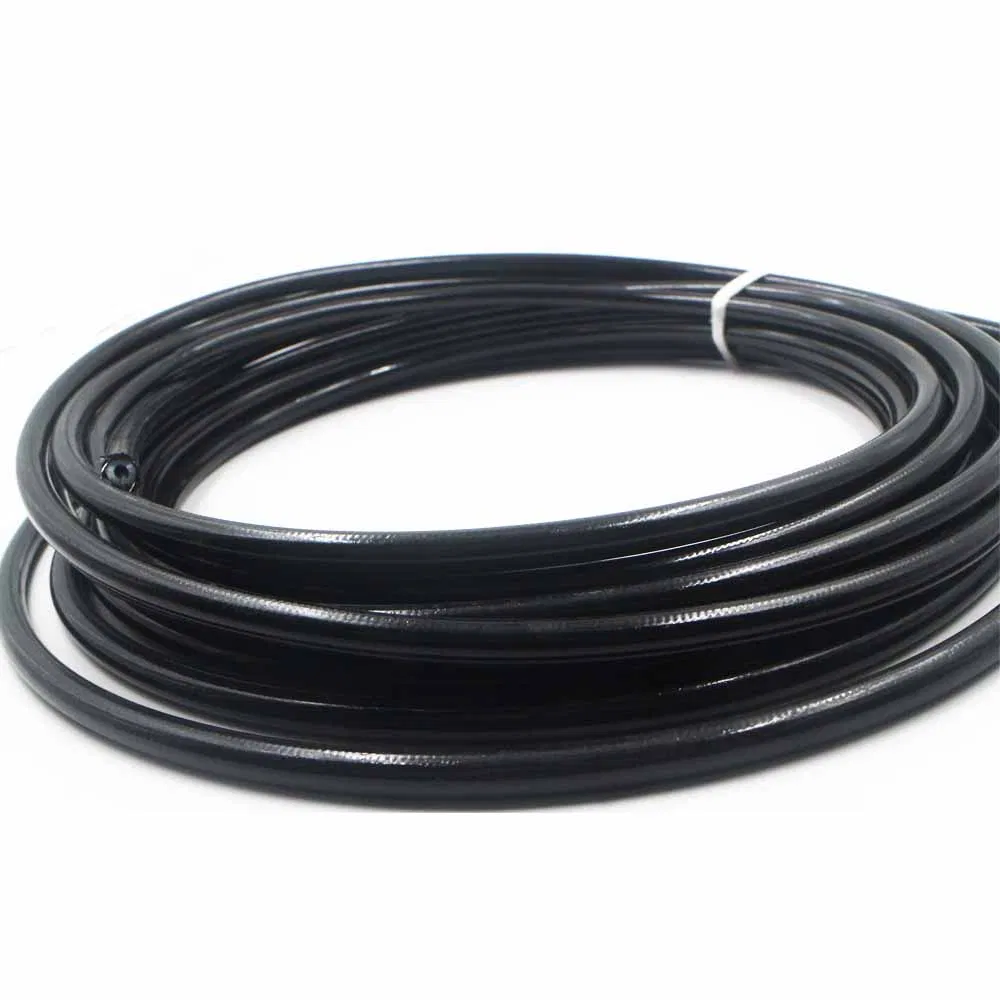

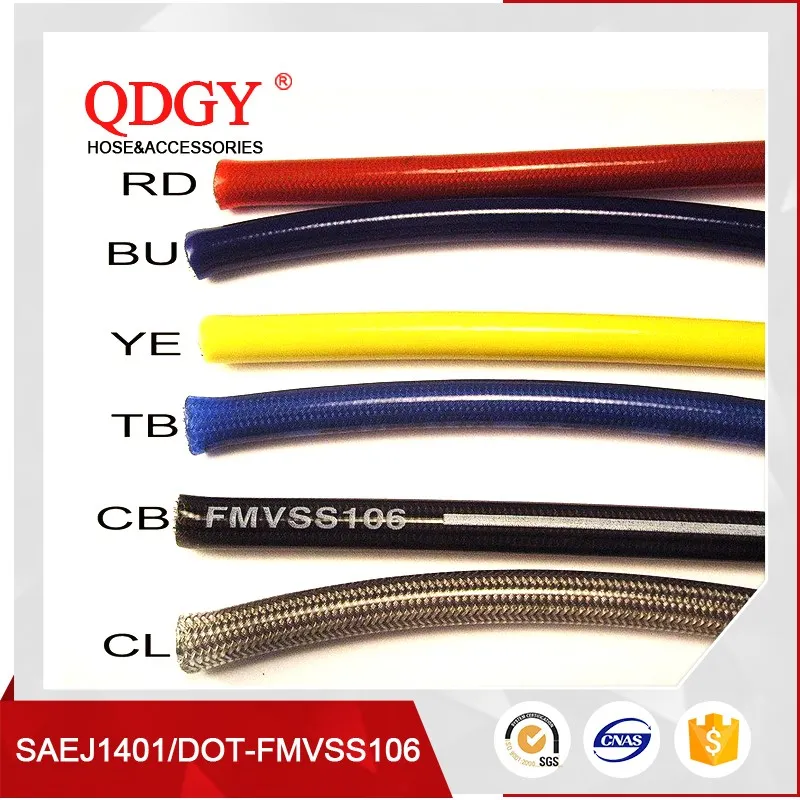

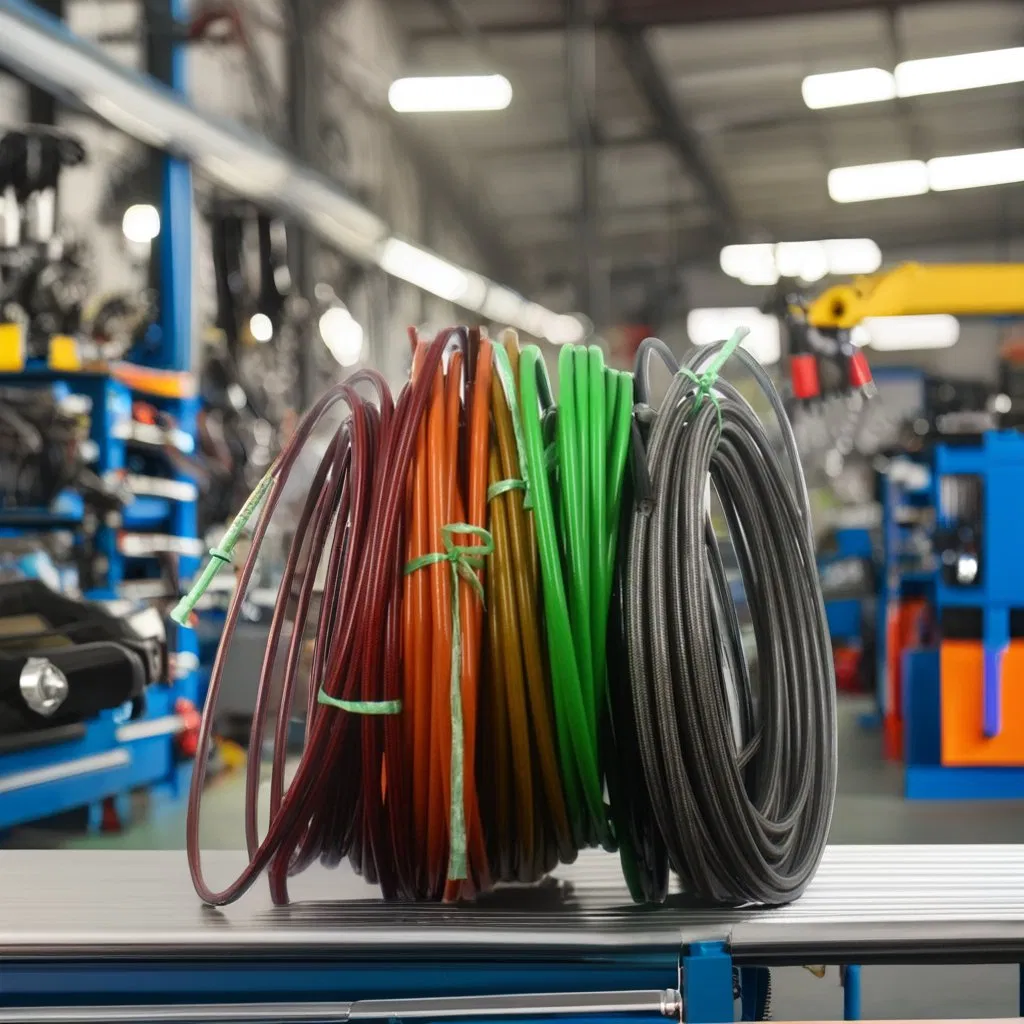

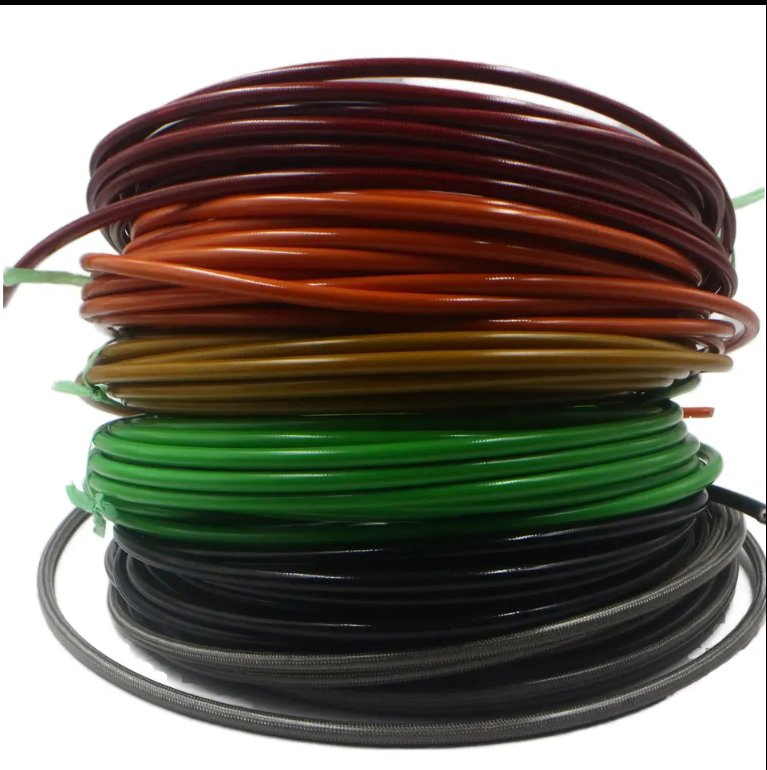

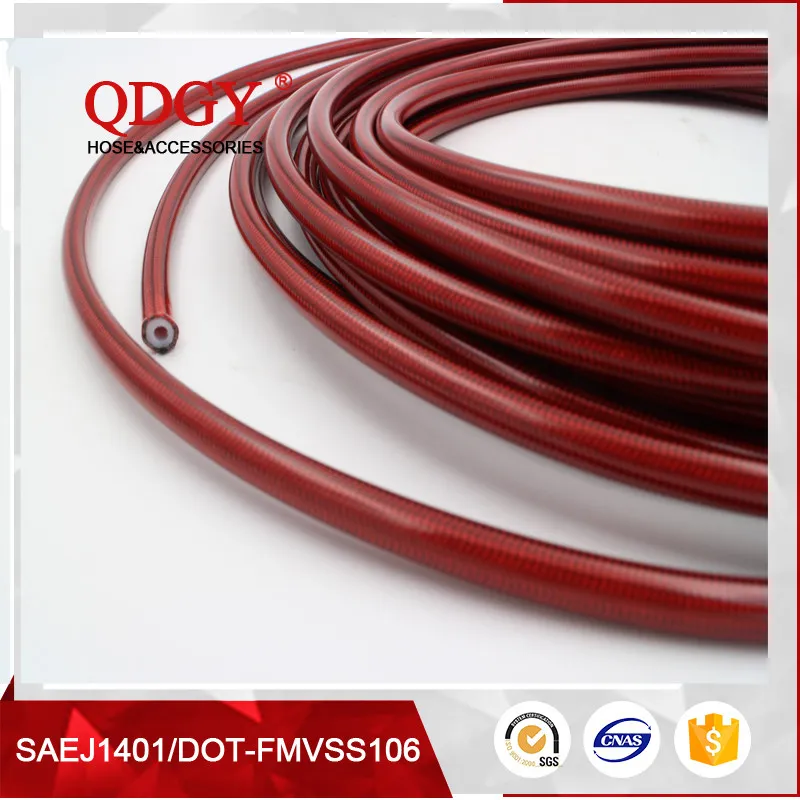

High-performance Motorcycle #3 -3AN PTFE Fuel Brake Hose Pipe. Features include a Stainless Steel braided exterior with various color-coated options (Black, Blue, Yellow, Red, Clear).
| Part NO. | Inner Diameter | Outer Diameter | Outer Layer | Stainless Steel Braid | Inner Layer |
|---|---|---|---|---|---|
| GSG020 | 1/8"(3.2mm) | 0.275"(7.5mm) | PVC/TPU | 304 Stainless Steel | PTFE |
| GSG026 | 3/16"(4.8mm) | 0.374"(9mm) | PVC/TPU | 304 Stainless Steel | PTFE |
| GSG028 | 1/8"(3.2mm) | 0.255"(6.5mm) | No covering | 304 Stainless Steel | PTFE |

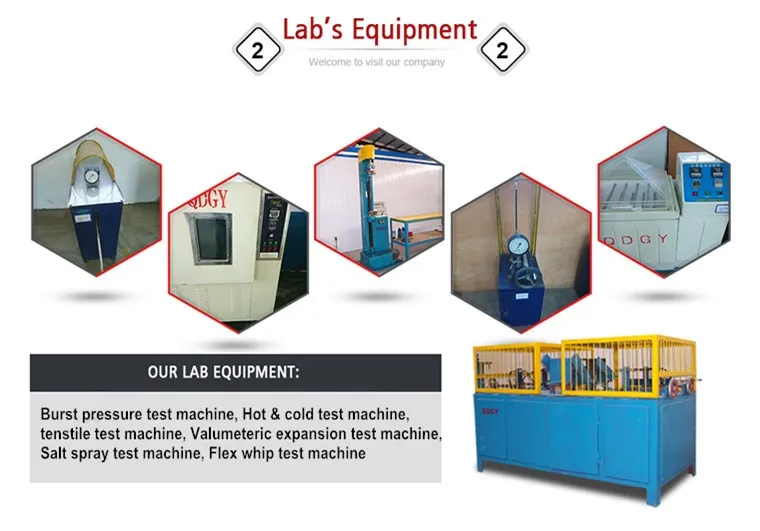

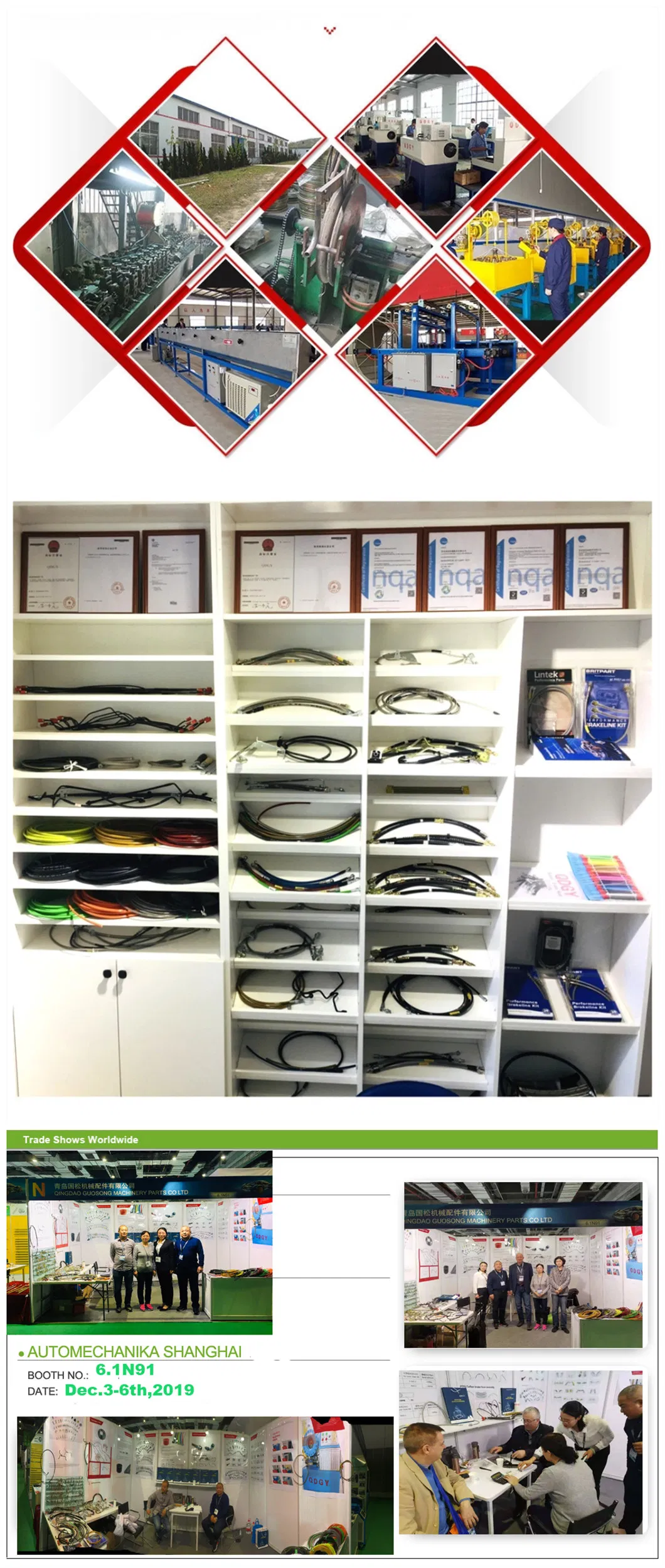

Our facility utilizes advanced testing equipment including Burst Pressure test machines, Hot & Cold test machines, Tensile test machines, and Salt Spray test machines to ensure every product meets high-quality standards.
| Test Items | Condition | Standard | Results |
|---|---|---|---|
| Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
| Burst | 4000psi x 2min | >7000psi | >10,500psi |
| Tensile | 218±3mm/min | >1446N | 2400N |
| Cold Bend | -45°C ~-48°C | No cracking | Passed |

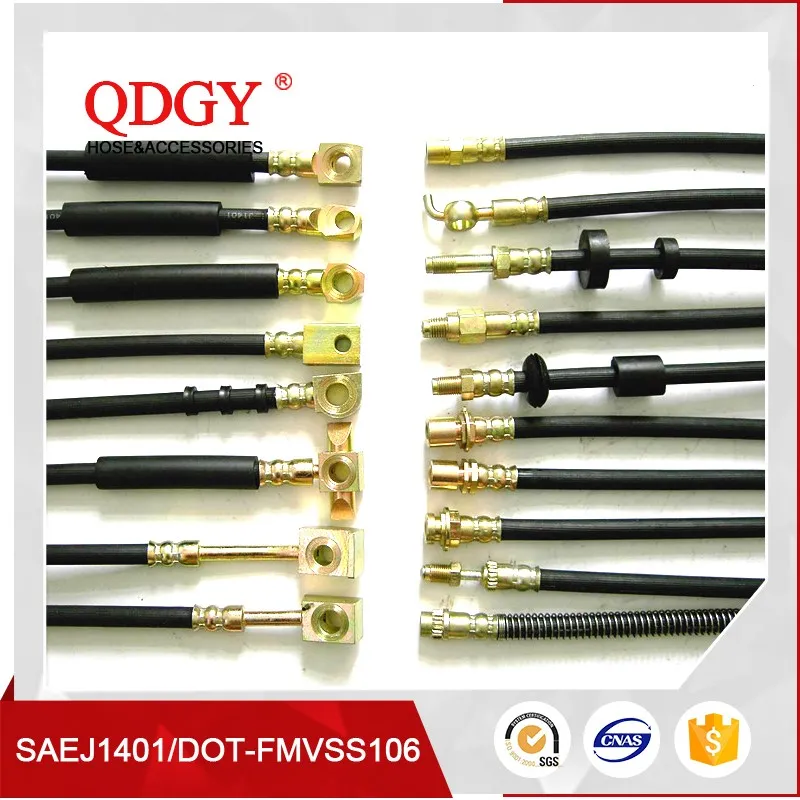

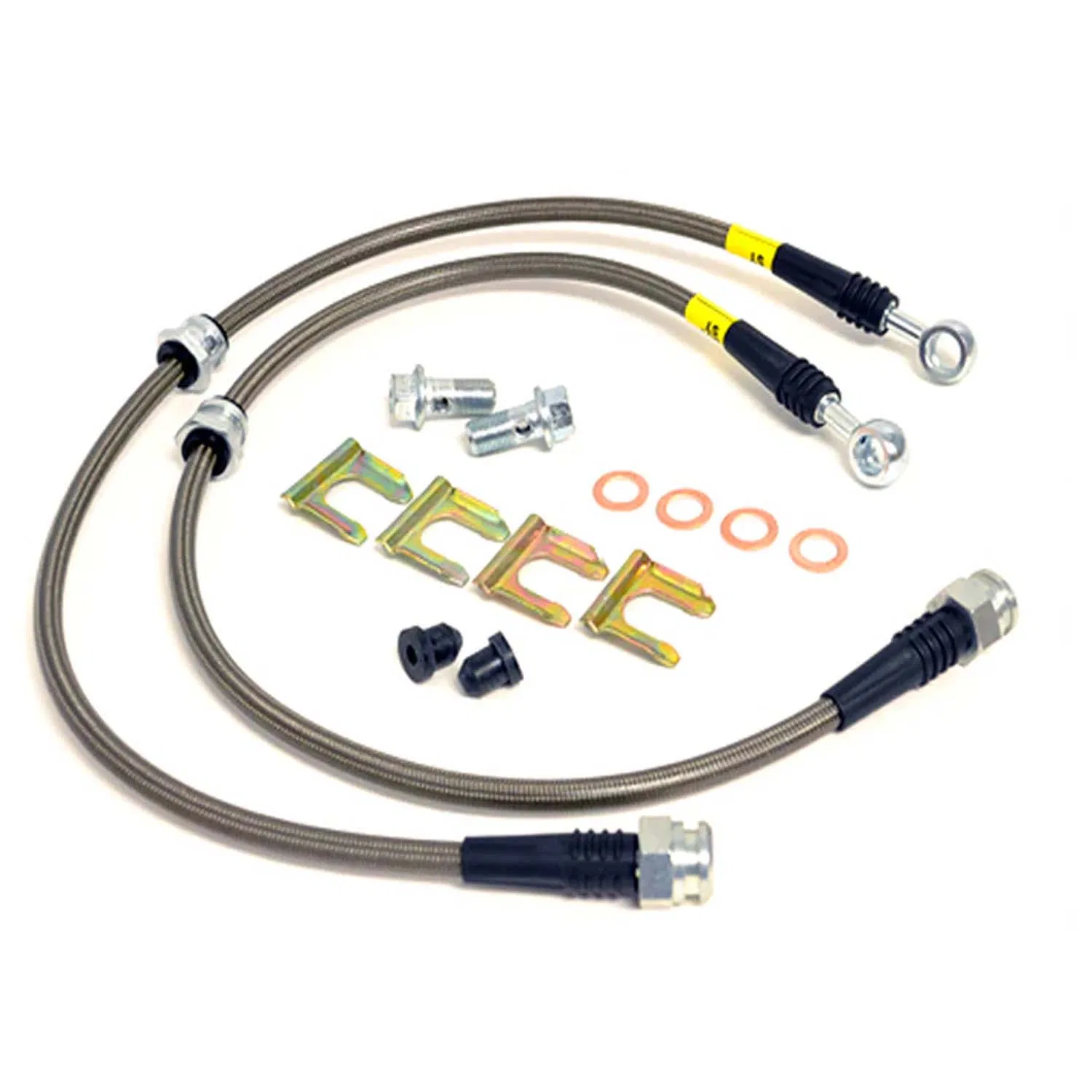

Established in 1998, the factory specializes in the production of SAE J1401 standard brake hoses. Expertise includes OEM brake hoses, custom brake lines, hydraulic brake hoses, and stainless steel braided PTFE hoses. Equipped with internal testing machinery and a strict quality control system, we provide high-quality solutions for air conditioning, power steering, and air brake systems worldwide.
