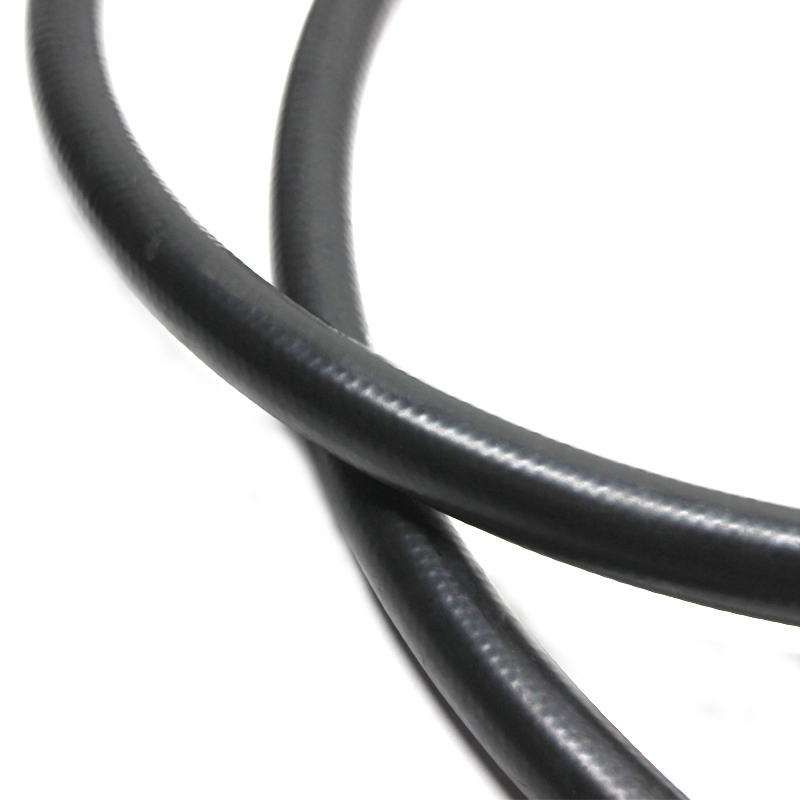

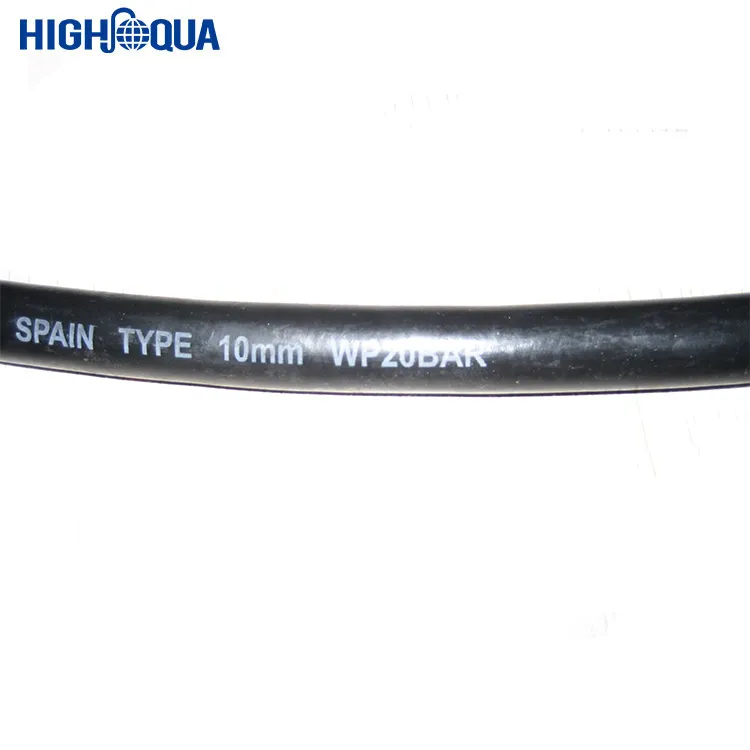

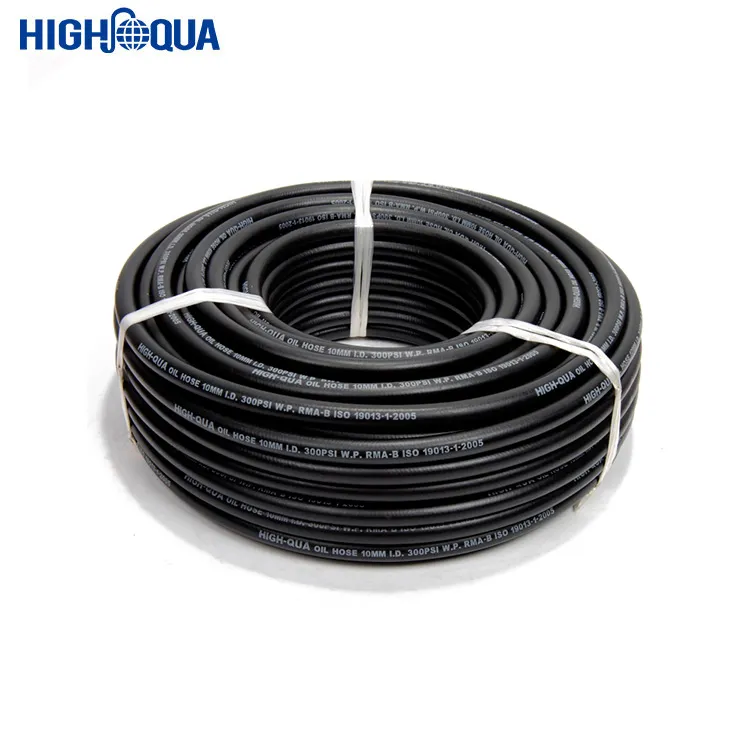

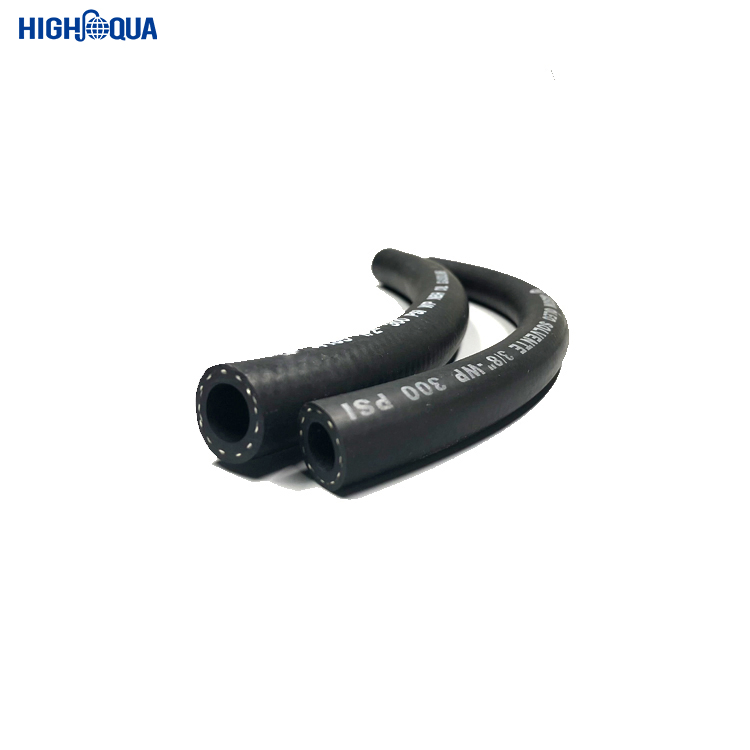

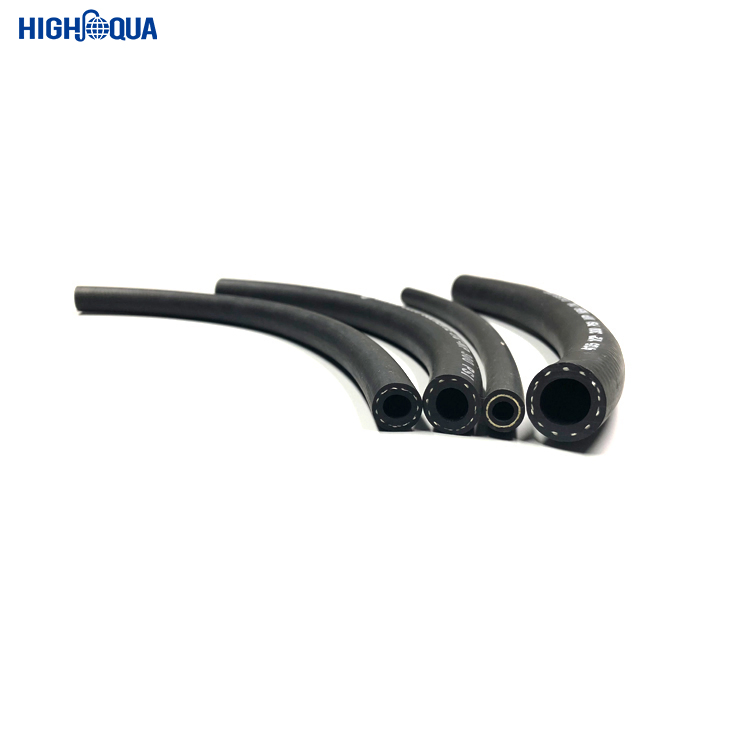

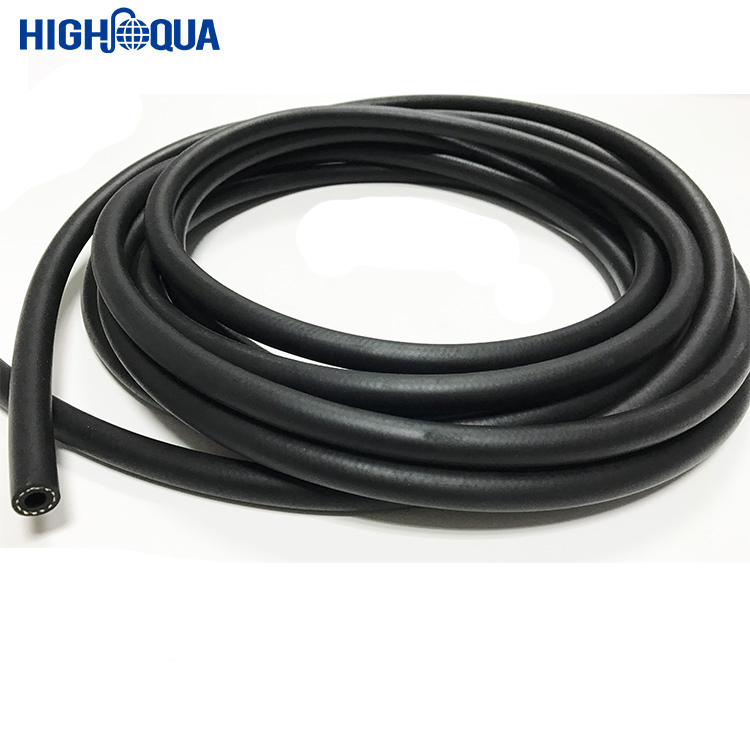

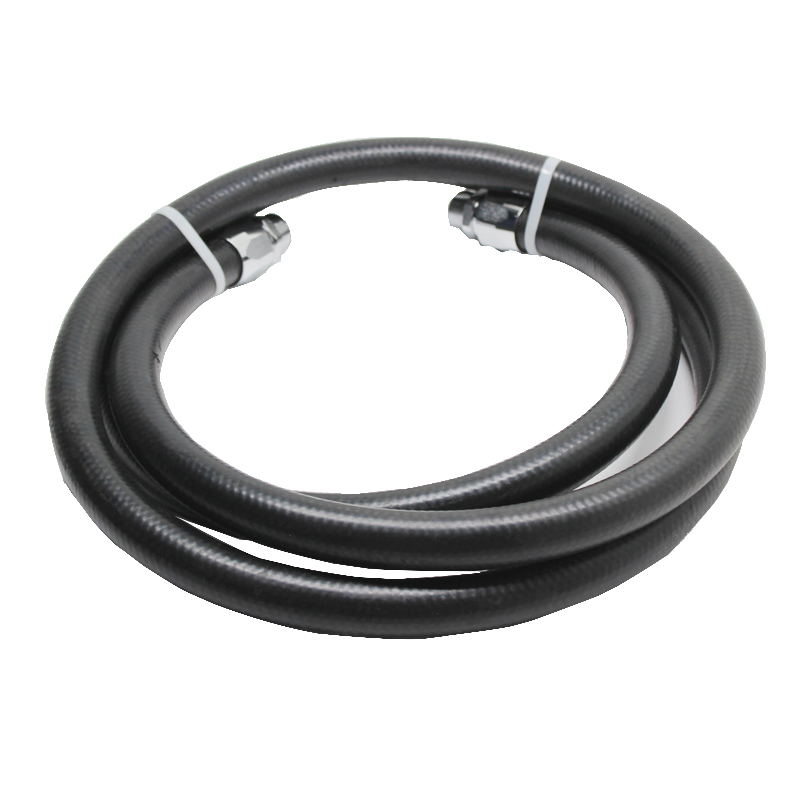

Multipurpose Diesel Black Color Fuel Hose
High-performance rubber hose designed for diesel, biodiesel, hydraulic oil, machinery oil, and lubricating oil applications. Engineered with premium NBR material to meet RMA-B grade standards for medium to high-level oil resistance.
📋 Basic Specifications

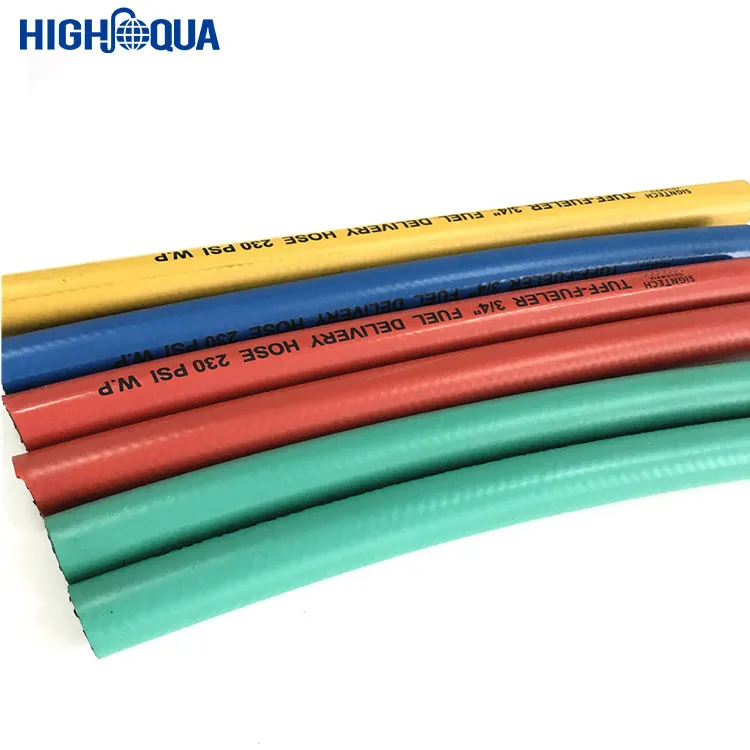

Color
Black, Grey, Blue, Yellow, Red, etc
Working Pressure
Max. 20 bar
Burst Pressure
Max. 60 bar
Surface
Smooth or Textile Surface
⚙️ Product Features
🔹
Premium Material: NBR construction meeting RMA-B grade for superior oil resistance.
🔹

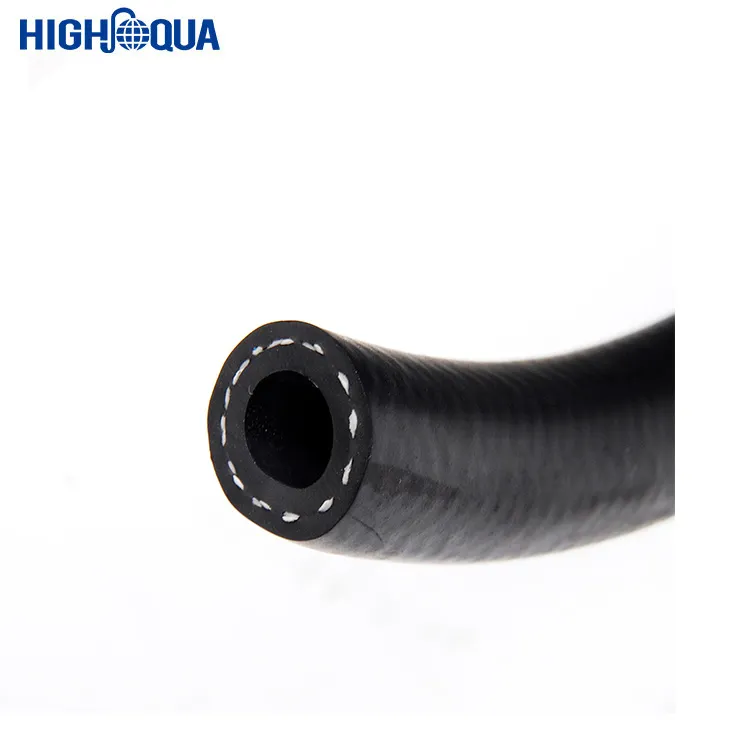

Reinforced Structure: Features high-strength woven fiber middle lining for pressure durability.
🔹
Durable Lining: Interior and exterior linings use specialized oil-endurable compound rubber.
🔹
Wide Temperature Range: Reliable performance from -30°C to +80°C.
🚀 Product Applications
This multipurpose hose is ideal for circulating various fluids including:
- Diesel and Biodiesel
- Hydraulic Oil
- Machinery and Lubricating Oil
- Oil products with aromatic substance content up to 30%
📊 Technical Parameters
| I.D. |
O.D. |
W.P. |
REIFORCE LAYER |
WEIGHT |
UNIT LENGTH |
| in. |
mm |
in. |
mm |
psi. |
mpa. |
kg/m |
m/roll |
| 3/16 | 4.8 | 0.45 | 11.5 | 300 | 2.07 | 1 | 0.15 | 100 |
| 1/4 | 6.4 | 0.63 | 16 | 300 | 2.07 | 1 | 0.18 | 100 |
| 5/16 | 7.9 | 0.59 | 15.0 | 300 | 2.07 | 1 | 0.22 | 100 |
| 3/8 | 9.5 | 0.75 | 19.1 | 300 | 2.07 | 1 | 0.27 | 100 |
| 1/2 | 12.7 | 0.91 | 23.1 | 300 | 2.07 | 1 | 0.40 | 100 |
| 5/8 | 15.9 | 0.96 | 24.5 | 300 | 2.07 | 1 | 0.50 | 100 |
| 3/4 | 19.1 | 1.14 | 29.0 | 300 | 2.07 | 1 | 0.75 | 100 |
| 1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 1 | 0.95 | 100 |
| 1 1/4 | 31.8 | 1.75 | 44.5 | 300 | 2.07 | 2 | 0.70 | 50 |
| 1 1/2 | 38.1 | 2" | 54.0 | 300 | 2.07 | 2 | 0.85 | 50 |
💎 Quality Assurance & Service
✔Certification: SGS certified products highly approved by global authorities.
✔OEM Support: Professional OEM services are welcome for customized branding.
✔Sample Service: Free product samples available for quality verification.
✔Quality Guarantee: Full responsibility for quality from material selection to final delivery.
❓ Frequently Asked Questions
1. What materials are used in the construction of this fuel hose?
We use high-grade NBR (Nitrile Butadiene Rubber) and CR materials. The middle layer is reinforced with high-strength weaving fiber for enhanced durability and pressure resistance.
2. What is the maximum temperature this hose can withstand?
The multipurpose diesel fuel hose is designed to operate safely within a temperature range of -30°C to +80°C.
3. Is this hose compatible with biodiesel?
Yes, it is perfectly suited for circulating diesel, biodiesel, hydraulic oil, machinery oil, and lubricating oil, provided the aromatic substance content does not exceed 30%.
4. Can I request a custom brand or OEM service?
Absolutely. We support OEM requests, including custom printing and embossing on the hose surface to meet your branding requirements.
5. What quality certifications does the product have?
Our products have achieved SGS certification and comply with SAE J1527 specifications, ensuring they meet international quality and safety standards.
6. What is the typical packaging and delivery time?
Standard packaging involves transparent plastic film and woven belts. Delivery times are managed strictly to ensure goods reach the port on schedule based on your specific order requirements.
