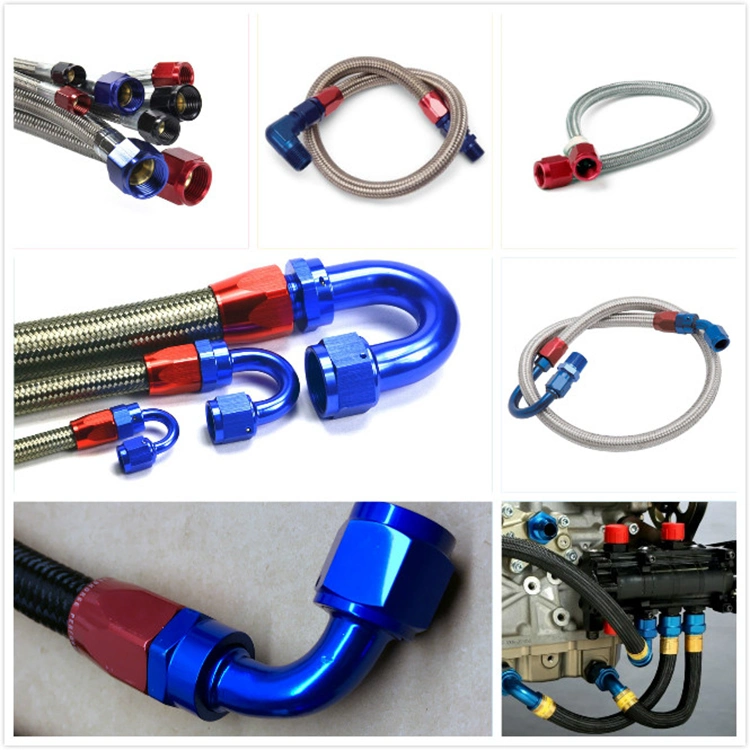

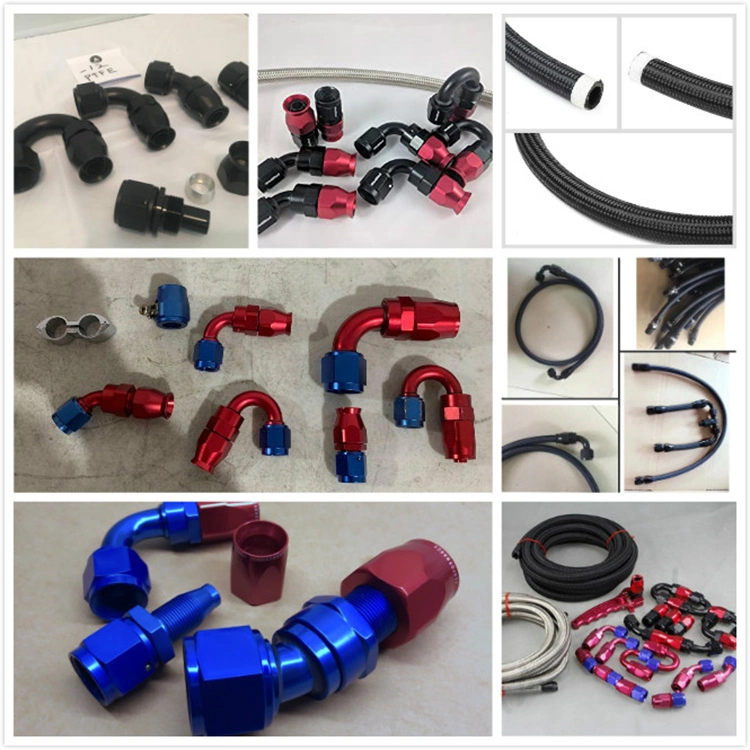

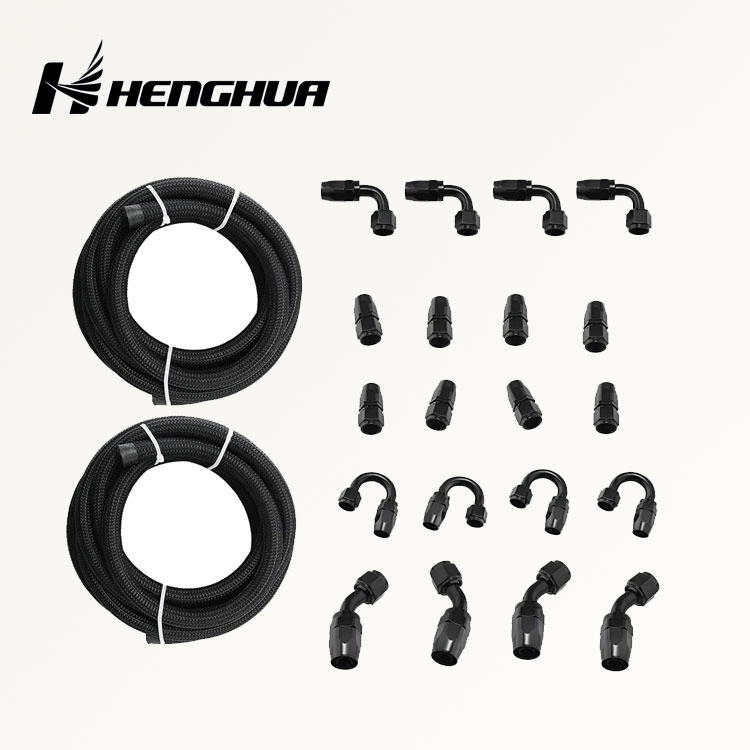

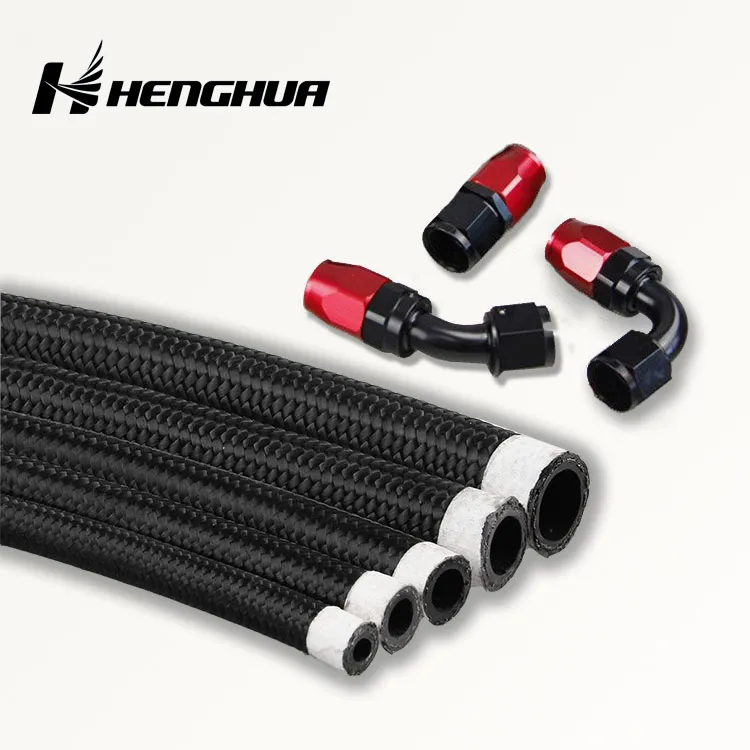

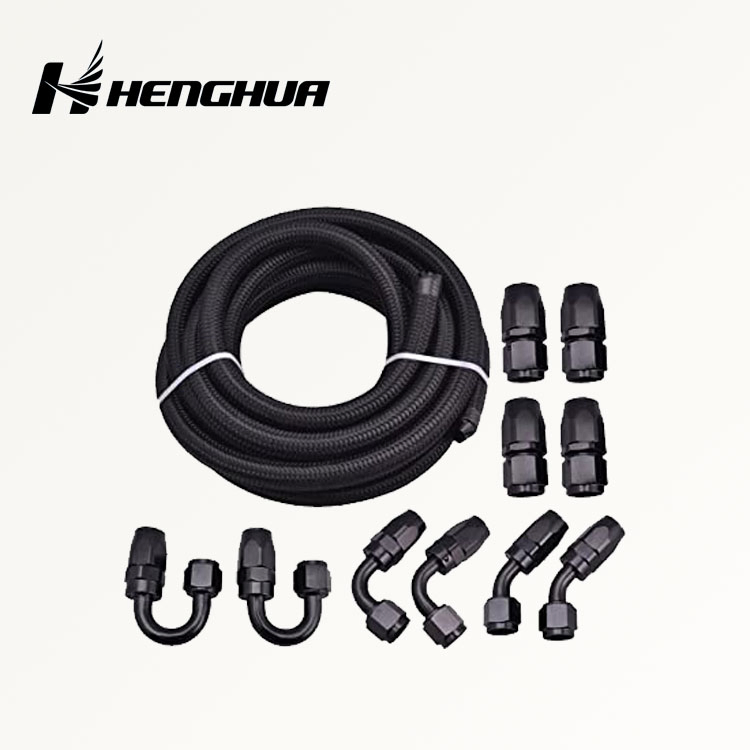

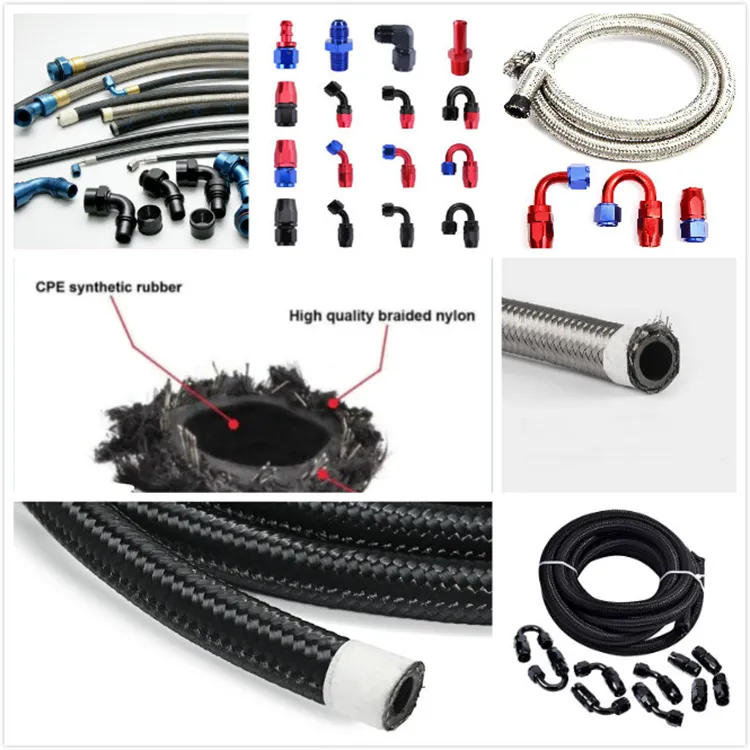

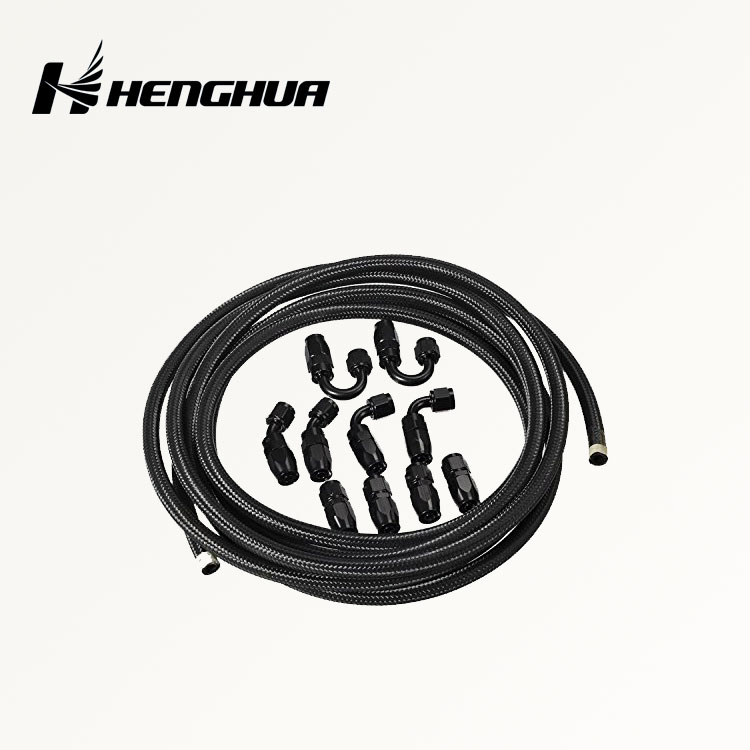

This hose is specially designed to be compatible with any fuel (including methanol and nitromethane), oil, coolant, brake, transmission, clutch, power steering fluids, and nitrous oxide. The core tube makes this hose excellently more durable and longer-lasting than regular stainless steel braided hoses with NBR rubber inner tubes.
Application: Universal Brake Lines, Clutch Lines, Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems, Gauge lines & Power Steering.
Compatibility: Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil. Ideal for use with Unleaded fuel.
| SN | I.D (mm) | O.D (mm) | W.P (MPa) | B.P (MPa) | Bend Radius (mm) | Temp Min | Temp Max |
| 4 | 5.56 | 11.17 | 3.45 | 13.8 | 50.8 | -40 | 148.9 |
| 6 | 8.71 | 14.22 | 3.45 | 13.8 | 63.5 | -40 | 148.9 |
| 8 | 11.13 | 17.2 | 3.45 | 13.8 | 88.9 | -40 | 148.9 |
| 10 | 14.29 | 20.83 | 3.45 | 13.8 | 101.6 | -40 | 148.9 |
| 12 | 17.46 | 24.38 | 3.45 | 13.8 | 114.3 | -40 | 148.9 |
| SN | I.D (mm) | O.D (mm) | W.P (MPa) | B.P (MPa) | Bend Radius (mm) | Temp Min | Temp Max |
| 4 | 5.56 | 11.13 | 7 | 42 | 50.8 | -40 | 148.9 |
| 6 | 8.73 | 13.89 | 7 | 42 | 63.5 | -40 | 148.9 |
| 8 | 11.12 | 16.28 | 7 | 35 | 88.9 | -40 | 148.9 |
| 10 | 14.27 | 20.24 | 7 | 35 | 101.6 | -40 | 148.9 |
| 12 | 17.47 | 23.82 | 7 | 26.3 | 114.3 | -40 | 148.9 |
| 16 | 22.22 | 29.36 | 5.2 | 17.5 | 139.7 | -40 | 148.9 |
| Category | Reinforcement | Product Series |
|---|---|---|
| Hydraulic Hose | One steel wire braided | SAE R1AT, DIN 1SN, SAE R5, SAE 100R17 |
| Two steel wire braided | SAE R2AT, DIN 2SN, DIN 2SC | |
| Four steel wire spiral | SAE R9AT, R10, R12, DIN 4SP, DIN 4SH | |
| Nylon/Thermoplastic | SAE R7, SAE R8 | |
| Industrial Hose | Steam, Water/Air, Fuel/Oil, Washer Hose | |
