Nylon Stainless Steel Braided High Pressure Hydraulic Oil Cooler Rubber Hose

1 / 5

Nylon Stainless Steel Braided High Pressure Hydraulic Oil Cooler Rubber Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Working Pressure

43bar, 625psi

Tube

Oil Resistant Synthetic Rubber

Reinforcement

One High Tensile Steel Wire Braid

Cover

One Textile Braid

Temperature Range

-40 ℃ to +100 ℃

Transport Package

PP Woven Bag or as Customized

Specification

5-46 mm

Trademark

OEM

Origin

China

HS Code

4009210000

Production Capacity

700,000 Meters Per Month

Product Description

Our main products include high pressure hydraulic hoses, steel wire braid hoses, steel wire spiral hoses, fabric braid hoses, steam hoses, sandblasting hoses, industrial and auto hoses, special function hoses, steel wire frame (suction) hoses, metal hoses and assemblies, and various other rubber products. We offer customization for rubber hoses, including extra-long and special shapes, with lengths ranging from 20 to 200 meters based on customer requirements.

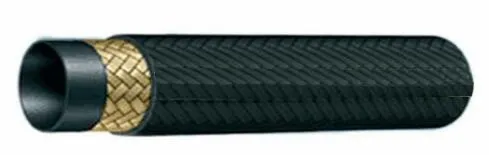

Braided High Pressure Hydraulic Oil Cooler Rubber Hose

Key Performance

EN/DIN and new SAE rated working pressures
Wear resistant cover for enhanced durability
Appearance: Wrap or Wrap resistant finish
Branding: High-quality printing
Available Colors: Black, red, blue, yellow, green, gray

Technical Specifications

Temperature Range: Continuous service from -40°C to +100°C (-40°F to +212°F). Max operating temperature (intermittent service) up to 121°C (250°F).
Insert: Shf type and step-in system.

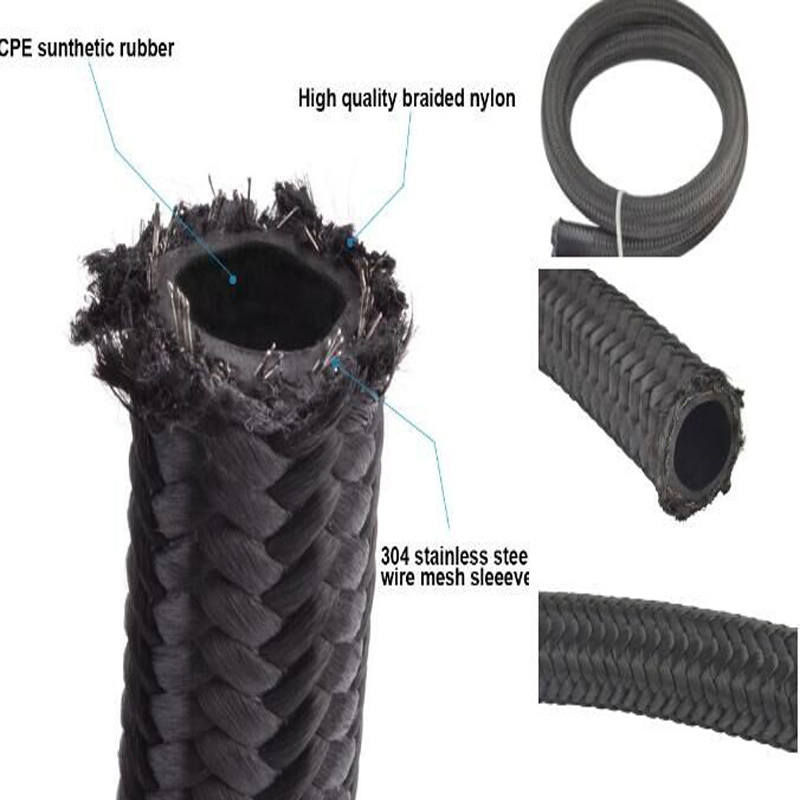

Tube: Oil resistant synthetic rubber.
Reinforcement: One high tensile steel braid.
Cover: One textile braid.

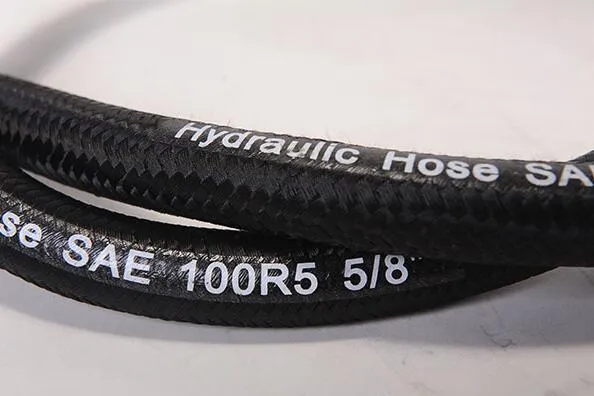

Applicable Specs: SAE 100 R5.

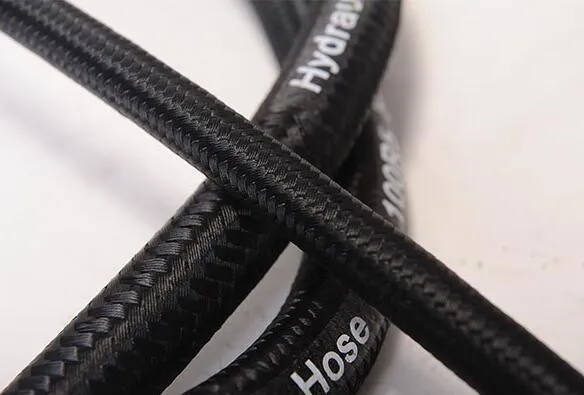

Applications

Ideal for low-medium pressure lines and general-purpose applications. Suitable for Liquefied Petroleum Gas (LPG), CNG, mineral oils, vegetable and rapeseed oils, glycol and polyglycol-based oils, synthetic ester-based oils, oils in aqueous emulsion, water, and diesel fuel (up to 93°C/200°F).

Technical Data Sheet

Model No.	Hose Size I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
Model No.	DN	Dash	Inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
WB R5 5	5	-3	3/16"	-	13.2	210	3040	840	12180	75	0.22
WB R5 6	6	-4	1/4"	-	14.8	210	3040	840	12180	85	0.26
WB R5 8	8	-5	5/16"	-	17.1	157	2270	630	9130	100	0.31
WB R5 10	10	-6	13/32"	-	19.4	140	2030	560	8120	115	0.36
WB R5 12	12	-8	1/2"	-	23.3	122	1760	490	7100	140	0.49
WB R5 16	16	-10	5/8"	-	27.3	105	1520	420	6090	165	0.65
WB R5 22	22	-14	7/8"	-	31.2	56	810	224	3250	185	0.61
WB R5 28	28	-18	1.1/8"	-	38.0	43	625	175	2530	229	0.80
WB R5 35	35	-22	1.3/8"	-	44.3	35	500	140	2030	265	1.02
WB R5 46	46	-29	1.13/16"	-	56.1	24	350	98	1420	335	1.42

Exclusive Advantages

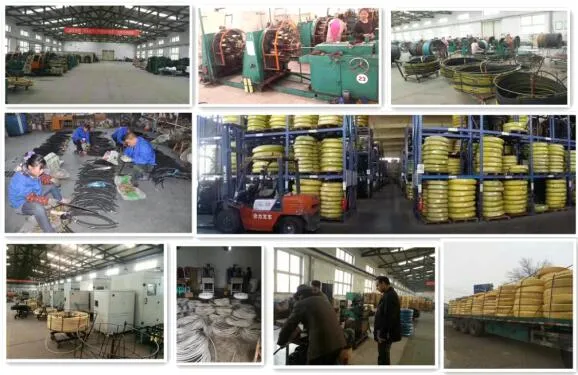

Our Factory & Production

Frequently Asked Questions

Do you produce smooth or cloth wrapped covers?

Yes, we can produce both types of covers depending on the customer's specific request.

Can you produce products with my own brand?

Yes, OEM and ODM services are warmly welcomed. We aim to create mutual benefits through professional cooperation.

Could we get free samples?

Yes, we can provide free samples for your evaluation.

Are different colors available for the hoses?

Yes, we currently provide hoses in black, grey, red, blue, and yellow.

Do you offer hose crimping services?

Yes, we can provide professional hose assembly crimping for our customers.

How long does order delivery take?

Delivery usually takes between 5 to 30 days, depending on the order quantity and our current stock levels.
