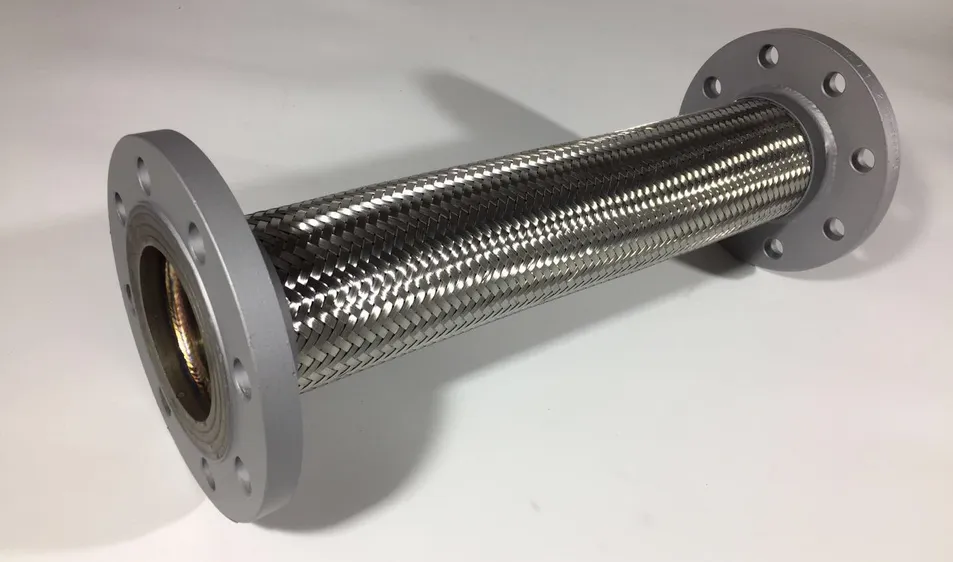

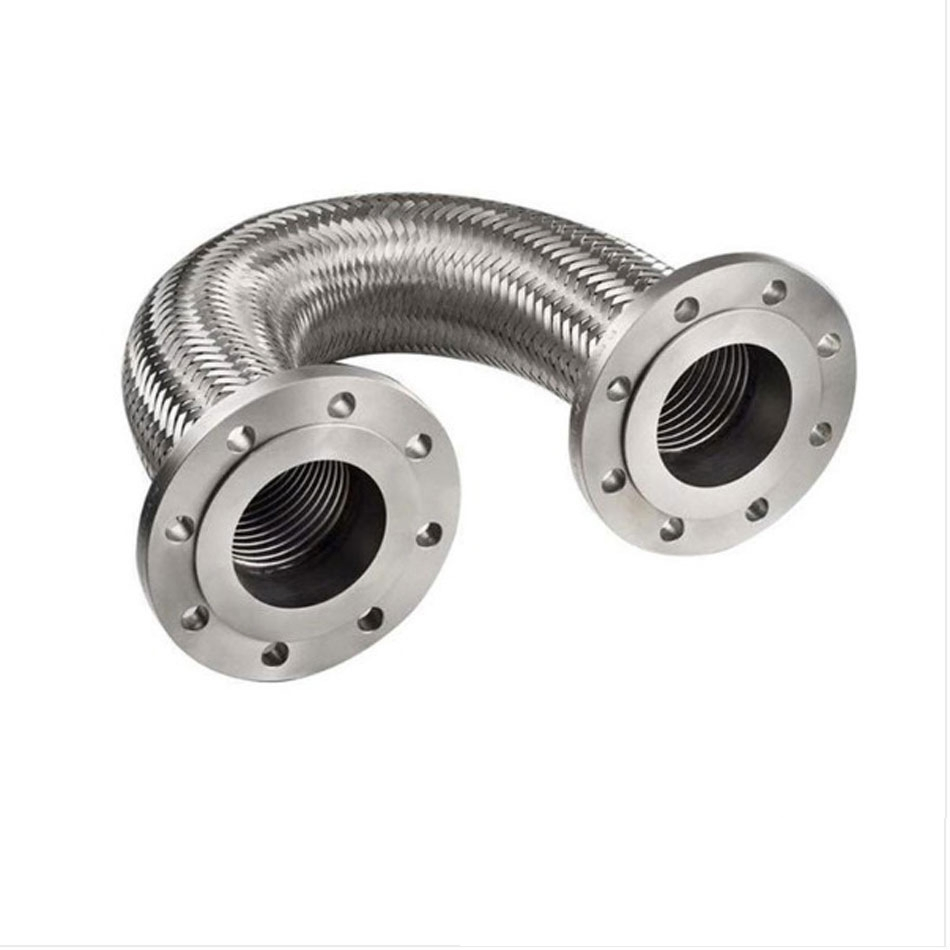

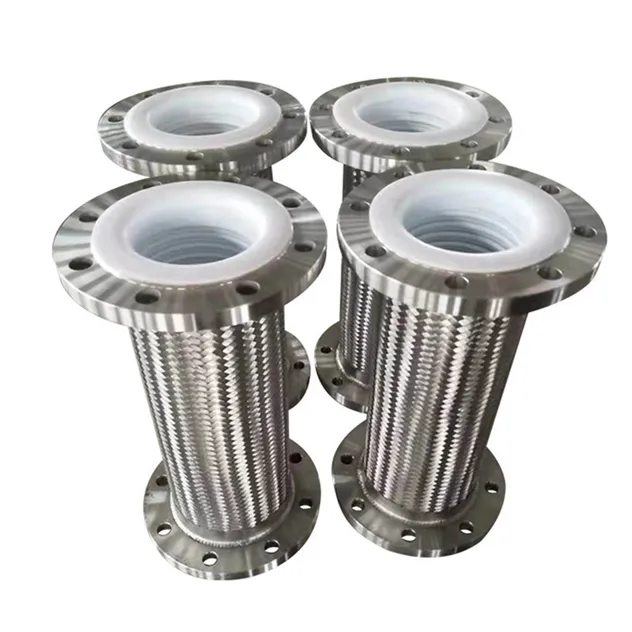

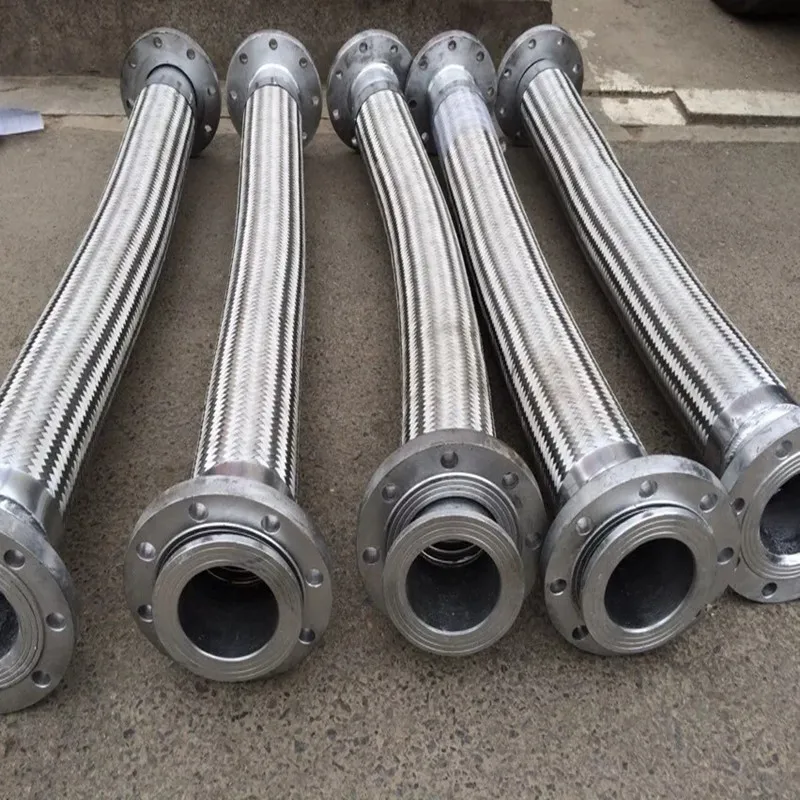

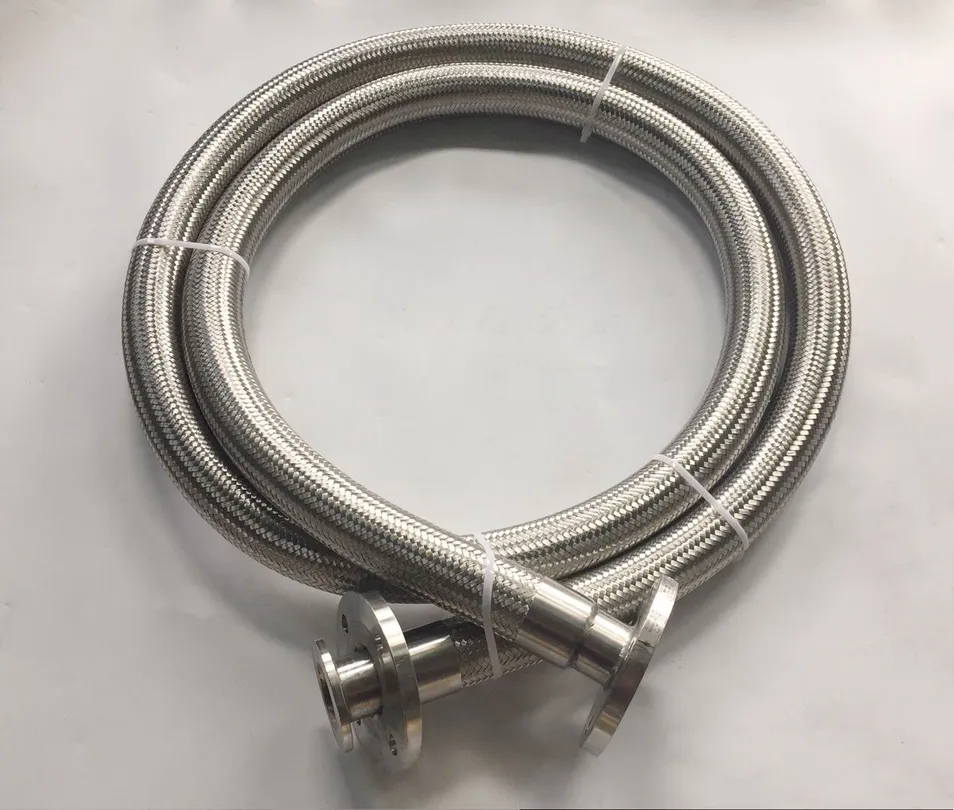

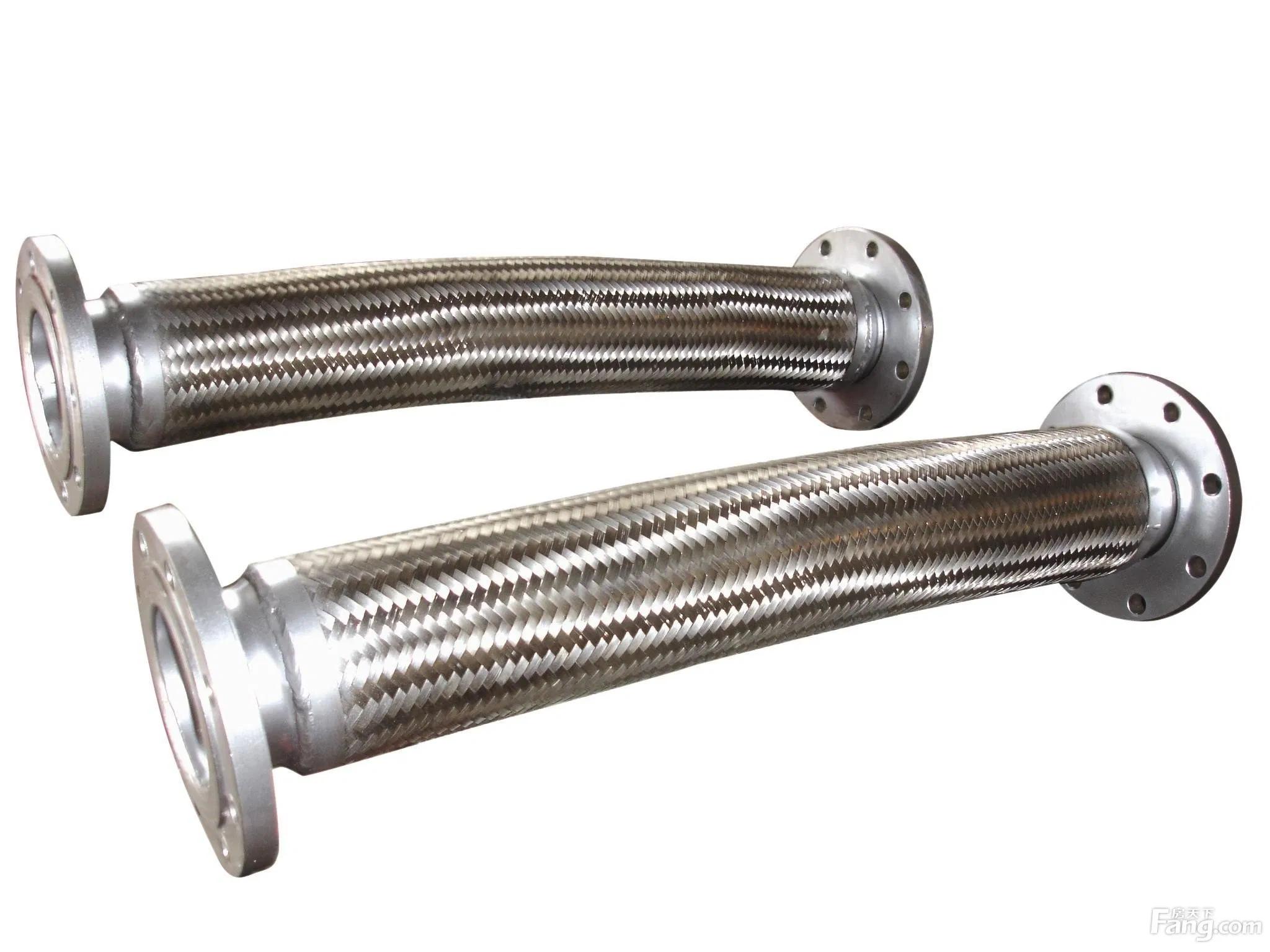

Industrial Metal Hose 316L Stainless Steel Flexible Hose with SS304 Flange for Corrosive Media Applications
Our stainless steel corrugated and braided metal hose is a top-tier choice for industrial fluid transfer, featuring robust SS304/316 construction, multi-layer braiding, and precision-engineered connections. Designed to tackle vibration, thermal expansion, and misalignment in sectors like chemical, oil & gas, and power, it delivers reliability and longevity that outpaces industry norms.
| Item | Details |
|---|---|
| Material | - Hose: SS304, SS316, SS321 - Braid: SS304 - Fittings: Galvanized Steel/SS304 Flange |
| Size Range | 3/4" to 12" (Custom Length: 0.5m - 20m) |
| Pressure Rating | Working: 10-25 Bar; Burst: ≥30 Bar |
| Temperature Range | -60℃ to 600℃ |
| Standards Complied | GB/T 14525, ASME B31.3 |
| I.D. (In.) | O.D. Hose (mm) | MBR Static (mm) | MBR Dynamic (mm) | Pressure 1 Layer (Mpa) | Weight 1 Layer (kg/m) |
|---|---|---|---|---|---|
| 3/4" | 28 | 100 | 180 | 5.0 | 0.60 |
| 1" | 34 | 120 | 280 | 4.0 | 0.85 |
| 2" | 63 | 220 | 550 | 2.5 | 1.75 |
| 4" | 123 | 400 | 1000 | 1.6 | 3.70 |
| 6" | 178 | 600 | 1500 | 1.5 | 6.60 |
| 12" | 360 | 1200 | 3000 | 1.0 | 31.40 |
