SAE 100 R1at 14 Nw 6 800 Bar 6m Brake Stripe High Power Steering Quality Wire Braid Hydraulic Hose Pipe for Forklift

1 / 5

SAE 100 R1at 14 Nw 6 800 Bar 6m Brake Stripe High Power Steering Quality Wire Braid Hydraulic Hose Pipe for Forklift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Color:

Black

Model:

1sn 2sn 4sp 4sh R15 R16 R17

Length:

20m, 40m, 60m or as requested

Hose I.D.:

3/16''~3"

Max Work Pressure:

3630psi (25MPa)

Min Bursting Pressure:

14500psi (100MPa)

Min Bending Radius:

90mm

Weight:

0.19~2.35kg/M

Trademark:

UGW

Origin:

China

Product Overview

Rubber Hydraulic Hose SAE100 R2 AT / DIN EN 853 2SN

⚙️

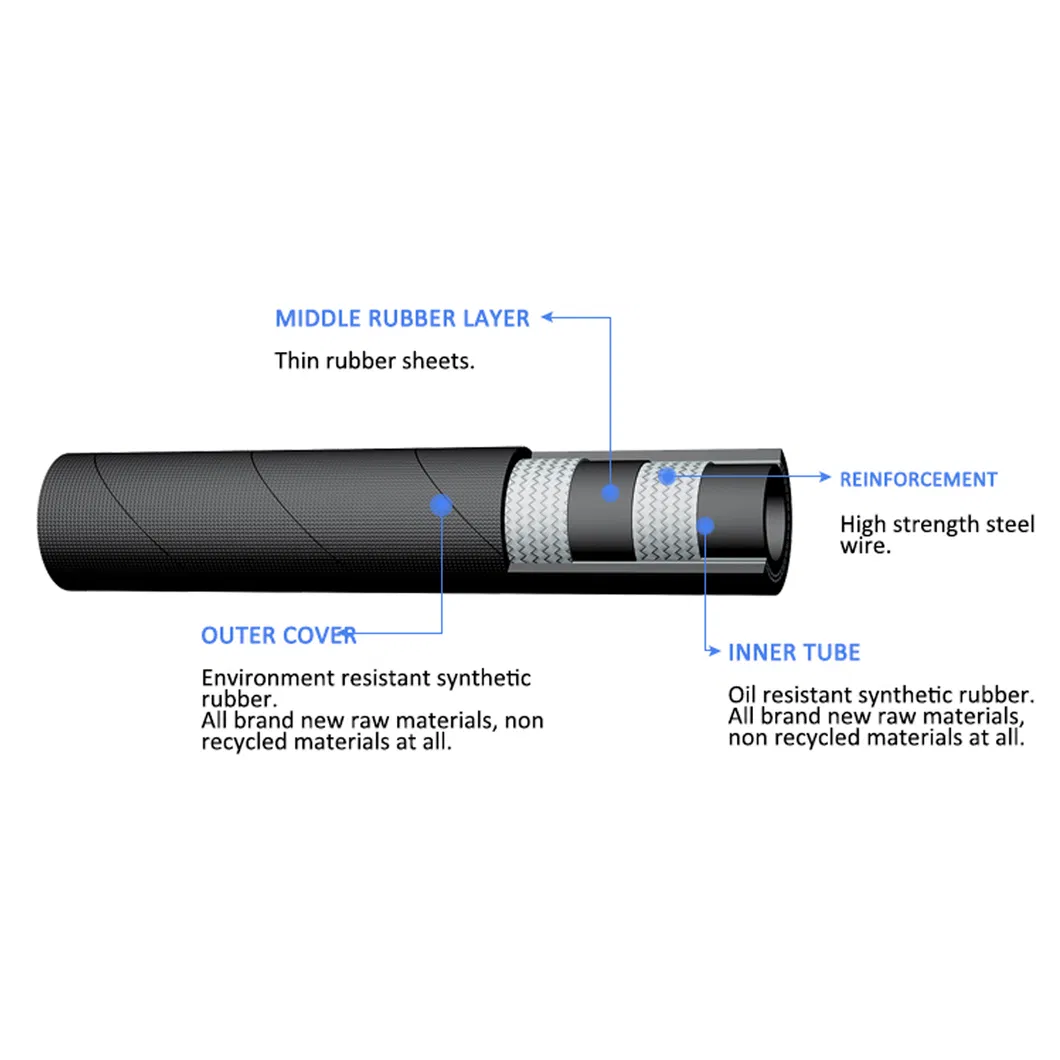

High Performance Construction:
- Tube: Oil resistant synthetic rubber.
- Reinforcement: Two high tensile steel braids.
- Cover compound: Abrasion, ozone and hydrocarbon resistant synthetic rubber.

🌡️

Operation Limits:
- Constant operation: -40 °C to +100 °C (-40 °F to +212 °F)
- Air max T: +70 °C (+160 °F)
- Safety factor: 1:4

SAE 100 R2 Technical Data

Items Number	Hose Size		Max W.P.		Min B.P.		Min. B.R.	Weight
Items Number	in	mm (O.D.)	MPa	psi	MPa	psi	mm	Kg/m
2SN-3	3/16	14.1	41.5	6019	165	23930	90	0.27
2SN-4	1/4	15.7	40.0	5801	160	23204	100	0.34
2SN-5	5/16	17.3	35.0	5076	140	20304	115	0.39
2SN-6	3/8	19.7	33.0	4786	132	19144	130	0.49
2SN-8	1/2	23.0	27.5	3989	110	15956	180	0.59
2SN-10	5/8	26.2	25.0	3625	100	14500	200	0.71
2SN-12	3/4	30.1	21.5	3118	86	12472	240	0.89
2SN-16	1	38.9	16.5	2393	65	9430	300	1.37
2SN-20	1 1/4	49.5	12.5	1813	50	7252	420	2.27
2SN-24	1 1/2	55.9	9.0	1305	36	5220	500	2.44
2SN-32	2	68.6	8.0	1160	32	4640	630	3.00

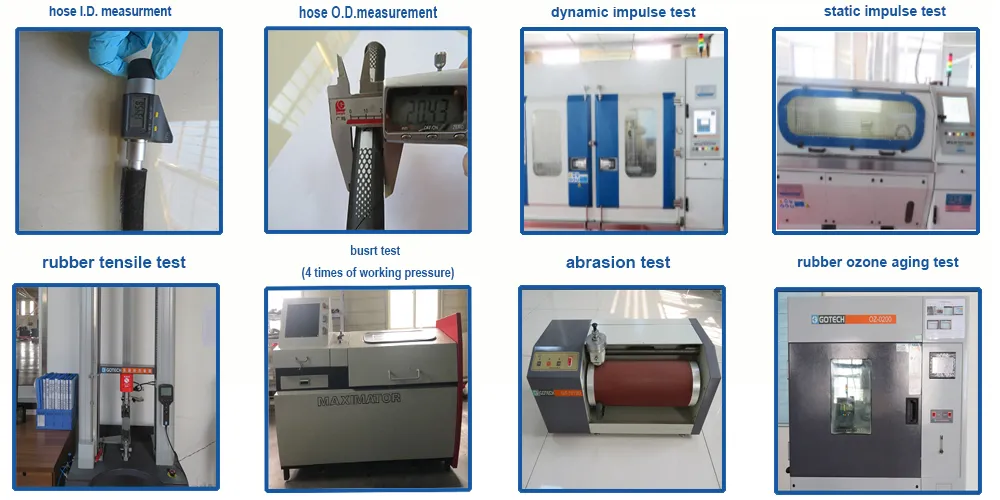

Quality Control & Packing

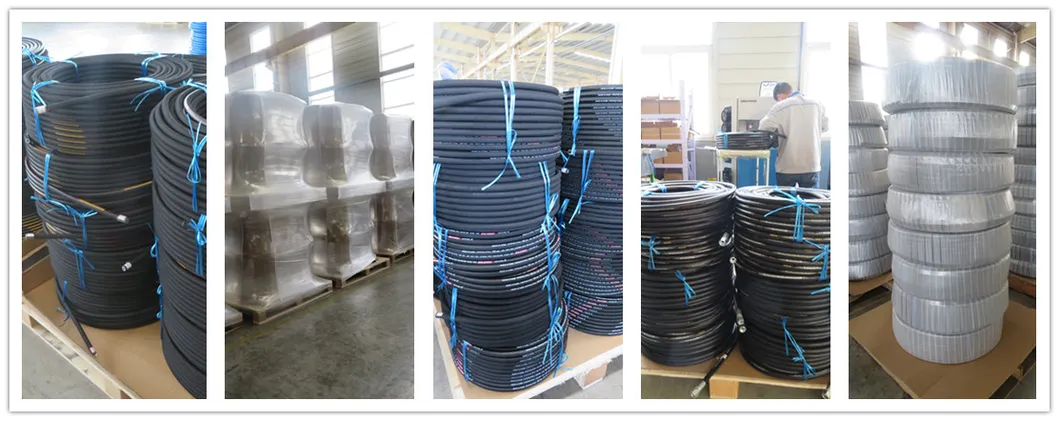

📦 Packaging Options:

Woven Belt: 20m/roll, 50m/roll, 100m/roll
Wooden box or wooden frame (common for hose assemblies)
Special customized packing available upon request

Frequently Asked Questions

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures as required.

What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers are responsible for the sample cost and the courier fees.

Do you test all your goods before delivery?

Yes, we conduct 100% rigorous testing on all hydraulic hoses before delivery to ensure maximum safety and performance.

How do you ensure long-term business relationships?

We maintain superior quality and competitive pricing to ensure our customers benefit, while respecting every client as a partner regardless of their origin.

What are the available surface finishes for the hose?

The hydraulic hoses are available in both smooth and cloth surface finishes to suit different application needs.

What is the working temperature range for SAE 100 R2 hoses?

Our hoses are designed for constant operation between -40 °C to +100 °C (-40 °F to +212 °F).
