| Model NO. | Power Steering Hose | Certification | ISO, AISI, DIN, CE, ASTM, JIS, GB, BS, DOT |
| Standard | Standard | Condition | New |
| Inside Rubber | CSM | Outside Rubber | CSM |
| Reinforcement | PA | Surface | Cloth or Smooth |
| Detail Standard | SAE J188, MS263-53 | Feature | High Expansion, High Pressure, Pulse Resistance |
| Detail Size | 1/4, 5/16, 3/8, 1/2, 5/8 | HS Code | 4009310000 |

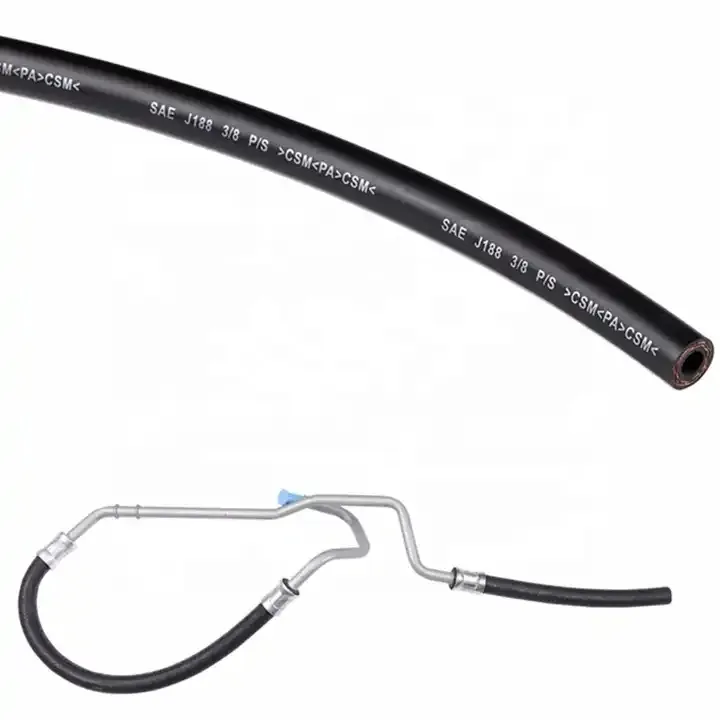

SAE J188 Standard Vehicle Automotive Hydraulic High Pressure Power Steering System Hose

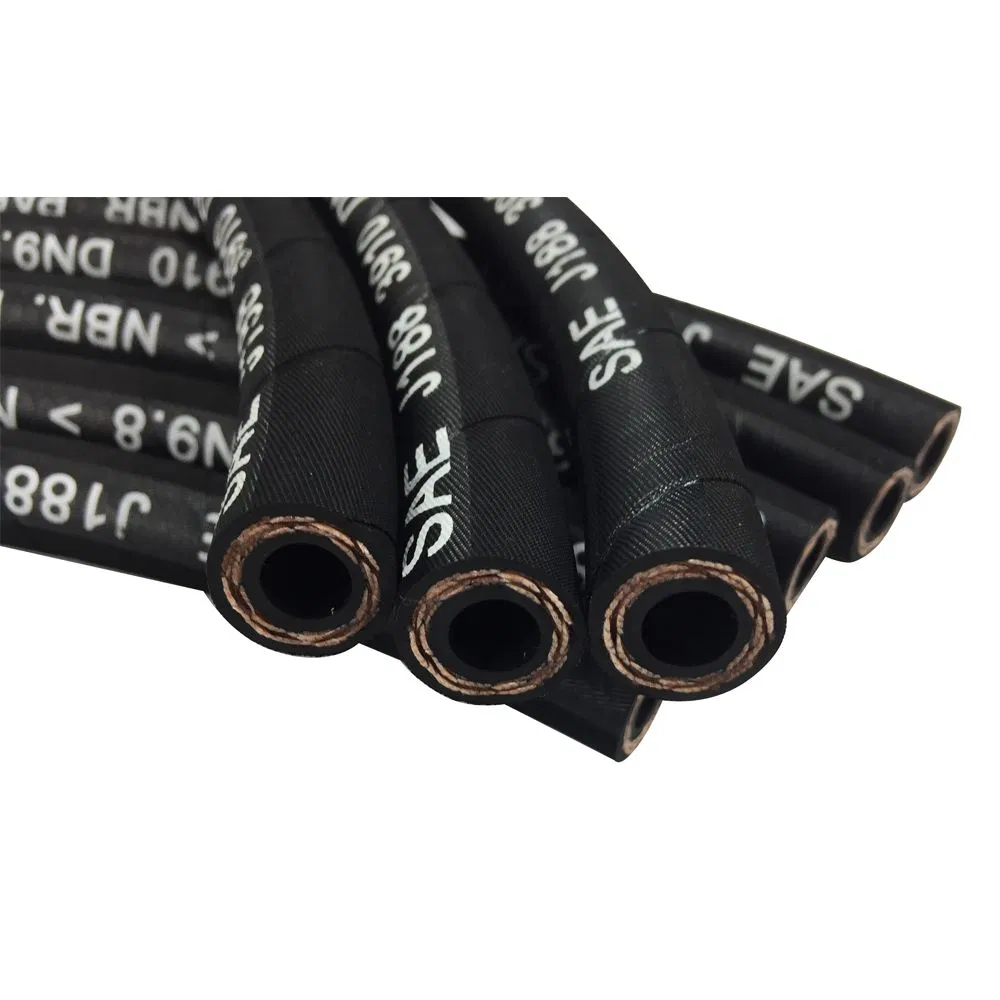

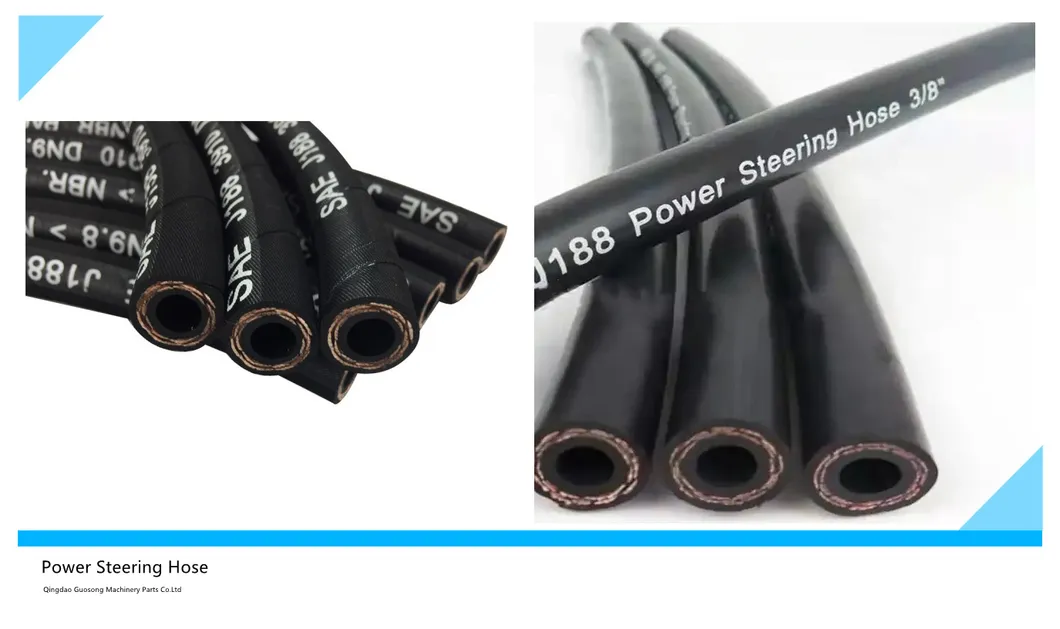

Black High pressure power steering hose with wrapped cover and 2 layers of braided reinforcement. Low volume expansion, low noise transmission and high flexibility. Used in the automotive section both in the OEM and the Aftermarket. Used for the high pressure side of the power steering system.

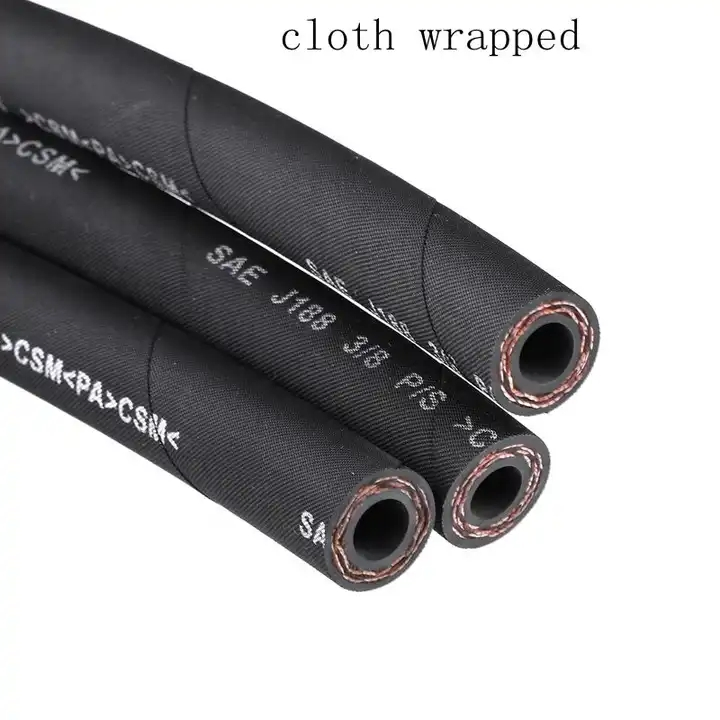

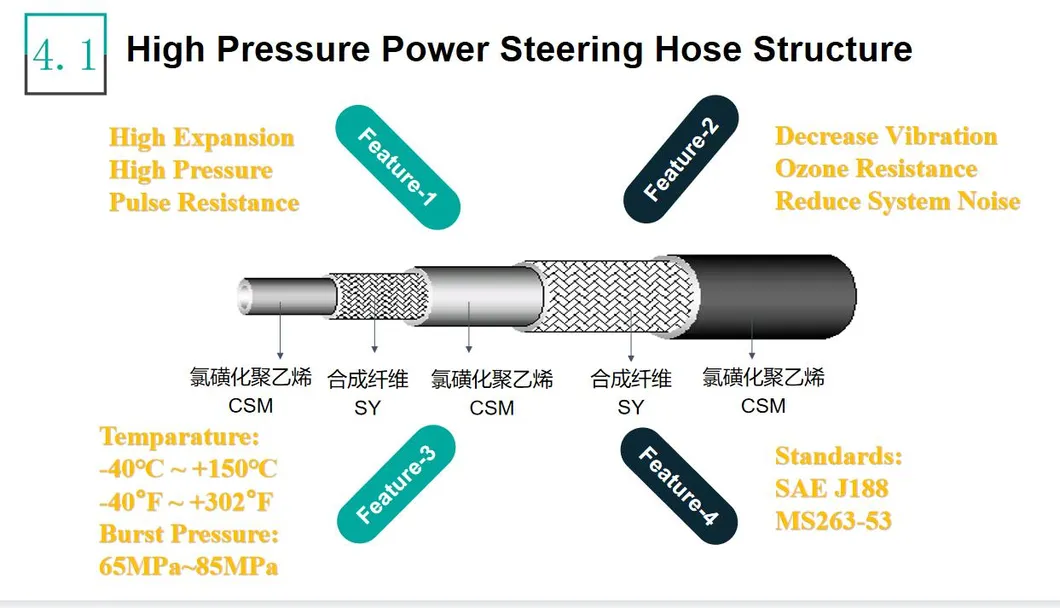

Structure: CSM + TWO LAYER PA + CSM (Smooth or Cloth Surface)
| Component | Material / Value |
|---|---|
| Temperature Range | -40ºC ~ +150ºC |
| Inside Rubber | CSM |
| Reinforcement | PA |
| Outside Rubber | CSM |

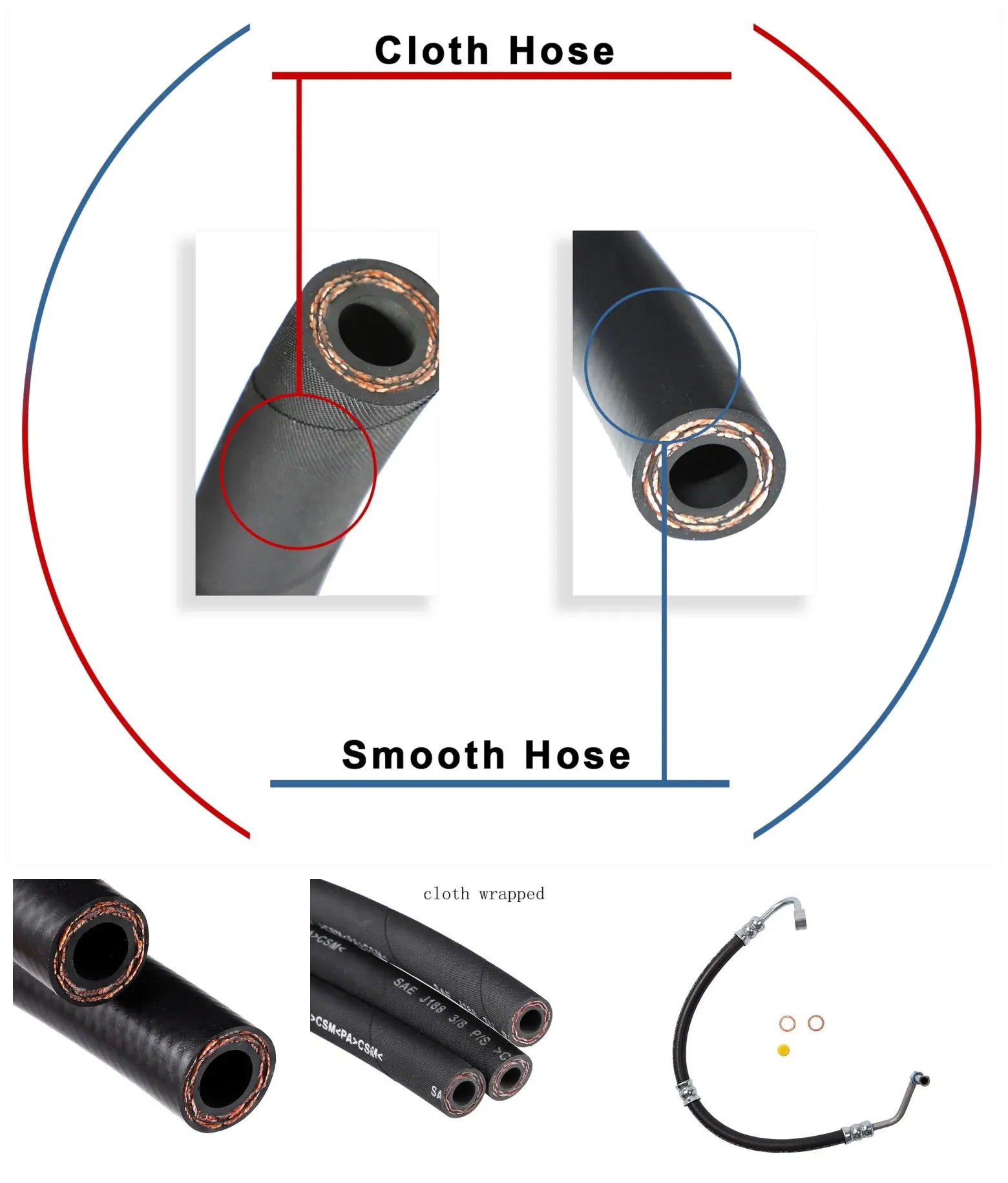

| Surface | Rubber or Cloth |

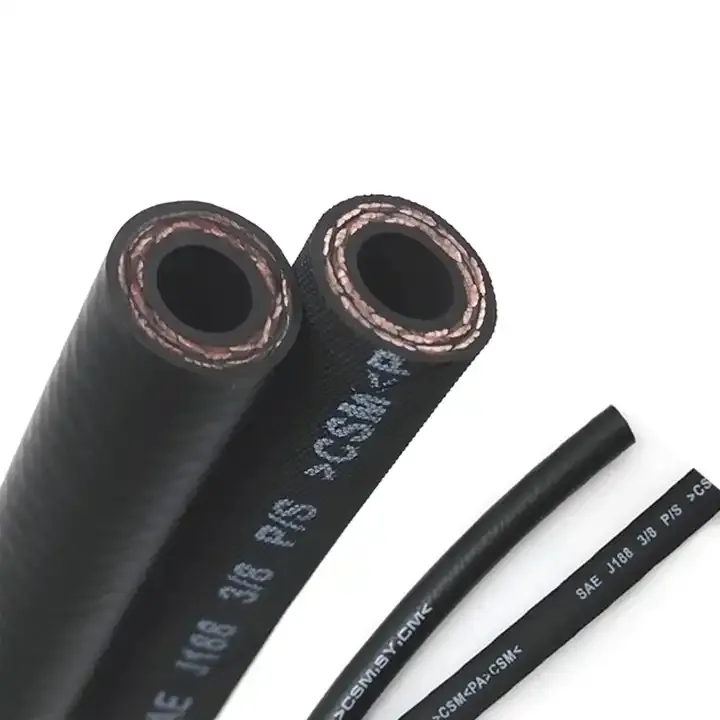

Hose Size Lists: 1/4", 5/16", 3/8", 1/2", 5/8"
| Specification | I.D (mm) | O.D (mm) | Burst Pressure (Mpa) | Burst Pressure (PSI) |
|---|---|---|---|---|
| 1/4" | 6.3±0.2 | 14.5±0.3 | 65~85 | 9400~12300 |
| 5/16" | 8.0±0.2 | 18.0±0.4 | 65~85 | 9400~12300 |
| 3/8" | 9.5±0.3 | 18.5±0.4 | 65~85 | 9400~12300 |
| 1/2" | 13.0±0.5 | 23.0±0.5 | 65~85 | 9400~12300 |
High pressure power steering hose is especially suitable for oils, solvents, lubricate oils and other liquids. Its cover is made of CSM which excels in resisting ozone, heat and oils. Reinforcements are braided for maximize working pressure up to 2500 psi.

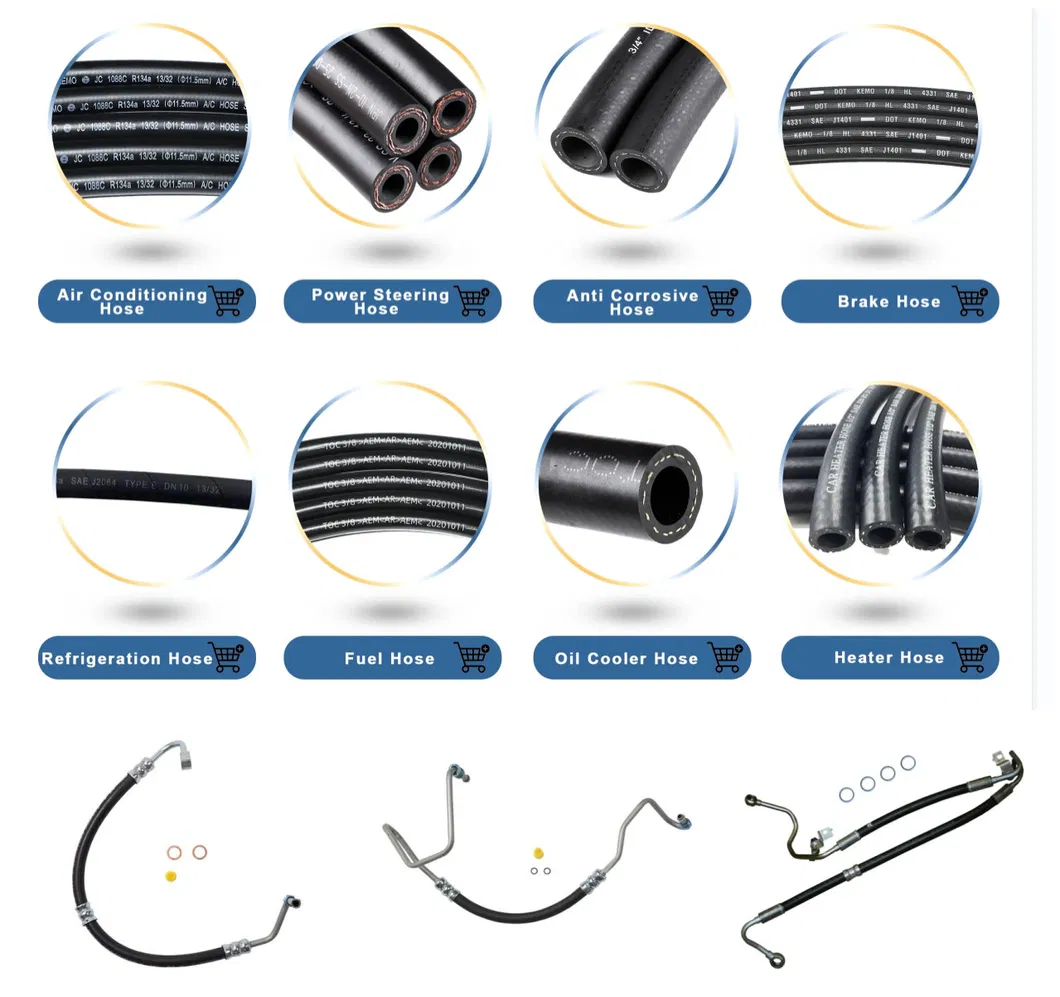

Wide range of automotive hoses available:
High Pressure Power Steering Hose, Low Pressure Hose, Brake Hose, Teflon Hose, Air Conditioning Hose, Fuel Injection Hose, Oil Cooler Hose, Heater Hose, and Nylon Hose with various end fittings.

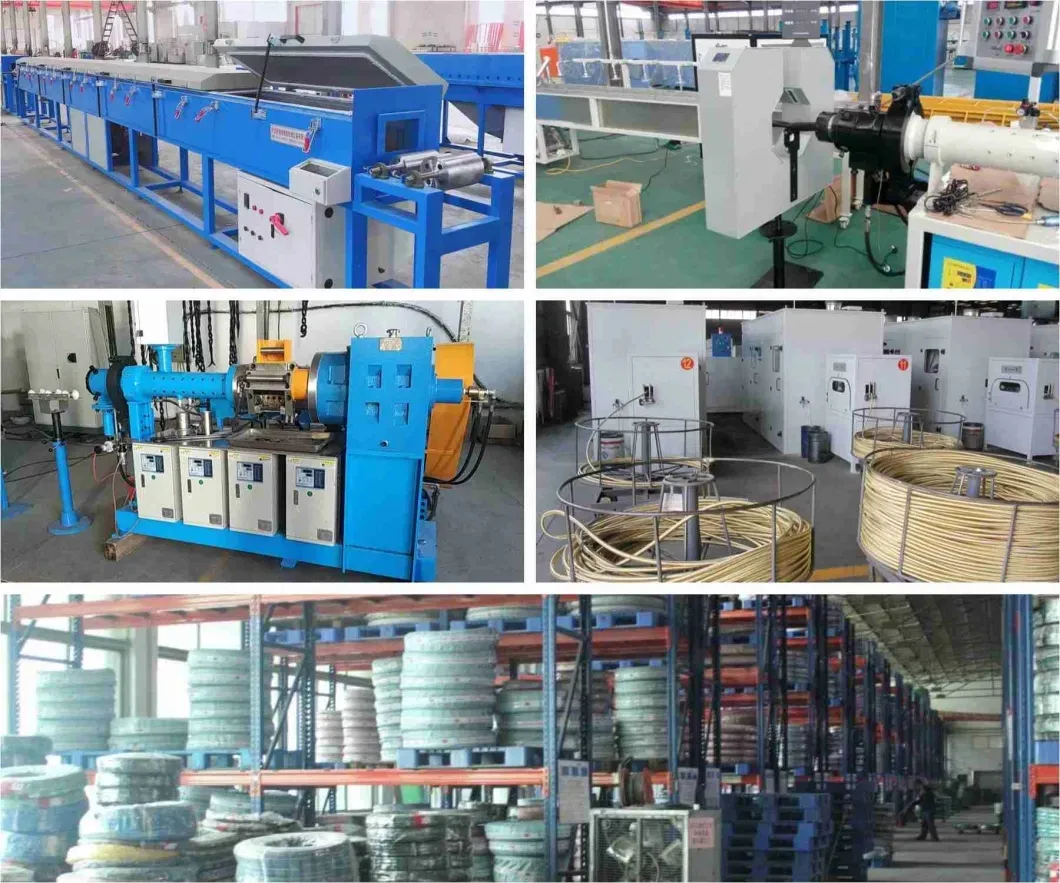

With extensive experience in the production of brake and steering hose products, the range includes tens of thousands of specifications tailored to specific customer needs. Products are manufactured with variety of superior materials to meet varied requirements of Automobile and Motorcycle Industry.
