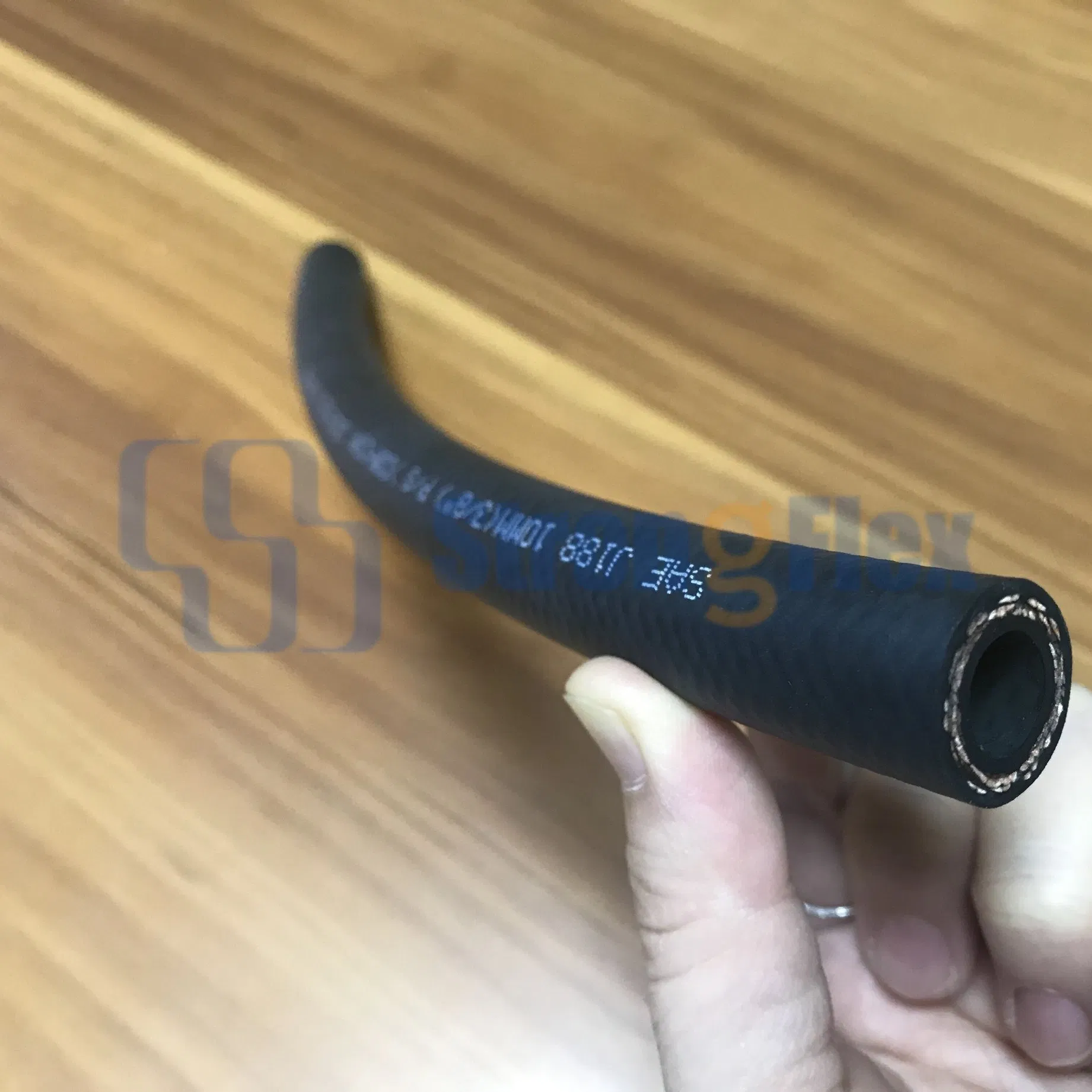

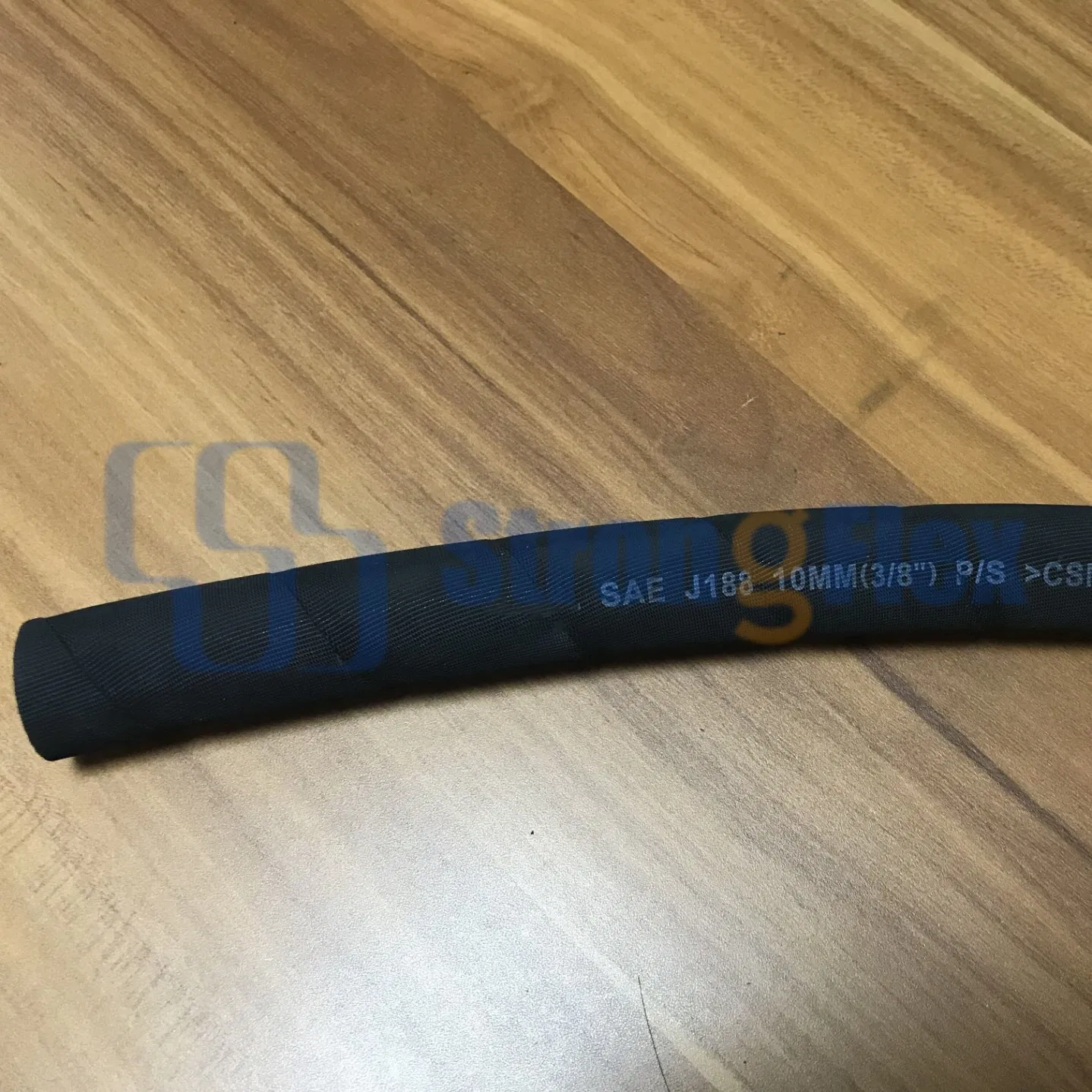

Hot Sale Auto Hose SAE J1401 Hydraulic Brake Hose
1. Tube: Oil resistance synthetic rubber (CSM)
2. Temperature range: -40°C ~+250°C
3. Cover: Synthetic rubber with excellent aging resistance and weather ability (CPE/CSM). Surface treatment: Smooth surface and cloth wrapped.
4. Reinforcement: High tensile fiber braided, high tensile fiber wire braided.
| Hose Type (Dash) | Dimension (mm) | Dimension (Inch) | O.D. (mm) | Wall Thickness (mm) | Wall Diff Max (mm) | Working Pressure (mpa) | Bursting Pressure (mpa) |
|---|---|---|---|---|---|---|---|
| 1 | 9.8±0.3 | 3/8" | 19.8±0.5 | 5.0 | 0.4 | 10.3 | 58 |
| 2 | 9.8±0.3 | 3/8" | 18.2±0.5 | 4.2 | 0.4 | 10.3 | 55 |
