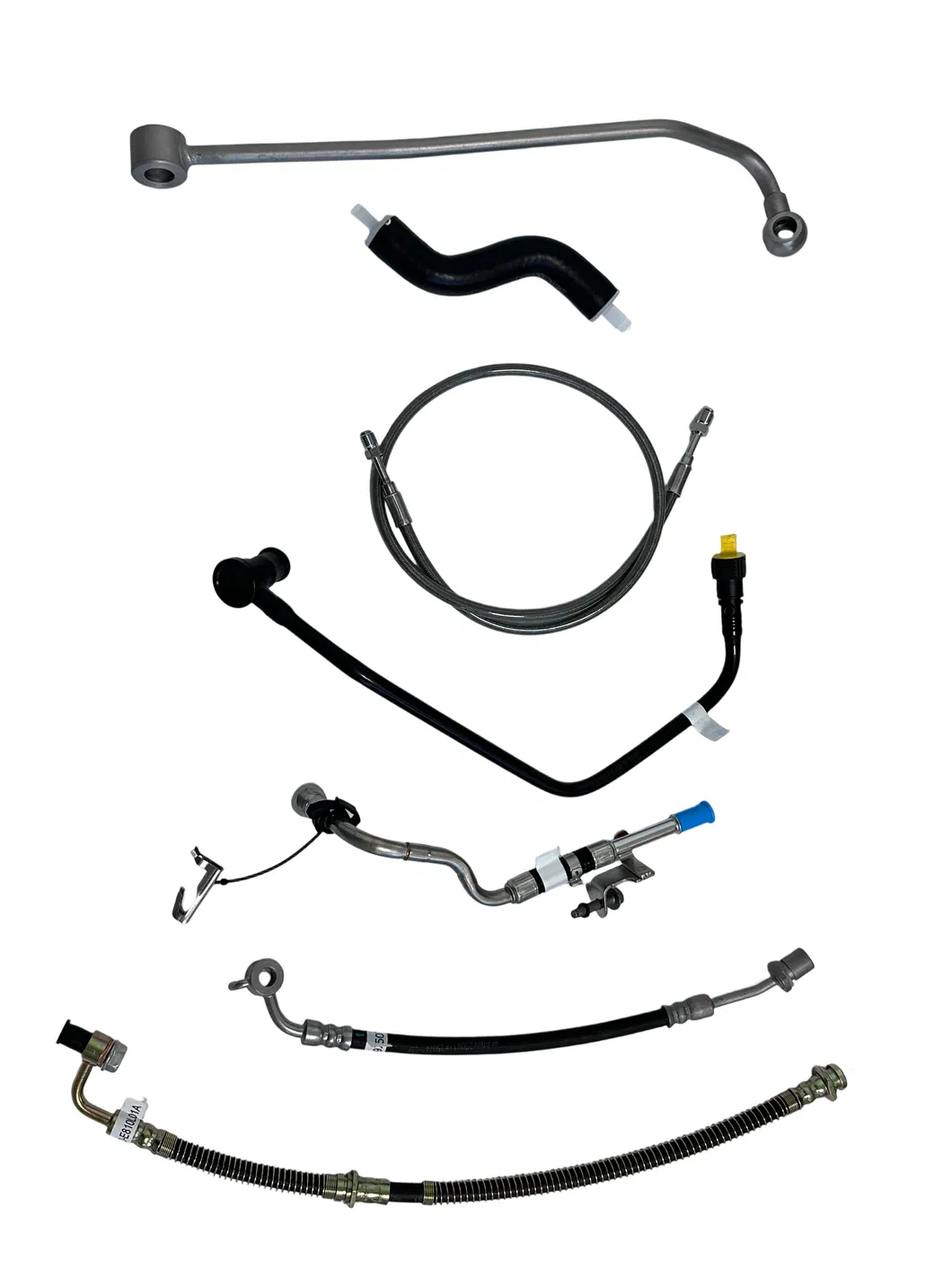

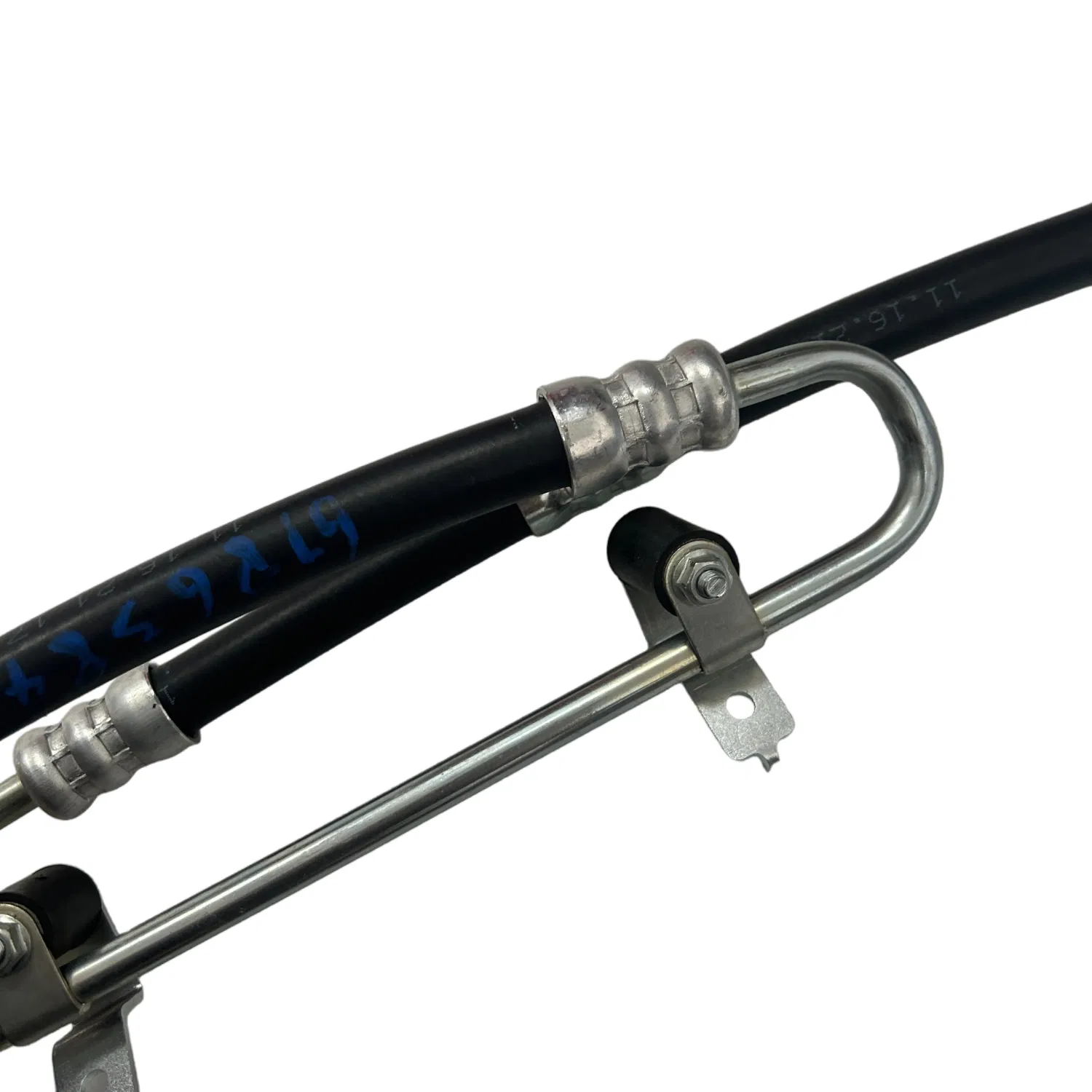

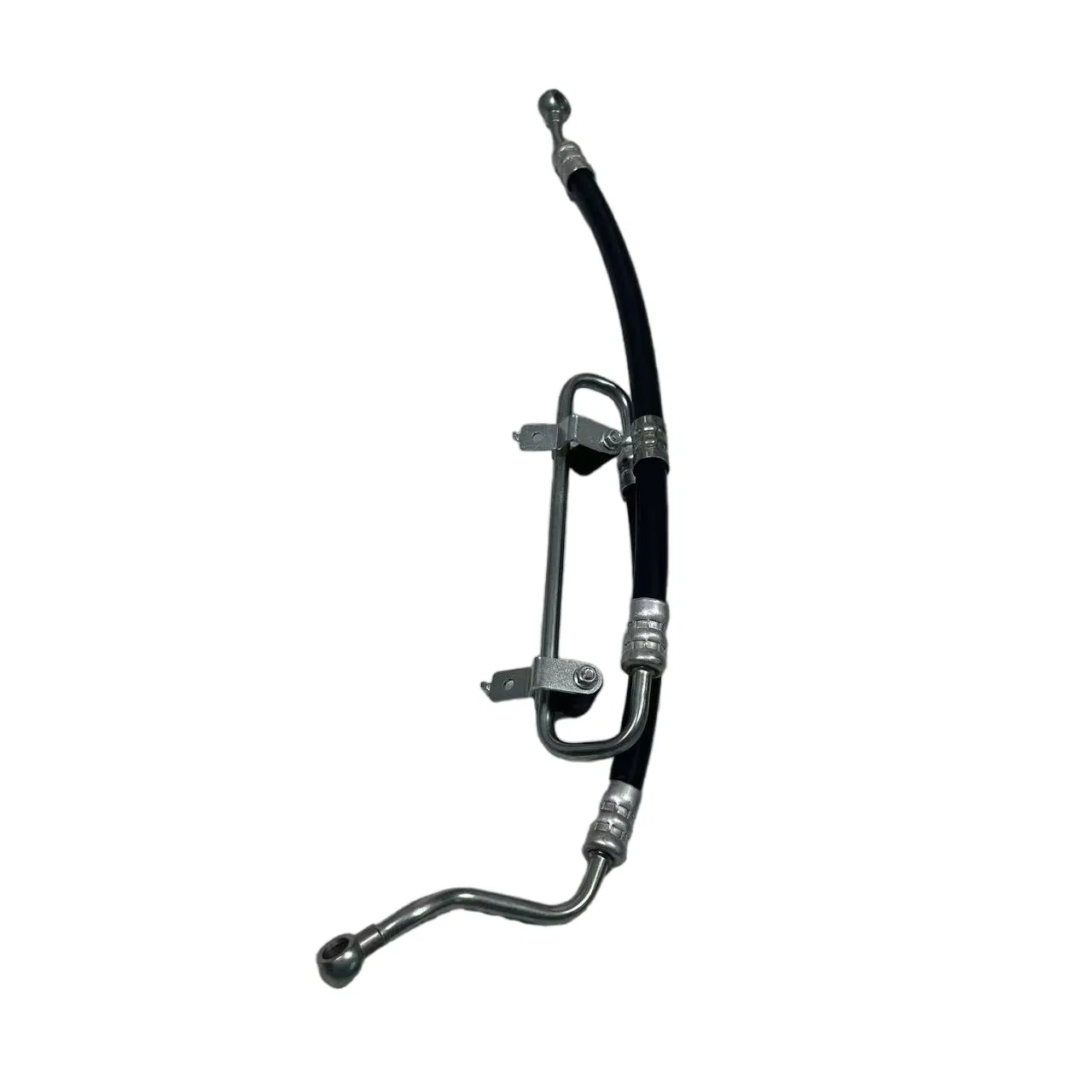

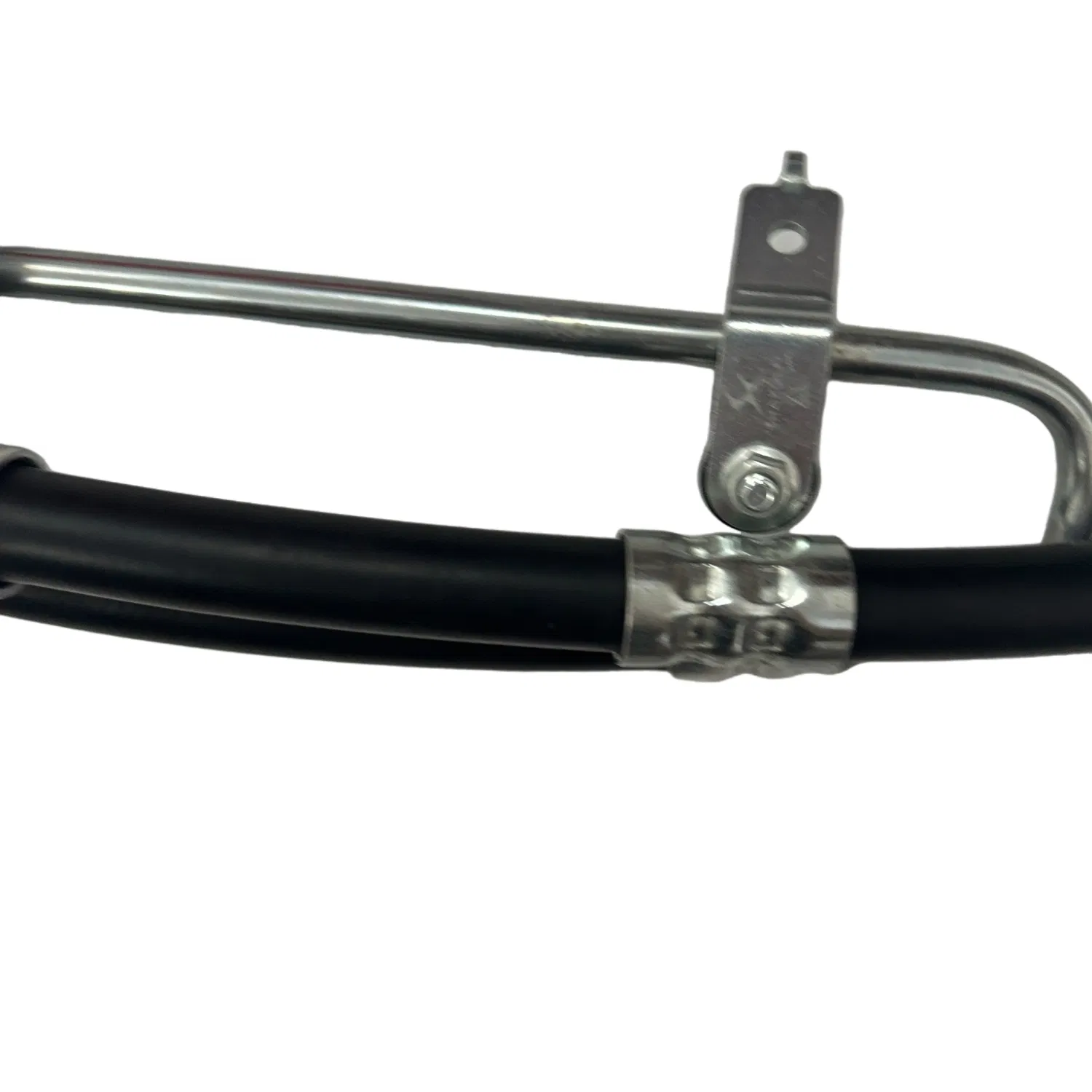

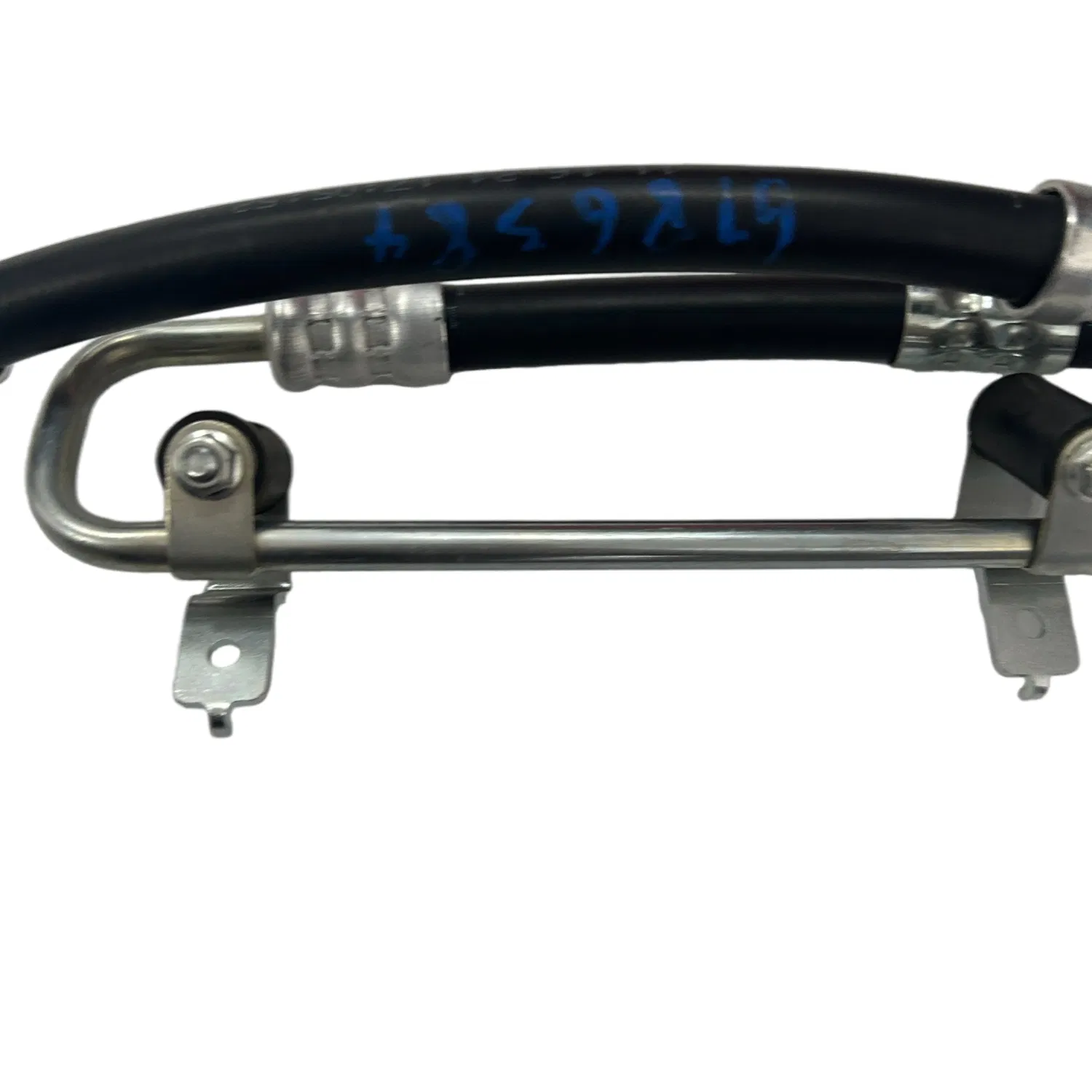

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
Two primary types exist: High-Pressure Supply Hoses (pump to gear) and Low-Pressure Return Hoses (back to reservoir). Proper maintenance is essential to prevent fluid leaks or steering failure.
| Parameter Name | Description / Value | Remarks |
|---|---|---|
| Material Structure | NBR/HNBR Inner + High strength fiber reinforcement + Wear-resistant cover | High temp & chemical resistance |
| Inside Diameter (ID) | 8 mm, 10 mm, 12 mm | Vehicle specific selection |
| Working Pressure | 10 MPa ~ 20 MPa | Peak up to 30MPa |
| Burst Pressure | ≥60 MPa | Safety factor ≥3x working pressure |
| Temperature Range | -40°C ~ +120°C | Short-term tolerance 135°C |
| Compatible Fluid | ATF (Automatic transmission oil), PSF (Power steering oil) | Dexron or ISO 7308 standards |
| Life Cycle | ≥5 million pulse tests | Equivalent to 200,000 km |
