Product Description

Basic Information

Model NO.

hose clamp

Standard

Standard, DIN, ANSI, GB, JIS, Bsw, ISO

Condition

New

Product Name

Single Ear Stepless Hose Clamp

Band Width

5mm, 7mm

Band Thickness

0.5mm, 0.6mm

Technics

Casting

Package

Carton and Pallet

Specification

6-7mm to 19.4-22.6mm

HS Code

7602000010

Capacity

250,000 Pieces Per Month

Product Description

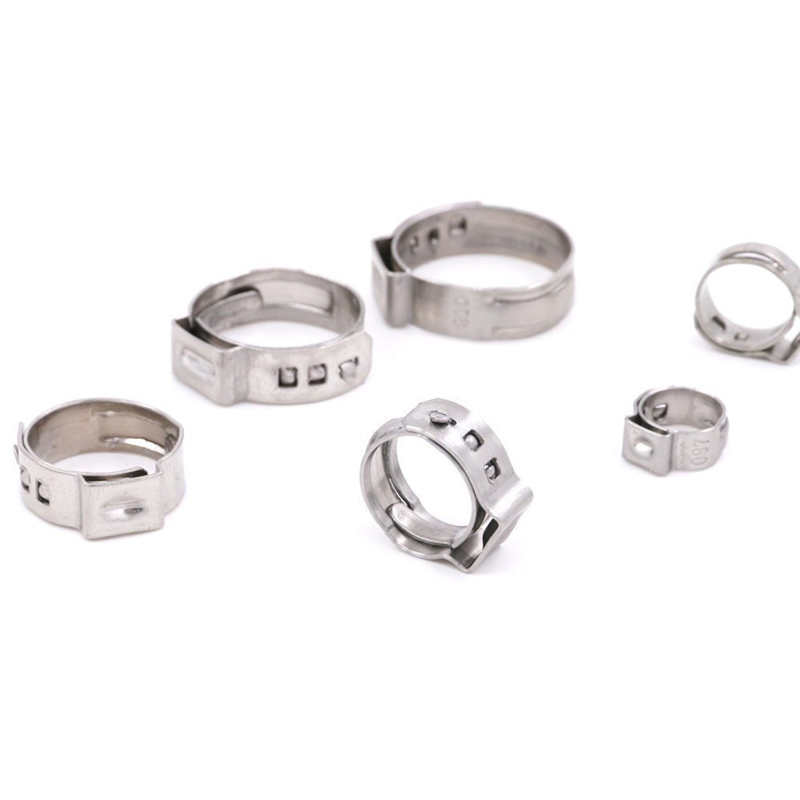

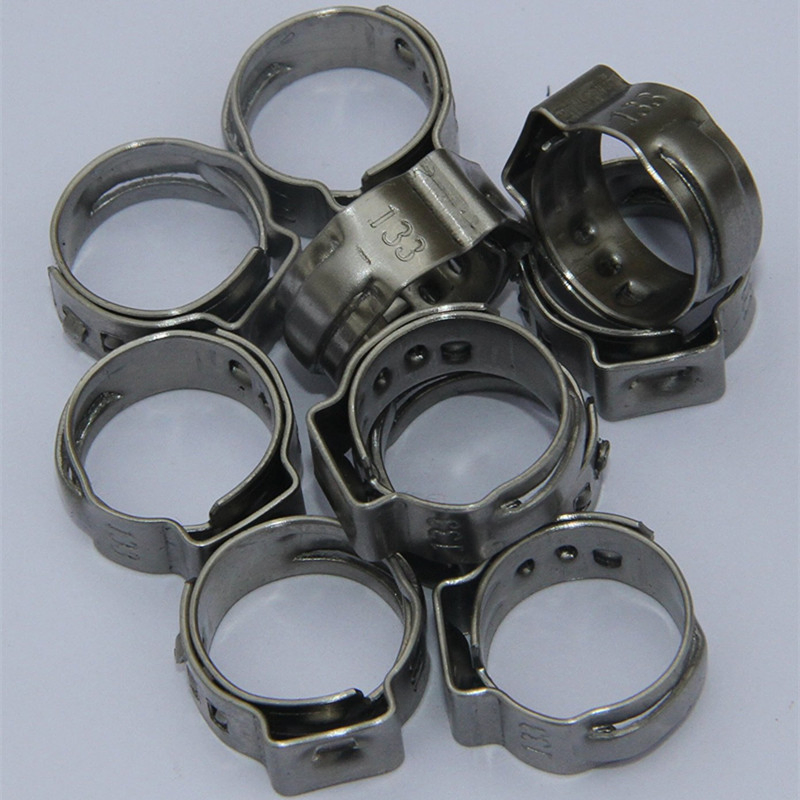

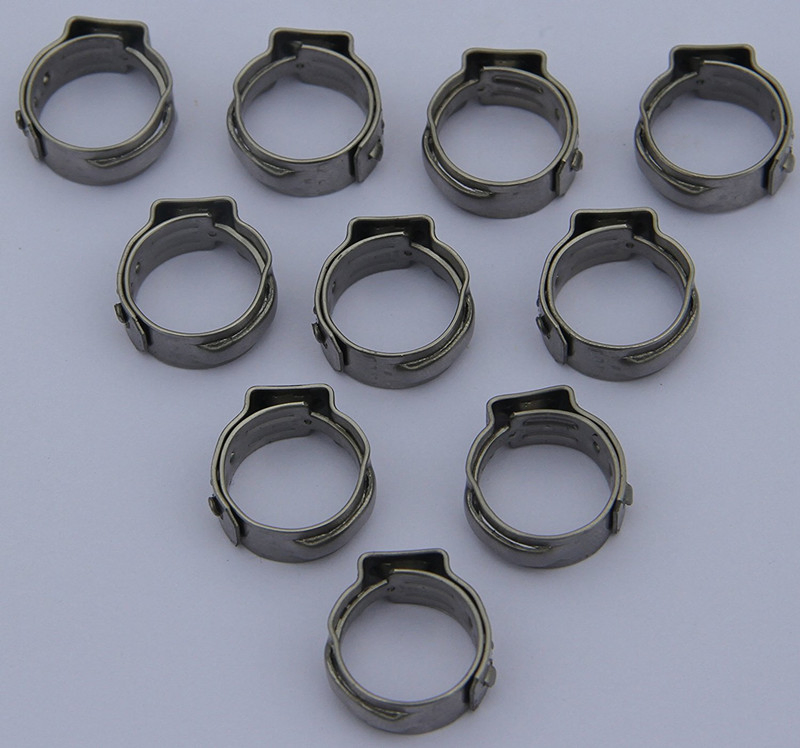

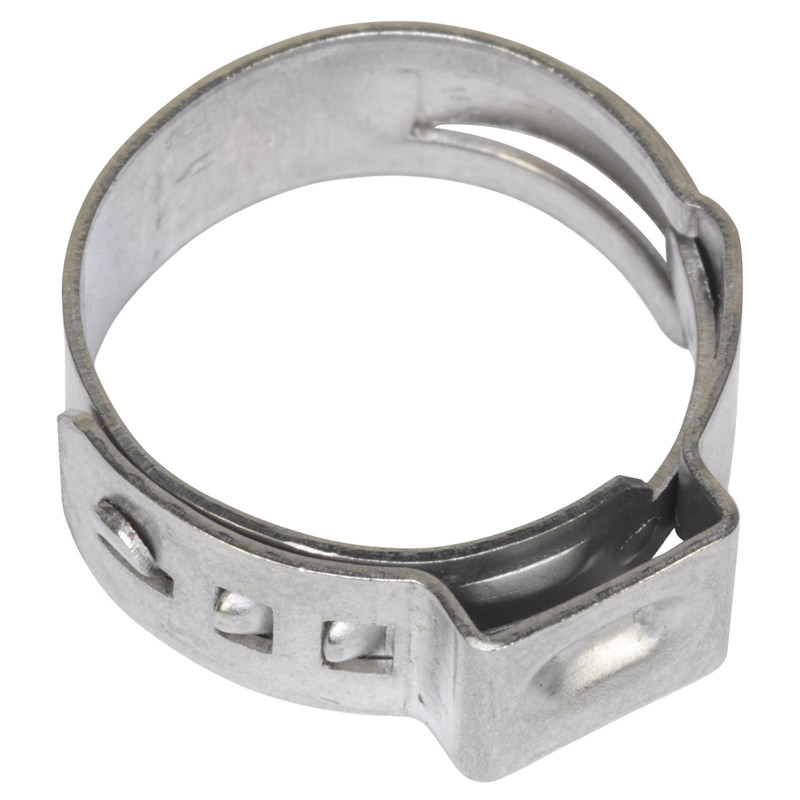

Single Ear Hose Clamps / Stepless Tube Clamps

This stainless steel Stepless one-ear hose clamp is designed for secure clamping of hoses. The unique indentation on the ear increases clamping force, while the mechanical interlock provides superior corrosion resistance compared to traditional spot-welds. It is ideal for demanding applications including food processing and corrosive environments like saltwater exposure.

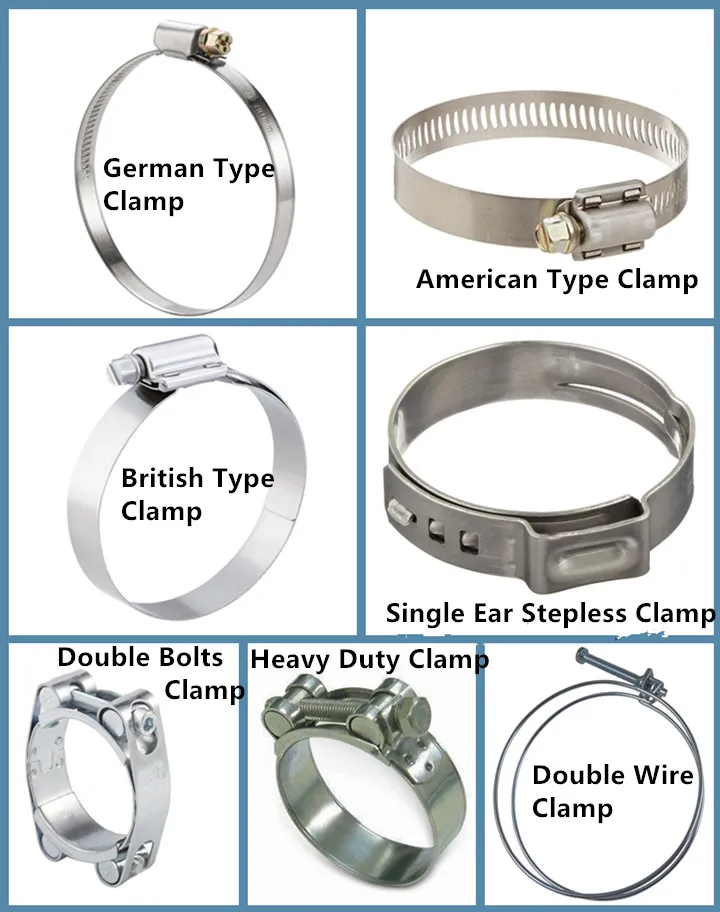

Hose Clamp Types Available:

German Type Worm Drive, American Type Worm Drive, British Type Worm Drive, Heavy Duty Hose Clamp, Double Bolts Heavy Duty, Single Ear Stepless, and Double Wire Hose Clamp.

Key Features

360° Stepless Design: No protrusions or gaps in the inner ring.

Narrowband Design: Provides concentrated sealing pressure.

Polished Edges: Smooth finish to prevent hose damage.

Cochlear Design: Ensures continuous clamping during vibration.

High Clamping Force: Dimpled ear design for extra security.

Mechanical Interlock: Better corrosion resistance than welding.

Applications

Perfect for indoor hot water pipes, air conditioning systems, petrochemical transport pipelines, and automotive hose mounting applications.

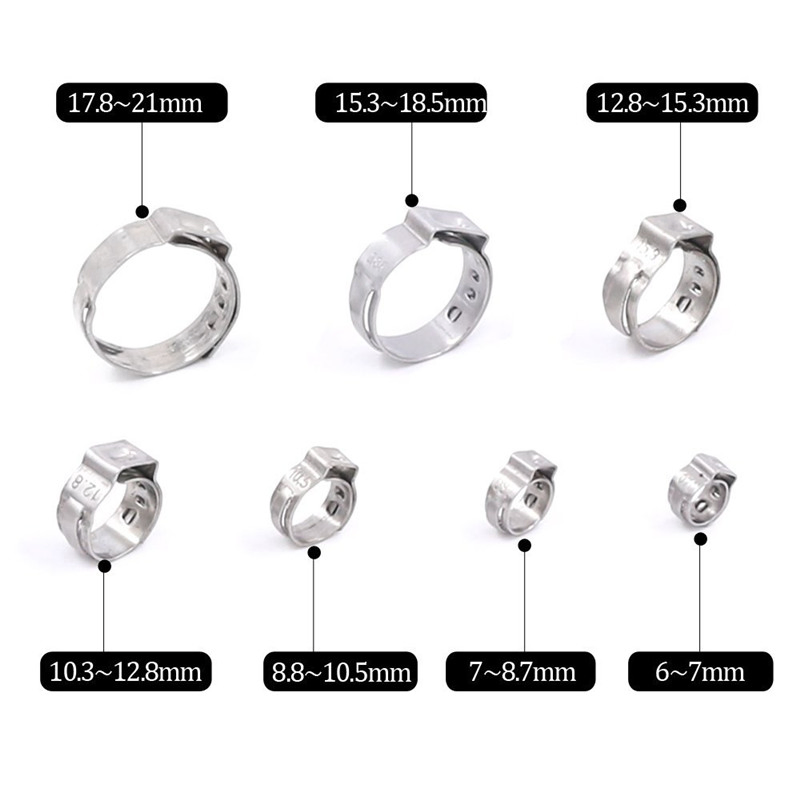

Specifications Table

Size (mm)	Thickness * Width (mm)
6.0-7.0	0.5 * 5
7.0-8.7
7.8-9.5
8.8-10.5
9.4-11.9	0.6 * 7
9.8-12.3
11.3-13.8
12.8-15.3
13.7-16.2
14.5-17.0
15.3-18.5
16.0-19.2
16.6-19.8
17.8-21.0
19.4-22.6

Frequently Asked Questions (FAQ)

What is the advantage of a 360° stepless design?

The stepless design ensures there are no steps or gaps on the inner circumference of the clamp, providing a uniform 360-degree seal that prevents leakage even in thin-walled hoses.

What materials are these clamps made from?

These clamps are primarily made from high-quality stainless steel to ensure resistance to scaling and corrosion, especially in harsh environments.

Can these clamps handle machine vibrations?

Yes, the cochlear design is specifically engineered to maintain continuous clamping pressure during temperature fluctuations and machine vibrations.

How do I verify if the clamp is installed correctly?

Proper closure is evidenced by the visible deformation of the clamp ear. Once correctly crimped, it provides a permanent and secure hold.

In which industries are these hose clamps commonly used?

They are widely used in the automotive, petrochemical, food processing, and HVAC industries for mounting hoses and securing transport pipelines.
