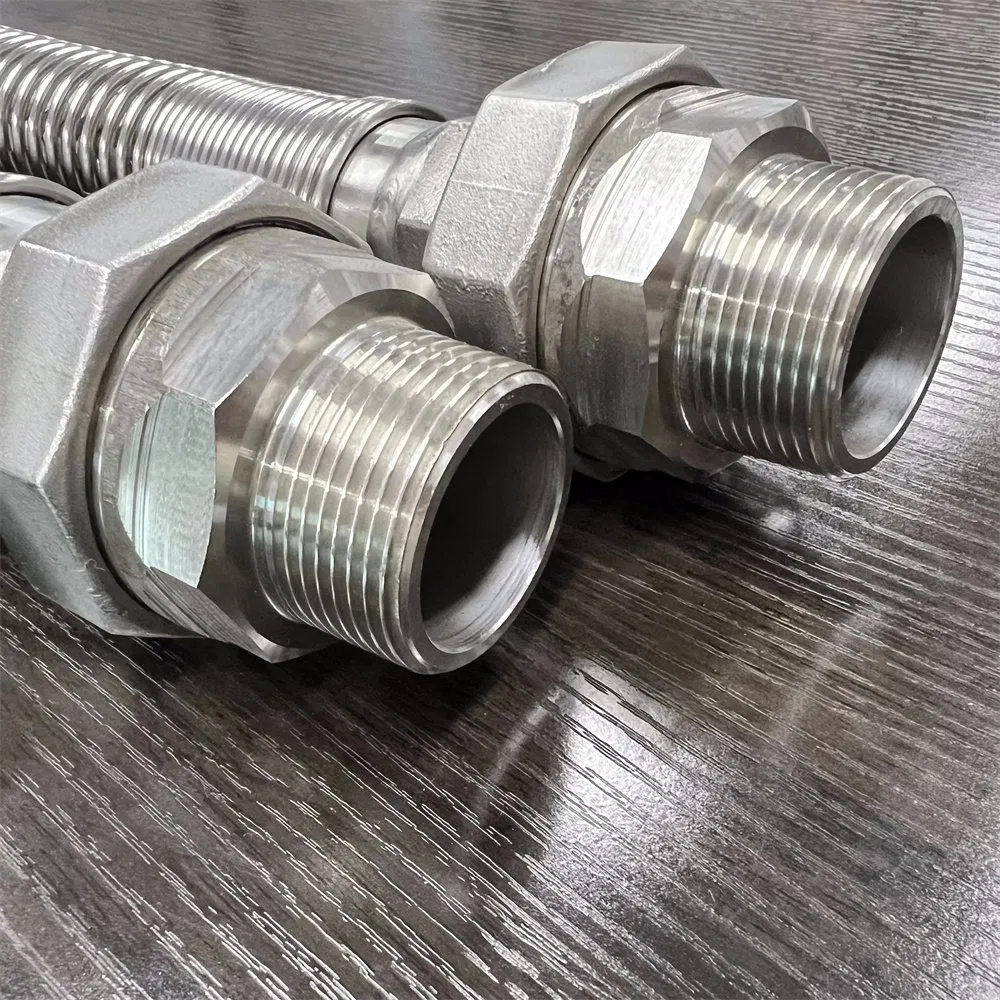

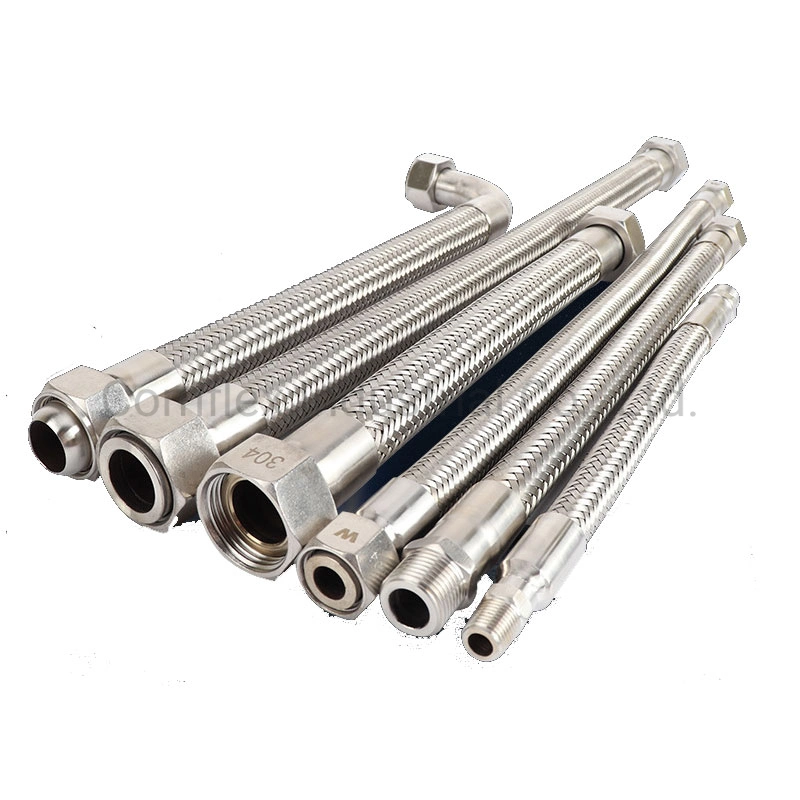

1/4-12" SS304 316 Corrugated Braided Flexible Metal Tubing/Hose/Pipe for Cooling or Heating Steam, Hydrocarbons, Gases
The flexible metal hose can be used widely in systems like water, steam, hot oil, and gas with their resistance to pressure and flexible structure. They are utilized for conducting liquids, compensating the problems originating from installation, and absorbing vibrations and expansions.
Flexible metal hoses may be strengthened by double braiding in order to increase their resistance to pressure and environmental conditions. It is also possible to reinforce them with springs with different wire thicknesses or by strip wounds to lengthen their service life for more severe environmental conditions.
| NO. | DN (mm) | ID (mm) | OD (mm) | Pitch (mm) | Thickness (mm) | Weight (KG/M) |
|---|---|---|---|---|---|---|
| 1 | 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 2 | 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 3 | 18 | 17.4 | 25.5 | 3.5 | 0.3 | 0.34 |
| 4 | 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 5 | 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 6 | 32 | 31.4 | 40 | 5.5 | 0.3 | 0.6 |
| 7 | 40 | 39.4 | 50 | 6 | 0.3 | 0.75 |
| 8 | 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 10 | 80 | 79.2 | 98 | 10.5 | 0.4 | 2 |
| 11 | 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 14 | 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |
| 18 | 400 | 397.6 | 460 | 40 | 1.2 | 25 |

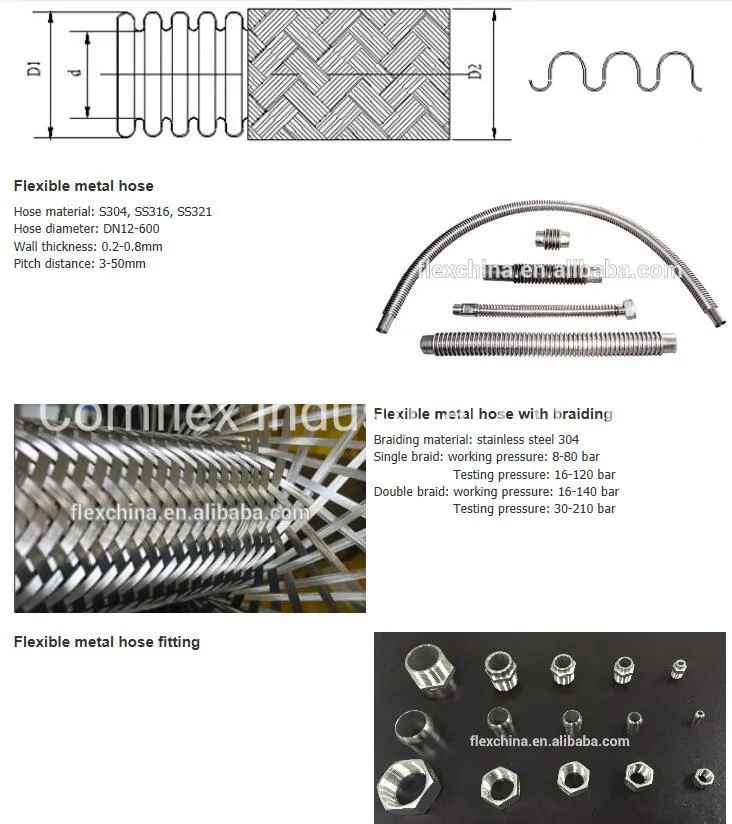

Construction of Flexible Metal Hose

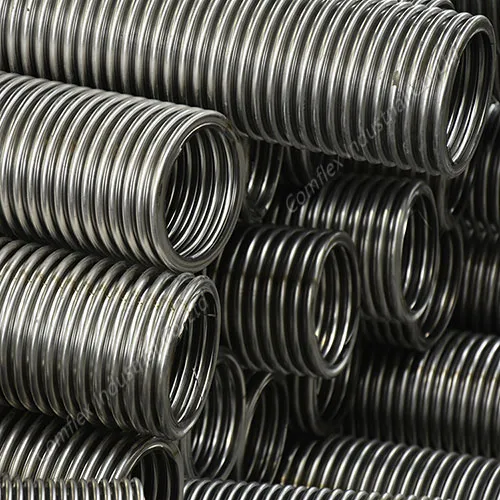

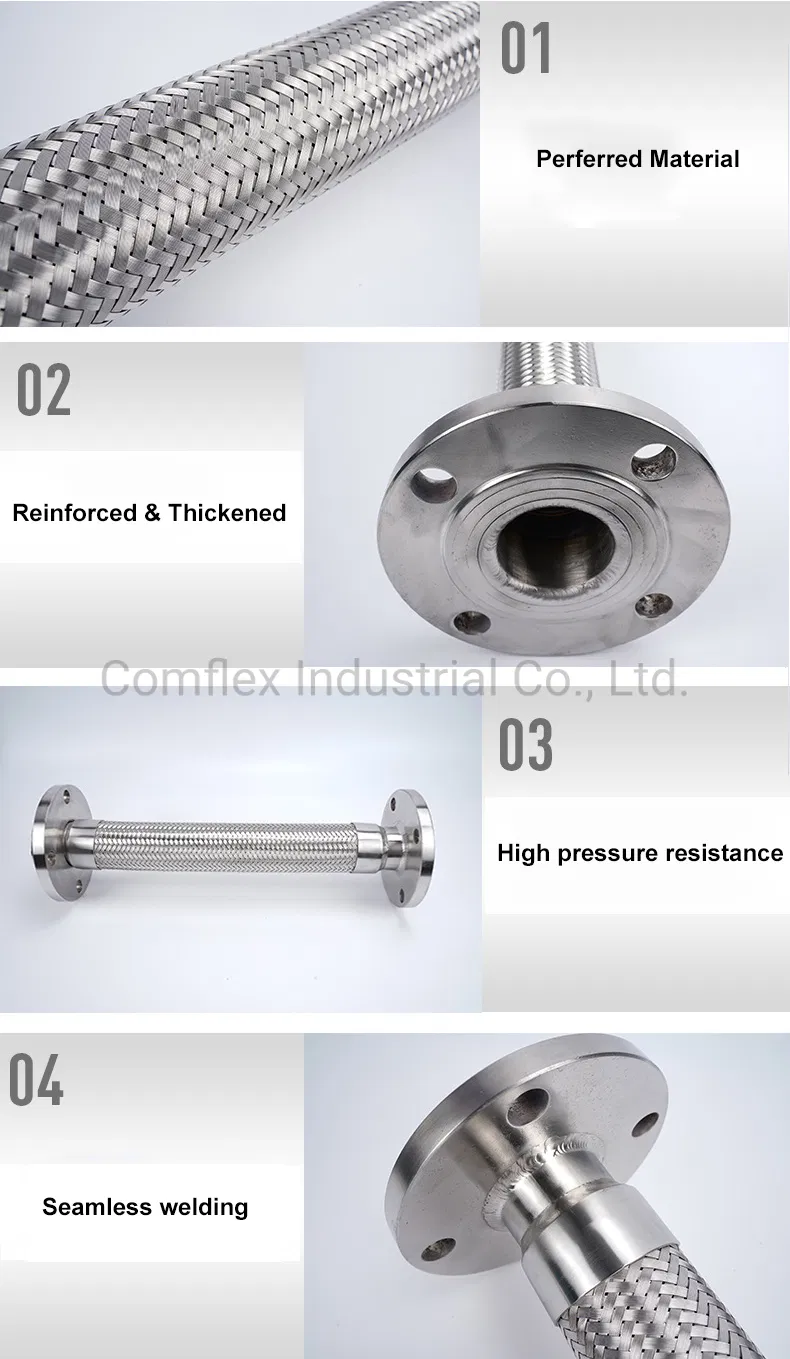

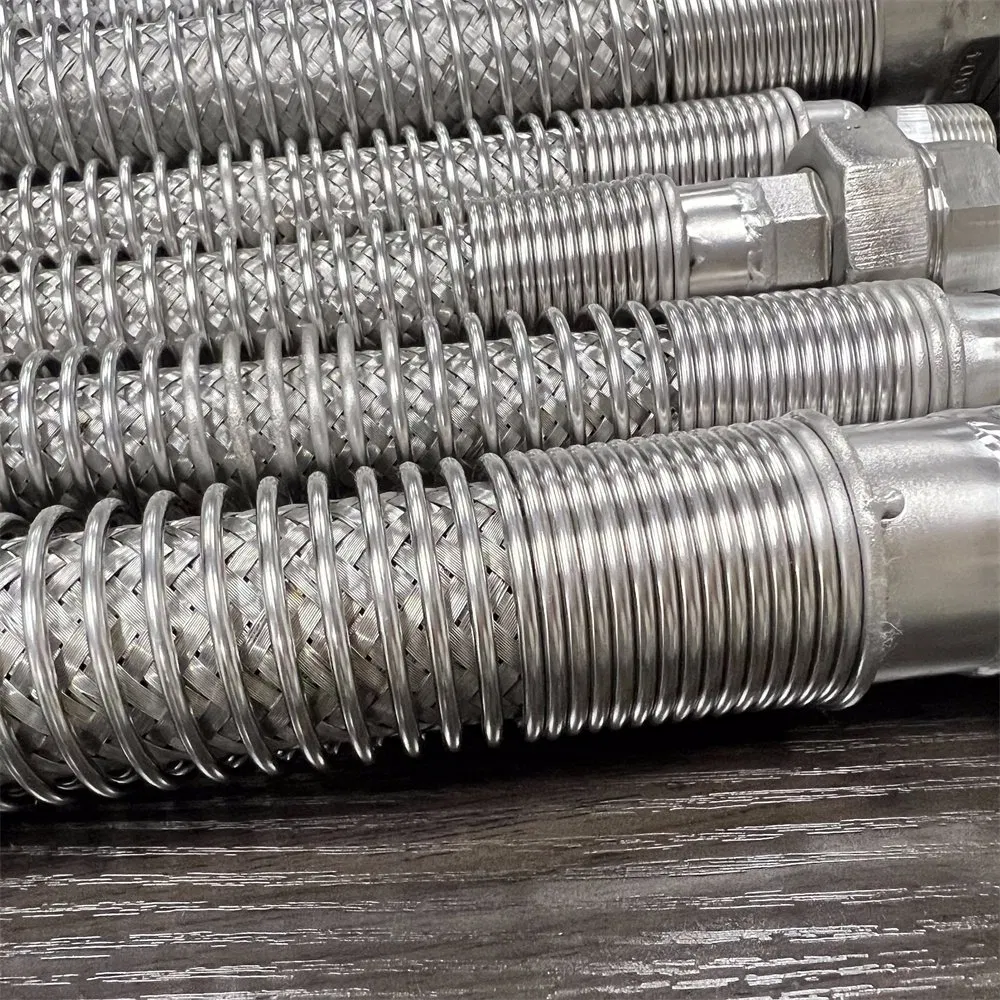

Corrugated Stainless Steel (304, 321, 316L). Stainless steel tubing formed into corrugations parallel to one another. Helical / Convoluted options available.
Outer Core:Braided Stainless Steel Layers (304). Available with no layers, single or double braided for increased pressure tolerance.
Key Benefits:

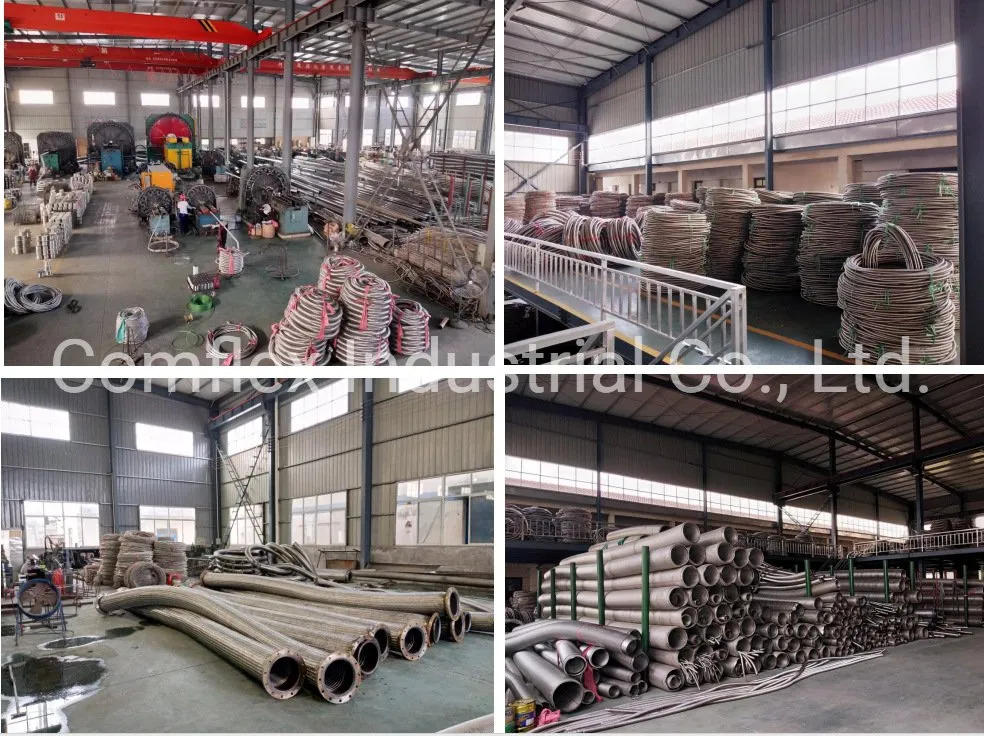

Professional manufacturer of all types of metal flexible hoses and machinery with more than 25 years of experience. Specializing in corrugated metal hoses, square lock, and interlock conduits for gas, water, and cable protection.

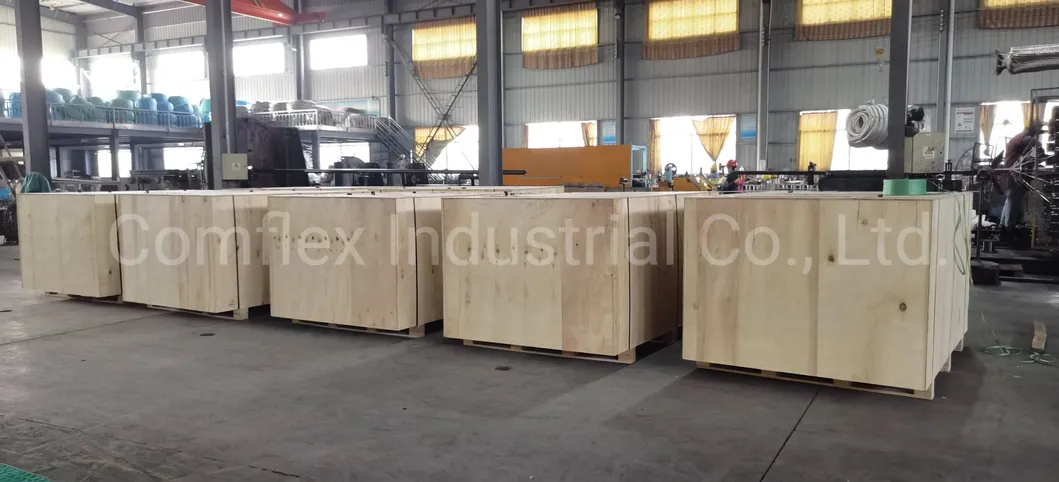

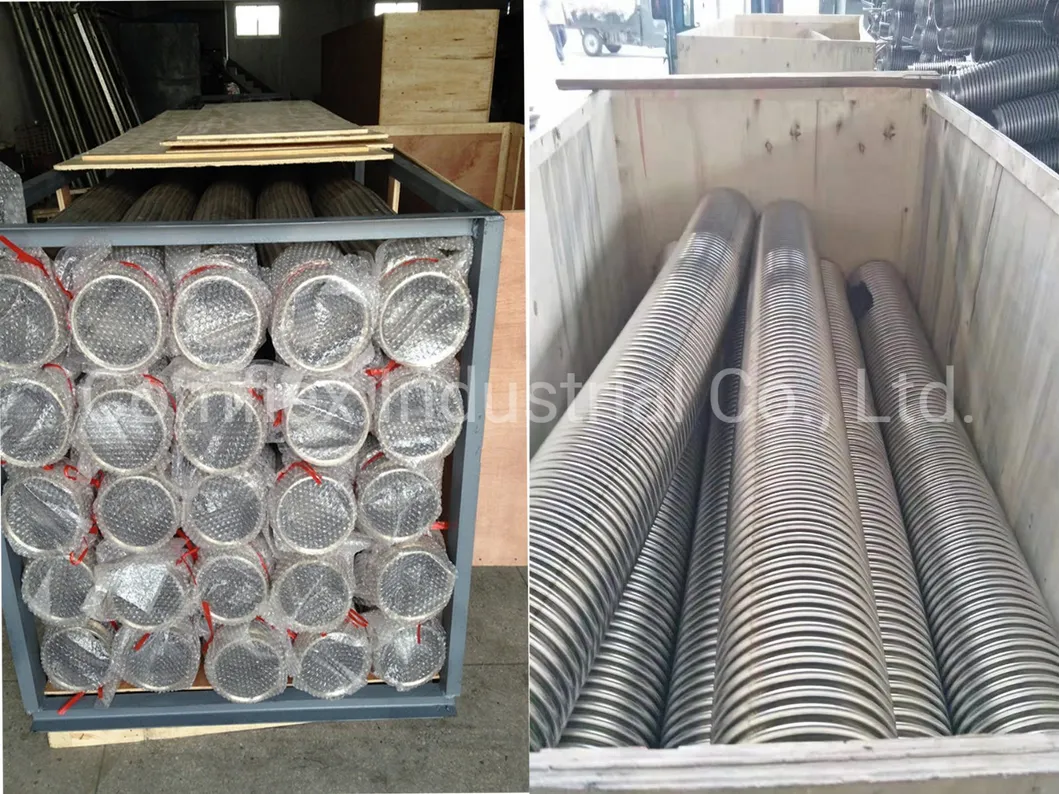

Packaging & Shipping: Strong steel frame and firm plywood boxes are used for sea or air transportation to ensure product safety.
Welcome to inquiry!
