Oil Line Hose Stainless Steel Braided PTFE Brake Fuel Hose Pipe
The PTFE pipe utilizes special processing methods to enhance flexibility, allowing it to be bent for various connection needs. It is ideal for connecting graphite and ceramic glass pipes, and serves as an excellent feeding and discharging pipe for tank trucks, containers, or reaction stills. It effectively balances pipe displacements caused by climate changes and eliminates high-frequency mechanical vibrations.
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Min. Bending Radius | Approx. Weight | |
|---|---|---|---|---|---|---|
| inch | mm | mm | bar | mm | Kg/m | |
| PS-8 | 5/16" | 8.0 | 13.5 | 97 | 20.3 | 0.15 |
| PS-10 | 3/8" | 10.0 | 14.5 | 76 | 22.5 | 0.17 |
| PS-12 | 1/2" | 13.0 | 19.5 | 50 | 25.4 | 0.31 |
| PS-16 | 5/8" | 16.0 | 24.5 | 45 | 76.2 | 0.47 |
| PS-19 | 3/4" | 19.0 | 27.3 | 38 | 88.9 | 0.57 |
| PS-25 | 1" | 25.0 | 35.0 | 30 | 99 | 0.8 |
| PS-32 | 1-1/4'' | 32.0 | 33.0 | 25 | 112 | 0.98 |

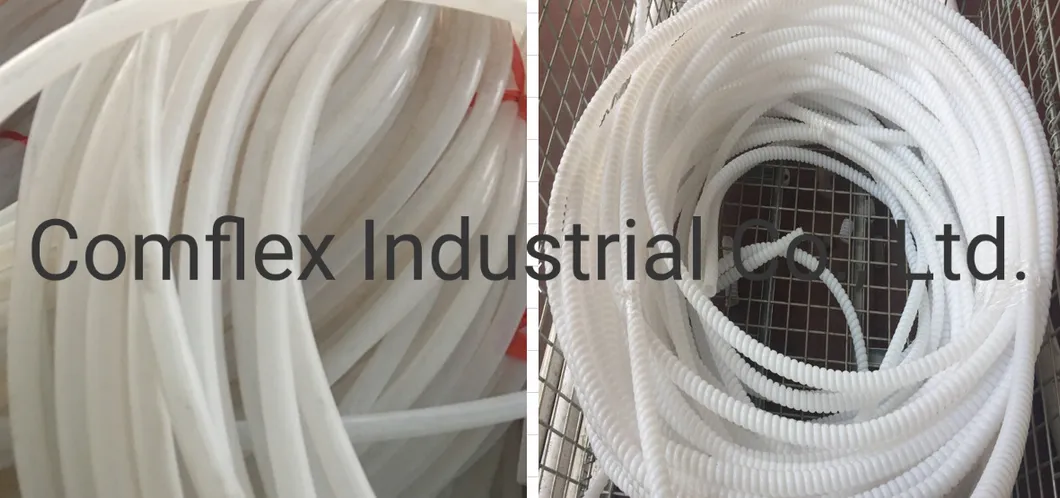

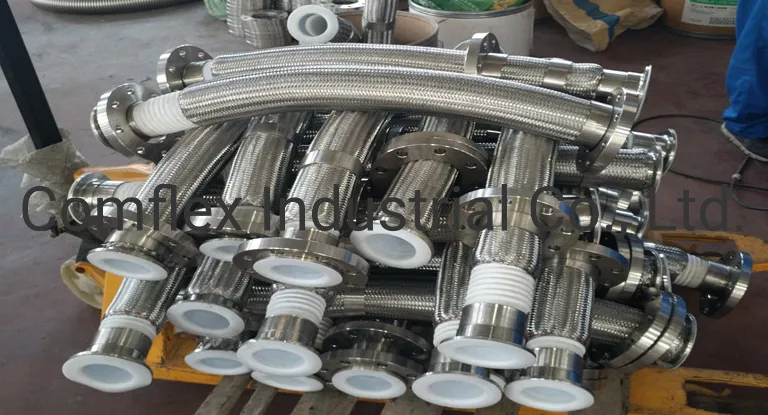

Smooth bore PTFE hose with stainless steel braiding. Lightweight and handles a broad range of chemicals at high temperatures. Ideal for industrial applications where extreme bending is not constant.

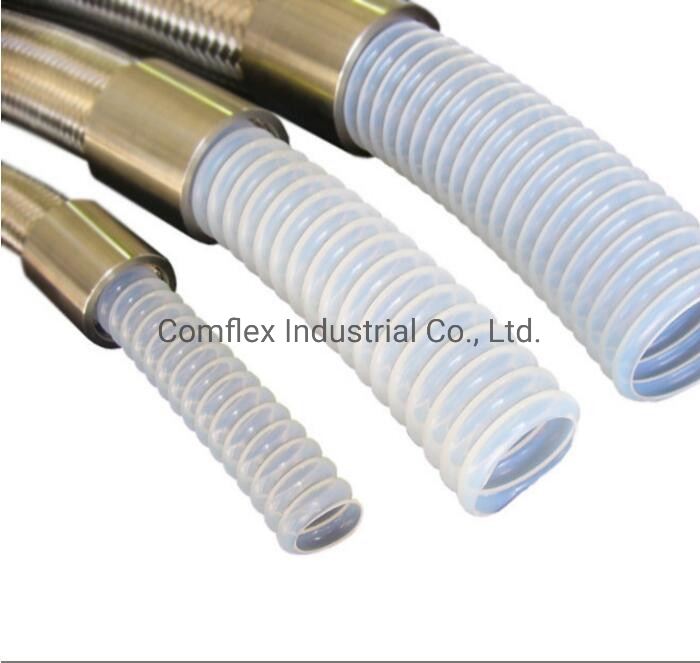

Convoluted PTFE hose providing a much tighter bend radius. Suitable for full vacuum applications and tough industrial environments where flexibility is paramount.

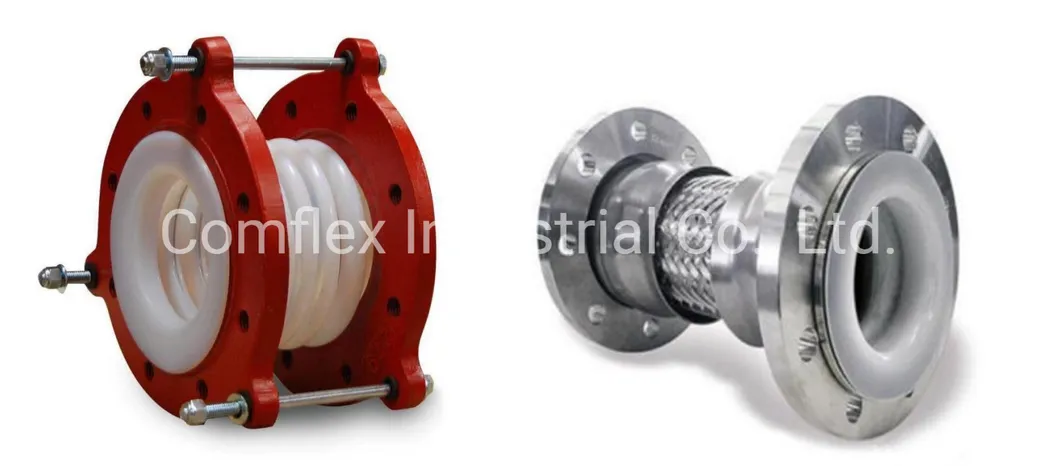

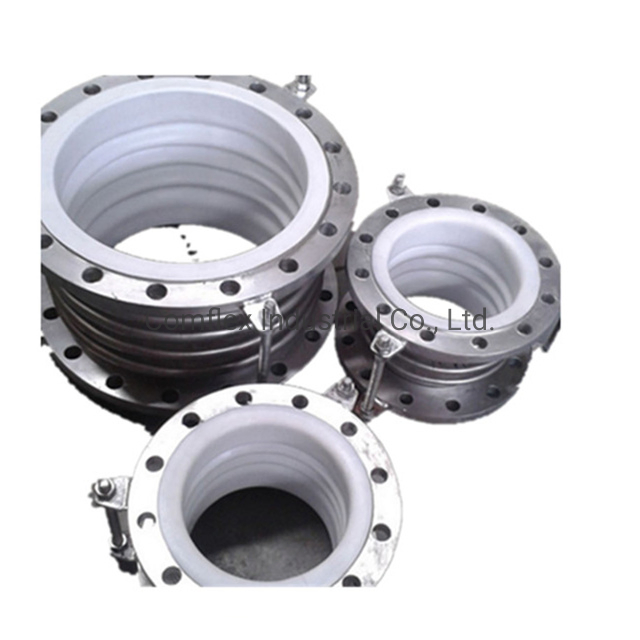

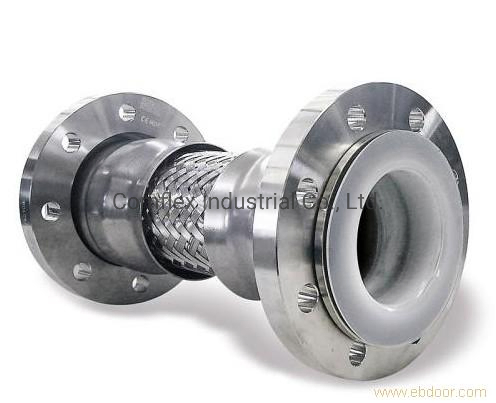

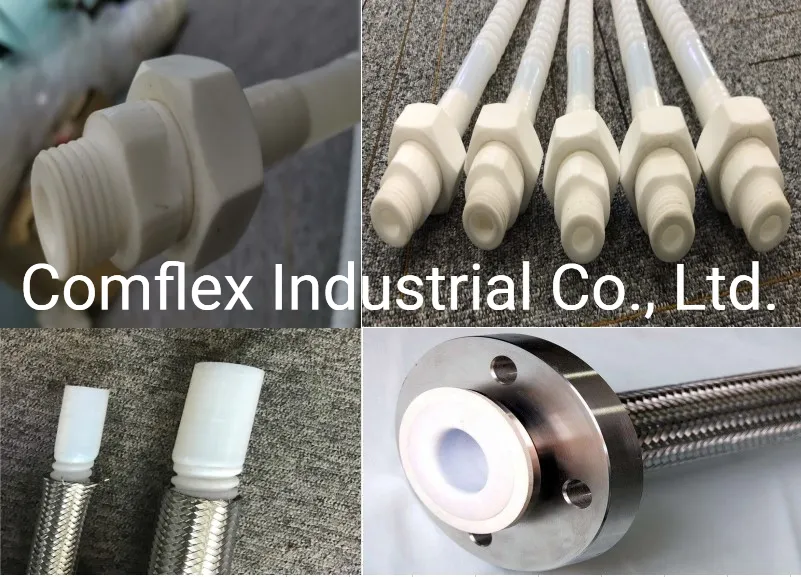

Corrosion-resistant molded joints designed for high pressure and temperature in space-saving designs. Available in sizes from 1" to 48".

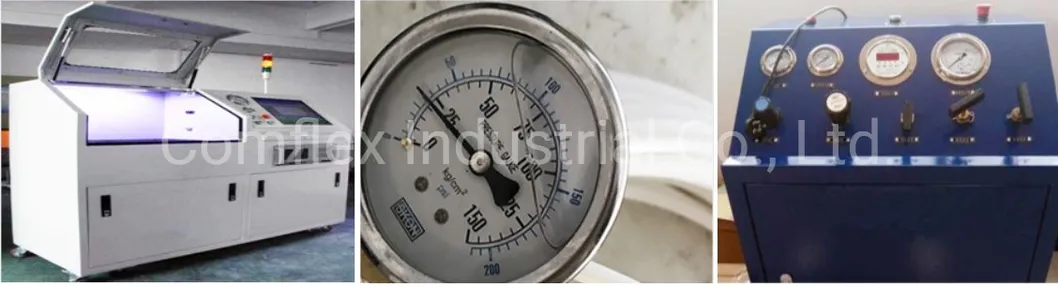

We utilize professional testing equipment to ensure the highest quality. This includes testing crystallinity for softness, pressure burst testers for internal resistance, and air tightness testers to detect any microscopic leaks or sand holes.
