Product Description
DOT SAE J1401 FMVSS106 Approved

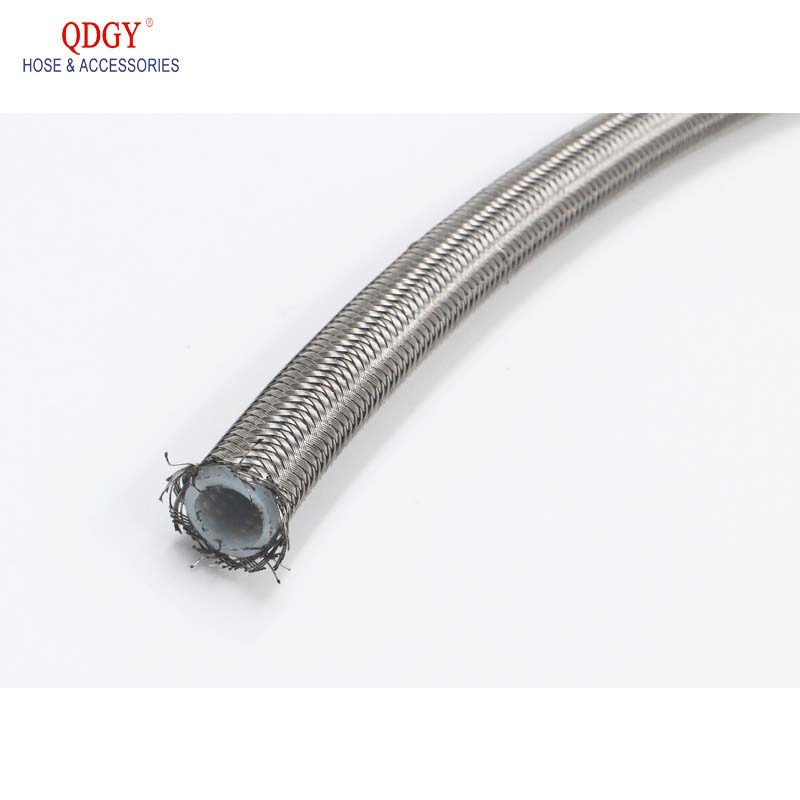

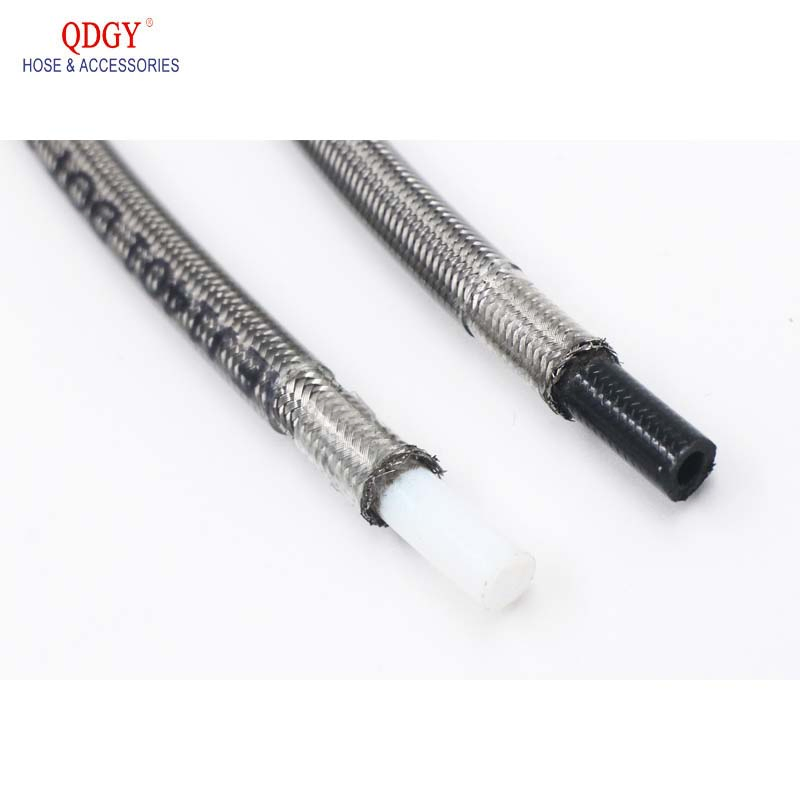

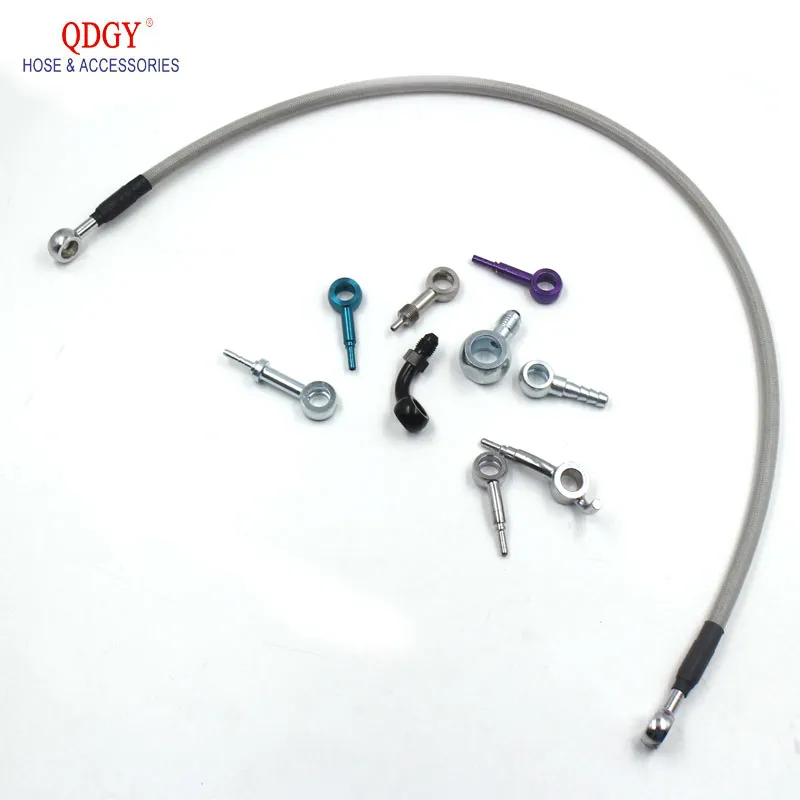

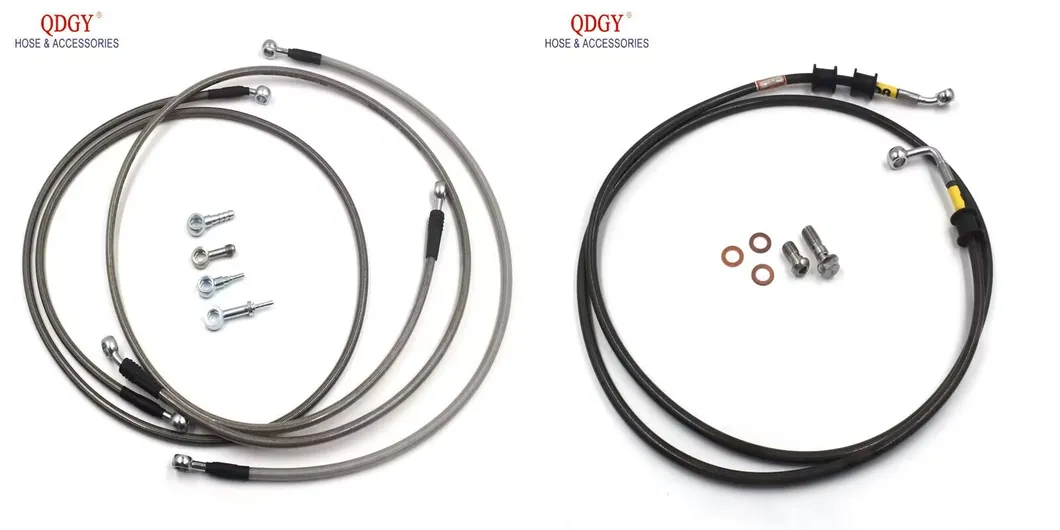

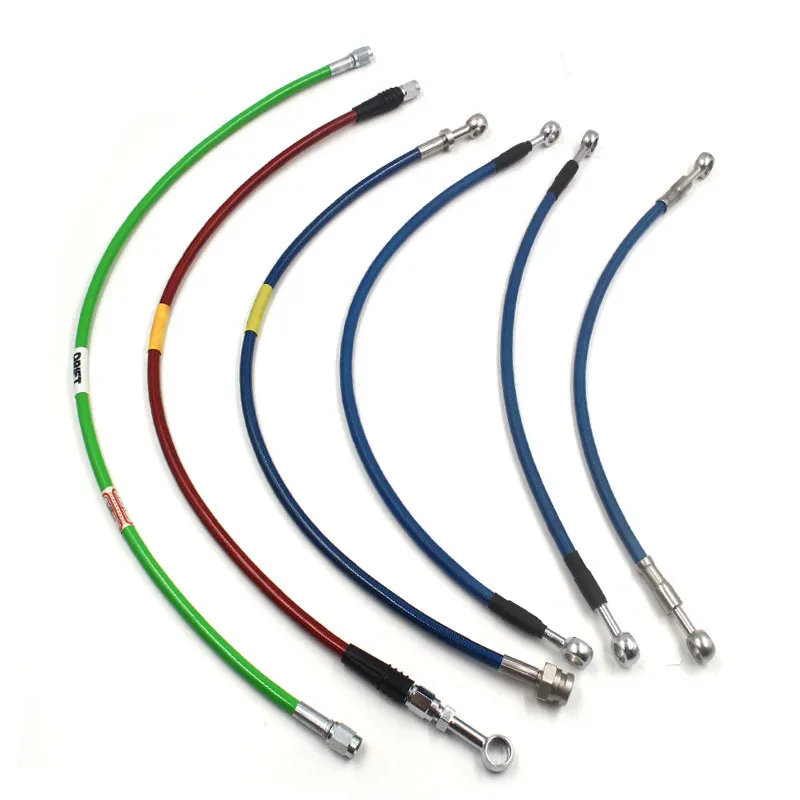

Customized Stainless Steel Braided Brake Hose Assembly with Fitting for Motorcycle and Automobile Brake Systems.

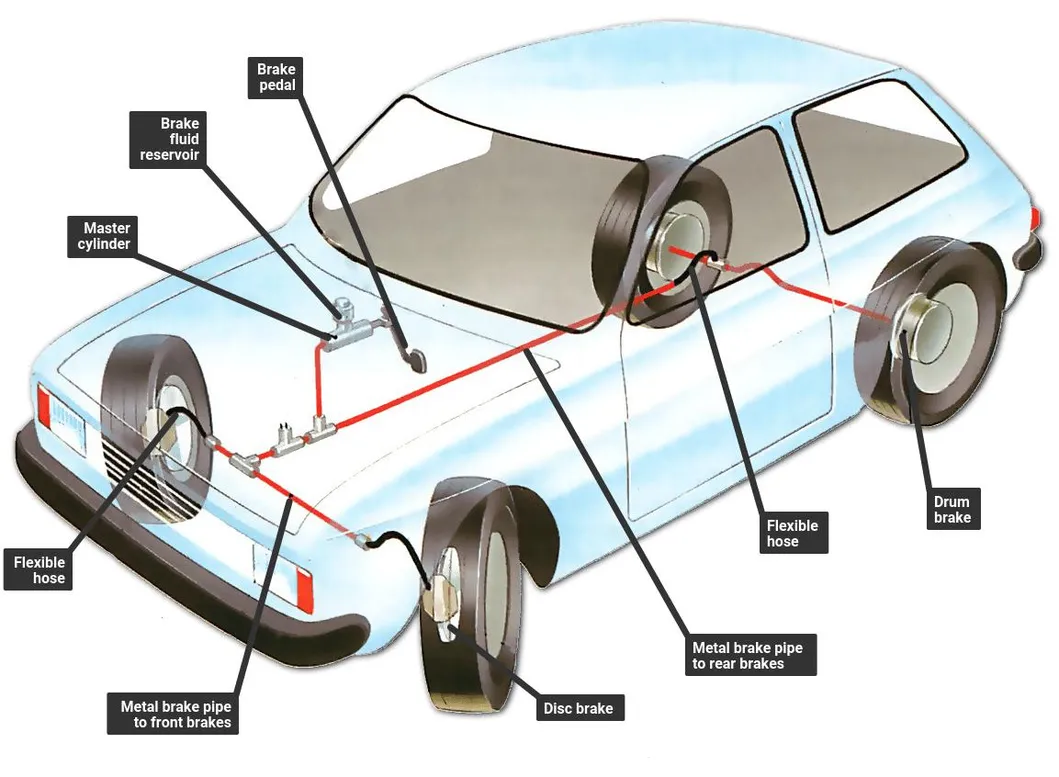

Automobile brake hoses (commonly known as brake pipes) are essential components in vehicle brake systems. The main function is to transfer the brake medium, ensuring that braking force is transmitted effectively to the brake linings or calipers at any time.
| Part Number |
Inner Diameter |
Outer Diameter |
Outer Layer |
Stainless Steel Braid |
Inner Layer |

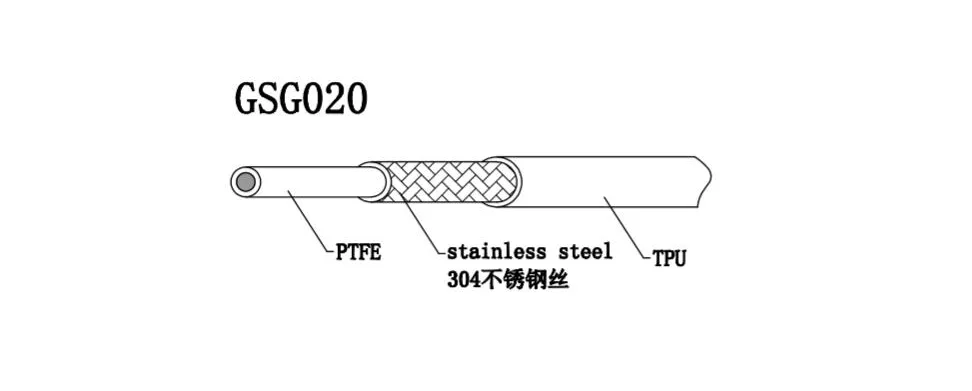

| GSG020 |
1/8"(3.2mm) |
0.295"(7.5mm) |
TPU |
304 Stainless Steel |
PTFE (Teflon) |
| GSG026 |
3/16"(4.8mm) |
0.31"(8.0mm) |
| GSG028 |
1/8"(3.2mm) |
0.255"(6.5mm) |
| GSG028-NC |
3/16"(4.8mm) |
0.299"(7.6mm) |
No covering |

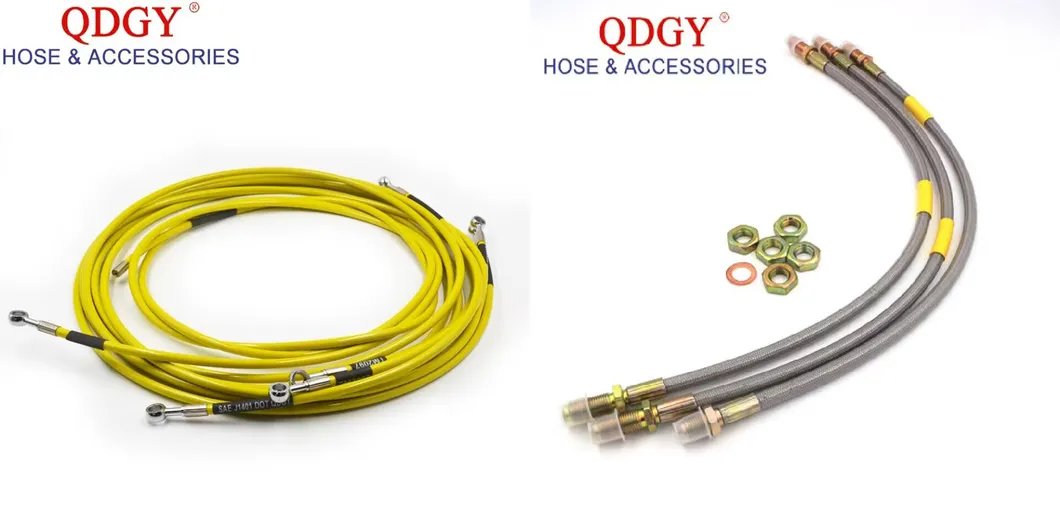

Applications

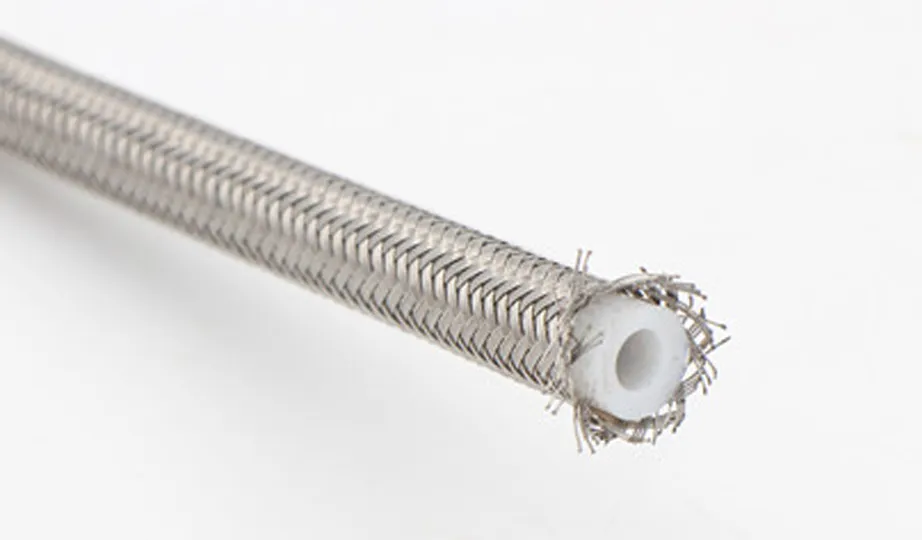

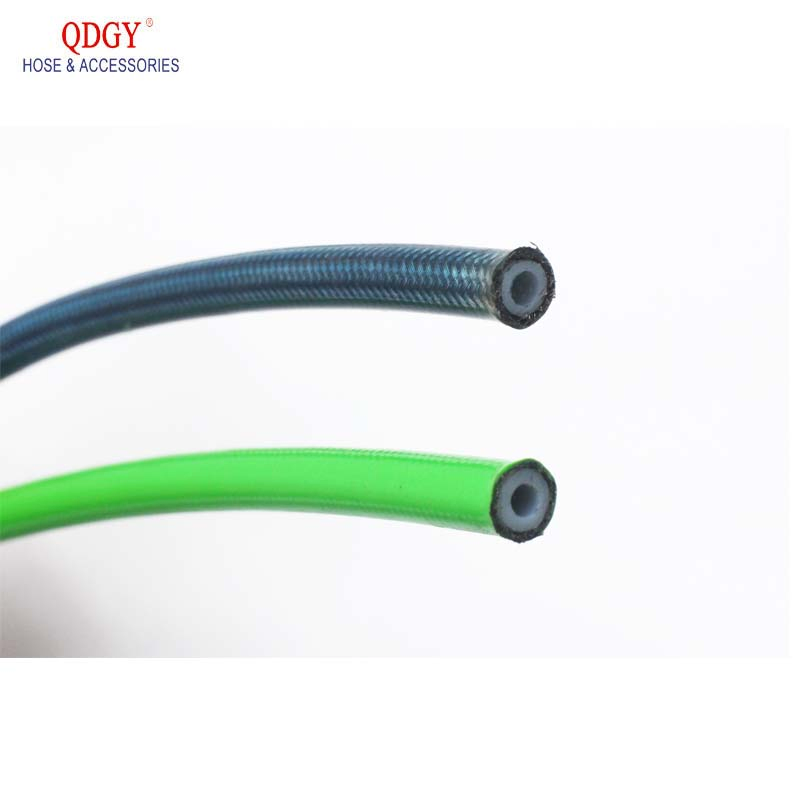

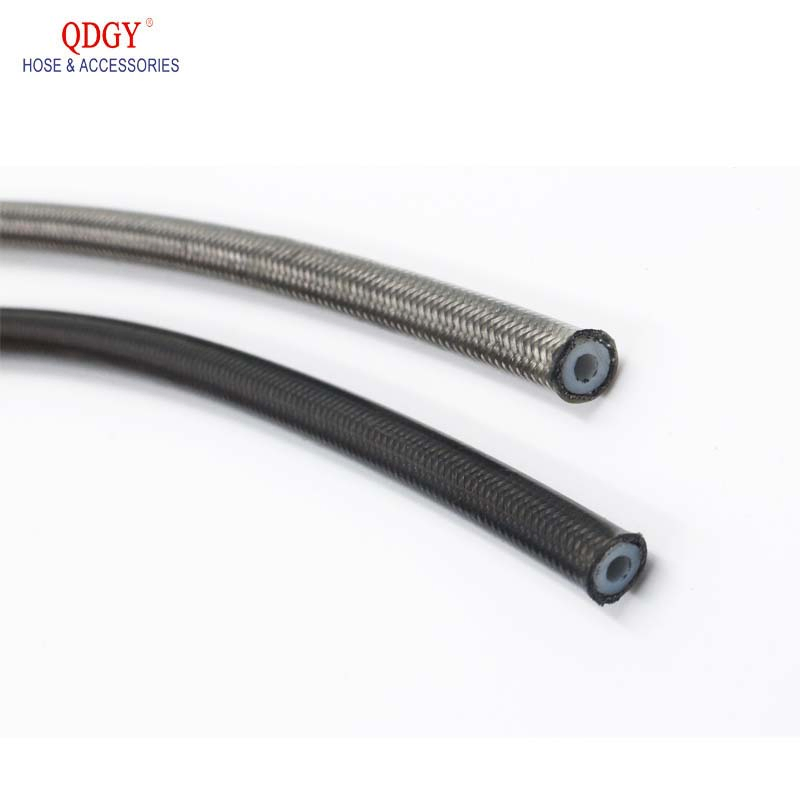

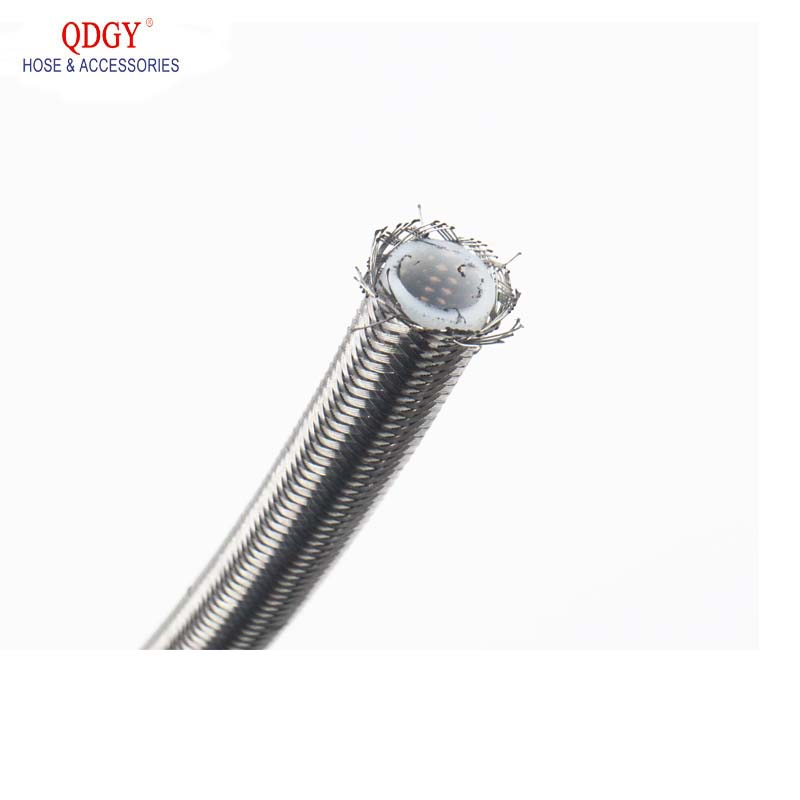

These hoses are Teflon lined and compatible with all standard brake fluids. Featuring a braided stainless outer covering to resist abrasion and corrosion, these lines are designed to withstand high pressure while remaining flexible for tight installations. They are suitable for vehicle braking systems, turbo lines, vacuum lines, and gauge applications.

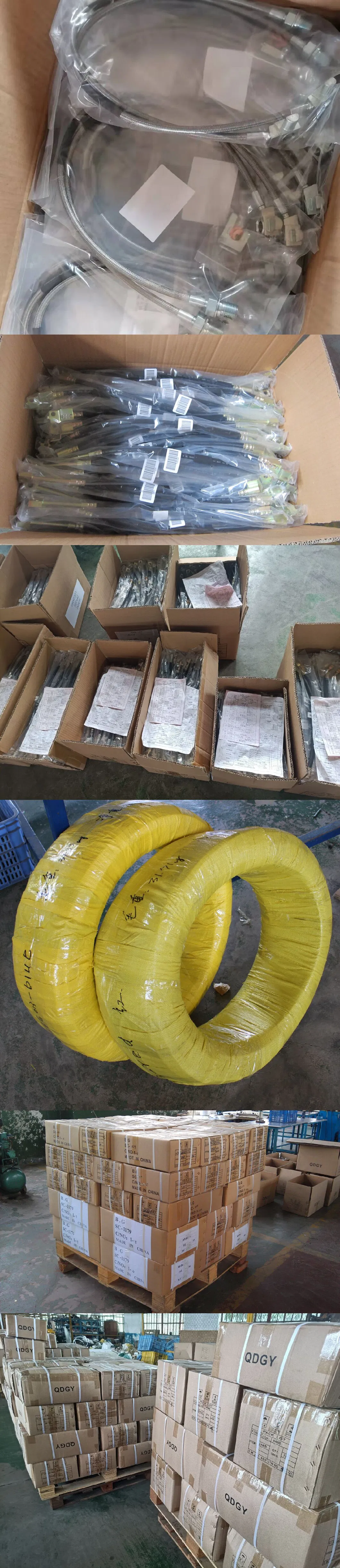

Packaging & Shipping
Products including SAE J1401 brake hoses, Teflon brake lines, and steel tube assemblies are exported to more than 56 countries. We ensure secure packaging for sea, air, and express delivery.

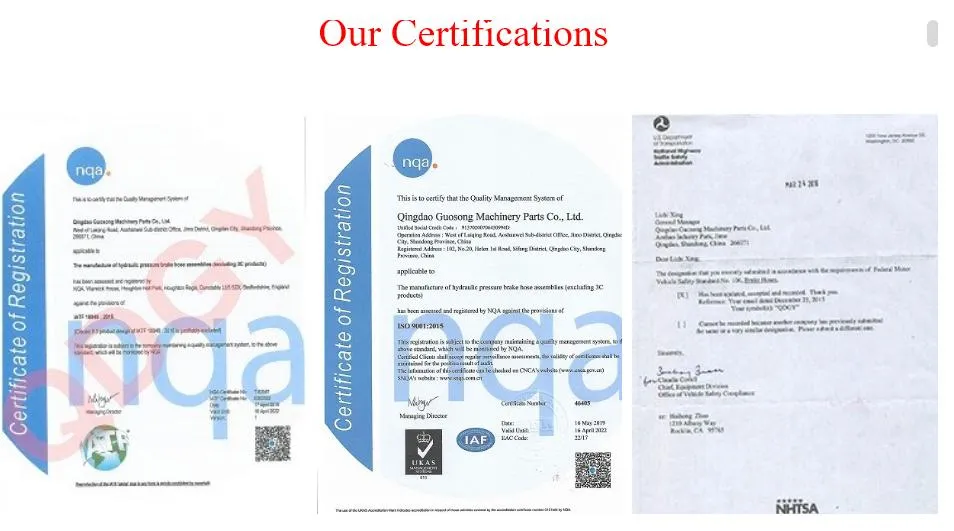

Certifications
Manufacturing processes are DOT certified, IATF 16949 certified, and ISO 9001 certified, ensuring global quality standards are met for every component.

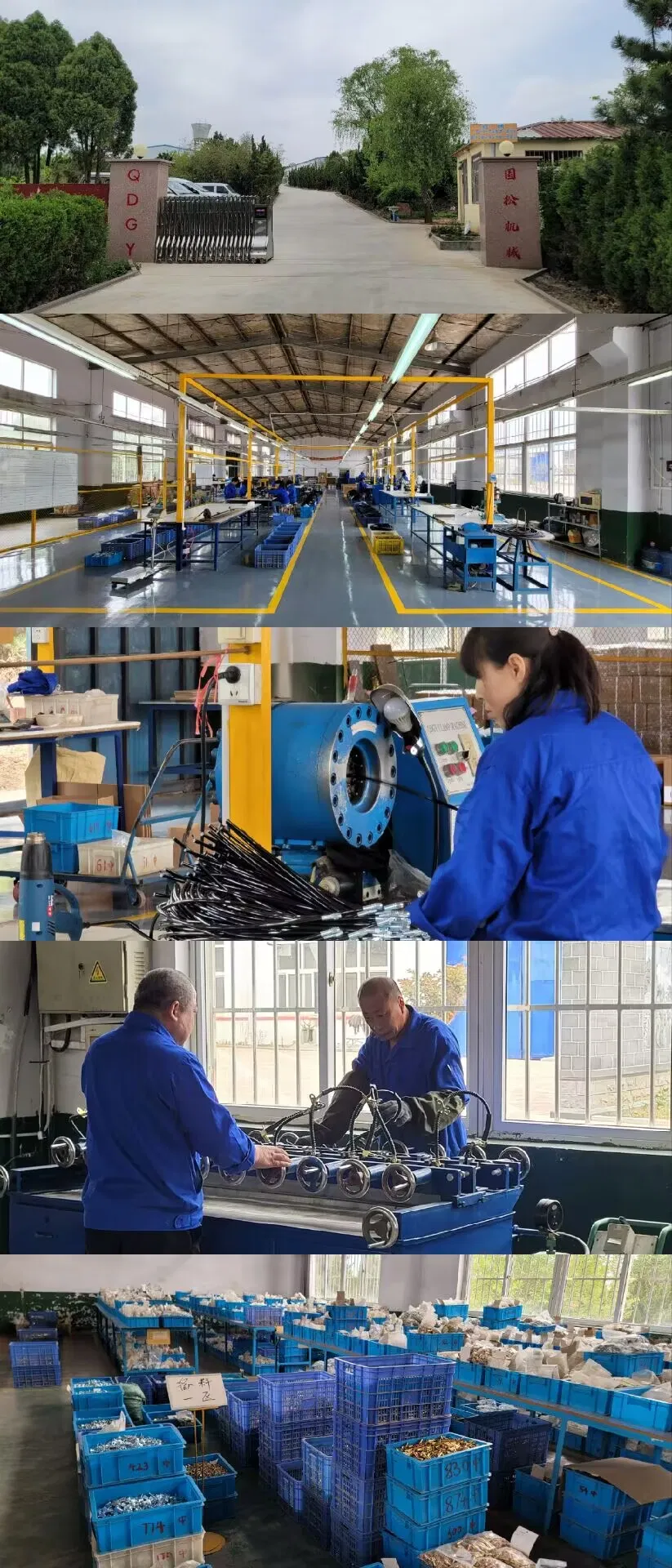

Manufacturing Profile
As a leading manufacturer, the facility covers over 6,000 square meters with dedicated sections for marketing, hose production, and fitting manufacturing. Our products are manufactured with superior materials to meet the rigorous demands of the automobile and motorcycle industries in both the OEM and aftermarket sectors.
Frequently Asked Questions
What international standards do your brake hoses comply with?
Our brake hoses fully comply with SAE J1401, FMVSS106, and GB16897 standards, ensuring they meet global safety requirements.
What is the burst pressure of the stainless steel braided Teflon hose?
The minimum burst pressure is 7250 psi (500 bar), with some high-performance lines reaching up to 12,000 psi.
Are these hoses compatible with synthetic brake fluids?
Yes, the PTFE (Teflon) inner lining is fully compatible with DOT3, DOT4, and DOT4+ brake fluids.
What is the operating temperature range?
Our hoses are designed to operate effectively in extreme environments, ranging from -73°C to +232°C.
Can you produce custom fittings based on specific drawings?
Yes, we have a professional research and development department that can produce fittings according to your specific drawings or samples.
Are the hoses tested before shipping?
Absolutely. Every single brake hose assembly undergoes a pressure test of 3000 psi to guarantee safety and performance.
