Product Description

Basic Information
Product Name:
Thermoplastic Hydraulic Hose
Standard:
SAE 100 R7/R8
Material:
PA11 PA12 Pu
Size Range:
1/4" ~ 2"
Working Temp:
-40 to 93°C
Color Options:
Red/Black/Blue/Orange, etc.
Certification:
ISO9001:2008, SGS, CE
Surface:
Smooth
Feature:
Flexible, Corrosion/Abrasion Resistant
Origin:
China
Thermoplastic Hose Banner
Product Description
SAE 100R7/Thermoplastic Hydraulic Hose is a thermoplastic elastomer hydraulic hose used for medium-pressure applications. It is typically used to convey petroleum-based fluids, water-based fluids, liquefied petroleum gas, fuels, and liquid transfer in low to medium-pressure hydraulic systems.
1FEATURES • Excellent oil, heat and aging resistance.
• High pressure and excellent pulse performance.
• Soft in use, small deformation under pressure.
• Excellent bending and fatigue resistance.
2CONSTRUCTION • Inner Tube: Thermoplastic elastomer.
• Reinforcement: Synthetic fiber reinforcement.
• Cover: Weather resistant thermoplastic.

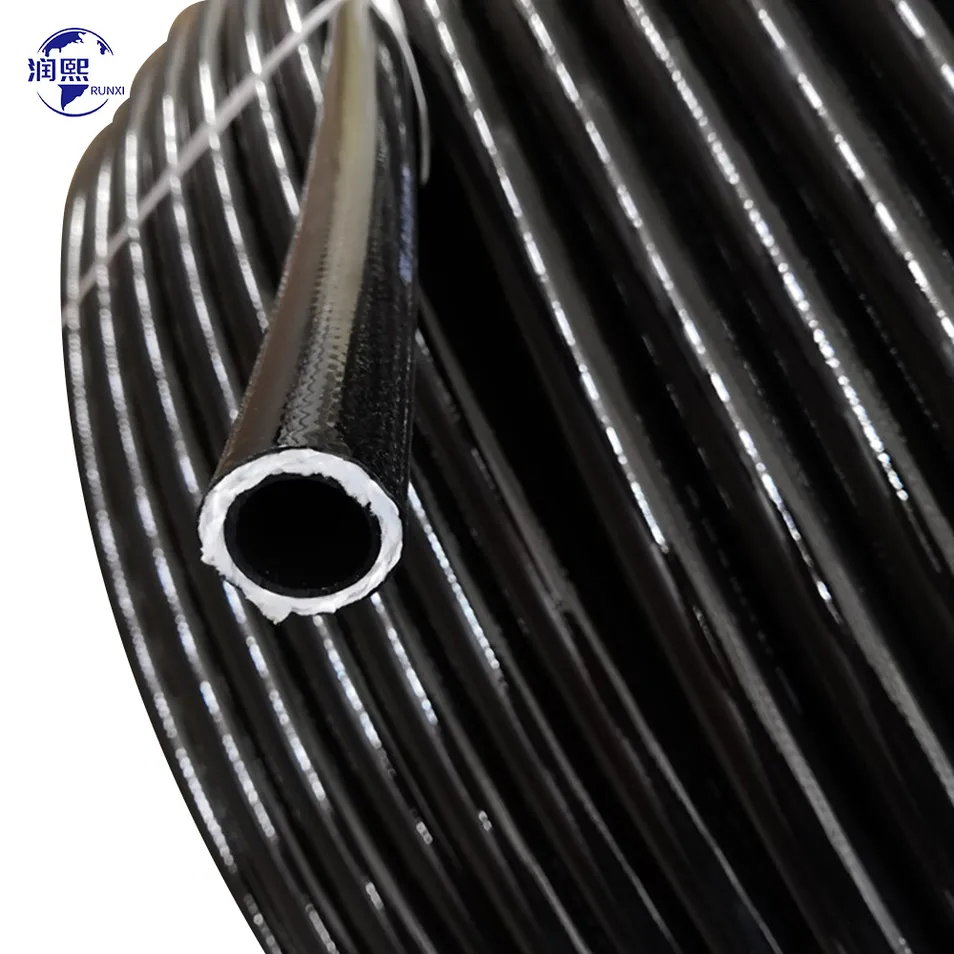

SAE 100R7 Structure
Hydraulic Hose Detail
SAE 100 R8 Thermoplastic Hose

SAE 100 R8 thermoplastic hydraulic hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is non-conductive due to its appropriate materials and offers excellent resistance to weather.

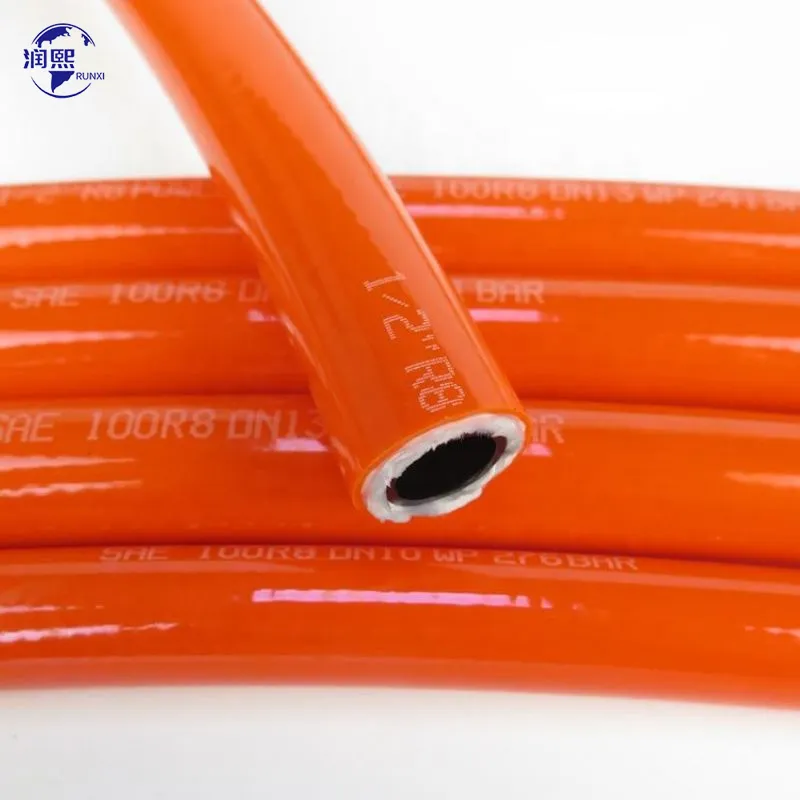

SAE 100 R8 Hose

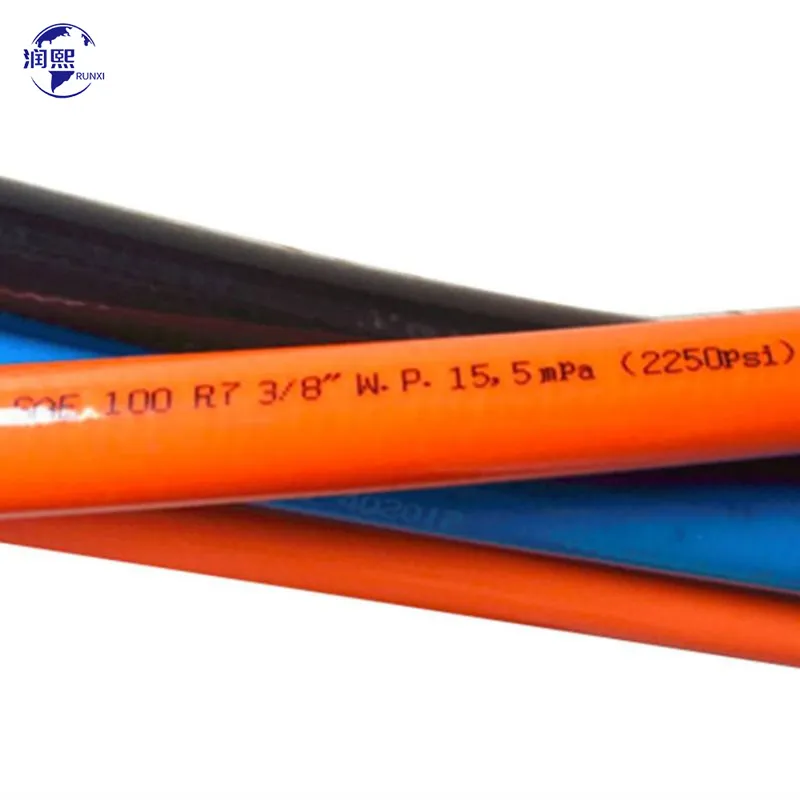

High Pressure Hose
Technical Specifications (SAE 100R7)
Size (Inch) I.D (mm) O.D Max (mm) W.P (Psi) B.P (Mpa)
3/164.6-5.411.4304584
1/46.2-7.013.7278077
5/167.7-8.515.6253570
3/89.3-10.318.4227563
1/212.3-13.522.5203056
125.0-26.436.7101528
Broad Applications
✓ Aerospace & Petrochemical
✓ Metallurgy & Electricity
✓ Architecture & Medical
✓ Food & Transportation
✓ Forklift Trucks & Cranes
✓ Agricultural Brake Systems

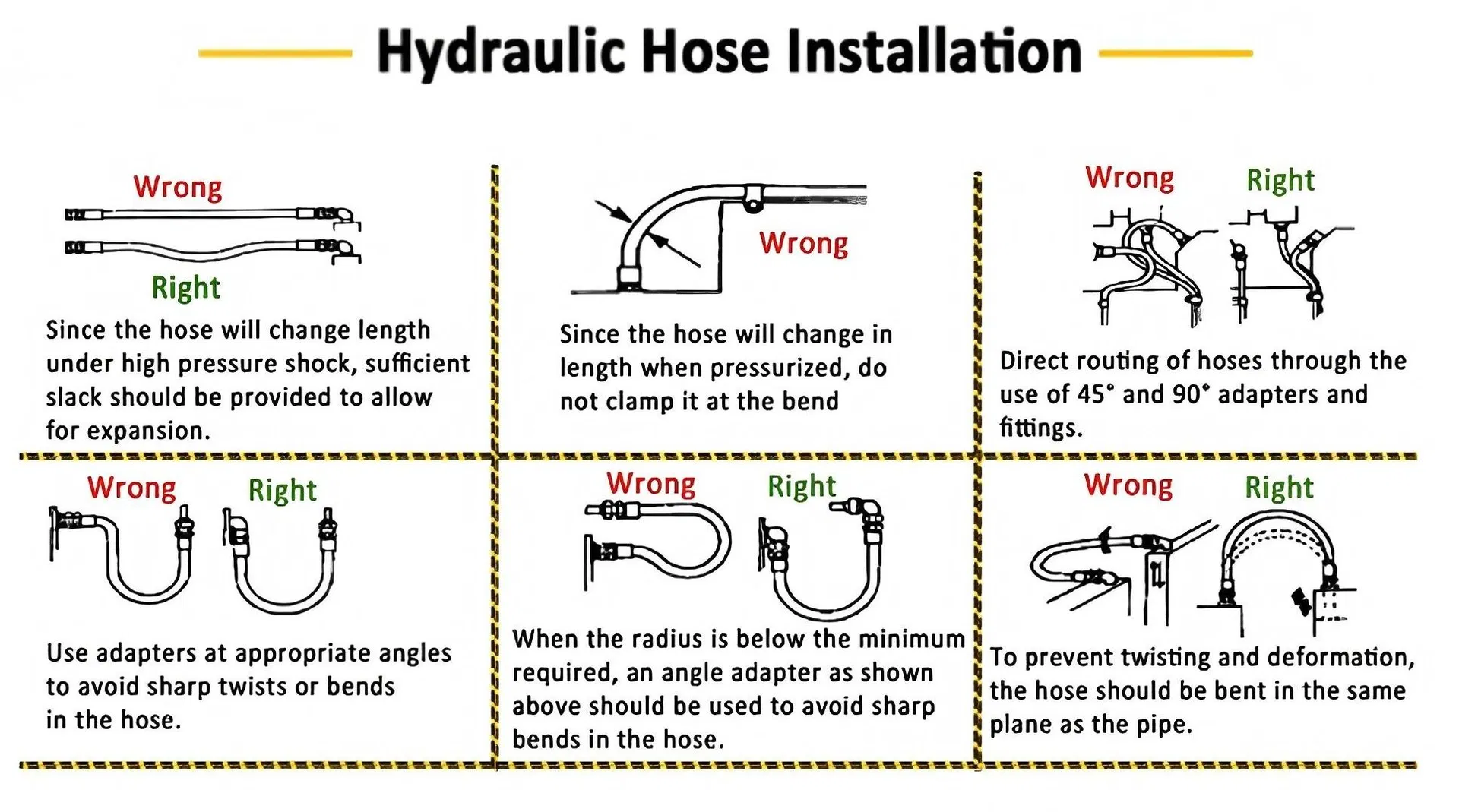

Application Scenarios
Production Showcase

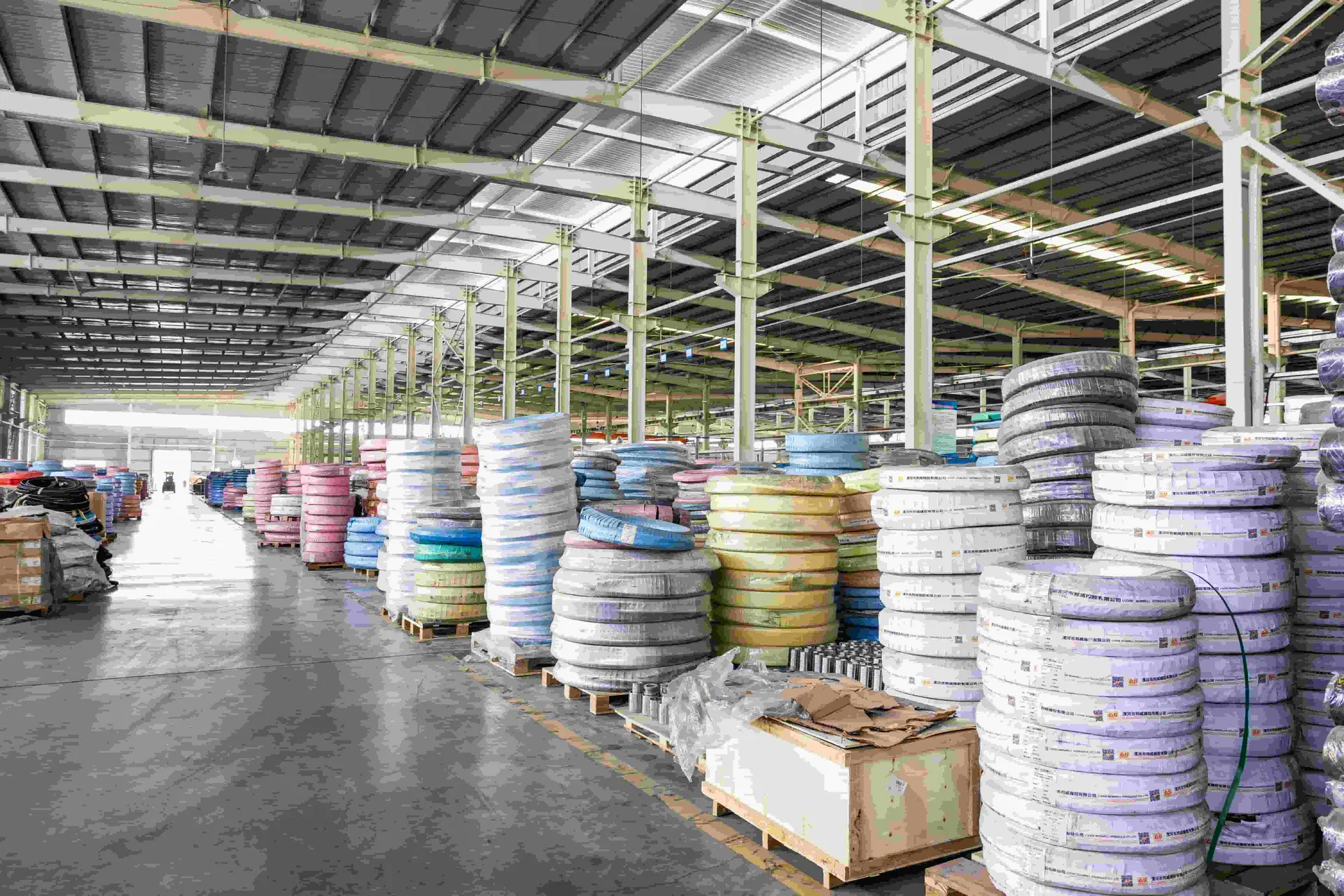

Hose Production 1

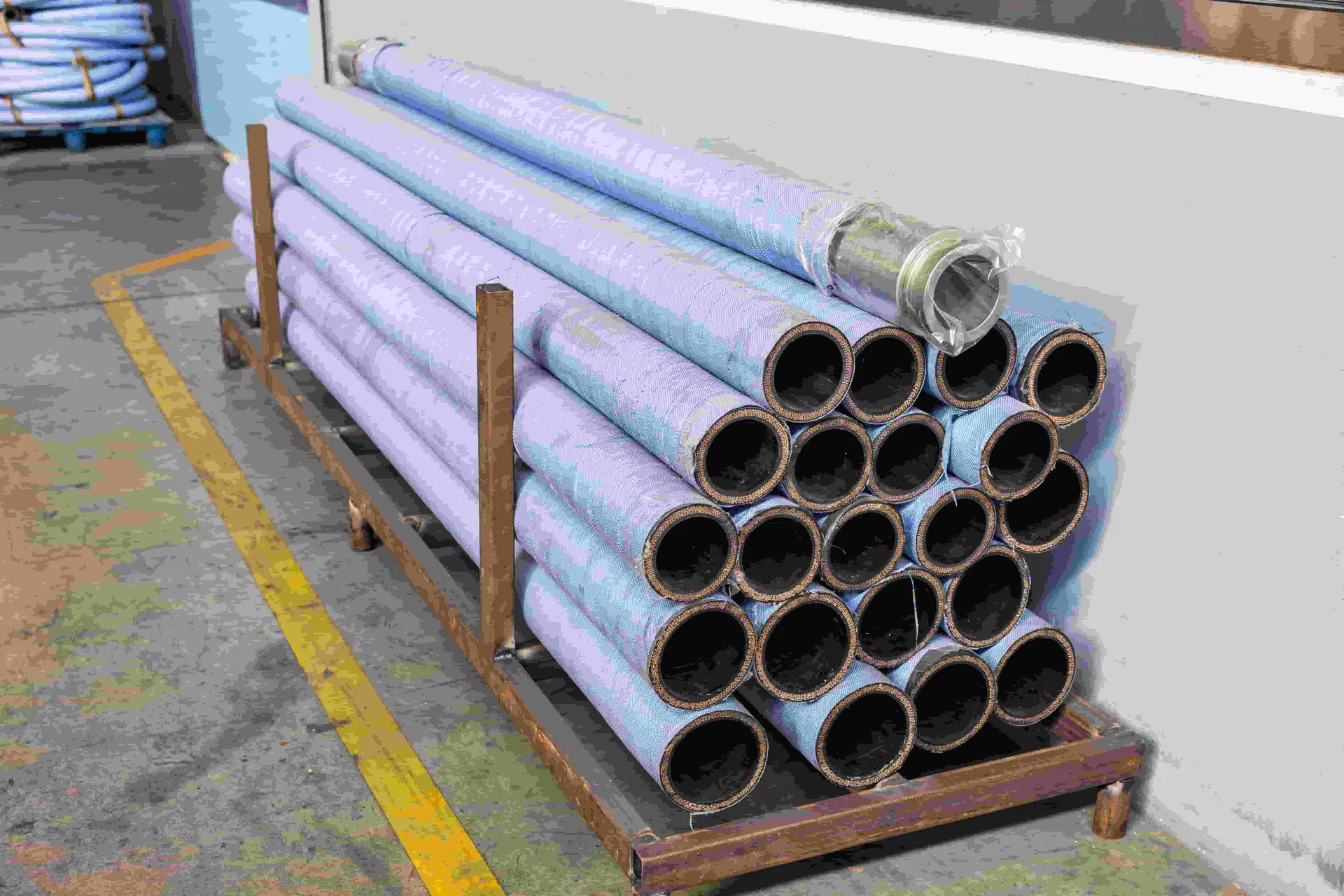

Hose Production 2

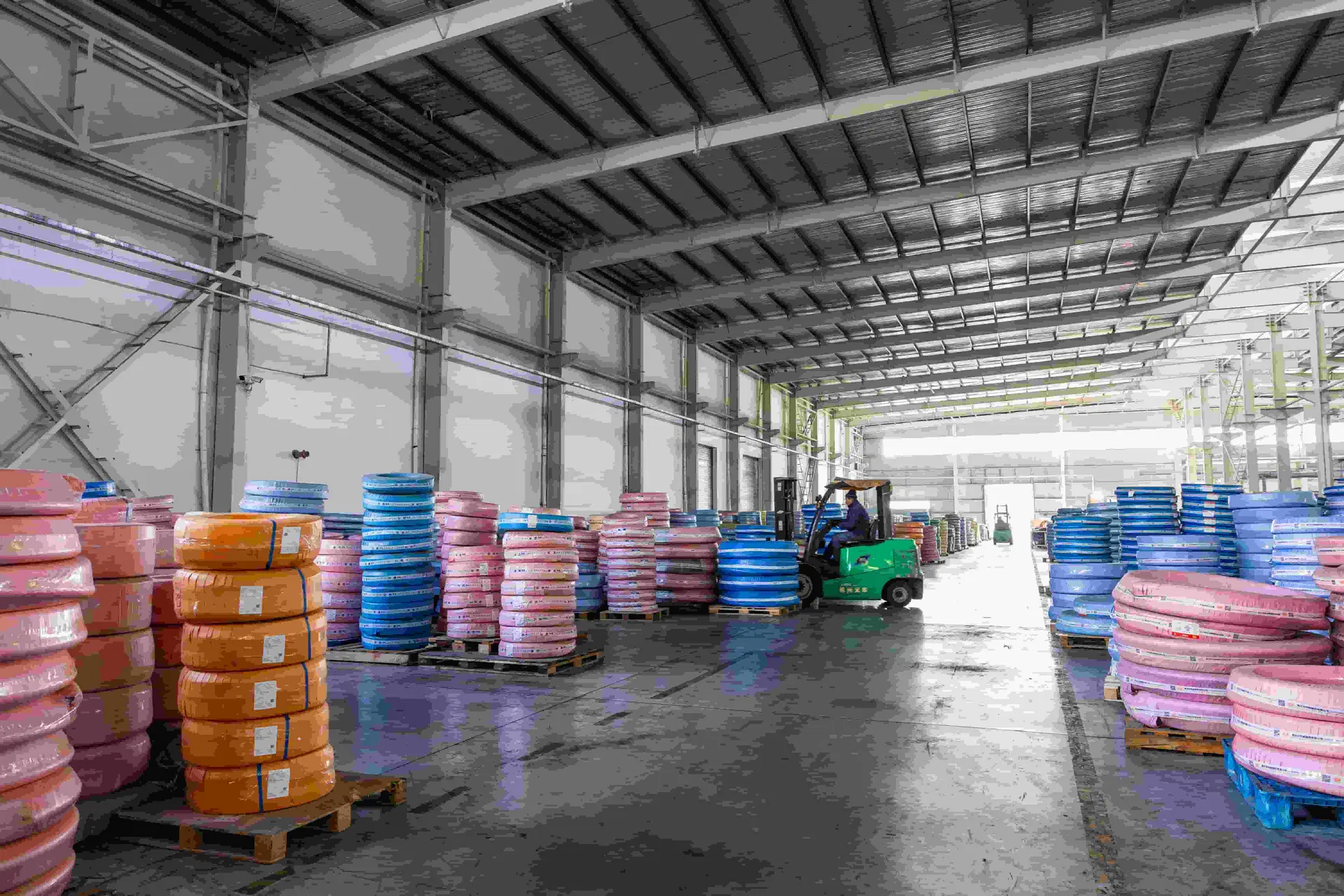

Hose Production 3
Manufacturing Excellence
Advanced Equipment: Variety of automatic welding and forming lines.
Professional Design: Optimization through selection design and strength checks.
Quality Assurance: 13 different specifications and variables diameters suitable for corrugated pipes and metal hoses.
Factory Equipment
Frequently Asked Questions
Q1 What are your terms of packing?
Generally, we pack our goods in neutral white wearable woven bags. Branded boxes are available with authorization.
Q2 What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q3 What is the typical delivery time?
Generally, it takes 20 to 60 days after receiving your advance payment, depending on the item and order quantity.
Q4 Do you offer OEM/ODM services?
Yes, we provide processing services including moulding and cutting to meet customer specifications.
Q5 What is the temperature range for these hoses?
The standard working temperature range is -40ºC to +93ºC (-40ºF to +200ºF).
Q6 Are the hoses resistant to chemicals?
Yes, our thermoplastic hoses have excellent chemical stability and are suitable for a wide range of hydraulic and fuel fluids.
