Product Description

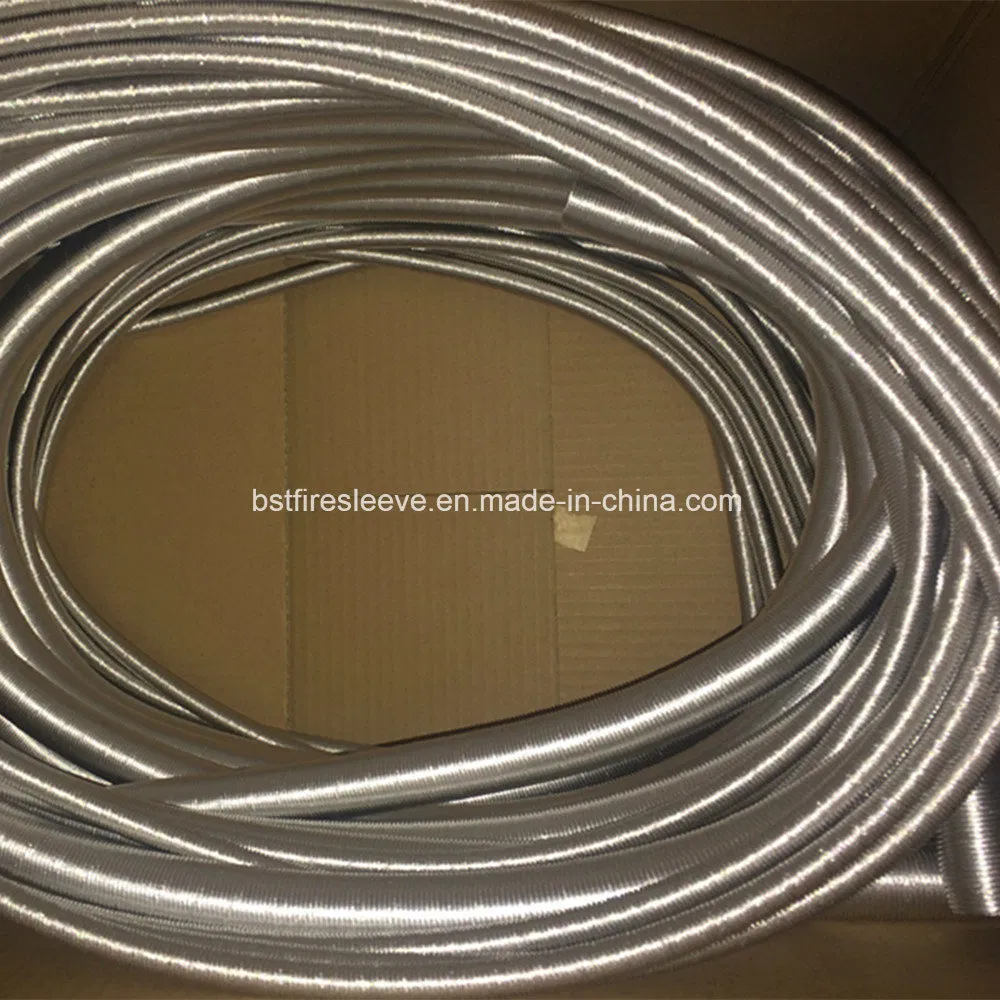

Transmission Oil Cooler Line Hose heat protective sleeve aluminum thermal hose Diesel Heater Air Ducting

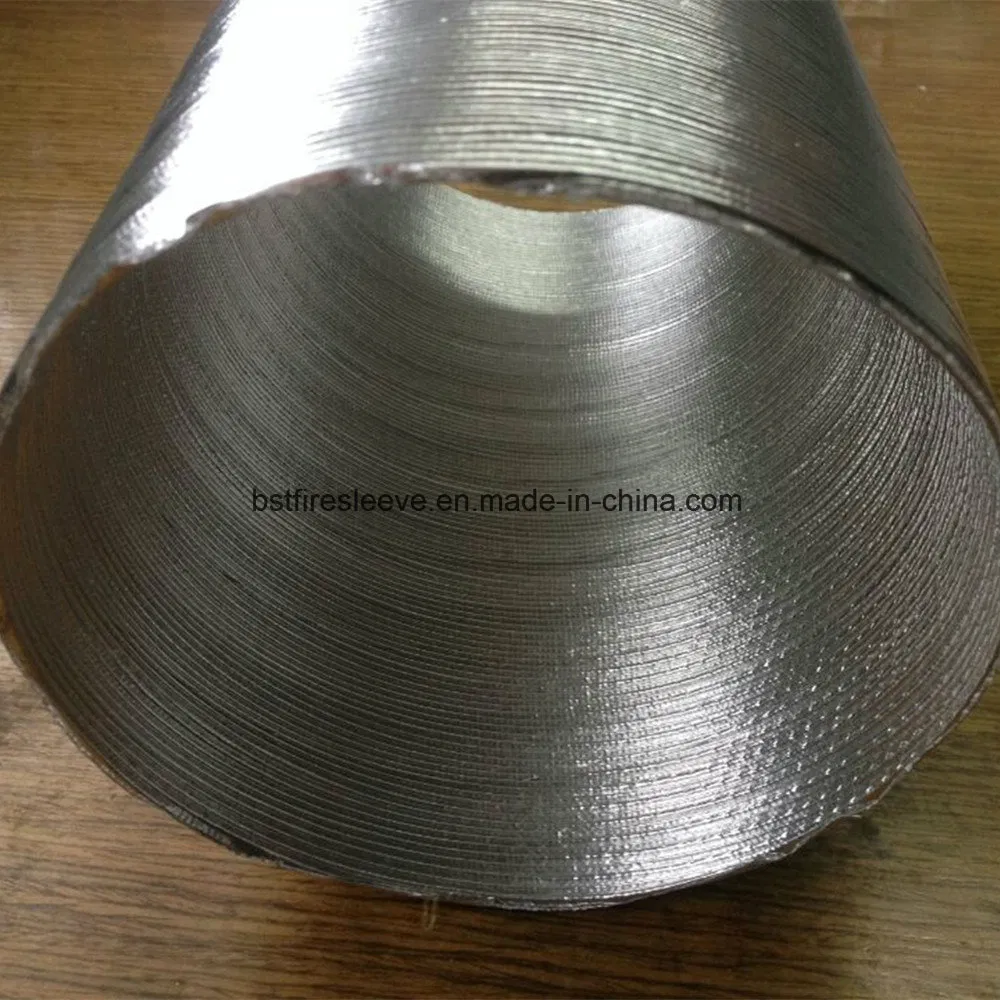

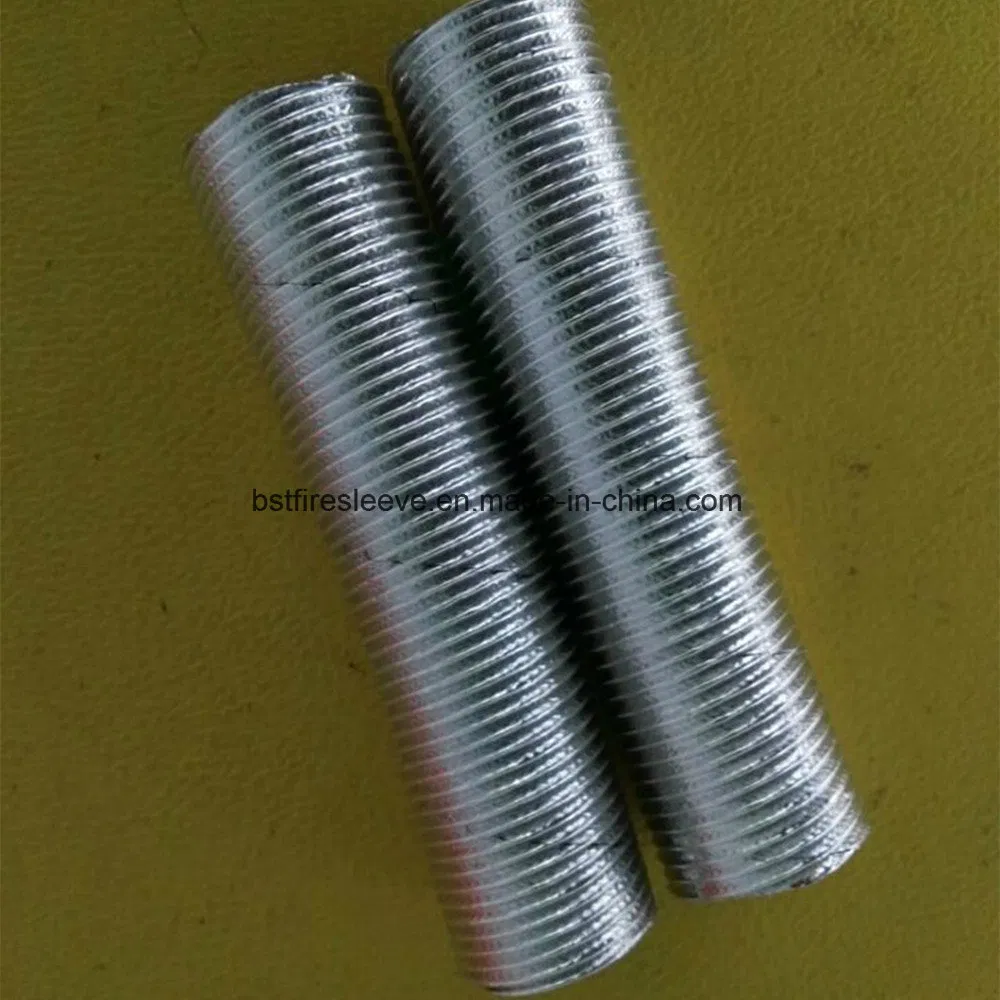

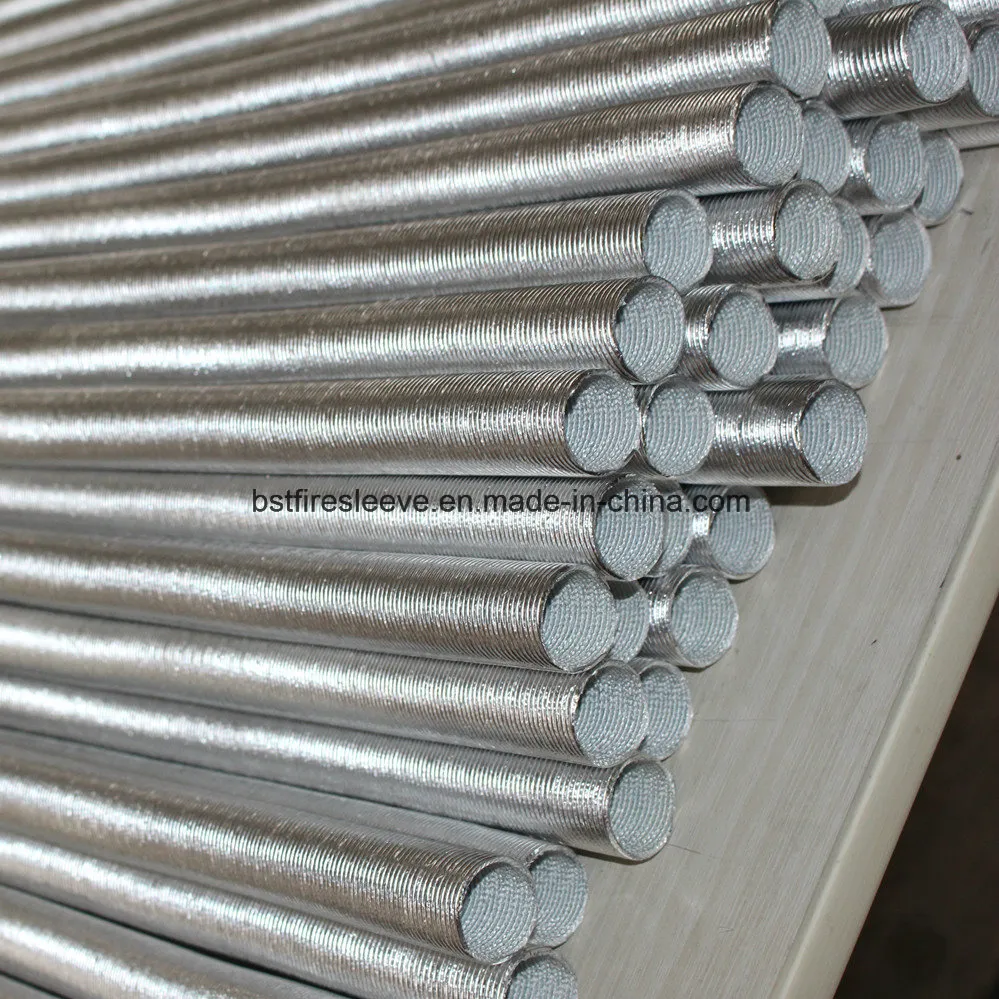

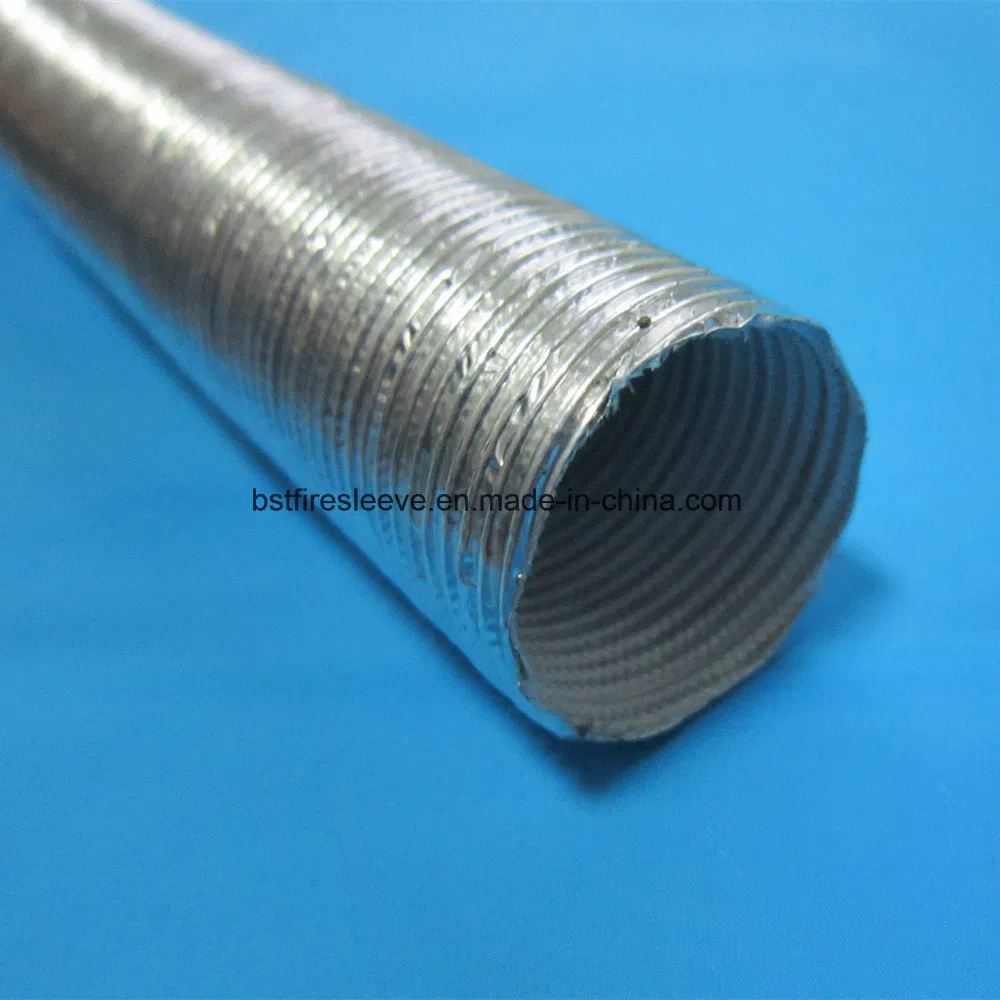

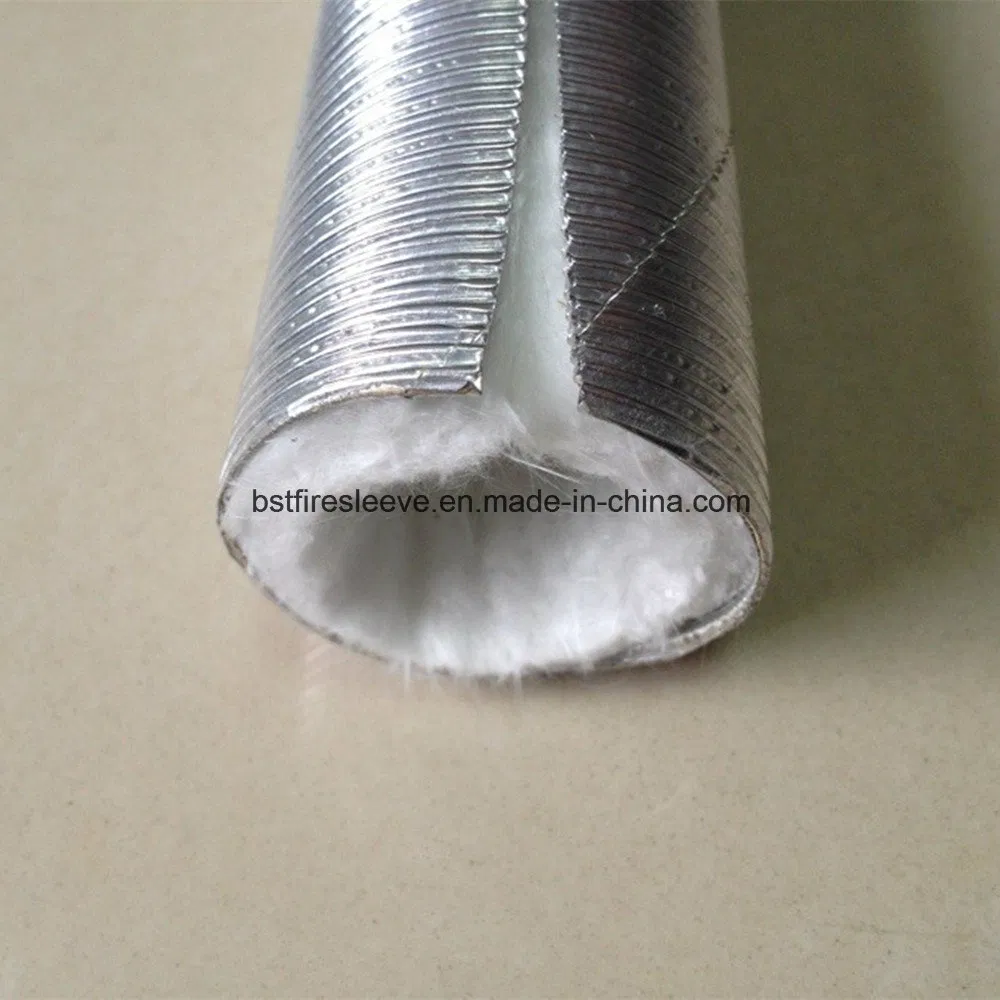

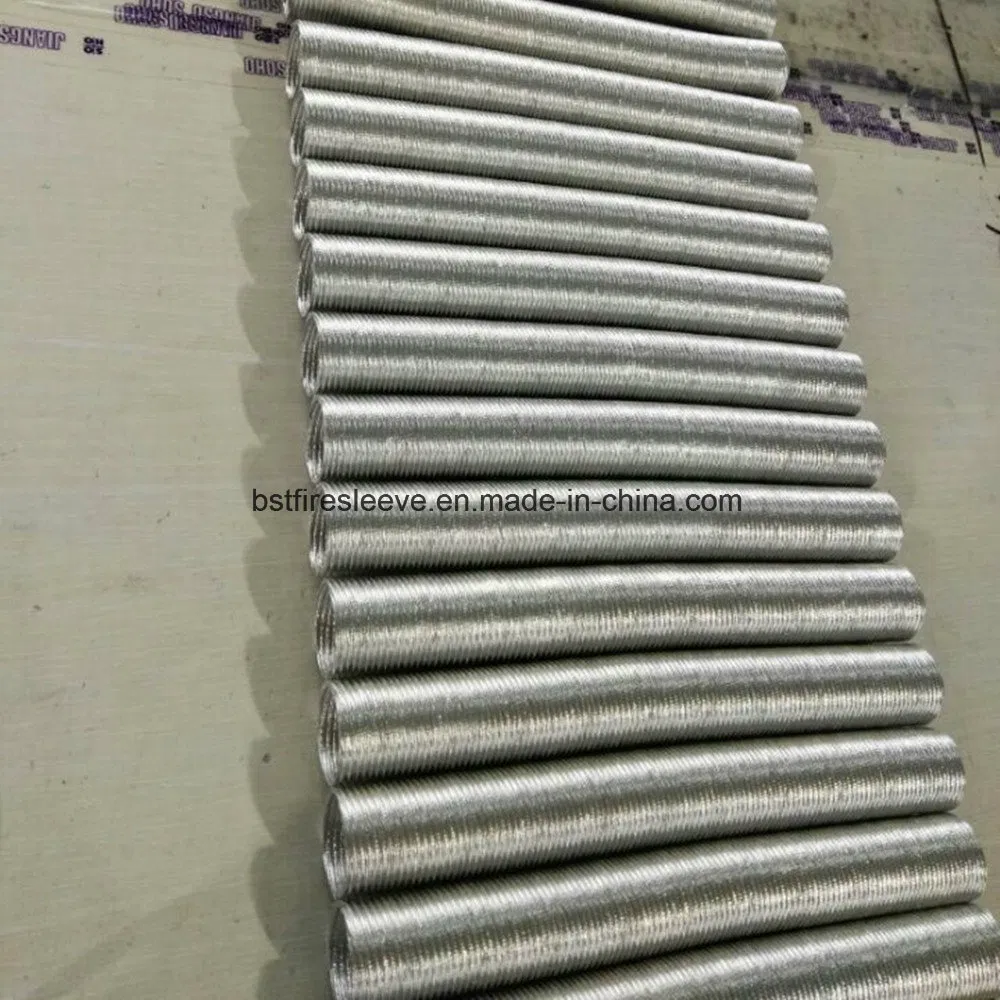

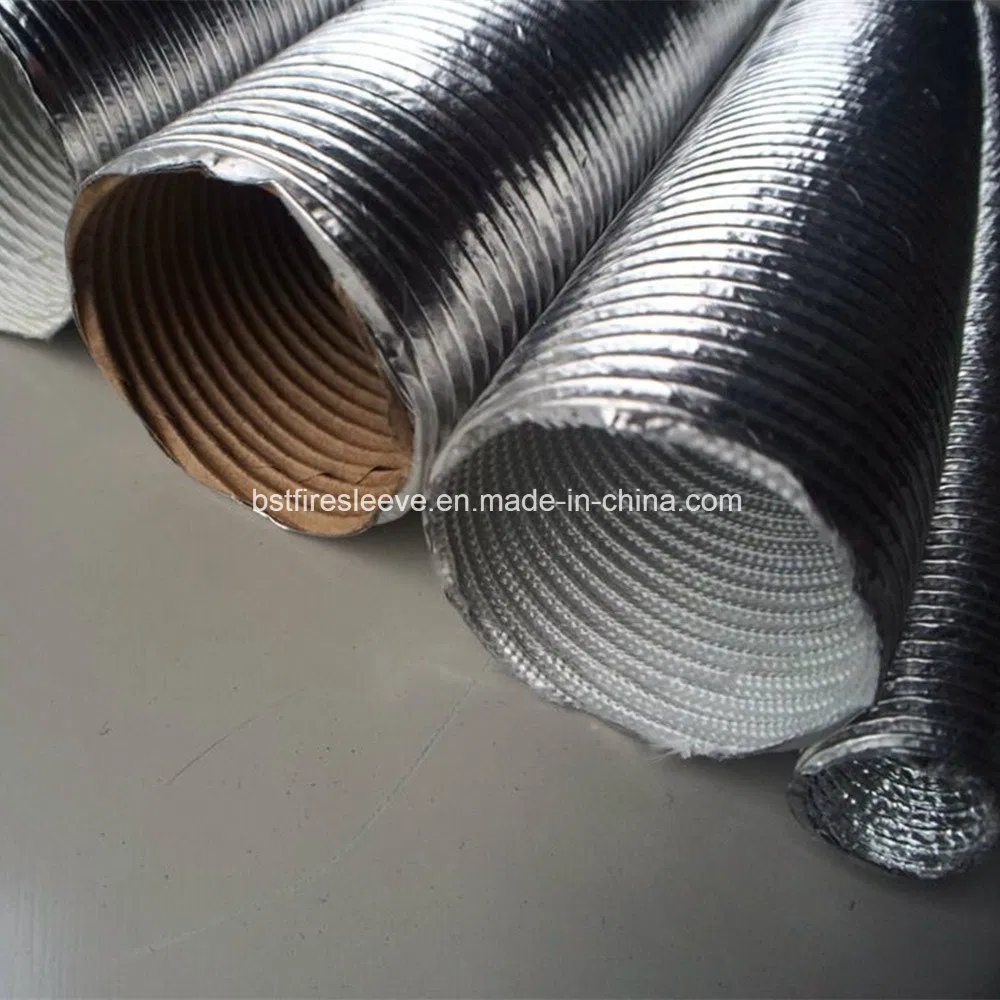

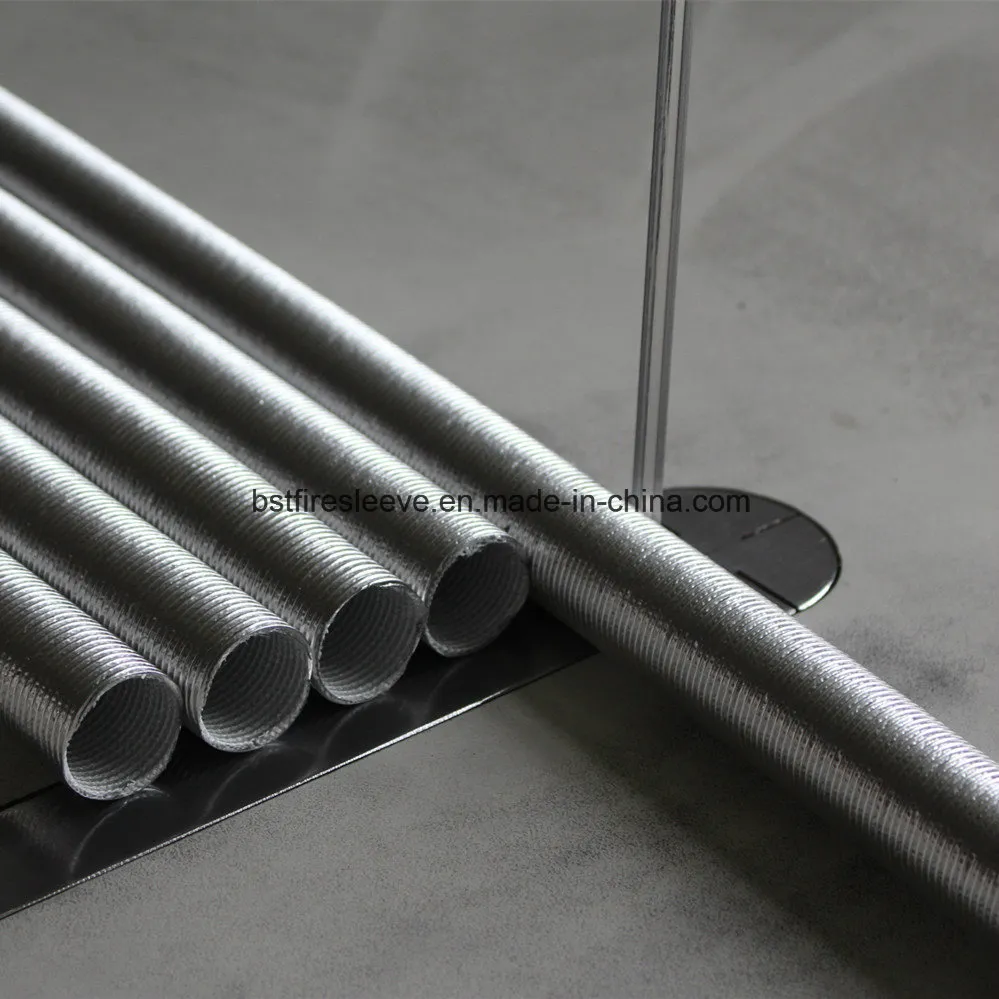

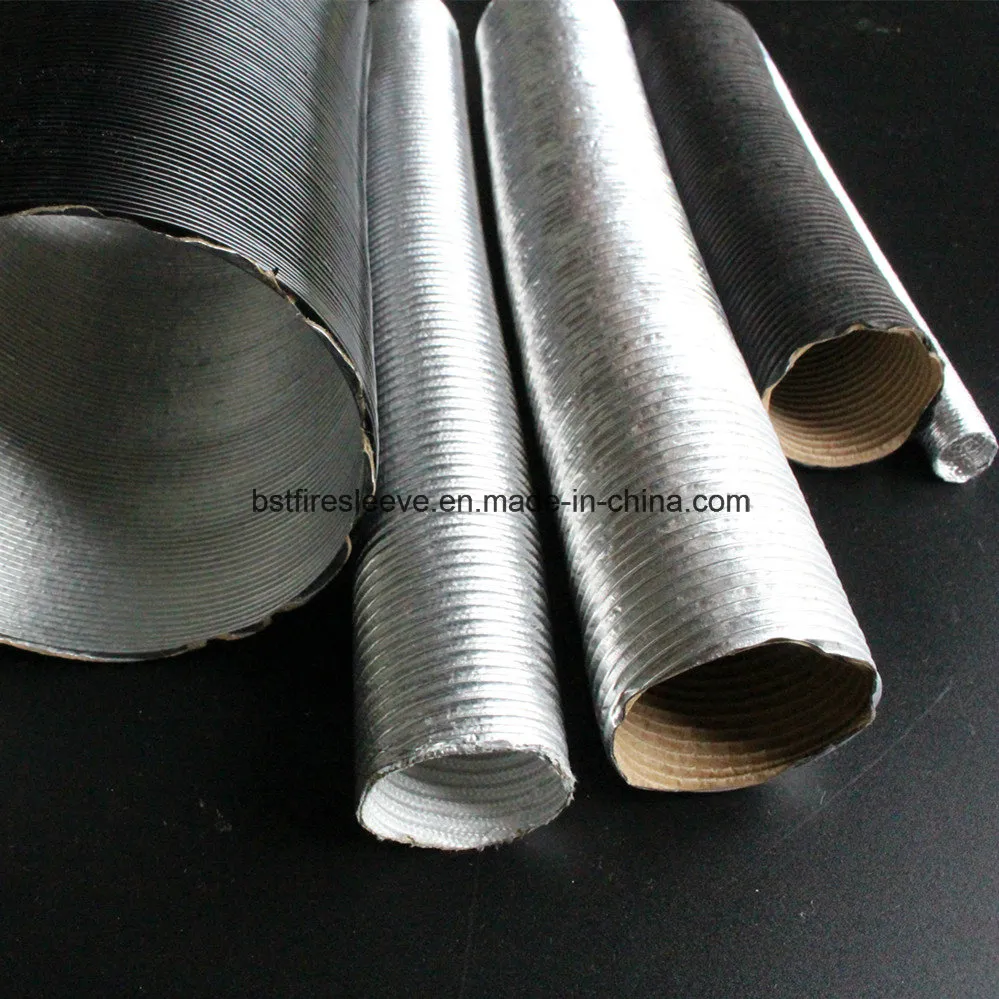

This corrugated heat protection tube outer layer is aluminum, can reflect at least 90% radiant heat. Inner layer glass fiber such as to prevent contact of the metal with copper pipe, provides Protection even at high temperatures.

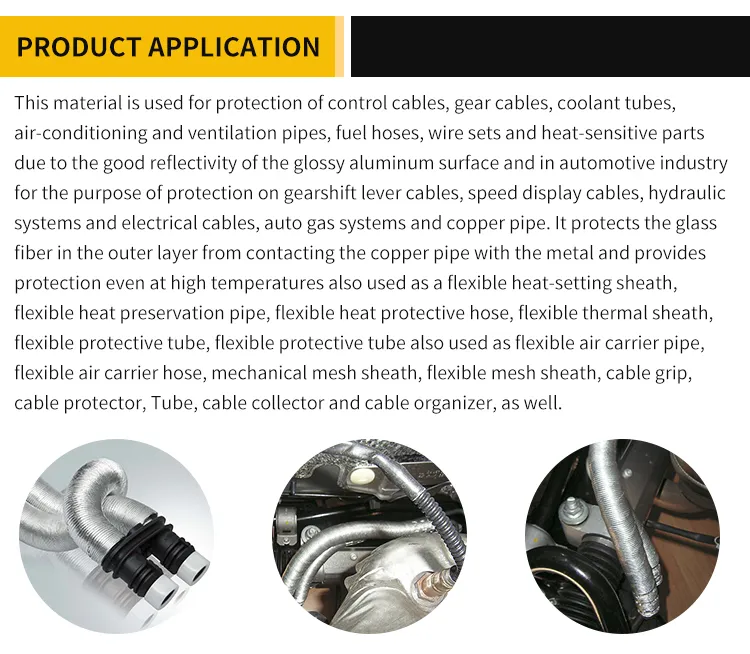

It can be used on control cables, gear cables, cooling tubes, air conditioning and ventilation pipes, fuel hoses, wire sets and heat-sensitive parts for Protection. In automotive sector, it can be used on the copper pipes which are used for shifter cables, speed indicator cables, hydraulic systems, electrical cables and LPG systems for Protection purposes.

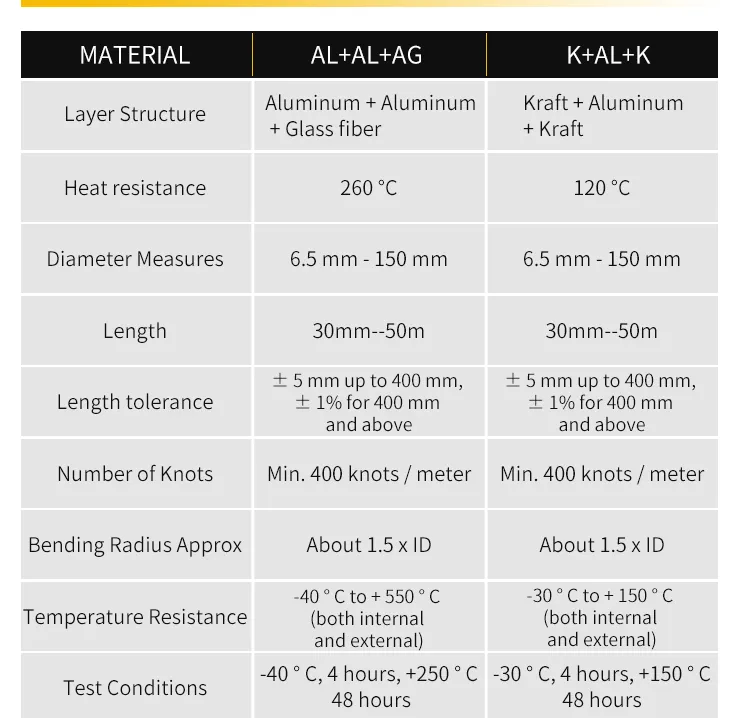

| Outer Layer Material | Aluminum |
| Inner Layer Material | Fiberglass |
| Heat Resistance | 250-350 °C |
| Diameters | Ø8 mm - Ø140 mm |
| Length | MAX 5m per roll, customs length upon request. |
| Length Tolerance | ±5 mm until 400mm., ± 1% for 400mm. and more |
| Nodes | Min. 400 nodes / meter |
| Bending Radius | Approximately 1.5 x ID |
| Thermal Resistance | -40 C to + 350 C |
Frequently Asked Questions
What is the maximum heat resistance of this protection tube?
The tube provides reliable heat resistance between 250°C and 350°C.
How much radiant heat can the aluminum outer layer reflect?
The aluminum outer layer is designed to reflect at least 90% of radiant heat.
What are the primary materials used in construction?
It features a hybrid insulation design with an aluminum outer layer and a fiberglass inner layer.
What range of diameters is available?
We offer a wide range of sizes with internal diameters (ID) from 8mm up to 140mm.
In which industries is this heat sleeve typically used?
It is widely used in the automotive sector for shifter cables, fuel hoses, hydraulic systems, and ventilation pipes.
Does it have good flexibility for installation?

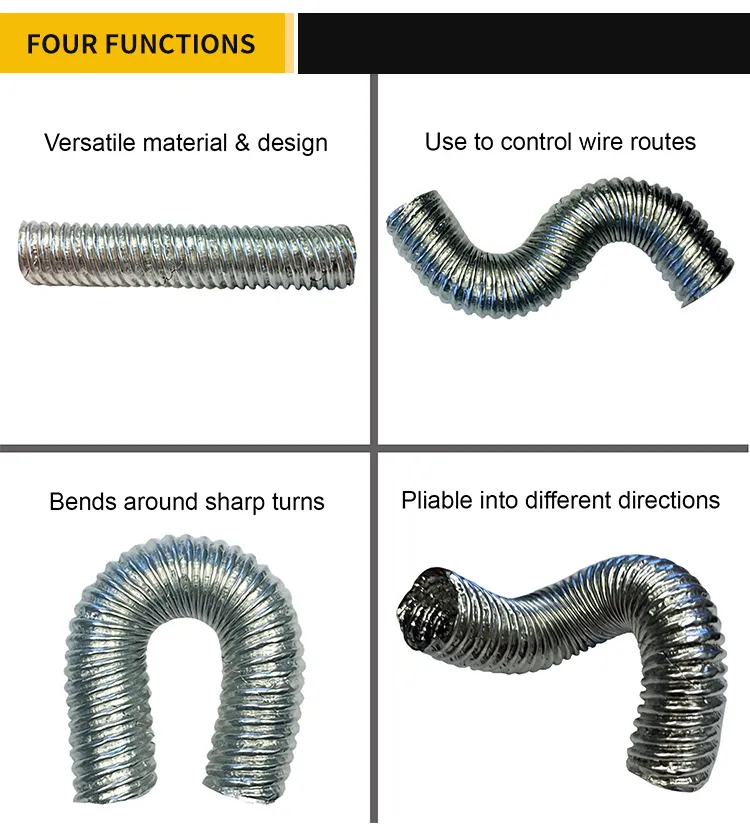

Yes, it has a bending radius of approximately 1.5 times the internal diameter, making it suitable for complex routing.
