| SIZE (mm) | Inch | I.D. (mm) | W.D. (mm) | O.D. (mm) | W.P (psi) | P.P (psi) | B.P (psi) | Min B.R (mm) | W.T (Kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| 5 | 3/16 | 5 | 9.5 | 11.5 | 3625 | 7250 | 14500 | 90 | 0.19 |
| 6 | 1/4 | 6.5 | 11.1 | 13.1 | 3265 | 6525 | 13050 | 100 | 0.22 |
| 8 | 5/16 | 8.2 | 12.7 | 14.7 | 3120 | 6235 | 12470 | 115 | 0.26 |
| 10 | 3/8 | 9.9 | 15.1 | 17.1 | 2610 | 5220 | 10440 | 125 | 0.32 |
| 12 | 1/2 | 12.9 | 18.1 | 20.2 | 2320 | 4640 | 9280 | 180 | 0.38 |
| 19 | 3/4 | 19.3 | 25.1 | 27.1 | 1525 | 3045 | 6090 | 240 | 0.60 |
| 25 | 1 | 25.4 | 32.8 | 35.2 | 1275 | 2610 | 5075 | 300 | 0.89 |
| 51 | 2 | 51 | 59.5 | 62.5 | 580 | 1160 | 2320 | 630 | 1.97 |

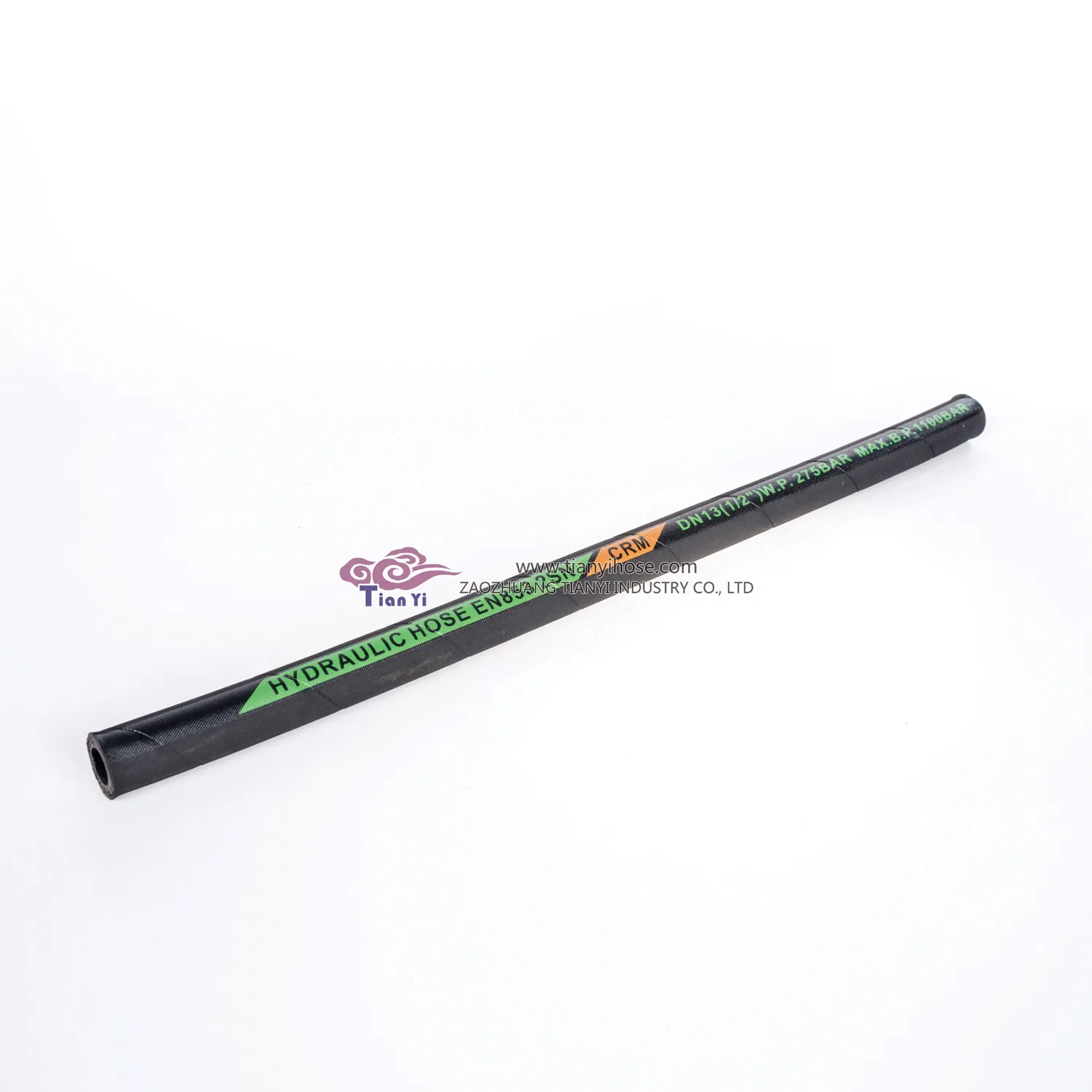

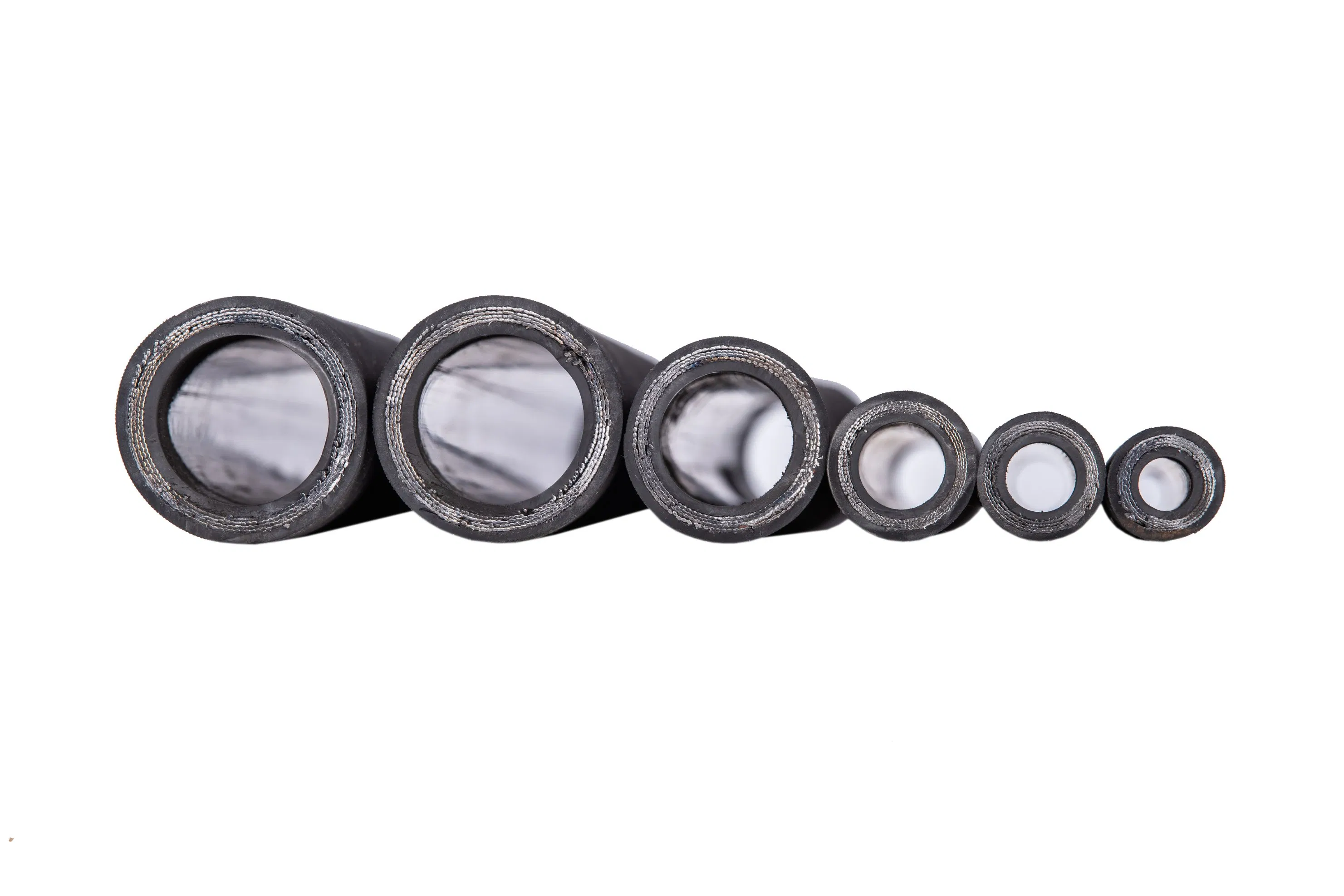

TUBE: High temperature and oil resistant synthetic rubber
REINFORCEMENT: 1 High tensile steel wire braid
COVER: Blue color, high temperature, oil, abrasion and weather resistant synthetic rubber
APPLICATION: For low-medium pressure hydraulic systems in industry and agriculture
TEMPERATURE RANGE: -40ºC to +135ºC
Founded in 2002, our industrial facility covers an area of 30,000 square meters with a building area of 27,000 square meters. With an annual output of 10 million meters, we are recognized as a high-tech enterprise and a quality credit AAA brand. Our products are widely trusted for mine safety and industrial applications.
Our main product range includes various hydraulic rubber hoses, high-pressure engineering machinery winding pipes, steel wire braided hoses, oil hoses, and high wear-resistant grouting hoses. We offer over 1,400 specifications with diameters ranging from 5mm to 76mm, forming a specialized and large-scale production line.

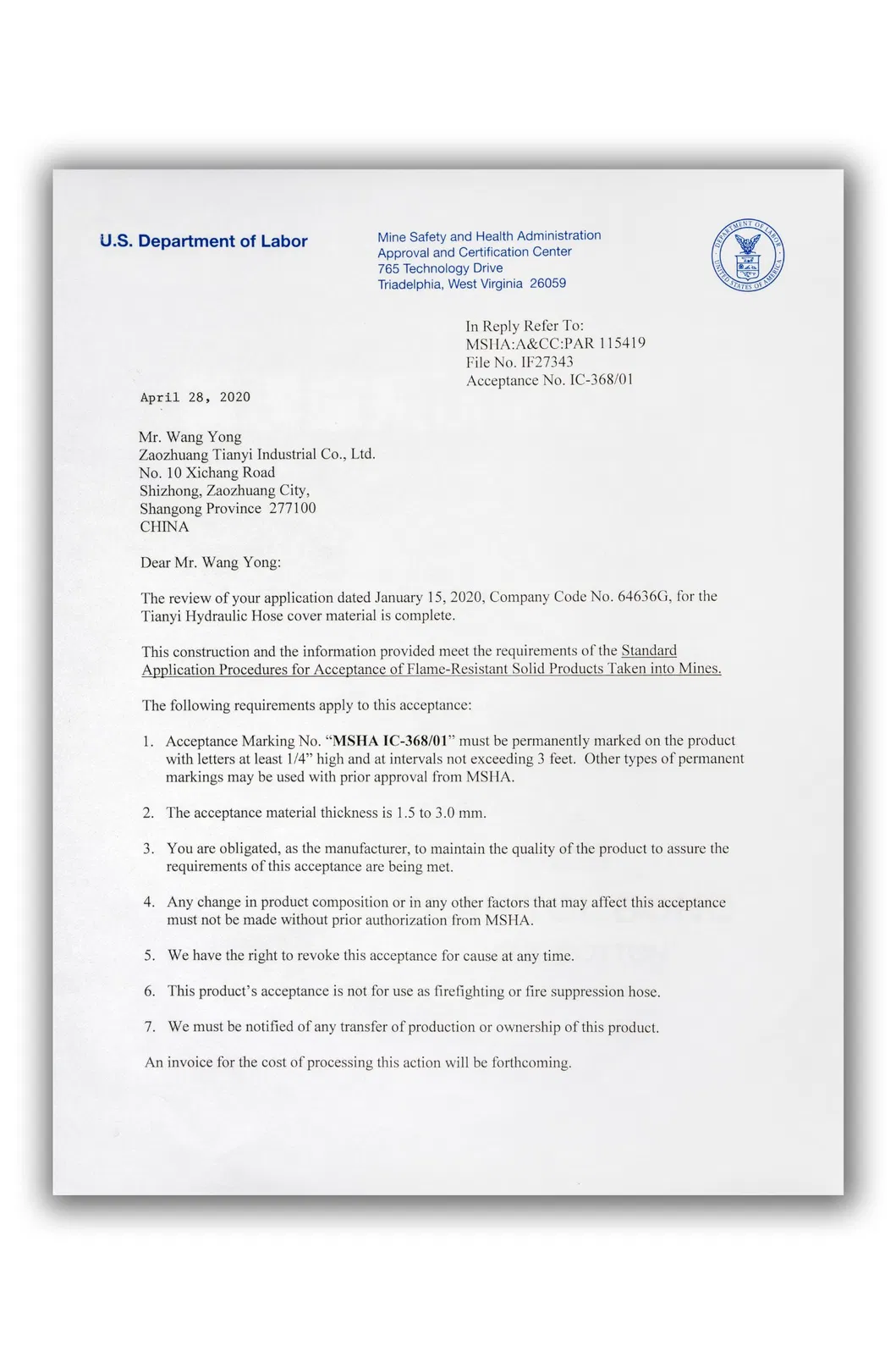

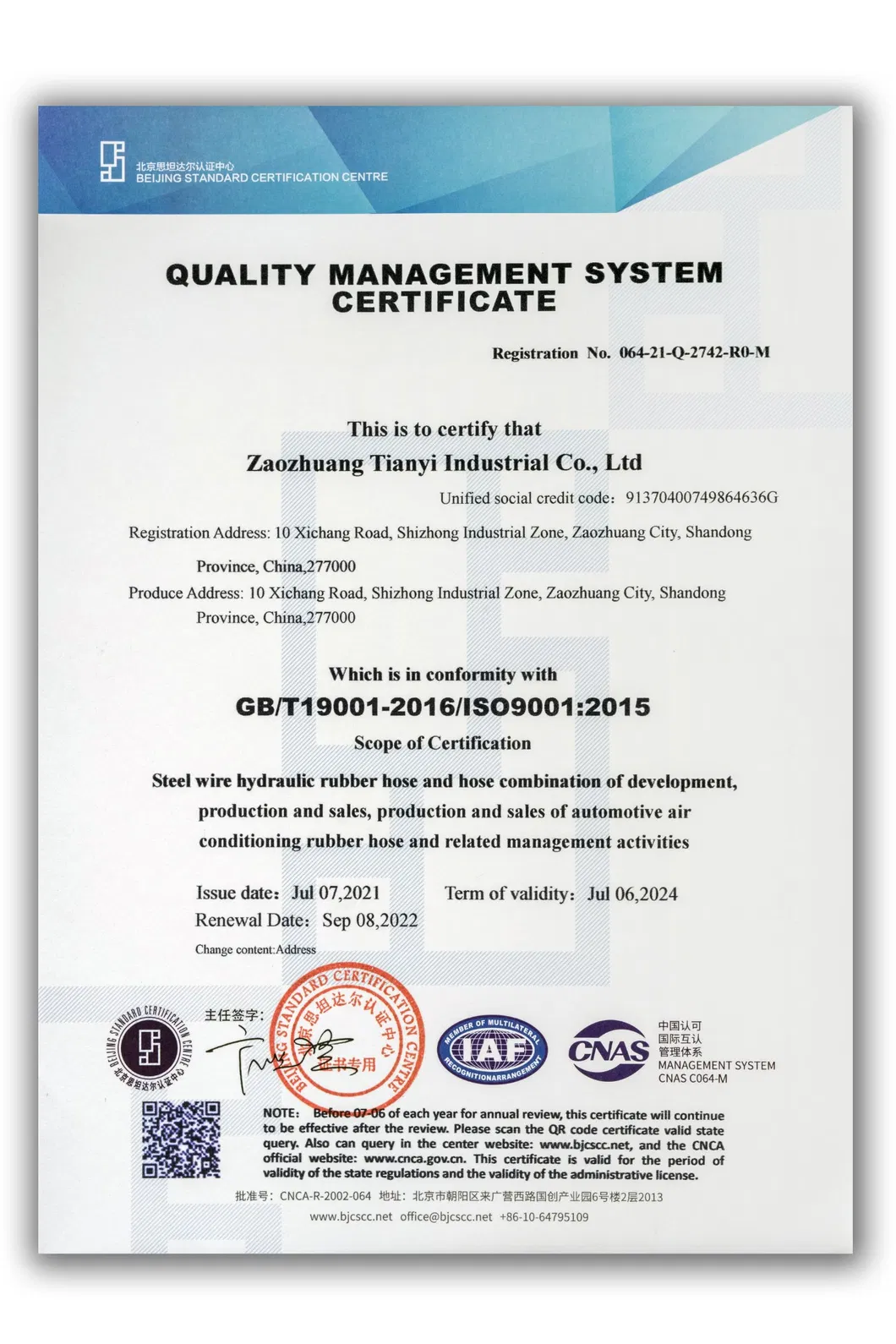

Our products feature excellent performance, durability, and resistance to extreme temperatures (+220°C to -55°C), high pressure, oil, acids, and corrosion. All products have passed ISO9001 quality management system certification and are exported to over 10 countries and regions, including Russia, Turkey, Brazil, and South Africa.

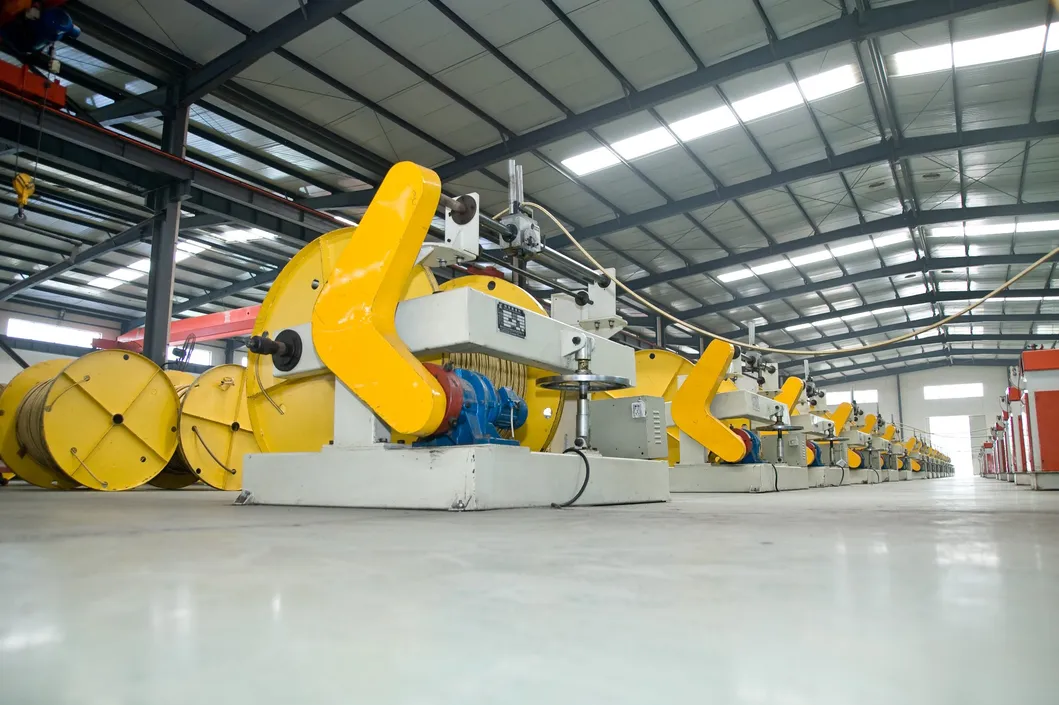

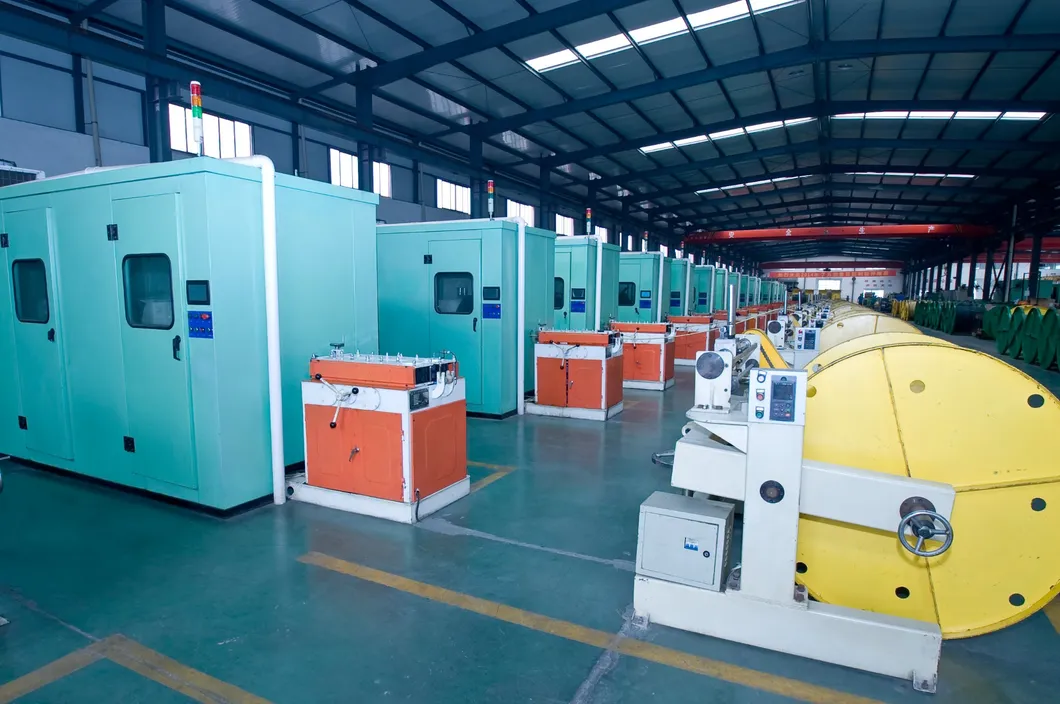

(1) Advanced Production Equipment: We utilize advanced production equipment and technical services introduced from the United States, South Korea, and Russia to optimize our manufacturing processes and technology.
(2) High Quality Materials: We use premium raw materials, including carbon black from world-renowned suppliers and high-grade steel wire. We strictly avoid inferior rubber in our production.

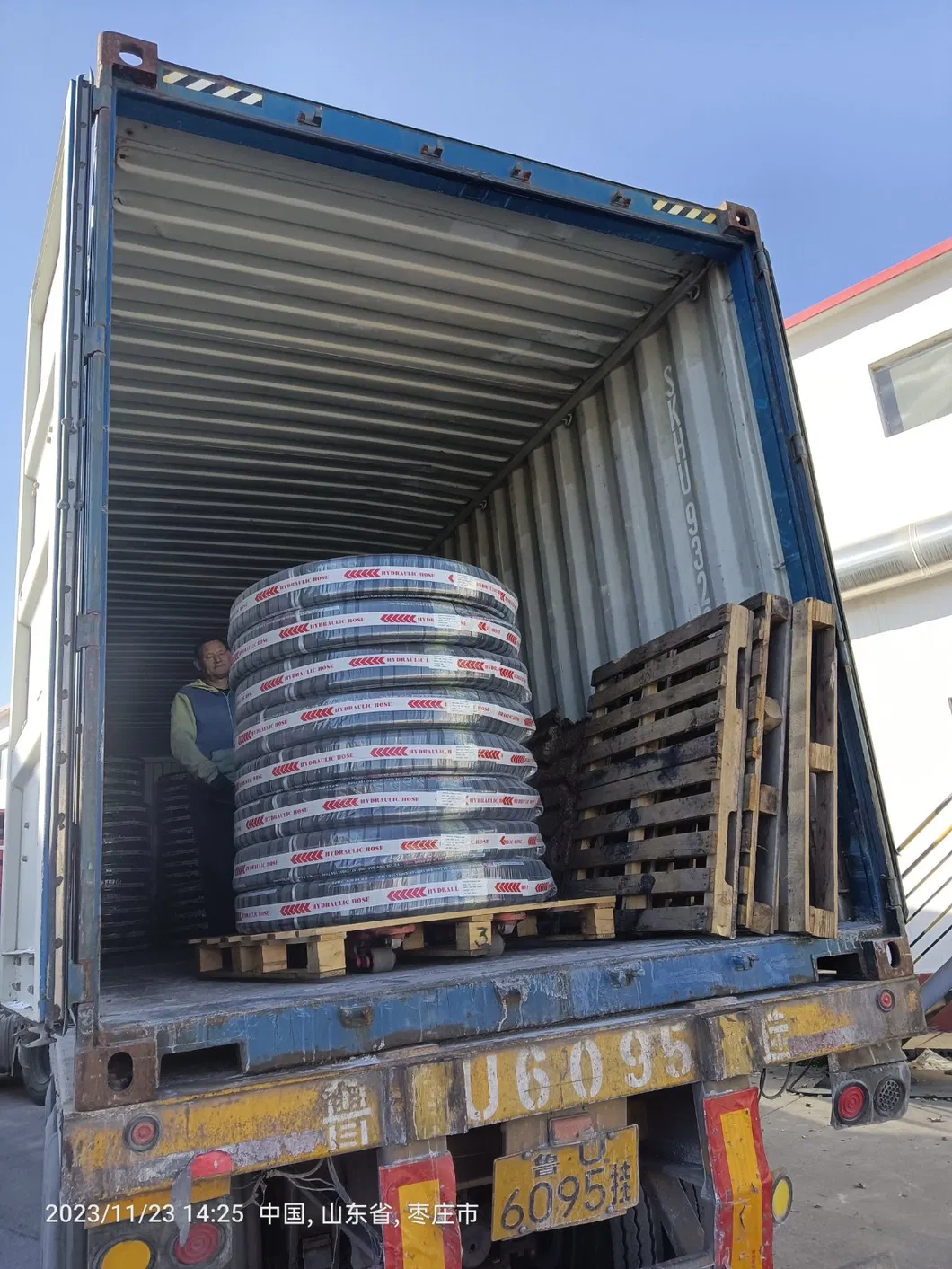

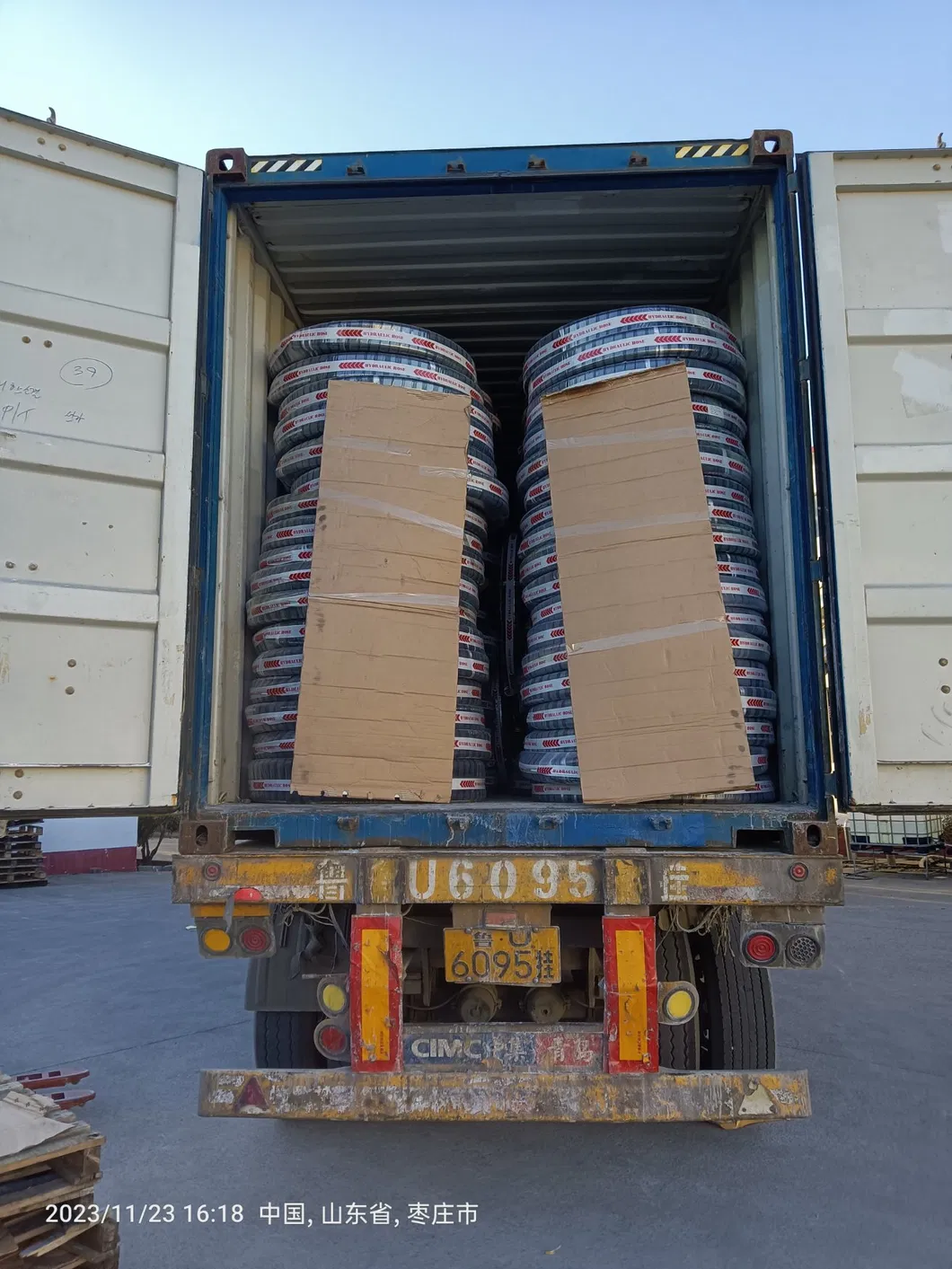

(3) Faster Delivery: With a mass production workshop and extensive raw material inventory, we ensure rapid order fulfillment and delivery.
