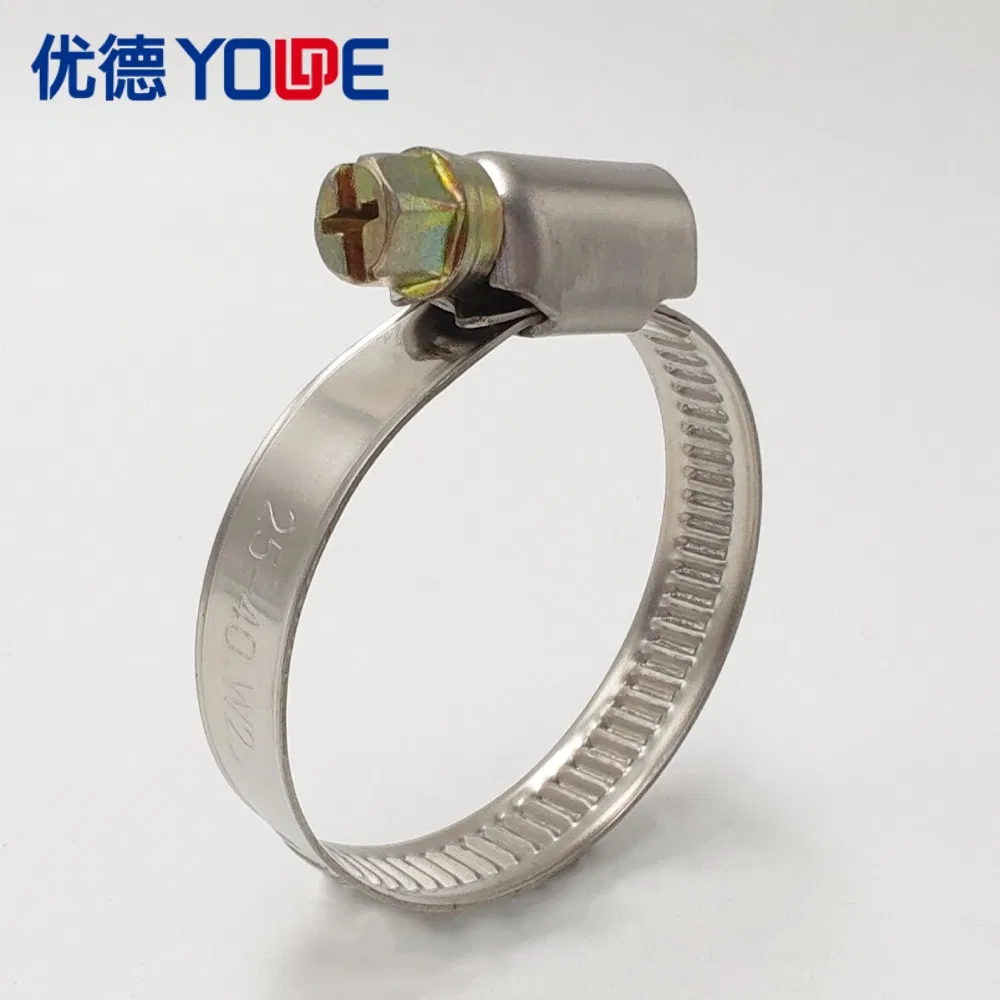

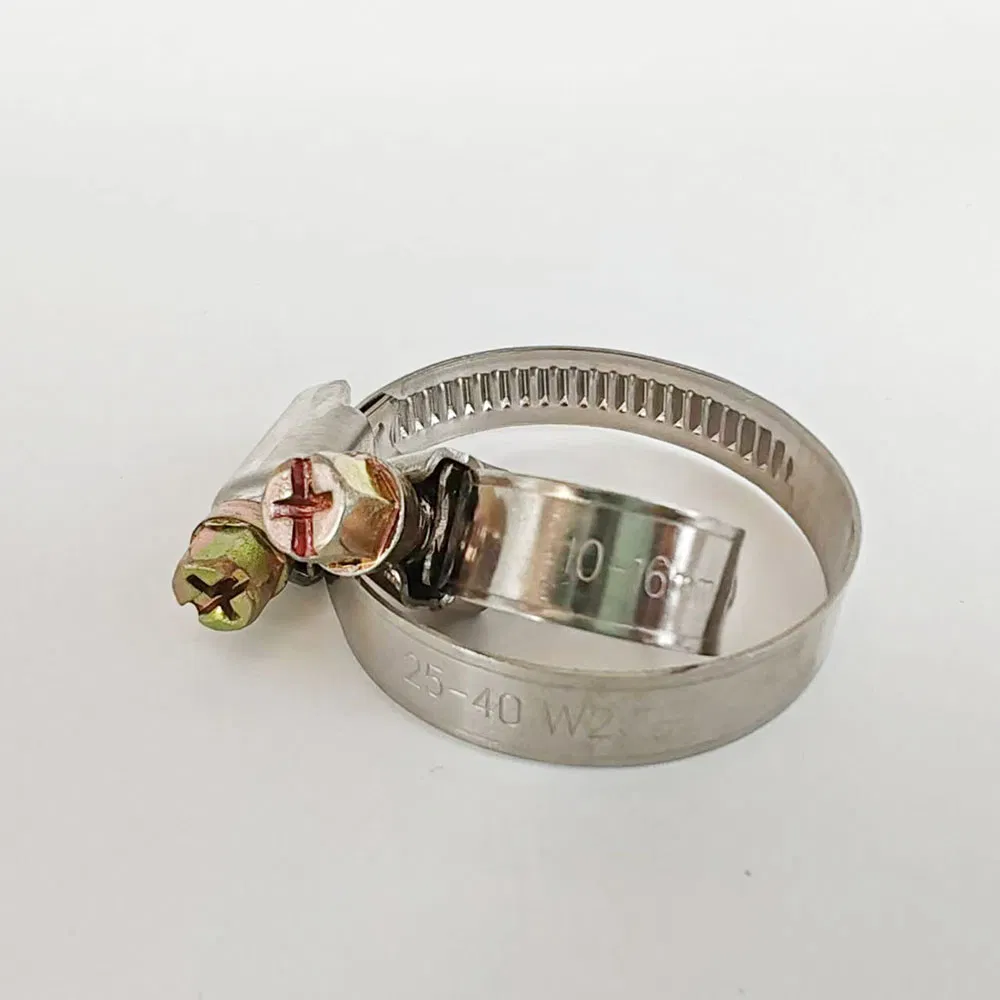

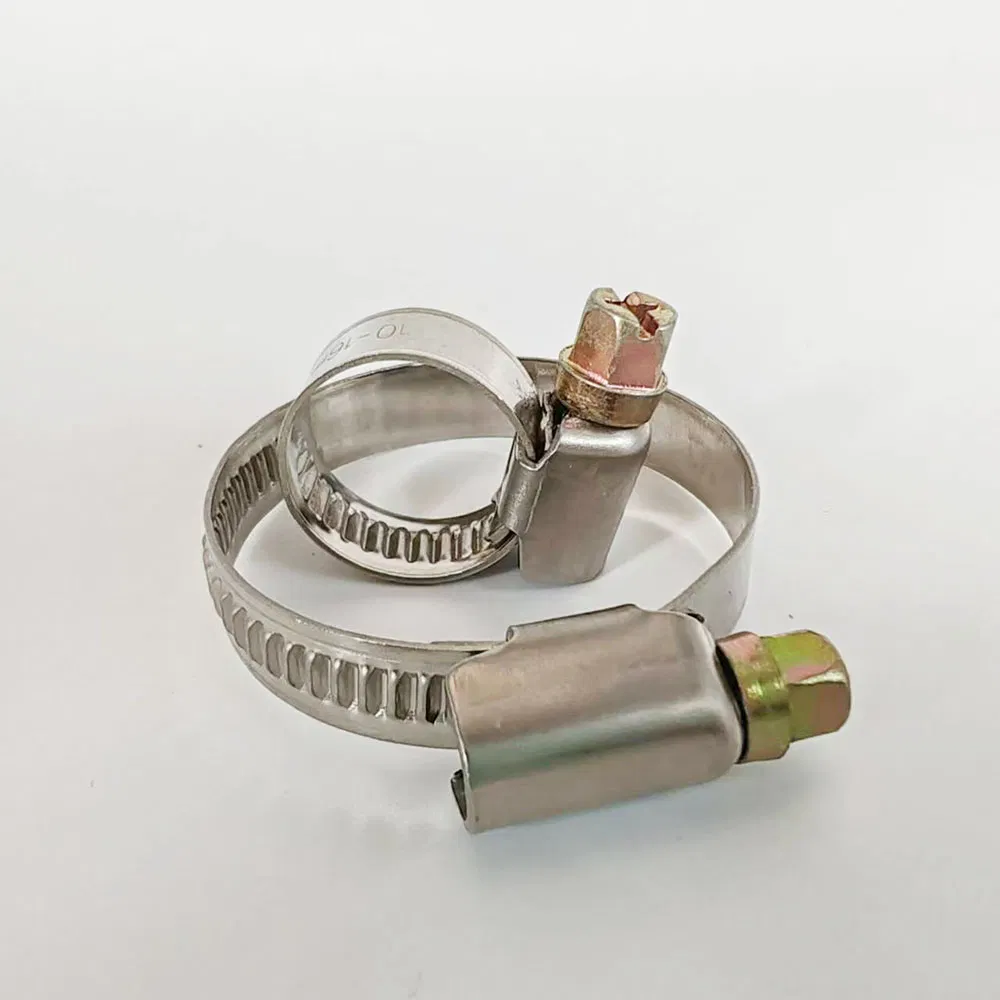

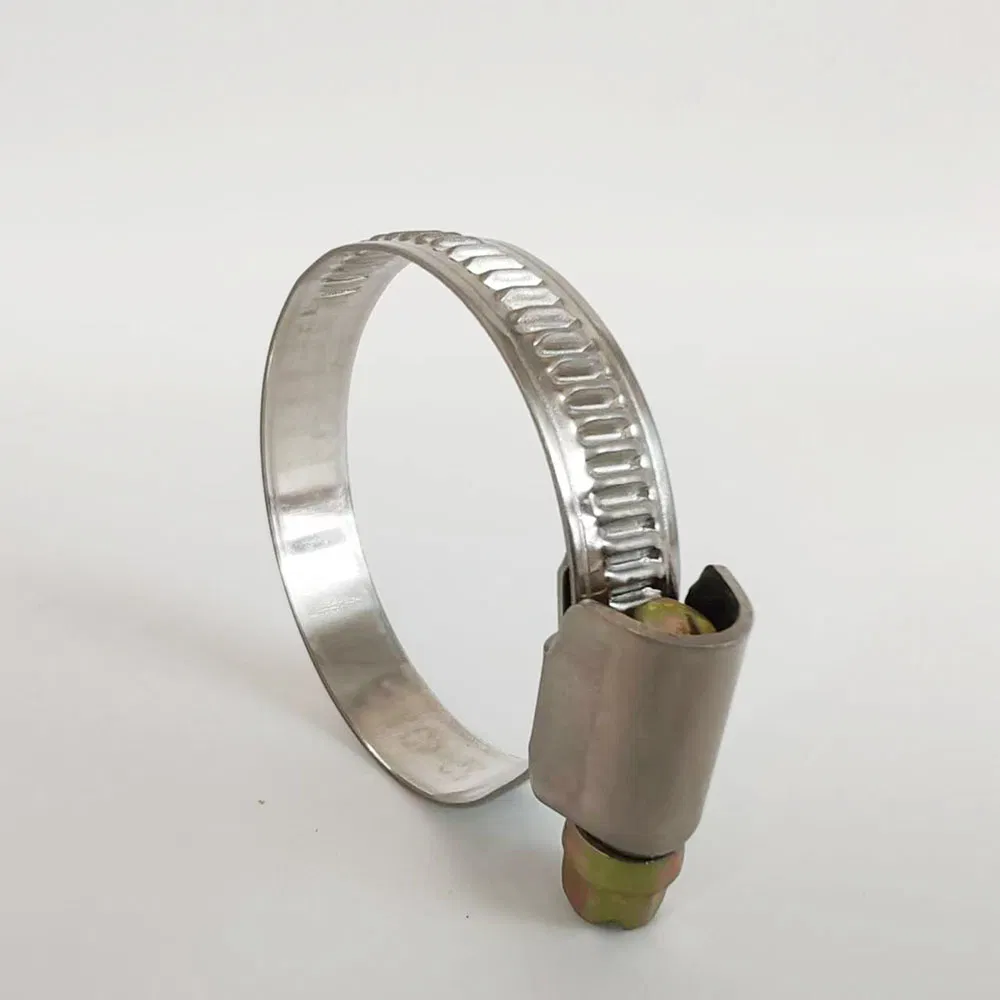

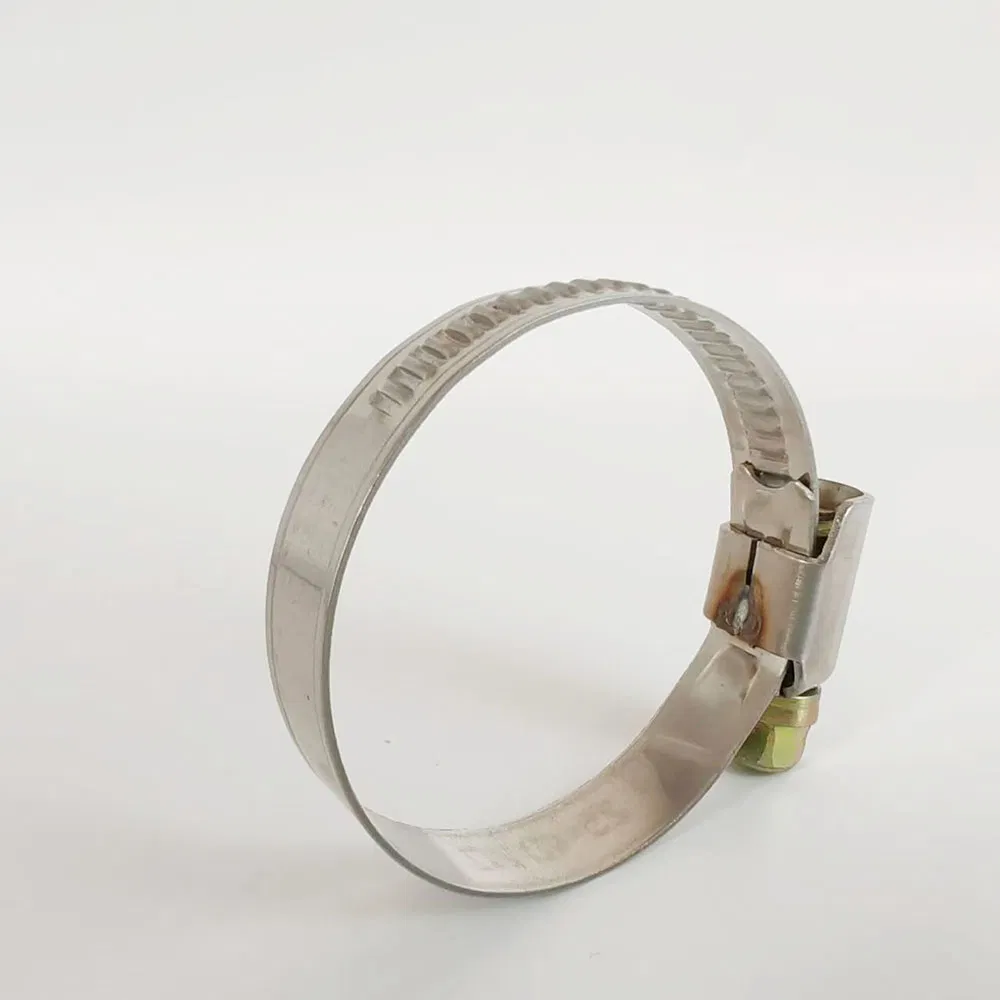

Embossed Non-Perforated Worm Gear Clamp with Symmetric Welded Housing, Stainless Steel German Middle Type Hose Clip for Automotive

1 / 5

Embossed Non-Perforated Worm Gear Clamp with Symmetric Welded Housing, Stainless Steel German Middle Type Hose Clip for Automotive

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔵 Basic Information

Connection

Welding

Surface Treatment

Galvanized Sheet

Head Type

Round

Product Name

German Type Hose Clamp

Usage

Plumbing, Automotive, Irrigation, Household

Band Width

8mm, 12mm, 12.7mm

Thickness

0.6mm

Type

Perforated Hose Clamp

HS Code

73269090

Production Capacity

10000PCS/Day

🔵 Product Overview

✓Type: German Type Hose Clamp (worm gear/worm drive)

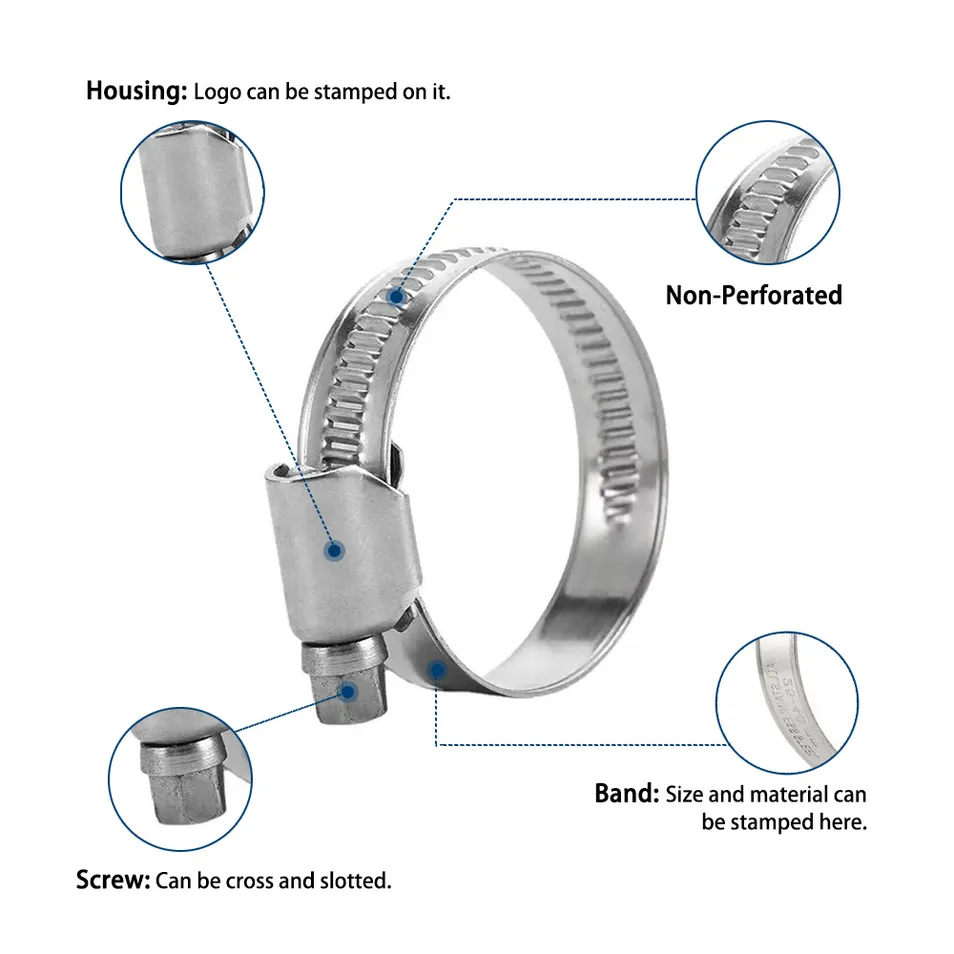

✓Structure: Precision band, housing, and screw assembly

✓Finish: Zinc or nickel plated for corrosion resistance

✓Screw: Available in Cross or Slotted shapes

✓Materials: High-grade W1, W2, W4, and W5 options

🔵 Technical Specifications

Model No.	Size (mm)	Thickness (mm)	Width (mm)	Packing (Bag/CTN)
9UDGT-812	8-12	0.6/0.7	9	100/1000
9UDGT-1016	10-16	0.6/0.7	9	100/1000
9/12UDGT-1222	12-20	0.6/0.7	9/12	100/1000
9/12UDGT-1627	16-27	0.6/0.7	9/12	100/1000
9/12UDGT-2032	20-32	0.6/0.7	9/12	50/500
9/12UDGT-4060	40-60	0.6/0.7	9/12	20/500
9/12UDGT-100120	100-120	0.6/0.7	9/12	20/250

🔵 Material Grade Standards

Material	Band	Housing	Screw
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 201SS/304SS	AISI 201SS/304SS	Zinc plated steel
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS

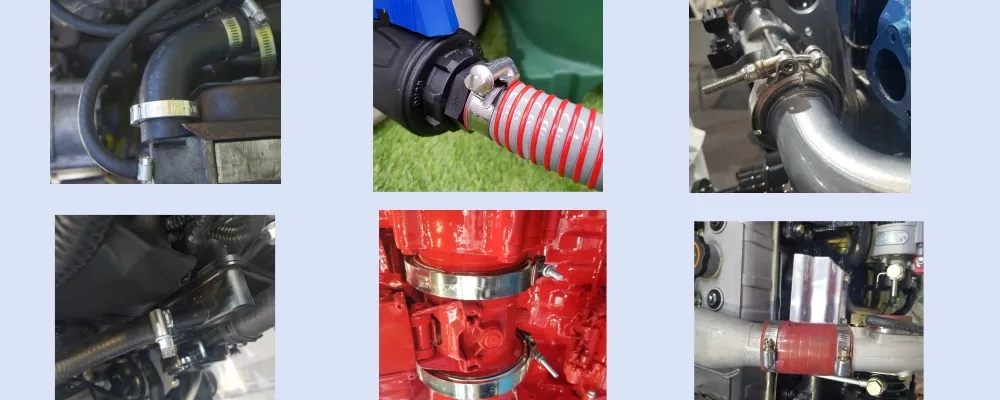

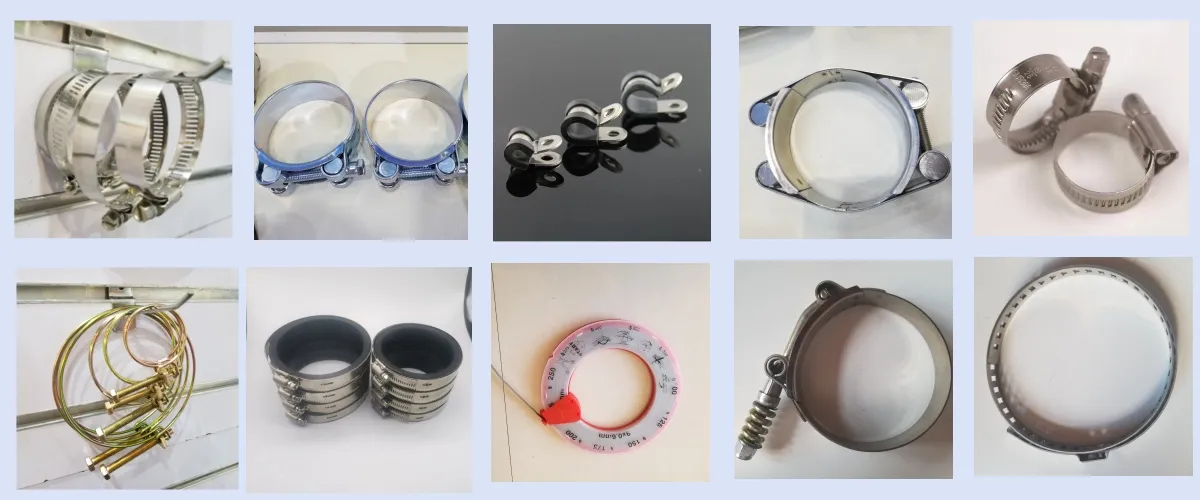

🔵 Product Display & Applications

🔵 Professional Capabilities

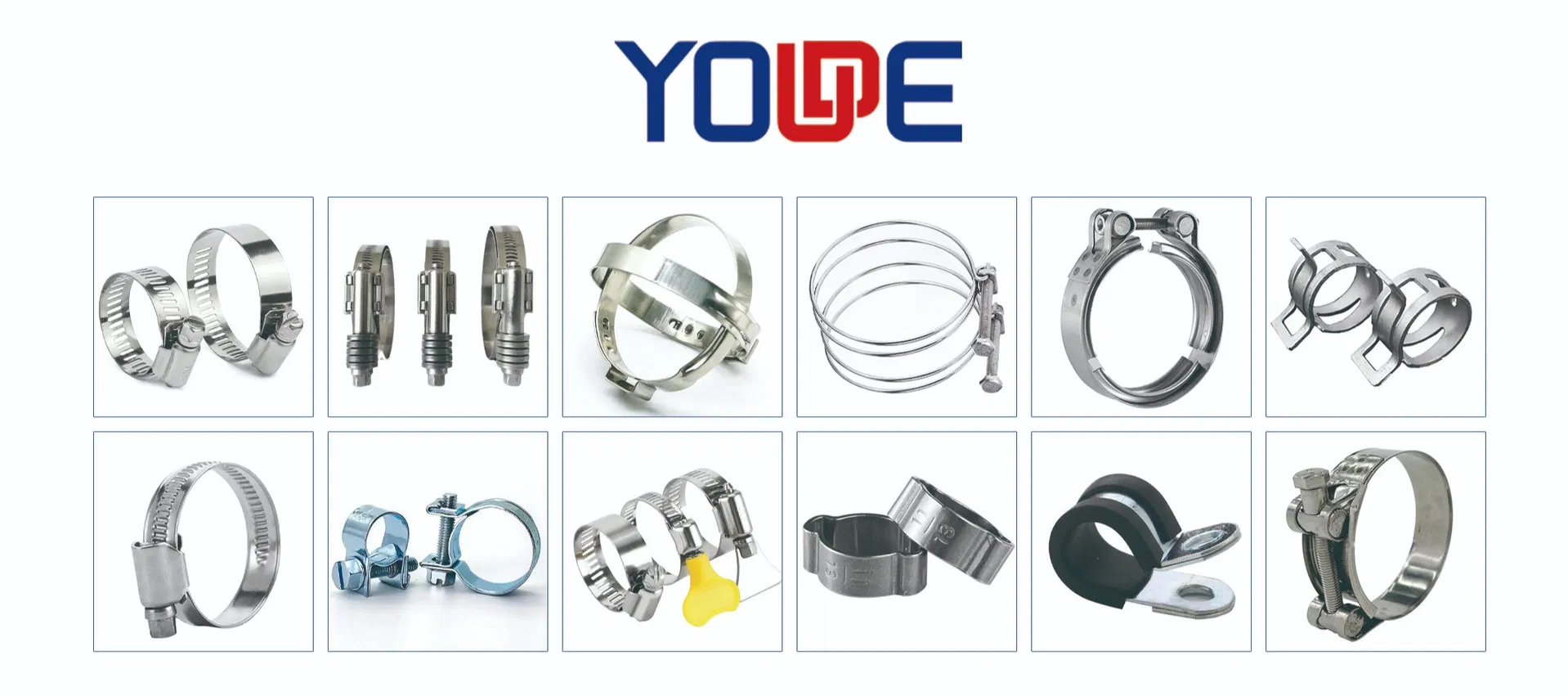

We are a professional supplier of hose clamps with over 16 years of expertise in design, production, and global export. Our range includes worm drive hose clamps, heavy duty clamps, constant tension clamps, T bolt clamps, and V band clamps, serving automotive, industrial, hardware, and plumbing sectors.

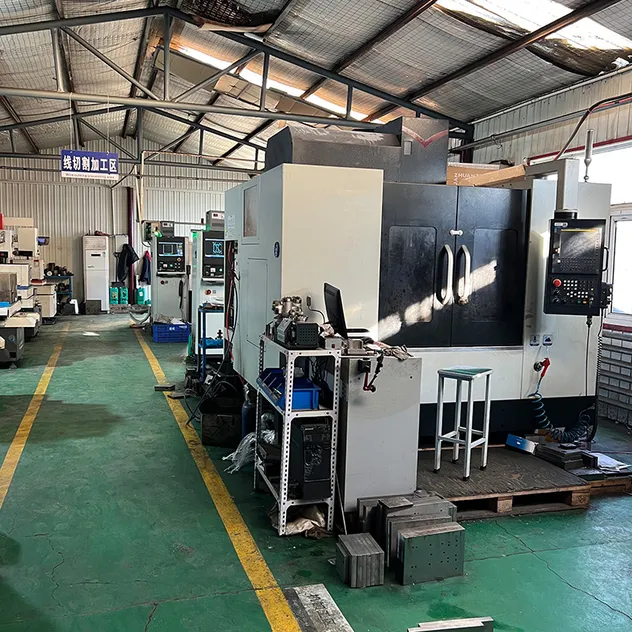

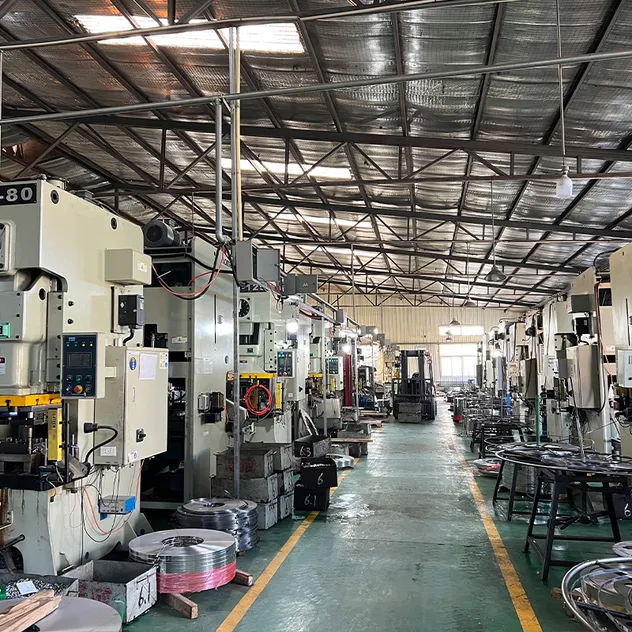

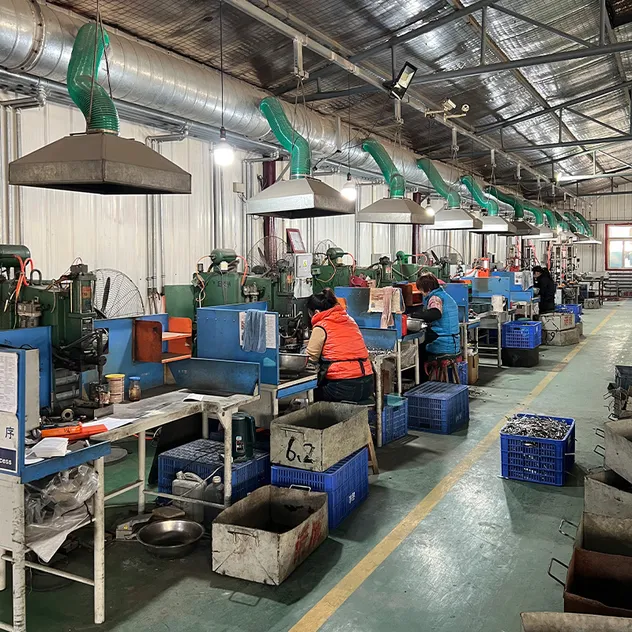

Our technical team provides expert consultation and CAD drawings for customized solutions, supported by modernized manufacturing workshops ensuring precise quality control and reliable delivery timelines.

🔵 Why Choose Our Products

★Expert manufacturing experience to deliver the right product for your needs.

★Strict material testing: thickness, chemical composition, and hardness verification.

★Burr-free edges ensuring safe and easy installation.

★Excellent rust prevention and high wear resistance.

★Low no-load torque (<0.6Nm) and high load torque (>7.5Nm) for secure fastening.

🔵 Frequently Asked Questions

1. What are the main applications for German type hose clamps?

They are widely used for connecting hoses in automobile pipelines, water pumps, fans, food machinery, chemical machinery, and various industrial applications.

2. What is the difference between W1, W2, W4, and W5 materials?

W1 is all galvanized steel; W2 is stainless steel band/housing with a galvanized screw; W4 is full stainless steel (201/304); W5 is full high-grade 316 stainless steel for maximum corrosion resistance.

3. Can the sizes of the hose clamps be customized?

Yes, we can adjust sizes and provide full perforation options based on specific customer inquiries and technical requirements.

4. How do you ensure the quality of each batch?

Every batch of material undergoes careful testing for thickness, chemical composition, and hardness. We also ensure products are burr-free and meet torque performance standards.

5. Is it possible to stamp a logo on the product?

Yes, logos can be professionally stamped on either the housing or the band according to customer requests.

6. What are the tightening torque standards for these clamps?

Our clamps feature a no-load torque of less than 0.6Nm for easy installation and a load torque exceeding 7.5Nm for high-strength fastening.
